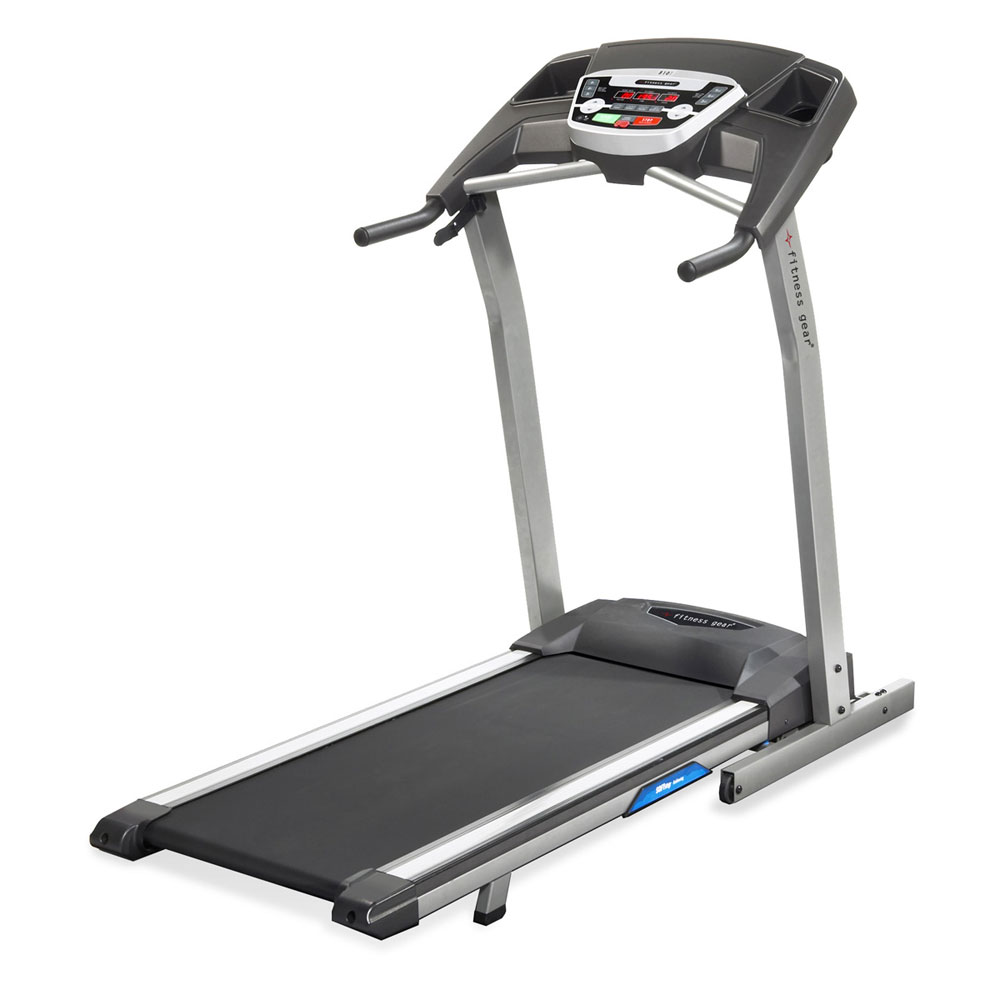

Fitnessgear - 810T - 2007

Repair Parts for Fitnessgear 810T TM268

Brand: Fitnessgear

Category: Folding

Type: Folding Treadmill

Model Name: 810T

Version: 2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700021 000037-CA B22 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
N 700700 001952-00 N08 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N05 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
P 700746 002124-B P13 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

4,5,6
701020 003346-00 P12 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
M 701033 003386-A M22 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
Z 701291 004357-00 Z18 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

2
P 701328 004381-00 P15 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

2
Q 701393 004448-Z Q15 Screw;Round;Hex Socket;M5x0.8Px10L No Model Compatibility List $1.79 / Each

2
M 701434 004481-Z M08 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
R 701445 004488-00 R06 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
R 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
B 701530 004562-00 B19 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
M 701562 004595-00 M16 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
N 701572 004606-00 N20 Screw;Phillip;BH;Tapped;2x4L No Model Compatibility List $1.85 / Each

2
P 701577 004612-00 P20 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
B 701579 004613-00 B28 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

2
Q 701591 004620-00 Q11 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701600 004624-00 Q21 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $2.00 / Each

2
B 701605 004627-00 B25 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

2
Z 701742 004764-00 Z10 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

2
P 701866 004889-00 P16 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
M 701897 004926-00 M14 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M18 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
K 701912 004941-00 K15 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
Z 701964 005005-00 Z12 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
M 701982 005017-AC M13 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
M 702032 005064-A M26 Washer;Flat;8.2x20x3.0T No Model Compatibility List $1.85 / Each

2
M 702075 005108-00 M12 Washer;Flat;10.5x18.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702135 005163-00 Z11 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
H 702153 005189-00 H08 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

2
K 702264 005412-00 KIT Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
P 702450 007490-C P18 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
P 703925 019455-B P06 Cable;Socket to MCB;330L;16AWG;Black No Model Compatibility List $1.90 / Each

4,5,6
Z 703968 020019-00 Z06 Screw;Phillip;BH;M6x1.0Px16L No Model Compatibility List $2.00 / Each

2
M 704010 020100-AB M10 Screw;Hex Socket;Round;5/16'-18UNCx14L;A No Model Compatibility List $2.00 / Each

2
B 704064 020162-A B18 Screw;Hex Head;M10X1.5PX40L-15L No Model Compatibility List $4.00 / Each

2
Z 704175 020425-00 Z07 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

2
P 705211 039124-B P02 Power Cord; 16AWG 2M Yes Model Compatibility List $57.49 / Each

4,5,6
A 705241 039296-A AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
A 705242 039346-A AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
B 705243 039351-B B27 Running Deck;607x1060x15T No Model Compatibility List $249.13 / Each

3
Q 705249 039391-BA Q02 Motor Cover;Bottom No Model Compatibility List $17.47 / Each

9,10
Q 705251 039392-BA Q04 Insert;Side Rail No Model Compatibility List $8.87 / Each

9
Q 705252 039393-AA Q01 Motor Cover;Upper Yes Model Compatibility List $47.37 / Each

9,10
Q 705253 039394-BA Q05 End Cap;Rear Roller;Left No Model Compatibility List $9.57 / Each

8,9
Q 705254 039395-BA Q06 End Cap;Rear Roller;Right No Model Compatibility List $9.57 / Each

8,9
Q 705256 039398-AA Q13 Accent Piece; No Model Compatibility List $9.57 / Each

4,5,6
Q 705257 039399-AA Q09 Access Panel;Console Cable No Model Compatibility List $9.57 / Each

7,4,5,6
K 705259 039400-BA K13 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

8
Q 705260 039403-BA Q08 Cap;Base tube;;;BL;TM196;TM196-Q08C No Model Compatibility List $1.77 / Each

9,3
Q 705261 039404-AA Q10 Cup Holder; No Model Compatibility List $3.54 / Each

1
M 705262 039441-00 M07 Elevation Motor Set;110V/58MM No Model Compatibility List $249.13 / Each

10
M 705273 039679-AA M04 Motor Control Board;1.25/1.50HP No Model Compatibility List $383.27 / Each
Out Of Stock 		7,10
N 705283 040490-CCX N60 Upper Control Board; No Model Compatibility List $189.28 / Each

7
P 705295 040647-A P03 Console Cable; 1800;PIN+2.5-9PIN No Model Compatibility List $38.32 / Each

7,4,5,6,12,13,14
P 705308 040695-A P01 Power Switch Yes Model Compatibility List $28.73 / Each

4,5,6
K 705368 048971-AA K16 Foot Pad;/ D/C, NO REPL: Part will show as orderable until stock is depleted. Yes Model Compatibility List $1.90 / Each

9,3,12,13,14
N 705374 048994-BA N09 Foam Grip L/R; No Model Compatibility List $3.54 / Each

11
K 705382 049024-BA K12 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

1
N 705409 049088-BA N01 Console Shell; No Model Compatibility List $59.10 / Each

7
M 705412 049105-AA M20 Elastomer; M8X1.25PX10L No Model Compatibility List $1.90 / Each

1
Q 705434 049156-BA Q03 Side Rail Set L/R; No Model Compatibility List $19.71 / Each

9
R 705455 049244-A R03 Running Belt;458x2400x1.4T No Model Compatibility List $249.13 / Each

15
M 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $4.00 / Each

2
H 705480 049279-C H06 Screw;Special;M8X1.25PX9L-D10X9.5L;;HE;45#;BOX; No Model Compatibility List $4.00 / Each

2
B 705514 049800-B B09 Belt Guide Yes Model Compatibility List $1.90 / Each

15
A 705566 051345-A AN3 Safety Key Set Yes Model Compatibility List $37.91 / Each

9
A 705584 051784-AA AH1 Elevation Frame; No Model Compatibility List $130.65 / Each

3,10
A 705587 051801-AA AM1 Bracket, Drive Motor; No Model Compatibility List $8.87 / Each

2,3,4,5,6,10
K 705698 055202-A K14 Screw;Umbrella Hex Socket;M10x1.5Px40L-20L No Model Compatibility List $4.00 / Each

2
K 705726 055433-A KIT Hardware Pack No Model Compatibility List $18.43 / Each

4,5,6
A 705733 055452-AA AK2 Front Base Frame Extension, L; No Model Compatibility List $24.60 / Each

3
C 705999 058048-A C04 Lock Latch;Deck Yes Model Compatibility List $19.76 / Each
Out Of Stock 		3
V 706090 058993-AX V07 Decal for Cushion No Model Compatibility List $3.54 / Each

7,3
H 706178 059929-B H09 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

2
Z 706200 060221-00 Z17 Screw;Phillip;BH;M5x0.8Px20L;Gap; No Model Compatibility List $2.00 / Each

2
706379 061645-AA AC2 Console Mast, R; No Model Compatibility List $153.43 / Each

7
M 706601 063746-Z M03 Drive Motor Set JM15-001 ;1.25HP/90V Yes Model Compatibility List $383.27 / Each

10
Q 706685 064420-AA Q20 Latch;Side Rail Yes Model Compatibility List $3.82 / Each

9
N 706786 065557-AA N02 Faceplate; No Model Compatibility List $21.94 / Each

3,4,5,6
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

1
A 708529 1000103102 AK3 Front Base Frame Extension, R; No Model Compatibility List $56.86 / Each

3
R 708921 1000107268 R04 Drive Belt;Poly-V;170-J5 No Model Compatibility List $57.49 / Each

15,10
N 729405 ZMS2000091 N62 Thumb Pulse; No Model Compatibility List $22.46 / Each

12,13,14
Magnetic Safety Key (Used) 1017639 013871-A # 1 Magnetic Safety Key (Used) Yes Model Compatibility List $38.99 / Each

1
Magnetic Safety Key Lanyard (Used) 013699 013871-A 0 1 Magnetic Safety Key Lanyard (Used) No Model Compatibility List $35.09 / Each
Out Of Stock 		1
P 040695-A 040695-A P01 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

1
A 1000631 051345-A AN3 1 Safety Key Set Yes Model Compatibility List $34.99 / Each

1
P 1000730 040695-A P01 1 Power Switch Yes Model Compatibility List $31.99 / Each

1
Screw 3/8-16-1.65 (Used) 1026732 004595-B 0 1 Screw 3/8-16-1.65 (Used) No Model Compatibility List $5.99 / Each

1
sCREW 3/8-16-1.60 1026937 ME0106026B 0 1 sCREW 3/8-16-1.60" (Used) No Model Compatibility List $3.99 / Each

1
M 1002323 039679-AA M04 1 Controller No Model Compatibility List $265.00 / Each
Out Of Stock 		1
R 1002346 1000107268 R04 1 Belt Drive No Model Compatibility List $31.99 / Each

23
P 1002861 002248-D P14 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
