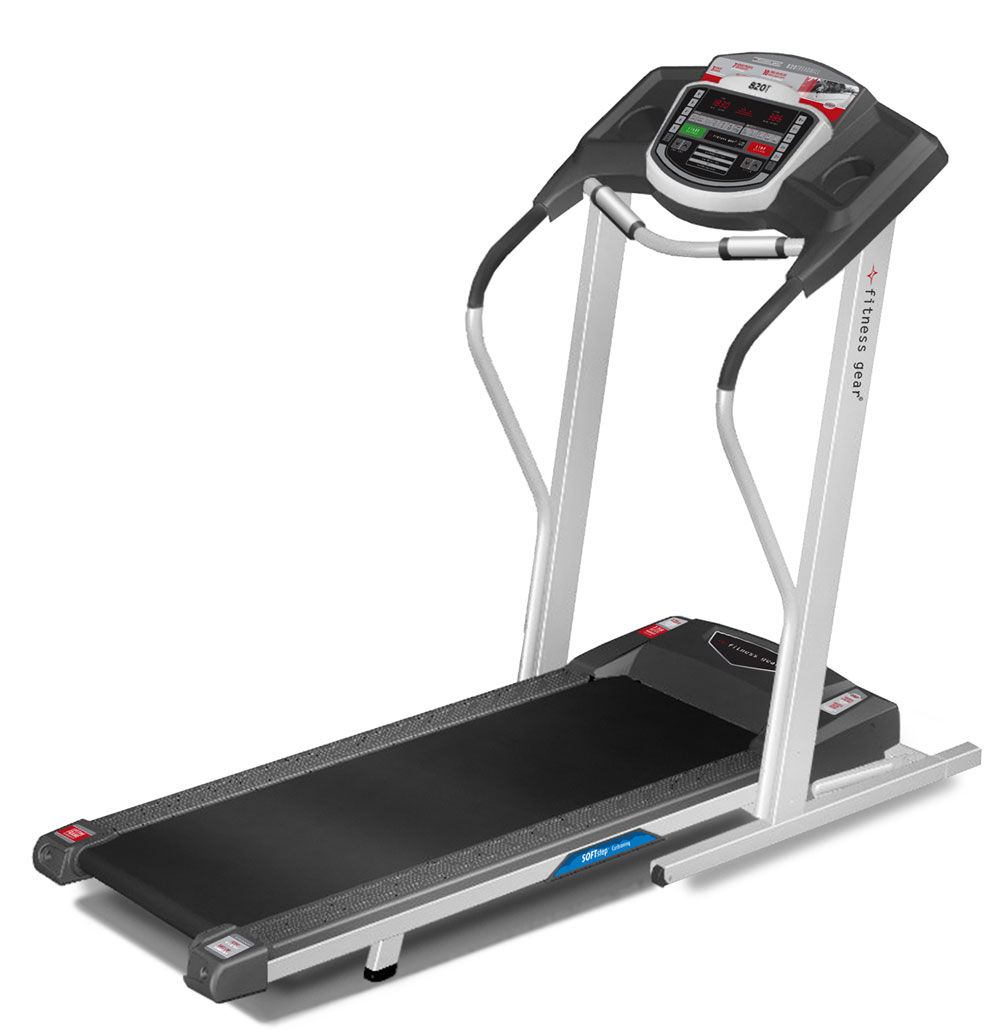

Repair Parts for Fitnessgear 820T TM234
| Brand | Fitnessgear |
|---|---|
| Type | Folding Treadmill |
| Category | Folding |
| Model Number | TM234 |
| Model Name | 820T |
| Version | 2007 |
Model Numbers: TM234
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1017639 | 013871-A | # | 1 | Magnetic Safety Key (Used) | No |
Compatibility List |
$38.99 / Each
|
|
1020937 | 002124-B | 0 | 1 | Power Entry Socket Input Module | Yes |
Compatibility List |
$25.99 / Each
|
|
013699 | 013871-A | 0 | 1 | Magnetic Safety Key Lanyard (Used) | No |
Compatibility List |
$16.19 / Each
|
|
040695-A | 040695-A | 0 | 1 | Power Switch on Off | No |
Compatibility List |
$9.99 / Each
|
|
1000631 | 051345-A | 0 | 1 | Safety Key Set | No |
Compatibility List |
$25.00 / Each
|
|
1000730 | 040695-A | 0 | 1 | Power Switch | No |
Compatibility List |
$9.99 / Each
|
|
1002861 | 002248-D | 0 | 1 | Sensor RPM | No |
Compatibility List |
$25.99 / Each
|
|
706306 | 061116-AA | AC2 | Support Tube R | No |
Compatibility List |
$86.35 / Each
|
|
|
706010 | 058134-AA | AH1 | Elevation Frame Set | No |
Compatibility List |
$107.64 / Each
|
|
|
705588 | 051801-AB | AM1 | Bracket, Drive Motor | No |
Compatibility List |
$37.60 / Each
|
|
|
705566 | 051345-A | AN3 | Safety Key Set | Yes |
Compatibility List |
$25.00 / Each
|
|
|
705241 | 039296-A | AR1 | Front Roller Set | Yes |
Compatibility List |
$129.00 / Each
|
|
|
705242 | 039346-A | AR2 | Rear Roller Set | Yes |
Compatibility List |
$191.62 / Each
|
|
|
702160 | 005196-00 | B12 | Washer, Teflon, 10.5x20.0x1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701562 | 004595-00 | B20 | Screw, Hex, 3/8 16UNC 42L/Tooth14L | No |
Compatibility List |
$2.00 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
705812 | 056298-BA | B23 | Elastomer | No |
Compatibility List |
$1.90 / Each
|
|
|
705244 | 039352-C | B27 | Running Deck, 570x1175x15T | No |
Compatibility List |
$249.13 / Each
|
|
|
701982 | 005017-AC | B36 | Washer, Spring, 10.2x18.4x2.5T, Black | No |
Compatibility List |
$2.00 / Each
|
|
|
705469 | 049262-00 | B38 | Screw, Hex, 3/8 16UNCX55L 14L, HE, P T | No |
Compatibility List |
$4.00 / Each
|
|
|
702450 | 007490-C | B52 | Fix Plate, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
705999 | 058048-A | C04 | Lock Latch, Deck | No |
Compatibility List |
$19.76 / Each
Out Of Stock |
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701781 | 004796-00 | D41 | Bol, M8x1.25Px20L | Yes |
Compatibility List |
$6.00 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
702005 | 005043-00 | E12 | Washer, Flat, 8.2x20x1.5T, Black Zinc | Yes |
Compatibility List |
$5.00 / Each
|
|
|
701755 | 004777-Z | E25 | Screw, Hex Socket, M8x1.25Px45L | No |
Compatibility List |
$1.79 / Each
|
|
|
701288 | 004356-00 | E33 | Screw, Phillip, BH, M4x0.7Px12L, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
701328 | 004381-00 | E60 | Screw, Oval Head, M5x0.8Px25L | No |
Compatibility List |
$3.88 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
705480 | 049279-C | H06 | Screw, Special, M8X1.25PX9L D10X9.5L, HE, 45#, BOX | No |
Compatibility List |
$4.00 / Each
|
|
|
704064 | 020162-A | H10 | Screw, Hex Head, M10X1.5PX40L 15L | No |
Compatibility List |
$4.00 / Each
|
|
|
706602 | 063759-AA | K11 | Base Frame Extension, Left | No |
Compatibility List |
$36.95 / Each
|
|
|
706603 | 063760-AA | K12 | Base Frame Extension, Right | No |
Compatibility List |
$36.95 / Each
|
|
|
705779 | 056233-AA | K13 | Mobile Wheel, Base Frame | No |
Compatibility List |
$9.57 / Each
|
|
|
705813 | 056299-BA | K16 | Leveler, Foot Pad, Gray, NON ROHS, TM234 K16C | No |
Compatibility List |
$1.90 / Each
|
|
|
705956 | 056942-A | K24 | Support Plate for Elastomer | No |
Compatibility List |
$1.77 / Each
|
|
|
700773 | 002248-D | KIT | Speed Sensor Wire, 1000mm(Reed Switch 2.5 2P) | Yes |
Compatibility List |
$18.15 / Each
|
|
|
702257 | 005393-00 | KIT | Wrench, T Type, 6mm | No |
Compatibility List |
$10.24 / Each
|
|
|
705973 | 057908-A | KIT | Hardware Pack | No |
Compatibility List |
$19.76 / Each
|
|
|
707457 | 1000092805 | KIT | Silicon Oil, 40ml | No |
Compatibility List |
$16.88 / Each
|
|
|
700021 | 000037-CA | L05 | Transport Wheel, Frame | Yes |
Compatibility List |
$6.42 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
706601 | 063746-Z | M03 | Drive Motor Set JM15 001, 1.25HP/90V | No |
Compatibility List |
$383.27 / Each
|
|
|
705273 | 039679-AA | M04 | Motor Control Board, 1.25/1.50HP | No |
Compatibility List |
$383.27 / Each
Out Of Stock |
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
705262 | 039441-00 | M07 | Elevation Motor Set, 110V/58MM | No |
Compatibility List |
$249.13 / Each
|
|
|
701434 | 004481-Z | M08 | Screw, Hex Socket, Round, M8x1.25Px45L | No |
Compatibility List |
$2.00 / Each
|
|
|
701590 | 004619-AB | M08 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
702075 | 005108-00 | M12 | Washer, Flat, 10.5x18.0x2.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
701033 | 003386-A | M17 | Ferrite Core, T31x16x19 C | No |
Compatibility List |
$13.26 / Each
|
|
|
705412 | 049105-AA | M20 | Elastomer, M8X1.25PX10L | No |
Compatibility List |
$1.90 / Each
|
|
|
701476 | 004523-00 | M46 | Screw, Hex Socket, Round, M8x1.25Px40L, Adhe | No |
Compatibility List |
$2.58 / Each
|
|
|
705255 | 039396-BA | N02 | Faceplate Only | No |
Compatibility List |
$35.46 / Each
|
|
|
700700 | 001952-00 | N22 | Fixing Plate, Reed Switch | No |
Compatibility List |
$1.90 / Each
|
|
|
700702 | 001956-C | N23 | Reed Switch | Yes |
Compatibility List |
$21.27 / Each
|
|
|
705181 | 039042-A | N32 | Pulse Sensor | Yes |
Compatibility List |
$18.28 / Each
|
|
|
701605 | 004627-00 | N40 | Screw, Phillip, BH, Tapped, 5x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
705688 | 055168-AX | N61 | Overlay, D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$53.22 / Each
|
|
|
701579 | 004613-00 | N84 | Screw, Phillip, BH, Tapped, 3x12L, Gap, Zn B | No |
Compatibility List |
$3.88 / Each
|
|
|
705285 | 040613-B | N86 | Ground Wire, 250 | No |
Compatibility List |
$1.90 / Each
|
|
|
702264 | 005412-00 | Not Shown | Wrench, L Type, 5mm, With Screwdriver | No |
Compatibility List |
$2.00 / Each
|
|
|
705211 | 039124-B | P02 | Power Cord, 16AWG 2M | Yes |
Compatibility List |
$57.49 / Each
|
|
|
706319 | 061190-A | P03 | Console Cable (Upper Board) | No |
Compatibility List |
$35.46 / Each
|
|
|
706320 | 061192-A | P03 | Console Cable, Mast, 2400mm | No |
Compatibility List |
$38.32 / Each
|
|
|
701020 | 003346-00 | P04 | Circuit Breaker, 12A, 125V/250V | Yes |
Compatibility List |
$20.00 / Each
|
|
|
703919 | 019354-A | P05 | Connecting Cable, Breaker/Switch, Black, 120mm | No |
Compatibility List |
$13.00 / Each
|
|
|
703925 | 019455-B | P06 | Cable, Socket to MCB, 330L, 16AWG, Black | Yes |
Compatibility List |
$1.90 / Each
|
|
|
1036808 | 019354-A | P07 | Power harness wire | Yes |
Compatibility List |
$13.00 / Each
|
|
|
700746 | 002124-B | P08 | Connecting Cable, Socket/Breaker, 60, 16AWG Black | No |
Compatibility List |
$3.82 / Each
|
|
|
705308 | 040695-A | P09 | Power Switch | Yes |
Compatibility List |
$9.99 / Each
|
|
|
1001433 | 002248-D | P09 | RPM Speed Sensor Reed Switch | No |
Compatibility List |
$9.99 / Each
|
|
|
701581 | 004614-AB | P17 | Screw, Phillip, Umbrella, Tapped, 3x10L, Black | No |
Compatibility List |
$2.00 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
706870 | 066458-AA | Q01 | Motor Cover | No |
Compatibility List |
$43.86 / Each
|
|
|
705249 | 039391-BA | Q02 | Motor Cover, Bottom | No |
Compatibility List |
$17.47 / Each
|
|
|
705864 | 056390-AB | Q05 | End Cap, Rear Roller, Left | No |
Compatibility List |
$9.57 / Each
Out Of Stock |
|
|
705870 | 056397-AB | Q06 | End Cap, Rear Roller, Right | No |
Compatibility List |
$9.57 / Each
Out Of Stock |
|
|
705834 | 056330-BA | Q08 | End Cap, Base Frame | No |
Compatibility List |
$3.82 / Each
|
|
|
705257 | 039399-AA | Q09 | Access Panel, Console Cable | Yes |
Compatibility List |
$9.57 / Each
|
|
|
705821 | 056315-AA | Q10 | Water Bottle Holder | No |
Compatibility List |
$3.54 / Each
|
|
|
705888 | 056431-AC | Q13 | Accent Piece, Side Rail | No |
Compatibility List |
$3.54 / Each
|
|
|
705758 | 056045-C | R03 | Running Belt, 458x2670x1.4T | No |
Compatibility List |
$249.13 / Each
|
|
|
708921 | 1000107268 | R04 | Drive Belt, Poly V, 170 J5 | No |
Compatibility List |
$25.00 / Each
|
|
|
1002346 | 1000107268 | R04 | 1 | Belt Drive | Yes |
Compatibility List |
$25.00 / Each
|
|
701445 | 004488-00 | R09 | Screw, Hex Socket, Round, M8x1.25Px55L, BED | Yes |
Compatibility List |
$2.00 / Each
|
|
|
706088 | 058975-AX | V02 | Decal, Motor Cover | No |
Compatibility List |
$3.54 / Each
|
|
|
701713 | 004730-00 | Z03 | Screw, Oval Hex Socket, M8X1.25PX50L | Yes |
Compatibility List |
$2.00 / Each
|
|
|
702135 | 005163-00 | Z07 | Washer, Arc, 8.4x17x1.0T | No |
Compatibility List |
$2.57 / Each
|
|
|
734306 | 1000463258 | Z08 | WRENCH, Hex T Type, 6mmx130L | No |
Compatibility List |
$14.99 / Each
|
|
|
704175 | 020425-00 | Z09 | Washer, Flat, 8.4x15.5x1.6T | Yes |
Compatibility List |
$2.00 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1000418 | 051345-A | Magnetic Safety Key | No |
Compatibility List |
$25.00 / Each
|
||
|
1002652 | 003346-00 | Power 12a Circuit Breaker | No |
Compatibility List |
$8.99 / Each
|
||
|
1001368 | 040695-A | Power Switch On Off | No |
Compatibility List |
$9.99 / Each
|
||
|
1036323 | 039459-00 | DC Motor | No |
Compatibility List |
$193.99 / Each
Out Of Stock |
||
|
1009513 | pwr-cri-13 | 12AMP Power Circuit Breaker QMB 123 11C3N 3BA (New) | No |
Compatibility List |
$29.99 / Each
|
||
|
1009798 | 003346-00 | Power Circuit Breaker 12AMP (New) | No |
Compatibility List |
$20.00 / Each
|
||
|
912107 | 1000465333 | Nut Locking Nylon 3/8 | No |
Compatibility List |
$11.99 / Each
|
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
Catalog #: 705688
MPN: 055168-AX
Overlay, D/C, NO REPL: Part will show as orderable until stock is depleted.
$53.22 / each
Catalog #: 1009513
MPN: pwr-cri-13
12AMP Power Circuit Breaker QMB 123 11C3N 3BA (New)
$29.99 / each
