FreeMotion - 530 INTERACTIVE

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100427 100139 100427 34 5/16" NUT Yes Model Compatibility List $1.56 / Each

2
102634 100111 102634 # 8" GRN WIRE F/R, POWER No Model Compatibility List $4.75 / Each

4,5,6
102973 109942 102973 52 3/8 No Model Compatibility List $5.09 / Each

2,12,13,14
114078 102521 114078 32 INCLINE MTR SPACER Yes Model Compatibility List $1.84 / Each

2,3,4,5,6,10
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6
116926 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
119425 100031 119425 33 3/8" HEX JAM NUT No Model Compatibility List $1.65 / Each

2
121576 100424 121576 98 SPRING NUT Yes Model Compatibility List $0.34 / Each

2
126146 100112 126146 # 4" BLU WIRE F/F, DR MOTOR No Model Compatibility List $2.43 / Each

4,5,6
128457 100190 128457 # 3/16-7/32 ALLEN WRENCH No Model Compatibility List $9.99 / Each

2
130853 100362 130853 27 CONSOLE BACK SCREW, 1/2" Yes Model Compatibility List $0.23 / Each

2,4,5,6,7
100073 132315 86 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6
133333 100032 133333 68 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

2,9
013423 100258 013423 10B 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

2
013492 102272 013492 # ISOLATOR BOLT, BOTTOM No Model Compatibility List $1.76 / Each

2,3
013607 100132 013607 14 #8 X 3/4" TRUSS HEAD SCRW No Model Compatibility List $0.22 / Each

2
136728 100137 136728 19 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
014149 100449 014149 11 5/16" STAR WASHER No Model Compatibility List $0.20 / Each

2
014157 100141 014157 24 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
100264 146427 12 1" TEK SCREW No Model Compatibility List $0.28 / Each

2
152478 100695 152478 30 M8 X 25MM WASHER Yes Model Compatibility List $0.75 / Each

2
016057 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
163045 100123 163045 13 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $1.30 / Each

2
102819 163253 # 10" BLACK WIRE,M/F No Model Compatibility List $3.65 / Each

4,5,6
173169 100061 173169 104 GROMMET Yes Model Compatibility List $0.94 / Each

2
174801 102653 174801 2 1/2 No Model Compatibility List $0.52 / Each

2
179767 100134 179767 29 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $2.87 / Each

2
109927 181979 63 3/8" X 1 1/4" SCREW No Model Compatibility List $2.37 / Each

2
181980 106813 181980 62 3/8" X 1 1/2" BOLT Yes Model Compatibility List $4.59 / Each

2
186726 100201 186726 75 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6
186819 100120 186819 10A #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
111553 188958 26 1/4" STAR WASHER No Model Compatibility List $0.11 / Each

2
104797 195481 5 5/16" X 1 1/4" SCREW No Model Compatibility List $1.13 / Each

2
103179 198081 # 6" BLUE WIRE, M/F No Model Compatibility List $2.90 / Each

4,5,6
102818 198085 # 12" RED WIRE,M/F No Model Compatibility List $3.97 / Each

4,5,6
198639 100147 198639 46 BELT GUIDE Yes Model Compatibility List $10.99 / Each

15
111812 207780 39 ISOLATOR No Model Compatibility List $9.37 / Each

3
211260 100163 211260 # INCLINE MOTOR WIRE HRNS 12 No Model Compatibility List $15.87 / Each

4,5,6,10,12,13,14
215822 100187 215822 58 4 No Model Compatibility List $5.39 / Each

4,5,6,7
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
219168 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $6.81 / Each

1,3,15
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
100182 227199 77 UPRIGHT GROMMET No Model Compatibility List $1.55 / Each

2,3
100185 240351 48 ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6
111807 242417 28 5/16" X 2 1/4" SCREW Yes Model Compatibility List $1.73 / Each

2
243797 100292 243797 92 CONSOLE CLAMP No Model Compatibility List $3.74 / Each

9
100178 252433 91 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3
258536 111805 258536 9 5/16" X 1 3/4" SCREW Yes Model Compatibility List $2.40 / Each

2
260687 100158 260687 55 DRIVE MOTOR BELT Yes Model Compatibility List $44.18 / Each

10,15
263724 111823 263724 61 IDLER ROLLER Yes Model Compatibility List $102.56 / Each

8
264255 111806 264255 18 5/16" X 3/4" SCREW No Model Compatibility List $1.44 / Each

2
100143 265234 53 1/4" X 1 1/4" SCREW No Model Compatibility List $1.24 / Each

2
286707 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

10
291486 100133 291486 37 #8X5/8" DECKRAIL SCREW No Model Compatibility List $1.38 / Each

2,3,9
295756 100014 295756 20 1/4 No Model Compatibility List $0.99 / Each

2
298474 102459 298474 59 RUBBER GROMMET No Model Compatibility List $7.02 / Each

2
298484 102454 298484 23 5/16 Yes Model Compatibility List $1.61 / Each

2
398063 111830 398063 72 CONTROLLER Yes Model Compatibility List $199.83 / Each

7,8
100037 305284 43 LATCH WARNING DECAL No Model Compatibility List $1.50 / Each

7,3
307032 100180 307032 3 THICK BASE PAD Yes Model Compatibility List $9.36 / Each

3,12,13,14
314522 111850 314522 103 BASE PAD SPACER Yes Model Compatibility List $3.00 / Each

2,3,4,5,6,12,13,14
100140 315068 21 LIFT FRAME PIN No Model Compatibility List $6.00 / Each

3,10,12,13,14
315689 100209 315689 69 INCLINE MOTOR - AC Lift Motor Yes Model Compatibility List $131.26 / Each

10
111832 324273 79 LEFT HANDRAIL GRIP No Model Compatibility List $19.10 / Each

9,3,11
324274 111804 324274 8 RIGHT HANDRAIL GRIP Yes Model Compatibility List $19.10 / Each

3,9,11
324275 111839 324275 87 LEFT HANDRAIL COVER Yes Model Compatibility List $15.39 / Each

3,9
324276 111808 324276 31 RIGHT HANDRAIL COVER No Model Compatibility List $15.39 / Each

3,9
324277 111851 324277 105 LEFT TRAY No Model Compatibility List $23.53 / Each

1
324278 111852 324278 106 RIGHT TRAY Yes Model Compatibility List $23.53 / Each

1
405616 111820 405616 54 DRIVE MOTOR No Model Compatibility List $311.30 / Each

10
111803 341768 7 3/8" X 2 1/4" SCREW No Model Compatibility List $4.36 / Each

2
111829 343447 71 FRAME SPACER No Model Compatibility List $4.80 / Each

2,3,4,5,6
346519 109924 346519 16 3/8" X 1 1/2" BOLT Yes Model Compatibility List $4.08 / Each

2
111831 347853 78 BELLY PAN No Model Compatibility List $73.80 / Each

1
347877 110968 347877 88 KEY Yes Model Compatibility List $25.29 / Each

9
348118 111089 348118 40 REAR FOOT Yes Model Compatibility List $10.49 / Each

9
348438 111821 348438 57 LEFT REAR FOOT Yes Model Compatibility List $21.98 / Each

9
348439 111816 348439 47 RIGHT REAR FOOT Yes Model Compatibility List $18.68 / Each

9
349102 111834 349102 81 UPRIGHT WIRE No Model Compatibility List $52.98 / Each

3,4,5,6
349566 111817 349566 49 DRIVE ROLLER/PULLEY Yes Model Compatibility List $110.86 / Each

8,10
100211 349816 41 LATCH PLATE No Model Compatibility List $10.64 / Each

1
350009 111815 350009 45 WALKING BELT No Model Compatibility List $117.88 / Each

15
111842 350077 93 LEFT PULSE BAR No Model Compatibility List $116.59 / Each

12,13,14
111845 350079 96 RIGHT PULSE BAR No Model Compatibility List $116.59 / Each

12,13,14
350350 111802 350350 6 1/4-20X4.5" Button Head Screw Yes Model Compatibility List $5.75 / Each

2
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6
358342 111826 358342 66 LATCH ASSEMBLY Yes Model Compatibility List $97.09 / Each

1
364027 102396 364027 15 1/4" X 2 1/2" BOLT Yes Model Compatibility List $2.01 / Each

2
100153 365327 73 CONTROLLER PLATE No Model Compatibility List $18.74 / Each

7,8
365328 111847 365328 99 CONTROLLER CLAMP Yes Model Compatibility List $11.40 / Each

4,5,6,7,8
109931 372033 22 3/8" X 1" SCREW No Model Compatibility List $4.07 / Each

2
109941 372092 102 3/8" BUSHING No Model Compatibility List $3.48 / Each

8
372093 111827 372093 67 ROLLER SPACER Yes Model Compatibility List $7.13 / Each

3
111809 372094 35 9/32" PLASTIC BUSHING No Model Compatibility List $3.60 / Each

8,9
372381 111828 372381 70 INCLINE FRAME Yes Model Compatibility List $110.09 / Each

3,10
372591 111811 372591 38 WHEEL No Model Compatibility List $5.27 / Each

8
372701 111849 372701 101 RIGHT INNER BASE COVER Yes Model Compatibility List $33.65 / Each

3,9
372702 111848 372702 100 LEFT INNER BASE COVER Yes Model Compatibility List $33.65 / Each

3,9
372703 111836 372703 83 RIGHT BASE COVER Yes Model Compatibility List $19.75 / Each

3,9
372704 111835 372704 82 LEFT BASE COVER Yes Model Compatibility List $19.75 / Each

3,9
111843 372843 94 BASE No Model Compatibility List $237.01 / Each

3
111819 373616 51 RIGHT FRAME COVER No Model Compatibility List $61.85 / Each

9,3
111825 375520 65 MOTOR HOOD No Model Compatibility List $102.31 / Each

9
111854 375529 108 UPRIGHT CROSSBAR No Model Compatibility List $51.55 / Each

3
111838 375530 85 LEFT HANDRAIL No Model Compatibility List $44.83 / Each

9,3
111837 375531 84 RIGHT HANDRAIL No Model Compatibility List $44.83 / Each

9,3
111853 375532 107 CONSOLE FRAME No Model Compatibility List $41.41 / Each

7,3
111856 375534 # LITPAC, NOTE: No Model Compatibility List $146.35 / Each

4,5,6
111855 375535 # USER'S MANUAL No Model Compatibility List $17.63 / Each

1
111813 375558 42 LEFT FOOT RAIL No Model Compatibility List $97.49 / Each

9
111822 375559 60 RIGHT FOOT RAIL No Model Compatibility List $97.49 / Each

9

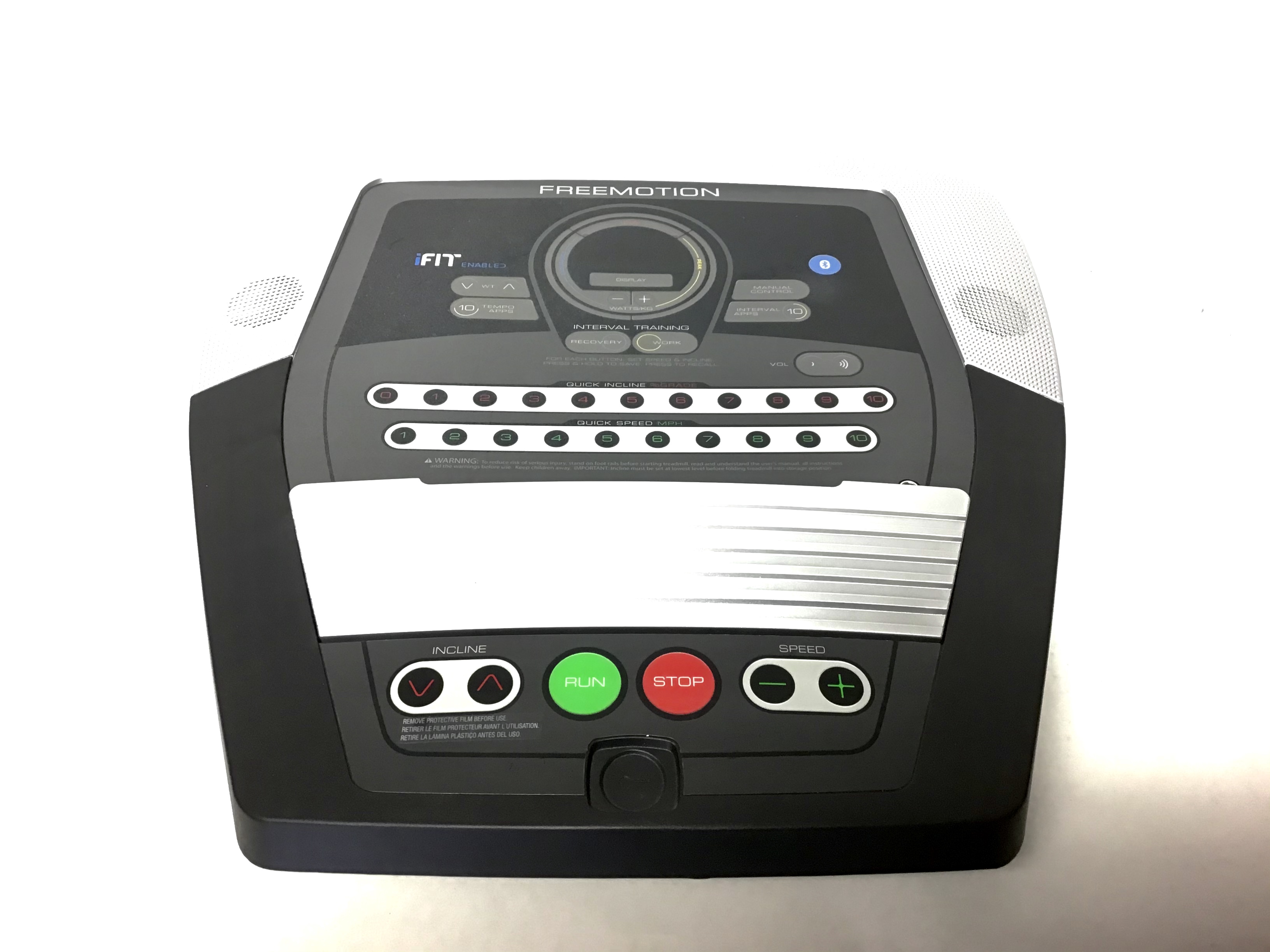

375561 111833 375561 80 CONSOLE Yes Model Compatibility List $390.76 / Each

7
111810 375740 36 TABLET HOLDER No Model Compatibility List $116.70 / Each

1
111857 375921 # HARDWARE KIT, NOTE: No Model Compatibility List $119.60 / Each

1
111840 376259 89 LEFT UPRIGHT No Model Compatibility List $127.53 / Each

3
111841 376260 90 RIGHT UPRIGHT No Model Compatibility List $127.53 / Each

3
111818 376261 50 LEFT FRAME COVER No Model Compatibility List $65.15 / Each

9,3
111846 376273 97 RIGHT PULSE COVER No Model Compatibility List $21.41 / Each

9,12,13,14
111844 376274 95 LEFT PULSE COVER No Model Compatibility List $21.41 / Each

9,12,13,14
111824 376446 64 CONSOLE BASE No Model Compatibility List $112.92 / Each

7,3
111814 378994 44 WALKING PLATFORM No Model Compatibility List $164.77 / Each

15
109928 381122 17 3/8" X 1 3/4" BOLT Yes Model Compatibility List $2.18 / Each

2
045023 100191 045023 # 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

2
110986 ARC14 # WALL ARC FILTER No Model Compatibility List $38.49 / Each

1
