FreeMotion - CARDIOTRAINER 600

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
#12 X 1.25 102620 100691 44 #12 X 1.25" SCREW No Model Compatibility List $1.32 / Each

1
INCLINE SENSOR SWITCH 104351 102955 98 INCLINE SENSOR SWITCH No Model Compatibility List $16.73 / Each

1
SMALL BOLT 104355 102959 113 SMALL BOLT No Model Compatibility List $0.18 / Each

1
101281 104626 89 #8 X 3/4" SCREW No Model Compatibility List $0.11 / Each

1
REAR ROLLER ADJ BOLT 104339 105444 65 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

1
UPRIGHT CAP 104356 108874 . UPRIGHT CAP Yes Model Compatibility List $4.31 / Each

1
INCLINE DISK 104346 109370 84 INCLINE DISK Yes Model Compatibility List $5.31 / Each

1
4 100115 109407 # 4" BLK WIRE F/F, POWER Yes Model Compatibility List $2.93 / Each

1
ROLLER MAGNET 100081 113842 43 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

1
RELEASABLE WIRE TIE 100064 116926 54 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 53 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

1
KEY/CLIP 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

1
3/8 100031 119425 . 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

1
1.25 104342 119445 . 1.25" TEK SCREW No Model Compatibility List $1.46 / Each

1
104328 119994 32 FRAME PIVOT BOLT No Model Compatibility List $2.28 / Each

1
SEAT RAIL FLANGE NUT 104004 120867 3 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

1
1/4 102840 012090 37 1/4" NUT No Model Compatibility List $1.54 / Each

1
GROUND NUT 100277 012152 6 GROUND NUT Yes Model Compatibility List $0.24 / Each

1
U-NUT 100462 012179 . U-NUT No Model Compatibility List $4.42 / Each

1
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
1/4 104341 126038 74 1/4"-20X4.5" MOTOR TENSION BOLT Yes Model Compatibility List $4.92 / Each

1
4 100112 126146 # 4" BLU WIRE F/F, DR MOTOR Yes Model Compatibility List $2.43 / Each

1
20 104352 126911 102 20" WIRE HARNESS Yes Model Compatibility List $12.17 / Each

1
PLATFORM BOLT, FRONT 1/4 100221 128272 68 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

1
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
ROUND GROMMET 101035 129004 99 ROUND GROMMET No Model Compatibility List $1.44 / Each

1
1 100265 013028 39 1" SCREW No Model Compatibility List $1.40 / Each

1
M4 X 13MM SCREW 101030 013162 . M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

1
INCLINE BASE PIVOT BOLT HEX M10-1.5 x 50 MM 104345 132449 83 INCLINE BASE PIVOT BOLT HEX M10-1.5 x 50 MM Yes Model Compatibility List $3.26 / Each

1
100184 013282 60 #10 HANDLEBAR SCREW No Model Compatibility List $0.21 / Each

1
#8 X 3/4 100149 013300 . #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
1/2 100258 013423 16 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

1
104331 013443 38 MOTOR BOLT No Model Compatibility List $0.94 / Each

1
103032 134808 111 EDGE GUARD STRIP No Model Compatibility List $15.76 / Each

1
M4 X 38MM SCREW 102048 013529 69 M4 X 38MM SCREW No Model Compatibility List $1.46 / Each

1
M4.2 X 13MM SCREW 100005 013576 . M4.2 X 13MM SCREW Yes Model Compatibility List $1.25 / Each

1
M10 - 3/8-16 X 2.25 104347 013578 . M10 - 3/8-16 X 2.25" HEX EAD WHEEL BOLT Yes Model Compatibility List $7.28 / Each

1
1/4 100042 014063 36 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

1
5/16 100472 014073 . 5/16" WASHER Yes Model Compatibility List $1.25 / Each

1
3/8 102446 014117 81 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

1
#8 STAR WASHER 100141 014157 78 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

1
100084 142711 # 4" GRN WIRE, F/R, CNTRLR No Model Compatibility List $1.91 / Each

1
WIRE HARNESS 104330 143049 34 WIRE HARNESS Yes Model Compatibility List $65.82 / Each

1
100264 146427 . 1" TEK SCREW No Model Compatibility List $0.28 / Each

1
104324 148101 18 SHORT HOOD BRACKET No Model Compatibility List $0.78 / Each

1
REED SWTICH CLIP 100318 148202 22 REED SWTICH CLIP No Model Compatibility List $2.42 / Each

1
5/16 101663 150699 . 5/16" X 2 1/2" SCREW Yes Model Compatibility List $7.15 / Each

1
RIGHT FRAME GUIDE 104357 154964 120 RIGHT FRAME GUIDE Yes Model Compatibility List $5.56 / Each

1
REAR FOOT 104337 157096 59 REAR FOOT Yes Model Compatibility List $9.82 / Each

1

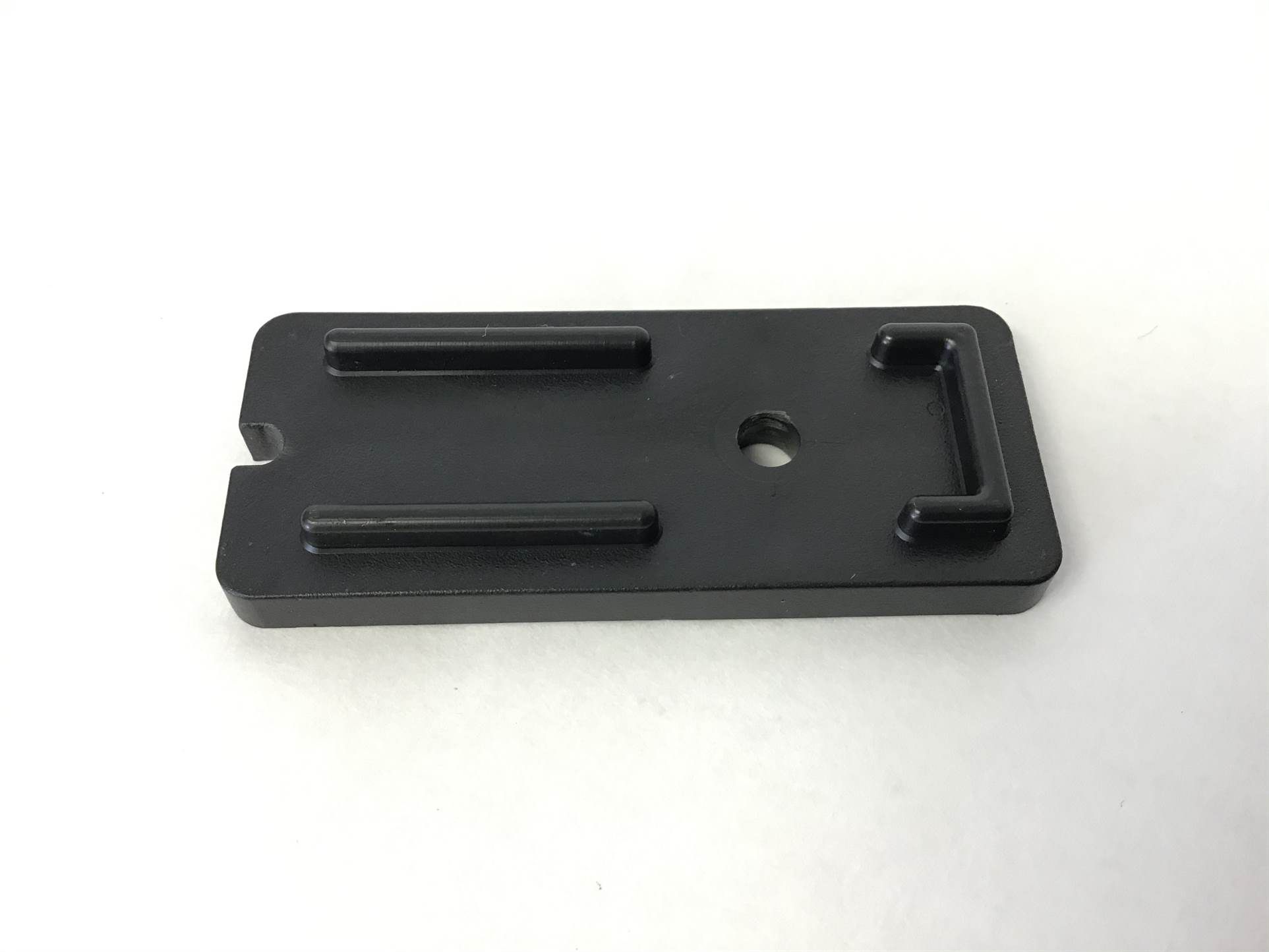

REAR FOOT SPACER 104322 157209 11 REAR FOOT SPACER Yes Model Compatibility List $7.72 / Each

1
FRAME PIVOT SPACER 104329 157295 33 FRAME PIVOT SPACER No Model Compatibility List $13.55 / Each

1
BASE PAD 100076 157600 . BASE PAD Yes Model Compatibility List $1.33 / Each

1
STOP BRACKET 104320 158644 8 STOP BRACKET Yes Model Compatibility List $2.30 / Each

1
TOP LIFT MOTOR BOLT 100347 159986 5 TOP LIFT MOTOR BOLT No Model Compatibility List $7.03 / Each

1
8 100063 016057 72 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
PAD SPACER 100247 161411 58 PAD SPACER Yes Model Compatibility List $3.72 / Each

1
FRONT WHEEL 100369 165009 . FRONT WHEEL Yes Model Compatibility List $5.07 / Each

1
FRONT ROLLER ADJ BOLT 100433 165220 35 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

1
104323 167630 13 INTERFACE BRACKET No Model Compatibility List $1.19 / Each

1
104350 167775 96 INCLINE MOTOR SHIELD No Model Compatibility List $6.06 / Each

1
GROMMET 100061 173169 28 GROMMET Yes Model Compatibility List $0.94 / Each

1
104321 174144 10 HOOD BRACKET PLATE No Model Compatibility List $3.38 / Each

1
3/8 100135 174320 14 3/8"-16X1 1/2" HEX BOLT Yes Model Compatibility List $2.29 / Each

1
104343 177768 80 FRONT ISOLATOR No Model Compatibility List $18.37 / Each

1
MOTOR TENSION WASHER 104348 177910 88 MOTOR TENSION WASHER No Model Compatibility List $3.71 / Each

1
104042 180917 30 GROUND WIRE SCREW No Model Compatibility List $0.12 / Each

1

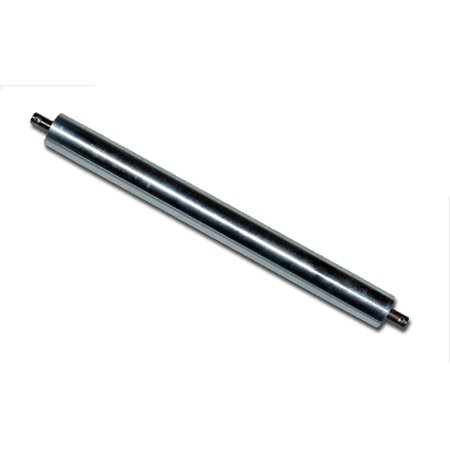

REAR ROLLER 104336 184705 57 REAR ROLLER Yes Model Compatibility List $107.80 / Each

1
CHOKE 104353 185582 106 CHOKE Yes Model Compatibility List $76.47 / Each

1
POWER SWITCH 100201 186726 29 POWER SWITCH Yes Model Compatibility List $16.42 / Each

1
104344 190477 82 RIGHT UPRIGHT No Model Compatibility List $104.83 / Each

1
BELT GUIDE 100040 198640 49 BELT GUIDE Yes Model Compatibility List $18.62 / Each

1
100344 200747 61 GROUND WIRE No Model Compatibility List $2.56 / Each

1
104335 206182 55 WALKING BELT No Model Compatibility List $115.96 / Each

1
104333 206568 45B RED ISOLATOR No Model Compatibility List $18.48 / Each

1
3.5 104354 207753 . 3.5" BOLT Yes Model Compatibility List $6.38 / Each

1
104327 214744 31 INCLINE BASE No Model Compatibility List $140.53 / Each

1
104326 214753 25 ELECTRONICS BRACKET No Model Compatibility List $20.66 / Each

1
104358 218267 # TECH SHEET No Model Compatibility List $0.87 / Each

1
104359 218268 # HOOD DECAL No Model Compatibility List $17.69 / Each

1
CONSOLE WIRE HARNESS 102265 218362 23 CONSOLE WIRE HARNESS Yes Model Compatibility List $30.17 / Each

1
104332 218995 45A YELLOW ISOLATOR No Model Compatibility List $4.37 / Each

1
104338 221113 64 RIGHT REAR ENDCAP No Model Compatibility List $18.25 / Each

1
104334 221114 52 LEFT REAR ENDCAP No Model Compatibility List $18.25 / Each

1
104360 221616 . USER-S MANUAL No Model Compatibility List $6.23 / Each

1
MOTOR BELT 104319 224019 1 MOTOR BELT Yes Model Compatibility List $21.99 / Each

1
104340 241018 71 WALKING BOARD No Model Compatibility List $135.88 / Each

1
104325 248174 24 CONTROLLER No Model Compatibility List $123.05 / Each

1
100178 252433 20 WARNING DECAL No Model Compatibility List $0.47 / Each

1
100280 256836 67 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

1
POWER CORD 100349 031229 27 POWER CORD Yes Model Compatibility List $36.95 / Each

1
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

1
Book Rack Console (Used) 1023501 142583 50 1 Book Rack Console (Used) No Model Compatibility List $5.51 / Each

1
GRIP Plastic 1.7X2.07 Right (Used) 1023513 169678 48 1 GRIP Plastic 1.7X2.07 Right (Used) No Model Compatibility List $24.53 / Each

1
GRIP Plastic 1.7X2.07 Left (Used) 1023512 169679 110 1 GRIP Plastic 1.7X2.07 Left (Used) No Model Compatibility List $24.53 / Each

1
Wire Harness 013040 126911 0 1 Wire Harness Yes Model Compatibility List $18.99 / Each

1
U-Nut 013266 012179 0 1 U-Nut No Model Compatibility List $13.99 / Each

1
Rear Roller Adjustment Bolt 013316 105444 0 1 Rear Roller Adjustment Bolt Yes Model Compatibility List $12.99 / Each

1
Black Wire Harness 2F 4 013318 109407 0 1 Black Wire Harness 2F 4" Yes Model Compatibility List $15.99 / Each

1
Optical RPM Disk 013319 109370 0 1 Optical RPM Disk Yes Model Compatibility List $13.99 / Each

1
Motor Choke Transformer 013345 185582 0 1 Motor Choke Transformer Yes Model Compatibility List $75.99 / Each

1
Motor Pivot Nut 013351 120867 0 1 Motor Pivot Nut No Model Compatibility List $23.39 / Each

1
Front Roller Adjustment Screw 013365 165220 0 1 Front Roller Adjustment Screw No Model Compatibility List $12.99 / Each

1
Transport Wheel 013366 165009 0 1 Transport Wheel Yes Model Compatibility List $13.99 / Each

1
Reed Switch Clip 013373 148202 0 1 Reed Switch Clip No Model Compatibility List $6.99 / Each

1
Plastic Bushing (Used) 1025358 130403 34 1 Plastic Bushing (Used) No Model Compatibility List $4.64 / Each

1
Belt Adjustment Tool 013752 128457 # 1 Belt Adjustment Tool No Model Compatibility List $18.74 / Each

1
Deck rail Endcap (Used) 1023289 148157 4 1 Deck rail Endcap (Used) No Model Compatibility List $9.31 / Each

1
Drive Belt 20 1003636 224019 0 1 Drive Belt 20" Yes Model Compatibility List $32.99 / Each

1
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

1
Roller Rear 1008197 184705 0 1 Roller Rear Yes Model Compatibility List $79.84 / Each

1
Leveler Rear Foot 1008687 157096 0 1 Leveler Rear Foot Yes Model Compatibility List $19.99 / Each

1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

1
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

1
Walking Belt Guide 1010892 198640 64 1 Walking Belt Guide Yes Model Compatibility List $18.62 / Each

1
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

1
Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

1
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

1
Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

1
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

1
1.75 Inch Range Incline Motor Linear Actuator 1031454 190234 1 1.75 Inch Range Incline Motor Linear Actuator No Model Compatibility List $119.00 / Each

1
Power Cord 1000280 031229 Power Cord Yes Model Compatibility List $14.99 / Each

1
Suspa Gas Cylinder Lift Latch Shock 1000088 388199 56 Suspa Gas Cylinder Lift Latch Shock Yes Model Compatibility List $106.59 / Each
Out Of Stock
1
Suspa Gas Cylinder Lift Latch Shock 1000482 388199 56 Suspa Gas Cylinder Lift Latch Shock Yes Model Compatibility List $106.59 / Each
Out Of Stock
1
Motor Controller 1003687 248191 or MC1200-12 Motor Controller Yes Model Compatibility List $157.99 / Each
Out Of Stock
1
Motor Choke Transformer 1002606 185582 or 130993 Motor Choke Transformer Yes Model Compatibility List $38.00 / Each

1
Rear Foot 1004167 rer-fot-67 Rear Foot Yes Model Compatibility List $19.99 / Each

1
View Drawing
