FreeMotion - DUAL CABLE

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
3/8 103373 133945 78 3/8" HEX LOCK NUT Yes Model Compatibility List $0.34 / Each

2
BUSHING 108298 160409 84 BUSHING Yes Model Compatibility List $2.82 / Each

1
108063 212128 # DECAL, 8" BLK/RED STACKED No Model Compatibility List $18.68 / Each

7,3,4,5,6
108303 212130 # DECAL, 5" BLK/RED STACKED No Model Compatibility List $22.99 / Each

7,3,4,5,6
108065 212132 # DECAL, 14" BLK/RED HORZ No Model Compatibility List $17.16 / Each

7,3
108308 217228 # DECAL, ADJUSTMENT WHITE No Model Compatibility List $5.12 / Each

7,3
108307 217229 # DECAL, SELECTOR LT, HORZ No Model Compatibility List $13.34 / Each

7,3
108305 217230 # DECAL, SELECTOR RT, HORZ No Model Compatibility List $13.34 / Each

7,3
108304 217233 # DECAL, PLACARD DCC No Model Compatibility List $35.79 / Each

7,3,4,5,6
108306 217944 # DECAL, SELECTOR RT, DCC No Model Compatibility List $22.29 / Each

7,3,4,5,6
108309 220015 # FOOT PEDAL WARNING DECAL No Model Compatibility List $52.20 / Each

7,8,9,3
103418 285751 86 SPRING No Model Compatibility List $13.37 / Each

2
107436 331959 # CABLE CLIP No Model Compatibility List $64.88 / Each

2,4,5,6
TENSION PULLEY 105889 GZ1003-01 29 TENSION PULLEY Yes Model Compatibility List $53.55 / Each

8
103513 GZ1003-06 82 LARGE PULLEY No Model Compatibility List $0.00 / Each
Out Of Stock
8
107880 GZ1003-09 27 SMALL PULLEY No Model Compatibility List $32.71 / Each

8
103286 GZ1007 73 3/8" NYLON LOCKNUT No Model Compatibility List $0.36 / Each

2
103290 GZ1009-03 41 1/2" X 1.25" BOLT No Model Compatibility List $6.48 / Each

2
1 103247 GZ1011-01 31 1 Yes Model Compatibility List $18.62 / Each

1
107943 GZ1011-02 48 PIVOT PULLEY BEARING No Model Compatibility List $13.05 / Each

8
103336 GZ1012-01 71 3/8" X 3/4" BTNHD SCREW No Model Compatibility List $2.74 / Each

2
103285 GZ1012-07 35 3/8" X 1/2" BUTTON SCREW No Model Compatibility List $1.76 / Each

2
3/8 103607 GZ1012-12 103 3/8" X 1 1/4" BOLT Yes Model Compatibility List $1.98 / Each

2
103370 GZ1013-01 79 3/8" X 3/4" BOLT No Model Compatibility List $2.43 / Each

2
103287 GZ1013-02 37 3/8" X 1.75" BOLT No Model Compatibility List $3.71 / Each

2
103291 GZ1013-04 38 3/8" X 2" BOLT No Model Compatibility List $3.09 / Each

2

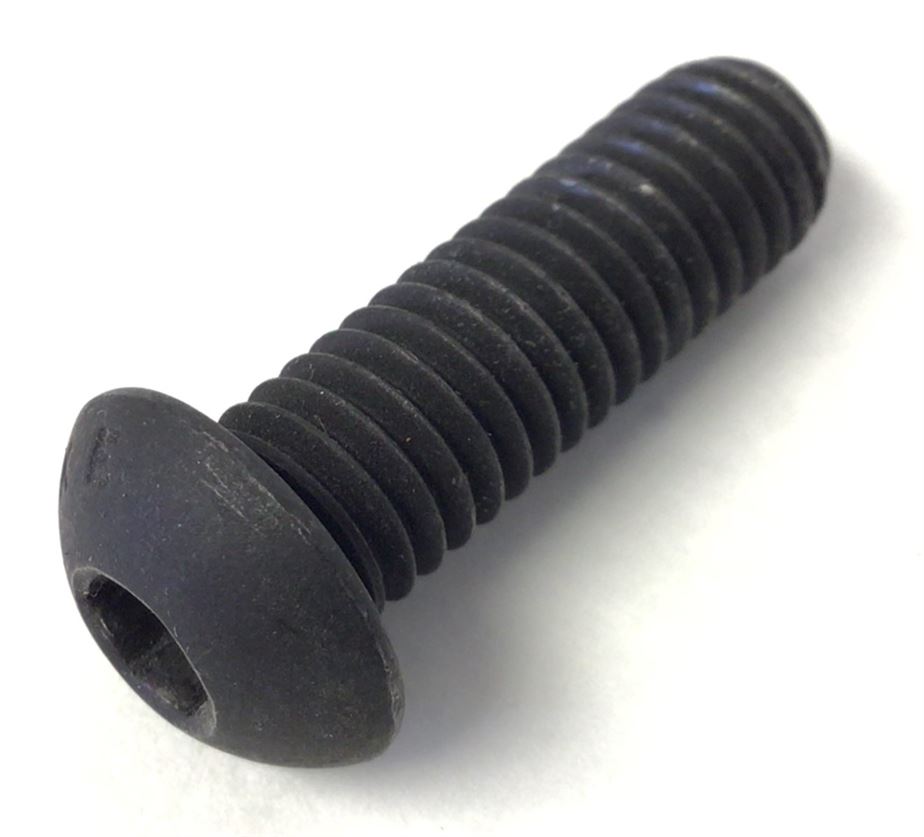

3/8 103334 GZ1013-11 36 3/8"-16 X 4.5" SOCKET CAP SCREW - BOLT Yes Model Compatibility List $14.99 / Each

2
103368 GZ1013-12 95 3/8" X 1.25" BOLT No Model Compatibility List $3.87 / Each

2
107431 GZ1015-05 85 5/16" X 5/8" SCKT HD SCRW No Model Compatibility List $1.07 / Each

1
107424 GZ1018-01 28 RETAINER RING No Model Compatibility List $1.90 / Each

1
108059 GZ1018-03 50 1 1/8" RETAINER RING No Model Compatibility List $5.51 / Each

1
103479 GZ1020 24 GUIDE BUSHINGOD No Model Compatibility List $13.10 / Each

8
103288 GZ1021-01 56 RIVET No Model Compatibility List $1.03 / Each

1
108319 GZ1021-02 60 LONG RIVET No Model Compatibility List $1.88 / Each

1
SHOULDER SCREW 3/4 x 5 INCH 104243 GZ1042-02 42 SHOULDER SCREW 3/4 x 5 INCH Yes Model Compatibility List $42.34 / Each

2
103460 GZ1047 45 1/4" X 3/8" SET SCREW No Model Compatibility List $0.89 / Each

2
101282 GZ1049 33 WAVE WASHER No Model Compatibility List $8.49 / Each

2,4,5,6
101290 GZ1050 32 AXLE WASHER No Model Compatibility List $3.67 / Each

2,8
101239 GZ1052 94 NYLON WASHER No Model Compatibility List $2.44 / Each

2
108052 GZ1062 44 RUBBER COVER No Model Compatibility List $6.64 / Each

9
103262 GZ1069 67 PULLEY WASHER No Model Compatibility List $1.51 / Each

2,8
108054 GZ1070 49 EYEBOLT No Model Compatibility List $6.45 / Each

2
103346 GZ1074 81 5/16" WASHER No Model Compatibility List $0.23 / Each

2
106100 GZ1075 92 3/8" LOCKNUT No Model Compatibility List $0.70 / Each

2
103298 GZ1083 70 3/8" FINE-THREAD NUT No Model Compatibility List $0.19 / Each

2,12,13,14
103478 GZ1084 101 GUIDE ROD NUT No Model Compatibility List $0.97 / Each

2,3
103481 GZ1085 102 GUIDE WASHER No Model Compatibility List $0.69 / Each

2
103554 GZ1086-02 58 LARGE HANDGRIP No Model Compatibility List $20.45 / Each

11
103392 GZ1094 74 1/4" LOCKNUT No Model Compatibility List $0.22 / Each

2
103338 GZ1100 89 BUMPER No Model Compatibility List $6.08 / Each

1
103414 GZ1109 100 1/2" NYLON LOCKNUT No Model Compatibility List $1.22 / Each

2
103268 GZ1111 25 ARM BUMPER No Model Compatibility List $23.57 / Each

3
101277 GZ1188 91 3/8X1 1/4" BTTNHEAD SCREW No Model Compatibility List $4.12 / Each

2
103504 GZ1193 23 PULLEY BUMPER No Model Compatibility List $0.00 / Each
Out Of Stock
8
103475 GZ1391-01 68 GUIDE BUSHING No Model Compatibility List $17.16 / Each

8
103280 GZ1418 51 ROD NUT No Model Compatibility List $3.99 / Each

2,3
103281 GZ1419 99 STAR WASHER 1" No Model Compatibility List $2.66 / Each

2
103282 GZ1431 52 ROD WASHER 1" X 2" OD No Model Compatibility List $1.76 / Each

2,3
107426 GZ1485 40 3/4" BUSHING No Model Compatibility List $17.71 / Each

8
103269 GZ1504 83 SHORT TRIM No Model Compatibility List $2.99 / Each

1
103275 GZ1517 19 TOWER FOOT No Model Compatibility List $13.41 / Each

9,46
108286 GZ1657 34 WEIGHT PIN No Model Compatibility List $73.46 / Each

3,12,13,14
103476 GZ1678 22 WEIGHT BUMPER No Model Compatibility List $21.14 / Each

3
108324 GZ1880 90 1/2 X 1 1/2"SCKTHEAD BOLT No Model Compatibility List $0.00 / Each
Out Of Stock
2
108321 GZ2327 62 RIGHT PIVOT ADJ BRACKET No Model Compatibility List $325.84 / Each

2,8,3,4,5,6
108320 GZ2328 61 LEFT PIVOT ADJ BRACKET No Model Compatibility List $325.82 / Each

2,8,3,4,5,6
108284 GZ30419 18 TOWER COVER No Model Compatibility List $128.17 / Each

9
108282 GZ30420 12 LEFT CABLE COVER No Model Compatibility List $131.85 / Each

9,4,5,6
108295 GZ30421 64 RIGHT CABLE COVER No Model Compatibility List $136.49 / Each

9,4,5,6
107881 GZ30429 72 SMALL CABLE TRAP No Model Compatibility List $15.54 / Each

4,5,6
108281 GZ30440 11 ADJUSTMENT BRACKET No Model Compatibility List $0.00 / Each
Out Of Stock
2,3,4,5,6
108297 GZ30443 66 PULLEY BLOCK No Model Compatibility List $0.00 / Each
Out Of Stock
8
108287 GZ30458 39 PULLEY BRACKET No Model Compatibility List $0.00 / Each
Out Of Stock
2,8,3,4,5,6
108290 GZ30464 55 TOP TOWER PLATE No Model Compatibility List $40.65 / Each

1
108301 GZ30507 96 LEFT PEDAL COVER No Model Compatibility List $19.02 / Each

8,9
108302 GZ30527 97 RIGHT PEDAL COVER No Model Compatibility List $19.02 / Each

8,9
108061 GZ3053 26 TRUNNION No Model Compatibility List $48.41 / Each

1
103324 GZ30598 13 10 LB WEIGHT No Model Compatibility List $56.70 / Each

3
103506 GZ3091 88 DOUBLE CABLE GUARD No Model Compatibility List $18.74 / Each

9,3,4,5,6
103261 GZ3102 63 CABLE GUARD No Model Compatibility List $16.30 / Each

9,3,4,5,6
108121 GZ3116 20 HANDLEBAR No Model Compatibility List $86.44 / Each

11
108119 GZ3203-01 17 LEFT SUPPORT LEG COVER No Model Compatibility List $122.01 / Each

9,3
108118 GZ3203-02 16 RIGHT SUPPORT LEG COVER No Model Compatibility List $120.63 / Each

9,3
108053 GZ3238 46 ALUMINUM COUPLER No Model Compatibility List $102.18 / Each

1
107420 GZ3248-01 21 WEIGHT GUIDE No Model Compatibility List $113.72 / Each

3
108099 GZ3350 98 ADJUSTMENT KNOB No Model Compatibility List $73.13 / Each

1
103514 GZ3949 93 LARGE CABLE GUARD No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,4,5,6
108260 GZ3950 30 LARGE DOUBLE CABLE GUARD No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,4,5,6
108278 GZ4331 8 SWIVEL ARM No Model Compatibility List $184.99 / Each

3
108277 GZ4336 6 LEFT ARM No Model Compatibility List $336.97 / Each

3
108276 GZ4337 5 RIGHT ARM No Model Compatibility List $297.21 / Each

3
108274 GZ4340 3 RIGHT SUPPORT LEG No Model Compatibility List $0.00 / Each
Out Of Stock
3
108275 GZ4341 4 LEFT SUPPORT LEG No Model Compatibility List $0.00 / Each
Out Of Stock
3
108296 GZ4345 65 U-BRACKET No Model Compatibility List $65.35 / Each

2,3,4,5,6
108318 GZ4383 59 PIVOT PLATE No Model Compatibility List $297.95 / Each

8
108076 GZ4509 # COUPLER ASSY No Model Compatibility List $91.61 / Each

1
108077 GZ4546 # BUNGEE CORD KIT No Model Compatibility List $10.55 / Each

4,5,6
108107 GZ4549-02 2 ACCESS COVER No Model Compatibility List $161.73 / Each

9,4,5,6
108317 GZ5020-31 43 WEIGHT CABLE No Model Compatibility List $99.51 / Each

3,4,5,6
108322 GZ5020-32 87 PEDAL CABLE No Model Compatibility List $95.22 / Each

8,9,4,5,6
108124 GZ5109-08 75 HANDLE No Model Compatibility List $50.41 / Each

11
107437 GZ5109-15 77 ANKLE STRAP No Model Compatibility List $44.62 / Each

1
108283 GZ5463 14 WEIGHT ROD No Model Compatibility List $178.49 / Each

3
108314 GZ5471 1 TOWER No Model Compatibility List $0.00 / Each
Out Of Stock
1
108316 GZ5523 10 LEFT ARM BRACKET No Model Compatibility List $365.97 / Each

2,3,4,5,6
108315 GZ5524 9 RIGHT ARM BRACKET No Model Compatibility List $364.08 / Each

2,3,4,5,6
108131 GZ5527 80 POP PIN No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
103305 GZ7003 # 10 POINT WARNING DECAL No Model Compatibility List $10.19 / Each

7,3
103306 GZ7004 # INTERNAL WARNING DECAL No Model Compatibility List $10.43 / Each

7,3
103307 GZ7005 # CAUTION MOVING PART DECAL No Model Compatibility List $3.67 / Each

7,3
103310 GZ7006 # CAUTION "DO NOT USE"DECAL No Model Compatibility List $3.67 / Each

7,3,1
107414 GZ7008 # DECAL, PINCH POINT WRNG No Model Compatibility List $2.75 / Each

7,3,12,13,14
103308 GZ7026 # SELECTOR PIN INSERT DECAL No Model Compatibility List $4.36 / Each

7,3,12,13,14
107415 GZ7376 # DECAL, POP PIN INSERT No Model Compatibility List $0.00 / Each
Out Of Stock
7,3,12,13,14
108325 GZ7379 # USER-S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock
1
107417 GZAC1024 # ACCESSORY HANDLES No Model Compatibility List $404.02 / Each

4,5,6,11
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
