Replacement Parts for FreeMotion E5.1 92009 Commercial Ellipticals
Phone : 847-309-2818 M-F 10am-5pm

FreeMotion - E5.1

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Circuit Boards
  • Rotating Parts
  • Wire/cables
  • Motor
  • Pulley
  • Rollers and Rotating Parts
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

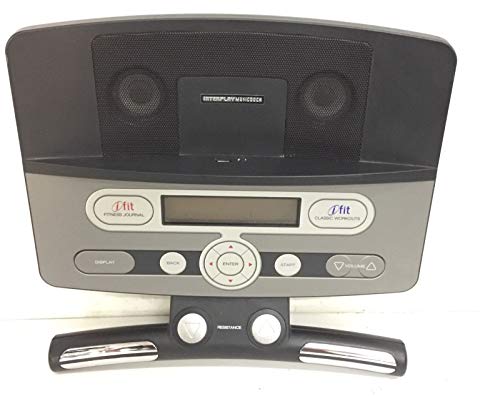

261509 1005464 261509 0 1 Display Console - Used Only No Model Compatibility List $207.90 / Each
Out Of Stock
7
264256 1005465 264256 # 1 10" Eddy Mechanism Brake (Used) Yes Model Compatibility List $328.90 / Each
Out Of Stock
8
259948 013120 259948 0 1 Universal Left and Right Foot Pad Pedal Yes Model Compatibility List $119.99 / Each

1
259940 013157 259940 0 1 Left Handrail Cover Yes Model Compatibility List $29.99 / Each

1
259946 013159 259946 0 1 Right Upright Cover Yes Model Compatibility List $65.99 / Each

1
259947 013161 259947 0 1 Left Upright Cover Yes Model Compatibility List $65.99 / Each

1
259998 013163 259998 0 1 Left Inner Shield Yes Model Compatibility List $156.99 / Each

1
260014 013165 260014 0 1 Ebony Plastic U Clip Yes Model Compatibility List $15.99 / Each

1
261511 013180 261511 0 1 Left Inner Leg Cover Yes Model Compatibility List $62.99 / Each

1
265270 013287 265270 0 1 Screw M4 X 30MM No Model Compatibility List $12.99 / Each

1
265269 013288 265269 0 1 Screw M4 X 64MM No Model Compatibility List $12.99 / Each

1
260238 260238 0 1 Adjustment Spring No Model Compatibility List $19.99 / Each
Out Of Stock
1
259963 013291 259963 0 1 Large Adjustment Bushing No Model Compatibility List $62.99 / Each

1
259955 013292 259955 0 1 Pivot Bushing No Model Compatibility List $33.99 / Each

1
259954 013298 259954 0 1 Small Adjustment Bushing No Model Compatibility List $24.99 / Each

1
259950 013299 259950 0 1 Upright Base Ebony Frame Cover No Model Compatibility List $33.99 / Each

1
259949 013300 259949 0 1 Inc. Crank Cover No Model Compatibility List $87.99 / Each

1
258847 013302 258847 0 1 Button Bolt M10 X 73MM No Model Compatibility List $15.99 / Each

1
254769 013303 254769 0 1 .Lock Nut M6 No Model Compatibility List $12.99 / Each

1
207682 013335 207682 95 1 Screw M8 X 19MM No Model Compatibility List $2.87 / Each

1,2
117544 013349 117544 0 1 Black End Cap for Tubing Yes Model Compatibility List $11.99 / Each

1
251313 1000438 251313 88 1 Hanger Bearing Yes Model Compatibility List $38.19 / Each

1,8
259956 1000446 259956 0 1 Pedal Arm Roller No Model Compatibility List $146.23 / Each

1
139703 1002777 139703 33 1 Bearing Sealed Yes Model Compatibility List $24.46 / Each

1,8
255072 1002802 255072 29 1 Pulley Yes Model Compatibility List $77.97 / Each

37,3
139703 1003396 139703 33 1 Bearing Sealed Yes Model Compatibility List $24.46 / Each

1,8
237631 1003996 237631 60 1 Foot Leveler Yes Model Compatibility List $6.69 / Each

1,3
229399 1004198 229399 0 1 Washer Spring No Model Compatibility List $11.99 / Each

1
014174 1004202 014174 0 1 M8 Split Washer No Model Compatibility List $11.99 / Each

1
204489 1004211 204489 0 1 Wave Washer No Model Compatibility List $10.99 / Each

1
170205 1004489 170205 0 1 Speed Sensor Yes Model Compatibility List $21.99 / Each

47
191032 1005194 191032 82A 1 Button Screw M8 X 13MM Yes Model Compatibility List $1.34 / Each

1,2
148710 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

1,2
100488 1006261 100488 0 1 Retainer Snap Ring No Model Compatibility List $11.99 / Each

1
113842 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

1,3,8
243374 1009932 243374 0 1 Retainer Snap Ring Yes Model Compatibility List $12.99 / Each

1
214003 1009934 214003 106B 1 Frame Nut No Model Compatibility List $3.96 / Each

1,2
248334 1010514 248334 105 1 Axle Screw M10 X 19MM Yes Model Compatibility List $3.83 / Each

1,2
243374 101063 243374 0 1 Idler Snap Ring Yes Model Compatibility List $17.99 / Each

1
259956 1011140 259956 46 1 Pedal Arm Roller No Model Compatibility List $161.99 / Each

45
241949 1011564 241949 0 1 Tension Brake Resistance Motor Yes Model Compatibility List $82.99 / Each

28
131090 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

19,3
View Drawing
