GOLD'S GYM - GYM GG CYCLE TRAINER 400 RI

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
ROLLER MAGNET 100081 113842 16 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
101859 121642 51 HANDLEBAR CAP No Model Compatibility List $0.96 / Each

9,11,46
#8 HOOD CLIP 100032 133333 36 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

2,9,1,46
RIGHT PEDAL/STRAP 115066 134367 26 RIGHT PEDAL/STRAP No Model Compatibility List $40.76 / Each

1
LEFT PEDAL/STRAP 115065 134368 24 LEFT PEDAL/STRAP Yes Model Compatibility List $40.76 / Each

8,9
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
104949 175286 39 M10 NUT No Model Compatibility List $4.18 / Each

2
DRIVE BELT 115718 176559 23 DRIVE BELT Yes Model Compatibility List $97.42 / Each

15
REED SWITCH/WIRE 100953 186070 21 REED SWITCH/WIRE Yes Model Compatibility List $27.83 / Each

47
WATER BOTTLE HOLDER 101258 191629 49 WATER BOTTLE HOLDER Yes Model Compatibility List $21.45 / Each

1
116434 192725 62 M4 X 16MM FLAT HEAD SCREW No Model Compatibility List $0.15 / Each

2
RESISTANCE MOTOR 100647 193223 29 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
116523 207967 41 M4 X 7MM SCREW No Model Compatibility List $0.25 / Each

2
PIVOT SCREW 101001 208163 60 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
100793 213457 61B M4 X 12MM SCREW No Model Compatibility List $1.20 / Each

2,50
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
M3 X 12MM SCREW 112958 220047 52 M3 X 12MM SCREW No Model Compatibility List $2.13 / Each

2
110599 220675 30 FOOT No Model Compatibility List $4.37 / Each

9
116445 223882 11 ADJUSTMENT KNOB No Model Compatibility List $37.80 / Each

1
116421 223888 20 REAR BUSHING No Model Compatibility List $9.10 / Each

8
116420 223889 42 FRONT BUSHING No Model Compatibility List $8.43 / Each

8
116423 223891 28 FRAME STOP No Model Compatibility List $1.29 / Each

3
M4 X 25MM SCREW 100788 224606 53 M4 X 25MM SCREW Yes Model Compatibility List $0.52 / Each

2
M8 X 16MM SCREW 100985 237612 35 M8 X 16MM SCREW No Model Compatibility List $0.96 / Each

2
LEVELING FOOT 101146 237631 57 LEVELING FOOT Yes Model Compatibility List $6.69 / Each

9,46
100175 239057 56 ROUND HANDRAIL CAP No Model Compatibility List $0.69 / Each

9,3
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
115166 248341 64 M10 X 20MM X 2MM WASHER No Model Compatibility List $1.06 / Each

2
110704 248364 61A M4 X 12MM BRIGHT SCREW No Model Compatibility List $0.94 / Each

2
M4 X 19MM SELF-TAP SCREW 100881 250961 34 M4 X 19MM SELF-TAP SCREW No Model Compatibility List $0.69 / Each

2
M8 X 30MM SCREW 101991 252018 65 M8 X 30MM SCREW No Model Compatibility List $2.57 / Each

1
115100 266091 # DECAL, GENERAL WARNING No Model Compatibility List $4.55 / Each

7,3
101862 270524 46 M8 X 18MM BOLT No Model Compatibility List $3.70 / Each

2
#8 X 5/8 102549 276104 37 #8 X 5/8" SCREW Yes Model Compatibility List $0.52 / Each

2
116506 277168 45 M6 X 30MM SCREW No Model Compatibility List $4.64 / Each

2
BELT ADJUSTMENT SCREW 101436 281149 33 BELT ADJUSTMENT SCREW Yes Model Compatibility List $4.87 / Each

2,15
IDLER SCREW 101010 281150 54 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
CLAMP 100954 282277 22 CLAMP Yes Model Compatibility List $2.32 / Each

4,5,6,2,47
CRANK BEARING SET 115067 295560 27 CRANK BEARING SET Yes Model Compatibility List $54.00 / Each

1
116384 296302 67 M10 X 68MM SCREW No Model Compatibility List $4.65 / Each

2
101867 297255 # 5MM ALLEN WRENCH No Model Compatibility List $5.51 / Each

2,1
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

2,1
114885 298233 40 M6 X 40MM SCREW No Model Compatibility List $2.40 / Each

2
101065 304974 # 4MM ALLEN WRENCH No Model Compatibility List $3.11 / Each

2,1
116508 305721 55 M8 X 55MM SCREW No Model Compatibility List $5.81 / Each

2
116381 316984 63 M4.5 X 12MM FLANGE SCREW No Model Compatibility List $0.47 / Each

2
116391 318149 50 PULSE SENSOR No Model Compatibility List $39.01 / Each
Out Of Stock
12,13,14
116500 318345 13 PULLEY/CRANK No Model Compatibility List $94.46 / Each
Out Of Stock
8
POWER ADAPTER 110342 337717 # POWER ADAPTER Yes Model Compatibility List $21.95 / Each

6
PULSE WIRE 115696 349115 32 PULSE WIRE Yes Model Compatibility List $24.79 / Each

4,5,6,12,13,14
115706 352751 4 WHEEL No Model Compatibility List $18.74 / Each

8
RESISTANCE CABLE 116380 352967 7B RESISTANCE CABLE No Model Compatibility List $28.14 / Each

4,5,6,10,49
REAR STABILIZER CAP 116377 358800 15 REAR STABILIZER CAP Yes Model Compatibility List $13.94 / Each

9
116360 358886 14 FRONT STABILIZER No Model Compatibility List $78.80 / Each

1
116503 358984 19 FRONT SHIELD COVER No Model Compatibility List $25.55 / Each

9,3
116375 358988 10 ACCESS DISC No Model Compatibility List $64.95 / Each

4,5,6
116376 358989 48 CRANK COVER No Model Compatibility List $23.99 / Each

8,9
116504 358994 43 REAR FRAME No Model Compatibility List $175.93 / Each

3
116505 358998 44 SEAT HANDLEBAR No Model Compatibility List $112.97 / Each

12,13,14,11
116512 359005 47 HANDLEBAR No Model Compatibility List $138.76 / Each

11
116496 359006 5 SEAT FRAME No Model Compatibility List $92.29 / Each

3,12,13,14
116509 359120 58 BACKREST No Model Compatibility List $87.20 / Each

4,5,6,12,13,14
116499 359121 12 SEAT No Model Compatibility List $89.67 / Each

12,13,14
MAIN WIRE 116383 359126 31 MAIN WIRE Yes Model Compatibility List $50.05 / Each

4,5,6
116501 359292 17 LEFT SHIELD No Model Compatibility List $104.33 / Each

3
116502 359293 18 RIGHT SHIELD No Model Compatibility List $118.00 / Each

3
116498 359294 9 REAR SHIELD COVER No Model Compatibility List $53.67 / Each

9,3
115729 360681 38 TABLET HOLDER No Model Compatibility List $130.66 / Each

1

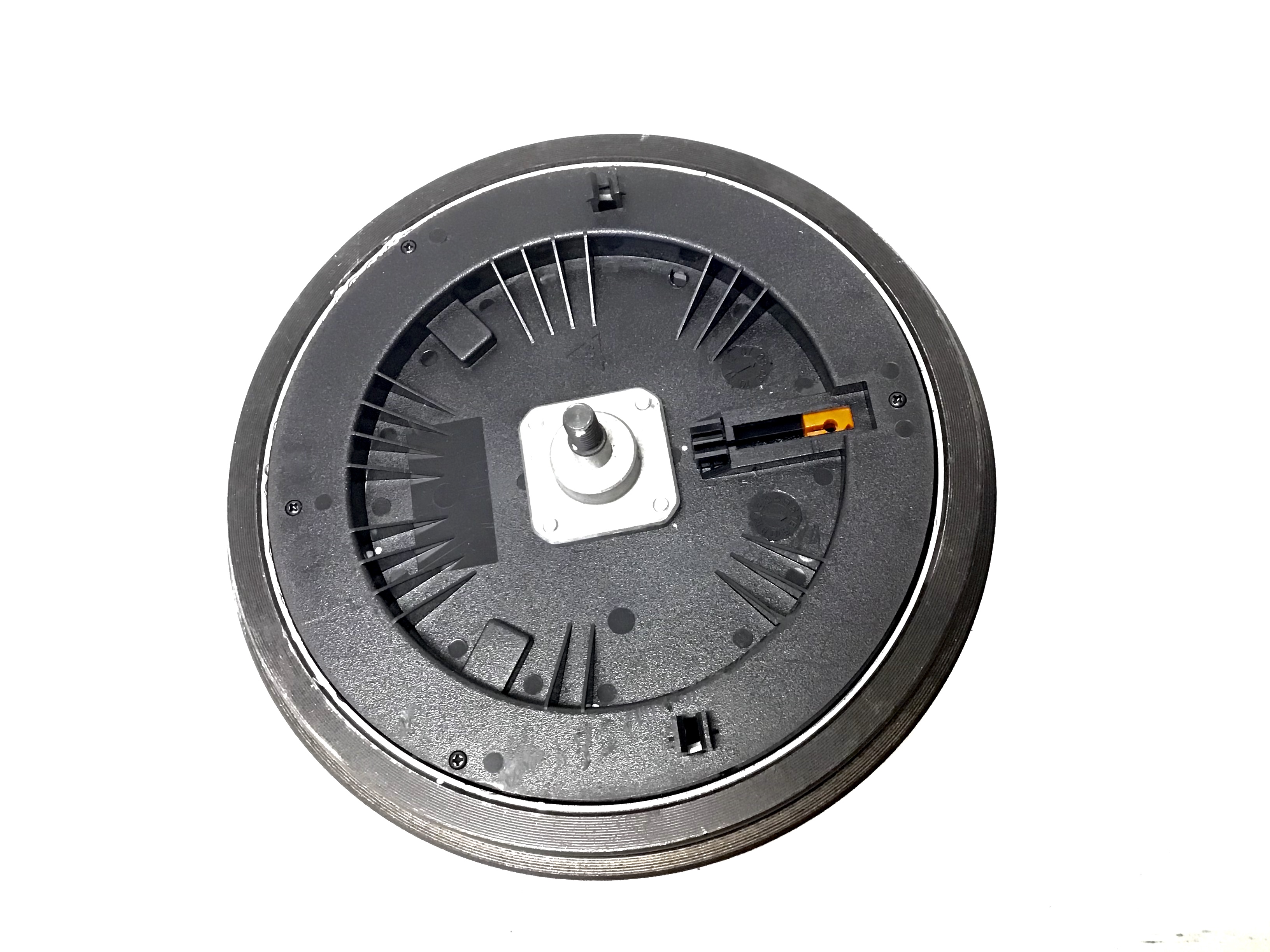

EDDY MECHANISM 116378 361322 7A EDDY MECHANISM No Model Compatibility List $252.21 / Each

8

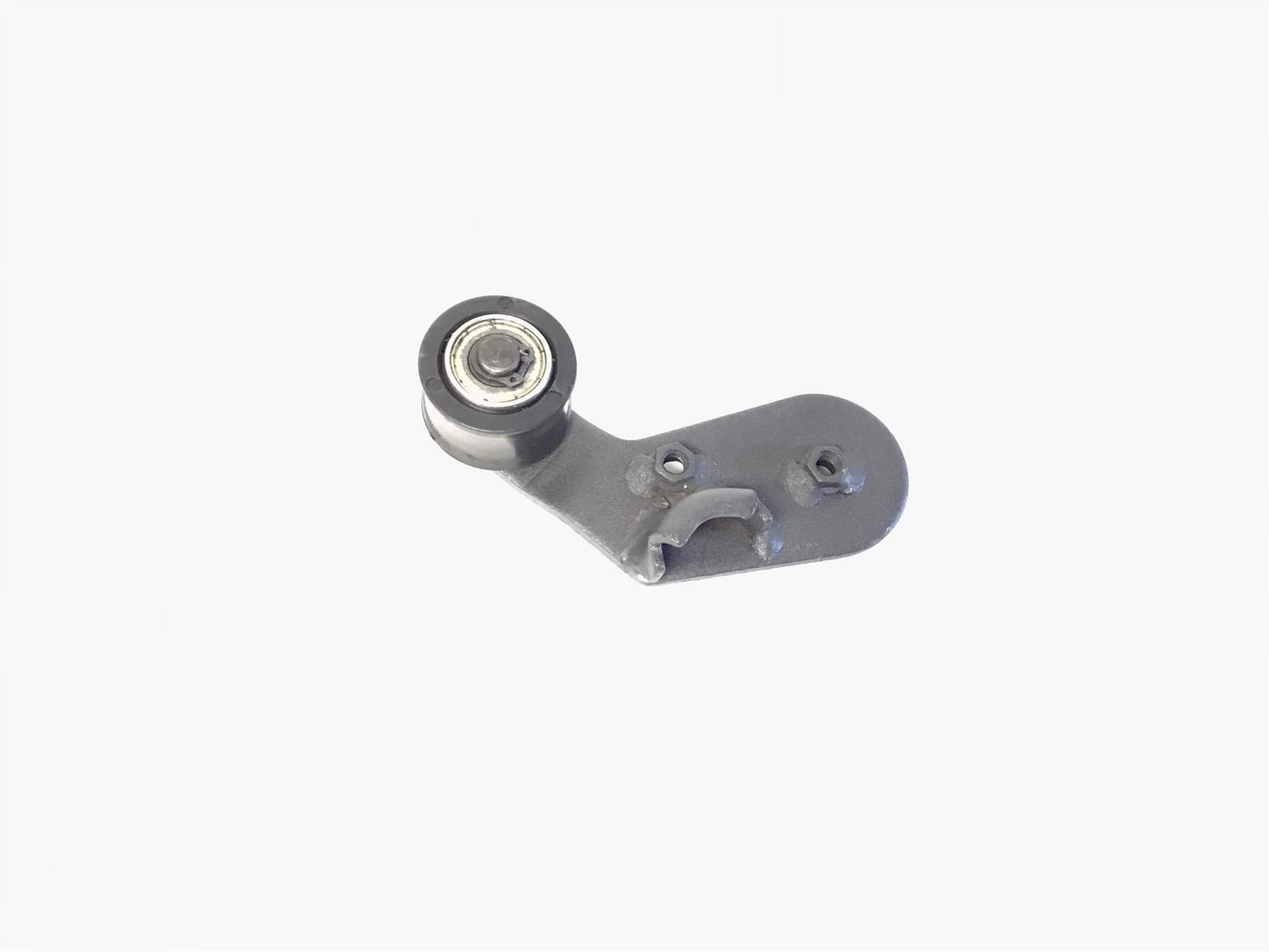

IDLER 116379 361323 25 IDLER No Model Compatibility List $21.90 / Each

8
M4 X 16MM SCREW 110345 362430 8 M4 X 16MM SCREW No Model Compatibility List $2.32 / Each

2,1

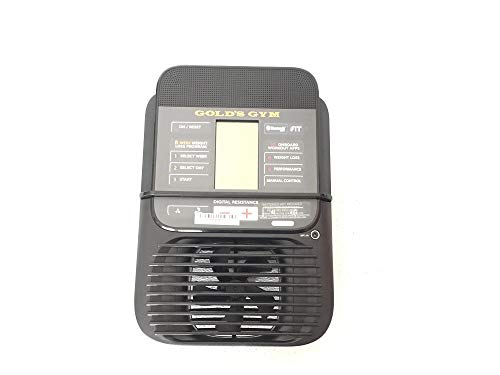

CONSOLE 116522 370580 6 CONSOLE No Model Compatibility List $269.59 / Each

7
116521 371092 3 UPRIGHT No Model Compatibility List $112.21 / Each

3
116520 371463 2 REAR STABILIZER No Model Compatibility List $94.35 / Each

1
116385 378659 66 M8 X 32MM SCREW No Model Compatibility List $7.19 / Each

2
116526 397624 # USER-S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock
1
116527 402500 # USER-S MANUAL,PRB3 No Model Compatibility List $0.00 / Each
Out Of Stock
1
Bike Pedal Pair 1/2 115066 134368 + 134367 26 Bike Pedal Pair 1/2" - Aftermarket No Model Compatibility List $37.39 / Each

8
Reed Switch RPM Speed Sensor 1002520 186070 Reed Switch RPM Speed Sensor Yes Model Compatibility List $21.99 / Each

47
Pedal Set 1002491 134367 & 134368 Pedal Set Yes Model Compatibility List $23.99 / Each
Out Of Stock
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
Self-tap Screw M4 X 19mm (New) 1020015 250961 Self-tap Screw M4 X 19mm (New) No Model Compatibility List $11.99 / Each

2
Belt Adjustment Screw (New) 1011896 281149 Belt Adjustment Screw (New) Yes Model Compatibility List $15.99 / Each

2,15
