GOLD'S GYM - GYM GOLD'S GYM CYCLE TRAINER 310

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
116611 102356 30 FLYWHEEL BEARING No Model Compatibility List $81.02 / Each

8
012142 101429 012142 61 M6 LOCKNUT No Model Compatibility List $1.98 / Each

2
014003 101370 014003 31B M6 WASHER No Model Compatibility List $1.55 / Each

2
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

2,1
116624 014015 51 20MM WASHER No Model Compatibility List $0.67 / Each

2
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
150327 100690 150327 60 M5 NYLON LOCKNUT No Model Compatibility List $1.17 / Each

2
104949 175286 50 M10 NUT No Model Compatibility List $4.18 / Each

2
194878 100588 194878 56 M4 X 19MM SCREW Yes Model Compatibility List $2.09 / Each

2
106069 203402 59 M10 JAMNUT No Model Compatibility List $0.79 / Each

2
223089 100594 223089 54 M8 X 15MM BUTTON HEAD SCREW - BOLT No Model Compatibility List $6.14 / Each

2
101865 234235 55B M4.2 X 18MM SCREW No Model Compatibility List $0.34 / Each

2
115015 245074 58 M3 X 16MM SCREW No Model Compatibility List $0.08 / Each

2
110550 249931 53 M8 X 40MM SCREW No Model Compatibility List $2.40 / Each

2
112852 256182 49 M5 X 30MM SCREW No Model Compatibility List $2.78 / Each

2
116627 260879 57 M5 X 10MM SCREW, NOTE No Model Compatibility List $0.37 / Each

2
116117 290295 # DECAL, MAX WT WARNING No Model Compatibility List $4.93 / Each

7,3,1
291592 116104 291592 4A SEAT Yes Model Compatibility List $119.36 / Each

12,13,14
101955 299149 # DECAL, CAUTION No Model Compatibility List $5.05 / Each

7,3
116626 313064 55A CUP HOLDER SCREW No Model Compatibility List $2.40 / Each

2
116584 318028 2 SEAT POST No Model Compatibility List $128.29 / Each

12,13,14
116585 318029 3 SEAT CARRIAGE No Model Compatibility List $87.20 / Each

12,13,14
116587 318030 5 HANDLEBAR POST No Model Compatibility List $89.39 / Each

12,13,14,11
116588 318031 6 HANDLEBAR No Model Compatibility List $210.83 / Each

11
116589 318032 7 FRONT STABILIZER No Model Compatibility List $117.01 / Each

1
116590 318033 8 REAR STABILIZER No Model Compatibility List $76.44 / Each

1
116620 318036 45 FLYWHEEL AXLE No Model Compatibility List $74.58 / Each

8
116631 318037 67 EYEBOLT No Model Compatibility List $9.83 / Each

2
116619 318038 40 SMALL SPACER No Model Compatibility List $5.58 / Each

2,3,4,5,6
116618 318039 39 LARGE SPACER No Model Compatibility List $8.36 / Each

2,3,4,5,6
116603 318040 21 ADJUSTMENT KNOB No Model Compatibility List $37.83 / Each

1
116594 318041 12 CHAIN No Model Compatibility List $44.08 / Each

1
116598 318047 16 LEFT CRANK ARM No Model Compatibility List $87.20 / Each

8,3
116609 318048 27 MAGNET No Model Compatibility List $16.23 / Each
Out Of Stock
8
116600 318050 18 WATER BOTTLE HOLDER No Model Compatibility List $17.39 / Each

1
116632 318051 # ALLEN WRWENCH No Model Compatibility List $6.51 / Each

1
116607 318053 25 CARRIAGE SLEEVE No Model Compatibility List $12.78 / Each

3
116630 318054 66 POST SLEEVE No Model Compatibility List $12.78 / Each

3,12,13,14
116604 318055 22 LEVELING FOOT No Model Compatibility List $6.97 / Each

9
116610 318056 28 WHEEL No Model Compatibility List $12.78 / Each

8
116593 318058 11 REAR GUARD No Model Compatibility List $39.79 / Each

9,3
116592 318059 10 SHIELD No Model Compatibility List $87.20 / Each

3
116621 318060 46 FRONT GUARD No Model Compatibility List $5.12 / Each

9,3
116601 318061 19 CONSOLE MOUNT No Model Compatibility List $12.78 / Each
Out Of Stock
7,2
116623 318062 48 GROMMET No Model Compatibility List $4.65 / Each

2
116608 318063 26 CRANK CAP No Model Compatibility List $4.80 / Each

8,9
116599 318065 17 LEFT PEDAL No Model Compatibility List $66.69 / Each

8,9
116597 318066 15 RIGHT PEDAL No Model Compatibility List $66.69 / Each

8,9
116602 318067 20 CONSOLE No Model Compatibility List $112.72 / Each

7
116622 318068 47 REED SWITCH/WIRE No Model Compatibility List $31.59 / Each

4,5,6
116606 318085 24 FRAME CAP No Model Compatibility List $4.18 / Each

9,3
116605 318086 23 STABILIZER CAP No Model Compatibility List $4.18 / Each

9
116629 318087 65 POST CAP No Model Compatibility List $4.18 / Each

9,12,13,14
116625 318089 52 M8 X 40MM CARRIAGE BOLT No Model Compatibility List $3.72 / Each

2
116628 318090 63 M8 SQUARE NUT No Model Compatibility List $5.27 / Each

2
116633 318174 # DVD #1 No Model Compatibility List $13.52 / Each

1
116634 318175 # DVD #2 No Model Compatibility List $13.52 / Each

1
112655 318367 68 M4 X 25MM SCREW No Model Compatibility List $1.17 / Each

2
116651 322907 # USER'S MANUAL No Model Compatibility List $9.22 / Each

1
116643 334729 13 CRANK No Model Compatibility List $71.18 / Each

8
116644 334730 14B CRANK AXLE,NOTE: OM HAS No Model Compatibility List $103.16 / Each

8
116591 337798 9 FLYWHEEL No Model Compatibility List $668.45 / Each

8
116586 340107 4B SEAT, ALL BLACK No Model Compatibility List $96.34 / Each

4,5,6,12,13,14
116646 356461 33 RESISTANCE BRACKET No Model Compatibility List $9.12 / Each

2,3,4,5,6,10
356462 116648 356462 37 RESISTANCE BRAKE PAD No Model Compatibility List $43.06 / Each

10,12,13,14
116649 356463 38A PAD BRACKET No Model Compatibility List $16.97 / Each

2,3,4,5,6,12,13,14

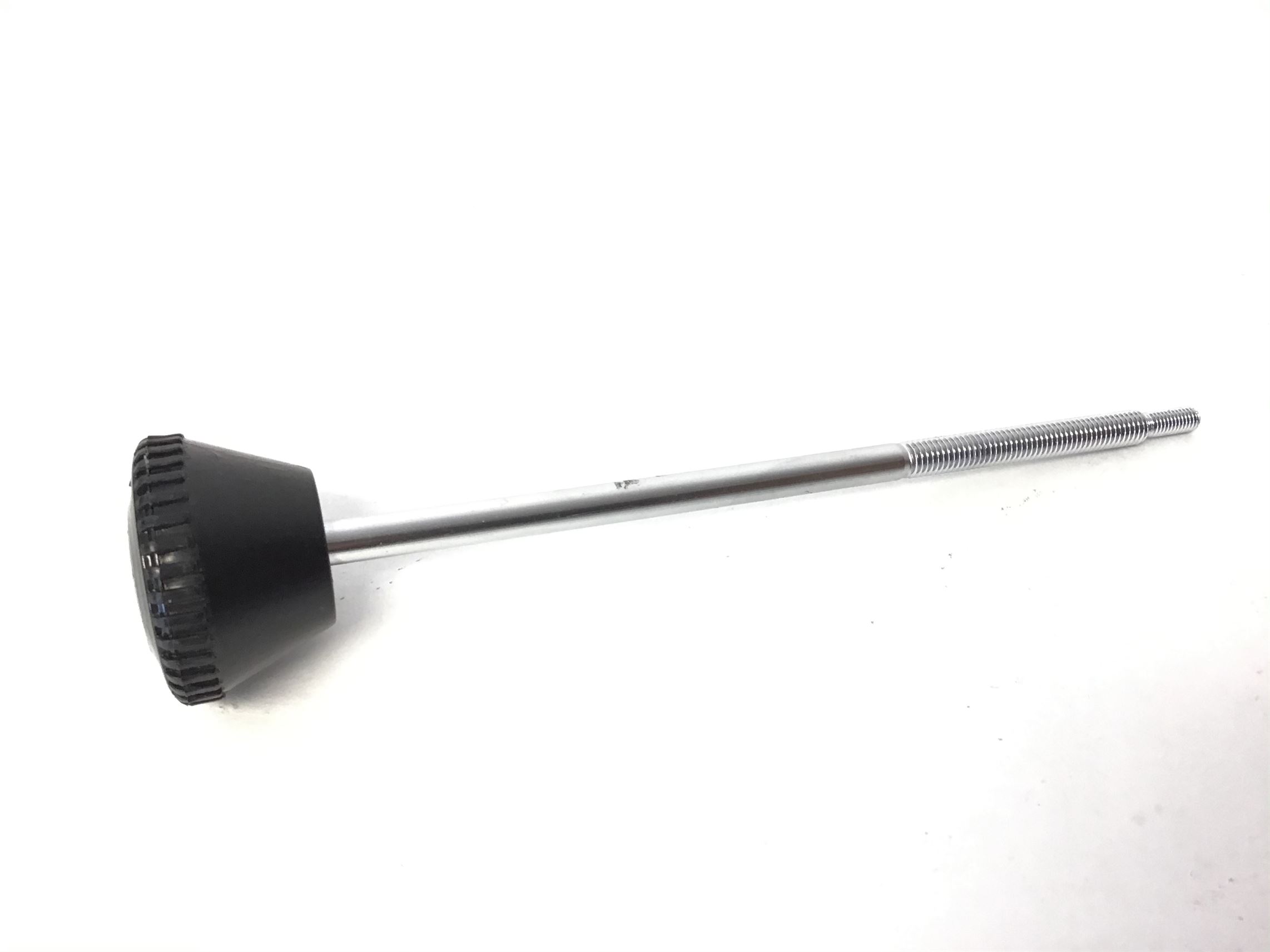

356464 116645 356464 32 RESISTANCE/BRAKE KNOB No Model Compatibility List $30.76 / Each

10
116647 356465 34 SPRING No Model Compatibility List $12.15 / Each

2
116650 363755 38B ISOLATOR No Model Compatibility List $10.38 / Each

3
045008 100604 045008 # 5MM ALLEN WRENCH No Model Compatibility List $3.85 / Each

2
104667 NI 64 EXERCISE GUIDE No Model Compatibility List $0.00 / Each
Out Of Stock
1
012042 1011772 012042 0 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

1
195728 1011829 195728 0 1 Flange Nut M10 Yes Model Compatibility List $14.99 / Each

1
View Drawing
