GOLD'S GYM - GYM GOLD''S GYM XR 10.9

Repair Parts for GOLD\'S GYM GYM GOLD''S GYM XR 10.9 GGBE09694

Brand: GOLD'S GYM

Category: Chin/Dip

Type: Strength Systems

Model Name: GYM GOLD''S GYM XR 10.9

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
M8 NYLON LOCKNUT 100682 012042 22 M8 NYLON LOCKNUT Yes Model Compatibility List $1.15 / Each

1
113791 137337 27 M6 X 16MM SCREW No Model Compatibility List $2.57 / Each

1
1/4 100042 014063 21 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

1
104498 152125 19 M10 X 50MM BOLT No Model Compatibility List $10.55 / Each

1
113787 207051 18 M6 X 73MM SCREW No Model Compatibility List $3.26 / Each

1
113788 212519 20 M8 X 68MM CARRIAGE BOLT No Model Compatibility List $6.47 / Each

1
113789 212520 24 M8 X 68MM BOLT No Model Compatibility List $4.31 / Each

1
104559 214474 11 SHORT FOAM GRIP No Model Compatibility List $20.15 / Each

1
FOAM GRIP 113790 214475 25 FOAM GRIP No Model Compatibility List $22.20 / Each

1
113786 220683 28 M8 X 75MM BOLT No Model Compatibility List $6.51 / Each

1
113793 269532 # DECAL, WARNING, HEAD No Model Compatibility List $3.86 / Each

1
113795 277043 # DECAL, GENERAL WARNING No Model Compatibility List $3.49 / Each

1
113777 281640 7 TOP CROSSBAR No Model Compatibility List $126.44 / Each

1
113773 281641 3 UPRIGHT No Model Compatibility List $129.71 / Each

1
113772 281642 2 UPRIGHT BASE No Model Compatibility List $139.52 / Each

1
113774 281643 4 SUPPORT No Model Compatibility List $129.71 / Each

1
113775 281644 5 DIP ARM No Model Compatibility List $100.28 / Each

1

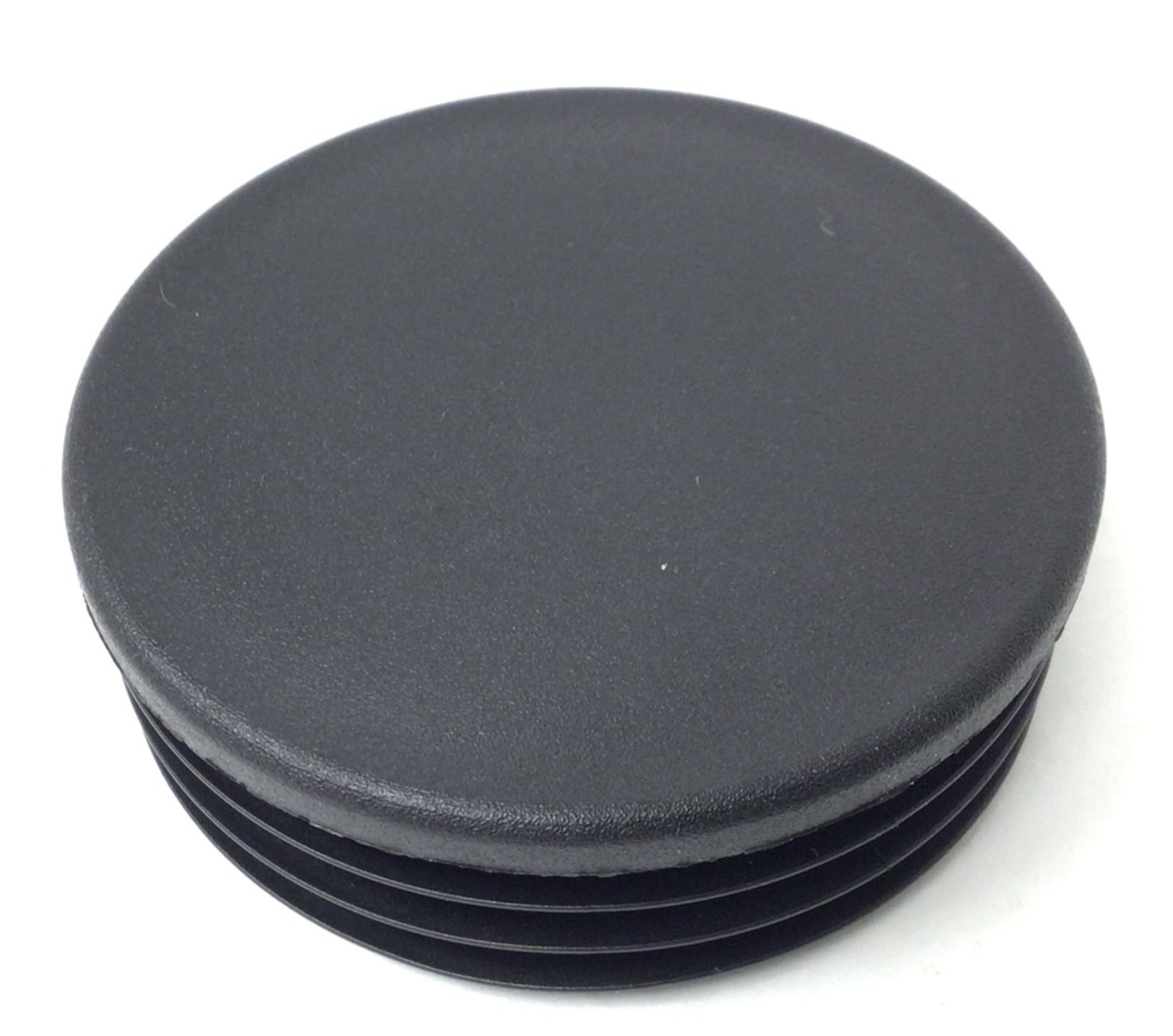

113785 281645 16 60MM OUTER CAP No Model Compatibility List $32.09 / Each

1
113778 281646 8 BACKREST No Model Compatibility List $141.12 / Each

1
113776 281648 6 ARM PAD No Model Compatibility List $62.40 / Each

1
113782 281699 13 SUPPORT PLATE No Model Compatibility List $16.65 / Each

1
113784 281700 15 60MM CAP No Model Compatibility List $4.42 / Each

1
113781 281701 12 RUBBER CAP No Model Compatibility List $4.65 / Each

1
113771 281703 1 STABILIZER No Model Compatibility List $127.78 / Each

1

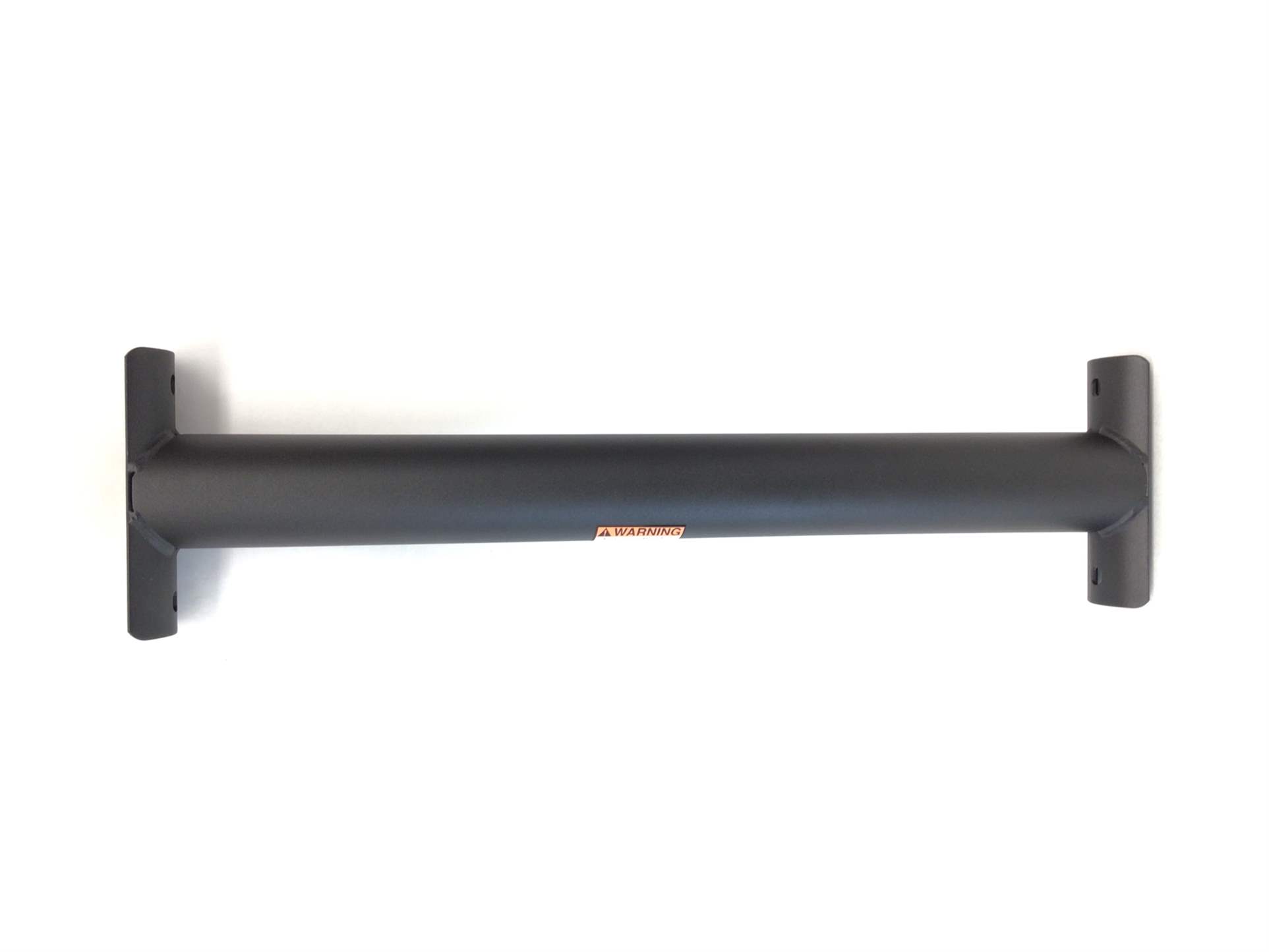

BOTTOM CROSSBAR 113780 281704 10 BOTTOM CROSSBAR No Model Compatibility List $67.63 / Each

1
113779 281705 9 PULL-UP BAR No Model Compatibility List $87.76 / Each

1
113783 281780 14 25MM CAP No Model Compatibility List $3.26 / Each

1
113792 281854 # EXERCISE GUIDE No Model Compatibility List $101.24 / Each

1
104574 306518 26 M10 CURVED WASHER No Model Compatibility List $3.71 / Each

1
113798 363579 23 M8 CURVED WASHER No Model Compatibility List $0.24 / Each

1
113801 399428 # USER-S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Screw 113787 207051 18 Screw No Model Compatibility List $7.46 / Each

1
