GOLD'S GYM - GYM GOLD''S GYM XR 6.1

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
103833 101902 103833 18 POST CAP No Model Compatibility List $4.69 / Each

9,12,13,14
104838 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
113812 123396 17 25MM ROUND ANGLED CAP No Model Compatibility List $1.67 / Each

9
114267 129147 36 M8 X 65MM SCREW No Model Compatibility List $6.67 / Each

2
013226 114221 013226 28 M8 X 45MM BOLT No Model Compatibility List $4.36 / Each

2
102175 013374 27 M10 X 70MM BOLT No Model Compatibility List $5.75 / Each

2
113791 137337 24 M6 X 16MM SCREW No Model Compatibility List $2.57 / Each

2
140206 100027 140206 30 M10 FLAT WASHER No Model Compatibility List $2.43 / Each

2
014063 100042 014063 22 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
148710 100540 148710 31 M10 LOCKNUT No Model Compatibility List $2.67 / Each

2
100825 166295 # DECAL, WARNING, E/FCA No Model Compatibility List $1.03 / Each

7,3
114655 183195 10 M10 X 35MM CARRIAGE BOLT No Model Compatibility List $3.85 / Each

2
104620 192210 25 M10 X 60MM BOLT No Model Compatibility List $0.46 / Each

2
114028 194426 32 M6 X 38MM BOLT No Model Compatibility List $2.40 / Each

2
102161 208378 13 FOAM PAD No Model Compatibility List $29.17 / Each

12,13,14
113816 239042 5 19MM ROUND INNER CAP No Model Compatibility List $2.90 / Each

9
104448 242419 29 M8 WASHER No Model Compatibility List $0.26 / Each

2
100916 253090 # DECAL, GENERAL WRNG, FCA No Model Compatibility List $24.74 / Each

7,3
113768 253211 # DECAL, MAX WEIGHT No Model Compatibility List $1.06 / Each

7,3
100543 253229 # WARNING DECAL No Model Compatibility List $12.66 / Each

7,3
256446 100030 256446 34 M8 NUT No Model Compatibility List $0.72 / Each

2
114681 267065 # DECAL, MAX WEIGHT, FCA No Model Compatibility List $4.80 / Each

7,3
114643 287441 23 M10 X 135MM BOLT No Model Compatibility List $44.37 / Each

2
114636 315344 20 25MMX1.5MM RND INNER CAP No Model Compatibility List $4.18 / Each

9
114641 315443 19 25MM SQUARE INNER CAP No Model Compatibility List $5.12 / Each

9
114644 315444 26 25MM X 50MM INNER CAP No Model Compatibility List $5.81 / Each

9
114640 315445 16 50MM X 1.2MM SQ INNER CAP No Model Compatibility List $5.81 / Each

9
114642 315446 21 19MM X 2MM RND INNER CAP No Model Compatibility List $4.18 / Each

9

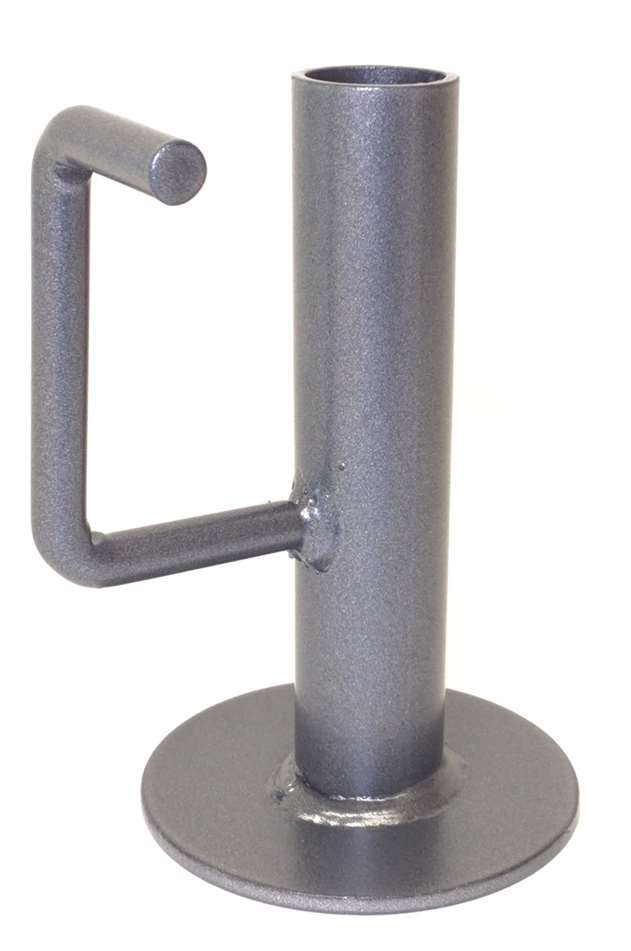

114669 370500 15 WEIGHT REST No Model Compatibility List $24.31 / Each

3
114665 370501 8 BACKREST No Model Compatibility List $104.20 / Each

4,5,6,12,13,14
114664 370952 7 BACKREST TUBE No Model Compatibility List $69.55 / Each

3,4,5,6,12,13,14
114667 370953 12 PAD TUBE No Model Compatibility List $19.07 / Each

3,12,13,14
114668 370954 14 BACKREST SUPPORT No Model Compatibility List $67.85 / Each

3,4,5,6,12,13,14
114662 371161 4 FRONT LEG No Model Compatibility List $129.35 / Each

1
114670 371162 33 BASE No Model Compatibility List $43.82 / Each

3
114660 371163 1 UPRIGHT No Model Compatibility List $172.40 / Each

3
114671 371165 35 UPRIGHT PLATE No Model Compatibility List $10.77 / Each

3
114663 371174 6 LEG LEVER No Model Compatibility List $102.47 / Each

3
114661 371175 2 CROSSBAR No Model Compatibility List $119.90 / Each

1
114680 393527 9 SEAT No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
114682 393540 # USER'S MANUAL, ECA No Model Compatibility List $0.00 / Each
Out Of Stock
7
114683 393560 # USER'S MANUAL, FCA No Model Compatibility List $0.00 / Each
Out Of Stock
1
PP60610 114651 PP60610 # OPTIONAL PREACHER PAD No Model Compatibility List $86.94 / Each

3,12,13
View Drawing
