GOLD'S GYM - GYM PLATINUM

Repair Parts for GOLD\'S GYM GYM PLATINUM GGBE69581

Brand: GOLD'S GYM

Category: Adjustable Bench

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

GGBE69581

Model Name: GYM PLATINUM

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
100396	104838	#		LUBE, GREASE	No	Model Compatibility List	$6.19 / Each	1,15
104356	108874	133B		UPRIGHT CAP	Yes	Model Compatibility List	$4.31 / Each	9,3
114771	112001	105		3/8" X 3" HEX BOLT	Yes	Model Compatibility List	$1.65 / Each	2
101730	112006	93		M10 SPLIT WASHER	No	Model Compatibility List	$0.29 / Each	2
100814	115366	140		TRANSPORT HANDLE ENDCAP	No	Model Compatibility List	$0.55 / Each	9,4,5,6,11
104624	115383	69		CABLE CLIP	Yes	Model Compatibility List	$10.91 / Each	2,4,5,6
100031	119425	150		3/8" HEX JAM NUT	Yes	Model Compatibility List	$0.55 / Each	2
100086	119894	#		4MM ALLEN WRENCH	No	Model Compatibility List	$1.58 / Each	2,1
106584	120696	119		FRAME CROSSBAR ENDCAP	No	Model Compatibility List	$3.33 / Each	9,3,4,5,6
114759	120808	126		CURL BAR CAP	No	Model Compatibility List	$1.20 / Each	9
101429	012142	80		M6 LOCKNUT	No	Model Compatibility List	$1.98 / Each	1
113827	132685	120		20MM X 40MM INT ENDCAP	No	Model Compatibility List	$1.36 / Each	9,4,5,6
100828	140069	#		SNAP RING PLIERS, 1" EXT	No	Model Compatibility List	$143.47 / Each	2,1
100027	140206	84		M10 FLAT WASHER	No	Model Compatibility List	$1.33 / Each	2
100042	014063	86		1/4" FLAT WASHER	No	Model Compatibility List	$1.03 / Each
102195	147592	81		CHAIN 16"	Yes	Model Compatibility List	$17.29 / Each	1
100540	148710	79		M10 LOCKNUT	No	Model Compatibility List	$1.57 / Each	2
108456	149217	49		2X3 Inch Rectangular Endcap	Yes	Model Compatibility List	$10.79 / Each	4,5,6,9
114414	150915	91		WEIGHT CLIP	No	Model Compatibility List	$15.79 / Each	2,3
114765	151213	139		57MM SQUARE CAP	No	Model Compatibility List	$6.14 / Each	9
108591	153133	128		LEG PAD	No	Model Compatibility List	$30.43 / Each Out Of Stock	12,13,14
114732	157721	63		SMALL CABLE TRAP	No	Model Compatibility List	$6.72 / Each	4,5,6
106061	159934	59		4.5" PULLEY	No	Model Compatibility List	$42.90 / Each	8
102193	160327	70		2	Yes	Model Compatibility List	$9.46 / Each	9
112496	164086	83		M10 X 65MM BOLT	No	Model Compatibility List	$10.13 / Each	2
114761	171403	131		64MM SQUARE CAP	No	Model Compatibility List	$6.01 / Each	9
105998	182592	56		PIVOT PULLEY BEARING	No	Model Compatibility List	$40.04 / Each	8
106018	189241	141		BUMPER	No	Model Compatibility List	$12.51 / Each	1
114508	189276	65		LAT BAR	No	Model Compatibility List	$81.91 / Each	1
106005	194610	52		CLIP COVER	No	Model Compatibility List	$17.58 / Each	2,9
100586	195562	82		M4 X 16MM SCREW	Yes	Model Compatibility List	$1.49 / Each	2
114705	196401	23		WEIGHT BAR BUSHING	No	Model Compatibility List	$6.51 / Each	8,3
114533	196684	138		48MM ROUND INT ENDCAP	No	Model Compatibility List	$3.08 / Each Out Of Stock	9,4,5,6
101798	198005	148		M6 X 18MM BUTTON BOLT	No	Model Compatibility List	$1.63 / Each	2
114725	199654	48		HANDGRIP	No	Model Compatibility List	$10.87 / Each	11
114609	230241	26		GUIDE BUSHING	No	Model Compatibility List	$9.58 / Each	1
106035	200582	147		M10 X 52MM BUTTON BOLT	No	Model Compatibility List	$7.88 / Each	2
104580	200896	68		SPRING RETAINER	No	Model Compatibility List	$8.78 / Each	2
114741	202512	85		M8 X 19MM SHOULDER BOLT	No	Model Compatibility List	$3.72 / Each	2
114744	204594	99		M10 X 154MM BUTTON BOLT	No	Model Compatibility List	$9.32 / Each	2
106282	204595	90		M10 X 68MM BOLT	No	Model Compatibility List	$9.04 / Each	2
100882	206319	144		M10-1.5 X 85MM BOLT	No	Model Compatibility List	$12.94 / Each	2
106027	206584	106		M10 X 82MM BUTTON BOLT	No	Model Compatibility List	$11.66 / Each	2
101995	207815	96		M10 X 48MM SCREW	No	Model Compatibility List	$6.71 / Each	2
106279	207831	101		M10 X 117MM BOLT	No	Model Compatibility List	$11.05 / Each	2
100889	208320	95		M4 X 10MM SCREW	Yes	Model Compatibility List	$0.32 / Each	2
106289	208580	102		M10 X 75MM BOLT	No	Model Compatibility List	$10.49 / Each	2
100557	208581	98		M10 X 25MM BOLT	No	Model Compatibility List	$3.73 / Each	2
113831	213937	130		M8 X 43MM BOLT	No	Model Compatibility List	$3.95 / Each	2
102167	214118	40		HALF FINGER GUARD	No	Model Compatibility List	$7.85 / Each Out Of Stock	9,3
114443	214679	21		M8 X 20MM SCREW	No	Model Compatibility List	$2.55 / Each	2
114620	220419	143		M8 X 76MM CARRIAGE BOLT	No	Model Compatibility List	$4.11 / Each	2
113956	221468	38		48MM ROUND INNER CAP	No	Model Compatibility List	$2.32 / Each	9
114610	222058	27		WEIGHT BUMPER	No	Model Compatibility List	$13.32 / Each	3
114368	222665	137		LEG LEVER CAP	No	Model Compatibility List	$10.89 / Each	9,3
114758	222666	125		CURL CAP	No	Model Compatibility List	$5.14 / Each	9
114370	222669	135		FRONT LEG BUMPER	No	Model Compatibility List	$2.06 / Each	1
114409	222854	100		BASE FOOT PLATE	No	Model Compatibility List	$18.18 / Each Out Of Stock	9,3
114750	222866	111		BACKREST BRACKET	No	Model Compatibility List	$107.81 / Each	2,3,4,5,6,12,13,14
100591	223086	104		M10 X 50MM BOLT	Yes	Model Compatibility List	$8.33 / Each	2
114745	223092	103		LARGE FULL GUARD	No	Model Compatibility List	$11.35 / Each Out Of Stock	9,3
114714	223096	34		UPRIGHT CAP	No	Model Compatibility List	$9.37 / Each	9,3
114713	223103	33		GUIDE CAP	No	Model Compatibility List	$13.05 / Each	9
114692	223106	9		FOOT PLATE	No	Model Compatibility List	$118.48 / Each	9
114708	223116	28		CARRIAGE BUSHING	No	Model Compatibility List	$4.65 / Each	8
114717	223132	37		WEIGHT BUMPER	No	Model Compatibility List	$12.41 / Each	3
114720	223609	42		CARRIAGE BUSHING	No	Model Compatibility List	$20.38 / Each	8
114718	223610	39		FULL GUARD	No	Model Compatibility List	$5.14 / Each Out Of Stock	9,3
114740	223614	76		M10 LARGE WASHER	No	Model Compatibility List	$1.92 / Each	2
114728	223685	55		25MM SPACER	No	Model Compatibility List	$1.92 / Each	2,3,4,5,6
114721	223686	44		51MM SPACER	No	Model Compatibility List	$2.57 / Each	2,3,4,5,6
114722	223687	45		24MM SPACER	No	Model Compatibility List	$2.55 / Each	2,3,4,5,6
114734	223689	66		17MM SPACER	No	Model Compatibility List	$2.09 / Each Out Of Stock	2,3,4,5,6
114739	223690	75		6MM SPACER	No	Model Compatibility List	$1.86 / Each	2,3,4,5,6

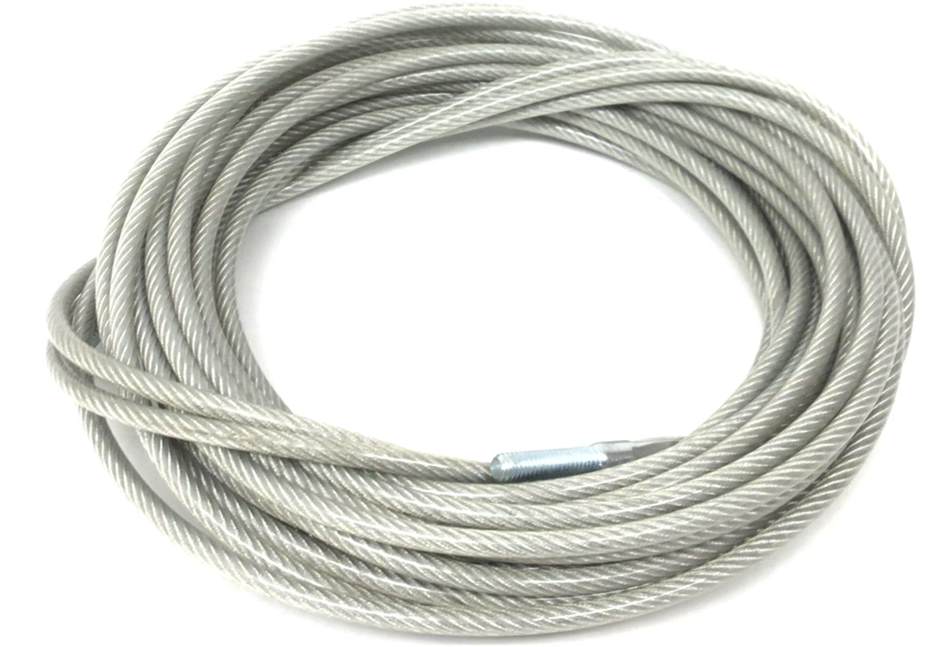

114727	223704	54		LONG CABLE	No	Model Compatibility List	$80.43 / Each	4,5,6
114736	223705	72		LOW GYM CABLE	No	Model Compatibility List	$58.86 / Each	5
114737	223706	73		HIGH CABLE	No	Model Compatibility List	$93.87 / Each Out Of Stock	4,5,6
114735	223707	71		BUTTERFLY CABLE	No	Model Compatibility List	$52.66 / Each	4,5,6
114769	223732	#		EXERCISE GUIDE	No	Model Compatibility List	$3.49 / Each	1
114262	223733	127		PAD COVER	No	Model Compatibility List	$13.52 / Each	9,12,13,14
109843	226393	97		M10 X 93MM BUTTON SCREW	No	Model Compatibility List	$10.44 / Each	2
100863	226917	58		SMALL PULLEY	No	Model Compatibility List	$71.96 / Each	8
102165	230474	60		"V"-PULLEY	No	Model Compatibility List	$44.78 / Each	8
114763	233368	134		BUTTERFLY BUSHING	No	Model Compatibility List	$2.92 / Each	8
114711	233369	31		ARM BUSHING	No	Model Compatibility List	$7.87 / Each	8,3
114767	234412	145		M10 X 180MM BUTTON BOLT	No	Model Compatibility List	$17.67 / Each	2
114762	234668	132		64MM THICK SQUARE CAP	No	Model Compatibility List	$5.14 / Each	9
108796	237573	88		WHEEL BOLT	No	Model Compatibility List	$3.86 / Each	2,8
104448	242419	94		M8 WASHER	No	Model Compatibility List	$0.26 / Each	2
104419	243548	124		BRACKET KNOB	No	Model Compatibility List	$20.46 / Each	2,3,4,5,6
100524	250420	77		M10-1.5 X 20MM SCREW	No	Model Compatibility List	$2.09 / Each	2
110713	251787	146		M6 X 42MM BUTTON SCREW	No	Model Compatibility List	$5.14 / Each	2
104432	253213	#		DECAL, MAX WEIGHT	No	Model Compatibility List	$6.17 / Each	7,3
100543	253229	#		WARNING DECAL	No	Model Compatibility List	$12.66 / Each	7,3
114355	254240	114		CURL PAD	No	Model Compatibility List	$102.92 / Each Out Of Stock	12,13,14
114353	254271	116		SEAT	No	Model Compatibility List	$67.67 / Each	12,13,14
100030	256446	78		M8 NUT	No	Model Compatibility List	$0.69 / Each	2
114724	267617	47		U-BRACKET	No	Model Compatibility List	$52.67 / Each	2,3,4,5,6
114689	270079	6		LEFT SUPPORT	No	Model Compatibility List	$229.58 / Each	3
114690	270080	7		RIGHT SUPPORT	No	Model Compatibility List	$229.58 / Each	3
114699	270083	16		TOP FRAME	No	Model Compatibility List	$220.19 / Each	3
114694	270085	11		RIGHT ARM	No	Model Compatibility List	$148.09 / Each	3
114693	270086	10		LEFT ARM	No	Model Compatibility List	$148.09 / Each	3
114701	270089	18		LOCKING BAR	No	Model Compatibility List	$111.62 / Each	1
114715	270090	35		BARBELL REST	No	Model Compatibility List	$113.20 / Each	1
114716	270091	36		BARBELL SPOTTER	No	Model Compatibility List	$124.72 / Each	1
114706	270092	24		LEFT SPOTTER	No	Model Compatibility List	$57.15 / Each	1
114707	270093	25		RIGHT SPOTTER	No	Model Compatibility List	$57.15 / Each	1
114703	270094	20		LEFT CARRIAGE	No	Model Compatibility List	$90.56 / Each	1
114702	270095	19		RIGHT CARRIAGE	No	Model Compatibility List	$90.56 / Each	1
114731	270097	62		LONG CABLE TRAP	No	Model Compatibility List	$5.91 / Each	4,5,6
114730	270098	61		LARGE CABLE TRAP	No	Model Compatibility List	$5.91 / Each	4,5,6
114738	270099	74		PULLEY PLATE	No	Model Compatibility List	$18.68 / Each	8
114710	270100	30		ARM PAD	No	Model Compatibility List	$75.47 / Each	3,12,13,14
114754	270105	117		BACKREST	No	Model Compatibility List	$290.14 / Each	4,5,6,12,13,14
114719	270112	41		WEIGHT CARRIAGE	No	Model Compatibility List	$124.63 / Each	3
114764	270113	136		CURL KNOB	No	Model Compatibility List	$21.47 / Each	1
114766	270114	142		CURL PIN	No	Model Compatibility List	$21.47 / Each	12,13,14
114757	270116	123		SEAT PIN	No	Model Compatibility List	$21.47 / Each	12,13,14
114749	270118	110		LEG LEVER	No	Model Compatibility List	$97.03 / Each	3
114751	270121	112		CURL BAR	No	Model Compatibility List	$209.41 / Each	1
114746	270122	107		BENCH FRAME	No	Model Compatibility List	$229.58 / Each	3
114752	270123	113		CURL POST	No	Model Compatibility List	$93.80 / Each	12,13,14
114760	270127	129		PAD TUBE	No	Model Compatibility List	$16.37 / Each	3,12,13,14
114753	270128	115		LONG PAD TUBE	No	Model Compatibility List	$18.41 / Each	3,12,13,14
114709	270129	29		UPRIGHT BACKREST	No	Model Compatibility List	$151.37 / Each	3,4,5,6,12,13,14
114697	270345	14		CENTER TOP FRAME	No	Model Compatibility List	$153.04 / Each Out Of Stock	3
114747	270346	108		BENCH STABILIZER	No	Model Compatibility List	$99.46 / Each	1
114685	270347	2		CENTER BASE	No	Model Compatibility List	$290.14 / Each	3
114712	270349	32		SWIVEL ARM	No	Model Compatibility List	$237.15 / Each Out Of Stock	3
114743	273870	89		M6 X 67MM SCREW	No	Model Compatibility List	$2.79 / Each	2
114742	273871	87		M6 X 80MM SCREW	No	Model Compatibility List	$3.08 / Each	2
114768	273873	149		M6 X 38MM SCREW	No	Model Compatibility List	$2.06 / Each	2
100538	273874	92		M10 X 95MM BOLT	No	Model Compatibility List	$12.77 / Each	2
114772	298795	#		USER-S MANUAL	No	Model Compatibility List	$8.93 / Each	1
106079	307476	67		HANDLE	No	Model Compatibility List	$18.50 / Each	11
114755	320448	118		BACKREST FRAME	No	Model Compatibility List	$105.30 / Each	3,4,5,6,12,13,14
114726	320874	51		LARGE FOOT PLATE	No	Model Compatibility List	$15.49 / Each	9
114704	320896	22		WT BAR ADAPTER, NOTE: NEW	No	Model Compatibility List	$91.45 / Each	1
114729	320900	57		SWIVEL AXLE	No	Model Compatibility List	$37.05 / Each	8
114700	320944	17		WEIGHT BAR	No	Model Compatibility List	$231.81 / Each Out Of Stock	3
114748	322369	109		FRONT LEG	No	Model Compatibility List	$250.99 / Each	1
114695	322370	12		ARM FRAME	No	Model Compatibility List	$191.20 / Each	3
114698	322371	15		SUPPORT FRAME	No	Model Compatibility List	$100.80 / Each	3
114686	322374	3		LEFT UPRIGHT	No	Model Compatibility List	$610.58 / Each	3
114687	322375	4		RIGHT UPRIGHT	No	Model Compatibility List	$191.54 / Each Out Of Stock	3
114696	322377	13		SIDE TOP FRAME	No	Model Compatibility List	$190.18 / Each	3
114691	322378	8		BACKREST UPRIGHT	No	Model Compatibility List	$394.39 / Each	3,4,5,6,12,13,14
114733	322380	64		CARRIAGE GUIDE	No	Model Compatibility List	$128.00 / Each	1
114688	322381	5		WEIGHT BAR GUIDE	No	Model Compatibility List	$185.04 / Each Out Of Stock	3
114684	322382	1		BASE	No	Model Compatibility List	$245.17 / Each	3
114723	322383	46		DOUBLE U-BRACKET	No	Model Compatibility List	$21.13 / Each	2,3,4,5,6
114756	323567	122		SEAT FRAME	No	Model Compatibility List	$91.27 / Each	3,12,13,14
102194	344347	43		ANKLE STRAP	No	Model Compatibility List	$61.92 / Each	1
100604	045008	#		5MM ALLEN WRENCH	Yes	Model Compatibility List	$3.85 / Each
100541	045021	#		6MM ALLEN WRENCH	Yes	Model Compatibility List	$5.28 / Each
1019810	012142	79	4	M6 Split Washer Lock	No	Model Compatibility List	$1.79 / Each
1004787	256446	108	1	M8 Locking Nut	No	Model Compatibility List	$0.69 / Each	2
1005195	148710	53	1	M10 Locknut	No	Model Compatibility List	$1.57 / Each	2
100524	250420	77	1	Screw M10-1.5 x 20mm	No	Model Compatibility List	$2.09 / Each	2
1029230	147592	0	1	Chain w snap link (Used)	Yes	Model Compatibility List	$9.99 / Each	1
1010890	119425	38	1	Nylock Nut	Yes	Model Compatibility List	$0.55 / Each	2
1011523	133945	0	1	Nylock Jam Nut 3/8"	Yes	Model Compatibility List	$11.99 / Each	2
1011835	208320	148	1	Screw M4 X 10MM	Yes	Model Compatibility List	$0.32 / Each	2
1032516	208581	0	1	Screw (Used)	No	Model Compatibility List	$2.99 / Each	2

View Drawing

Chat with us

GOLD'S GYM - GYM PLATINUM

Exploded Diagrams

general Info

Customer Service

About us

Address
