GOLD'S GYM - GYM XRS 20

Repair Parts for GOLD\'S GYM GYM XRS 20 GGBE14860

Brand: GOLD'S GYM

Category: Adjustable Bench

Type: Strength Systems

Model Name: GYM XRS 20

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Covers and Plastics
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15,3
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
M8 NYLON LOCKNUT 100682 012042 58 M8 NYLON LOCKNUT Yes Model Compatibility List $1.15 / Each

2
104626 120733 28 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
SPRING CLIP 113814 122321 41 SPRING CLIP No Model Compatibility List $15.46 / Each

2
113809 123108 30 BUMPER No Model Compatibility List $2.73 / Each

1
102175 013374 44 M10 X 70MM BOLT No Model Compatibility List $5.75 / Each

2
#8 X 3/4 100132 013607 51 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

2
STABILIZER CAP 100550 139418 25 STABILIZER CAP Yes Model Compatibility List $5.14 / Each

9
M10 FLAT WASHER 100027 140206 52 M10 FLAT WASHER No Model Compatibility List $1.33 / Each

2
1/4 100042 014063 53 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
M10 LOCKNUT 100540 148710 57 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
114066 173664 49 M10 X 165MM BOLT No Model Compatibility List $18.91 / Each

2
CONSOLE FRAME CAP 109966 186253 29 CONSOLE FRAME CAP Yes Model Compatibility List $1.44 / Each

3,7,9,46
M10 X 84MM BOLT 104493 194587 43 M10 X 84MM BOLT No Model Compatibility List $9.10 / Each

2
102212 195073 42 M10 X 90MM BOLT No Model Compatibility List $10.24 / Each

2
113820 201699 # EXERCISE CHART No Model Compatibility List $1.00 / Each

1
M6 X 22MM BOLT 102118 207684 47 M6 X 22MM BOLT No Model Compatibility List $1.09 / Each

2
102161 208378 22 FOAM PAD No Model Compatibility List $29.17 / Each

12,13,14
101947 208914 48 M6 X 40MM BOLT No Model Compatibility List $2.04 / Each

2
100564 218557 # DECAL, GENERAL WARNING No Model Compatibility List $2.11 / Each

7,3
100778 235321 54 M8 WASHER No Model Compatibility List $1.61 / Each

2
19MM ROUND INNER CAP 113816 239042 23 19MM ROUND INNER CAP No Model Compatibility List $2.90 / Each

9
114069 240950 56 25MM OUTER CAP No Model Compatibility List $0.24 / Each

9
CURL BUSHING 114057 242981 31 CURL BUSHING No Model Compatibility List $6.00 / Each

8
114073 245084 # DECAL, MAX WEIGHT WARNING No Model Compatibility List $1.58 / Each

7,3
114058 245589 32 BACKREST BUSHING No Model Compatibility List $0.79 / Each

8,4,5,6,12,13,14
114035 245591 1 FRAME No Model Compatibility List $218.38 / Each

3
114040 245593 6 CURL POST No Model Compatibility List $64.13 / Each

12,13,14
114038 245595 4 FRONT LEG No Model Compatibility List $97.08 / Each

1
114039 245597 5 LEG LEVER No Model Compatibility List $142.43 / Each

3
114036 245599 2 FRONT STABILIZER No Model Compatibility List $144.53 / Each

1
114049 245601 15 BACKREST POST No Model Compatibility List $95.69 / Each

4,5,6,12,13,14
114055 245605 24 WEIGHT TUBE No Model Compatibility List $21.02 / Each
Out Of Stock 		3
114050 245607 16 BACKREST FRAME No Model Compatibility List $58.50 / Each
Out Of Stock 		3,4,5,6,12,13,14
114068 245609 55 13MM X 17MM SPACER No Model Compatibility List $2.40 / Each

2,3,4,5,6
114051 245611 17 CURL BAR No Model Compatibility List $92.87 / Each

1
114052 245613 18 SEAT No Model Compatibility List $68.71 / Each
Out Of Stock 		12,13,14
114053 245615 19 BACKREST No Model Compatibility List $89.09 / Each
Out Of Stock 		4,5,6,12,13,14
114054 245617 20 CURL PAD No Model Compatibility List $97.08 / Each

12,13,14
114062 245618 37 UPRIGHT BUSHING No Model Compatibility List $3.96 / Each

8,3
114046 245620 12 WEIGHT REST No Model Compatibility List $131.53 / Each

3
114047 245622 13 SAFETY SPOTTER No Model Compatibility List $93.48 / Each

9
114045 245624 11 UPRIGHT No Model Compatibility List $168.52 / Each

3
114041 245628 7 BASE No Model Compatibility List $143.88 / Each

3
113810 245685 21 PAD TUBE No Model Compatibility List $7.40 / Each

3,12,13,14
114048 245687 14 STORAGE TUBE No Model Compatibility List $32.77 / Each
Out Of Stock 		3
114063 245689 38 UPRIGHT SPACER No Model Compatibility List $3.43 / Each

2,3,4,5,6
114042 245691 8 SHORT BASE No Model Compatibility List $80.41 / Each

3
114044 245724 10 RIGHT UPRIGHT BASE No Model Compatibility List $173.00 / Each

3
100897 245795 39 ROUND FRAME BUMPER No Model Compatibility List $0.26 / Each

3
114037 245798 3 REAR STABILIZER No Model Compatibility List $98.97 / Each

1
114043 245800 9 LEFT UPRIGHT BASE No Model Compatibility List $173.00 / Each

3
114071 245832 # USER'S MANUAL No Model Compatibility List $8.93 / Each

1

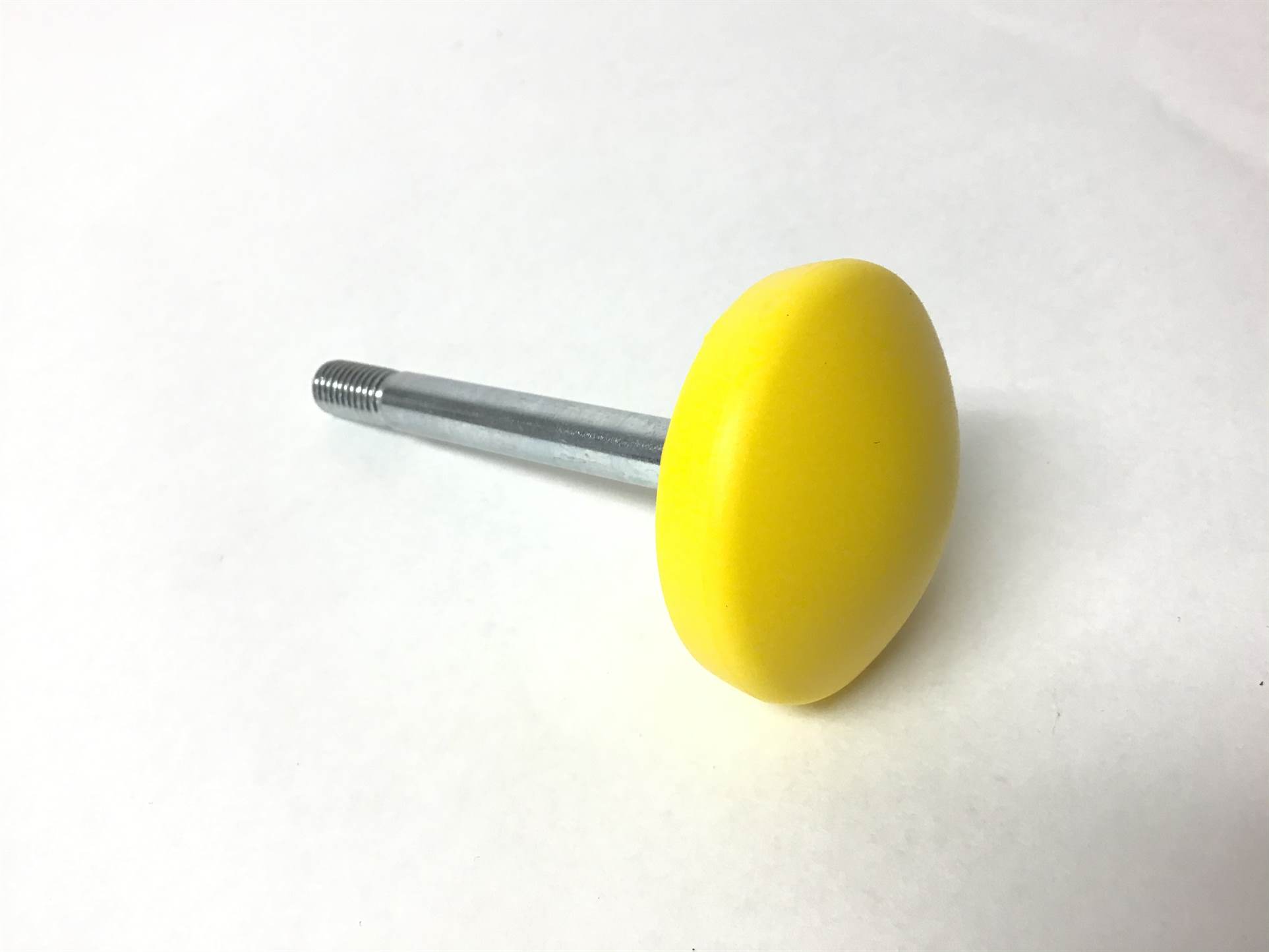

ADJUSTMENT KNOB 114060 254539 35 ADJUSTMENT KNOB No Model Compatibility List $15.59 / Each
Out Of Stock 		14
M10 X 77MM BOLT SET 114064 245924 45 M10 X 77MM BOLT SET No Model Compatibility List $21.31 / Each

2
70MM ROUND INNER CAP 113945 246550 26 70MM ROUND INNER CAP No Model Compatibility List $9.78 / Each

9
114061 246573 36 LONG PAD TUBE No Model Compatibility List $22.89 / Each
Out Of Stock 		3,12,13,14
114070 246833 59 SEAT BRACKET No Model Compatibility List $6.60 / Each
Out Of Stock 		2,3,4,5,6,12,13,14
114065 247128 46 M6 X 80MM SCREW No Model Compatibility List $7.21 / Each

2
114067 249128 50 M5 X 19MM SCREW No Model Compatibility List $0.25 / Each

2
114056 249153 27 57MM ROUND INNER CAP No Model Compatibility List $1.03 / Each

9
114072 259853 # USER'S MANUAL, SPANISH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
114059 260144 33 CURL BAR PIN W/TETHER No Model Compatibility List $15.96 / Each
Out Of Stock 		12,13,14
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

1,2
M6 X 22MM Bolt 1005205 207684 0 1 M6 X 22MM Bolt No Model Compatibility List $10.99 / Each

1
M8 Locknut 1011772 012042 102B 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

1
