GOLD'S GYM - GYM XRS 20

Repair Parts for GOLD\'S GYM GYM XRS 20 GGBE14861

Brand: GOLD'S GYM

Category: Adjustable Bench

Type: Strength Systems

Model Name: GYM XRS 20

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Covers and Plastics
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15,3
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
M8 NYLON LOCKNUT 100682 012042 58 M8 NYLON LOCKNUT Yes Model Compatibility List $1.15 / Each

2
104626 120733 28 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
SPRING CLIP 113814 122321 41 SPRING CLIP No Model Compatibility List $15.46 / Each

2
113809 123108 30 BUMPER No Model Compatibility List $2.73 / Each

1
104617 013373 48 M8 X 40MM BOLT No Model Compatibility List $5.00 / Each

2
102175 013374 44 M10 X 70MM BOLT No Model Compatibility List $5.75 / Each

2
STABILIZER CAP 100550 139418 25 STABILIZER CAP Yes Model Compatibility List $5.14 / Each

9
M10 FLAT WASHER 100027 140206 52 M10 FLAT WASHER No Model Compatibility List $1.33 / Each

2
1/4 100042 014063 53 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
M10 LOCKNUT 100540 148710 57 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
101864 184126 51 M4 X 16MM SCREW No Model Compatibility List $0.47 / Each

2
108634 184363 47 M6 X 16MM SCREW No Model Compatibility List $3.73 / Each

2
CONSOLE FRAME CAP 109966 186253 29 CONSOLE FRAME CAP Yes Model Compatibility List $1.44 / Each

3,7,9,46
M10 X 84MM BOLT 104493 194587 43 M10 X 84MM BOLT No Model Compatibility List $9.10 / Each

2
102216 194884 42 M10 X 95MM BOLT No Model Compatibility List $13.68 / Each

2
106304 198735 56 25MM ROUND EXT ENDCAP No Model Compatibility List $2.33 / Each

9,4,5,6
113820 201699 # EXERCISE CHART No Model Compatibility List $1.00 / Each

1
102161 208378 22 FOAM PAD No Model Compatibility List $29.17 / Each

12,13,14
101345 213717 50 M5 X 16MM SCREW No Model Compatibility List $0.64 / Each

2
100564 218557 # DECAL, GENERAL WARNING No Model Compatibility List $2.11 / Each

7,3
114080 233259 37 UPRIGHT BUSHING No Model Compatibility List $17.88 / Each

8,3
100778 235321 54 M8 WASHER No Model Compatibility List $1.61 / Each

2
19MM ROUND INNER CAP 113816 239042 23 19MM ROUND INNER CAP No Model Compatibility List $2.90 / Each

9
114073 245084 # DECAL, MAX WEIGHT WARNING No Model Compatibility List $1.58 / Each

7,3
114079 245588 32 BACKREST BUSHING No Model Compatibility List $4.49 / Each

8,4,5,6,12,13,14
114038 245595 4 FRONT LEG No Model Compatibility List $97.08 / Each

1
114036 245599 2 FRONT STABILIZER No Model Compatibility List $144.53 / Each

1
114049 245601 15 BACKREST POST No Model Compatibility List $95.69 / Each

4,5,6,12,13,14
114077 245616 20 CURL PAD No Model Compatibility List $141.98 / Each

12,13,14
114076 245621 13 SAFETY SPOTTER No Model Compatibility List $141.39 / Each

9
114075 245623 11 UPRIGHT No Model Compatibility List $292.91 / Each

3
113941 245794 39 FOOT No Model Compatibility List $2.64 / Each

9
114074 245799 9 LEFT UPRIGHT BASE No Model Compatibility List $206.16 / Each

3
114085 245833 # USER'S MANUAL No Model Compatibility List $9.46 / Each

1
114082 245925 45 M10 X 77MM BOLT SET No Model Compatibility List $19.35 / Each
Out Of Stock 		2

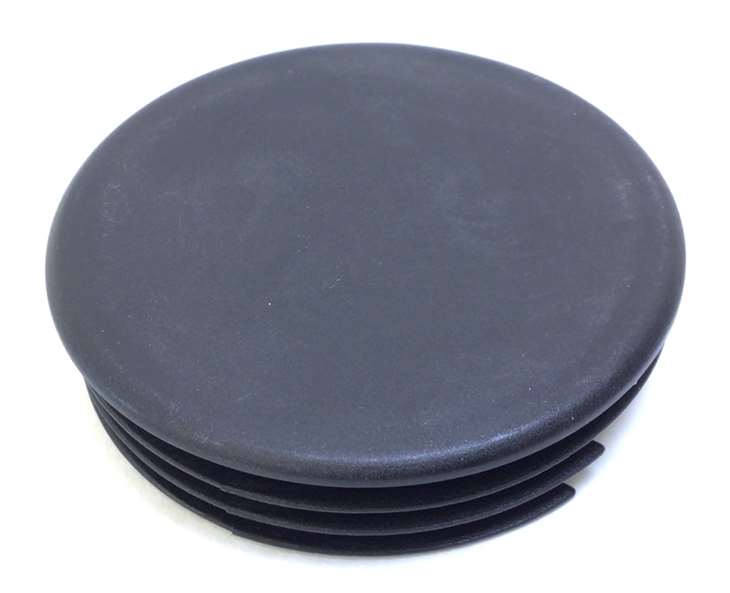

70MM ROUND INNER CAP 113945 246550 26 70MM ROUND INNER CAP No Model Compatibility List $9.78 / Each

9
114081 250032 40 M10 X 90MM CARRIAGE BOLT No Model Compatibility List $9.78 / Each

2
114083 250254 46 M6 X 80MM SCREW No Model Compatibility List $3.32 / Each

2
114084 250255 49 M10 X 170MM BOLT No Model Compatibility List $17.73 / Each

2
114078 250256 27 57MM ROUND INNER CAP No Model Compatibility List $4.11 / Each

9
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

1,2
M8 Locknut 1011772 012042 102B 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

1
