Replacement Parts for HEALTH RIDER AEROBIC RIDER 296 Gliders
Phone : 847-309-2818 M-F 10am-5pm

HEALTH RIDER - AEROBIC RIDER

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
AXLECAP 119567 103957 54 AXLECAP No Model Compatibility List $3.83 / Each

7,8,9
100814 115366 39 TRANSPORT HANDLE ENDCAP No Model Compatibility List $0.55 / Each

9,4,5,6,11
100237 119439 . ELECTRONIC BRACKET NUT No Model Compatibility List $0.18 / Each

2,3,4,5,6
119560 120694 25 WHEEL FRAME ENDCAP No Model Compatibility List $3.01 / Each

8,9,3,4,5,6
106584 120696 26 FRAME CROSSBAR ENDCAP No Model Compatibility List $3.33 / Each

9,3,4,5,6
110329 013093 67 M8 X 18MM SCREW No Model Compatibility List $1.03 / Each

2
119575 013284 . REAR STABLIZER SCREW No Model Compatibility List $0.89 / Each

2
119553 133577 8 SPACER No Model Compatibility List $8.34 / Each

2,3,4,5,6

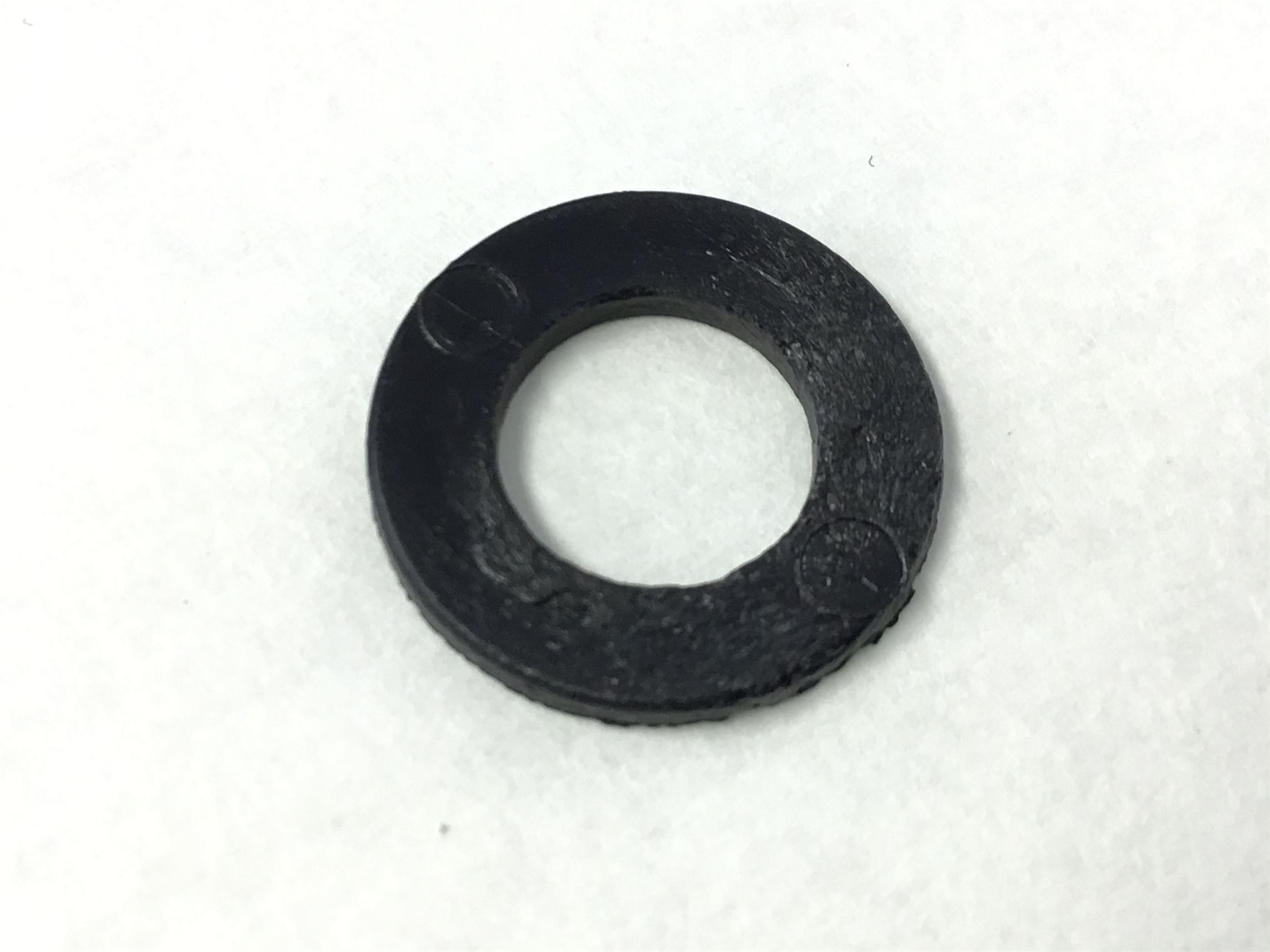

LARGE PLASTIC WASHER 119555 133581 . LARGE PLASTIC WASHER No Model Compatibility List $4.06 / Each

2,9
119559 133615 24 LARGE WASHER No Model Compatibility List $19.17 / Each
Out Of Stock
2
119562 133636 32 FOOT PEDAL PLUG No Model Compatibility List $0.96 / Each

8,9
119566 133703 46 MAGNET W/BRACKET No Model Compatibility List $6.97 / Each

2,8,3,4,5,6
119571 133825 # LINKARM ASSY INSTRUCTIONS No Model Compatibility List $0.38 / Each

3
119561 133828 30 SIDESHIELD FASTENER No Model Compatibility List $1.78 / Each

3
119564 133931 41 LEFT FOOT PEDAL No Model Compatibility List $32.92 / Each
Out Of Stock
8,9
3/8 103373 133945 . 3/8" HEX LOCK NUT Yes Model Compatibility List $0.34 / Each

2
119572 133946 7 FOOT PAD ENDCAP No Model Compatibility List $17.36 / Each

9,4,5,6,12,13,14
119573 133952 12 SHORT PIVOT BUSHING No Model Compatibility List $8.60 / Each
Out Of Stock
8
119578 133955 . CUSTOM SCREW No Model Compatibility List $6.67 / Each
Out Of Stock
2
119557 133996 16 LONG SHOULDER BOLT No Model Compatibility List $11.56 / Each
Out Of Stock
2
119576 134000 . 1/4" X 1/2" SCREW No Model Compatibility List $1.02 / Each

2
119577 134002 # USER'S MANUAL No Model Compatibility List $6.56 / Each

1
119574 013449 . 1/4" X 1.5" BOLT No Model Compatibility List $0.44 / Each

2
119556 014025 . RUBBER SHIELD WASHER No Model Compatibility List $4.44 / Each

2,3
102276 014041 3 IDLER ARM WASHER No Model Compatibility List $0.12 / Each

2,8,3
1/4 104040 014127 . 1/4" WASHER Yes Model Compatibility List $1.20 / Each

2,3
119565 174472 43 SEAT No Model Compatibility List $191.34 / Each

12,13,14

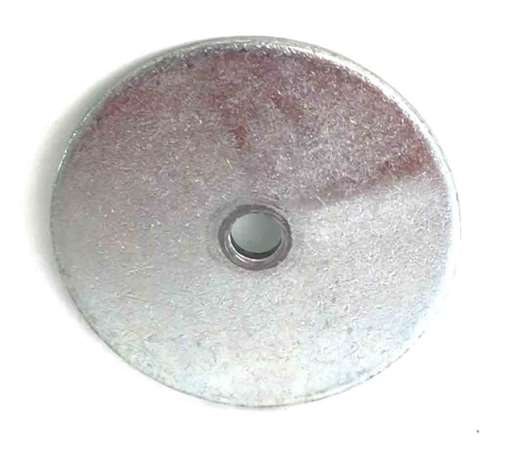

Washer FENDER ZP .35X2.75X.125 1027991 133615 0 1 Washer FENDER ZP .35X2.75X.125" (Used) No Model Compatibility List $14.99 / Each

1

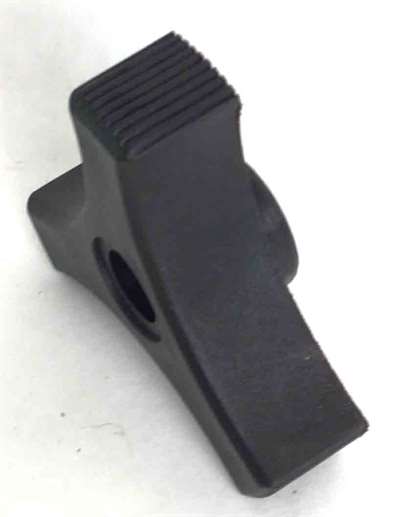

Knob (Used) 1027977 133937 0 1 Knob (Used) No Model Compatibility List $10.37 / Each

1
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

1,2
Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

1
View Drawing
