HEALTH RIDER - CROSSTRAINER C860E

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100128 116059 100128 74 ADJUSTMENT BRACKET No Model Compatibility List $2.29 / Each

2,3,4,5,6
101897 101675 101897 # WHITE JUMPER WIRE 14" No Model Compatibility List $7.19 / Each

4,5,6
121677 101951 # 8" BLACK WIRE, 2F No Model Compatibility List $3.11 / Each

4,5,6

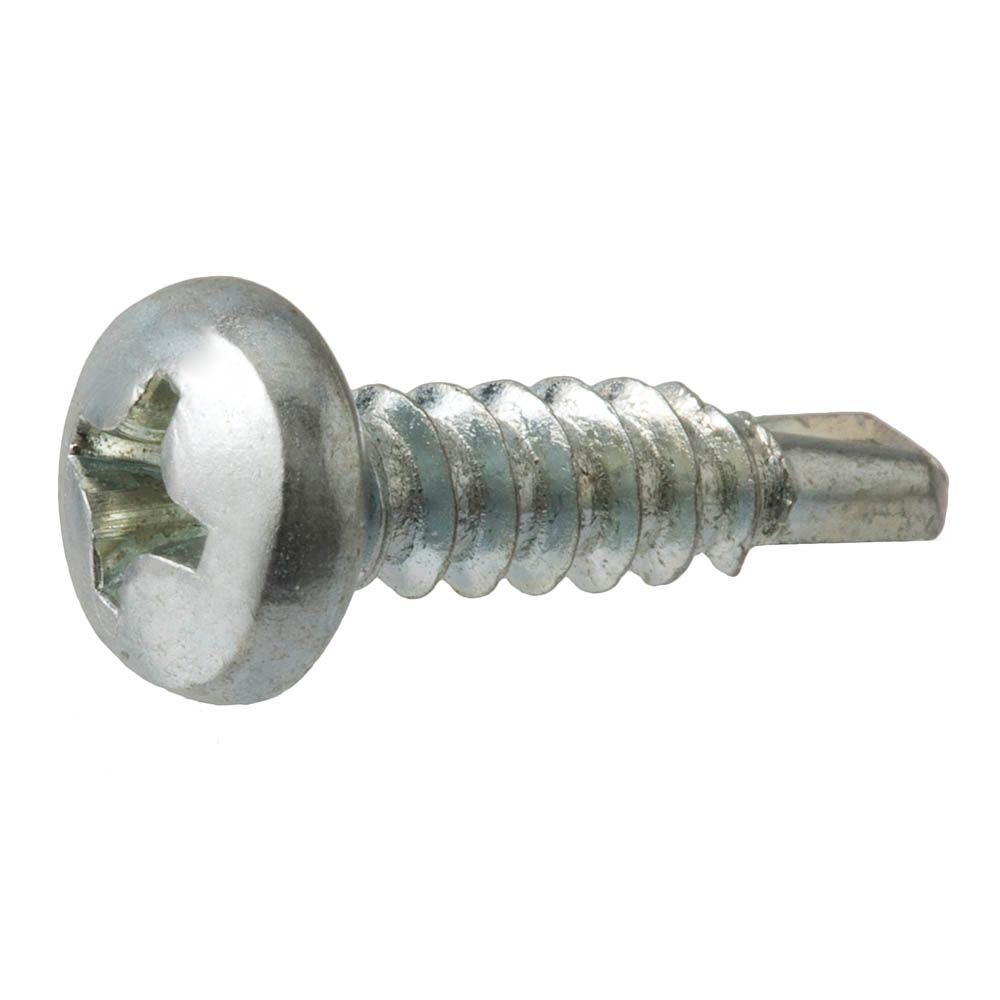

102308 116955 102308 84 M4 X 16MM SCREW No Model Compatibility List $1.33 / Each

2
102634 100111 102634 # 8" GRN WIRE F/R, POWER No Model Compatibility List $4.75 / Each

4,5,6
102955 104351 102955 98 INCLINE SENSOR SWITCH No Model Compatibility List $16.73 / Each

4,5,6,10
102959 104355 102959 113 SMALL BOLT No Model Compatibility List $1.28 / Each

2
104838 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
107503 117640 107503 32 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

2
109370 104346 109370 84 INCLINE DISK Yes Model Compatibility List $5.31 / Each

10
109382 103130 109382 51B CIRCUIT BREAKER Yes Model Compatibility List $11.52 / Each

4,5,6
109407 100115 109407 # 4" BLK WIRE F/F, POWER No Model Compatibility List $2.93 / Each

4,5,6
112083 100300 112083 # 8" BLUE WIRE, 2F No Model Compatibility List $5.46 / Each

4,5,6
113842 100081 113842 43 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
114261 121827 114261 12 ROLLER GROUND WIRE No Model Compatibility List $7.77 / Each

4,5,6,8
116926 100064 116926 66 RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
116927 100262 116927 78 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

2,4,5,6
116980 114216 116980 31 38MM ROUND INNER CAP Yes Model Compatibility List $2.11 / Each

9
117544 106302 117544 17 40MM X 50MM INT ENDCAP No Model Compatibility List $3.12 / Each

4,5,6,9
119038 104349 119038 90 KEY/CLIP Yes Model Compatibility List $9.89 / Each

2,9
119199 101018 119199 56 DRIVE BELT Yes Model Compatibility List $68.07 / Each

10,15
119425 100031 119425 32 3/8" HEX JAM NUT No Model Compatibility List $1.65 / Each

2
100237 119439 33 ELECTRONIC BRACKET NUT No Model Compatibility List $0.18 / Each

2,3,4,5,6
122824 119779 13 REAR PLATFORM SCREW No Model Compatibility List $0.26 / Each

2
119894 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2
101666 012002 89 M8 NYLON LOCKNUT No Model Compatibility List $0.46 / Each

2
120630 103901 120630 # CONSOLE GROUND SCREW No Model Compatibility List $1.19 / Each

2,7
120867 104004 120867 # SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

2,9,12,13,14
117875 012105 # M8 FLANGE NUT No Model Compatibility List $2.43 / Each

2
012111 100663 012111 60 M6 NUT Yes Model Compatibility List $3.31 / Each

2
012149 100136 012149 16B 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
121519 101359 121519 70 M10 SPLIT WASHER No Model Compatibility List $4.44 / Each

2
124742 121737 # RUBBER WASHER No Model Compatibility List $0.44 / Each

2
122812 113293 122812 22 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
124695 117665 124695 74 WIRE HARNESS GROMMET No Model Compatibility List $4.12 / Each

4,5,6
125819 101014 125819 107 LARGE STANDOFF Yes Model Compatibility List $0.34 / Each

2
126650 106102 126650 52 RUBBER BUMPER No Model Compatibility List $3.01 / Each

3
126911 104352 126911 102 20" WIRE HARNESS Yes Model Compatibility List $12.17 / Each

4,5,6
127860 118677 127860 # FASTENER No Model Compatibility List $1.28 / Each

1
128272 100221 128272 10 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
128457 100190 128457 # 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2
106291 130286 94 M10 LARGE WASHER No Model Compatibility List $8.46 / Each

2
131090 100079 131090 69 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
013300 100149 013300 32 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
013316 100354 013316 63 HOOD SCREW No Model Compatibility List $1.42 / Each

2,9
013342 121869 013342 63 REAR ROLLER ADJ SCREW No Model Compatibility List $3.52 / Each

2,8
013375 106621 013375 5 3/8" BOLT No Model Compatibility List $4.17 / Each

2
134690 118521 134690 87 8" POWER WIRE Yes Model Compatibility List $8.89 / Each

4,5,6
013547 100450 013547 68 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

2,3,8
013550 102106 013550 62 M5 X 16MM BOLT No Model Compatibility List $1.60 / Each

2
135575 100664 135575 59 M6 X 38MM BOLT No Model Compatibility List $6.66 / Each

2
013566 104490 013566 33 M6 X 76MM SCREW No Model Compatibility List $8.56 / Each

2
100339 013581 34 IDLER ARM BOLT No Model Compatibility List $1.36 / Each

2,8,3
013585 101801 013585 64 M5 X 6MM SCREW Yes Model Compatibility List $1.65 / Each

2
116773 135884 90 M6 X 16MM SCREW No Model Compatibility List $1.33 / Each

2
136728 100137 136728 18 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
138768 105948 138768 92 WASHER No Model Compatibility List $1.69 / Each

2,4,5,6
138853 100290 138853 114 HANDRAIL COVER FASTENER No Model Compatibility List $1.55 / Each

3,9
139703 100657 139703 . BEARING Yes Model Compatibility List $27.76 / Each

1
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

2
139619 140569 # TECH SHEET No Model Compatibility List $0.81 / Each

1
014063 100042 014063 43 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
014117 102446 014117 4 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

2
121861 141544 18 FRONT ROLLER ADJ BOLT No Model Compatibility List $0.85 / Each

2,8
014157 100141 014157 22 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

2
014172 100681 014172 45 M8 X 23MM WASHER No Model Compatibility List $1.44 / Each

2
143334 120003 143334 78 REED SWITCH BRACKET No Model Compatibility List $28.03 / Each

2,3,4,5,6
143742 100654 143742 21 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

2
144520 102054 144520 85 M5 NUT No Model Compatibility List $1.77 / Each

2
144985 100668 144985 66 M4 X 16MM SCREW No Model Compatibility List $1.32 / Each

2
139475 146978 # HOOD DECAL No Model Compatibility List $8.34 / Each

7,9,3
139471 147239 23 SIDE HOOD BRACKET No Model Compatibility List $3.29 / Each

2,9,3,4,5,6
139474 147479 85 INCLINE MOTOR PLATE No Model Compatibility List $33.57 / Each

10
139624 147489 # USER'S MANUAL No Model Compatibility List $17.19 / Each

1
139468 147627 11 PULSE SENSOR COVER No Model Compatibility List $2.06 / Each

9,12,13,14
148710 100540 148710 29 M10 LOCKNUT No Model Compatibility List $2.67 / Each

2
139472 148942 33 FRONT HOOD BRACKET No Model Compatibility List $991.44 / Each

2,9,3,4,5,6
139470 149306 21 INCLINE MOTOR SHIELD No Model Compatibility List $453.53 / Each

3,10
149499 139469 149499 17 FRONT ROLLER/PULLEY Yes Model Compatibility List $131.93 / Each

8
150327 100690 150327 61 M5 NYLON LOCKNUT No Model Compatibility List $1.17 / Each

2
139505 151411 . CN-PHONE 800# CORRECTED No Model Compatibility List $2.05 / Each

1
153487 127978 153487 80 WALKING BELT No Model Compatibility List $127.30 / Each

15
102047 153770 83 M8 X 40MM BUTTON SCREW No Model Compatibility List $10.57 / Each

2
153988 120009 153988 # CRANK ARM WASHER No Model Compatibility List $6.67 / Each

2,3,8
154848 101799 154848 67 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

2
158332 100386 158332 # JACK Yes Model Compatibility List $7.66 / Each

4,5,6
016028 118356 016028 95 ADHESIVE CLIP No Model Compatibility List $2.23 / Each

2
016057 100063 016057 65 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
163977 114623 163977 50 M10 X 25MM FLTHD SCREW No Model Compatibility List $6.66 / Each

2
100706 165288 # IFIT SPLITTER No Model Compatibility List $11.26 / Each

1
167079 100385 167079 # AUDIO CABLE Yes Model Compatibility List $17.61 / Each

4,5,6
175904 102040 175904 86 UPPER WIRE HARNESS No Model Compatibility List $76.57 / Each

4,5,6
120002 175916 76 SPRING No Model Compatibility List $6.42 / Each
Out Of Stock
2
119880 176565 # BOOK RACK No Model Compatibility List $4.37 / Each

4,5,6
177035 101781 177035 42 FLYWHEEL BEARING No Model Compatibility List $63.94 / Each

8
177515 116071 177515 53 FAN WASHER No Model Compatibility List $1.95 / Each

2,8
119873 179855 30 UPRIGHT BUSHING No Model Compatibility List $18.48 / Each

8,3
180005 119993 180005 34 M10 X 112MM CARRIAGE BOLT No Model Compatibility List $10.60 / Each

2
180007 118785 180007 57 M8 X 42MM BOLT No Model Compatibility List $2.57 / Each

2
180008 119997 180008 58 M8 X 22MM BUTTON SCREW No Model Compatibility List $2.06 / Each

2
180010 119999 180010 65 M5 X 33MM SCREW No Model Compatibility List $8.22 / Each

2
180011 120001 180011 71 M10 X 27MM SCREW No Model Compatibility List $2.06 / Each

2
120007 180933 91 UPRIGHT KNOB No Model Compatibility List $34.48 / Each

3
100829 181563 # CHEST PULSE KIT No Model Compatibility List $176.56 / Each

12,13,14
181993 119996 181993 55B CABLE Yes Model Compatibility List $32.53 / Each

4,5,6
119866 183632 52 M10 X 27MM PATCH SCREW No Model Compatibility List $4.47 / Each

2
100709 183757 # CD, ROCK 20 MIN, LVL 1 No Model Compatibility List $19.96 / Each
Out Of Stock
1
100710 183759 # CD, ROCK 45 MIN, LVL 3 No Model Compatibility List $52.43 / Each
Out Of Stock
1
100711 183760 # CD, WORLDBEAT, 20MIN,LVL1 No Model Compatibility List $19.96 / Each

1
100712 183762 # CD, WORLDBEAT, 45MIN,LVL3 No Model Compatibility List $19.96 / Each
Out Of Stock
1
100714 183764 # VIDEO, HAWAII, LVL 1 No Model Compatibility List $19.10 / Each

1
100713 183972 # VIDEO, COAST/COAST, LVL 2 No Model Compatibility List $21.04 / Each

1
119998 184373 63 M6 X 25MM SCREW No Model Compatibility List $4.37 / Each

2
120070 184384 87 LOWER WIRE HARNESS No Model Compatibility List $56.50 / Each

4,5,6
185207 100080 185207 77 REED SWITCH WIRE Yes Model Compatibility List $13.34 / Each

4,5,6
185582 104353 185582 106 CHOKE Yes Model Compatibility List $76.47 / Each

1
120063 185688 41 FLYWHEEL W/BRNGS No Model Compatibility List $170.29 / Each

8
189558 101655 189558 93 UPPER BODY ENDCAP Yes Model Compatibility List $5.11 / Each

4,5,6,9
190384 119871 190384 22 M8 X 25MM BUTTON SCREW No Model Compatibility List $3.82 / Each
Out Of Stock
2
120052 190443 5 CONSOLE No Model Compatibility List $255.50 / Each

7
120057 190811 15 LEFT PEDAL ARM No Model Compatibility List $70.08 / Each

8,9,3
120061 190813 . LEFT CRANK ARM No Model Compatibility List $66.85 / Each
Out Of Stock
8,3
120066 190814 79 HANDLEBAR LEG No Model Compatibility List $35.57 / Each

11
120058 190816 19 PLASTIC WASHER No Model Compatibility List $3.86 / Each

2,9
120056 190853 12 PEDAL No Model Compatibility List $35.57 / Each

8,9
120049 190854 2 UPRIGHT No Model Compatibility List $97.03 / Each
Out Of Stock
3
120050 190855 3 FRONT STABILIZER No Model Compatibility List $60.38 / Each

1
120051 190856 4 REAR STABILIZER No Model Compatibility List $60.38 / Each

1
120053 190857 6 LEFT SIDESHIELD No Model Compatibility List $132.51 / Each

3
120054 190858 7 RIGHT SIDESHIELD No Model Compatibility List $132.51 / Each

3
120055 190859 8 COVER DISC No Model Compatibility List $91.20 / Each

9
120059 190862 31 LEFT FRONT ENDCAP No Model Compatibility List $16.37 / Each

9,4,5,6
120065 190864 68 RIGHT FRONT ENDCAP No Model Compatibility List $16.37 / Each

9,4,5,6
120067 190865 80 SIDESHIELD COVER No Model Compatibility List $38.81 / Each

9,3
120060 190866 32 WHEEL No Model Compatibility List $16.30 / Each

8
120071 190892 # CUP HOLDER No Model Compatibility List $13.59 / Each

1
121562 190950 # USER'S MANUAL No Model Compatibility List $6.89 / Each

1
120069 190965 82 PEDAL LEG ENDCAP No Model Compatibility List $6.42 / Each

8,9,4,5,6
120068 190971 81 HANDGRIP PULSE SENSOR No Model Compatibility List $96.66 / Each

12,13,14,11
120064 192438 51 BUMPER No Model Compatibility List $3.08 / Each

1
193356 119869 193356 55A RESISTANCE CONTROL MOTOR Yes Model Compatibility List $93.07 / Each

8,10
104613 195090 20 M6 X 20MM CHAMFER SCREW No Model Compatibility List $0.77 / Each

2
120062 195274 . RIGHT CRANK ARM No Model Compatibility List $103.36 / Each
Out Of Stock
8,3
198640 100040 198640 41 BELT GUIDE No Model Compatibility List $6.59 / Each

15
204489 101362 204489 # WAVE WASHER No Model Compatibility List $2.99 / Each

2,4,5,6
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
220047 112958 220047 # M3 X 12MM SCREW No Model Compatibility List $2.13 / Each

2
224019 104319 224019 1 MOTOR BELT Yes Model Compatibility List $21.99 / Each

15
224431 116072 224431 75 EYEBOLT M6 No Model Compatibility List $2.97 / Each

2
249938 100677 249938 47 FLANGE SCREW No Model Compatibility List $47.34 / Each

2
100463 252913 84A CAUTION DECAL, 5-LANG No Model Compatibility List $16.73 / Each

7,3
256295 101392 256295 24 LIFT BUSHING No Model Compatibility List $4.64 / Each

8,10
100280 256836 101 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6
045008 100604 045008 # 5MM ALLEN WRENCH No Model Compatibility List $3.85 / Each

2
045021 100541 045021 # 6MM ALLEN WRENCH No Model Compatibility List $5.28 / Each

2
052012 115252 052012 32 WHEEL Yes Model Compatibility List $4.49 / Each

8
054023 121907 054023 46 WIRE CLIP No Model Compatibility List $1.82 / Each

2,4,5,6
View Drawing
