HEALTH RIDER - H35XR

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
121293 104622 108 M4 X 16MM SCREW No Model Compatibility List $0.22 / Each

2
104838 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
113842 100081 113842 107 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6
116926 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
101859 121642 42 HANDLEBAR CAP No Model Compatibility List $0.96 / Each

9,11
129004 101035 129004 # ROUND GROMMET No Model Compatibility List $3.64 / Each

2
130659 100269 130659 88A CONSOLE PLATE SCREW Yes Model Compatibility List $0.19 / Each

2,7
131090 100079 131090 45 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6
013162 101030 013162 94 M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

2
100073 132315 106 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6
119561 133828 87 SIDESHIELD FASTENER No Model Compatibility List $1.78 / Each

3
013423 100258 013423 95 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

2
139703 100657 139703 43 BEARING Yes Model Compatibility List $27.76 / Each

1
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $85.64 / Each

2
101333 014018 103 M6 SPLIT WASHER No Model Compatibility List $0.28 / Each

2
014174 100665 014174 61 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

2
143742 100654 143742 44 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

2
150327 100690 150327 54 M5 NYLON LOCKNUT No Model Compatibility List $1.17 / Each

2
153209 101910 153209 59 CRANK CAP Yes Model Compatibility List $2.40 / Each

8,9
154848 101799 154848 100 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

2
157600 100076 157600 31 BASE PAD Yes Model Compatibility List $6.83 / Each

3,12,13,14
016057 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
164675 101707 164675 46 REED SWITCH/WIRE Yes Model Compatibility List $24.11 / Each

4,5,6
168267 101004 168267 81 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2
172822 100351 172822 # AUDIO WIRE NUT No Model Compatibility List $1.32 / Each

2,4,5,6
100691 183633 83 M5 WASHER No Model Compatibility List $0.23 / Each

2
184147 101832 184147 18 LEFT PEDAL/STRAP 9/16 Yes Model Compatibility List $50.26 / Each

8,9
184148 101833 184148 16 RIGHT PEDAL/STRAP Yes Model Compatibility List $48.62 / Each

8,9
104613 195090 93 M6 X 20MM CHAMFER SCREW No Model Compatibility List $0.77 / Each

2
195562 100586 195562 98 M4 X 16MM SCREW Yes Model Compatibility List $1.44 / Each

2
208163 101001 208163 78 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8
100820 214003 # POWER JACK NUT No Model Compatibility List $3.96 / Each

2,4,5,6
215823 100197 215823 90 AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
234286 101183 234286 75 MOTOR BRACKET SCREW No Model Compatibility List $1.83 / Each

2,3,4,5,6
100778 235321 70 M8 WASHER No Model Compatibility List $1.61 / Each

2
237612 100985 237612 60 M8 X 16MM SCREW No Model Compatibility List $0.96 / Each

2
241954 101173 241954 52 RESISTANCE WHEEL No Model Compatibility List $2.39 / Each

8,10
243878 101024 243878 96 SCREW M6 - 1.0 X 14MM Yes Model Compatibility List $4.65 / Each

2
244820 110697 244820 89 WIRE HARNESS Yes Model Compatibility List $60.30 / Each

4,5,6
100539 246123 105 25MM SQUARE INNER CAP No Model Compatibility List $11.79 / Each

9
100534 246785 97 M6 X 15MM SCREW No Model Compatibility List $2.52 / Each

2
248512 100830 248512 104 POWER SUPPLY Yes Model Compatibility List $21.95 / Each

4,5,6
249928 101660 249928 73 M8 X 20MM BUTTON SCREW No Model Compatibility List $2.50 / Each

2
252438 101184 252438 62 M10 X 95MM SCREW Yes Model Compatibility List $14.70 / Each

2
110573 252794 99 #8 CNSL SCREW No Model Compatibility List $0.43 / Each

7,2
254769 101181 254769 80 M6 LOCKNUT No Model Compatibility List $2.27 / Each

2
255072 101170 255072 58 LARGE PULLEY Yes Model Compatibility List $82.37 / Each

8
110472 255827 91 UPPER PULSE WIRE No Model Compatibility List $18.01 / Each

4,5,6,12,13,14
256446 100030 256446 86 M8 NUT No Model Compatibility List $0.72 / Each

2
110353 258865 # DECAL, GENERAL WARNING No Model Compatibility List $2.16 / Each

7,3
121418 263586 38 AXLE No Model Compatibility List $5.12 / Each

8
116213 263587 40 LOWER ROLLER No Model Compatibility List $5.14 / Each
Out Of Stock
8
121417 263592 37 SEAT LEVER BRACKET No Model Compatibility List $7.19 / Each

2,3,4,5,6,12,13,14
263595 108765 263595 33 BRAKE BLOCK Yes Model Compatibility List $9.14 / Each

1
263599 101999 263599 85 BLOCK SPACER Yes Model Compatibility List $2.57 / Each

2,3,4,5,6
108806 263991 # WIRE CLAMP No Model Compatibility List $1.44 / Each

4,5,6
267015 116198 267015 35 SEAT LOCK Yes Model Compatibility List $31.91 / Each

12,13,14
269300 116190 269300 39 UPPER ROLLER Yes Model Compatibility List $17.58 / Each
8
119705 271688 41 PULSE GRIP No Model Compatibility List $54.27 / Each

12,13,14,11
276024 101180 276024 76 M3.5 X 12MM SCREW No Model Compatibility List $1.31 / Each

2
279645 101174 279645 50 MOTOR BRACKET No Model Compatibility List $9.34 / Each

2,3,4,5,6
121341 280422 68 M6 X 60MM BOLT SET No Model Compatibility List $4.42 / Each

2
280444 121330 280444 32 ADJUSTMENT KNOB No Model Compatibility List $40.08 / Each

1
121345 280878 72 UPRIGHT PIVOT BUSHING No Model Compatibility List $16.47 / Each

8,3
121347 280879 71 HANDLEBAR PIVOT BUSHING No Model Compatibility List $2.85 / Each

8,11
281148 101178 281148 79 C-MAGNET BRACKET BOLT No Model Compatibility List $4.52 / Each

2,3,4,5,6,8
281149 101436 281149 84 BELT ADJUSTMENT SCREW Yes Model Compatibility List $4.87 / Each

2,15
281150 101010 281150 77 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
121340 281534 67 M6 X 70MM BOLT SET No Model Compatibility List $6.97 / Each

2
121387 282035 27 LEFT STABILIZER CAP No Model Compatibility List $21.63 / Each

9
121386 282036 26 RIGHT STABILIZER CAP No Model Compatibility List $21.63 / Each

9
282040 121385 282040 28 REAR STABILIZER CAP Yes Model Compatibility List $22.20 / Each

9
282054 121334 282054 30 LEVELING FOOT Yes Model Compatibility List $22.20 / Each

9
282057 121338 282057 25 WHEEL Yes Model Compatibility List $9.40 / Each

8
121384 283146 29 LEVELING KNOB No Model Compatibility List $17.77 / Each

1
283304 101179 283304 82 M5 X 7MM SCREW No Model Compatibility List $1.45 / Each

2
284116 101176 284116 49 FLYWHEEL AXLE Yes Model Compatibility List $18.05 / Each

8
286527 101022 286527 101A MOUNT No Model Compatibility List $1.91 / Each

2
101162 286763 65 M6 X 50MM SCREW No Model Compatibility List $2.09 / Each

2
291494 108787 291494 64 FLANGE SCREW Yes Model Compatibility List $1.86 / Each

2
121416 292200 36 SEAT HANDLE No Model Compatibility List $5.80 / Each

12,13,14,11
121404 294134 10 SEAT BRACKET No Model Compatibility List $94.00 / Each

2,3,4,5,6,12,13,14
294137 121405 294137 11 SEAT CARRIAGE Yes Model Compatibility List $124.07 / Each

12,13,14
121397 294151 2 FRONT STABILIZER No Model Compatibility List $109.21 / Each

1
121398 294154 3 REAR STABILIZER No Model Compatibility List $101.51 / Each

1
121410 294159 20 CRANK No Model Compatibility List $87.76 / Each

8
121406 294162 12 PULSE BAR No Model Compatibility List $87.76 / Each

12,13,14
121403 294163 9 LEFT HANDLEBAR COVER No Model Compatibility List $22.20 / Each

9,11

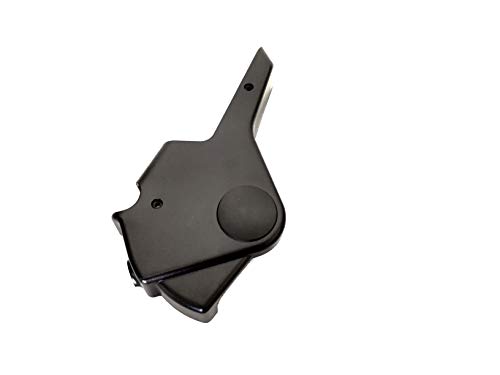

294164 121402 294164 8 RIGHT HANDLEBAR COVER Yes Model Compatibility List $22.20 / Each

9,11
121414 294165 24 LEFT SEAT SHIELD No Model Compatibility List $97.50 / Each

3,12,13,14
121413 294166 23 RIGHT SEAT SHIELD No Model Compatibility List $87.41 / Each

3,12,13,14
121399 294597 4 UPRIGHT No Model Compatibility List $93.05 / Each

3
121401 294598 6 HANDLEBAR No Model Compatibility List $103.36 / Each

11
108763 295006 92 PULSE GRIP WIRE No Model Compatibility List $52.66 / Each

4,5,6,12,13,14,11
296601 102028 296601 17 RIGHT CRANK ARM Yes Model Compatibility List $86.78 / Each

8,3
296602 102029 296602 19 LEFT CRANK ARM Yes Model Compatibility List $86.78 / Each

3,8
121408 297239 14 BACKREST COVER No Model Compatibility List $74.49 / Each

9,4,5,6,12,13,14
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

2
101518 298995 # WIRE, STATIC FILTER No Model Compatibility List $15.20 / Each

4,5,6
121419 299379 63 M8 X 45MM PATCH SCREW No Model Compatibility List $9.10 / Each

2

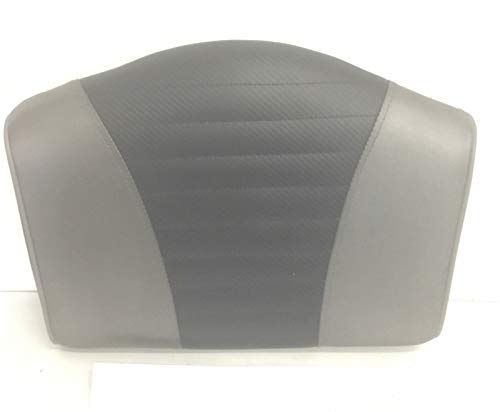

300615 121424 300615 15 SEAT Yes Model Compatibility List $147.17 / Each

12,13,14
300616 121423 300616 13 BACKREST Yes Model Compatibility List $184.81 / Each

4,5,6,12,13,14
119120 300788 69 1/4" X 5/8" SCREW No Model Compatibility List $0.96 / Each

2
121422 301916 5 SHIELD COVER No Model Compatibility List $97.11 / Each

9,3
303952 101523 303952 55 RESISTANCE BRACKET No Model Compatibility List $3.49 / Each

2,3,4,5,6,10
101208 304180 56 MEDIUM SNAP RING No Model Compatibility List $0.69 / Each

2
304734 101172 304734 53 RESISTANCE ARM Yes Model Compatibility List $20.35 / Each

3,10
101065 304974 # 4MM ALLEN WRENCH No Model Compatibility List $3.11 / Each

2
101066 306510 # 5MM ALLEN WRENCH No Model Compatibility List $4.80 / Each

2
121427 307608 # USER'S MANUAL No Model Compatibility List $8.93 / Each

1
308028 101524 308028 57 C-MAGNET Yes Model Compatibility List $153.71 / Each

8
308036 101525 308036 51 RESISTANCE MOTOR Yes Model Compatibility List $105.45 / Each

10
308040 121426 308040 34 DRIVE BELT No Model Compatibility List $92.83 / Each

10,15
121420 310879 # CNSL REPROGRAMMING MODULE No Model Compatibility List $207.48 / Each

7
312442 121395 312442 48 FLYWHEEL Yes Model Compatibility List $574.33 / Each

8
116403 314929 88B M4 X 16MM SCREW No Model Compatibility List $0.28 / Each

2
363093 100939 363093 47 IDLER Yes Model Compatibility List $58.30 / Each

8
EXIF12 101226 EXIF12 # IFIT WIFI ACCESSORY KIT Yes Model Compatibility List $242.00 / Each

4,5,6
272375 000355 272375 1 1 Main Belt Pulley Yes Model Compatibility List $76.99 / Each
8
014033 1020703 014033 0 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

1
