HEALTH RIDER - MOMENTUM

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100128 116059 100128 18 ADJUSTMENT BRACKET No Model Compatibility List $2.29 / Each

2,3,4,5,6
101448 100244 40 #6 X 9.5MM SCREW No Model Compatibility List $0.08 / Each

2
101049 118645 101049 87 #12 X 1/2 Yes Model Compatibility List $0.24 / Each

2
105688 103025 . 1/4" X 1/2" BOLT No Model Compatibility List $0.30 / Each

2
103735 118652 103735 43 3/4" AXLECAP Yes Model Compatibility List $7.09 / Each

7,8,9
118655 104049 53 3/8" X 3.5" BOLT No Model Compatibility List $1.63 / Each

2
100289 104345 . TV CABLE STAR WASHER No Model Compatibility List $0.20 / Each

2,4,5,6
116429 104536 19 TENSION BOLT No Model Compatibility List $4.17 / Each

2
118656 104581 . 3/8" X 1" SCREW No Model Compatibility List $0.88 / Each

2
101281 104626 . #8 X 3/4" SCREW No Model Compatibility List $0.11 / Each

2
104838 100396 104838 . LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
105500 118659 105500 74 SMALL FOAM GRIP No Model Compatibility List $7.73 / Each
Out Of Stock
11
118648 109692 . 3/8" X 3.5" CARR BOLT No Model Compatibility List $2.06 / Each
Out Of Stock
2
101304 110468 . #10 STAR WASHER No Model Compatibility List $0.14 / Each

2
120664 113750 64 1/4" CARRIAGE BOLT No Model Compatibility List $0.44 / Each

2
119425 100031 119425 20 3/8" HEX JAM NUT Yes Model Compatibility List $1.65 / Each

2
100237 119439 . ELECTRONIC BRACKET NUT No Model Compatibility List $0.18 / Each

2,3,4,5,6
104626 120733 88 25MM ROUND INNER CAP No Model Compatibility List $1.63 / Each

9
012090 102840 012090 17 1/4" NUT No Model Compatibility List $1.54 / Each

2
101294 012108 . 3/8" NYLON LOCKNUT No Model Compatibility List $0.33 / Each

2
118511 125328 92 POWER BRACKET WASHER No Model Compatibility List $0.66 / Each

2,3,4,5,6
119595 129494 # RIGHT DECAL No Model Compatibility List $1.10 / Each

7,3
118358 129740 . BASE PAD No Model Compatibility List $2.50 / Each

3,12,13,14
120662 013050 13 #8 X 1.25" SCREW No Model Compatibility List $4.44 / Each

2
013162 101030 013162 26B M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

2
013300 100149 013300 38 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
100326 013540 16 HANDLE SCREW No Model Compatibility List $0.12 / Each

2,11
120663 013580 . 3/8" BOLT No Model Compatibility List $1.50 / Each

2
139418 100550 139418 27 STABILIZER CAP Yes Model Compatibility List $5.14 / Each

9
118662 139801 # CAUTION DECAL No Model Compatibility List $1.54 / Each

7,3
122536 139804 . USER'S MANUAL No Model Compatibility List $10.71 / Each

1
118647 139810 . PULLEY WASHER No Model Compatibility List $0.47 / Each

2,8
101783 139975 89 REED SWITCH BRACKET No Model Compatibility List $3.80 / Each

2,3,4,5,6
120666 140385 # SIDESHIELD DECAL No Model Compatibility List $13.67 / Each

7,3
014073 100472 014073 46 5/16" WASHER Yes Model Compatibility List $1.25 / Each

2
122535 140853 36 PULLEY BEARING W/HDWR No Model Compatibility List $32.04 / Each

8
111703 014087 . UPRT MOUNTING WASHER No Model Compatibility List $0.43 / Each

2
120665 141283 # CN-ASSY STEP No Model Compatibility List $0.66 / Each

1
014132 100263 014132 52 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
120668 141338 . 1" CARRIAGE BOLT No Model Compatibility List $0.28 / Each

2
122534 141595 33A LONG PULY AXLE PIN W/HDWR No Model Compatibility List $15.59 / Each

8,12,13,14
144762 118657 144762 67 BELT Yes Model Compatibility List $59.18 / Each

15
016017 105234 016017 # ADHESIVE CABLE TIE No Model Compatibility List $4.95 / Each

2,4,5,6
016029 100321 016029 # CLAMP, CABLE TIE 4" No Model Compatibility List $1.17 / Each

2,4,5,6
016057 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
018007 101927 018007 47 WHEEL BEARING Yes Model Compatibility List $11.55 / Each

8
204489 101362 204489 # WAVE WASHER No Model Compatibility List $2.99 / Each

2,4,5,6
286547 101138 286547 49 PEDAL ARM ROLLER Yes Model Compatibility List $64.50 / Each

3,8,9

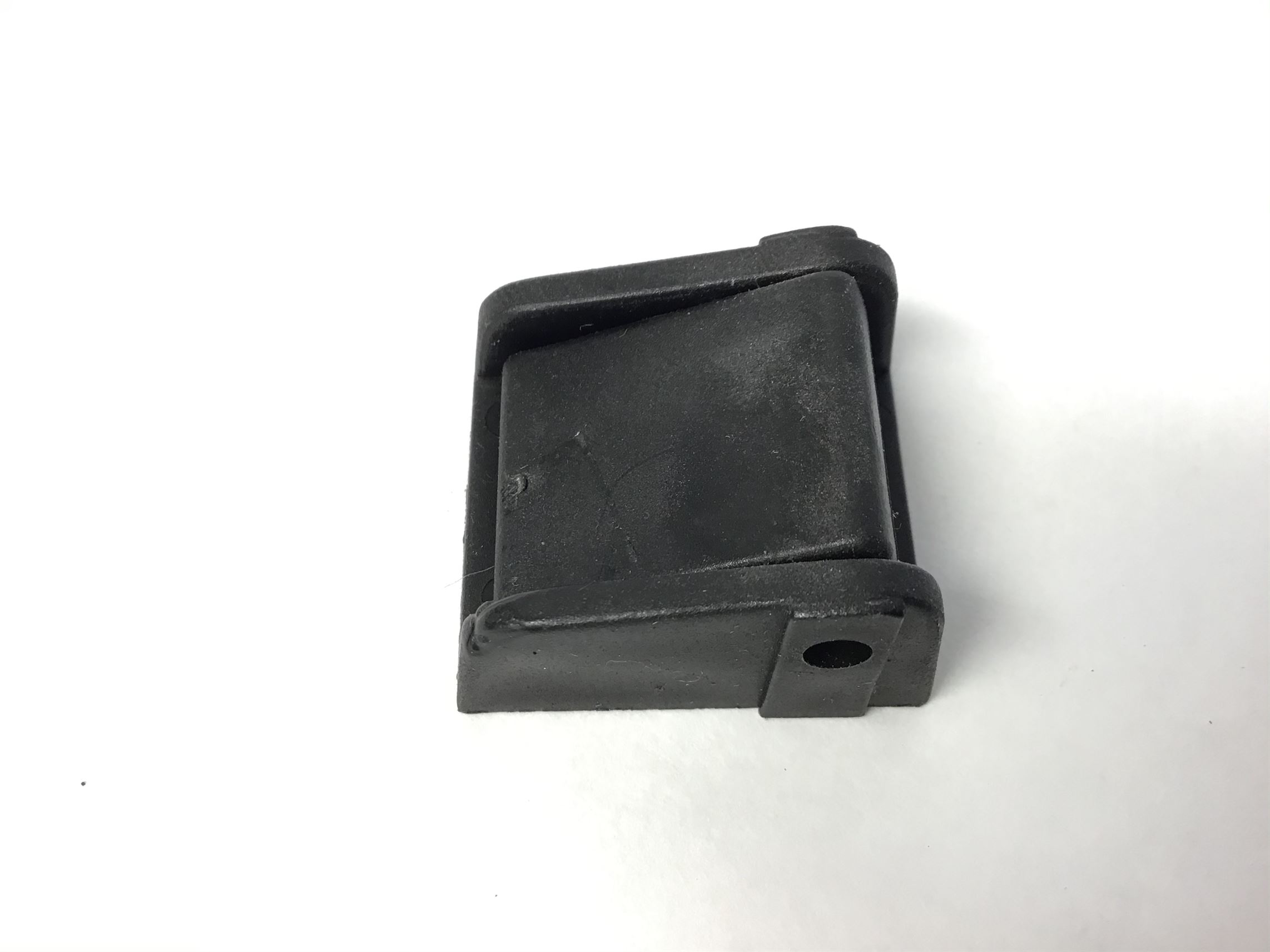

140848 1017503 140848 # 1 Strap Buckle (Used Yes Model Compatibility List $10.99 / Each

9
286547-b 000384 286547-b 32 4 Pedal Arm Roller Bearing R10ZZ Yes Model Compatibility List $14.29 / Each

8
139678 000360 139678 0 1 Pedal Arm Wheel Shoulder Screw Yes Model Compatibility List $23.99 / Each

1
View Drawing
