HEALTH RIDER - PRO H750I

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
100427 100139 100427 107 5/16" NUT Yes Model Compatibility List $1.56 / Each

2
114012 102280 114012 # 4 No Model Compatibility List $2.74 / Each

4,5,6
116926 100064 116926 75 RELEASABLE WIRE TIE No Model Compatibility List $2.45 / Each

2,4,5,6
116927 100262 116927 74 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

2,4,5,6
102820 118204 # 8" BLUE WIRE,M/F No Model Compatibility List $3.30 / Each

4,5,6
119425 100031 119425 32 3/8" HEX JAM NUT No Model Compatibility List $1.65 / Each

2
012149 100136 012149 . 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

2
012179 100462 012179 60 U-NUT No Model Compatibility List $4.42 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
126650 106102 126650 108 RUBBER BUMPER No Model Compatibility List $3.01 / Each

3
128272 100221 128272 10 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
128457 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $9.99 / Each

2
100440 128742 83 LIFT FRAME NUT No Model Compatibility List $0.95 / Each

2,3,10
100073 132315 100 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6
013300 100149 013300 . #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

2
133333 100032 133333 73 #8 HOOD CLIP No Model Compatibility List $0.65 / Each

2,9
013438 102932 013438 15 UPRIGHT BOLT Yes Model Compatibility List $2.11 / Each

2,3
013500 100138 013500 19 5/16" X 1 1/2" SCREW No Model Compatibility List $3.92 / Each

2
013544 100017 013544 . 3/8" BOLT No Model Compatibility List $2.87 / Each

2
013547 100450 013547 92 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

2,3,8
136012 100252 136012 70 PLATFORM NUT No Model Compatibility List $1.47 / Each

2
013607 100132 013607 2 #8 X 3/4" TRUSS HEAD SCRW No Model Compatibility List $0.22 / Each

2
136728 100137 136728 11 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
014063 100042 014063 21 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

2
100478 014105 56 IDLER PULLEY WASHER No Model Compatibility List $0.21 / Each

2,8
014126 100283 014126 23 REAR ROLLER WASHER No Model Compatibility List $1.10 / Each

2,8
014132 100263 014132 109 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2,8
014149 100449 014149 . 5/16" STAR WASHER No Model Compatibility List $0.20 / Each

2
149072 100293 149072 . UPPER LATCH BOLT No Model Compatibility List $4.95 / Each

2
015044 100432 015044 87 COTTER PIN No Model Compatibility List $1.98 / Each

12,13,14
102848 155433 101 DRIVE ROLLER GROUND WIRE No Model Compatibility List $1.89 / Each

8,4,5,6,10
157600 100076 157600 . BASE PAD Yes Model Compatibility List $6.83 / Each

3,12,13,14
157607 103835 157607 62 HANDRAIL ENDCAP Yes Model Compatibility List $7.47 / Each

3,4,5,6,9
102240 158157 91 STATIC DECAL No Model Compatibility List $1.84 / Each
Out Of Stock
7,3
016057 100063 016057 71 8" CABLE TIE No Model Compatibility List $1.30 / Each

2
100887 161903 66 M4 WASHER No Model Compatibility List $0.10 / Each

2
162866 100229 162866 104 IDLER WHEEL BOLT Yes Model Compatibility List $5.49 / Each

2,8
122465 164320 69 LATCH DECAL No Model Compatibility List $4.66 / Each

7,3
165220 100433 165220 45 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

2,8
165798 102795 165798 63 REED SWITCH Yes Model Compatibility List $14.41 / Each

4,5,6
168267 101004 168267 35 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2
173169 100061 173169 13 GROMMET Yes Model Compatibility List $0.94 / Each

2
186726 100201 186726 4 POWER SWITCH Yes Model Compatibility List $20.45 / Each

4,5,6
186819 100120 186819 . #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
194343 100435 194343 72 LOWER PIN Yes Model Compatibility List $5.31 / Each

12,13,14
113323 194526 # CONTROLLER GROUND WIRE No Model Compatibility List $2.33 / Each

7,8,4,5,6
113327 198072 # 12" BLUE WIRE F/F No Model Compatibility List $3.88 / Each

4,5,6
198639 100147 198639 12 BELT GUIDE Yes Model Compatibility List $10.99 / Each

15
199545 100034 199545 80 WHEEL Yes Model Compatibility List $4.12 / Each

8
100344 200747 57 GROUND WIRE No Model Compatibility List $2.56 / Each

4,5,6
201563 102808 201563 14 INCLINE WIRE No Model Compatibility List $13.42 / Each

4,5,6,10
113296 203982 40 FILTER WIRE No Model Compatibility List $20.16 / Each

4,5,6
100461 204429 31 LIFT FRAME BOLT No Model Compatibility List $2.22 / Each

2,3,10
208603 100072 208603 . KEY/CLIP Yes Model Compatibility List $17.98 / Each

2,9
209967 100350 209967 25 TRANSFORMER Yes Model Compatibility List $27.45 / Each
1
215942 100431 215942 86 UPPER CLEVIS PIN No Model Compatibility List $5.72 / Each

12,13,14
100451 216573 99 IDLER ARM SPACER No Model Compatibility List $1.67 / Each
Out Of Stock
2,8,3,4,5,6
216626 100422 216626 61 REED SWITCH CLIP No Model Compatibility List $1.85 / Each

2,4,5,6
219168 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $6.81 / Each

1,3,15
219170 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $30.38 / Each

1,3,15
219550 102248 219550 42 FRONT ROLLER BUSHING No Model Compatibility List $2.52 / Each

8
100420 222902 46 MAGNET No Model Compatibility List $13.18 / Each

8
102261 223547 . EXTENSION LEG NUT No Model Compatibility List $3.06 / Each

2
122128 227001 # DECAL, 'SPACESAVER' No Model Compatibility List $2.75 / Each

7,3,4,5,6
102246 227151 28 FRAME WASHER No Model Compatibility List $0.44 / Each

2,3
227298 100232 227298 103 IDLER ARM SPRING Yes Model Compatibility List $5.74 / Each

2,3,8
118496 227496 . EXTENSION LEG BOLT No Model Compatibility List $2.31 / Each

2
102236 228366 9 PLATFORM BOLT, BACK No Model Compatibility List $2.33 / Each

2,4,5,6
102285 229057 # TAPE, REAR ROLLER BRACKET No Model Compatibility List $0.68 / Each

2,8,3,4,5,6
237858 100316 237858 # CHEST PULSE KIT No Model Compatibility List $166.63 / Each

12,13,14
238669 100456 238669 105 IDLER ARM Yes Model Compatibility List $13.67 / Each
3,8
113308 239418 81 WHEEL PIN No Model Compatibility List $1.30 / Each

8,12,13,14
239419 113307 239419 78 EXTENSION LEG ENDCAP Yes Model Compatibility List $12.87 / Each

4,5,6,9
122220 239421 . 2.25" EXTENSION LEG BOLT No Model Compatibility List $1.58 / Each

2
113298 239619 44 UPRIGHT ENDCAP No Model Compatibility List $2.25 / Each

9,3,4,5,6
122464 239780 54 RIGHT REAR ENDCAP Yes Model Compatibility List $13.65 / Each

9,4,5,6
122476 239907 # HARDWARE KIT No Model Compatibility List $37.65 / Each

1
122416 240334 43 LIFT FRAME No Model Compatibility List $146.60 / Each

3,10
122470 241667 94 BOOK RACK No Model Compatibility List $19.02 / Each

4,5,6

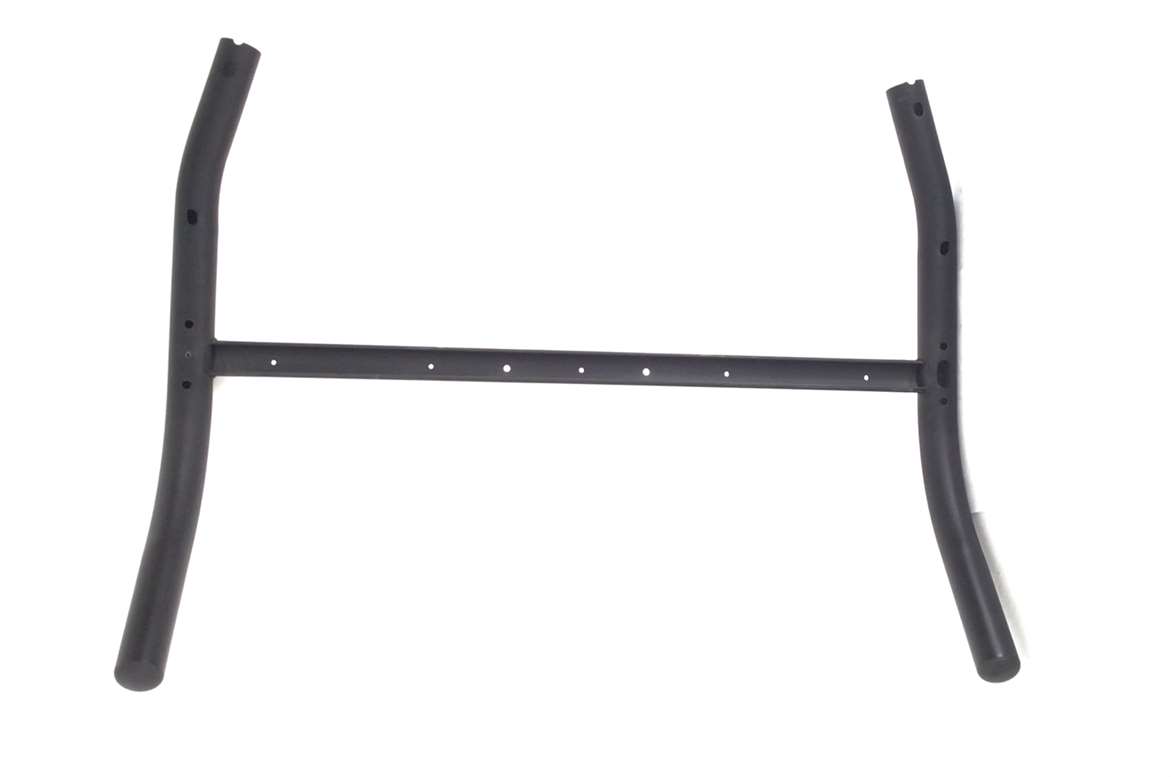

122461 241903 20 HANDRAIL No Model Compatibility List $111.19 / Each

9,3
122467 244998 89 EXTENSION LEG No Model Compatibility List $32.49 / Each

1
122205 245000 76 ACCESS DOOR No Model Compatibility List $3.25 / Each

4,5,6
122460 245024 18 ISOLATOR BRACKET COVER No Model Compatibility List $3.36 / Each

2,9,3,4,5,6
122472 245027 # TECH SHEET No Model Compatibility List $0.87 / Each

1
122475 245028 # LITERATURE PACKET No Model Compatibility List $67.50 / Each

4,5,6
122474 245029 . USER'S MANUAL No Model Compatibility List $6.23 / Each

1
122209 245113 # DECAL, CNSL 'HEALTHRIDER' No Model Compatibility List $6.01 / Each

7,3,12,13,14
122473 245122 # DECAL, HOOD, H 750I No Model Compatibility List $25.99 / Each

7,9,3
122456 245124 1 AIR SHOX PLUS DECAL No Model Compatibility List $14.59 / Each

7,3
122471 245125 95 EXERCISE BALL No Model Compatibility List $103.36 / Each

1
102356 247711 # CN, STORAGE LATCH No Model Compatibility List $0.00 / Each
Out Of Stock
1
248187 102339 248187 38 CONTROLLER Yes Model Compatibility List $183.27 / Each
7,8
248405 122462 248405 47 FRONT ROLLER Yes Model Compatibility List $132.50 / Each

8
248521 100233 248521 26 MOTOR BELT Yes Model Compatibility List $27.60 / Each

15
102355 248779 # CN, LATCH NOT LATCHING No Model Compatibility List $2.22 / Each

1
249460 122463 249460 48 WALKING BELT No Model Compatibility List $121.47 / Each

15
249516 102810 249516 88 INCLINE MOTOR Yes Model Compatibility List $143.85 / Each

10
249612 102860 249612 77 UPRIGHT WIRE Yes Model Compatibility List $68.06 / Each

3,4,5,6
250535 102235 250535 102 FRONT ISOLATOR KIT Yes Model Compatibility List $21.74 / Each

3
109858 251498 # EXERCISE CHART No Model Compatibility List $5.69 / Each

1
102234 251606 5 FOOT RAIL SCREW No Model Compatibility List $0.54 / Each

2,9
122458 251832 16 LEFT FOOT RAIL No Model Compatibility List $43.23 / Each

9
122459 251833 17 RIGHT FOOT RAIL No Model Compatibility List $43.23 / Each

9
122457 251834 6 CENTER ISOLATOR No Model Compatibility List $44.43 / Each

3
122468 251835 90 REAR ROLLER BRACKET No Model Compatibility List $21.27 / Each

2,8,3,4,5,6
122469 251837 93 HOOD COVER No Model Compatibility List $96.83 / Each

9
122466 251841 85 CONSOLE BASE No Model Compatibility List $118.83 / Each
Out Of Stock
7,3
100178 252433 68 WARNING DECAL No Model Compatibility List $0.47 / Each

7,3
259500 102291 259500 24 MOTOR BOLT No Model Compatibility List $3.22 / Each

2
286633 102313 286633 27 DRIVE MOTOR Yes Model Compatibility List $358.30 / Each

10
305744 100250 305744 53 REAR ROLLER ADJ. BOLT Yes Model Compatibility List $10.92 / Each

2,8
122102 328557 29 STORAGE LATCH No Model Compatibility List $106.29 / Each

1
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6
031229a KV5-DWY-57F 031229a 031229 Power Cord Yes Model Compatibility List $32.99 / Each

5,6
192789 1012724 192789 1 Belt Idler Wheel (Used) Yes Model Compatibility List $15.39 / Each
8
240668 1004504 240668 # 1 Latch Shock Assembly No Model Compatibility List $65.99 / Each
Out Of Stock
3
239779 1014292 239779 # 1 Left Endcap - Used Only Yes Model Compatibility List $16.49 / Each
Out Of Stock
9

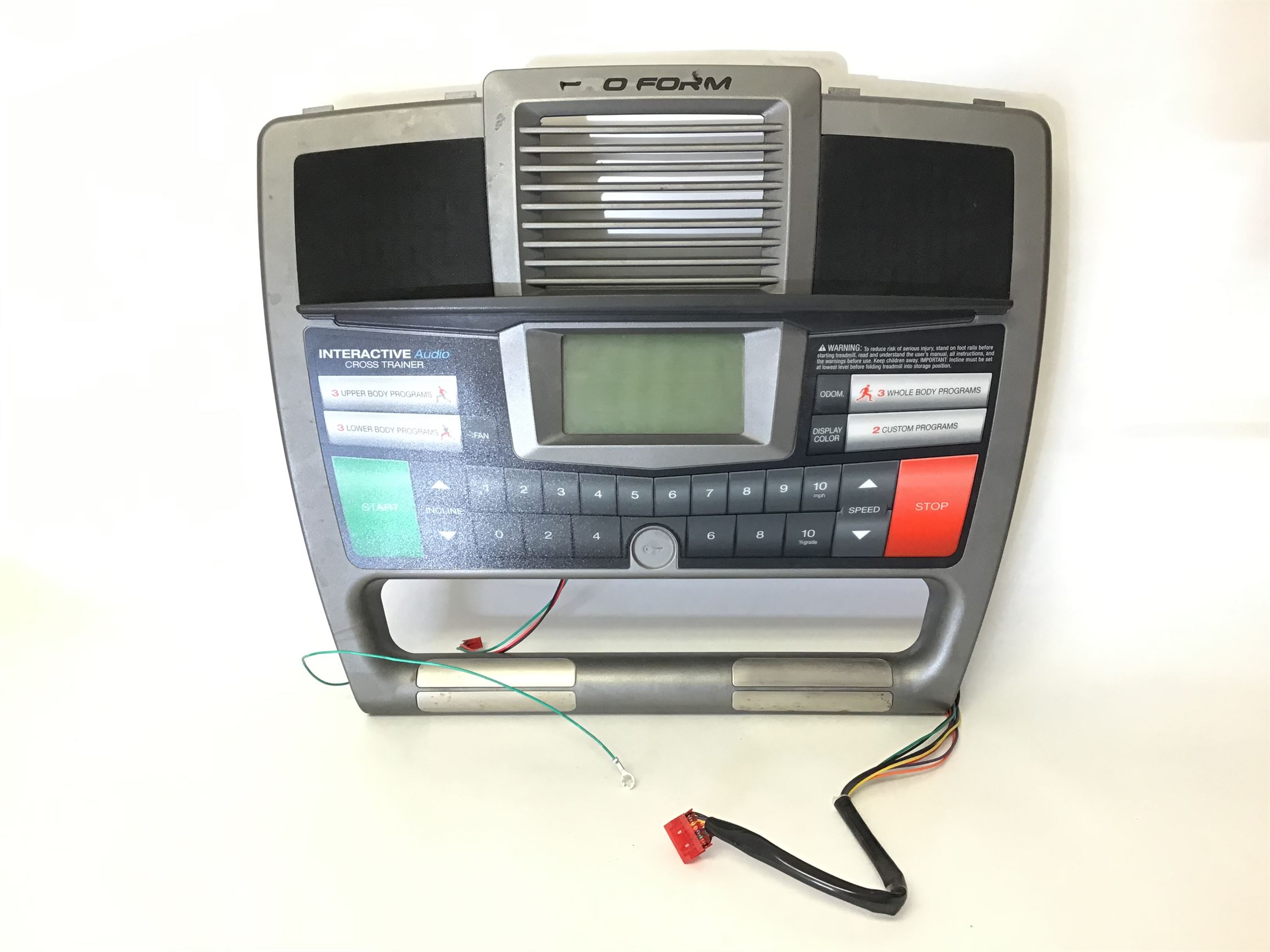

246946 1014277 246946 34 1 Display Console ETPF79506 - Used Only Yes Model Compatibility List $218.90 / Each

7
250538 1014276 250538 51 1 Rear Roller (Used Only) Yes Model Compatibility List $108.90 / Each

8
124669 1000884 124669 # 1 Hardwired Power Cord (Used Yes Model Compatibility List $16.49 / Each

6
