HEALTH RIDER - R2000T

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Pulley
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
113842 100081 113842 54 ROLLER MAGNET Yes Model Compatibility List $2.75 / Each

8,1
131090 100079 131090 66 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
146119 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $75.90 / Each

1
121151 149590 39 BEARING No Model Compatibility List $21.43 / Each

1
121171 159531 70 EXTENSION WIRE No Model Compatibility List $14.85 / Each

4,5,6
016057 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

2,1,4
186070 100953 186070 64 REED SWITCH/WIRE Yes Model Compatibility List $27.83 / Each

4,5,6
195562 100586 195562 2 M4 X 16MM SCREW Yes Model Compatibility List $1.44 / Each

2
211011 116201 211011 57 DRIVE BELT Yes Model Compatibility List $95.05 / Each

10,15
215823 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
115169 245941 40 M4 X 12MM FLANGE SCREW No Model Compatibility List $0.96 / Each

2
249928 101660 249928 29 M8 X 20MM BUTTON SCREW No Model Compatibility List $2.50 / Each

2
250961 100881 250961 65 M4 X 19MM SELF-TAP SCREW No Model Compatibility List $0.72 / Each

2
101431 251978 61 M10 SHOULDER SCREW No Model Compatibility List $9.58 / Each

2
256446 100030 256446 17 M8 NUT No Model Compatibility List $0.72 / Each

2
110484 273352 36 M4 X 19MM TEK SCREW No Model Compatibility List $0.46 / Each

2
101959 285511 # OPTIONAL CHEST PULSE No Model Compatibility List $194.04 / Each

12,13,14
290160 101858 290160 31 POWER RECEPTACLE/WIRE Yes Model Compatibility List $23.31 / Each

4,5,6
121172 297169 # DECAL, GENERAL WARNING No Model Compatibility List $4.80 / Each

7,3
121173 297170 # DECAL, GEN WARNING, 9LANG No Model Compatibility List $30.15 / Each

7,3
101867 297255 # 5MM ALLEN WRENCH No Model Compatibility List $5.51 / Each

2,1
121168 317007 62 WHEEL No Model Compatibility List $20.35 / Each

8
116391 318149 6 PULSE SENSOR No Model Compatibility List $39.01 / Each
Out Of Stock
12,13,14
121135 336830 16 M8 SPLIT WASHER No Model Compatibility List $0.23 / Each

2
101934 339153 34 CRANK NUT No Model Compatibility List $0.94 / Each

2,8
110223 348251 30 POWER ADAPTER No Model Compatibility List $58.30 / Each

4,5,6,1
121153 352389 43 STABILIZER CAP No Model Compatibility List $2.16 / Each

9
121123 352414 5 HANDLEBAR CAP No Model Compatibility List $0.67 / Each

9,11
121127 352605 8 M6 X 10MM SCREW No Model Compatibility List $0.24 / Each

2
121128 352607 9 OUTER AXLE No Model Compatibility List $2.16 / Each

8
121129 352608 10 INNER AXLE No Model Compatibility List $3.83 / Each

8
121130 352609 11 PIVOT BRACKET No Model Compatibility List $20.41 / Each

2,8,3,4,5,6
121132 352610 13 CARRIAGE CAP No Model Compatibility List $0.72 / Each

9
121133 352611 14 SEAT BRACKET No Model Compatibility List $5.04 / Each

2,3,4,5,6,12,13,14
121134 352612 15 SEAT CARRIAGE No Model Compatibility List $16.79 / Each

12,13,14
121136 352613 18 SEAT POST No Model Compatibility List $30.35 / Each

12,13,14
121138 352615 20 #8 X 3/4" SCREW No Model Compatibility List $0.24 / Each

2
121139 352616 21 SEAT POST BUSHING No Model Compatibility List $1.91 / Each

8,12,13,14
121140 352618 22 SEAT POST CAP No Model Compatibility List $1.20 / Each

9,12,13,14
121141 352619 24 M8 X 58MM BOLT No Model Compatibility List $1.91 / Each

2
121147 352620 33 CRANK CAP No Model Compatibility List $0.24 / Each

8,9
121156 352621 46 M8 X 70MM SCREW No Model Compatibility List $2.16 / Each

2
121162 352622 53 M6 X 20MM SCREW No Model Compatibility List $0.72 / Each

2
121159 352623 49 M10 X 55MM SCRW, NOTE: No Model Compatibility List $1.67 / Each

1,2
105122 352624 67 M4 X 19MM SELF-TAP SCRW No Model Compatibility List $0.24 / Each

1
121161 352625 52 M6 WASHER No Model Compatibility List $0.24 / Each

2
121157 352626 47 M10 FLANGE NUT No Model Compatibility List $1.20 / Each

2
121155 352627 45 LEVELING FOOT No Model Compatibility List $2.64 / Each

9
352630 121158 352630 48 EDDY MECHANISM No Model Compatibility List $196.27 / Each

8
121160 352632 51 IDLER No Model Compatibility List $30.76 / Each

8
121163 352633 55 PULLEY No Model Compatibility List $28.14 / Each

8
352635 121164 352635 56 CRANK No Model Compatibility List $46.93 / Each

8
121167 352637 60 RIGHT PEDAL/STRAP No Model Compatibility List $34.57 / Each

8,9
121150 352666 38 SNAP RING No Model Compatibility List $9.80 / Each

2
121170 352875 68 FASTENER No Model Compatibility List $0.72 / Each

1
116367 352888 23 PULSE WIRE No Model Compatibility List $19.76 / Each

4,5,6,12,13,14
121148 356697 35 LEFT CRANK ARM No Model Compatibility List $25.28 / Each

8,3
121166 356698 59 RIGHT CRANK ARM No Model Compatibility List $25.28 / Each

8,3
121169 357950 63 FRONT STABILIZER No Model Compatibility List $0.00 / Each
Out Of Stock
1
121154 357951 44 REAR STABILIZER No Model Compatibility List $0.00 / Each
Out Of Stock
1
121122 357952 4 HANDLEBAR No Model Compatibility List $0.00 / Each
Out Of Stock
11
121121 357956 3 CONSOLE COVER No Model Compatibility List $0.00 / Each
Out Of Stock
7,9
121174 357957 # USER'S MANUAL. ENGLISH No Model Compatibility List $0.00 / Each
Out Of Stock
1
121175 357958 # USER'S MANUAL. SPANISH No Model Compatibility List $0.00 / Each
Out Of Stock
1
121176 357959 # USER'S MANUAL. FRENCH No Model Compatibility List $0.00 / Each
Out Of Stock
1
121177 357961 # USER'S MANUAL. ITALY No Model Compatibility List $0.00 / Each
Out Of Stock
1
121178 357963 # USER'S MANUAL. PTRGS No Model Compatibility List $0.00 / Each
Out Of Stock
1
121125 357965 7B CNSL REPROG MODULE No Model Compatibility List $0.00 / Each
Out Of Stock
7
121149 357966 37 LEFT SHIELD No Model Compatibility List $0.00 / Each
Out Of Stock
3
121165 357967 58 RIGHT SHIELD No Model Compatibility List $0.00 / Each
Out Of Stock
3
121143 357968 26 SHIELD COVER No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
121144 357969 27 UPRIGHT No Model Compatibility List $0.00 / Each
Out Of Stock
3
121120 357970 1 HANDLEBAR KNOB No Model Compatibility List $0.00 / Each
Out Of Stock
11
121137 357972 19 SEAT KNOB No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
121145 357973 28 SEAT POST KNOB No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
361996 101856 361996 69 RECEIVER Yes Model Compatibility List $78.19 / Each

1

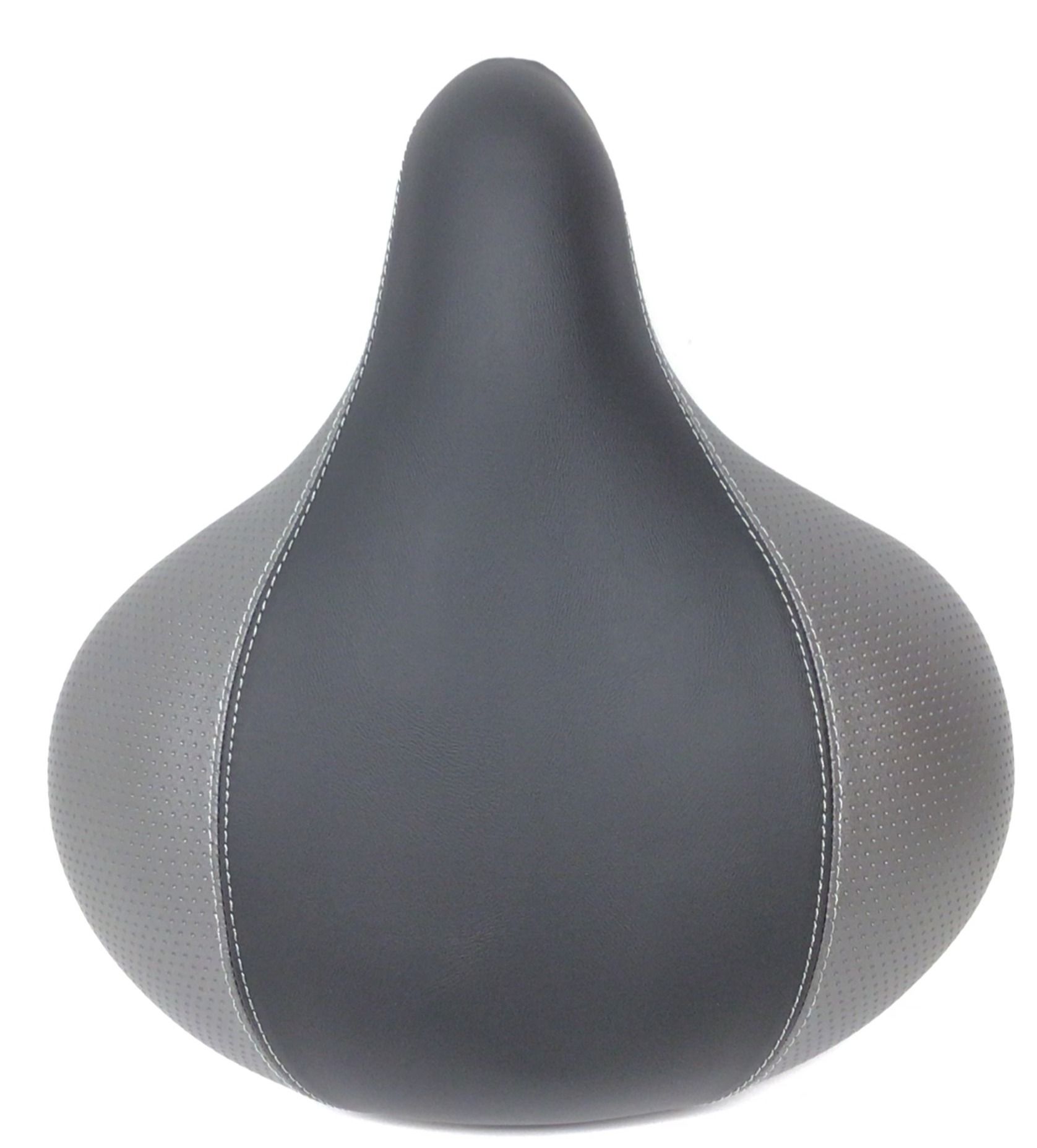

121131 373747 12 SEAT No Model Compatibility List $67.14 / Each

12,13,14
121146 376614 32 LEFT PEDAL/STRAP No Model Compatibility List $35.18 / Each

8,9
121124 383545 7A CONSOLE No Model Compatibility List $0.00 / Each
Out Of Stock
7
121142 383557 25 MAIN WIRE No Model Compatibility List $73.11 / Each

4,5,6
121126 383561 7C MAIN WIRE EXTENSION No Model Compatibility List $35.91 / Each

4,5,6
121152 394832 42 FIXKIT,RESIST MTR,W/CBL No Model Compatibility List $122.69 / Each

1
EXIF12 101226 EXIF12 # IFIT WIFI ACCESSORY KIT Yes Model Compatibility List $242.00 / Each

4,5,6
