HEALTH RIDER - SOFTRIDER ()

Repair Parts for HEALTH RIDER SOFTRIDER () HRTL592150

Brand: HEALTH RIDER

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: SOFTRIDER ()

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
4 102281 114011 # 4 Yes Model Compatibility List $4.87 / Each

1,4
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

1,2,4,5,6
RELEASABLE WIRE TIE 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,2,4
3/8 100031 119425 16 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
M6 LOCKNUT 101429 012142 77 M6 LOCKNUT No Model Compatibility List $1.98 / Each

1
3/8 100136 012149 10 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

4 100112 126146 # 4" BLU WIRE F/F, DR MOTOR Yes Model Compatibility List $2.43 / Each

4,5,6
3/16-7/32 100190 128457 # 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
WIRE TIE 100073 132315 44 WIRE TIE No Model Compatibility List $0.56 / Each

1,2,4,5,6
#8 X 3/4 100149 013300 34 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

1
HOOD SCREW 100354 013316 85 HOOD SCREW No Model Compatibility List $1.42 / Each

#8 HOOD CLIP 100032 133333 13 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

1,2,9,46
3/8 103373 133945 # 3/8" HEX LOCK NUT Yes Model Compatibility List $0.34 / Each

2
5/16 100138 013500 19 5/16" X 1 1/2" SCREW No Model Compatibility List $3.92 / Each

1
M4.2 X 13MM SCREW 100005 013576 21 M4.2 X 13MM SCREW Yes Model Compatibility List $1.25 / Each

1
#8 X 3/4 100132 013607 4B #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

1
#8 X 1/2 100137 136728 18 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
WHEEL 100151 139090 75 WHEEL Yes Model Compatibility List $2.11 / Each

8,45
#10 STAR WASHER 100142 014088 23 #10 STAR WASHER No Model Compatibility List $0.91 / Each

1
#8 STAR WASHER 100141 014157 22 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

1
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

1
3/8 100123 163045 3 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $0.50 / Each

2
#10 X 3/4 100128 167049 8 #10 X 3/4" SCREW No Model Compatibility List $0.32 / Each

2
GROMMET 100061 173169 53 GROMMET Yes Model Compatibility List $0.94 / Each

1,2
3/8 100134 179767 15 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $43.87 / Each

2
POWER SWITCH 100201 186726 55 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
#8 X 1/2 100120 186819 1A #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
117234 191422 84B 200MM HANDGRIP No Model Compatibility List $60.38 / Each

11
100129 195683 9 3/8" X 2 1/2" BOLT Yes Model Compatibility List $12.19 / Each

2
112925 198084 # 6" RED WIRE, M/F No Model Compatibility List $3.07 / Each

4,5,6
BELT GUIDE 100040 198640 30 BELT GUIDE Yes Model Compatibility List $18.62 / Each

15,40
KEY/CLIP 100072 208603 62 KEY/CLIP Yes Model Compatibility List $17.99 / Each

1
INCLINE MOTOR WIRE HRNS 12 100163 211260 # INCLINE MOTOR WIRE HRNS 12 Yes Model Compatibility List $9.27 / Each

4,5,6,10,12,13,14
FOOT RAIL FLAT WASHER 100024 213894 47 FOOT RAIL FLAT WASHER No Model Compatibility List $0.46 / Each

2,9,46
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
1 TUBE LUBE KIT 100095 219168 # 1 TUBE LUBE KIT No Model Compatibility List $9.99 / Each

23
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
UPPER BODY ARM INSERT 113319 227163 82 UPPER BODY ARM INSERT Part # 85 on diagram No Model Compatibility List $5.48 / Each

3,1
UPRIGHT GROMMET 100182 227199 73 UPRIGHT GROMMET Yes Model Compatibility List $1.55 / Each

1,2,3
100175 239057 33 ROUND HANDRAIL CAP No Model Compatibility List $0.69 / Each

9,3
100185 240351 # ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

1,2,4,5,6
100004 241305 14A M4.2 X 13MM WSHR HD SCREW No Model Compatibility List $0.48 / Each

2,12,13,14,1
IDLER ROLLER 100052 248571 42 IDLER ROLLER Yes Model Compatibility List $159.69 / Each

26
POWER CORD 108701 251086 119 POWER CORD Yes Model Compatibility List $44.97 / Each

4,5,6,1
100178 252433 69 WARNING DECAL No Model Compatibility List $0.47 / Each

1,3,7
DRIVE MOTOR BELT 100158 260687 45 DRIVE MOTOR BELT Yes Model Compatibility List $58.99 / Each

23
100213 263228 # 8" GRN WIRE F/R, CNTRLR Yes Model Compatibility List $3.60 / Each

7,4,5,6
CONTROLLER 113338 409595 36 CONTROLLER Yes Model Compatibility List $197.30 / Each

7,8
1/4 100143 265234 25 1/4" X 1 1/4" SCREW No Model Compatibility List $1.24 / Each

2
WALKING BELT 100155 270359 40 WALKING BELT Part #40 Yes Model Compatibility List $121.52 / Each

15
5/16 111178 271383 5 5/16" X 3/4" BOLT Yes Model Compatibility List $1.56 / Each

2
M4 X 8MM PULSE GND SCREW 100121 276105 1B M4 X 8MM PULSE GND SCREW Part #80 on drawing No Model Compatibility List $1.79 / Each

2,12,13,14
3/8 100122 278652 2 3/8" X 3 1/4" SCREW Part #2 On Drawing No Model Compatibility List $14.24 / Each

2
INCLINE FRAME WASHER 100144 283997 26 INCLINE FRAME WASHER No Model Compatibility List $1.23 / Each

2,3,10
INCLINE MOTOR SENSOR KIT 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

47
#8X5/8 100133 291486 14B #8X5/8" DECKRAIL SCREW Yes Model Compatibility List $0.28 / Each

2,3,9
121960 293636 80 #10 X 1 1/2" SCREW No Model Compatibility List $0.43 / Each

2
1/4 100014 295756 17 1/4" MOTOR SCREW Yes Model Compatibility List $0.99 / Each

1
3/8 113563 296273 15 3/8" X 1 3/8" BOLT Yes Model Compatibility List $3.83 / Each

2
1/2 102453 301975 23 1/2" X 2 1/4" BOLT No Model Compatibility List $5.38 / Each

2
3/8 100131 301976 12 3/8" X 1" BOLT No Model Compatibility List $1.72 / Each

2
100037 305284 29 LATCH WARNING DECAL No Model Compatibility List $1.50 / Each

7,3,1,40
100179 306715 70 BASE CAP No Model Compatibility List $1.11 / Each

3,9,46
THIN BASE PAD,1/4 100181 307031 72 THIN BASE PAD,1/4" THK No Model Compatibility List $1.43 / Each

3,12,13,14,46
THICK BASE PAD 100180 307032 71 THICK BASE PAD Yes Model Compatibility List $2.76 / Each

3,12,13,14,40,46
MOTOR BELT 102969 311589 55 MOTOR BELT Yes Model Compatibility List $38.15 / Each

15
POWER CORD 100349 031229 54 POWER CORD Yes Model Compatibility List $34.00 / Each

1
LIFT FRAME BUSHING 100164 315067 50 LIFT FRAME BUSHING No Model Compatibility List $11.24 / Each

3,8,10,40
100140 315068 65 LIFT FRAME PIN No Model Compatibility List $6.00 / Each

2,3,10,12,13,14

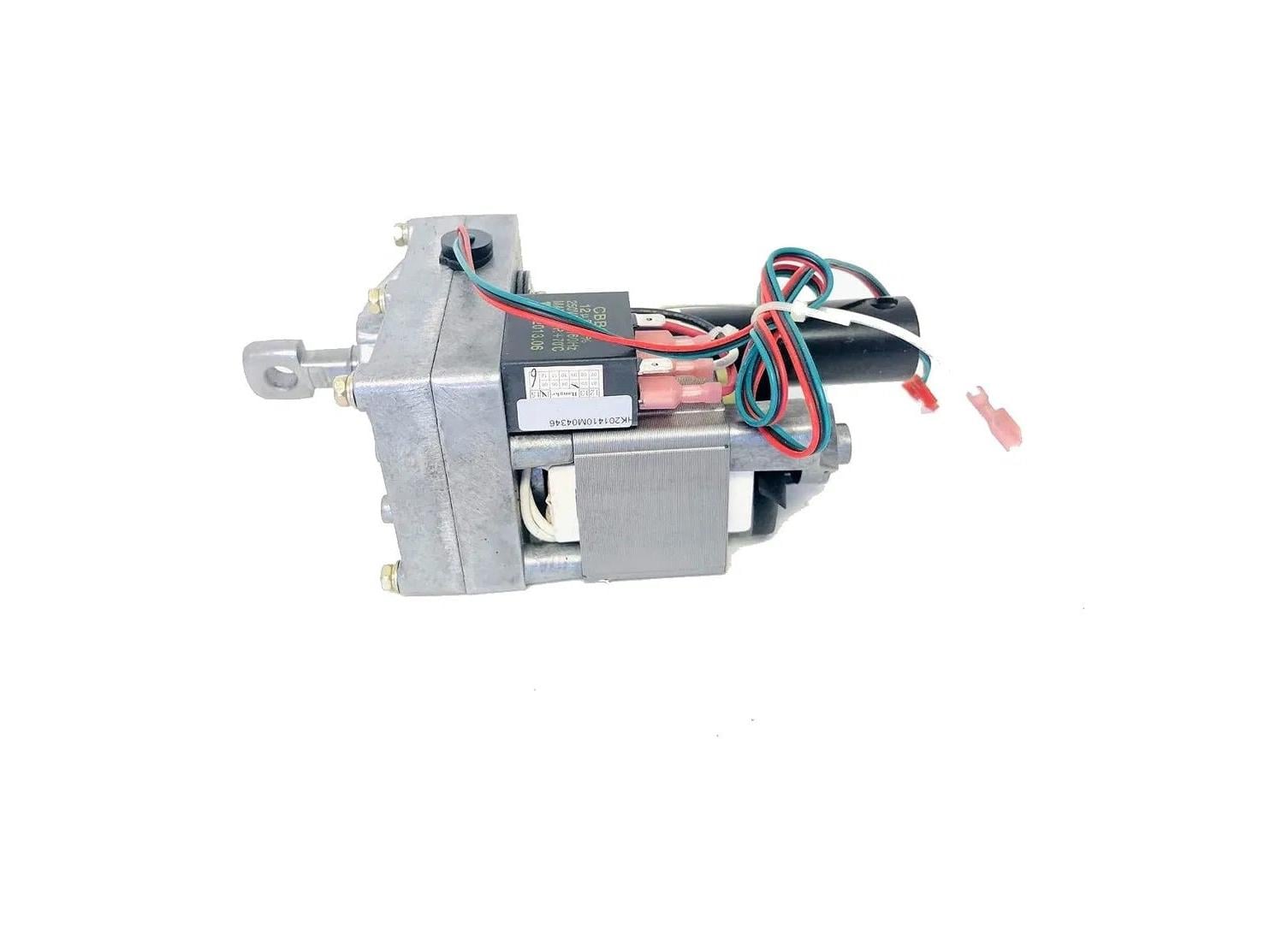

122177 315578 69 INCLINE MOTOR No Model Compatibility List $124.07 / Each

10
INCLINE MOTOR - AC Lift Motor 100209 315689 49 INCLINE MOTOR - AC Lift Motor Yes Model Compatibility List $131.26 / Each

1
WALKING PLATFORM 113454 315692 39 WALKING PLATFORM Part #39 on Drawing No Model Compatibility List $139.72 / Each

15
DRIVE ROLLER/PULLEY 100148 315693 31 DRIVE ROLLER/PULLEY Yes Model Compatibility List $153.66 / Each

8,10
5/16 100127 315783 7 5/16"-18 X 3" BUTTON HEAD SCREW Yes Model Compatibility List $3.44 / Each

2
122064 316412 78 LATCH SPACER No Model Compatibility List $5.27 / Each

2,3,4,5,6
1/4 122065 316505 81 1/4" X 3 1/2" SCREW No Model Compatibility List $7.47 / Each

2
M6 X 55MM SCREW 100130 319894 11 M6 X 55MM SCREW Yes Model Compatibility List $4.80 / Each

2
3/8 109924 346519 32 3/8" X 1 1/2" BOLT Yes Model Compatibility List $2.98 / Each

2
113461 347139 56 CONSOLE SPACER No Model Compatibility List $0.96 / Each

7,2,3,4,5,6
UPRIGHT WIRE 117807 347883 63 UPRIGHT WIRE Yes Model Compatibility List $111.40 / Each

4,19,42
117866 348957 59 LEFT HANDRAIL Yes Model Compatibility List $36.59 / Each

9,3
117868 348958 64 RIGHT HANDRAIL Yes Model Compatibility List $36.59 / Each

9,3
117867 349252 61 CONSOLE CROSSBAR No Model Compatibility List $123.68 / Each

7
122066 356288 83A LEFT UPPER BODY ARM No Model Compatibility List $29.75 / Each

3
122068 356290 84A RIGHT UPPER BODY ARM No Model Compatibility List $29.75 / Each

3
122074 356299 # HARDWARE KIT, NOTE: No Model Compatibility List $46.64 / Each

1
122049 405708 35 DRIVE MOTOR No Model Compatibility List $350.86 / Each

10
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

1,4,5,6
122048 362460 28 PLATFORM CUSHION No Model Compatibility List $12.66 / Each
Out Of Stock 		3
CONTROLLER CLAMP 111847 365328 68 CONTROLLER CLAMP Yes Model Compatibility List $11.40 / Each

2,4,5,6,7,8
122058 369780 58 CONSOLE BASE No Model Compatibility List $112.38 / Each

7,3
122055 369880 51 LIFT FRAME No Model Compatibility List $68.75 / Each

3,10
122062 369882 74 BASE No Model Compatibility List $137.48 / Each

3
122054 369883 48 MOTOR HOOD Yes Model Compatibility List $86.04 / Each

9
122047 369884 27 LEFT FOOT RAIL No Model Compatibility List $48.64 / Each

9
122051 369885 41 RIGHT FOOT RAIL Yes Model Compatibility List $48.64 / Each

9
122070 369886 # TECH SHEET No Model Compatibility List $0.00 / Each
Out Of Stock 		1
122073 369887 # LITPAC, NOTE: No Model Compatibility List $104.33 / Each

4,5,6
122071 369888 # USER-S MANUAL No Model Compatibility List $17.63 / Each

1
122057 369890 57 CONSOLE No Model Compatibility List $322.52 / Each

7
122063 369891 76 RIGHT UPRIGHT No Model Compatibility List $113.58 / Each

3
122060 369892 66 LEFT UPRIGHT No Model Compatibility List $110.56 / Each

3
122067 369916 84C RESISTANCE MECH No Model Compatibility List $50.26 / Each

10
122056 369927 52 BELLY PAN No Model Compatibility List $76.99 / Each

1
122053 369929 46 RIGHT REAR FOOT Yes Model Compatibility List $22.51 / Each

9
122052 369930 43 LEFT REAR FOOT No Model Compatibility List $22.51 / Each

9
122059 369935 60 HANDRAIL CAP No Model Compatibility List $3.60 / Each

9,3
122061 370508 67 LATCH PIN ASSEMBLY No Model Compatibility List $25.74 / Each

12,13,14
122072 376410 # USER-S MANUAL,SPG No Model Compatibility List $17.12 / Each

1
122075 384508 # USER-S MANUAL,SP6 No Model Compatibility List $16.50 / Each

1
122069 389227 86 LATCH CATCH No Model Compatibility List $5.34 / Each

1
1 5/32 100191 045023 # 1 5/32" ALLEN WRENCH No Model Compatibility List $4.62 / Each

WALL ARC FILTER 110986 ARC14 # WALL ARC FILTER No Model Compatibility List $38.49 / Each

1
Rear Roller Hex Screw - Bolt 999908 000001 Rear Roller Hex Screw - Bolt No Model Compatibility List $9.99 / Each

#8 X 3/4 900069 013607 16 #8 X 3/4" TRUSS HEAD SCRW Yes Model Compatibility List $0.22 / Each

Hardwired Power Cord (Used 1000884 124669 # 1 Hardwired Power Cord (Used Yes Model Compatibility List $16.49 / Each

6
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
M6 Split Washer Lock 1019810 012142 79 4 M6 Split Washer Lock No Model Compatibility List $1.79 / Each

Button Screw 5/16-18X1.5 1019798 013500 0 1 Button Screw 5/16-18X1.5 No Model Compatibility List $7.79 / Each

Isolator Bottom Cap (Used) 1021786 191665 110 1 Isolator Bottom Cap (Used) Yes Model Compatibility List $8.99 / Each

1
Power Cord 6Q-JIS2-QTC7 031229 0 13 Power Cord Yes Model Compatibility List $34.00 / Each

Proform Reebok (Icon) Treadmill Heartrate Bottom Bar 258556 (Used) 1018656 REL8-HBB 0 1 Proform Reebok (Icon) Treadmill Heartrate Bottom Bar 258556 (Used) No Model Compatibility List $15.59 / Each
Out Of Stock 		1
Black Jumper Wire Harness 4 013035 114011 TS5 1 Black Jumper Wire Harness 4" Yes Model Compatibility List $14.99 / Each

1,4
3 TUBE LUBE KIT 013311 219170 # 1 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
Power Entry Cable Upright Wire Harness 1000433 347883 0 1 Power Entry Cable Upright Wire Harness Yes Model Compatibility List $101.27 / Each

4,19,42
Incline Lift Elevation Motor 1000508 315689 0 1 Incline Lift Elevation Motor Yes Model Compatibility List $125.99 / Each

1
Walking Running Belt Treadbelt 18 1000514 270359 0 1 Walking Running Belt Treadbelt 18" W x 104" Yes Model Compatibility List $110.00 / Each

15
Safety Key 1001500 208603 112A 1 Safety Key Yes Model Compatibility List $17.99 / Each

1
Belt Drive Flexonic 1002454 260687 0 1 Belt Drive Flexonic Yes Model Compatibility List $42.99 / Each

23
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Roller Rear 1002904 248571 0 1 Roller Rear Yes Model Compatibility List $137.99 / Each

26
Incline Motor Sensor Kit 1003656 286707 # 1 Incline Motor Sensor Kit No Model Compatibility List $50.13 / Each

47
Wire Harness 1004195 211260 TS06 1 Wire Harness Yes Model Compatibility List $9.27 / Each

4,5,6,10,12,13,14
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

1
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Screw 1008631 291486 18A 1 Screw Yes Model Compatibility List $0.28 / Each

2,3,9
Transport Wheel 1009938 139090 61 1 Transport Wheel Yes Model Compatibility List $2.11 / Each

8,45
Front Platform Bolt 1010869 013500 0 1 Front Platform Bolt No Model Compatibility List $13.99 / Each

Star Washer 1010876 014064 0 1 Star Washer No Model Compatibility List $11.99 / Each

Idler Pulley Nut 1010877 100427 12 1 Idler Pulley Nut Yes Model Compatibility List $0.46 / Each

2,40
5/16 1010889 101630 0 1 5/16" Star Lock Washer No Model Compatibility List $11.99 / Each

2
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
Walking Belt Guide 1010892 198640 64 1 Walking Belt Guide Yes Model Compatibility List $18.62 / Each

15,40
Incline Motor Wire Harness 1010893 211260 TS06 1 Incline Motor Wire Harness Yes Model Compatibility List $9.27 / Each

4,5,6,10,12,13,14
Incline Motor Joint Bolt 3/8 1010901 346519 17 1 Incline Motor Joint Bolt 3/8" X 1 1/2" Yes Model Compatibility List $2.98 / Each
2
Resistance Cone Mount Hardware Screw 1/4 1010904 316505 0 1 Resistance Cone Mount Hardware Screw 1/4" X 3 1/2" No Model Compatibility List $16.99 / Each

2
Lift Frame Bushing 1010909 315067 62 1 Lift Frame Bushing No Model Compatibility List $11.24 / Each

3,8,10,40
Flat Washer 7/32 1010911 213894 129 1 Flat Washer 7/32" No Model Compatibility List $0.46 / Each

2,9,46
Thick Base Foot 1010914 307032 100 1 Thick Base Foot Yes Model Compatibility List $8.99 / Each

3,12,13,14,40,46
Thick Base Pad 1/4 1010915 307031 117B 1 Thick Base Pad 1/4" No Model Compatibility List $1.43 / Each

3,12,13,14,46
Upper Body Arm Endcap 1010916 227163 0 1 Upper Body Arm Endcap No Model Compatibility List $19.99 / Each

3,1
Screw M4.2 X 8MM 1010917 276105 0 1 Screw M4.2 X 8MM No Model Compatibility List $19.99 / Each

2,12,13,14
Screw 3/8 1010918 278652 0 1 Screw 3/8" X 3 1/4" No Model Compatibility List $25.99 / Each

2
Star Lock Washer 3/8 1010919 163045 8 1 Star Lock Washer 3/8" Yes Model Compatibility List $0.50 / Each

2
Tinnerman Clip 1011229 133333 126 1 Tinnerman Clip Yes Model Compatibility List $0.65 / Each

2,9,1,46
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
Screw 5/16 1011593 271383 108 1 Screw 5/16" X 3/4" Yes Model Compatibility List $1.56 / Each

2
Power Cord 1000280 031229 Power Cord Yes Model Compatibility List $14.99 / Each

On Off Reset Power Switch 1000837 186726 128 On Off Reset Power Switch Yes Model Compatibility List $16.42 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $11.99 / Each

6
Flexonic Motor Drive Belt 1002930 260687 Flexonic Motor Drive Belt Yes Model Compatibility List $16.99 / Each
23
Motor Drive Belt 1002931 311589 or 284712 Motor Drive Belt Yes Model Compatibility List $58.99 / Each

Front Drive Pulley Roller 1001977 315693 Front Drive Pulley Roller Yes Model Compatibility List $69.00 / Each

8,10
Motor Drive Belt 1001383 260687 Motor Drive Belt Yes Model Compatibility List $21.99 / Each

23
Motor Controller Control Board 1003576 264597 Motor Controller Control Board No Model Compatibility List $154.99 / Each
Out Of Stock
Idler Rear Roller 1003171 248571 Idler Rear Roller Yes Model Compatibility List $39.99 / Each

26
Round Magnetic Safety Key 1002486 208603 112A Round Magnetic Safety Key Yes Model Compatibility List $5.00 / Each

1
Right Endcap 1003690 PL22818 Right Endcap Yes Model Compatibility List $11.99 / Each

1
Power Supply Line Cord 1001301 031229 Power Supply Line Cord Yes Model Compatibility List $34.00 / Each

Motor Drive Belt 1002562 260687 or 255589 Motor Drive Belt No Model Compatibility List $14.00 / Each

Power Cord and Surge Protector Combo ICON 1001716 124669 Power Cord and Surge Protector Combo ICON Yes Model Compatibility List $13.19 / Each
Out Of Stock 		6
Treadmill Walking Deck Platform (New) 1010908 315692 Treadmill Walking Deck Platform (New) No Model Compatibility List $239.00 / Each
Out Of Stock 		15
CONTROLLER PLATE 1037621 315047 CONTROLLER PLATE Yes Model Compatibility List $4.80 / Each

7,8,48,1,40
CONTROLLER CLAMP 1037622 365328 or 592150 CONTROLLER CLAMP Yes Model Compatibility List $6.00 / Each

Screw (New) 104355 102959 Screw (New) Yes Model Compatibility List $11.99 / Each

1
Left Rear Foot Cover (Used) 1037629 369930 Left Rear Foot Cover (Used) Yes Model Compatibility List $11.99 / Each
Out Of Stock 		1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
