HEALTH RIDER - STRIDER TREADMILL BY

Exploded Diagrams

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
#12 X 1.25 102620 100691 28 #12 X 1.25" SCREW No Model Compatibility List $1.32 / Each

2
8 118360 102246 # 8" WHITE WIRE, 2F Yes Model Compatibility List $5.99 / Each

4,5,6
INCLINE SENSOR SWITCH 104351 102955 102 INCLINE SENSOR SWITCH No Model Compatibility List $16.73 / Each

47
SMALL BOLT 104355 102959 47 SMALL BOLT No Model Compatibility List $0.18 / Each

2,40
POST CAP 101902 103833 42 POST CAP No Model Compatibility List $4.69 / Each

1
REAR ROLLER ADJ BOLT 104339 105444 27 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

1
MOTOR BOLT 3/8-16X5 117640 107503 36 MOTOR BOLT 3/8-16X5" Yes Model Compatibility List $6.51 / Each

1
8 102884 107771 # 8" WHITE WIRE,M/F Yes Model Compatibility List $3.31 / Each

4,5,6
INCLINE DISK 104346 109370 52 INCLINE DISK Yes Model Compatibility List $5.31 / Each

1
CIRCUIT BREAKER 103130 109382 67 CIRCUIT BREAKER Yes Model Compatibility List $11.52 / Each

1
4 100115 109407 # 4" BLK WIRE F/F, POWER Yes Model Compatibility List $2.93 / Each

1
8 100300 112083 # 8" BLUE WIRE, 2F Yes Model Compatibility List $3.26 / Each

1
RELEASABLE WIRE TIE 100064 116926 96 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
WHEEL BOLT 118348 117806 23 WHEEL BOLT Yes Model Compatibility List $5.86 / Each
2,8
3/8 103461 118395 3 3/8" X 1 1/4" BOLT No Model Compatibility List $1.68 / Each

2
KEY/CLIP 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

1
118346 119070 15 SPEED DISK No Model Compatibility List $0.13 / Each

1
100237 119439 88 ELECTRONIC BRACKET NUT No Model Compatibility List $0.18 / Each

2,3,4,5,6
5/16 101661 012056 24 5/16" NYLON LOCKNUT No Model Compatibility List $0.48 / Each

CONSOLE GROUND SCREW 103901 120630 16 CONSOLE GROUND SCREW No Model Compatibility List $1.19 / Each

1
SEAT RAIL FLANGE NUT 104004 120867 6 SEAT RAIL FLANGE NUT No Model Compatibility List $3.75 / Each

1
3/8 100136 012149 19 3/8" HEX LOCK NUT No Model Compatibility List $1.79 / Each

SPRING NUT 100424 121576 35 SPRING NUT Yes Model Compatibility List $0.34 / Each

2
MOTOR WASHER 113293 122812 4 MOTOR WASHER No Model Compatibility List $1.53 / Each

2
BELT GUIDE 117643 124318 100 BELT GUIDE Yes Model Compatibility List $3.22 / Each

15
118213 125708 18 1/4" CAGE NUT No Model Compatibility List $1.78 / Each

2,3
LARGE STANDOFF 101014 125819 17 LARGE STANDOFF Yes Model Compatibility List $2.35 / Each

2,1
MOTOR/CONTROLLER WIRE 118345 125871 13 MOTOR/CONTROLLER WIRE Yes Model Compatibility List $5.90 / Each

7,8,4,5,6
1/4 104341 126038 105 1/4"-20X4.5" MOTOR TENSION BOLT Yes Model Compatibility List $4.92 / Each

2
4 100112 126146 # 4" BLU WIRE F/F, DR MOTOR Yes Model Compatibility List $2.43 / Each

4,5,6
20 104352 126911 104 20" WIRE HARNESS Yes Model Compatibility List $12.17 / Each

1
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
ROUND GROMMET 101035 129004 92 ROUND GROMMET No Model Compatibility List $1.44 / Each

1
118358 129740 . BASE PAD No Model Compatibility List $2.50 / Each

3,12,13,14
118359 131551 25 CONSOLE WARNING DECAL No Model Compatibility List $4.89 / Each

7,3
118136 013186 29 1/4" X 1" BOLT No Model Compatibility List $0.25 / Each

#8 X 3/4 100149 013300 114 #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

118347 013307 22 INCLINE LEG BOLT No Model Compatibility List $9.38 / Each

BELLY PAN SCREW 118349 134594 30 BELLY PAN SCREW No Model Compatibility List $1.38 / Each

2
102672 013516 7 CONSOLE BACK SCREW No Model Compatibility List $0.06 / Each
Out Of Stock
3/8 100017 013544 8 3/8" BOLT No Model Compatibility List $2.87 / Each

IDLER ARM BOLT 100450 013547 74 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

3/8-16X4.5 106786 135621 44 3/8-16X4.5" Button Head Screw No Model Compatibility List $3.04 / Each

2
FRONT WHEEL BOLT 100466 135622 46 FRONT WHEEL BOLT No Model Compatibility List $17.58 / Each

2,8
INCLINE PIVOT BOLT 3/8 118351 013564 45 INCLINE PIVOT BOLT 3/8"-16X1.75" Yes Model Compatibility List $4.90 / Each

INCLINE MOTOR 118350 135713 32 INCLINE MOTOR Yes Model Compatibility List $122.99 / Each

28

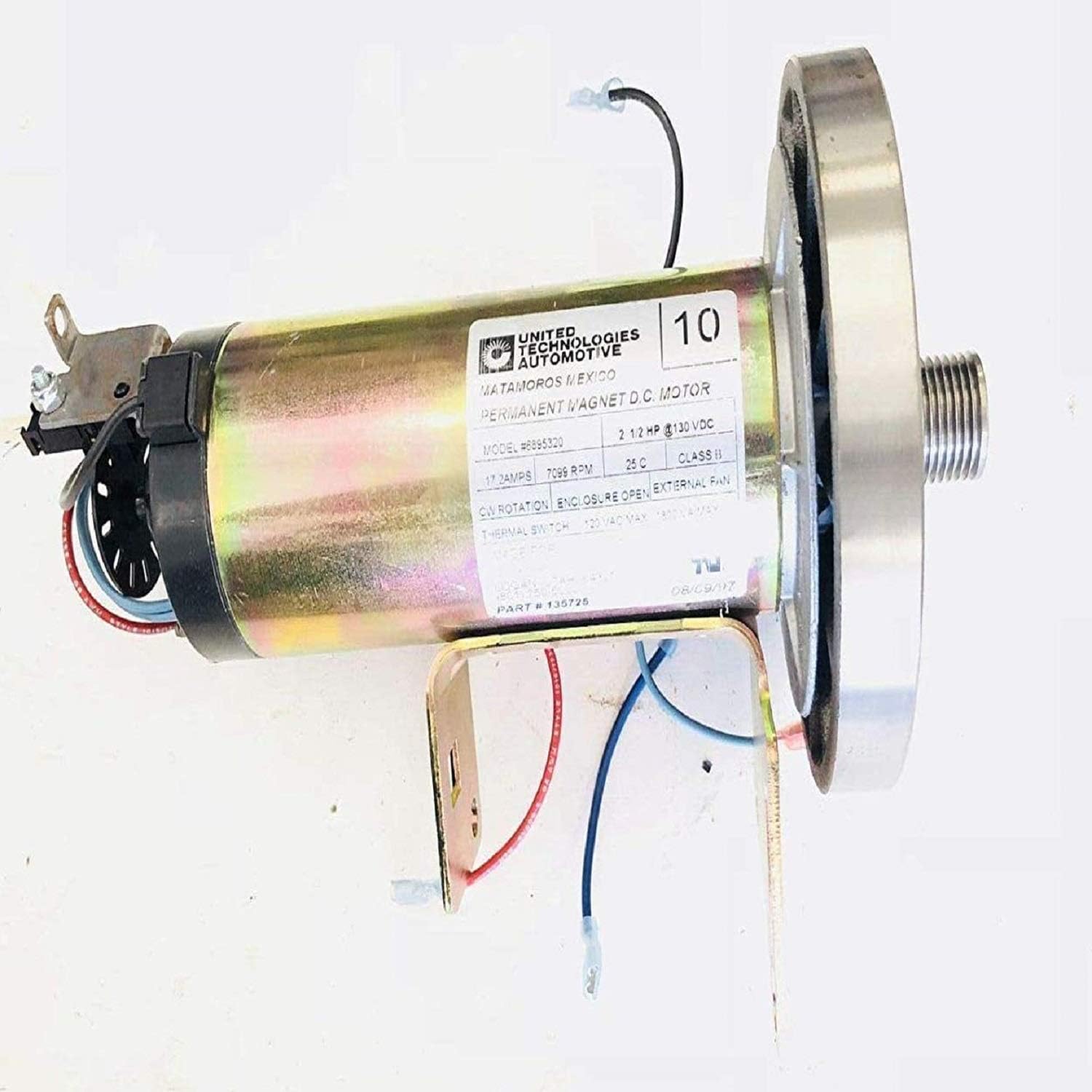

MOTOR 118352 137974 62 MOTOR Yes Model Compatibility List $204.15 / Each
1
MC-60 CONTROLLER - Refurb Only 118354 138368 69 MC-60 CONTROLLER - Refurb Only No Model Compatibility List $119.59 / Each
Out Of Stock
7,8
3/8 102446 014117 5 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

1/4 104040 014127 26 1/4" WASHER Yes Model Compatibility List $1.20 / Each

#8 STAR WASHER 100141 014157 48 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

118362 154220 . USER-S MANUAL No Model Compatibility List $7.94 / Each

1
ADHESIVE CLIP 118356 016028 . ADHESIVE CLIP No Model Compatibility List $2.23 / Each

CLAMP, CABLE TIE 4 100321 016029 98 CLAMP, CABLE TIE 4" No Model Compatibility List $1.17 / Each

8 100063 016057 . 8" CABLE TIE No Model Compatibility List $1.30 / Each

FRONT ROLLER ADJ BOLT 118357 162741 107 FRONT ROLLER ADJ BOLT No Model Compatibility List $1.91 / Each

1
3.5 104354 207753 11 3.5" BOLT Yes Model Compatibility List $6.38 / Each

2
3 TUBE LUBE KIT 100096 219170 # 3 TUBE LUBE KIT No Model Compatibility List $28.18 / Each

1
MOTOR BELT 118353 220769 64 MOTOR BELT Yes Model Compatibility List $23.55 / Each

23
100280 256836 112 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
WALKING BELT 118355 262217 93 WALKING BELT No Model Compatibility List $294.01 / Each

23
100094 356520 # ACCESSORY KIT No Model Compatibility List $42.89 / Each

4,5,6,1
WHEEL 115252 052012 55 WHEEL Yes Model Compatibility List $4.49 / Each

Upright Wire Harness - Used 1021496 137218 0 1 Upright Wire Harness - Used Yes Model Compatibility List $49.99 / Each

4
Power supply board (Used) 1022093 128191 111 1 Power supply board (Used) No Model Compatibility List $149.53 / Each

1
Wire Harness 013040 126911 0 1 Wire Harness Yes Model Compatibility List $18.99 / Each

1
Front Roller Adjusting Bolt 013367 162741 0 1 Front Roller Adjusting Bolt No Model Compatibility List $12.99 / Each

1
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

Power Entry On Off Switch 1007949 144244 0 1 Power Entry On Off Switch Yes Model Compatibility List $17.99 / Each

6
Plastic Standoff Fastener 1008813 125819 19 1 Plastic Standoff Fastener Yes Model Compatibility List $2.35 / Each

2,1
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

47
Locknut 5/16 1011501 012082 0 1 Locknut 5/16" Yes Model Compatibility List $11.99 / Each

Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

Front  Transport Wheel (Used) 1031874 052014 35 2 Front Transport Wheel (Used) Yes Model Compatibility List $9.99 / Each

Power Entry Circuit Breaker 1000167 109382 Power Entry Circuit Breaker Yes Model Compatibility List $2.66 / Each

1
Inc. Incline Lift Motor Actuator 1000170 135713 Inc. Incline Lift Motor Actuator Yes Model Compatibility List $59.99 / Each
28
Power Entry On Off Switch 1000189 144244 Power Entry On Off Switch Yes Model Compatibility List $3.99 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $36.95 / Each

6

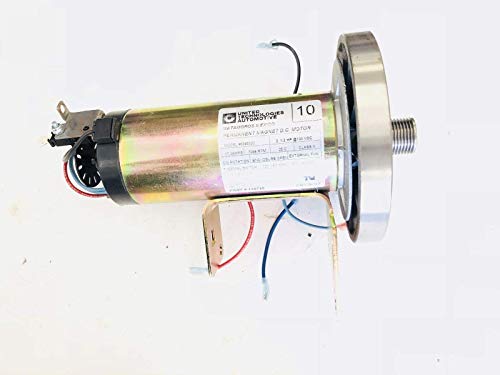

DC Drive Motor 1002553 137974 or 135725 DC Drive Motor Yes Model Compatibility List $109.99 / Each

Motor Drive Belt 1003142 220769 & 118017 Motor Drive Belt Yes Model Compatibility List $6.99 / Each

15 Amp Circuit Breaker 1002255 109382 15 Amp Circuit Breaker Yes Model Compatibility List $5.99 / Each

1
Incline Motor 1002555 135713 Incline Motor Yes Model Compatibility List $61.99 / Each
28

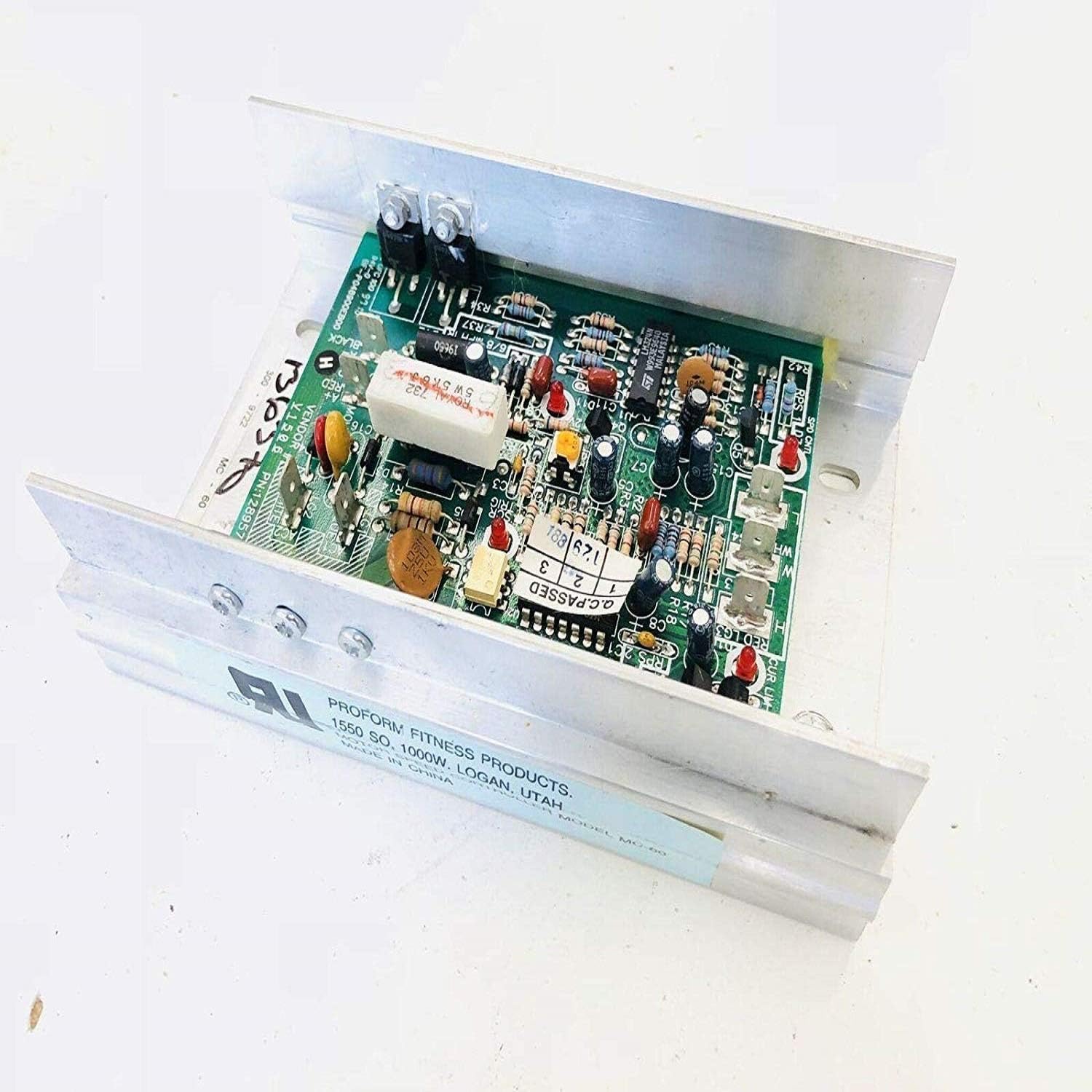

Controller Board 1002550 MC-60 Controller Board Yes Model Compatibility List $99.99 / Each
Out Of Stock
Female Pigtail x2 Male Quick Connect Whitef Wire 1033973 107771 TA22 Female Pigtail x2 Male Quick Connect Whitef Wire Yes Model Compatibility List $3.31 / Each

4,5,6
Allen Tool Clamp (New) 1013015 016028 Allen Tool Clamp (New) No Model Compatibility List $12.99 / Each

View Drawing
