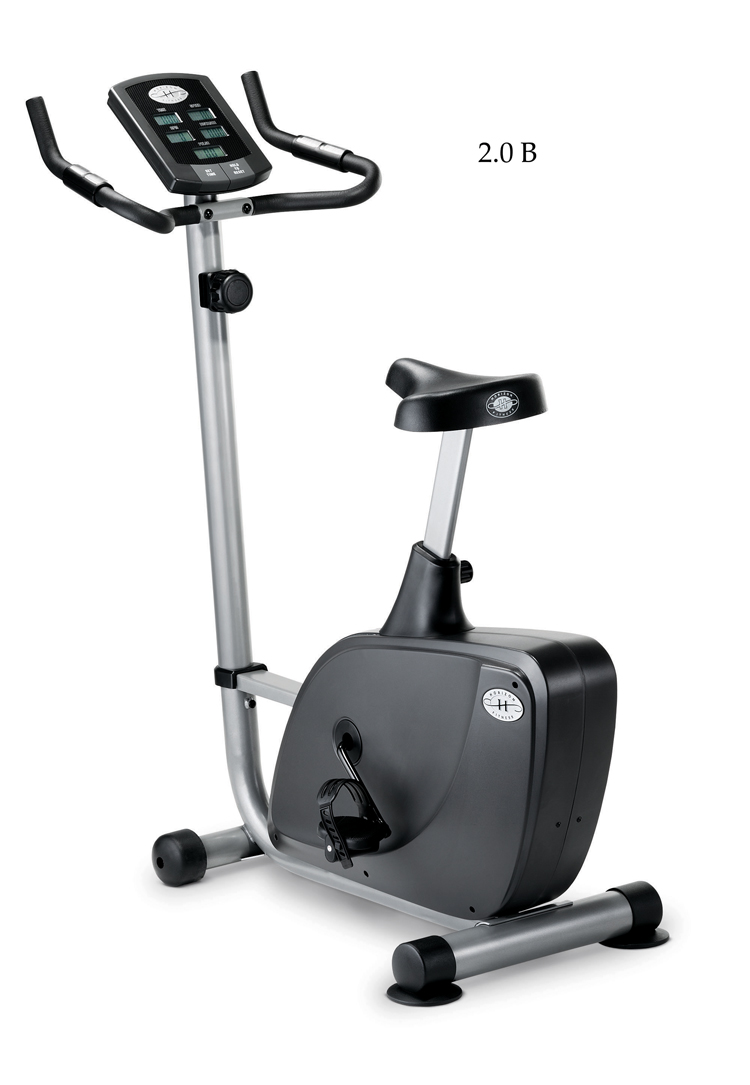

Horizon Fitness - 2.0B - 2004
Repair Parts for Horizon Fitness 2.0B CB45
Brand: Horizon Fitness
Category: Upright
Type: Stationary Bikes
Model Name: 2.0B
Version: 2004
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700009 | 000014-00 | L02 | Transport Wheel | Yes | Model Compatibility List | $9.57 / Each |
||
 |
700263 | 000815-A | N/A | Water Bottle | No | Model Compatibility List | $3.82 / Each |
||
 |
700299 | 000893-B | G03 | End Cap;Handlebar | No | Model Compatibility List | $1.90 / Each |
||
 |
700537 | 001558-00 | Q06 | Crank Cover | No | Model Compatibility List | $1.90 / Each |
||
 |
700597 | 001722-AA | D03 | Seat Bottom; LOGO LS-B36 | No | Model Compatibility List | $29.56 / Each |
||
 |
701042 | 003413-00 | T06 | Magnet;Crank Wheel;15x7t | No | Model Compatibility List | $4.00 / Each |
||
 |
701112 | 003879-00 | R10 | Ball Bearing Set;Crank Wheel | No | Model Compatibility List | $25.00 / Each |
||
 |
701154 | 004072-A2 | R08 | Ball Bearing;Flywheel;6002ZZ | No | Model Compatibility List | $11.60 / Each |
||
 |
701170 | 004090-00 | R07 | Bearing;One-way; HFL2026 | No | Model Compatibility List | $27.82 / Each |
||
 |
701228 | 004202-00 | R03 | Drive Belt;Poly-V;460-J5 | No | Model Compatibility List | $50.67 / Each |
||
 |
701308 | 004369-00 | N02 | Screw;Phillip;BH;M5x0.8Px15L;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701586 | 004617-00 | Q07 | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701588 | 004618-00 | Q08 | Screw;Oval Tapping;4x20L | No | Model Compatibility List | $2.00 / Each |
||
 |
701591 | 004620-00 | L05 | Screw;Self Tapping;4x12L | No | Model Compatibility List | $2.00 / Each |
||
| 701699 | 004724-00 | C04 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
 |

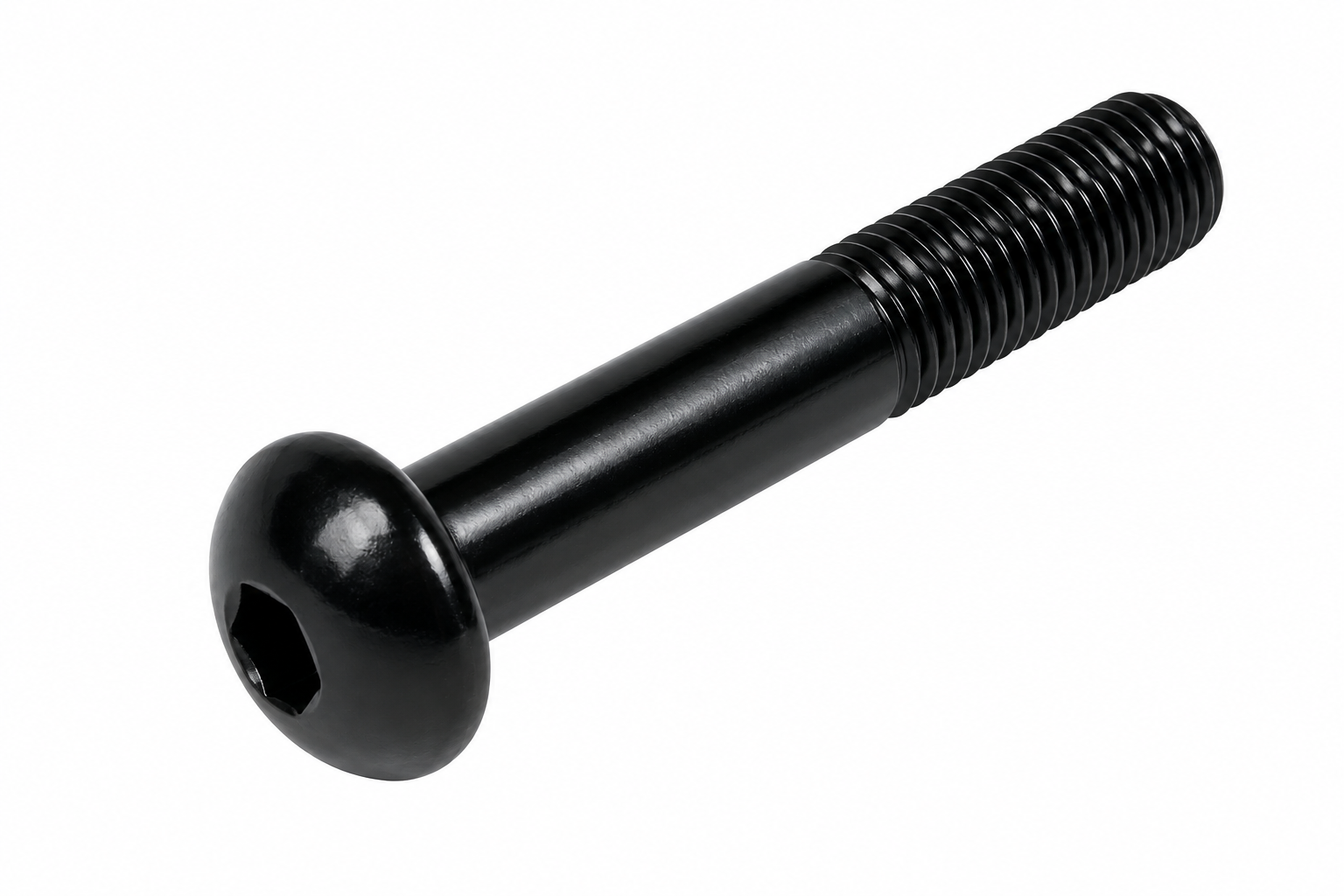

701716 | 004735-00 | G04 | Screw;Oval Hex Socket;M8x1.25Px45L-15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701781 | 004796-00 | J03 | Bol;M8x1.25Px20L | Yes | Model Compatibility List | $2.00 / Each |
||
 |
701897 | 004926-00 | D05 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
||
 |
701904 | 004931-00 | S12 | Nut;Locking;Nylon;1/4"'-20UNC | No | Model Compatibility List | $1.59 / Each |
||
 |
701939 | 004975-00 | J04 | Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) | No | Model Compatibility List | $1.90 / Each |
||
 |
701964 | 005005-00 | D04 | Washer;Spring;Lock;8.2x15.4x2.0t | No | Model Compatibility List | $1.59 / Each |
||
| 701987 | 005025-00 | T04 | Washer;Flat;25.5x38.0x1.5t;Black Zinc | No | Model Compatibility List | $2.00 / Each |
|||
 |
702040 | 005070-00 | S18 | Washer;Flat;6.5x14x1.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
702135 | 005163-00 | G05 | Washer;Arc;8.4x17x1.0T | No | Model Compatibility List | $2.57 / Each |
||
 |
702236 | 005361-00 | R13 | C-Clip;External;S-15 | No | Model Compatibility List | $2.00 / Each |
||
 |
702240 | 005365-00 | B20 | C-Clip;External;S-20 | No | Model Compatibility List | $1.79 / Each |
||
| 702260 | 005400-Z | N/A | Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted | No | Model Compatibility List | $4.00 / Each |
|||
 |
702264 | 005412-00 | N/A | Wrench;L-Type;5mm;With Screwdriver | No | Model Compatibility List | $2.00 / Each |
||
 |
702483 | 007964-00 | B19 | Connecting Plate;Side Cover | Yes | Model Compatibility List | $1.90 / Each |
||
 |
702931 | 013387-Z | AU1 | Tension Wheel Set | No | Model Compatibility List | $44.72 / Each |
||
 |
703447 | 014708-A | T02,T03,T04,T08 | Pedal Set;With Strap | No | Model Compatibility List | $31.85 / Each |
||
 |
703559 | 015383-AA | AT1 | Crank;Right | No | Model Compatibility List | $52.05 / Each |
||
 |
703757 | 016008-Z | T03 | Pedal Axle | No | Model Compatibility List | $37.83 / Each |
||
 |
703763 | 016055-Z | N01 | Console Set; | No | Model Compatibility List | $354.87 / Each |
||
 |
725538 | 072810 | T02 | Pedal and Strap Set | No | Model Compatibility List | $57.49 / Each |
||
 |
1027605 | 002227-B | P02 | Sensor Speed (Used) | No | Model Compatibility List | $15.00 / Each Out Of Stock |
||
|
|
|||||||||
