Horizon Fitness - 3.0R - 2004

Repair Parts for Horizon Fitness 3.0R RB63

Brand: Horizon Fitness

Category: Recumbent

Type: Stationary Bikes

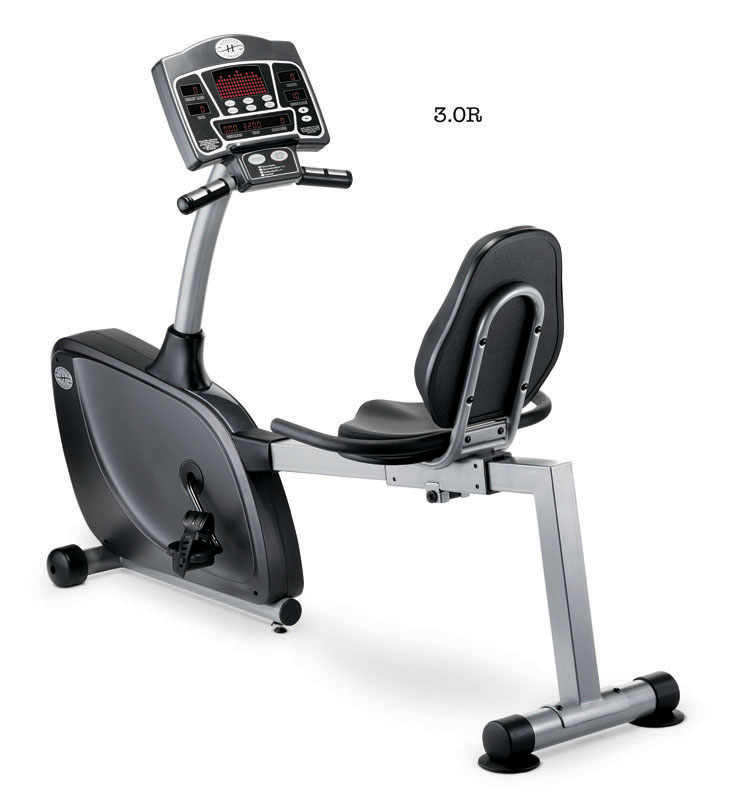

Model Name: 3.0R

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - N/A Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
L 700009 000014-00 L01 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
B 700132 000485-00 B31 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B32 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
C 700257 000798-A C11 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
N 700263 000815-A N/A Water Bottle No Model Compatibility List $3.82 / Each

1
Q 700537 001558-00 Q05 Crank Cover No Model Compatibility List $1.90 / Each

8,9
P 700724 002032-E P02 Console Cable - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700901 002703-A P05 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
N 701008 003307-00 N/A Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

1
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
T 701112 003879-00 T05 Ball Bearing Set;Crank Wheel No Model Compatibility List $25.00 / Each

8
R 701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 701170 004090-00 R07 Bearing;One-way; HFL2026 No Model Compatibility List $27.82 / Each

8
R 701227 004201-00 R02 Drive Belt;Poly-V;430-J5 No Model Compatibility List $57.49 / Each

15,10
S 701300 004364-00 S18 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
N 701326 004379-00 N51 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
S 701390 004447-AB S16 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
Q 701586 004617-00 Q06 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 701588 004618-00 Q07 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
L 701591 004620-00 L05 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
701699 004724-00 G05 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
D 701710 004728-00 D22 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
F 701781 004796-00 F04 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
P 701858 004880-00 P08 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
N 701893 004925-00 N/A Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
S 701904 004931-00 S12 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
B 701934 004972-00 B29 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
F 701939 004975-00 F06 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
701987 005025-00 T04 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
F 702000 005040-00 F07 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
D 702025 005058-00 D04 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

2
S 702040 005070-00 S18 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
D 702135 005163-00 D23 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
D 702234 005359-00 D19 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

2
R 702236 005361-00 R13 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
Q 702240 005365-00 Q09 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
702260 005400-Z N/A Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $4.00 / Each

2
N 702264 005412-00 N/A Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
Q 702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
D 702747 009486-00 D16 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D17 Cam No Model Compatibility List $9.75 / Each

1
A 702789 009759-AD AN1 Console Set; No Model Compatibility List $709.77 / Each

7
A 702869 012962-Z AS2 DC Motor Set w/Zero Switch Cable; No Model Compatibility List $172.46 / Each

4,5,6,10
A 702931 013387-Z AU1 Tension Wheel Set No Model Compatibility List $44.72 / Each

8
T 703447 014708-A T02 T03 T04 T08 Pedal Set;With Strap No Model Compatibility List $31.85 / Each

8,9
T 703757 016008-Z T03 Pedal Axle No Model Compatibility List $37.83 / Each

8,9
A 703762 016053-Z AG1 Handle Bar Set; No Model Compatibility List $90.40 / Each

11
D 706895 066767-C D20 Set Screw;M8x1.25Px8L No Model Compatibility List $2.00 / Each

2
T 729399 ZMS2000077 T32 Pedal;Without Strap;Right No Model Compatibility List $26.60 / Each

8,9
AC Adapter Power Supply 1001768 003478-A2 0 1 AC Adapter Power Supply Yes Model Compatibility List $34.99 / Each

6
View Drawing
