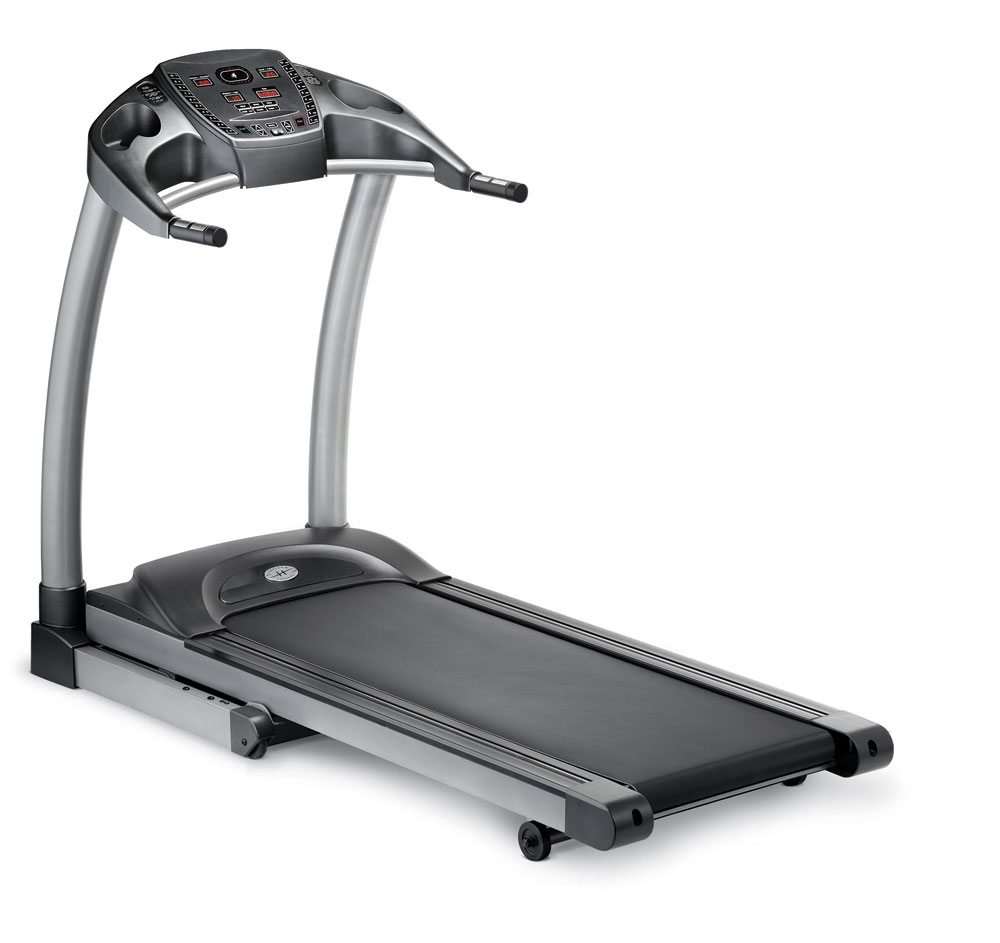

Horizon Fitness - 3.0T - 2004
Repair Parts for Horizon Fitness 3.0T TM103
Brand: Horizon Fitness
Category: Folding
Type: Folding Treadmill
Model Name: 3.0T
Version: 2004
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700014 | 000021-B | L05 | Mobile Wheel;Rear Deck | Yes | Model Compatibility List | $11.62 / Each |
||
 |
700017 | 000031-C | L01 | Mobile Wheel | No | Model Compatibility List | $3.82 / Each |
||
 |
700103 | 000387-EB | Q06 | End Cap;Side Rail;Left | Yes | Model Compatibility List | $17.24 / Each |
||
 |
700104 | 000388-DB | Q07 | End Cap;Side Rail;Right | Yes | Model Compatibility List | $13.34 / Each |
||
 |
700132 | 000485-00 | K09 | Leveler;Rubber;W3/8-16UNC | Yes | Model Compatibility List | $9.09 / Each |
||
 |
700135 | 000491-B | K11 | Wing Nut;Leveler;W3/8-16UNC;BED BL SPC | No | Model Compatibility List | $2.47 / Each |
||
 |
700211 | 000682-A | M21 | Foam Tape;Double Sided;150x30x3t | No | Model Compatibility List | $1.90 / Each |
||
 |
700263 | 000815-A | KIT | Water Bottle | No | Model Compatibility List | $3.82 / Each |
||
 |
700287 | 000871-A | N46 | Oval Cap;Console | No | Model Compatibility List | $1.90 / Each |
||
 |
700340 | 001046-DA | N08 | Console Shell | Yes | Model Compatibility List | $80.26 / Each |
||
 |
700341 | 001047-DA | N09 | Console Cover;Bottom | Yes | Model Compatibility List | $14.72 / Each |
||
 |
700535 | 001554-AA | Q26 | End cap;Handlebar; ABS(75140 HUE) | Yes | Model Compatibility List | $7.72 / Each |
||
| 700542 | 001572-AA | Q21 | Cover;Support Tube Base;Right | Yes | Model Compatibility List | $10.35 / Each |
|||
 |
700700 | 001952-00 | N22 | Fixing Plate;Reed Switch | No | Model Compatibility List | $1.90 / Each |
||
 |
700702 | 001956-C | N23 | Reed Switch | Yes | Model Compatibility List | $21.27 / Each |
||
| 700740 | 002103-A | N/A | Console Cable;Mast;1200 (JST-12P+JST-12P) | Yes | Model Compatibility List | $38.32 / Each |
|||
 |
700746 | 002124-B | P08 | Connecting Cable;Socket/Breaker;60;16AWG Black | No | Model Compatibility List | $3.82 / Each |
||
| 700755 | 002169-A | P07 | Power Cord;16AWG | Yes | Model Compatibility List | $60.22 / Each |
|||
| 700773 | 002248-D | P14 | Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) | Yes | Model Compatibility List | $18.15 / Each |
|||
 |

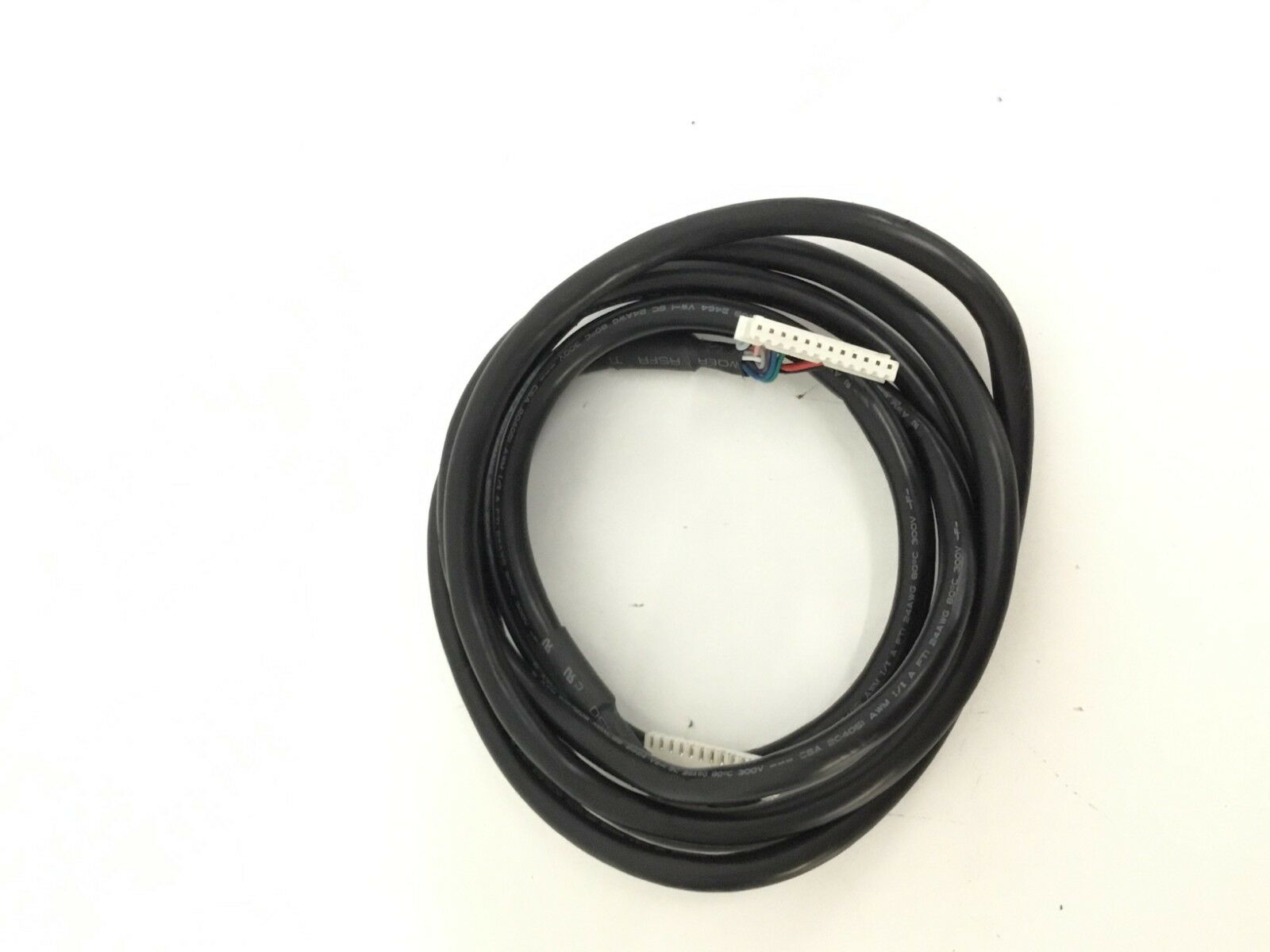

700821 | 002424-A | P06 | Console Cable;Mast;1800(2.5-12P+JST-12P) | Yes | Model Compatibility List | $27.74 / Each |
||
 |
700847 | 002508-A | Not Shown | Power Wire;Control Board;550;16AWG;Black | No | Model Compatibility List | $1.90 / Each |
||
 |
700848 | 002509-A | Not Shown | Power Wire;Control Board;550;16AWG;White | Yes | Model Compatibility List | $1.90 / Each |
||
 |
700945 | 002915-B | N01 | Overlay - D/C, NO REPL Part will show as orderable until stock is depleted | No | Model Compatibility List | $38.32 / Each |
||
 |
700983 | 003154-B | N02 | Membrane Key;Speed/Elevation | No | Model Compatibility List | $38.32 / Each |
||
 |
700984 | 003155-B | N03 | Membrane Key;Programs | No | Model Compatibility List | $9.57 / Each |
||
| 701013 | 003326-00 | P02 | Power Switch;Large;RF-1004 | Yes | Model Compatibility List | $32.71 / Each |
|||
| 701020 | 003346-00 | P04 | Circuit Breaker;12A;125V/250V | Yes | Model Compatibility List | $30.11 / Each |
|||
| 701026 | 003363-00 | P11 | Power Socket;100-600-60(O TYPE END);16AWG | Yes | Model Compatibility List | $9.57 / Each |
|||
 |
701033 | 003386-A | M17 | Ferrite Core;T31x16x19-C | No | Model Compatibility List | $13.26 / Each |
||
 |
701044 | 003415-00 | R10 | Magnet;Front Roller;10X3T | No | Model Compatibility List | $1.90 / Each |
||
 |
701047 | 003432-B | N32 | Pulse Sensor Set;Single;750 | Yes | Model Compatibility List | $21.27 / Each |
||
 |
701238 | 004249-DB | R02 | Running Belt;495x2785x1.6t;Black | Yes | Model Compatibility List | $260.99 / Each |
||
 |
701250 | 004294-FA | B31 | Running Deck;608x1220Lx18t | No | Model Compatibility List | $249.13 / Each |
||
 |
701300 | 004364-00 | P29 | Screw;Oval Head;M5x0.8Px12L | No | Model Compatibility List | $2.00 / Each |
||
 |
701308 | 004369-00 | B35 | Screw;Phillip;BH;M5x0.8Px15L;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701364 | 004415-Z | P13 | Screw;M3x0.5Px10L;Power Socket | No | Model Compatibility List | $1.79 / Each |
||
 |
701434 | 004481-Z | M46 | Screw;Hex Socket;Round;M8x1.25Px45L | No | Model Compatibility List | $2.00 / Each |
||
 |
701444 | 004486-00 | R04 | Screw;Round;Hex Socket;M8X1.25PX85L | Yes | Model Compatibility List | $9.80 / Each |
||
 |
701454 | 004502-00 | M06 | Screw;Hex Socket;Round;5/16-18UNCx16L;Ad | No | Model Compatibility List | $2.00 / Each |
||
 |
701558 | 004589-00 | M10 | Screw;Hex;W3/8x47L/Tooth14L | Yes | Model Compatibility List | $2.18 / Each |
||
 |
701570 | 004603-ZA | M14 | Screw;Hex;W3/8x60L;Tooth18L | Yes | Model Compatibility List | $4.00 / Each |
||
 |
701577 | 004612-00 | P15 | Screw;Phillip;BH;Tapped;3x8L | No | Model Compatibility List | $2.00 / Each |
||
 |
701586 | 004617-00 | N/A | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701588 | 004618-00 | N/A | Screw;Oval Tapping;4x20L | No | Model Compatibility List | $2.00 / Each |
||
 |
701591 | 004620-00 | Q12 | Screw;Self Tapping;4x12L | No | Model Compatibility List | $2.00 / Each |
||
 |
701613 | 004632-00 | Z69 | Screw;Phillip;BH;Tapped;4x16L | No | Model Compatibility List | $2.00 / Each |
||
 |
701713 | 004730-00 | L03 | Screw;Oval Hex Socket;M8X1.25PX50L | Yes | Model Compatibility List | $2.00 / Each |
||
 |
701781 | 004796-00 | Z08 | Bol;M8x1.25Px20L | Yes | Model Compatibility List | $2.00 / Each |
||
 |
701848 | 004865-00 | Q23 | Screw;Self Tapping;4x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
701866 | 004889-00 | P19 | Nut;Hex;M5x0.8P;Nickel | No | Model Compatibility List | $2.00 / Each |
||
 |
701897 | 004926-00 | M08 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
||
 |
701908 | 004934-00 | M12 | Nut;Nylon;3/8'-16UNC | No | Model Compatibility List | $1.59 / Each |
||
 |
701918 | 004949-00 | L09 | Nut;Mobile Wheel;Nylon;3/8'-16UNC;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701934 | 004972-00 | K10 | Insert Nut;Brass;ALS7-616-150(0.02-0.15) | No | Model Compatibility List | $1.90 / Each |
||
 |
701960 | 005003-00 | L23 | Washer;Spring; SW5 5.1X9.3X1.3T | No | Model Compatibility List | $2.00 / Each |
||
 |
701964 | 005005-00 | M25 | Washer;Spring;Lock;8.2x15.4x2.0t | No | Model Compatibility List | $1.59 / Each |
||
 |
702007 | 005044-00 | R06 | Washer;Flat8.3x16x1.3T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
702030 | 005062-00 | B46 | Washer;Flat;10.2x19x2.0T;Chromed | No | Model Compatibility List | $1.59 / Each |
||
 |
702121 | 005146-A | M13 | Washer;Flat;10.5x20x2.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
702160 | 005196-00 | L20 | Washer;Teflon;10.5x20.0x1.0T | No | Model Compatibility List | $1.59 / Each |
||
 |
702197 | 005249-A | B57 | Elastomer;Front;Blue(80) | Yes | Model Compatibility List | $15.31 / Each |
||
 |
702198 | 005250-A | B58 | Elastomer;Middle;Red(55) | Yes | Model Compatibility List | $15.31 / Each |
||
 |
702240 | 005365-00 | Q13 | C-Clip;External;S-20 | No | Model Compatibility List | $1.79 / Each |
||
 |
702257 | 005393-00 | KIT | Wrench;T-Type;6mm | No | Model Compatibility List | $10.24 / Each |
||
| 702260 | 005400-Z | KIT | Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted | No | Model Compatibility List | $4.00 / Each |
|||
| 702275 | 005438-00 | L15 | Spring;Foot Lock Latch;16x2.0x50Lx12N | Yes | Model Compatibility List | $2.00 / Each |
|||
 |
702326 | 006087-AX | V03 | Decal;Console Logo | No | Model Compatibility List | $1.77 / Each |
||
 |
702450 | 007490-C | B52 | Fix Plate;Speed Sensor | No | Model Compatibility List | $1.90 / Each |
||
 |
702456 | 007528-BX | B34 | Belt Guide | Yes | Model Compatibility List | $5.98 / Each |
||
 |
702483 | 007964-00 | N42 | Connecting Plate;Side Cover | Yes | Model Compatibility List | $1.90 / Each |
||
 |
702556 | 008625-C | B44 | Bolt;Incline Support;M8x1.25Px32L | No | Model Compatibility List | $2.00 / Each |
||
 |
702557 | 008626-B | Z09 | Bolt;Top of Mast;M8x1.25Px55L | No | Model Compatibility List | $2.00 / Each |
||
 |
702561 | 008641-C | L14 | Bolt;M5x1.25Px12L-6L | No | Model Compatibility List | $2.00 / Each |
||
 |
702760 | 009557-A | B28 | Air Shock;110Kg | Yes | Model Compatibility List | $37.83 / Each |
||
 |
702851 | 012798-00 | M02 | Elevation Motor;110V | Yes | Model Compatibility List | $249.13 / Each |
||
 |
703352 | 013674-DG | M03 | Motor Control Board;Everything | Yes | Model Compatibility List | $584.82 / Each |
||
 |
703471 | 014829-AA | AC1 | Console Mast Set;Left/Right | No | Model Compatibility List | $153.22 / Each |
||
 |
703502 | 015046-AC | P21 | Fix Plate;Power Socket | Yes | Model Compatibility List | $12.48 / Each |
||
 |
703767 | 016118-Z | M01 | Drive Motor Set;2.5 HP/90V | Yes | Model Compatibility List | $383.27 / Each |
||
 |
703791 | 016553-Z | Q02 | Side Rail Set | Yes | Model Compatibility List | $86.45 / Each |
||
 |
703797 | 016606-ZD | AU1 | Tension Wheel Set | Yes | Model Compatibility List | $27.82 / Each |
||
 |
704087 | 020210-00 | KIT | Screw;Phillip;Round;3x20L | No | Model Compatibility List | $2.00 / Each |
||
 |
705141 | 038132-BBX | N37 | Heart Rate Receiver | Yes | Model Compatibility List | $54.39 / Each |
||
 |
705566 | 051345-A | AN3 | Safety Key Set | Yes | Model Compatibility List | $37.91 / Each |
||
 |
705857 | 056374-AA | M07 | Rubber Pad;Drive Motor;Shockproof | No | Model Compatibility List | $9.57 / Each |
||
 |
707457 | 1000092805 | KIT | Silicon Oil;40ml | No | Model Compatibility List | $32.49 / Each |
||
| 709034 | 1000108449 | AR2 | Roller Set;Rear;TM59 | Yes | Model Compatibility List | $191.62 / Each |
|||
 |
709101 | 1000109551 | R03 | Drive Belt;Poly-V;180-J8 | Yes | Model Compatibility List | $60.22 / Each |
||
 |
725953 | 078545 | P05 | Console Cable; Upper; 400 (2.5-12P+JST-12P) | Yes | Model Compatibility List | $32.63 / Each |
||
 |
1008109 | 000338-BB | Motor Hood Cover - Used | No | Model Compatibility List | $89.70 / Each |
|||
 |
1014565 | 016110-Z | # | 1 | Front Drive Roller - Used | Yes | Model Compatibility List | $115.70 / Each |
|
 |
1014561 | 009555-A | B28 | 1 | Shock Cylinder (Used Only | Yes | Model Compatibility List | $37.70 / Each |
|
 |
1016701 | 016554-ZR1 | 1 | Right Side Frame Cover (Used) | Yes | Model Compatibility List | $19.49 / Each |
||
 |
1016700 | 016554-ZL1 | 1 | Left Side Frame Cover (Used) | Yes | Model Compatibility List | $19.49 / Each |
||
 |
1017639 | 013871-A | # | 1 | Magnetic Safety Key (Used) | Yes | Model Compatibility List | $38.99 / Each |
|
 |

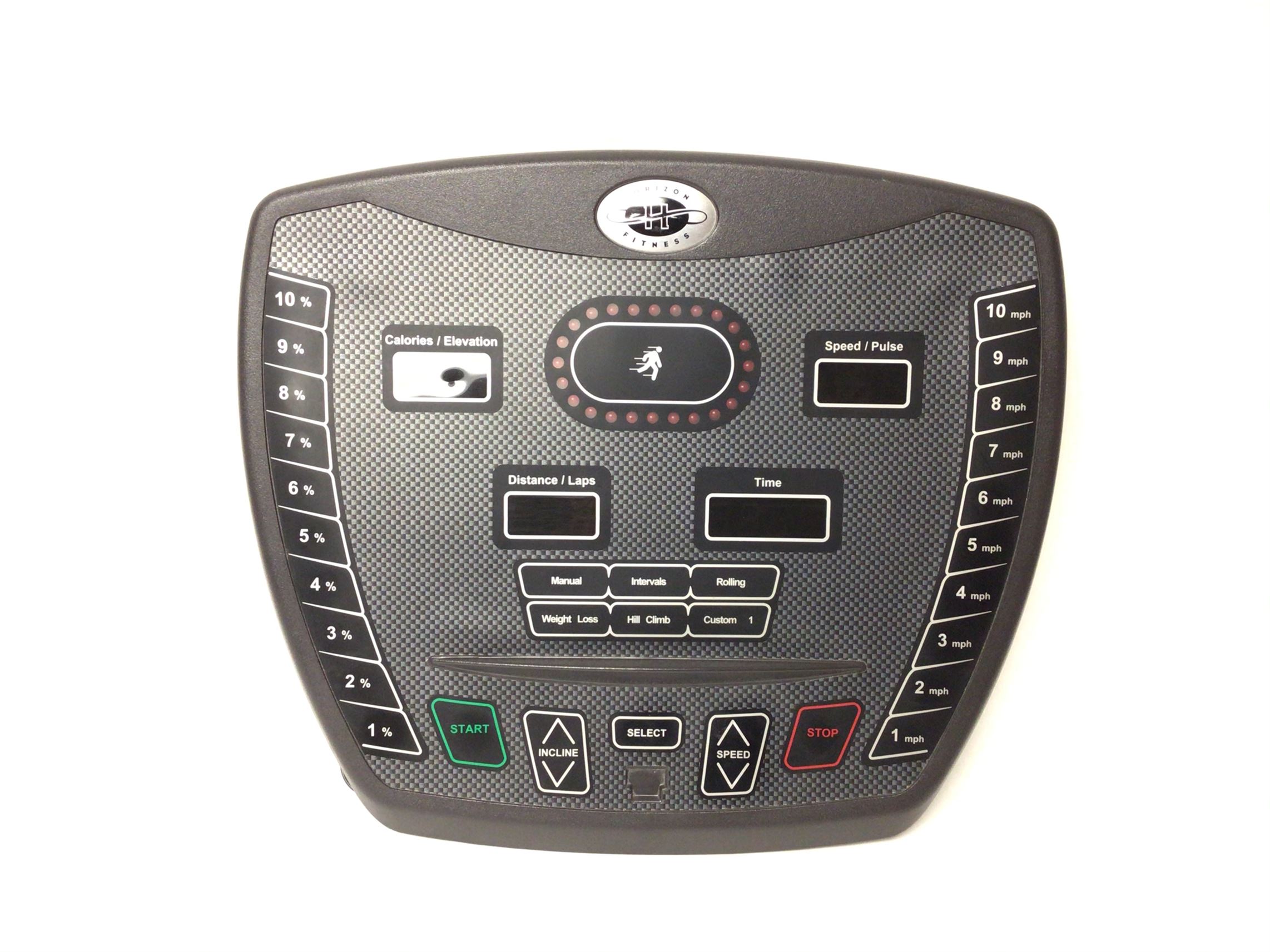

1018766 | 013581-CB | N07 | 1 | Display Console - Used Only | Yes | Model Compatibility List | $258.70 / Each |
|
 |
004249-DB | 004249-DB | R02 | 1 | Walking Running Belt OEM | Yes | Model Compatibility List | $245.70 / Each |
|
 |
1024720 | 000339-GB | Q04 | 1 | Cover Bottom Motor (Used) | No | Model Compatibility List | $38.99 / Each |
|
 |
1024730 | 001571-AA | Q20 | 1 | Cover Mast Base Left (Used) | Yes | Model Compatibility List | $19.49 / Each |
|
 |
1024732 | 015030-AC | L12 | 1 | Folding Latch Hook (Used) | No | Model Compatibility List | $19.49 / Each Out Of Stock |
|
 |
013699 | 013871-A | 0 | 1 | Magnetic Safety Key Lanyard (Used) | No | Model Compatibility List | $35.09 / Each Out Of Stock |
|
 |
1000631 | 051345-A | AN3 | 1 | Safety Key Set | Yes | Model Compatibility List | $34.99 / Each |
|
 |
1001049 | 1000108449 | 0 | 1 | Rear Idler Roller | No | Model Compatibility List | $144.99 / Each |
|
 |
1001221 | 016488-Z | 0 | 1 | Safety Key Set | No | Model Compatibility List | $29.99 / Each |
|
 |
1001381 | 003326-00 | P02 | 1 | Power Switch | Yes | Model Compatibility List | $29.99 / Each |
|
 |
1001622 | 004249-DB | R02 | 1 | Treadbelt | Yes | Model Compatibility List | $189.00 / Each |
|
 |
1001764 | 002169-A | P07 | 1 | Power Cord | Yes | Model Compatibility List | $39.99 / Each |
|
 |
1002002 | 002169-A | P07 | 1 | Cord Power | Yes | Model Compatibility List | $34.99 / Each |
|
 |
1002356 | 1000109551 | R03 | 1 | Belt Drive | Yes | Model Compatibility List | $31.99 / Each |
|
 |
1002861 | 002248-D | P14 | 1 | Sensor RPM | Yes | Model Compatibility List | $25.99 / Each |
|
 |
1003170 | 004249-DB | R02 | 1 | Treadbelt | Yes | Model Compatibility List | $209.00 / Each |
|
 |
946285 | 0000083680 | M09 | Washer;Spring Lock;8.0x13.0x1.5T;-;Bla | No | Model Compatibility List | $1.28 / Each |
||
 |
946749 | 000522-D | K50 | Leveler | Yes | Model Compatibility List | $9.12 / Each |
||
 |
946752 | 000773-AA | B46 | Elastomer;Running Deck;B;30x44L;;TM140 | No | Model Compatibility List | $7.00 / Each |
||
 |
946779 | 001251-F | B33 | Rail Lock;Fixing Washer;Side Rail | Yes | Model Compatibility List | $3.72 / Each |
||
 |
946933 | 004425-B | B31 | Screw;Phillip;Sink;Tapped;5x15L; | No | Model Compatibility List | $0.40 / Each |
||
 |
947007 | 004571-00 | B28 | Screw;Hex Socket;Sink;M8x1.25Px28L;Adher | No | Model Compatibility List | $2.02 / Each |
||
 |
947011 | 004577-00 | M07 | Screw;Round Hex Socket;5/16-18UNCx3/4L | No | Model Compatibility List | $1.38 / Each |
||
 |
947015 | 004613-00 | N39 | Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B | No | Model Compatibility List | $0.40 / Each |
||
 |
947022 | 004616-00 | B20 | Screw;Umbrella Cross Tapped;4x12L | No | Model Compatibility List | $0.40 / Each |
||
|
947025 | 004616-00 | N03 | Screw;Umbrella Cross Tapped;4x12L | No | Model Compatibility List | $0.40 / Each |
||
 |
947038 | 004631-00 | B32 | Screw;Phillip;BH;Tapped;4x25L | No | Model Compatibility List | $0.40 / Each |
||
 |
947060 | 004725-00 | B43 | SCREW;BH;M8X1.25PX45L;;HS;;BZN;; | No | Model Compatibility List | $3.04 / Each |
||
 |
947067 | 004759-00 | K11 | Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 | No | Model Compatibility List | $0.82 / Each |
||
 |
947077 | 004827-A | N41 | Screw;4x0.7Px38L | No | Model Compatibility List | $1.62 / Each |
||
 |
947115 | 004926-00 | M08 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $0.40 / Each |
||
|
947116 | 004926-00 | M08 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $0.40 / Each |
||
 |
947130 | 004934-00 | M12 | Nut;Nylon;3/8'-16UNC | No | Model Compatibility List | $1.24 / Each |
||
 |
947137 | 004942-00 | B40 | Nut;Nylon;M10x1.5P;Black Zinc | No | Model Compatibility List | $1.62 / Each |
||
|
947138 | 004942-00 | K12 | Nut;Nylon;M10x1.5P;Black Zinc | No | Model Compatibility List | $1.62 / Each |
||
|
947139 | 004942-00 | M18 | Nut;Nylon;M10x1.5P;Black Zinc | No | Model Compatibility List | $1.62 / Each |
||
 |
947150 | 004972-00 | K10 | Insert Nut;Brass;ALS7-616-150(0.02-0.15) | No | Model Compatibility List | $2.02 / Each |
||
 |
947219 | 005048-00 | B26 | Washer;Flat;8.2x15.0x1.2T | No | Model Compatibility List | $0.40 / Each |
||
 |
947245 | 005125-00 | B22 | Washer;Flat;10.2x20x1.0T | No | Model Compatibility List | $0.40 / Each |
||
|
947246 | 005125-00 | H09 | Washer;Flat;10.2x20x1.0T | No | Model Compatibility List | $0.40 / Each |
||
|
947247 | 005125-00 | M33 | Washer;Flat;10.2x20x1.0T | No | Model Compatibility List | $0.40 / Each |
||
 |
947281 | 005165-00 | M16 | Washer;Arc;8.2x18x1.5T | No | Model Compatibility List | $1.02 / Each |
||
 |
947505 | 020152-00 | M14 | Screw;HH;3/8-16UNCX50L-14L;;HE;;;;P-T | No | Model Compatibility List | $3.24 / Each |
||
 |
947516 | 020205-AB | N36 | Screw;Round;3X8L;SM;PH;;BZN;;POT | No | Model Compatibility List | $1.28 / Each |
||
 |
947601 | 039400-BA | B25 | Transport Wheel;Nylon | Yes | Model Compatibility List | $8.36 / Each |
||
 |
947611 | 049024-BA | K14 | Flat;;;50C;TM196-K12B | Yes | Model Compatibility List | $6.26 / Each |
||
 |
947615 | 049273-00 | M15 | SCREW;BH;M10X1.5PX55L-15L;;HS;;ZN;;P-T | No | Model Compatibility List | $5.92 / Each |
||
 |
947686 | 066570-00 | N40 | Nut;NLK;M4X0.7P;;BZN;; | No | Model Compatibility List | $1.02 / Each |
||
 |
947738 | 080875 | N37 | Screw;Phillip;Big Umbrella;Tapped;;4x10 | No | Model Compatibility List | $1.62 / Each |
||
 |
947788 | 099695 | AR2 | Roller Set;Rear;TM603-1US | Yes | Model Compatibility List | $83.02 / Each |
||
 |
947946 | 1000108436 | AR1 | Roller Set;Front;Texture;TM115 | Yes | Model Compatibility List | $174.84 / Each |
||
 |
947991 | 1000111476 | M03 | Motor Control Board;110V | Yes | Model Compatibility List | $568.06 / Each |
||
 |
948070 | 1000207014 | N43 | SAFETY KEY SET;-;TM641;-; | Yes | Model Compatibility List | $31.18 / Each |
||
 |
948146 | 1000216462 | B48 | Fixing Bumper CBLACKTM616-1US | Yes | Model Compatibility List | $10.38 / Each |
||
| 948297 | 1000228690 | B24 | SCREW;BH;M8X1.25PX30L;;;HS;G12.9;BZN; | No | Model Compatibility List | $2.02 / Each |
|||
 |
948298 | 1000228690 | B42 | SCREW;BH;M8X1.25PX30L;;;HS;G12.9;BZN; | No | Model Compatibility List | $2.02 / Each |
||
 |
948459 | 1000301864 | B58 | Cushion;-;-;Conduct Rubber;BL/Black C;TM | No | Model Compatibility List | $1.42 / Each |
||
 |
948543 | 1000306548 | C12 | Cap;Arm Rest;;PP;BL/Black C | No | Model Compatibility List | $4.56 / Each |
||
 |
948846 | 1000329389 | B27 | Finished treadmill deck;;665x1370x18T;NA | No | Model Compatibility List | $239.70 / Each |
||
| 948911 | 1000344947 | H07 | Bearing;Dry;;18/12x10x5.5;Siao Yang; | No | Model Compatibility List | $7.76 / Each |
|||
 |
949057 | 1000355157 | M06 | Cushion;Motor;down;NBR;RED;;TM687-1US; | No | Model Compatibility List | $6.54 / Each |
||
 |
949448 | 1000369336 | B41 | Air Stick;Slow-Drop;600N;640mm;;;TM701 | No | Model Compatibility List | $54.66 / Each |
||
 |
950252 | 1000418971 | AM01 | Motor set;Semi-Assy;;;;;TM726-1US; | No | Model Compatibility List | $652.32 / Each |
||
 |
950707 | 1000444959 | B39 | RVN;;A2-M8-BF;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
950744 | 1000447644 | AH1 | Rack Set;;;painting;DM362;Black2;TM1004- | No | Model Compatibility List | $10.06 / Each |
||
 |
950745 | 1000447759 | H06 | Screw;;M8x1.25Px13L-D10x15.5L;;;45#;Blac | No | Model Compatibility List | $4.06 / Each |
||
 |
950747 | 1000447760 | H12 | Screw;Special-Button Head;M8x1.25Px11L-D | No | Model Compatibility List | $3.88 / Each |
||
 |
950861 | 1000461386 | AN1 | Console Base Frame Set;;;painting;DM362; | No | Model Compatibility List | $39.46 / Each |
||
 |
950866 | 1000461399 | N13 | Cover;Trumpet;Left-Rear;HIPS,PH-88;Q520- | No | Model Compatibility List | $6.24 / Each |
||
 |
950868 | 1000461400 | N14 | Cover;Trumpet;Right-Rear;HIPS,PH-88;Q520 | No | Model Compatibility List | $6.24 / Each |
||
 |
950874 | 1000461414 | AN2 | Swivel Sleeve Set;arm rest;left;;TM1020; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
950884 | 1000461491 | AN3 | Swivel Sleeve Set;arm rest;right;;TM1020 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
950898 | 1000464573 | M02 | Lift Motor;AC;110V;500lbs;0.03HP;80mm;22 | No | Model Compatibility List | $230.88 / Each |
||
 |
950899 | 1000464661 | AC01 | Console mast set;;left;;;;TM1030-1US; | No | Model Compatibility List | $147.32 / Each |
||
 |
950900 | 1000464662 | AC02 | Console mast set;;right;;;;TM1030-1US; | No | Model Compatibility List | $147.32 / Each |
||
 |
950901 | 1000464672 | N08 | Console Uipper Cover;;;HIPS,PH-88;Q520-7 | No | Model Compatibility List | $25.58 / Each |
||
 |
950902 | 1000464738 | N48 | Decal;Operation Overlay;;;Synthetic Pape | No | Model Compatibility List | $6.08 / Each |
||
 |
950903 | 1000464741 | N47 | Decal;Operation Overlay;;;Synthetic Pape | No | Model Compatibility List | $3.28 / Each |
||
 |
950904 | 1000465364 | N200 | Pulse Grip Wire;;;;;24AWG;1000mm;; | No | Model Compatibility List | $4.68 / Each |
||
 |
950993 | 1000472771 | 3 | Console Crust Set;Semi-Assy;;;;;TM1030-1 | No | Model Compatibility List | $1151.68 / Each |
||
 |
950994 | 1000472772 | 2 | Motor Cover Set;Semi-Assy;;;;;TM1030-1US | No | Model Compatibility List | $42.58 / Each |
||
 |
950995 | 1000472773 | 1 | Console set;Semi-Assy;;;;;TM1030B-1US; | No | Model Compatibility List | $1380.76 / Each |
||
 |
951003 | 102531 | N33 | Cooling Fan;TM604-N33 | Yes | Model Compatibility List | $27.88 / Each |
||
|
951288 | 0000083680 | Z05 | Washer;Spring Lock;8.0x13.0x1.5T;-;Bla | No | Model Compatibility List | $1.28 / Each |
||
 |
952031 | 002671-A | N51 | Audio Wire;Three-D Earphone | Yes | Model Compatibility List | $9.99 / Each |
||
 |
952058 | 003337-00 | P04 | Circuit Breaker;15A/125V | Yes | Model Compatibility List | $8.64 / Each |
||
 |
952061 | 003378-00 | P10 | Ferrite Core | No | Model Compatibility List | $10.24 / Each |
||
 |
952160 | 004378-00 | P17 | Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; | No | Model Compatibility List | $1.62 / Each |
||
 |
952223 | 004462-00 | Z02 | Screw;Round;Hex Socket;M6x1.0Px15L;Chromed | No | Model Compatibility List | $0.82 / Each |
||
 |
952233 | 004475-00 | Z03 | SCREW;SH;M8X1.25PX15L;;HS;;BZN;; | No | Model Compatibility List | $1.32 / Each |
||
|
952327 | 004616-00 | P33 | Screw;Umbrella Cross Tapped;4x12L | No | Model Compatibility List | $0.40 / Each |
||
|
952328 | 004616-00 | Q30 | Screw;Umbrella Cross Tapped;4x12L | No | Model Compatibility List | $0.40 / Each |
||
 |
952345 | 004624-00 | Q33 | Screw;Umbrella Cross Tapped;4x20L;Gap; | No | Model Compatibility List | $0.20 / Each |
||
 |
952432 | 004889-00 | P19 | Nut;Hex;M5x0.8P;Nickel | No | Model Compatibility List | $1.28 / Each |
||
|
952605 | 005048-00 | Z04 | Washer;Flat;8.2x15.0x1.2T | No | Model Compatibility List | $0.40 / Each |
||
 |
952791 | 005956-00 | V21 | Decal;Voltage/Frequency;PET;AC100-120,5 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
952802 | 006078-00 | V18 | Decal;Grounding;TM08 | No | Model Compatibility List | $1.08 / Each |
||
 |
952873 | 010866-00 | P26 | Bushing;Strain Relief;Nylon66;SR-7R3;BL; | Yes | Model Compatibility List | $1.22 / Each |
||
 |
952907 | 019210-A | P21 | WAVE TUBE; CR-11SP;14x10.7;200m/coil | No | Model Compatibility List | $3.38 / Each |
||
 |
952909 | 019354-A | P35 | Connecting Cable;Breaker/Switch;Black;120mm | No | Model Compatibility List | $7.22 / Each |
||
 |
952956 | 020101-00 | R05 | Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc | No | Model Compatibility List | $3.44 / Each |
||
 |
953045 | 020491-00 | P18 | WASHER;TOOTH;Diam.5.3XDiam.10.0X0.6T;;WZ | No | Model Compatibility List | $1.28 / Each |
||
 |
953091 | 037938-A | M07 | Screw;Hex;SH;5/16-18UNCX18L | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
953106 | 040614-A | N73 | Ground Wire;250 | Yes | Model Compatibility List | $3.38 / Each |
||
 |
953108 | 040695-A | P02 | Power Switch | Yes | Model Compatibility List | $3.88 / Each |
||
|
953257 | 080875 | P27 | Screw;Phillip;Big Umbrella;Tapped;;4x10 | No | Model Compatibility List | $1.62 / Each |
||
|
953258 | 080875 | Q31 | Screw;Phillip;Big Umbrella;Tapped;;4x10 | No | Model Compatibility List | $1.62 / Each |
||
 |
953394 | 1000101982 | P31 | Console Cable;650L(CKM254301-8P+SM | Yes | Model Compatibility List | $12.08 / Each |
||
|
953395 | 1000101982 | P38 | Console Cable;650L(CKM254301-8P+SM | Yes | Model Compatibility List | $12.08 / Each |
||
 |
953428 | 1000103653 | N77 | Speaker;3W8;XHS-2Y;650MM;TM381 | No | Model Compatibility List | $15.00 / Each |
||
| 953449 | 1000105102 | N78 | Trumpet;3W8?[;XHS-2Y;300MM | No | Model Compatibility List | $15.32 / Each |
|||
 |
953462 | 1000105188 | N90 | Absorption Plate;;15X15;TM616 | No | Model Compatibility List | $1.52 / Each |
||
 |
953472 | 1000106875 | N71 | Warning Sticker;overlay;remove protectiv D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
| 953548 | 1000203234 | Q02 | Cover;Motor;DOWN;BLACK;TM640 | No | Model Compatibility List | $22.30 / Each |
|||
 |
953581 | 1000204234 | R04 | Screw;Round;M8X1.25PX80L-75L;MT;HS; | Yes | Model Compatibility List | $5.92 / Each |
||
 |
953587 | 1000204738 | V02 | Direction Label;CARB | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
953592 | 1000205890 | P06 | Wire;BS CON;;BLACK;;250LOCK2 60L; | No | Model Compatibility List | $4.68 / Each |
||
 |
953721 | 1000216278 | P14 | Static/Ground Wire;Deck;;;TM639-1US; | No | Model Compatibility List | $4.06 / Each |
||
 |
953865 | 1000228054 | R03 | BELT;POLY-V;;8P 470; | Yes | Model Compatibility List | $32.02 / Each |
||
 |
954041 | 1000300784 | V17 | Warning Label;Hook;45mmx20mm;;;;; | No | Model Compatibility List | $2.02 / Each |
||
 |
954094 | 1000303833 | N65 | Fixing Plate;Earphone Jack;;PP;EP576 | No | Model Compatibility List | $1.52 / Each |
||
 |
954096 | 1000304063 | P37 | Console connected wire;-;Middle;-;1200L; | Yes | Model Compatibility List | $9.74 / Each |
||
| 954118 | 1000306257 | Z01 | Screw;Round Head;M8X1.25PX60L-30L;;Hex S | No | Model Compatibility List | $2.80 / Each |
|||
 |
954119 | 1000306257 | Z01 | Screw;Round Head;M8X1.25PX60L-30L;;Hex S | No | Model Compatibility List | $2.80 / Each |
||
 |
954254 | 1000329444 | Q03 | Cover;Side Rail;left;HIPS;Q520-7-3 MATTE | No | Model Compatibility List | $7.76 / Each |
||
 |
954255 | 1000329445 | Q04 | Cover;Side Rail;right;HIPS;Q520-7-3 MATT | No | Model Compatibility List | $7.76 / Each |
||
 |
954256 | 1000329446 | Q10 | End Cap;;Left-Rear;ABS;Q520-7-3 MATTE;;T | Yes | Model Compatibility List | $11.26 / Each |
||
 |
954257 | 1000329447 | Q11 | End Cap;;Right-Rear;ABS;Q520-7-3 MATTE;; | Yes | Model Compatibility List | $11.26 / Each |
||
 |
954307 | 1000343073 | N80 | Safe Switch;;;Red;;;250L;(XHS2.5-2P);mac | No | Model Compatibility List | $7.34 / Each |
||
 |
954449 | 1000355225 | R02 | Treadmill Belt;500x3175x1.4T;Black;Diamo | Yes | Model Compatibility List | $176.62 / Each |
||
 |
954822 | 1000379862 | N67 | USB Wire;;;;;;100mm;XHS-13Yx2; | No | Model Compatibility List | $11.46 / Each |
||
 |
954947 | 1000393376 | N69 | PCB Module;;;SOO1604;;;;USB&Aud | No | Model Compatibility List | $12.58 / Each |
||
 |
955833 | 1000455736 | AK1 | Base Frame Set;;;painting;DM362;Black2;T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955858 | 1000458962 | N61 | Membrane Keypad;;M;10key;T101-07; | No | Model Compatibility List | $37.90 / Each |
||
 |
955859 | 1000458963 | N62 | Membrane Keypad;;L;6key;T101-07; | No | Model Compatibility List | $26.76 / Each |
||
 |
955860 | 1000458964 | N63 | Membrane Keypad;;R;6key;T101-07; | No | Model Compatibility List | $26.76 / Each |
||
 |
955863 | 1000459337 | N34 | Fixing Block;Fan;;;Zn Plating;;TM486-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955873 | 1000461198 | P05 | Key CON Wire;;Right;;;24AWG;400;TJC8S-8R | No | Model Compatibility List | $10.46 / Each |
||
 |
955874 | 1000461199 | P01 | Key CON Wire;;Left;;;24AWG;400;TJC8S-8R | No | Model Compatibility List | $10.46 / Each |
||
 |
955875 | 1000461395 | N06 | Console Base Casing;;;ABS;Q520-7-3;;TM10 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955876 | 1000461397 | N09 | Reading Rack;Console Up Cover;;HIPS,PH-8 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955877 | 1000461401 | N07 | Speaker Cover1;;L;painting;;Black C;TM10 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955878 | 1000461403 | N11 | Speaker Cover1;;R;painting;;Black C;TM10 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955879 | 1000461406 | N15 | Cover;Safety Key;;HIPS,PH-88;Q520-7-3;;T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955880 | 1000461413 | N21 | SPEAKER NET FABRIC;;TM1020 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955881 | 1000461431 | Q01 | Motor Cover-Exreawork;;;Screen print;;TM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955882 | 1000461956 | P03 | Inside Power Wire;;;;;14AWG;2M;(100 300 | No | Model Compatibility List | $44.92 / Each |
||
 |
955889 | 1000463258 | Z08 | WRENCH;Hex T-Type;6mmx130L;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955890 | 1000463260 | Z09 | WRENCH;Hex L-Type;5mmx115L;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955891 | 1000463261 | Z10 | WRENCH;Hex L-Type;6mmx115L;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955892 | 1000464312 | N60 | Control Board;Console;;HAPA V2.003;;;T20 | No | Model Compatibility List | $605.90 / Each |
||
|
955893 | 1000464312 | N60 | Control Board;Console;;HAPA V2.003;;;T20 | No | Model Compatibility List | $605.90 / Each |
||
 |
955894 | 1000464650 | N58 | Manipulate Overlay;;Down;;;TM1030-1US | No | Model Compatibility List | $14.12 / Each |
||
 |
955895 | 1000464651 | N99 | Manipulate Overlay;;UP;;;TM1030-1US | No | Model Compatibility List | $11.16 / Each |
||
 |
955896 | 1000464656 | AB1 | Frame Welding Set;;;painting;DM362;;TM10 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955897 | 1000464659 | AC3 | Console Mast Set;;;painting;DM362;;TM103 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955898 | 1000464677 | V05 | Spec Label;ETL;;;;;;TM1030-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955899 | 1000464680 | Not Shown | Hardware Set;Semi-Assy;;;;;TM1030-1US; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955900 | 1000464692 | V07 | POP Sticker;Console Overlay;bluetooth;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955901 | 1000464693 | V08 | POP Sticker;Reading Rack;;;;Left;;TM1030 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955902 | 1000464694 | V09 | POP Sticker;Reading Rack;;;;Right;;TM103 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955903 | 1000464695 | V12 | POP Sticker;End Cap;;;;Left;;TM1030-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955904 | 1000464696 | V13 | POP Sticker;End Cap;;;;Right;;TM1030-1US | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955905 | 1000464739 | N89 | Decal;Operation Overlay;;;Synthetic Pape | No | Model Compatibility List | $6.38 / Each |
||
 |
955906 | 1000464740 | N49 | Decal;Operation Overlay;;;Synthetic Pape | No | Model Compatibility List | $3.28 / Each |
||
 |
955907 | 1000465366 | N68 | Sensor set;Semi-Assy;;;HR;;;;Diam.31.8lo | No | Model Compatibility List | $16.92 / Each |
||
 |
955908 | 1000465469 | P12 | Filter;;16A;125/250V;BF1101-16A-02R;BIBO | No | Model Compatibility List | $48.44 / Each |
||
 |
955912 | 1000466183 | N56 | Manipulate Overlay;;Left;;;TM1030-1US | No | Model Compatibility List | $2.80 / Each |
||
 |
955913 | 1000466184 | N57 | Manipulate Overlay;;Right;;;TM1030-1US | No | Model Compatibility List | $2.80 / Each |
||
|
955914 | 1000466184 | N57 | Manipulate Overlay;;Right;;;TM1030-1US | No | Model Compatibility List | $2.80 / Each |
||
 |
955919 | 1000467566 | Q05 | Side Rail-Extrawork;;left;Screen print;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955920 | 1000467567 | Q06 | Side Rail-Extrawork;;right;Screen print; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955921 | 1000469059 | V20 | Warning Label;;;;;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955922 | 1000469070 | V31 | Warning Label;Power Core;;;;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955923 | 1000469102 | V06 | Warning Label;Operation Overlay;;;;;Engl | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955924 | 1000469116 | V11 | Warning Label;Operation Overlay;;;;;Fren | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955925 | 1000469126 | V29 | Warning Label;Operation Overlay;;;;;Span | No | Model Compatibility List | $0.00 / Each Out Of Stock |
||
 |
955934 | 101680 | P23 | MCB POWER CABLE(L);14AWG;150;250##BLACK | No | Model Compatibility List | $3.38 / Each |
||
 |
955936 | 101681 | P24 | MCB POWER CABLE(R);14AWG150;250##;WHITE | No | Model Compatibility List | $3.38 / Each |
||
 |
1028796 | MB0236030CA | Q01 | Motor Cover Only Order V02 separately (Used) | No | Model Compatibility List | $39.00 / Each |
||
 |
1009492 | 002020-C | 0 | 1 | Console Wire Harness | Yes | Model Compatibility List | $39.99 / Each |
|
 |
1030601 | 000177-BB | Q14 | 1 | Mobile Wheel Cap-L (Used) | No | Model Compatibility List | $3.86 / Each |
|
 |
1030600 | 000179-BB | Q22 | 1 | Mobile Wheel Cap-R (Used) | No | Model Compatibility List | $3.86 / Each |
|
 |
1002658 | 003363-00 | P11 | Power Entry Module | Yes | Model Compatibility List | $19.99 / Each |
||
 |
1008480 | stwch-ent-480 | Power Entry Assembly Switch Filter Inlet | Yes | Model Compatibility List | $24.99 / Each |
|||
|
|
|||||||||
Address
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
Hydra Fitness Exchange © 2024. All Rights Reserved.
