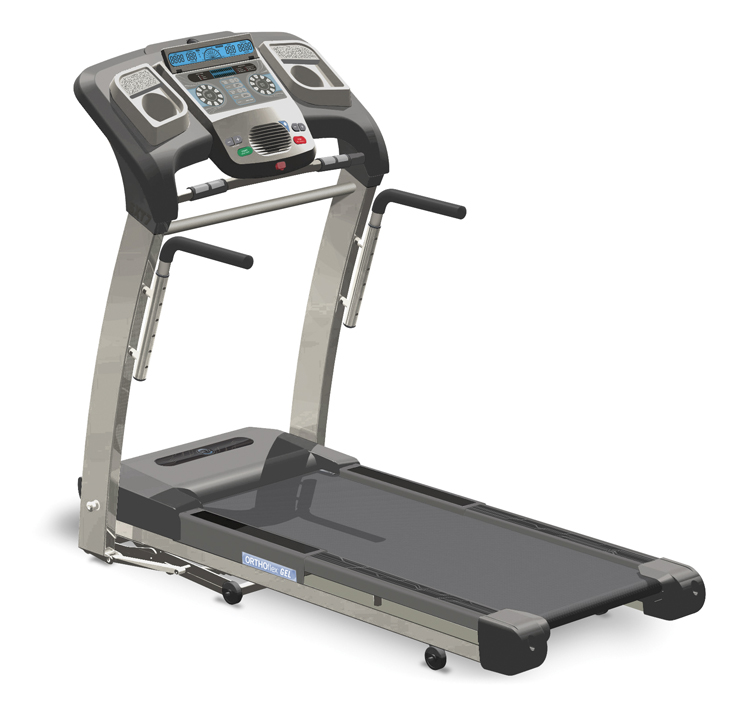

Horizon Fitness - 30727 - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000037-CC 700022 000037-CC L06 Wheel;Nylon No Model Compatibility List $2.94 / Each

8
000767-D 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $14.78 / Each

1
000768-D 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $14.34 / Each

1
000955-BC 700321 000955-BC Q09 End Cap;Base Frame;Front No Model Compatibility List $2.94 / Each

9,3
001251-F 700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
001299-B 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $7.36 / Each

9,3,10
001679-00 700570 001679-00 Z19 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
002124-B 700746 002124-B P05 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $2.94 / Each

4,5,6
002169-A 700755 002169-A P09 Power Cord;16AWG Yes Model Compatibility List $46.32 / Each

4,5,6
002248-D 700773 002248-D P06 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $13.96 / Each

4,5,6
002671-A 700893 002671-A N72 Audio Wire;Three-D Earphone Yes Model Compatibility List $7.36 / Each

7,4,5,6,12,13,14
003326-00 701013 003326-00 P07 Power Switch;Large;RF-1004 Yes Model Compatibility List $25.16 / Each

4,5,6
003346-00 701020 003346-00 P08 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $23.16 / Each

4,5,6
003363-00 701026 003363-00 P04 Power Socket;100-600-60(O TYPE END);16AWG No Model Compatibility List $7.36 / Each

9,4,5,6
003386-A 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $10.20 / Each

1
004158-00 701203 004158-00 R03 Drive Belt;Poly-V;200-J8 Yes Model Compatibility List $44.22 / Each

15,10
004310-C 701254 004310-C B27 Running Deck;682X1220X18T No Model Compatibility List $191.64 / Each

3
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004415-Z 701364 004415-Z P14 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.38 / Each

2,4,5,6
004425-B 701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $1.54 / Each

2
004454-00 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.38 / Each

2
004480-Z 701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $5.54 / Each

2
004502-00 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004523-00 701476 004523-00 M46 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $1.54 / Each

2
004525-00 701478 004525-00 R09 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $5.54 / Each

2
004562-00 701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $4.50 / Each

2
004565-00 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $1.54 / Each

2
004590-Z 701559 004590-Z M20 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.38 / Each

2,10
004595-00 701562 004595-00 M10 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $1.54 / Each

2
004614-AB 701581 004614-AB N34 Screw;Phillip;Umbrella;Tapped;3x10L;Black No Model Compatibility List $1.54 / Each

2,4,5,6
004619-00 701589 004619-00 N55 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $1.54 / Each

2
004619-AB 701590 004619-AB N19 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $1.54 / Each

2
004620-00 701591 004620-00 B39 Screw;Self Tapping;4x12L No Model Compatibility List $1.54 / Each

2,12,13,14
004631-00 701612 004631-00 Z14 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004714-AD 701683 004714-AD Z11 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $1.54 / Each

2
004724-00 701699 004724-00 Z09 Bolt;M8x1.25Px15L Yes Model Compatibility List $1.54 / Each

2
004749-00 701726 004749-00 Z13 Screw;Oval;Hex Socket;M8x1.25Px60L-20L No Model Compatibility List $1.46 / Each

2
004864-00 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $1.54 / Each

2
004867-A 701849 004867-A Q31 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $1.54 / Each

2
004880-00 701858 004880-00 P15 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $1.54 / Each

2,4,5,6
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004903-Z 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
004975-00 701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005004-AC 701962 005004-AC Z10 Washer;Spring;SW6 6.1X12.2X1.5T No Model Compatibility List $1.54 / Each

2
005005-00 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005044-00 702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005047-00 702011 005047-00 H43 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005062-00 702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005091-00 702063 005091-00 B40 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $1.54 / Each

2
005104-00 702073 005104-00 M09 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $1.54 / Each

2
005117-00 702084 005117-00 M30 Washer;Flat;8.2x16.0x2.0T No Model Compatibility List $1.54 / Each

2
005146-A 702121 005146-A M13 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005163-00 702135 005163-00 Z12 Washer;Arc;8.4x17x1.0T No Model Compatibility List $1.98 / Each

2
005196-00 702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005198-00 702161 005198-00 H29 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $1.54 / Each

2
005212-A 702171 005212-A H28 Washer;Teflon;12.2x18x1.0T No Model Compatibility List $1.54 / Each

2
005222-00 702180 005222-00 H33 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005229-00 702186 005229-00 H20 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $1.54 / Each

2,4,5,6
005386-A 702255 005386-A Z06 Wrench;Open-Type;#17#19; No Model Compatibility List $6.18 / Each

2
005393-00 702257 005393-00 Z02 Wrench;T-Type;6mm No Model Compatibility List $7.88 / Each

2
005411-Z 702263 005411-Z Z01 Wrench;L-Type;4mm No Model Compatibility List $3.08 / Each

2
007490-C 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.46 / Each

3
008625-C 702556 008625-C H19 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $1.54 / Each

2,3,10
008628-B 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $3.08 / Each

2,3
009561-AX 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $27.68 / Each

1
010680-00 702798 010680-00 Z08 Washer;Spring;Support Tube;M8X1.25PX16L No Model Compatibility List $1.54 / Each

2,3
014669-B 703438 014669-B AR1 Front Roller Set Yes Model Compatibility List $147.40 / Each

8
014683-B 703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $147.40 / Each

8
019086-DB 703894 019086-DB B18 Gel Cell-30727 No Model Compatibility List $33.74 / Each

1
019304-A 703915 019304-A N67 Amp Control Board No Model Compatibility List $42.72 / Each

7,4,5,6
020121-A 704033 020121-A R04 Bolt;Rear Roller;Hex Socket;M8x1.25Px70L;Chromed No Model Compatibility List $3.08 / Each

7,2,8,12,13,14
020162-A 704064 020162-A H10 Screw;Hex Head;M10X1.5PX40L-15L No Model Compatibility List $3.08 / Each

2
020179-00 704068 020179-00 M60 Screw;Phillip;BH;Tapped;4x12L;Flat End No Model Compatibility List $1.22 / Each

2,9
020210-00 704087 020210-00 N59 Screw;Phillip;Round;3x20L No Model Compatibility List $1.54 / Each

2
020487-ZA 704215 020487-ZA H24 Washer;Flat;10.5x18x2.5T No Model Compatibility List $1.54 / Each

2
020668-00 704229 020668-00 Z04 Wrench;Hex;L-Type;#10mmx170L; No Model Compatibility List $3.08 / Each

2
024275-A 704606 024275-A M47 Polar Receiver No Model Compatibility List $71.12 / Each

1
029150-AA 705013 029150-AA Q23 Tape;Foam;Double Sided;50.0X200.0X2.0T No Model Compatibility List $1.36 / Each

1
032669-IF 705040 032669-IF M03 Motor Control Board;Digital;2.25/2.5HP Yes Model Compatibility List $308.86 / Each

7,10
039043-00 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $254.84 / Each

10,12,13,14
040613-B 705285 040613-B N66 Ground Wire;250 No Model Compatibility List $1.46 / Each

4,5,6
705312 040806-00 N57 Screw,Phillip,Round(M5x0.8Px40L)(TH20L) No Model Compatibility List $0.00 / Each
Out Of Stock
2
056276-CA 705801 056276-CA G36 End Cap;Handlebar;Upper D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $63.70 / Each

9,11
056277-CA 705802 056277-CA G37 End Cap;Handlebar;Bottom No Model Compatibility List $9.02 / Each

9,11
056374-AA 705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
056532-A 705918 056532-A N65 Pulse Sensor Set;600 Yes Model Compatibility List $29.48 / Each

12,13,14
706374 061532-BA Q19 Foam Grip;Handlebar No Model Compatibility List $2.94 / Each

11
061683-AX 706380 061683-AX V03 Decal, Faceplate-'07 '08 consoles No Model Compatibility List $0.82 / Each

7,3,4,5,6
066044-A 706838 066044-A Z21 Washer;Flat;20.2x27.0x2.5T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
066650-A 706891 066650-A N38 Screw;Phillip;Round;M3x0.5Px8L;Black Zinc No Model Compatibility List $1.42 / Each

2,4,5,6
1000093669 707608 1000093669 H31 Foot Lock Latch No Model Compatibility List $29.48 / Each

9,3
1000110344 709140 1000110344 M01 Drive Motor Set;Digital Yes Model Compatibility List $442.24 / Each

10
070670 725367 070670 P11 Speaker Board; Adaptor;AC100-240V;12V/1. Yes Model Compatibility List $49.26 / Each

4,5,6
070674 725370 070674 N71 Wire; Ground; 300mm; IPOD Control board to Audio IN board No Model Compatibility List $6.82 / Each

7,4,5,6
071206 725437 071206 N60 Upper Control Board (UCB) No Model Compatibility List $613.42 / Each

7
071757 725471 071757 B30 Fix Axle; Console Mast No Model Compatibility List $14.86 / Each

7,8
071830 725481 071830 H18 Swivel Axle No Model Compatibility List $12.12 / Each

8
071888 725492 071888 R02 Running Belt; 505x2850x1.6t; Horizon Logo No Model Compatibility List $221.12 / Each

15
072019 725500 072019 H30 Spring; Foot Lock Latch No Model Compatibility List $3.08 / Each

2,9,3
073300 725570 073300 N32 Key,Adjustment-30727 No Model Compatibility List $14.82 / Each

9
073303 725571 073303 N68 Console Fan Yes Model Compatibility List $29.32 / Each

8
073705 725587 073705 N70 Wire; Connecting; Head Phone(3P-3P;180mm)-30727 No Model Compatibility List $3.94 / Each

4,5,6
074949 725701 074949 N64 Wire,Sensor-30727 No Model Compatibility List $6.88 / Each

4,5,6
074973 725705 074973 P02 Connect Wire;Head Phone;;2*(2.54-3P);50m No Model Compatibility List $15.72 / Each

4,5,6
074975 725706 074975 P03 Console Cable No Model Compatibility List $44.22 / Each

7,4,5,6
075922 725751 075922 N61 Keypad-30727 No Model Compatibility List $78.86 / Each

9,12,13,14
075998 725756 075998 P01 Power Wire;Control Board;;;500;16AWG+150 No Model Compatibility List $8.24 / Each

7,4,5,6
076092 725763 076092 N40 Cover;Fan;Front No Model Compatibility List $7.94 / Each

8,9
076093 725764 076093 N41 Cover;Fan;Rear Yes Model Compatibility List $7.94 / Each

8,9
076661 725802 076661 C15 Cover,Bottom,Support Tube-30727 No Model Compatibility List $0.24 / Each

9,3
076666 725803 076666 N20 Tray,IPOD-30727 No Model Compatibility List $0.98 / Each

1
725804 076675 AC3 Crossbar-30727 No Model Compatibility List $57.82 / Each

1
076738 725808 076738 Q06 Side Rail,Right Front-30727 No Model Compatibility List $5.90 / Each

9
076739 725809 076739 N01 Console Shell-30727 No Model Compatibility List $39.48 / Each

7
725810 076740 N02 Faceplate only-30727 No Model Compatibility List $11.88 / Each

3,4,5,6
076743 725811 076743 Q21 Cover,Support Tube,Left-30727 No Model Compatibility List $5.90 / Each

9,3
076745 725812 076745 Q22 Cover,Support Tube,Right-30727 No Model Compatibility List $5.90 / Each

9,3
076750 725813 076750 N06 Cover,Speaker,Left-30727 No Model Compatibility List $0.98 / Each

9
076752 725814 076752 N07 Cover,Speaker,Right-30727 No Model Compatibility List $0.98 / Each

9
076756 725815 076756 N30 Overlay,Left-30727 No Model Compatibility List $16.54 / Each

1
076758 725816 076758 N31 Overlay,Right-30727 No Model Compatibility List $16.54 / Each

1
077114 725856 077114 V04 Sticker;Audio In No Model Compatibility List $1.36 / Each

1
077115 725857 077115 V05 Sticker;Audio Out No Model Compatibility List $1.46 / Each

1
077344 725862 077344 AG1 Handlebar,L/R-30727 No Model Compatibility List $89.92 / Each

11
077362 725864 077362 M05 Bracket, Drive Motor-30727 No Model Compatibility List $19.32 / Each

2,3,4,5,6,10
077363 725865 077363 N51 Decal,Console Upper-30727 No Model Compatibility List $0.50 / Each

7,3
077364 725866 077364 N52 Decal,Console Upper-30727 No Model Compatibility List $0.74 / Each

7,3
077449 725870 077449 Q02 Motor Cover; Bottom No Model Compatibility List $21.22 / Each

9,10
077660 725878 077660 KIT Hardware Pack-30727 No Model Compatibility List $10.38 / Each

4,5,6
077830 725903 077830 Q11 Decal, Motor Cover-30727 No Model Compatibility List $9.90 / Each

7,9,3,10
079677 726065 079677 V07 Accent Piece,Side Rail Front L/R No Model Compatibility List $3.94 / Each

9,4,5,6
079714 726069 079714 AH2 Frame,Folding-30727 No Model Compatibility List $108.10 / Each

3
079716 726070 079716 AH3 Connecting Tube,Left-30727 No Model Compatibility List $26.78 / Each

3
079717 726071 079717 AH4 Connecting Tube,Right-30727 No Model Compatibility List $26.78 / Each

3
079719 726072 079719 N05 Cup Holder,Right-30727 No Model Compatibility List $3.94 / Each

1
079720 726073 079720 N04 Cup Holder,Left-30727 No Model Compatibility List $3.94 / Each

1
726074 079722 Q01 Cover,Motor-30727 No Model Compatibility List $19.66 / Each

9,10
079984 726110 079984 Q07 End Cap,Side Rail,Left-30727 No Model Compatibility List $5.90 / Each

9
079985 726111 079985 Q08 End Cap,Side Rail,Right-30727 No Model Compatibility List $5.90 / Each

9
081366 726356 081366 AC1 Support Tube,Left-30727 No Model Compatibility List $205.56 / Each

3
726358 081368 AC2 Support Tube,Right-30727 No Model Compatibility List $205.56 / Each

3
081375 726360 081375 V02 Logo, Motor Cover Decal No Model Compatibility List $0.74 / Each

7,9,3,10
081380 726362 081380 V08 Side Rail Set,w/Accent Piece,Rear,Left No Model Compatibility List $6.88 / Each

9,4,5,6
081381 726363 081381 V09 Side Rail Set,w/Accent Piece,Rear,Right No Model Compatibility List $6.88 / Each

9,4,5,6
082397 726500 082397 AN3 Safety Key Set Yes Model Compatibility List $32.88 / Each

9
083575 726622 083575 KIT Owner's Manual-30727 No Model Compatibility List $4.92 / Each

1
728756 096830 N62 Speaker;3W;XHS-2Y;680mm Yes Model Compatibility List $11.62 / Each

1
728977 N/A N36 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock
7
30727-OEMWRBT 1003173 30727-OEMWRBT 0 6 Horizon Residential Treadmill OEM Walking Running Belt Treadbelt 071888 No Model Compatibility List $209.00 / Each

1,23
View Drawing
