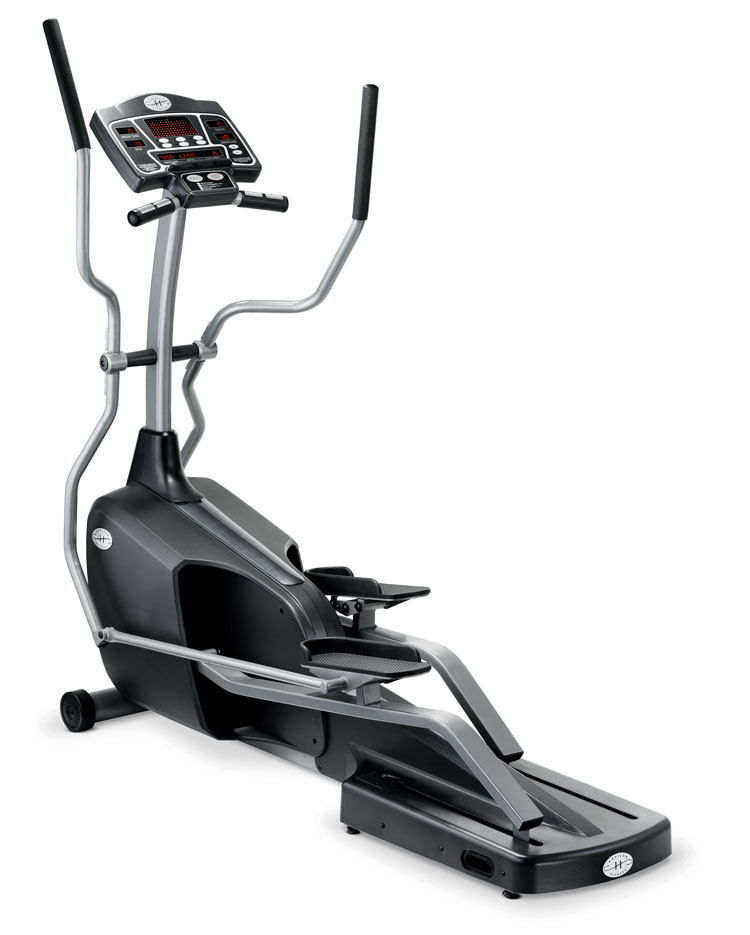

Horizon Fitness - 4.0E - 2004

Repair Parts for Horizon Fitness 4.0E EP31B

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: 4.0E

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L04 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
H 700132 000485-00 H53 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
H 700135 000491-B H54 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700191 000609-A G08 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

11
N 700263 000815-A N/A Water Bottle No Model Compatibility List $3.82 / Each

1
C 700304 000920-00 C52 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

9,11
L 700353 001114-00 L03 Sleeve;Wheel Axle No Model Compatibility List $3.82 / Each

8,3
Q 700472 001453-CB Q10 Foot Pad;Pivoting;Left No Model Compatibility List $21.74 / Each

8,9,3,12,13,14
P 700722 002028-D P02 Console Cable Yes Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700901 002703-A P07 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R37 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
G 701049 003443-C G34 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
701050 003478-A2 P09 Power Adapter;120V 7.5/1.0 A Yes Model Compatibility List $80.29 / Each

4,5,6
701129 003954-F S19 Tension Cable No Model Compatibility List $8.42 / Each

4,5,6
R 701154 004072-A2 R09 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
G 701156 004074-A4 G35 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
R 701165 004081-A2 R08 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
J 701176 004102-00 J51 Needle Bearing; HK1616 No Model Compatibility List $9.57 / Each

8
R 701202 004157-00 R10 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

15,10
S 701300 004364-00 S16 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
H 701305 004366-AB H51 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
H 701345 004391-00 H15 Screw;M5x0.8Px10L No Model Compatibility List $2.00 / Each

2
S 701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
S 701577 004612-00 S55 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q51 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
G 701639 004672-00 G31 Screw;M8x1.25Px42L No Model Compatibility List $2.00 / Each

2
R 701650 004691-A R13 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
S 701675 004708-Z S14 Screw;Oval Hex Socket;M5x0.8Px16L No Model Compatibility List $1.85 / Each

2
701699 004724-00 Z12 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
Z 701710 004728-00 Z04 Screw;Oval Hex Socket;M8x1.25Px40L No Model Compatibility List $2.00 / Each

2
M 701728 004751-00 M52 Screw;Hex Socket;BH;M8x1.25Px13L;Adhere No Model Compatibility List $2.00 / Each

2
Z 701731 004757-00 Z06 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
Z 701748 004771-00 Z01 Screw;Oval;Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
L 701781 004796-00 L52 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Z 701830 004849-00 Z03 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
Q 701848 004865-00 Q54 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
P 701858 004880-00 P51 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701869 004891-00 R16 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
R 701870 004892-00 R18 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
S 701893 004925-00 S17 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
Z 701897 004926-00 Z02 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701904 004931-00 S11 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
R 701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
H 701934 004972-00 H52 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
L 701939 004975-00 L51 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
R 701991 005029-00 R28 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 702008 005045-00 M51 Washer;Flat;8.2x22x3.0T No Model Compatibility List $2.00 / Each

2
G 702018 005053-00 G54 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
J 702020 005055-00 J54 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
H 702053 005081-00 H14 Washer;Flat;5.2x18.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 702066 005094-00 S54 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702072 005103-Z L54 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
Z 702076 005109-00 Z05 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
H 702161 005198-00 H13 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G56 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2
R 702178 005220-00 R29 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
J 702180 005222-00 J52 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702186 005229-00 Z07 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
R 702193 005239-00 R51 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
J 702237 005362-00 J53 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

2
G 702238 005363-00 G27 C-Clip;External;S-17 No Model Compatibility List $1.79 / Each

2
R 702240 005365-00 R34 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
N 702254 005386-00 N/A Wrench;Open;17mm No Model Compatibility List $4.00 / Each

2
N 702263 005411-Z N/A Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

2
Q 702483 007964-00 Q13 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
G 702495 008061-A G33 Washer;Flat;17.2x36x1.0t No Model Compatibility List $2.00 / Each

2
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
H 702607 008969-D H12 Bushing;Inner Yes Model Compatibility List $1.90 / Each

8
R 702901 013178-Z R01 Pedal Axle Set No Model Compatibility List $136.03 / Each
Out Of Stock 		8,9
A 702917 013271-Z AN1 Console Set; Yes Model Compatibility List $709.77 / Each

7
A 702919 013291-ZR AG1 Lower Handlebar Set-R; No Model Compatibility List $97.06 / Each

11
H 703582 015589-AA H10 Connecting Plate;Footpad;Platinum Yes Model Compatibility List $9.57 / Each

9,3,12,13,14
E 725257 103297 E11 Bushing;Copper No Model Compatibility List $28.42 / Each

8
H 725259 103299 H11 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Resistance Motor, Servo, Assembly - Used 1019633 013148-Z S25 1 Resistance Motor, Servo, Assembly - Used Yes Model Compatibility List $103.99 / Each

10
C 700287 000920-00 C52 1 End Cap Yes Model Compatibility List $2.98 / Each

1
P 1001768 003478-A2 P09 1 AC Adapter Power Supply Yes Model Compatibility List $34.99 / Each

6
R 1002352 004157-00 R10 1 Motor Drive Belt 8 Ribs 43" Yes Model Compatibility List $31.99 / Each

23
