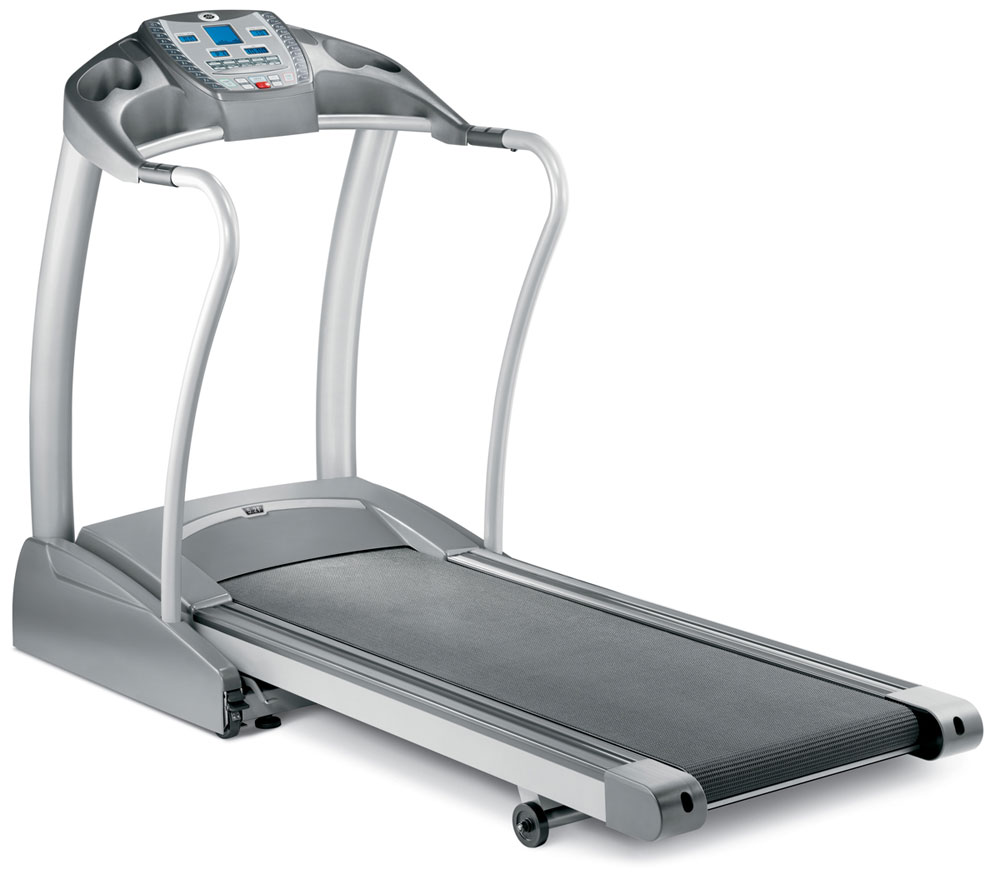

Repair Parts for Horizon Fitness 5.2T TM147
| Brand | Horizon Fitness |
|---|---|
| Type | Folding Treadmill |
| Category | Folding |
| Model Number | TM147 |
| Model Name | 5.2T |
| Version | 2006 |
Model Numbers: TM147
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1017639 | 013871-A | # | 1 | Magnetic Safety Key (Used) | No |
Compatibility List |
$38.99 / Each
|
|
1020937 | 002124-B | 0 | 1 | Power Entry Socket Input Module | Yes |
Compatibility List |
$25.99 / Each
|
|
700287 | 000920-00 | 0 | 1 | End Cap | No |
Compatibility List |
$2.98 / Each
|
|
013699 | 013871-A | 0 | 1 | Magnetic Safety Key Lanyard (Used) | No |
Compatibility List |
$16.19 / Each
|
|
1000336 | 012804-00 | 0 | 1 | Incline Lift Elevation Motor Actuator (Used) | No |
Compatibility List |
$32.99 / Each
|
|
1000631 | 051345-A | 0 | 1 | Safety Key Set | No |
Compatibility List |
$25.00 / Each
|
|
1001152 | 1000108457 | 0 | 1 | Rear Idler Roller | No |
Compatibility List |
$159.99 / Each
|
|
1001154 | 019968-A | 0 | 1 | Poly V Drive Belt | No |
Compatibility List |
$25.00 / Each
|
|
1001381 | 003326-00 | 0 | 1 | Power Switch | No |
Compatibility List |
$20.00 / Each
|
|
1002339 | 019968-A | 0 | 1 | Belt Drive | No |
Compatibility List |
$25.00 / Each
|
|
1002861 | 002248-D | 0 | 1 | Sensor RPM | No |
Compatibility List |
$25.99 / Each
|
|
1002970 | 012804-00 | 0 | 1 | Motor Incline | No |
Compatibility List |
$349.00 / Each
|
|
1003105 | 014122-AA | 0 | 1 | Front Drive Pulley Roller | No |
Compatibility List |
$159.00 / Each
|
|
1003174 | 004250-B | 0 | 1 | Treadbelt Orthopedic | Yes |
Compatibility List |
$479.00 / Each
|
|
1009207 | 060295-DA | 0 | 1 | Digital Speed Sensor | No |
Compatibility List |
$31.99 / Each
Out Of Stock |
|
703471 | 014829-AA | AC1 | Console Mast Set, Left/Right | No |
Compatibility List |
$153.22 / Each
|
|
|
704667 | 024717-AA | AH1 | Fold Frame | No |
Compatibility List |
$159.38 / Each
|
|
|
703487 | 014953-AA | AH4 | Elevation Frame Set | No |
Compatibility List |
$281.48 / Each
|
|
|
703800 | 016990-A | AK2 | Wheel Lock D/C, NO REPL Part will show as orderable until stock is depleted | No |
Compatibility List |
$23.24 / Each
|
|
|
704606 | 024275-A | AN1 | Polar Receiver | No |
Compatibility List |
$92.46 / Each
|
|
|
705566 | 051345-A | AN3 | Safety Key Set | Yes |
Compatibility List |
$25.00 / Each
|
|
|
703397 | 014122-AA | AR1 | Front Roller Set | Yes |
Compatibility List |
$159.00 / Each
|
|
|
1002114 | 014122-AA | AR1 | Front Roller | No |
Compatibility List |
$49.99 / Each
|
|
|
1003104 | 014122-AA | AR1 | Front Drive Pulley Roller | Yes |
Compatibility List |
$69.00 / Each
|
|
|
703441 | 014682-B | AR2 | Rear Roller Set | Yes |
Compatibility List |
$191.62 / Each
|
|
|
709036 | 1000108457 | AR2 | Roller Set, Rear, TM105 | Yes |
Compatibility List |
$191.62 / Each
|
|
|
1001527 | 014682-B | AR2 | Rear Idler Roller | No |
Compatibility List |
$32.99 / Each
|
|
|
1003106 | 014682-B | AR2 | Rear Idler Roller | Yes |
Compatibility List |
$79.99 / Each
|
|
|
702447 | 007387-E | B08 | Fixing Plate, Motor Control Board | No |
Compatibility List |
$14.04 / Each
|
|
|
702160 | 005196-00 | B12 | Washer, Teflon, 10.5x20.0x1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
704329 | 022495-AX | B28 | Air Shock | No |
Compatibility List |
$65.81 / Each
|
|
|
700239 | 000760-E | B30 | Elastomer, White | Yes |
Compatibility List |
$17.34 / Each
|
|
|
1021191 | 000760-E-Red | B30 | 2 | Red Deck Cushion Isolator (Used) | No |
Compatibility List |
$7.79 / Each
|
|
700269 | 000825-AA | B31 | Deck Extension | No |
Compatibility List |
$1.90 / Each
|
|
|
701251 | 004302-CA | B31 | Running Deck, 600X1350LX25T | No |
Compatibility List |
$249.13 / Each
|
|
|
700241 | 000762-G | B33 | Elastomer, Blue | Yes |
Compatibility List |
$15.31 / Each
|
|
|
702456 | 007528-BX | B34 | Belt Guide | Yes |
Compatibility List |
$5.98 / Each
|
|
|
702553 | 008610-B | B41 | Bolt, Air Shock, M10X1.5P S45C | No |
Compatibility List |
$2.00 / Each
|
|
|
701540 | 004568-Z | B51 | Screw, Hex Socket, Sink, M8x1.25Px45L | No |
Compatibility List |
$2.00 / Each
|
|
|
702450 | 007490-C | B52 | Fix Plate, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
704087 | 020210-00 | C05x | Screw, Phillip, Round, 3x20L | No |
Compatibility List |
$2.00 / Each
|
|
|
700263 | 000815-A | C09 | Water Bottle | No |
Compatibility List |
$3.82 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
702180 | 005222-00 | D30 | Washer, Wavy, 16.7x22.5x0.3T | No |
Compatibility List |
$2.00 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701781 | 004796-00 | D41 | Bol, M8x1.25Px20L | Yes |
Compatibility List |
$6.00 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
701328 | 004381-00 | E60 | Screw, Oval Head, M5x0.8Px25L | No |
Compatibility List |
$3.88 / Each
|
|
|
701047 | 003432-B | G34 | Pulse Sensor Set, Single, 750 | Yes |
Compatibility List |
$21.27 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702560 | 008632-B | H20 | Bolt, M10X1.5P | No |
Compatibility List |
$4.00 / Each
|
|
|
700007 | 000010-CA | H21 | Incline Wheel D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$9.57 / Each
|
|
|
704215 | 020487-ZA | H21 | Washer, Flat, 10.5x18x2.5T | No |
Compatibility List |
$3.88 / Each
|
|
|
701098 | 003814-B | H22 | Incline Wheel B | No |
Compatibility List |
$9.57 / Each
|
|
|
702235 | 005360-00 | H24 | C Clip, External, S 14 | No |
Compatibility List |
$3.82 / Each
|
|
|
703947 | 019852-C | H25 | Bushing, Nylon | No |
Compatibility List |
$3.82 / Each
|
|
|
702559 | 008629-A | H30 | Bolt, Elevation Motor Frame, M8x1.25Px29L 10L | No |
Compatibility List |
$4.00 / Each
|
|
|
704208 | 020480-Z | H36 | Washer, Flat, 15.2x28x3.0T | No |
Compatibility List |
$1.85 / Each
|
|
|
700288 | 000874-A2 | H37 | Rubber Stopper, AC003 >TS, TM16 | Yes |
Compatibility List |
$6.99 / Each
|
|
|
701384 | 004439-A | K23 | Screw, Phillip, Sink, M4x0.7Px40L | No |
Compatibility List |
$2.00 / Each
|
|
|
700773 | 002248-D | KIT | Speed Sensor Wire, 1000mm(Reed Switch 2.5 2P) | Yes |
Compatibility List |
$18.15 / Each
|
|
|
701008 | 003307-00 | KIT | Chest Strap, Polar, T34/T41 | No |
Compatibility List |
$76.99 / Each
|
|
|
702258 | 005394-00 | KIT | Wrench, T Type, 8mm | No |
Compatibility List |
$10.01 / Each
|
|
|
707457 | 1000092805 | KIT | Silicon Oil, 40ml | No |
Compatibility List |
$16.88 / Each
|
|
|
700008 | 000011-EA | L01 | Transport Wheel, Base Frame | No |
Compatibility List |
$12.17 / Each
|
|
|
1039459 | 000011-EA | L01 | Transport Wheel (New) | No |
Compatibility List |
$18.25 / Each
|
|
|
701556 | 004584-A | L03 | Screw, Hex Socket, Sink, M8x1.25Px45L | Yes |
Compatibility List |
$9.99 / Each
|
|
|
701941 | 004976-00 | L04 | Insert Nut, Brass, ALS7 1015 1.5(0.5 3.8) | No |
Compatibility List |
$1.90 / Each
|
|
|
700014 | 000021-B | L05 | Mobile Wheel, Rear Deck | Yes |
Compatibility List |
$11.62 / Each
|
|
|
701912 | 004941-00 | L08 | Nut, Nylon, M10x1.5P | Yes |
Compatibility List |
$3.88 / Each
|
|
|
701918 | 004949-00 | L09 | Nut, Mobile Wheel, Nylon, 3/8 16UNC, BED | No |
Compatibility List |
$2.00 / Each
|
|
|
704162 | 020368-Z | L10 | Nut, HexM10X1.5PX6T | No |
Compatibility List |
$2.00 / Each
|
|
|
702561 | 008641-C | L14 | Bolt, M5x1.25Px12L 6L | No |
Compatibility List |
$2.00 / Each
|
|
|
701960 | 005003-00 | L23 | Washer, Spring, SW5 5.1X9.3X1.3T | No |
Compatibility List |
$2.00 / Each
|
|
|
709300 | 1000112728 | M01 | Drive Motor Set, Digital, 3.0HP | Yes |
Compatibility List |
$899.00 / Each
|
|
|
1000973 | 1000112728 | M01 | 1 | Motor Drive | No |
Compatibility List |
$899.00 / Each
|
|
1000972 | 1000112728 | M01 | DC Drive Motor | No |
Compatibility List |
$229.00 / Each
|
|
|
702854 | 012804-00 | M02 | Elevation Motor, 110V | No |
Compatibility List |
$349.00 / Each
|
|
|
703355 | 013701-AA | M03 | Motor Control Board, 2.75HP, Digital | No |
Compatibility List |
$401.52 / Each
Out Of Stock |
|
|
701454 | 004502-00 | M06 | Screw, Hex Socket, Round, 5/16 18UNCx16L, Ad | No |
Compatibility List |
$2.00 / Each
|
|
|
701908 | 004934-00 | M06 | Nut, Nylon, 3/8 | Yes |
Compatibility List |
$0.62 / Each
|
|
|
702121 | 005146-A | M07 | Washer, Flat, 10.5x20x2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
705857 | 056374-AA | M07 | Rubber Pad, Drive Motor, Shockproof | No |
Compatibility List |
$9.57 / Each
|
|
|
701590 | 004619-AB | M08 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
702007 | 005044-00 | M09 | Washer, Flat8.3x16x1.3T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701558 | 004589-00 | M10 | Screw, Hex, W3/8x47L/Tooth14L | Yes |
Compatibility List |
$2.18 / Each
|
|
|
701033 | 003386-A | M17 | Ferrite Core, T31x16x19 C | No |
Compatibility List |
$13.26 / Each
|
|
|
706219 | 060295-DA | M17 | Digital Speed Sensor | No |
Compatibility List |
$35.52 / Each
Out Of Stock |
|
|
701559 | 004590-Z | M20 | Bolt, Incline Motor Bottom, W3/8X57L(WHORL:14L) | Yes |
Compatibility List |
$1.79 / Each
|
|
|
700211 | 000682-A | M21 | Foam Tape, Double Sided, 150x30x3t | No |
Compatibility List |
$1.90 / Each
|
|
|
704063 | 020160-Z | M28 | Screw, HH, M6X1.0PX25L, HE | No |
Compatibility List |
$2.00 / Each
|
|
|
703999 | 020085-00 | M30 | Screw, Hex Socket, Round, M8x1.25Px20.0L, Ad | No |
Compatibility List |
$1.79 / Each
|
|
|
700984 | 003155-B | N03 | Membrane Key, Programs | No |
Compatibility List |
$9.57 / Each
|
|
|
701598 | 004622-00 | N05 | Screw, Phillip, BH, Tapped, 4x8L, Gap, Zn BL | No |
Compatibility List |
$2.00 / Each
|
|
|
703888 | 019027-AA | N07 | Console Cover Only, ABS | No |
Compatibility List |
$12.56 / Each
|
|
|
700340 | 001046-DA | N08 | Console Shell | Yes |
Compatibility List |
$80.26 / Each
|
|
|
700341 | 001047-DA | N09 | Console Cover, Bottom | Yes |
Compatibility List |
$14.72 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
700700 | 001952-00 | N22 | Fixing Plate, Reed Switch | No |
Compatibility List |
$1.90 / Each
|
|
|
700702 | 001956-C | N23 | Reed Switch | Yes |
Compatibility List |
$21.27 / Each
|
|
|
701577 | 004612-00 | N28 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
700287 | 000871-A | N46 | Oval Cap, Console | No |
Compatibility List |
$1.90 / Each
|
|
|
701326 | 004379-00 | N51 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$2.00 / Each
|
|
|
705141 | 038132-BBX | N83 | Heart Rate Receiver | Yes |
Compatibility List |
$54.39 / Each
|
|
|
1000573 | 003326-00 | P01 | Power Entry Switch On/Off | No |
Compatibility List |
$8.99 / Each
|
|
|
1034434 | 003326-00 | P01 | Power Entry On Off Switch EP212 | No |
Compatibility List |
$10.19 / Each
|
|
|
4K-UYTS-4IA5 | 003326-00 | P01 | Power Switch on Off (New) | Yes |
Compatibility List |
$29.99 / Each
|
|
|
701021 | 003347-00 | P02 | Circuit Breaker, Current, ZE 700 20A/250V | Yes |
Compatibility List |
$16.88 / Each
|
|
|
1003694 | 003347-00 | P02 | Power Entry Circuit Breaker | No |
Compatibility List |
$9.99 / Each
|
|
|
700304 | 000920-00 | P03 | End Cap, Handlebar | Yes |
Compatibility List |
$4.50 / Each
|
|
|
701013 | 003326-00 | P03 | Power Switch, Large, RF 1004 | Yes |
Compatibility List |
$13.99 / Each
|
|
|
703919 | 019354-A | P05 | Connecting Cable, Breaker/Switch, Black, 120mm | No |
Compatibility List |
$13.00 / Each
|
|
|
725953 | 078545 | P05 | Console Cable, Upper, 400 (2.5 12P JST 12P) | Yes |
Compatibility List |
$29.99 / Each
|
|
|
700740 | 002103-A | P06 | Console Cable, Mast, 1200 (JST 12P JST 12P) | Yes |
Compatibility List |
$38.32 / Each
|
|
|
703938 | 019749-A | P06 | Power Socket, 100,600,60(14AWG) | Yes |
Compatibility List |
$9.57 / Each
|
|
|
700821 | 002424-A | P07 | Console Cable, Mast, 1800(2.5 12P JST 12P) | Yes |
Compatibility List |
$27.74 / Each
|
|
|
701848 | 004865-00 | P07 | Screw, Self Tapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
1036808 | 019354-A | P07 | Power harness wire | Yes |
Compatibility List |
$13.00 / Each
|
|
|
700746 | 002124-B | P08 | Connecting Cable, Socket/Breaker, 60, 16AWG Black | No |
Compatibility List |
$3.82 / Each
|
|
|
700847 | 002508-A | P09 | Power Wire, Control Board, 550, 16AWG, Black | No |
Compatibility List |
$1.90 / Each
|
|
|
1001433 | 002248-D | P09 | RPM Speed Sensor Reed Switch | No |
Compatibility List |
$9.99 / Each
|
|
|
700848 | 002509-A | P10 | Power Wire, Control Board, 550, 16AWG, White | Yes |
Compatibility List |
$1.90 / Each
|
|
|
703920 | 019370-A | P11 | Power Cord, 14 Guage/15 Amp | Yes |
Compatibility List |
$57.18 / Each
|
|
|
703979 | 020048-00 | P13 | Screw, FH, M3X0.5PX10L, CT, PH | No |
Compatibility List |
$2.00 / Each
|
|
|
701866 | 004889-00 | P19 | Nut, Hex, M5x0.8P, Nickel | Yes |
Compatibility List |
$3.88 / Each
|
|
|
703502 | 015046-AC | P21 | Fix Plate, Power Socket | Yes |
Compatibility List |
$12.48 / Each
|
|
|
700764 | 002212-A | P23 | Ground Wire, 650 (5.2 0TYPE END 8.30.3 0 TYPE END) | Yes |
Compatibility List |
$14.99 / Each
|
|
|
706594 | 063708-AA | Q01 | Motor Cover Only | No |
Compatibility List |
$100.62 / Each
|
|
|
706596 | 063710-AA | Q05 | Bottom Cover, Main Frame | No |
Compatibility List |
$54.39 / Each
|
|
|
700102 | 000386-DB | Q07 | End Cap, Side Rail, Right | Yes |
Compatibility List |
$19.84 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701613 | 004632-00 | Q09 | Screw, Phillip, BH, Tapped, 4x16L | No |
Compatibility List |
$2.00 / Each
|
|
|
725327 | 069963 | Q20 | Side Cover, Base Frame Left, ABS (75140HUE) | No |
Compatibility List |
$103.82 / Each
|
|
|
703861 | 018786-AA | Q21 | Side Cover, Base Frame, Right D/C, NO REPL: Part will show as orderable until stock is depleted | No |
Compatibility List |
$44.95 / Each
|
|
|
701847 | 004864-00 | Q30 | Screw, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
701849 | 004867-A | Q31 | Screw, Phillip, Big BH, Tapped, 4x15L | No |
Compatibility List |
$2.00 / Each
|
|
|
704158 | 020364-00 | Q36 | Screw, Oval, Phillips, M4x12L | No |
Compatibility List |
$1.79 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
701239 | 004250-B | R02 | Running Belt, 495x3080Lx4.4t, Black | Yes |
Compatibility List |
$479.10 / Each
|
|
|
702092 | 005125-00 | R02 | Washer, Flat, 10.2x20x1.0T | No |
Compatibility List |
$1.54 / Each
|
|
|
703952 | 019968-A | R03 | Drive Belt, Poly V, 210 J8 | Yes |
Compatibility List |
$25.00 / Each
|
|
|
1001202 | 019968-A | R03 | Motor Drive Belt | Yes |
Compatibility List |
$5.00 / Each
|
|
|
701451 | 004496-00 | R04 | Screw, Hex Socket, Round, M10x1.5Px90L | Yes |
Compatibility List |
$11.80 / Each
|
|
|
1004610 | 004496-00 | R04 | Rear Roller Tensioner Bolt | No |
Compatibility List |
$3.59 / Each
|
|
|
701440 | 004483-00 | R08 | Screw, Round Hex Socket, M8x1.25Px25L | No |
Compatibility List |
$1.68 / Each
|
|
|
701445 | 004488-00 | R09 | Screw, Hex Socket, Round, M8x1.25Px55L, BED | Yes |
Compatibility List |
$2.00 / Each
|
|
|
702557 | 008626-B | R09 | Bolt, Top of Mast, M8x1.25Px55L | No |
Compatibility List |
$2.00 / Each
|
|
|
701044 | 003415-00 | R10 | Magnet, Front Roller, 10X3T | No |
Compatibility List |
$1.90 / Each
|
|
|
702335 | 006250-BX | V08 | Decal, Motor Cover Carbon Fiber | No |
Compatibility List |
$16.30 / Each
|
|
|
702326 | 006087-AX | V09 | Decal, Console Logo | No |
Compatibility List |
$1.77 / Each
|
|
|
702074 | 005106-00 | Z03 | Washer, Flat, 10.2x20.0x1.5T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
701591 | 004620-00 | Z31 | Screw, Self Tapping, 4x12L | No |
Compatibility List |
$3.88 / Each
|
|
|
1008103 | 000385-EB | Left Rail End Cap Used | No |
Compatibility List |
$8.99 / Each
|
||
|
1000418 | 051345-A | Magnetic Safety Key | No |
Compatibility List |
$25.00 / Each
|
||
|
1001151 | 1000108457 | Rear Idler Roller | No |
Compatibility List |
$69.99 / Each
|
||
|
1020604 | 004483-00 | Front Roller Screw M8 1.25"x25mm | No |
Compatibility List |
$3.00 / Each
|
||
|
1009784 | 003347-00 | Circuit Breaker QMB 152 11C3N 3BA (New) | No |
Compatibility List |
$28.99 / Each
|
||
|
912107 | 1000465333 | Nut Locking Nylon 3/8 | No |
Compatibility List |
$11.99 / Each
|
||
|
911968 | 004620-00 | Self Tapping Screw 4X12L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
971749 | 003307-00 | Rate Chest Strap (New) | Yes |
Compatibility List |
$76.65 / Each
|
||
|
1038163 | 015044-AA | Foot Lock Latch (Used) | No |
Compatibility List |
$6.00 / Each
|
Catalog #: 703800
MPN: 016990-A
Wheel Lock D/C, NO REPL Part will show as orderable until stock is depleted
$23.24 / each
Catalog #: 700007
MPN: 000010-CA
Incline Wheel D/C, NO REPL: Part will show as orderable until stock is depleted.
$9.57 / each
Catalog #: 703861
MPN: 018786-AA
Side Cover, Base Frame, Right D/C, NO REPL: Part will show as orderable until stock is depleted
$44.95 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
