Horizon Fitness - 625S - 2009
Repair Parts for Horizon Fitness 625S CS202C
Brand: Horizon Fitness
Category: Stepper
Type: Stepper
Model Name: 625S
Version: 2009
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
| 700152 | 000522-D | K14 | Leveler | Yes | Model Compatibility List | $11.60 / Each |
|||
 |

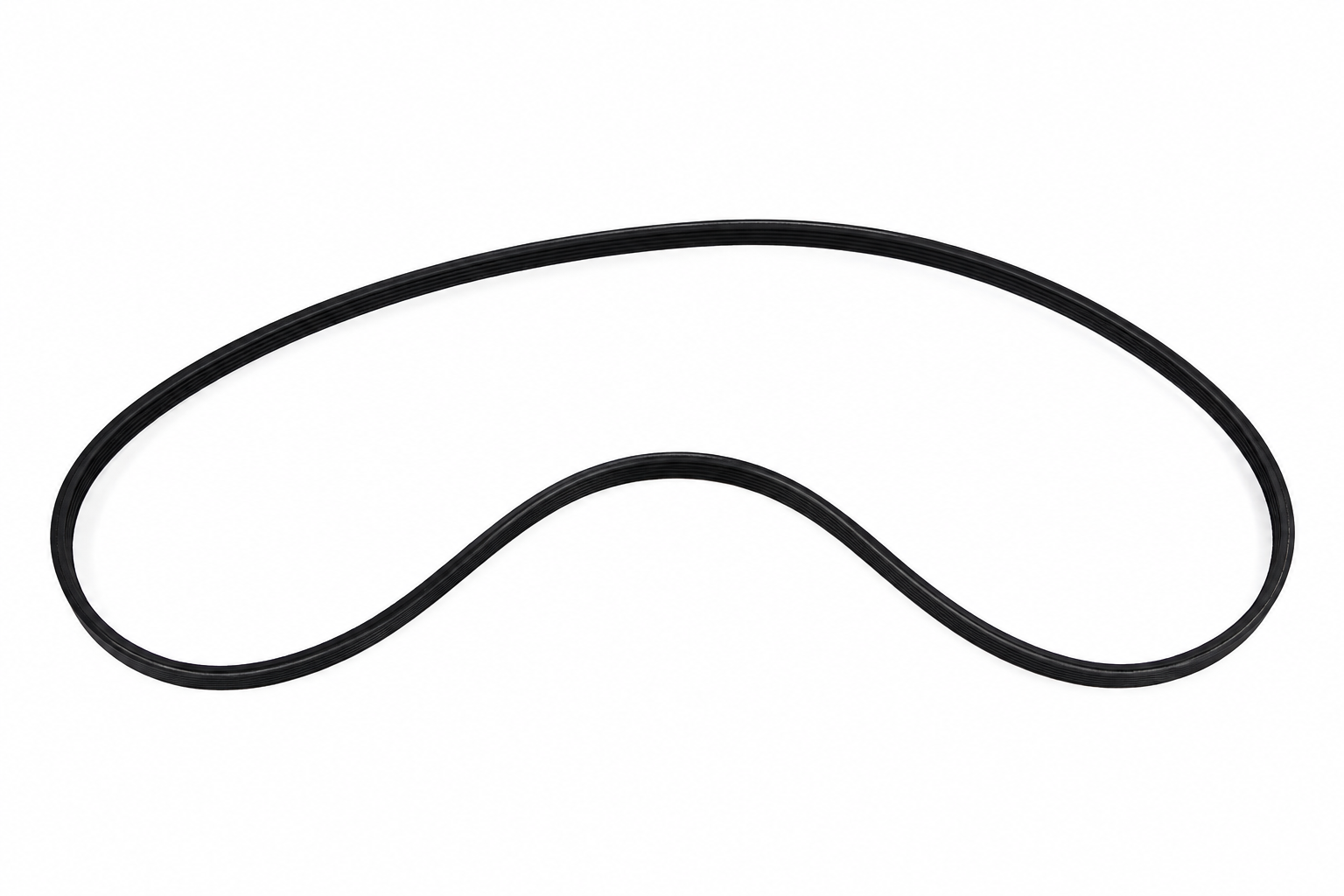

700298 | 000891-A | R08 | Drive Belt;Poly-V;390-J5 | Yes | Model Compatibility List | $57.49 / Each |
||
 |
700323 | 000960-AA | G05 | End Cap;Upper Vertical Handlebar | Yes | Model Compatibility List | $3.89 / Each |
||
 |
700770 | 002231-B | P04 | Speed Sensor Wire;2 Prong;280mm | Yes | Model Compatibility List | $9.57 / Each |
||
 |
701042 | 003413-00 | R13 | Magnet;Crank Wheel;15x7t | No | Model Compatibility List | $4.00 / Each |
||
 |
701159 | 004077-A2 | R02 | Ball Bearing;6004ZZ;20X42X12T;;SKF;;; | No | Model Compatibility List | $20.05 / Each |
||
 |
701308 | 004369-00 | Z14 | Screw;Phillip;BH;M5x0.8Px15L;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701576 | 004610-00 | C10 | Screw;Phillip;BH;Tapped;3x25L | No | Model Compatibility List | $1.79 / Each |
||
 |
701577 | 004612-00 | P06 | Screw;Phillip;BH;Tapped;3x8L | No | Model Compatibility List | $2.00 / Each |
||
 |
701588 | 004618-00 | Q05 | Screw;Oval Tapping;4x20L | No | Model Compatibility List | $2.00 / Each |
||
 |
701649 | 004687-C | R10 | Bolt;Eye Hook;1/4"-20UNCx35L | No | Model Compatibility List | $2.00 / Each |
||
 |
701689 | 004718-AD | Z11 | Screw;Oval;Hex Socket;M8X1.25PX10L | No | Model Compatibility List | $2.00 / Each |
||
 |
701710 | 004728-00 | Z12 | Screw;Oval Hex Socket;M8x1.25Px40L | No | Model Compatibility List | $2.00 / Each |
||
 |
701723 | 004743-00 | Z19 | Screw;Hex Socket;BH;M8x1.25Px60L(Tooth20) | No | Model Compatibility List | $1.66 / Each |
||
 |
701728 | 004751-00 | Z06 | Screw;Hex Socket;BH;M8x1.25Px13L;Adhere | No | Model Compatibility List | $2.00 / Each |
||
 |
701756 | 004778-AB | Z01 | Screw;Hex Socket;Umbrella;M8x1.25Px75L | No | Model Compatibility List | $2.00 / Each |
||
 |
701827 | 004847-AB | Z10 | Set Screw;M10X1.5PX12L | Yes | Model Compatibility List | $6.99 / Each |
||
 |
701848 | 004865-00 | P05 | Screw;Self Tapping;4x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
701849 | 004867-A | Q06 | Screw;Phillip;Big BH;Tapped;4x15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701869 | 004891-00 | R14 | Nut;Hex;3/8-26UNCX9H | No | Model Compatibility List | $2.00 / Each |
||
 |
701897 | 004926-00 | Z05 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
||
 |
701904 | 004931-00 | R12 | Nut;Locking;Nylon;1/4"'-20UNC | No | Model Compatibility List | $1.59 / Each |
||
 |
701912 | 004941-00 | K10 | Nut;Nylon;M10x1.5P | No | Model Compatibility List | $2.00 / Each |
||
 |
701923 | 004956-00 | R05 | Nut;Hex;M20X1.0P;SS41;BOX | No | Model Compatibility List | $4.00 / Each |
||
 |
701927 | 004964-00 | R03 | Nut;Hex;Flange;M10x1.25P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
701934 | 004972-00 | K13 | Insert Nut;Brass;ALS7-616-150(0.02-0.15) | No | Model Compatibility List | $1.90 / Each |
||
 |
702005 | 005043-00 | Z07 | Washer;Flat;8.2x20x1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
||
 |
702092 | 005125-00 | K11 | Washer;Flat;10.2x20x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702161 | 005198-00 | Z09 | Washer;Teflon;15.9x28.4x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702180 | 005222-00 | Z20 | Washer;Wavy;16.7x22.5x0.3T | No | Model Compatibility List | $2.00 / Each |
||
 |
702217 | 005330-00 | B13 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
||
 |
702240 | 005365-00 | R07 | C-Clip;External;S-20 | No | Model Compatibility List | $1.79 / Each |
||
 |
702253 | 005382-00 | Z16 | Wrench;Open;13x15 | No | Model Compatibility List | $5.90 / Each |
||
 |
702259 | 005395-00 | Z15 | Wrench;T-Type;5mm | No | Model Compatibility List | $10.01 / Each |
||
 |
702262 | 005408-A | Z18 | Screwdriver;Phillips;5x75 | No | Model Compatibility List | $9.57 / Each |
||
 |
702298 | 005505-00 | E11 | Screw;M4x7Px20L | No | Model Compatibility List | $1.90 / Each |
||
 |
702449 | 007489-00 | P01 | Fix Plate;Speed Sensor | Yes | Model Compatibility List | $7.72 / Each |
||
 |
702512 | 008394-00 | R11 | Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 | No | Model Compatibility List | $1.51 / Each |
||
 |
702857 | 012847-00 | M01 | Resistance Motor | Yes | Model Compatibility List | $206.67 / Each |
||
 |
704076 | 020190-A | M03 | Screw;Phillip;BH;Tapped;4x0.7Px10L | No | Model Compatibility List | $1.85 / Each |
||
 |
704144 | 020327-00 | J03 | Set Screw;M4x0.7Px10L | No | Model Compatibility List | $0.55 / Each |
||
 |
704176 | 020426-00 | Z08 | Washer;Flat;8.2x30.0x1.5T | No | Model Compatibility List | $2.00 / Each |
||
 |
704203 | 020478-00 | K15 | Washer;Flat;10.2x20.0x2.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
705259 | 039400-BA | K09 | Transport Wheel;Nylon | Yes | Model Compatibility List | $9.57 / Each |
||
 |
705802 | 056277-CA | K12 | End Cap;Handlebar;Bottom | No | Model Compatibility List | $11.73 / Each |
||
 |
705917 | 056531-A | C08 | Pulse Sensor Set;750;600 | No | Model Compatibility List | $35.46 / Each |
||
 |
707488 | 1000092936 | Z13 | Screw;Hex Socket;Umbrella;M5x0.8Px8L;CS2 | No | Model Compatibility List | $0.34 / Each |
||
 |
707489 | 1000092937 | Z17 | Wrench;Hex;L-Type;M3x130L;CS202 | No | Model Compatibility List | $4.24 / Each |
||
 |
707528 | 1000093251 | AC1 | Console Mast Set CS202C | No | Model Compatibility List | $207.30 / Each |
||
 |
707529 | 1000093252 | AG2 | Left Arm Rest Set CS202C | No | Model Compatibility List | $144.17 / Each |
||
 |
707530 | 1000093253 | AG1 | Right Arm Rest Set CS202C | No | Model Compatibility List | $144.17 / Each |
||
 |
707531 | 1000093254 | AH1 | Lower Link Arm Set CS202C | No | Model Compatibility List | $177.37 / Each |
||
| 707532 | 1000093255 | AE2 | Left Pedal Arm Set CS202C | No | Model Compatibility List | $413.22 / Each |
|||
| 707533 | 1000093256 | AE1 | Right Pedal Arm Set CS202C | No | Model Compatibility List | $413.22 / Each |
|||
 |
707534 | 1000093257 | R01 | Pedal axle set CS202C | No | Model Compatibility List | $120.30 / Each Out Of Stock |
||
 |
707535 | 1000093258 | AJ1 | Crank Set;Painting;CS202-1US | No | Model Compatibility List | $112.87 / Each |
||
 |
707548 | 1000093340 | B06 | fixed Plate;F;cover;Painting;SPHC ;2.0t; | No | Model Compatibility List | $31.62 / Each |
||
 |
707549 | 1000093341 | B07 | Cover Rear Fixing Plate;Painting;SPHC;2. | No | Model Compatibility List | $31.62 / Each |
||
 |
707550 | 1000093342 | AD1 | Frame Reinforce Tube Set;Painting;CS202 | No | Model Compatibility List | $179.30 / Each |
||
 |
709055 | 1000108777 | Z03 | Washer;Flat;M8.2x16Px1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
725086 | 101685 | Q01 | Cover;R;HIPS;BLACK;CS202-1US | No | Model Compatibility List | $87.10 / Each |
||
 |
725087 | 101686 | Q02 | Cover;L;HIPS;BLACK;CS202-1US | No | Model Compatibility List | $87.10 / Each |
||
 |
725088 | 101687 | Q03 | Cover;BOTTOM BASE HORIZONTAL TUBE;PP;BLA | No | Model Compatibility List | $39.83 / Each |
||
 |
725089 | 101688 | Q04 | Pedal;PP;BLACK;CS202-1US | No | Model Compatibility List | $1.92 / Each |
||
 |
725136 | 102046 | E10 | Bearing;Ball;6903ZZ(17x30x7t) | No | Model Compatibility List | $13.52 / Each |
||
 |
725137 | 102103 | AZ0 | Hardware Kit Set;Semi-Assy;CS202-1US | No | Model Compatibility List | $70.28 / Each |
||
 |
725138 | 102108 | H03 | Rocker under Shaft;CS202-1US | No | Model Compatibility List | $6.81 / Each |
||
 |
725184 | 102450 | M02 | Steel Cable;ECB;160L | No | Model Compatibility List | $9.75 / Each |
||
 |
725185 | 102470 | AN1 | Console Set;CS202C-1US | No | Model Compatibility List | $264.26 / Each |
||
 |
725186 | 102479 | V15 | Manual;Assembly;FR;CS202C | No | Model Compatibility List | $9.46 / Each |
||
 |
725205 | 102699 | V10 | Manual;Assembly;English;CS202C-1US | No | Model Compatibility List | $9.46 / Each |
||
 |
725259 | 103299 | H04 | Bushing;Pedal Arm | No | Model Compatibility List | $10.01 / Each |
||
 |
725868 | 077377 | R10 | Inside ECB Controller;6.5KG;EP197 | No | Model Compatibility List | $172.46 / Each |
||
 |
726042 | 079425 | D45 | Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L | Yes | Model Compatibility List | $2.00 / Each |
||
 |
726400 | 081632 | C09 | Connect Wire;Pulse;PH 2.5-2P ROHS;570L; | No | Model Compatibility List | $7.36 / Each |
||
 |
728853 | 098051 | P03 | Console Wire;Black;CS202 | No | Model Compatibility List | $26.29 / Each |
||
 |
012847-00 | 012847-00 | M01 | 1 | Resistance Gear Servo Motor Brake Tensioner | Yes | Model Compatibility List | $168.99 / Each |
|
 |
1002361 | 000891-A | R08 | 1 | Belt Drive | Yes | Model Compatibility List | $31.99 / Each |
|
|
|
|||||||||
