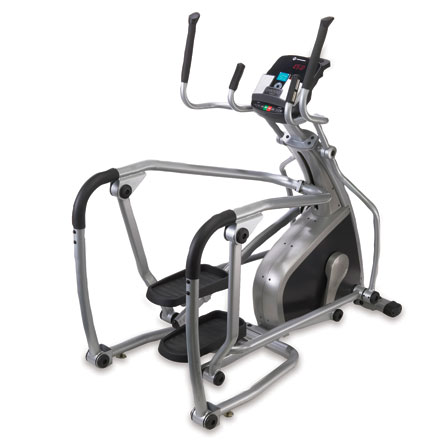

Horizon Fitness - AT1501 - 2009

Repair Parts for Horizon Fitness AT1501 EP217

Brand: Horizon Fitness

Category: Ascent

Type: Elliptical

Model Name: AT1501

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Switch
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700021 000037-CA L05 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
H 700130 000482-D H19 Cover;Link Arm;Left Yes Model Compatibility List $9.02 / Each

3,9
H 700131 000483-C H20 Cover;Link Arm;Right Yes Model Compatibility List $9.02 / Each

3,9
C 700318 000940-A C08 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
Z 700410 001278-B Z30 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
700755 002169-A KIT Power Cord;16AWG Yes Model Compatibility List $60.22 / Each

4,5,6
P 700770 002231-B P14 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
701013 003326-00 P05 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
R 701042 003413-00 R08 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
G 701156 004074-A4 G17 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
R 701160 004078-A2 R06 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
H 701190 004133-00 H21 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
N 701300 004364-00 N15 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
701302 004364-AD Z10 Screw;Phillip;BH;M5x0.8Px12L;Black; No Model Compatibility List $2.00 / Each

2,4,5,6
Z 701421 004470-00 Z12 Screw;Hex Socket;Round;M6x1.0Px20L;Adher No Model Compatibility List $2.00 / Each

2
Z 701448 004490-00 Z08 Screw;Hex Socket;Round;M8x1.25Px25L No Model Compatibility List $2.00 / Each

2
B 701553 004581-AC B24 Screw;Sink Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
M 701561 004592-00 M05 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q08 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
P 701590 004619-AB P07 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
Z 701591 004620-00 Z31 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
701597 004621-00 S10 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
S 701642 004676-00 S04 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
Z 701703 004725-AB Z28 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
Z 701740 004763-00 Z23 Screw;Hex Socket;BH;M8x1.25Px16L;Adhere Yes Model Compatibility List $2.00 / Each

2
Z 701779 004795-00 Z04 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
701869 004891-00 S02 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
Z 701897 004926-00 Z26 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701904 004931-00 S06 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
M 701908 004934-00 M06 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
L 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
B 701934 004972-00 B33 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
L 701941 004976-00 L04 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
E 701964 005005-00 E16 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701997 005035-00 Z29 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
Z 702015 005049-00 Z17 Washer;Flat;8.2x18.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702053 005081-00 Z11 Washer;Flat;5.2x18.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702074 005106-00 Z03 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
702076 005109-00 Z19 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
M 702121 005146-A M07 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702135 005163-00 Z07 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702178 005220-00 Z20 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702185 005228-00 Z25 Washer;Wavy;25.5x34.0x2.0T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702217 005330-00 Q03 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
E 702231 005356-00 E14 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

2
R 702241 005366-00 R04 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
P 702452 007494-C P16 Fix Plate;Speed Sensor No Model Compatibility List $2.00 / Each

3
Q 702483 007964-00 Q04 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
S 702512 008394-00 S05 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
Z 702634 009092-B Z27 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
S 702857 012847-00 S09 Resistance Motor Yes Model Compatibility List $206.67 / Each

10
G 703886 018992-BA G13 Cap;;;PVC;;BL;;;EP108B;EP108B-G09B; No Model Compatibility List $3.82 / Each

9
P 703918 019353-A P10 Connecting Cable;Socket/Breaker No Model Compatibility List $1.51 / Each

4,5,6
F 703983 020059-00 F20 Screw;Hex Socket;Round;M4x0.7Px10L;BED; No Model Compatibility List $2.00 / Each

2
C 704087 020210-00 C07x Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
Z 704201 020475-A Z24 Washer;Flat;8.2x38x2.0T No Model Compatibility List $2.00 / Each

2
L 704203 020478-00 L09 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 705278 040420-BX S01 Drive Axle Set Yes Model Compatibility List $172.46 / Each

8,10
P 705313 040816-A P17 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
R 705454 049242-A R07 Drive Belt;Poly-V;420-J10 Yes Model Compatibility List $57.49 / Each

15,10
Q 705700 055204-A Q09 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
706235 060369-A R09 Nut;Hex;M14X1.5PX8L No Model Compatibility List $0.96 / Each

2
R 706236 060370-A R10 Washer;Spring;14.2x24x1.0T No Model Compatibility List $2.00 / Each

2
P 706549 063270-A P04 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

4,5,6
P 706550 063271-A P03 Power Socket Set;;(250,250,250);16AWG;90 2 No Model Compatibility List $10.35 / Each

4,5,6
V 707134 1000090411 V01 Sticker;NO-RoHS;;EP217 No Model Compatibility List $3.54 / Each

1
V 707135 1000090412 V02 Sticker;NO-RoHS;;EP217 No Model Compatibility List $3.30 / Each

1
V 707136 1000090415 V21 Manual;Manipulate;EP217 No Model Compatibility List $10.53 / Each

1
B 707361 1000092318 B34 Front Leveler Yes Model Compatibility List $12.43 / Each

3
A 707458 1000092810 AD1 BACK HAND ARM SET No Model Compatibility List $395.23 / Each

3,4,5,6
A 707459 1000092811 AL1 FRONT STABILIZER SET No Model Compatibility List $174.17 / Each

1
R 707460 1000092812 R01 Pedal Axle Set No Model Compatibility List $152.07 / Each

8,9
A 707461 1000092814 AF2 LEFT ELEVATION TUBE SET No Model Compatibility List $356.23 / Each

3,10
A 707462 1000092815 AG1 RIGHT UPPER HANDLEBAR SET No Model Compatibility List $229.35 / Each

11
A 707463 1000092816 AB2 BACK FRAME SET No Model Compatibility List $200.28 / Each

3,4,5,6
A 707464 1000092817 AF1 ELEVATOR SUPPPRT TUBE SET No Model Compatibility List $199.32 / Each

3
A 707465 1000092818 AC1 CONSOLE MAST SET No Model Compatibility List $395.54 / Each

7
707466 1000092819 AG4 LEFT LOWER HANDLEBAR SET No Model Compatibility List $227.63 / Each

11
707467 1000092820 AG3 RIGHT LOWER HANDLEBAR SET No Model Compatibility List $227.63 / Each

11
A 707468 1000092821 AH2 LOWER LINK ARM LEFT SET No Model Compatibility List $464.78 / Each

3
A 707469 1000092822 AH1 LOWER LINK ARM RIGHT SET No Model Compatibility List $464.78 / Each

3
A 707470 1000092824 AE1 RIGHT PEDAL ARM SET No Model Compatibility List $710.79 / Each

8,9,3
A 707471 1000092827 AG2 LEFT UPPER HANDLEBAR SET No Model Compatibility List $229.35 / Each

11
P 707740 1000094774 P18 Power Switch Plate SPC;;Painting;BKWA5 No Model Compatibility List $7.23 / Each

3,4,5,6
E 725147 102161 E15 Bearing;Tapered Roller;IJK2204; No Model Compatibility List $153.27 / Each

8
D 725241 103221 D05 Cap;Link Arm;PP;ABS;EP217 Yes Model Compatibility List $1.90 / Each

9,3
E 725256 103296 E07 Bushing No Model Compatibility List $9.57 / Each

8
F 725259 103299 F05 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Crank Puller;30mm 725742 075513 KIT Crank Puller;30mm No Model Compatibility List $57.49 / Each

8
Steel Rope;190L+66L;CB130 725758 076022 S08 Steel Rope;190L+66L;CB130 No Model Compatibility List $9.52 / Each

1
Nut;Rod End Bearing;M12X1.75PX7H;SS41;BZ 725843 076952 H22 Nut;Rod End Bearing;M12X1.75PX7H;SS41;BZ No Model Compatibility List $2.00 / Each

2,8,9,3
Hand Pulse Set 725970 078700 P02 Hand Pulse Set Yes Model Compatibility List $24.86 / Each

12,13,14
Connect Wire;Pulse;ROHS;B108;CB129 726160 080396 P06 Connect Wire;Pulse;ROHS;B108;CB129 Yes Model Compatibility List $3.82 / Each

4,5,6,12,13,14
Power Socket Set;CE;300,300,300;16AWG;90 726401 081633 P07 Power Socket Set;CE;300,300,300;16AWG;90 Yes Model Compatibility List $3.82 / Each

4,5,6
726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

2,4,5,6
Washer;Flat;Teflon;18.2x30.0x1.5t 727340 088653 F21 Washer;Flat;Teflon;18.2x30.0x1.5t No Model Compatibility List $1.85 / Each

2
Elevation Guide Rail;L;POM;EP217 728343 094102 B21 Elevation Guide Rail;L;POM;EP217 Yes Model Compatibility List $61.39 / Each

9,10
Elevation Guide Rail;R;POM;EP217 728344 094103 B22 Elevation Guide Rail;R;POM;EP217 Yes Model Compatibility List $61.39 / Each

9,10
CON Axle;Supte Tube;L;EP217 728345 094110 F06 CON Axle;Supte Tube;L;EP217 Yes Model Compatibility List $9.57 / Each

8,3
Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

8,9
Cap;PedalArmSet;POM;B;EP217 728347 094128 F03 Cap;PedalArmSet;POM;B;EP217 No Model Compatibility List $3.82 / Each

8,9,3
Fixing Plate;Elevator;POM;EP217 728351 094262 F15 Fixing Plate;Elevator;POM;EP217 Yes Model Compatibility List $3.82 / Each

3
Fix Plate;Elevator;Painting;BKWA505EP217 728352 094263 AF4 Fix Plate;Elevator;Painting;BKWA505EP217 No Model Compatibility List $92.85 / Each

3
Pedal;PP;Black;EP217 728359 094297 H10 Pedal;PP;Black;EP217 Yes Model Compatibility List $44.28 / Each

8,9,4,5,6
Crank Set;Painting;BKWA505;EP217 728360 094299 AJ1 Crank Set;Painting;BKWA505;EP217 No Model Compatibility List $180.88 / Each

8
Boot;L;Wheel;;ABS;B;CB139 728362 094309 L06 Boot;L;Wheel;;ABS;B;CB139 Yes Model Compatibility List $9.57 / Each

8
RIGHT SIDE COVER 728363 094315 Q01 RIGHT SIDE COVER No Model Compatibility List $110.84 / Each

9
LEFT SIDE COVER 728364 094317 Q02 LEFT SIDE COVER No Model Compatibility List $110.84 / Each

9
Boot;F;Painting;BKWA505 728365 094319 Q06 Boot;F;Painting;BKWA505 No Model Compatibility List $89.57 / Each

1
Boot;B;Painting;BKWA505 728366 094320 Q07 Boot;B;Painting;BKWA505 No Model Compatibility List $41.11 / Each

1
Console Set;Semi Assy;EP217-1US 728367 094322 AN1 Console Set;Semi Assy;EP217-1US No Model Compatibility List $431.21 / Each

7
728448 094924 P13 KSS HC-0R No Model Compatibility List $1.90 / Each

1
Cap;Link Arm;PP;ABS;EP217 728655 095884 E10 Cap;Link Arm;PP;ABS;EP217 No Model Compatibility List $1.90 / Each

9,3
Ruber Insert;BL;EP217 728765 096910 H18 Ruber Insert;BL;EP217 Yes Model Compatibility List $38.17 / Each

1
Connect Axle;Hand Arm;U;EP217 728777 097277 D04 Connect Axle;Hand Arm;U;EP217 Yes Model Compatibility List $23.11 / Each

8,3
Spacing Ring;Bearing;Q235;EP217 728778 097279 D09 Spacing Ring;Bearing;Q235;EP217 No Model Compatibility List $15.65 / Each

8,4,5,6
Lower Control Board;Mimic AC;100~240V 728781 097354 AM3 Lower Control Board;Mimic AC;100~240V Yes Model Compatibility List $383.27 / Each

7,4,5,6
Water Bottle Holder 728803 097518 N03 Water Bottle Holder No Model Compatibility List $18.75 / Each

1
Elevation motor;AC;110V/320mm 728825 097850 AM1 Elevation motor;AC;110V/320mm Yes Model Compatibility List $511.13 / Each

4,5,6,10
Cover;Crank;Painting;BKWA505;EP217 728849 098027 J05 Cover;Crank;Painting;BKWA505;EP217 No Model Compatibility List $29.77 / Each

8,9
Cover;;Little;Painting;BKWA505;EP21 D/C, NO REPL: Part will show as orderable until stock is depleted. 728850 098028 J06 Cover;;Little;Painting;BKWA505;EP21 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $3.56 / Each

9
Cap;Arm Rest;EP217 728856 098072 Z14 Cap;Arm Rest;EP217 No Model Compatibility List $9.57 / Each

9,3
Cover;Pedal Arm;PP;BL;EP217 728876 098217 E08 Cover;Pedal Arm;PP;BL;EP217 Yes Model Compatibility List $9.99 / Each

8,9,3
Boot;R;Wheel;ABS;BL;CB139 728897 098559 L11 Boot;R;Wheel;ABS;BL;CB139 Yes Model Compatibility List $9.57 / Each

8
S 012847-00 012847-00 S09 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
P 1001381 003326-00 P05 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
K 1001764 002169-A KIT 1 Power Cord Yes Model Compatibility List $39.99 / Each

6
K 1002002 002169-A KIT 1 Cord Power Yes Model Compatibility List $34.99 / Each

6
Black Hex Nut M25x1.5 1006814 011173-00 0 1 Black Hex Nut M25x1.5 No Model Compatibility List $12.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
