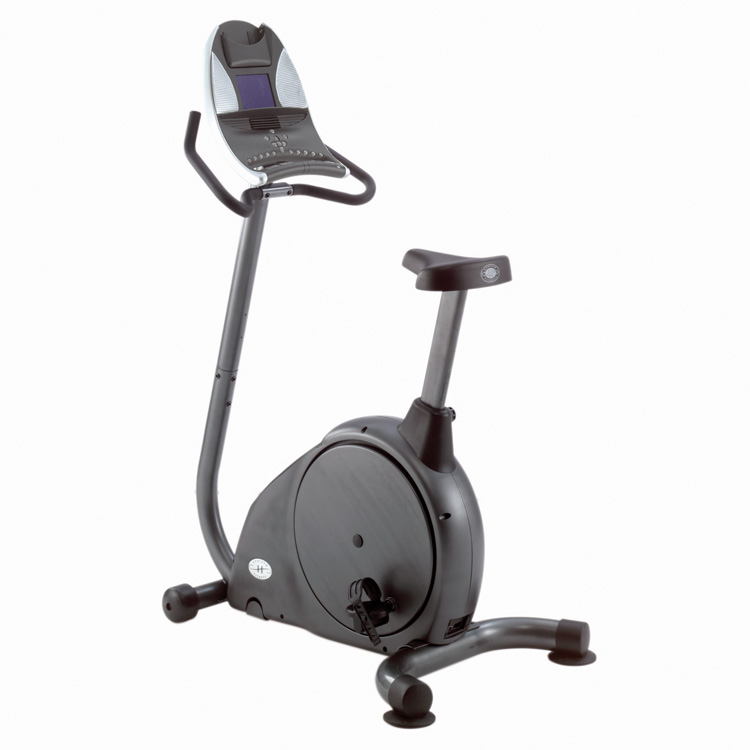

Horizon Fitness - B30 - 2004

Repair Parts for Horizon Fitness B30 CB42

Brand: Horizon Fitness

Category: Upright

Type: Stationary Bikes

Model Name: B30

Version: 2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L02 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
Side Cover;Right 700033 000130-F Q01 Side Cover;Right Yes Model Compatibility List $49.71 / Each

9
B 700132 000485-00 B28 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B29 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
Foam Grip;Handlebar;31.8x28x3.0tx500L 700191 000609-A G21 Foam Grip;Handlebar;31.8x28x3.0tx500L No Model Compatibility List $9.57 / Each

11
n 700257 000798-A n/a Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
N 700263 000815-A N/A Water Bottle No Model Compatibility List $3.82 / Each

1
G 700299 000893-B G03 End Cap;Handlebar No Model Compatibility List $1.90 / Each

9,11
D 700333 000993-E D06 Sleeve;Seat Post No Model Compatibility List $3.82 / Each

3,12,13,14
Q 700376 001161-C Q05 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
Q 700455 001412-A Q07 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
Q 700537 001558-00 Q06 Crank Cover No Model Compatibility List $1.90 / Each

8,9
D 700597 001722-AA D03 Seat Bottom; LOGO LS-B36 No Model Compatibility List $29.56 / Each

12,13,14
P 700722 002028-D P02 Console Cable Yes Model Compatibility List $57.49 / Each

7,4,5,6
Speed Sensor Wire;2 Prong;280mm 700770 002231-B P04 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
N 700893 002671-A N20 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
P 700901 002703-A P06 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
N 701008 003307-00 N/A Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

1
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701051 003486-A2 P05 Power Adapter;14.5Volts;2M 120V/60Hz 14.5V/1A No Model Compatibility List $76.65 / Each

4,5,6
701055 003511-C S26 ECB Plate; HORIZON No Model Compatibility List $0.00 / Each
Out Of Stock 		3
R 701112 003879-00 R10 Ball Bearing Set;Crank Wheel No Model Compatibility List $25.00 / Each

8
R 701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
Bearing;Ball;6003ZZ;17x35x10T;TPI; 701156 004074-A4 24 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
Ball Bearing; 6202ZZ(BR6202ZZ) 701158 004075-A3 U03 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
T 701159 004077-A2 T12 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
U 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
R 701170 004090-00 R07 Bearing;One-way; HFL2026 No Model Compatibility List $27.82 / Each

8
Drive Belt;Poly-V;400-J8 701207 004162-00 R05 Drive Belt;Poly-V;400-J8 Yes Model Compatibility List $57.49 / Each

15,10
R 701228 004202-00 R03 Drive Belt;Poly-V;460-J5 No Model Compatibility List $50.67 / Each

15,10
R 701229 004203-A R03 Drive Belt;Poly-V;410-J5 Yes Model Compatibility List $57.49 / Each

15,10
Screw;Phillip;BH;M4x0.7Px10L;Gap; 701294 004359-00 M33 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
U 701300 004364-00 U07 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
N 701308 004369-00 N62 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M5x0.8Px12L;Adher 701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
Screw;Phillip;BH;Tapped;3x8L 701577 004612-00 N28 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q08 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 701588 004618-00 Q08 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701591 004620-00 Q13 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
701699 004724-00 C04 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
G 701716 004735-00 G04 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
701731 004757-00 G10 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
J 701781 004796-00 J03 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
J 701794 004810-A J03 Screw;Hex Socket;Umbrella;M8x1.25Px90L No Model Compatibility List $2.00 / Each

2
T 701848 004865-00 T20 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701851 004870-00 Q14 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
P 701858 004880-00 P08 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
701869 004891-00 R06 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
Nut;Hex;3/8-26UNCX4H 701870 004892-00 R11 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
Nut;Nylon;M6x1.0P;Zinc 701893 004925-00 B57 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
D 701897 004926-00 D05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701904 004931-00 S12 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
T 701927 004964-00 T09 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 701934 004972-00 B27 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) 701937 004973-00 C09 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
D 701964 005005-00 D04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Washer;Flat;25.5x35.0x1.0T 701988 005026-00 G20 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
Washer;Flat;8.2x27.0x2.0T 702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
L 702040 005070-00 L04 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;4.2X10.0X1.2T;BAN 702063 005091-00 S04 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

2
Washer;Flat;3.2x8.0x1.0T;Black Zinc 702066 005094-00 N21 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702076 005109-00 C10 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Washer;Flat;8.2x35x2.0T;Black Zinc 702078 005110-00 C06 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
G 702135 005163-00 G05 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
J 702138 005169-00 J05 Washer;Arc;8.4x20.0x1.5T No Model Compatibility List $2.00 / Each

2
Washer;Teflon;15.9x28.4x1.0T 702161 005198-00 D32 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
Washer;Teflon;18.2X30.0X1.0T 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2
T 702193 005239-00 T19 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
C-Clip;Internal;R-35 702227 005352-00 U04 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

2
R 702236 005361-00 R13 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
B 702240 005365-00 B20 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
U 702241 005366-00 U04 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
702260 005400-Z N/A Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $4.00 / Each

2
N 702264 005412-00 N/A Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
Spring;Tension Assembly;16x2x74L 702276 005439-00 U05 Spring;Tension Assembly;16x2x74L Yes Model Compatibility List $4.00 / Each

2,3
S 702483 007964-00 S03 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 702512 008394-00 S05 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
Bushing;Inner 702607 008969-D G21 Bushing;Inner Yes Model Compatibility List $1.90 / Each

8
Tension Wheel Set; 702849 012674-00 U01 Tension Wheel Set; No Model Compatibility List $77.32 / Each

8
A 702869 012962-Z AS2 DC Motor Set w/Zero Switch Cable; No Model Compatibility List $172.46 / Each

4,5,6,10
A 702931 013387-Z AU1 Tension Wheel Set No Model Compatibility List $44.72 / Each

8
T 703447 014708-A T02,T03,T04,T08 Pedal Set;With Strap No Model Compatibility List $31.85 / Each

8,9
A 703559 015383-AA AT1 Crank;Right No Model Compatibility List $52.05 / Each

8
T 703757 016008-Z T03 Pedal Axle No Model Compatibility List $37.83 / Each

8,9
Heart Rate Receiver 705141 038132-BBX N83 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
Q 705700 055204-A Q07 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
Bushing;Copper 725257 103297 E16 Bushing;Copper No Model Compatibility List $28.42 / Each

8
Bushing;Pedal Arm 725259 103299 F05 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
