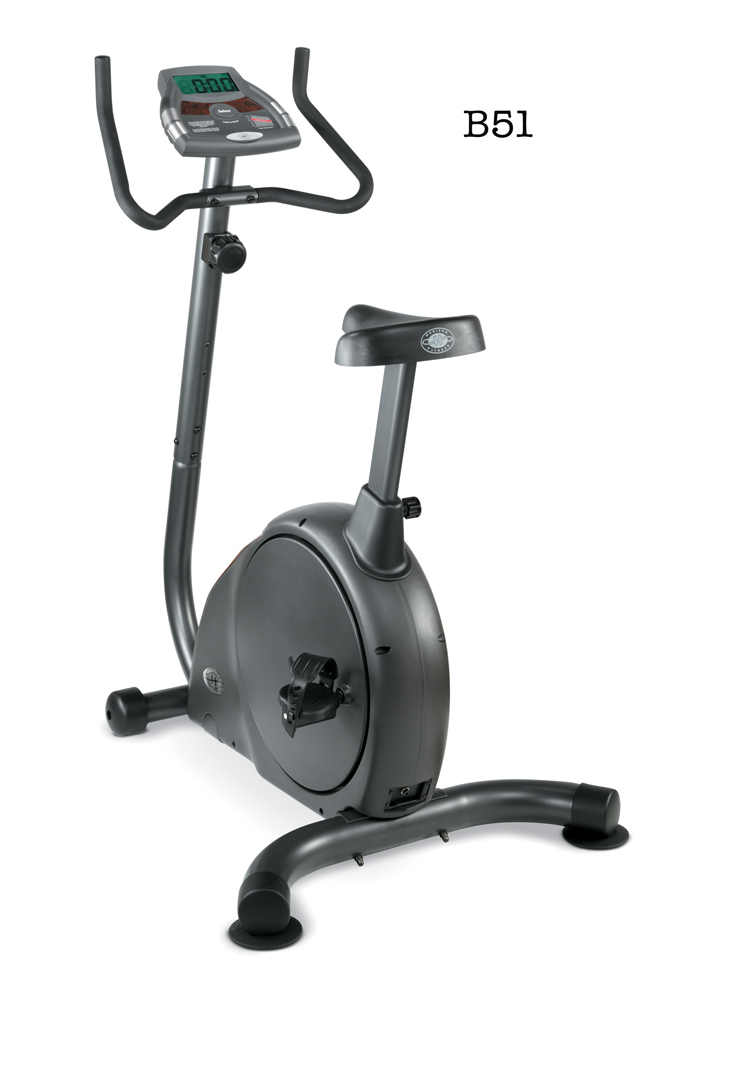

Horizon Fitness - B51 - 2005
Repair Parts for Horizon Fitness B51 CB43C
Brand: Horizon Fitness
Category: Upright
Type: Stationary Bikes
Model Name: B51
Version: 2005
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700009 | 000014-00 | L02 | Transport Wheel | Yes | Model Compatibility List | $9.57 / Each |
||
 |
700033 | 000130-F | Q02 | Side Cover;Right | Yes | Model Compatibility List | $49.71 / Each |
||
 |
700132 | 000485-00 | B27 | Leveler;Rubber;W3/8-16UNC | Yes | Model Compatibility List | $9.09 / Each |
||
 |
700135 | 000491-B | B23 B28 B29 | Wing Nut;Leveler;W3/8-16UNC;BED BL SPC | No | Model Compatibility List | $2.47 / Each |
||
 |
700299 | 000893-B | G07 | End Cap;Handlebar | No | Model Compatibility List | $1.90 / Each |
||
 |
700333 | 000993-E | D06 | Sleeve;Seat Post | No | Model Compatibility List | $3.82 / Each |
||
 |
700455 | 001412-A | Q07 Q11 | End Cap;Crank Cover | No | Model Compatibility List | $1.77 / Each Out Of Stock |
||
 |
700597 | 001722-AA | D03 | Seat Bottom; LOGO LS-B36 | No | Model Compatibility List | $29.56 / Each |
||
 |
701042 | 003413-00 | T06 | Magnet;Crank Wheel;15x7t | No | Model Compatibility List | $4.00 / Each |
||
 |
701154 | 004072-A2 | R08 | Ball Bearing;Flywheel;6002ZZ | No | Model Compatibility List | $11.60 / Each |
||
 |
701158 | 004075-A3 | U03 | Ball Bearing; 6202ZZ(BR6202ZZ) | No | Model Compatibility List | $9.57 / Each |
||
 |
701159 | 004077-A2 | T12 | Ball Bearing;6004ZZ;20X42X12T;;SKF;;; | No | Model Compatibility List | $20.05 / Each |
||
 |
701170 | 004090-00 | R07 | Bearing;One-way; HFL2026 | No | Model Compatibility List | $27.82 / Each |
||
 |
701229 | 004203-A | R03 | Drive Belt;Poly-V;410-J5 | Yes | Model Compatibility List | $57.49 / Each |
||
 |
701294 | 004359-00 | Q11 Q13 | Screw;Phillip;BH;M4x0.7Px10L;Gap; | No | Model Compatibility List | $1.79 / Each |
||
 |
701300 | 004364-00 | S10 | Screw;Oval Head;M5x0.8Px12L | No | Model Compatibility List | $2.00 / Each |
||
 |
701308 | 004369-00 | N02 | Screw;Phillip;BH;M5x0.8Px15L;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701591 | 004620-00 | Q06 Q13 | Screw;Self Tapping;4x12L | No | Model Compatibility List | $2.00 / Each |
||
| 701699 | 004724-00 | G05 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
 |
701794 | 004810-A | J03 | Screw;Hex Socket;Umbrella;M8x1.25Px90L | No | Model Compatibility List | $2.00 / Each |
||
 |
701848 | 004865-00 | T20 | Screw;Self Tapping;4x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
701851 | 004870-00 | Q07 Q14 | Screw;Plain Tapping;Rail Lock;5x15L | No | Model Compatibility List | $1.59 / Each |
||
 |
701893 | 004925-00 | S15 | Nut;Nylon;M6x1.0P;Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
701897 | 004926-00 | D05 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
||
 |
701904 | 004931-00 | S12 | Nut;Locking;Nylon;1/4"'-20UNC | No | Model Compatibility List | $1.59 / Each |
||
 |
701927 | 004964-00 | T09 | Nut;Hex;Flange;M10x1.25P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
701934 | 004972-00 | B26 | Insert Nut;Brass;ALS7-616-150(0.02-0.15) | No | Model Compatibility List | $1.90 / Each |
||
 |
701964 | 005005-00 | D04 | Washer;Spring;Lock;8.2x15.4x2.0t | No | Model Compatibility List | $1.59 / Each |
||
 |
702040 | 005070-00 | S18 | Washer;Flat;6.5x14x1.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
702063 | 005091-00 | Q12 Q14 | Washer;Flat;4.2X10.0X1.2T;BAN | No | Model Compatibility List | $2.00 / Each |
||
 |
702138 | 005169-00 | J05 | Washer;Arc;8.4x20.0x1.5T | No | Model Compatibility List | $2.00 / Each |
||
 |
702193 | 005239-00 | T18 T19 T25 | Washer;Lock;10.0x20.0x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702227 | 005352-00 | U04 | C-Clip;Internal;R-35 | No | Model Compatibility List | $2.00 / Each |
||
 |
702240 | 005365-00 | T13 | C-Clip;External;S-20 | No | Model Compatibility List | $1.79 / Each |
||
 |
702276 | 005439-00 | U05 | Spring;Tension Assembly;16x2x74L | Yes | Model Compatibility List | $4.00 / Each |
||
 |
702483 | 007964-00 | B24 B31 Q16 | Connecting Plate;Side Cover | Yes | Model Compatibility List | $1.90 / Each |
||
 |
702849 | 012674-00 | AU1 | Tension Wheel Set; | No | Model Compatibility List | $77.32 / Each |
||
 |
703447 | 014708-A | T02 T03 T05 | Pedal Set;With Strap | No | Model Compatibility List | $31.85 / Each |
||
 |
703559 | 015383-AA | AT1 | Crank;Right | No | Model Compatibility List | $52.05 / Each |
||
 |
705700 | 055204-A | P05,S14 | Screw;SelfTapping;4x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
1026539 | 001367-AB | Q16 | 1 | Accent Piece woodgrain (Used) | No | Model Compatibility List | $19.99 / Each |
|
 |
1026539 | 001367-AB | Q16 | 1 | Accent Piece woodgrain (Used) | No | Model Compatibility List | $19.99 / Each |
|
 |
1026539 | 001367-AB | Q16 | 1 | Accent Piece woodgrain (Used) | No | Model Compatibility List | $19.99 / Each |
|
 |
1026613 | 1000095694 | S02 | 1 | Brake Magnet (Used) | No | Model Compatibility List | $45.00 / Each |
|
|
|
|||||||||
