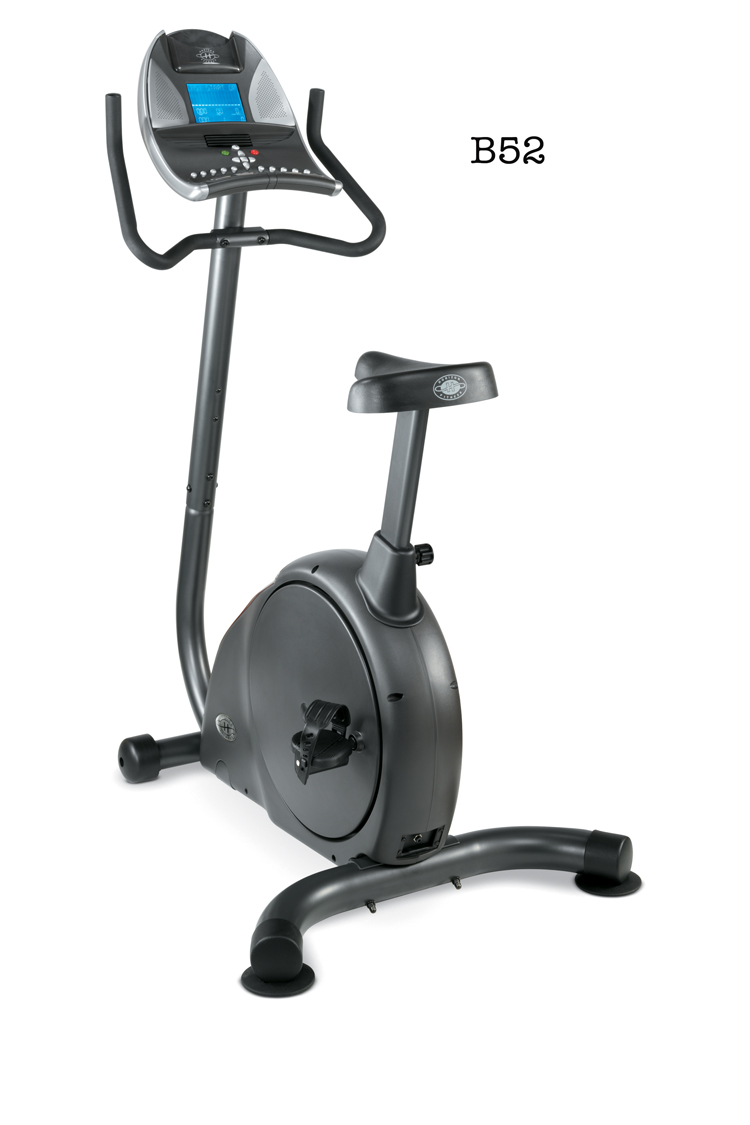

Horizon Fitness - B52HR - 2005

Repair Parts for Horizon Fitness B52HR CB42D

Brand: Horizon Fitness

Category: Upright

Type: Stationary Bikes

Model Name: B52HR

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L02 Transport Wheel Yes Model Compatibility List $9.57 / Each

8
B 700132 000485-00 B27 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B23 B28 B29 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700299 000893-B G07 End Cap;Handlebar No Model Compatibility List $1.90 / Each

9,11
D 700333 000993-E D06 Sleeve;Seat Post No Model Compatibility List $3.82 / Each

3,12,13,14
Q 700376 001161-C Q05 Q09 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
Q 700455 001412-A Q07 Q11 End Cap;Crank Cover No Model Compatibility List $1.77 / Each
Out Of Stock 		8,9
D 700597 001722-AA D03 Seat Bottom; LOGO LS-B36 No Model Compatibility List $29.56 / Each

12,13,14
P 700722 002028-D P02 Console Cable Yes Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700901 002703-A P06 Zero Switch Cable; 100 OMRON + 2.5-2P No Model Compatibility List $9.57 / Each

4,5,6
T 701042 003413-00 T06 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701051 003486-A2 P05 Power Adapter;14.5Volts;2M 120V/60Hz 14.5V/1A No Model Compatibility List $76.65 / Each

4,5,6
R 701154 004072-A2 R08 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
U 701158 004075-A3 U03 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
T 701159 004077-A2 T12 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
R 701170 004090-00 R07 Bearing;One-way; HFL2026 No Model Compatibility List $27.82 / Each

8
R 701229 004203-A R03 Drive Belt;Poly-V;410-J5 Yes Model Compatibility List $57.49 / Each

15,10
Q 701294 004359-00 Q11 Q13 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
S 701300 004364-00 S04 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
N 701308 004369-00 N24 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
S 701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
S 701577 004612-00 S55 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q08 Q15 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 701591 004620-00 Q06 Q13 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
701699 004724-00 G05 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
J 701794 004810-A J03 Screw;Hex Socket;Umbrella;M8x1.25Px90L No Model Compatibility List $2.00 / Each

2
T 701848 004865-00 T20 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701851 004870-00 Q07 Q14 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
P 701858 004880-00 P08 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
S 701893 004925-00 S17 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
D 701897 004926-00 D05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
T 701927 004964-00 T09 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 701934 004972-00 B26 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
D 701964 005005-00 D04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
S 702040 005070-00 S21 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Q 702063 005091-00 Q12 Q14 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

2
S 702066 005094-00 S54 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
J 702138 005169-00 J05 Washer;Arc;8.4x20.0x1.5T No Model Compatibility List $2.00 / Each

2
T 702193 005239-00 T18 T19 T25 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
U 702227 005352-00 U04 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

2
T 702240 005365-00 T13 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
U 702276 005439-00 U05 Spring;Tension Assembly;16x2x74L Yes Model Compatibility List $4.00 / Each

2,3
B 702483 007964-00 B24 B31 Q16 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
A 702849 012674-00 AU1 Tension Wheel Set; No Model Compatibility List $77.32 / Each

8
A 702869 012962-Z AS2 DC Motor Set w/Zero Switch Cable; No Model Compatibility List $172.46 / Each

4,5,6,10
T 703447 014708-A T02 T03 Pedal Set;With Strap No Model Compatibility List $31.85 / Each

8,9
A 703559 015383-AA AT1 Crank;Right No Model Compatibility List $52.05 / Each

8
P 705700 055204-A P05 S14 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
