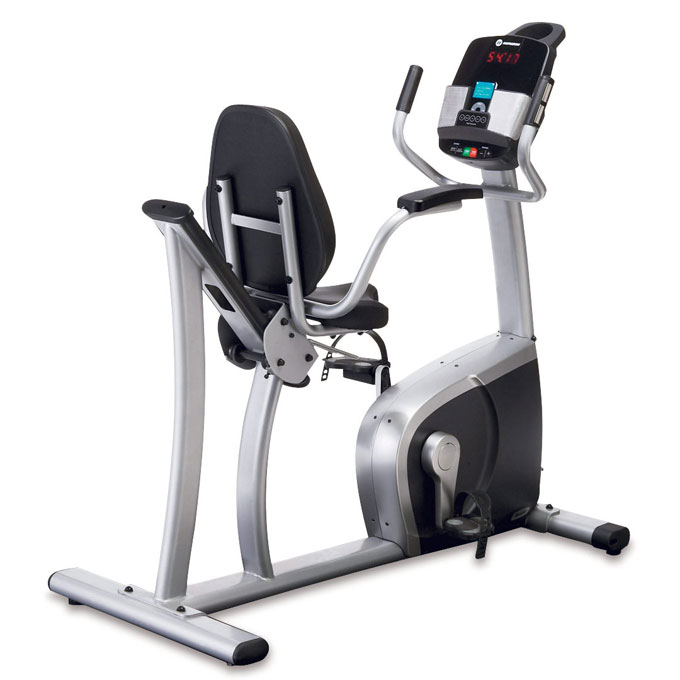

Horizon Fitness - B701 - 2009

Repair Parts for Horizon Fitness B701 CB139

Brand: Horizon Fitness

Category: Upright

Type: Stationary Bikes

Model Name: B701

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
F 700021 000037-CA F07 Transport Wheel;Frame Yes Model Compatibility List $6.42 / Each

3,8
F 700132 000485-00 F18 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F17 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
C 700318 000940-A C08 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
T 701042 003413-00 T16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
D 701153 004071-00 D36 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

8
T 701160 004078-A2 T09 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
R 701221 004189-A R07 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
H 701291 004357-00 H06 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

2
P 701308 004369-00 P05 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
Z 701316 004372-00 Z05 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
N 701327 004380-00 N15 Screw;Phillip;BH;M5x0.8Px5L;;Zn-BL No Model Compatibility List $1.85 / Each

2
D 701332 004385-00 D39 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

2
D 701482 004528-00 D29 Screw;Hex Socket;Round;M6x1.0Px35L No Model Compatibility List $1.79 / Each

2
T 701602 004626-00 T27 Screw;Phillip;BH;Tapped;4x10L;BED; No Model Compatibility List $2.00 / Each

2
S 701613 004632-00 S03 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
R 701642 004676-00 R02 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
Z 701695 004721-00 Z01 Screw;Hex Socket;BH;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
Z 701740 004763-00 Z06 Screw;Hex Socket;BH;M8x1.25Px16L;Adhere Yes Model Compatibility List $2.00 / Each

2
H 701759 004780-AB H04 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere; No Model Compatibility List $1.85 / Each

2
Z 701779 004795-00 Z03 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
701869 004891-00 R05 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
D 701893 004925-00 D37 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
D 701897 004926-00 D27 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R03 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
F 701912 004941-00 F09 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
T 701927 004964-00 T28 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
F 701934 004972-00 F11 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
F 701939 004975-00 F06 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701964 005005-00 Z19 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 702118 005145-A Z07 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
T 702130 005157-00 T26 WASHER;FLT;Diam.8.2XDiam.20.0X1.4T;;BAN; No Model Compatibility List $1.85 / Each

2
Z 702136 005165-00 Z18 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
Z 702142 005173-A Z17 WASHER;ARC;Diam.10.5XDiam.20.0X2.0T;;; No Model Compatibility List $1.01 / Each

2
T 702193 005239-00 T25 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q07 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
T 702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
Z 702253 005382-00 Z10 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

2
Z 702257 005393-00 Z20 Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

2
Z 702259 005395-00 Z12 Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

2
Z 702262 005408-A Z11 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

2,10
Z 702263 005411-Z Z14 Wrench;L-Type;4mm No Model Compatibility List $4.00 / Each

2
P 702452 007494-C P04 Fix Plate;Speed Sensor No Model Compatibility List $2.00 / Each

3
Q 702483 007964-00 Q06 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R04 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

10
D 703848 018627-A D38 Washer;Flat;5.2X10.0X1.0T;;BZN; No Model Compatibility List $2.00 / Each

2
P 704087 020210-00 P08 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
Z 704174 020423-A Z16 Washer;Lock;M10.2X19X2T No Model Compatibility List $2.00 / Each

2
Z 704203 020478-00 Z15 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
D 705323 040839-00 D48 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

2
V 707134 1000090411 V03 Sticker;NO-RoHS;;EP217 No Model Compatibility List $3.54 / Each

1
Q 707388 1000092445 Q03 Cover;L;Extrawork;Panton 877;Silver; No Model Compatibility List $110.42 / Each

9
707389 1000092446 Q04 Cover;R;Extrawork;Panton 877;Silver; No Model Compatibility List $110.42 / Each

9
A 707452 1000092798 AD1 SEAT PAD SLIPPING SEAT WELDING SET No Model Compatibility List $523.51 / Each

12,13,14
F 707453 1000092801 F04 REAR STABILIZER SET No Model Compatibility List $237.43 / Each

1
707454 1000092802 T01 PEDAL AXLE SET No Model Compatibility List $178.88 / Each

8,9
A 707455 1000092803 AF1 FRONT STABILIZER SET No Model Compatibility List $231.48 / Each

1
707456 1000092804 AC1 CONSOLE MAST SET No Model Compatibility List $467.95 / Each

7
K 707731 1000094701 KIT Hardware Pack No Model Compatibility List $43.39 / Each

4,5,6
V 707752 1000094822 V11 Manual;Assembly;;CB139 No Model Compatibility List $10.48 / Each

3
D 725042 101358 D40 Handlebar Pad;R;CB139 No Model Compatibility List $34.61 / Each

12,13,14,11
D 725043 101360 D44 Sleeve;Bearing;CB139 No Model Compatibility List $14.17 / Each

8,3
S 725044 101361 S02 Steel Rope;280L;CB139-S02 No Model Compatibility List $12.27 / Each

1
T 725045 101362 T06 PEDAL +FOOT STRAP SET;FP-J003 9/16-20FP No Model Compatibility List $57.49 / Each

8,9,3
D 725224 103146 D45 Foam;Spring;25.4x3Tx122L;BLACK; No Model Compatibility List $3.54 / Each

2,4,5,6
End Cap, Support Tube 725355 070422 F05 End Cap, Support Tube No Model Compatibility List $3.82 / Each

9,3
Insert Boot; IPOD 725624 074262 N40 Insert Boot; IPOD No Model Compatibility List $3.82 / Each

1
End-Cap;Stabilizer;PVC;BLACK;CB133 725753 075950 D31 End-Cap;Stabilizer;PVC;BLACK;CB133 No Model Compatibility List $3.82 / Each

9,4,5,6
Hand Pulse Set 725970 078700 P02 Hand Pulse Set Yes Model Compatibility List $24.86 / Each

12,13,14
Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L Yes Model Compatibility List $2.00 / Each

2
Adapter;100-240V/50HZ 12V/2A 727278 088261 P05 Adapter;100-240V/50HZ 12V/2A Yes Model Compatibility List $80.29 / Each

1
Guide Rail Set;Painting;BL;CB139 728011 092524 AH1 Guide Rail Set;Painting;BL;CB139 No Model Compatibility List $244.24 / Each

9
Spring;Stretch;SWPB;CB139 728012 092528 D03 Spring;Stretch;SWPB;CB139 No Model Compatibility List $3.69 / Each

2
SwivelAxle;Pulley;CB139 728013 092535 D13 SwivelAxle;Pulley;CB139 No Model Compatibility List $55.15 / Each

8
Pulley;POM;CB139 728015 092540 D12 Pulley;POM;CB139 No Model Compatibility List $33.12 / Each

8
Handlebar set;Painting;LM445;Silver;CB13 728022 092605 AD2 Handlebar set;Painting;LM445;Silver;CB13 No Model Compatibility List $75.71 / Each

11
SpringStretch;Adjustable;CB139 728023 092610 D11 SpringStretch;Adjustable;CB139 No Model Compatibility List $21.42 / Each

2
728024 092611 AD3 Arm Rest Set;Painting;LM445;Silver;CB139 No Model Compatibility List $171.52 / Each

3

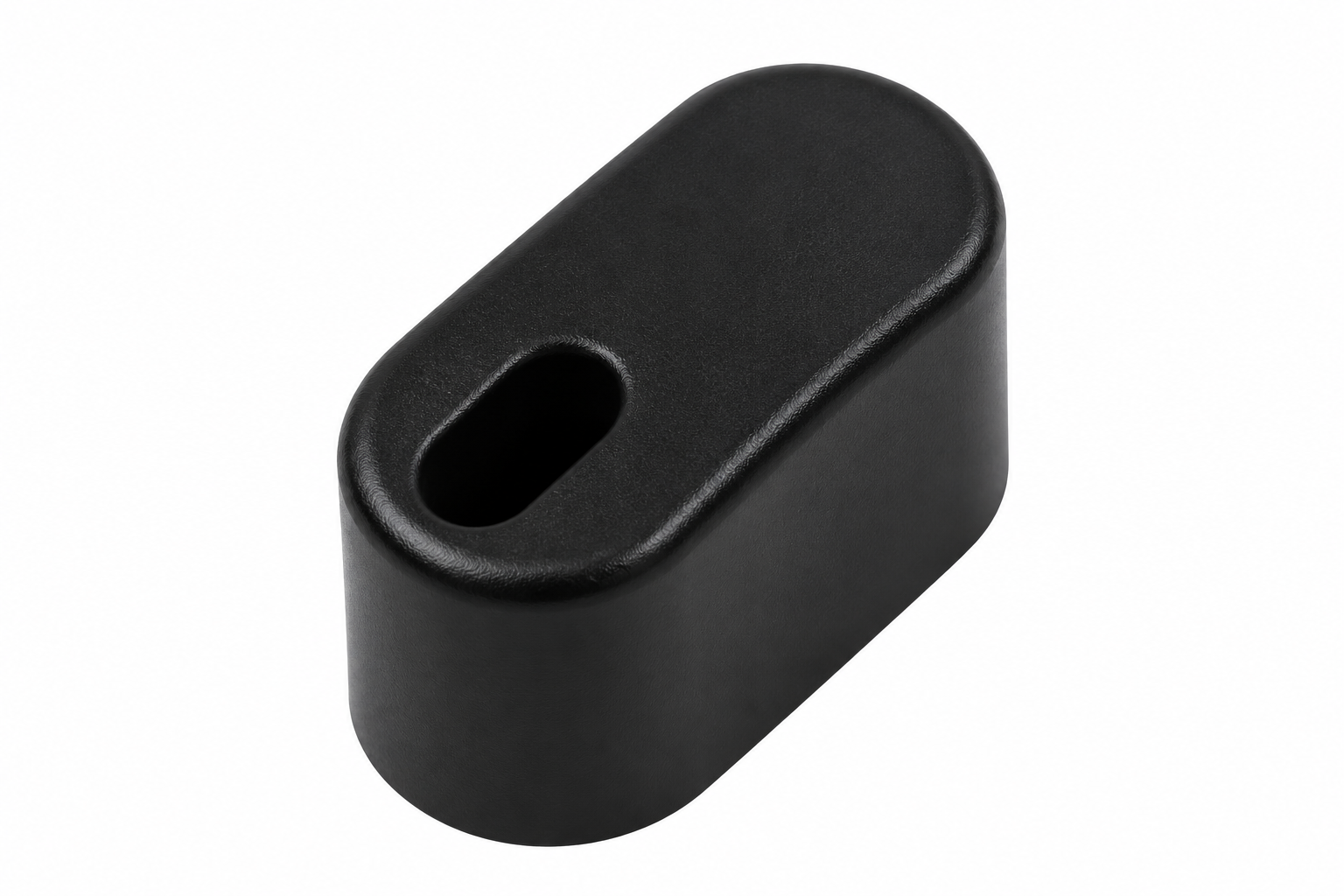

Boot;L;Wheel;;ABS;B;CB139 728362 094309 L06 Boot;L;Wheel;;ABS;B;CB139 Yes Model Compatibility List $9.57 / Each

8
cushion;L;CB139 - D/C, NO REPL Part will show as orderable until stock is depleted 728650 095868 D14 cushion;L;CB139 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $33.12 / Each

3
728651 095874 R01 Inside ECB Controller;4.5kg;CB139-R01 No Model Compatibility List $177.42 / Each

7,8
cover;L;Crank;ABS;silver;LM445;CB139 728652 095875 T05 cover;L;Crank;ABS;silver;LM445;CB139 No Model Compatibility List $1.90 / Each

8,9
Water Bottle Holder 728803 097518 N03 Water Bottle Holder No Model Compatibility List $18.75 / Each

1
Connect Wire;SM-2A+XHS-2Y; 24AWG;350; 728845 097936 N68 Connect Wire;SM-2A+XHS-2Y; 24AWG;350; No Model Compatibility List $3.54 / Each

4,5,6
Console Wire;1100(300,300,200); 728846 097938 P02 Console Wire;1100(300,300,200); No Model Compatibility List $57.49 / Each

7,4,5,6
Cover;Crank;Painting;;LM445;CB139 728854 098060 T04 Cover;Crank;Painting;;LM445;CB139 No Model Compatibility List $9.57 / Each

8,9
Elastomer;IPOD;EP217 728857 098076 N16 Elastomer;IPOD;EP217 No Model Compatibility List $1.77 / Each

1
Crank;Left;Painting;LM445;CB139 728871 098166 T02 Crank;Left;Painting;LM445;CB139 No Model Compatibility List $47.84 / Each

8
Crank;Right;Painting;LM445;CB139 728872 098167 T03 Crank;Right;Painting;LM445;CB139 No Model Compatibility List $47.84 / Each

8
Pin Sleeve;Bearing;CB139 728873 098168 D30 Pin Sleeve;Bearing;CB139 No Model Compatibility List $10.43 / Each

8,3,12,13,14
Cap;Guide Rail;ABS;BL;CB139 728896 098556 H05 Cap;Guide Rail;ABS;BL;CB139 No Model Compatibility List $15.76 / Each

9

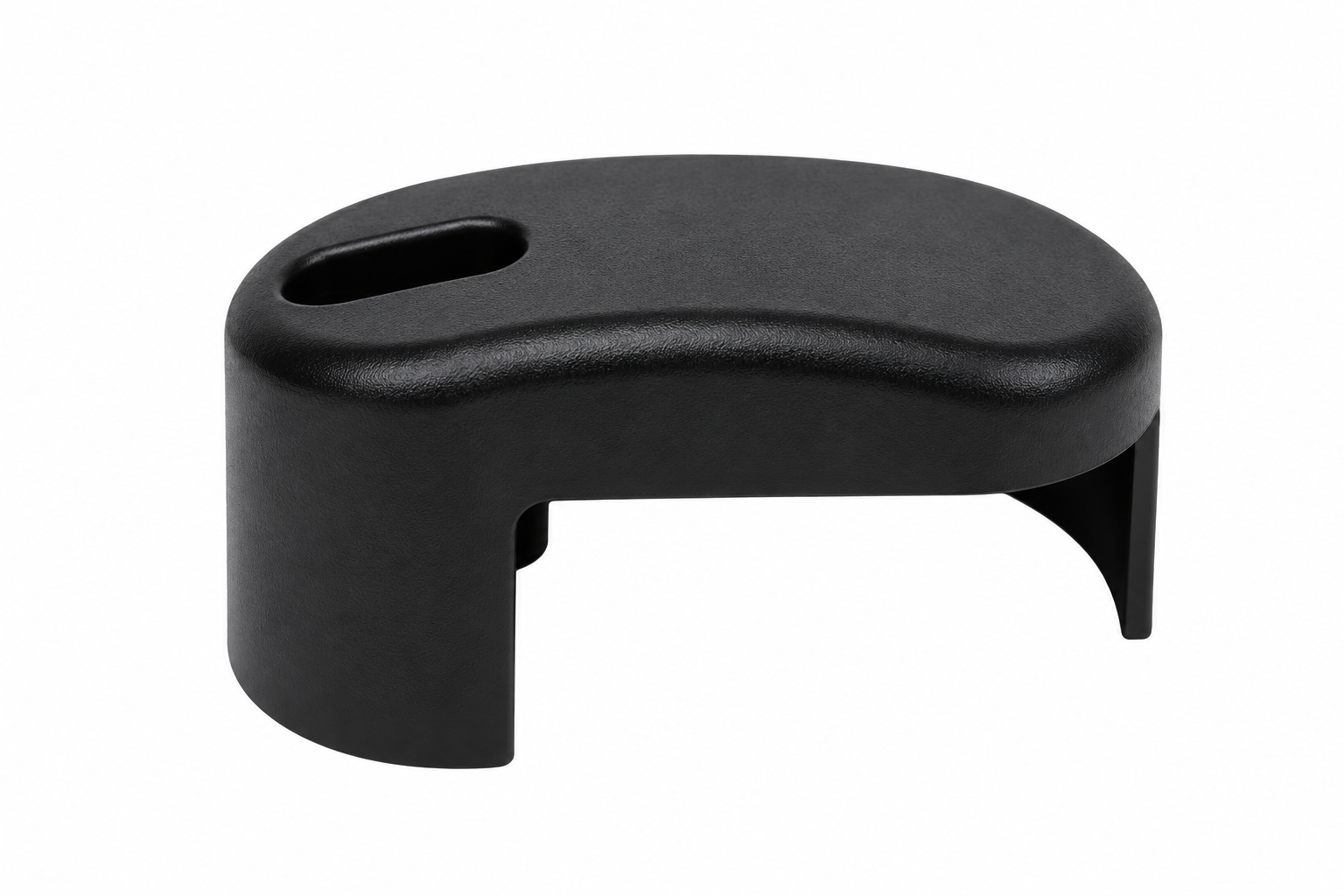

Boot;R;Wheel;ABS;BL;CB139 728897 098559 L11 Boot;R;Wheel;ABS;BL;CB139 Yes Model Compatibility List $9.57 / Each

8
S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
