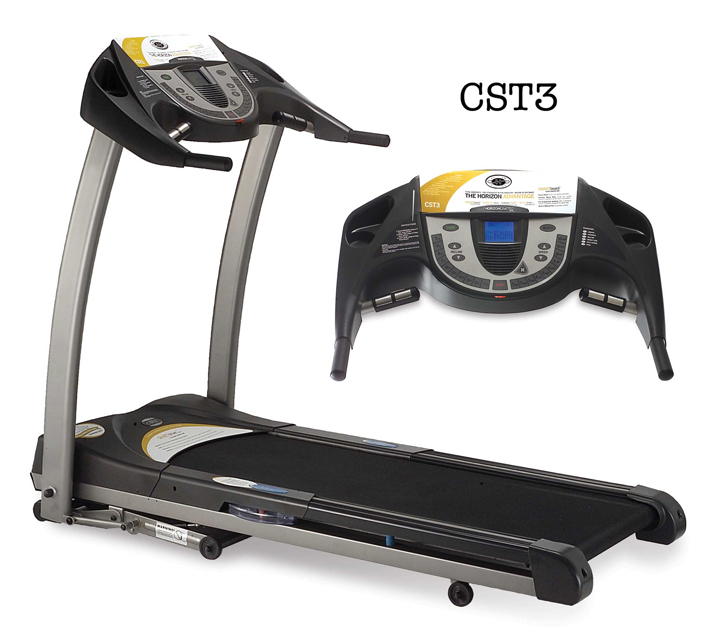

Horizon Fitness - CST3 - 2005

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000037-CA 700021 000037-CA L06 Transport Wheel;Frame Yes Model Compatibility List $4.94 / Each

3,8
000636-A 700204 000636-A N16 Foam Grip;Handlebar;31.8x3tx140L No Model Compatibility List $1.46 / Each

11
000767-D 700245 000767-D B57 Elastomer;Orange;20x44L Yes Model Compatibility List $14.78 / Each

1
000768-D 700246 000768-D B58 Elastomer;Blue;20x44L Yes Model Compatibility List $14.34 / Each

1
000940-A 700318 000940-A N30 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $5.46 / Each

9,11,12,13,14
001059-DA 700346 001059-DA N01 Console Shell Only; ABS(75140#) No Model Compatibility List $73.54 / Each

7
001251-F 700402 001251-F L10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
001294-B 700416 001294-B C24 End Cap;Support Tube Base;AF002(1/2) 19 - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $1.54 / Each

9,3
001299-B 700418 001299-B H05 Cover;Elevation Frame;PVC No Model Compatibility List $7.36 / Each

9,3,10
001339-DA 700424 001339-DA Q07 End Cap;Foot Rail;Left Yes Model Compatibility List $10.34 / Each

9,3
001356-DA 700429 001356-DA Q08 End Cap;Foot Rail;Right Yes Model Compatibility List $10.34 / Each

9,3
001794-AA 700687 001794-AA N18 LCD Screen; No Model Compatibility List $2.72 / Each

1
001963-A 700704 001963-A N13 Console Safety Key Reed Switch;250L(2.5-2P) E192542 Yes Model Compatibility List $10.94 / Each

4,5,6
002108-C 700741 002108-C KIT Console Cable;Mast;1500L(5557 SERIES+2.5-12P) No Model Compatibility List $31.48 / Each

4,5,6,7
002124-B 700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $2.94 / Each

4,5,6
002169-A 700755 002169-A P07 Power Cord;16AWG Yes Model Compatibility List $46.32 / Each

4,5,6
002248-D 700773 002248-D P20 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $13.96 / Each

4,5,6
002508-A 700847 002508-A P09 Power Wire;Control Board;550;16AWG;Black No Model Compatibility List $1.46 / Each

7,4,5,6
002513-B 700850 002513-B P09 Power Cable;Control Board;1000L;16AWG;Black No Model Compatibility List $0.02 / Each

7,4,5,6
002514-B 700851 002514-B P10 Power Cable;Control Board;1000L;16AWG;White No Model Compatibility List $1.46 / Each

7,4,5,6
003184-C 700993 003184-C N06 Membrane Key-Speed/Elevation; (SMALL) No Model Compatibility List $29.48 / Each

9,10
003326-00 701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $25.16 / Each

4,5,6
003346-00 701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $23.16 / Each

4,5,6
003363-00 701026 003363-00 P11 Power Socket;100-600-60(O TYPE END);16AWG No Model Compatibility List $7.36 / Each

9,4,5,6
003386-A 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $10.20 / Each

1
003432-B 701047 003432-B N26 Pulse Sensor Set;Single;750 Yes Model Compatibility List $16.36 / Each

12,13,14
004264-A 701244 004264-A R02 Running Belt;508X2840X1.6T;Black No Model Compatibility List $200.76 / Each

4,5,6,15
004310-C 701254 004310-C B27 Running Deck;682X1220X18T No Model Compatibility List $191.64 / Each

3
004364-00 701300 004364-00 P29 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $1.54 / Each

2
004415-Z 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.38 / Each

2,4,5,6
004425-B 701375 004425-B L11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $1.54 / Each

2
004454-00 701401 004454-00 R08 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.38 / Each

2
004480-Z 701432 004480-Z M45 Screw;Hex Socket;Round;M8x1.25Px30L Yes Model Compatibility List $5.54 / Each

2
004486-00 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $7.54 / Each

2
004488-00 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $1.54 / Each

2
004502-00 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004562-00 701530 004562-00 B36 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $4.50 / Each

2
004565-00 701534 004565-00 H50 Screw;Hex Socket;Sink;M8x1.25Px12L No Model Compatibility List $1.54 / Each

2
004590-Z 701559 004590-Z M14 Bolt;Incline Motor Bottom;W3/8X57L(WHORL:14L) Yes Model Compatibility List $1.38 / Each

2,10
004595-00 701562 004595-00 M10 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $1.54 / Each

2
004617-00 701586 004617-00 M24 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $1.54 / Each

7,2,12,13,14
004620-00 701591 004620-00 N15 Screw;Self Tapping;4x12L No Model Compatibility List $1.54 / Each

2,12,13,14
004631-00 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004724-00 701699 004724-00 Z01 Bolt;M8x1.25Px15L Yes Model Compatibility List $1.54 / Each

2
004880-00 701858 004880-00 P16 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $1.54 / Each

2,4,5,6
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
701867 004889-Z M44 Nut, hex head; M5x0.8P No Model Compatibility List $0.00 / Each
Out Of Stock
2
004903-Z 701876 004903-Z R10 Nut;Hex;M5x0.8Px4H No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 M08 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 L08 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
004945-00 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004975-00 701939 004975-00 B59 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005005-00 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005009-AB 701970 005009-AB H23,Z03 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $1.54 / Each

2
005010-00 701972 005010-00 M13 Washer;Spring;10.75x17.2x2.16t No Model Compatibility List $1.54 / Each

2
005035-00 701997 005035-00 H20 Washer;Flat;8.2x18x1.4T No Model Compatibility List $1.54 / Each

2
005044-00 702007 005044-00 R06 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005056-00 702021 005056-00 C25 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.42 / Each

2,4,5,6
005062-00 702030 005062-00 L07 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005146-A 702121 005146-A H21 Washer;Flat;10.5x20x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005163-00 702135 005163-00 N55 Washer;Arc;8.4x17x1.0T No Model Compatibility List $1.98 / Each

2
005196-00 702160 005196-00 H27 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005198-00 702161 005198-00 C28 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $1.54 / Each

2
005210-A 702169 005210-A C26 Washer;Teflon;20.3x25x1.0T No Model Compatibility List $1.54 / Each

2
005211-A 702170 005211-A Z10 WASHER;FLT;Diam.12.1XDiam.20.0X1.0T;;; No Model Compatibility List $1.42 / Each

2
005222-00 702180 005222-00 H22 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005330-00 702217 005330-00 Q17 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005393-00 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $7.88 / Each

2
005475-D 702283 005475-D H30 Spring;Foot Lock Latch;SUS304 No Model Compatibility List $3.08 / Each

2,9,3
006089-A 702327 006089-A V03 Decal;Console Logo No Model Compatibility List $2.94 / Each

7,3
006584-A 702380 006584-A V05 Decal;Air Cell Technology;Foot Rail; No Model Compatibility List $2.94 / Each

7,9,3
702446 007384-E B25 Fixing Plate;Motor Control Board No Model Compatibility List $7.38 / Each

7,3,10
007490-C 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.46 / Each

3
008628-B 702558 008628-B H14 Bolt;Special;Support Tube Base;M8x1.25Px54L No Model Compatibility List $3.08 / Each

2,3
009561-AX 702761 009561-AX B56 Air Shock;100KG(125L) Yes Model Compatibility List $27.68 / Each

1
012804-00 702854 012804-00 M02 Elevation Motor;110V No Model Compatibility List $191.64 / Each

10
014103-A 703391 014103-A AZ1 Hardware Pack No Model Compatibility List $20.02 / Each

4,5,6
014683-B 703442 014683-B AR2 Rear Roller Set Yes Model Compatibility List $147.40 / Each

8
015046-AD 703503 015046-AD P21 Fix Plate;Power Socket No Model Compatibility List $7.60 / Each

3,4,5,6
016167-Z 703770 016167-Z N24 Safety Key Set Yes Model Compatibility List $30.88 / Each

9
020210-00 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $1.54 / Each

2
032671-HF 705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $308.86 / Each

7,10
038132-BBX 705141 038132-BBX N37 Heart Rate Receiver Yes Model Compatibility List $41.84 / Each

12,13,14
055204-A 705700 055204-A Q30 Screw;SelfTapping;4x10L No Model Compatibility List $1.54 / Each

2,12,13,14
056374-AA 705857 056374-AA M07 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
060295-CA 706218 060295-CA P14 Digital Speed Sensor Yes Model Compatibility List $32.32 / Each

1
1000092805 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $24.99 / Each

1
1000093557 707591 1000093557 M05 Drive Motor Bracket Yes Model Compatibility List $19.98 / Each

2,3,4,5,6,10
1000109551 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $46.32 / Each

15,10
1000111822 709278 1000111822 M01 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $499.00 / Each

4,5,6,10
078439 725935 078439 B18 Cushion;Air - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $13.62 / Each

3
078539 725951 078539 KIT Console Cable; Upper; 450L(2.5-12P+5557 SERIES) Yes Model Compatibility List $22.10 / Each

4,5,6,7
014671-A 1002749 014671-A Front Drive Roller - Used No Model Compatibility List $89.00 / Each
