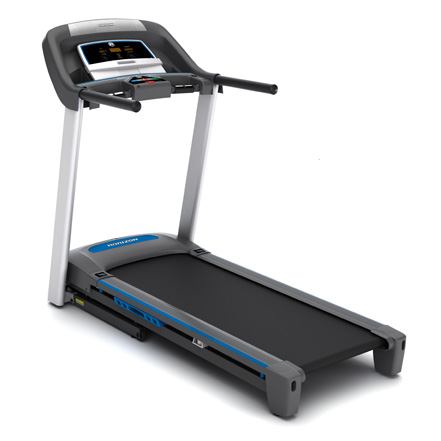

Horizon Fitness - CT5.2 - 2011

Repair Parts for Horizon Fitness CT5.2 TM639

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: CT5.2

Version: 2011

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

1
B 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

1
H 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $3.82 / Each

3
B 700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
P 700570 001679-00 P25 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
P 700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

2
B 701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
M 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
M 701478 004525-00 M11 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

2
B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

2
M 701561 004592-00 M14 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

2
P 701577 004612-00 P22 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
N 701579 004613-00 N36 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

2
N 701599 004623-00 N34 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
Q 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

2
N 701635 004660-A N17 Screw;Oval Tapping;5x15L No Model Compatibility List $2.00 / Each

2,12,13,14
B 701706 004727-00 B42 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Z 701729 004754-00 Z02 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.79 / Each

2
K 701735 004759-00 K11 Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 No Model Compatibility List $2.00 / Each

2
Q 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

2
Q 701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
N 701889 004922-00 N09 Nut;Nylon;M3x0.5P No Model Compatibility List $1.79 / Each

2
R 701897 004926-00 R06 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M17 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
M 701912 004941-00 M18 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
B 701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701964 005005-00 Z03 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
M 702030 005062-00 M33 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

2
H 702092 005125-00 H09 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

2
M 702118 005145-A M38 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
P 702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

2
H 702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
P 702299 005811-00 P24 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
V 702325 006078-00 V18 Decal;Grounding;TM08 No Model Compatibility List $1.90 / Each

7,3
P 702450 007490-C P20 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
P 702806 010866-00 P26 Bushing;Strain Relief;Nylon66;SR-7R3;BL; Yes Model Compatibility List $4.37 / Each

8
B 703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $13.91 / Each

4,5,6
R 704011 020101-00 R05 Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Q 704155 020352-A Q34 Screw;Phillip;Sink;Tapped;4x34L; No Model Compatibility List $2.00 / Each

2
Z 704175 020425-00 Z04 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

2
N 705018 029437-00 N38 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $2.00 / Each

2
B 705259 039400-BA B51 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

8
P 705308 040695-A P02 Power Switch Yes Model Compatibility List $28.73 / Each

4,5,6
N 705329 048036-A N35 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $2.00 / Each

2
K 705382 049024-BA K09 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

1
Q 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $2.00 / Each

2
H 705488 049292-A H17 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $2.00 / Each

2
P 705700 055204-A P23 Screw;SelfTapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
N 705707 055269-AX N67 Decal;Faceplate No Model Compatibility List $3.82 / Each

7,3,4,5,6
M 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
N 705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.90 / Each

3
H 706178 059929-B H06 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

2
N 707457 1000092805 Not shown Silicon Oil;40ml No Model Compatibility List $32.49 / Each

1
A 707495 1000093022 AR1 Roller Set;Front Yes Model Compatibility List $191.62 / Each

8
H 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $3.82 / Each

8,10
H 707759 1000094875 H20 Spring No Model Compatibility List $4.00 / Each

2
K 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

3,4,5,6,9
P 707762 1000094883 P11 Power Cord;16AWG;2M;TM616-P05A Yes Model Compatibility List $57.49 / Each

4,5,6
A 707768 1000094931 AH4 Lock Latch Set;Galvanization;TM616 No Model Compatibility List $10.01 / Each

1
H 707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.90 / Each

2,8
N 707863 1000096517 N83 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $25.04 / Each

1
H 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.90 / Each

4,5,6
H 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.90 / Each

7,3
B 708210 1000101235 B20 Elastomer;Decorative;Small;PVC;422C;TM626 Yes Model Compatibility List $17.91 / Each

1
B 708212 1000101237 B21 Elastomer;Decorative;Front;TPR;Blue/301C Yes Model Compatibility List $20.51 / Each

1
N 708219 1000101264 N03 Cover;Down;Console:ABS;Black Yes Model Compatibility List $8.87 / Each

7,9,4,5,6
N 708220 1000101265 N04 Speaker;Metal Net;MM314;TM626 No Model Compatibility List $24.99 / Each

3
R 708226 1000101285 R02 Running Belt;Black;495X2910X1.4T Yes Model Compatibility List $260.99 / Each

15,4,5,6
708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $249.13 / Each

4,5,6,10
N 708294 1000101856 N06 Wind Shield;Left;ABS;Black Yes Model Compatibility List $1.90 / Each

9
N 708295 1000101857 N07 Wind Shield;Right;ABS;Black Yes Model Compatibility List $7.10 / Each

3,9
N 708333 1000102121 N02 Faceplate No Model Compatibility List $38.32 / Each

3,4,5,6
Q 708334 1000102124 Q01 Motor Cover;Upper Yes Model Compatibility List $48.93 / Each

9,10
Q 708335 1000102127 Q07 Siderail;Right;75140;TM621 Yes Model Compatibility List $47.11 / Each

9
Q 708336 1000102128 Q08 Cover;Side Rail;Left Yes Model Compatibility List $3.82 / Each

9
Q 708337 1000102129 Q09 Cover;Side Rail;Right Yes Model Compatibility List $3.82 / Each

9
N 708540 1000103270 N61 Overlay;TM621;English No Model Compatibility List $38.32 / Each

1
P 708608 1000104138 P31 Console Cable;Upper;650L;CKM 25430101 9P Yes Model Compatibility List $57.49 / Each

7,4,5,6
C 708609 1000104155 C14 Cap;Handle Bar;Black;TM621 Yes Model Compatibility List $8.40 / Each

4,5,6,9,11
V 708610 1000104159 V02 Sticker;Poly;Side Rail Cover No Model Compatibility List $1.90 / Each

9
B 708615 1000104173 B27 Running Deck;675x1220x18T Yes Model Compatibility List $260.99 / Each

3
Q 708632 1000104507 Q04 Rear Roller Cover;Left Yes Model Compatibility List $15.55 / Each

8,9
Q 708633 1000104508 Q05 Rear Roller Cover;Right Yes Model Compatibility List $10.35 / Each

8,9
A 708634 1000104595 AN4 Reed Switch Yes Model Compatibility List $24.69 / Each

4,5,6
N 708635 1000104596 N74 Line;Earphone-AAMP connection;500mm No Model Compatibility List $9.57 / Each

4,5,6
708726 1000105094 N43 Safety Key Set Yes Model Compatibility List $40.14 / Each

9
V 708774 1000105774 V04 Logo Sticker;HZ;ABS No Model Compatibility List $3.82 / Each

1
N 708784 1000106028 N08 Special Washer;TM626 No Model Compatibility List $1.90 / Each

2
V 708930 1000107358 V11 Warning Sticker;Console Overlay No Model Compatibility List $1.90 / Each

7
A 708988 1000108035 AH3 Sleeve;Insert Tube Yes Model Compatibility List $31.69 / Each

3
V 708991 1000108054 V20 Sticker;Warning;One No Model Compatibility List $1.77 / Each

1
A 709083 1000109292 AH2 Insert Tube Set;zincification;TM622 Yes Model Compatibility List $17.06 / Each

3
R 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

15,10
M 709205 1000111068 M03 Motor Control Board;1.5-2HP/110V Yes Model Compatibility List $401.52 / Each

7,10
709278 1000111822 7 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $648.70 / Each

4,5,6,10
N 709368 1000113518 N62 Overlay;Manipulate;2 No Model Compatibility List $38.32 / Each

1
N 709369 1000113519 N63 Overlay;Manipulate;3 No Model Compatibility List $57.49 / Each

1
N 709370 1000113520 N73 Overlay;Manipulate;4;TM639;EN No Model Compatibility List $38.32 / Each

1
N 709376 1000113880 N60 Upper Control Board;T101;HAS601PA No Model Compatibility List $413.32 / Each

7
P 709386 1000113982 P30 Console Cable;Lower;1800L;CKM2.5-9P+SM-9A Yes Model Compatibility List $38.32 / Each

7,4,5,6
B 709404 1000114104 B41 Air Shock;55KG(journey245L)Damping ;TM63 Yes Model Compatibility List $61.93 / Each

4,5,6,12,13,14
M 709405 1000114107 M15 Screw;Hex;M10x55L-14L;BED No Model Compatibility List $2.00 / Each

2
K 709409 1000114138 K13 Cap;Oblique;TM639-1US No Model Compatibility List $1.77 / Each

9
Q 709411 1000114149 Q02 Cover;Motor;Down;;PP;TM639-1US No Model Compatibility List $37.39 / Each

9,10
V 709412 1000114154 V33 Manual;Manipulate&Assembly;TM639-1US Yes Model Compatibility List $9.57 / Each

3
P 709474 1000200540 P14 Speed Sensor Wire;1000mm(CKM 25430101-03) Yes Model Compatibility List $28.73 / Each

4,5,6
C 709519 1000200993 C13 Foam;Arm;42;Black;TM639 No Model Compatibility List $8.87 / Each

3,4,5,6
N 709520 1000201000 N05 Water Bottle Holder Set;Left;Black Yes Model Compatibility List $13.47 / Each

4,5,6
N 709521 1000201001 N10 Water Bottle Holder Set;Right;Black Yes Model Compatibility List $12.17 / Each

4,5,6
N 709706 1000202162 N01 Console Shell No Model Compatibility List $137.31 / Each

7
V 709746 1000202517 V14 Spec Label;Cap;Left No Model Compatibility List $1.90 / Each

9
N 709763 1000202749 N68 Pin;Side Rail No Model Compatibility List $1.77 / Each

9,12,13,14
Z 709764 1000202758 Z01 Screw;FH;M6X1.0PX10L;MT;HS;G8.8;BAN; No Model Compatibility List $2.00 / Each

2
V 709797 1000203310 V13 Sticker;POP;Motor Cover No Model Compatibility List $1.90 / Each

9,10,12,13,14
K 709803 1000203370 KIT Hardware Pack No Model Compatibility List $56.39 / Each

4,5,6
V 709805 1000203400 V15 Sticker;POP;Left;CONSOLE No Model Compatibility List $1.77 / Each

7,12,13,14
V 709806 1000203401 V16 Sticker;POP;Right;CONSOLE No Model Compatibility List $1.77 / Each

7,12,13,14
V 709855 1000203926 V01 Sticker;Motor Upper Cover Patch No Model Compatibility List $8.87 / Each

9,10
709869 1000204119 N69 Pin;Protective Cover No Model Compatibility List $1.77 / Each

9,12,13,14
B 709874 1000204184 B50 Screw;HH;M10X1.5PX45L-15L; No Model Compatibility List $4.00 / Each

2
R 709878 1000204234 R04 Screw;Round;M8X1.25PX80L-75L;MT;HS; Yes Model Compatibility List $11.41 / Each

2
2 709987 1000205563 2 Console Mast Set;Left;TM639; No Model Compatibility List $292.40 / Each

7
3 709988 1000205564 3 Console Mast Set;Right;TM639 No Model Compatibility List $315.80 / Each

7
8 709989 1000205566 8 Console Frame Set No Model Compatibility List $159.64 / Each

7,3
4 709990 1000205569 4 Elevation Frame Set No Model Compatibility List $147.29 / Each

3,10
9 709991 1000205570 9 Console Set;SA;;TM639-1US;;; No Model Compatibility List $1.30 / Each

7
M 710188 1000207238 M05 Motor Bracket Set No Model Compatibility List $67.03 / Each

2,3,4,5,6,10
C 710322 1000209336 C18 Fixing Plate;Console Mast;Left No Model Compatibility List $40.72 / Each

7,3
C 710323 1000209337 C19 Fixing Plate;Console Mast;Right No Model Compatibility List $40.72 / Each

7,3
K 710337 1000209568 KIT French Console Overlay No Model Compatibility List $3.09 / Each

7
K 710358 1000209748 KIT French Console Overlay No Model Compatibility List $2.55 / Each

7
K 710379 1000209835 KIT French Console Overlay No Model Compatibility List $0.52 / Each

7
K 710381 1000209838 KIT French Console Overlay No Model Compatibility List $0.75 / Each

7
P 711070 1000216278 P10 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $3.82 / Each

3,4,5,6
Q 712964 1000231818 Q06 SIDE RAIL ;LEFT;BLACK;TM626;TOOLING SHAR Yes Model Compatibility List $24.91 / Each

9,4,5,6
V 721965 1000386873 V38 Manual;TM safety direction;;EN/FR/ES;MAT No Model Compatibility List $7.64 / Each

9
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

2
Console Fan 725571 073303 N68 Console Fan Yes Model Compatibility List $38.12 / Each

8
Transport Wheel 725586 073633 K15 Transport Wheel Yes Model Compatibility List $3.82 / Each

8
Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L Yes Model Compatibility List $2.00 / Each

2
Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

2
Cap;Support Base;Rear;TM367 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $2.47 / Each

9,3
Amp Control Board;VFD 3W H101 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $55.20 / Each

4,5,6,7
Pulse Sensor Set;800mm;31.8+2.5-2P JIND 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $31.33 / Each

12,13,14
Wire;Headphone Jack;500mm 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $3.82 / Each

4,5,6
Audio In Set 728946 099121 N67 Audio In Set Yes Model Compatibility List $6.42 / Each

1
Audio Out Set 728947 099122 N68 Audio Out Set No Model Compatibility List $3.82 / Each

1
Roller Set;Rear;TM603-1US 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $191.62 / Each

8
728977 N/A 5 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
728982 Not Orderable AB1 Main Frame Set;-;PAINTING;MM330 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AC2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AH1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729191 Part of Kit 6 AK1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 M04 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729197 Part of Kit 8 AN2 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
