Horizon Fitness - CT5.3 - 2012

Repair Parts for Horizon Fitness CT5.3 TM660

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: CT5.3

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Roller
  • Fasteners and Brackets
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $19.21 / Each

1
B 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $18.64 / Each

1
H 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $3.82 / Each

3
B 700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
P 700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
P 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $2.00 / Each

2
B 701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
M 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
B 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $2.00 / Each

2
M 701561 004592-00 M14 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

2
P 701577 004612-00 P22 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
N 701579 004613-00 N36 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $2.00 / Each

2
P 701583 004615-00 P23 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
N 701599 004623-00 N34 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
Q 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

2
N 701635 004660-A N17 Screw;Oval Tapping;5x15L No Model Compatibility List $2.00 / Each

2,12,13,14
B 701706 004727-00 B42 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Z 701729 004754-00 Z02 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.79 / Each

2
K 701735 004759-00 K11 Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 No Model Compatibility List $2.00 / Each

2
Q 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $2.00 / Each

2
Q 701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $2.00 / Each

2
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
N 701889 004922-00 N09 Nut;Nylon;M3x0.5P No Model Compatibility List $1.79 / Each

2
M 701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M17 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
M 701912 004941-00 M18 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
B 701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701964 005005-00 Z03 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
M 702030 005062-00 M33 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
M 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

2
H 702092 005125-00 H09 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

2
M 702118 005145-A M38 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
P 702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $2.00 / Each

2
H 702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
P 702450 007490-C P20 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
P 702806 010866-00 P26 Bushing;Strain Relief;Nylon66;SR-7R3;BL; Yes Model Compatibility List $4.37 / Each

8
B 703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $13.91 / Each

4,5,6
R 704011 020101-00 R05 Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 704077 020192-A B32 Screw;Umbrella Cross Tapped;4X10L;Flat No Model Compatibility List $2.00 / Each

2
Q 704155 020352-A Q34 Screw;Phillip;Sink;Tapped;4x34L; No Model Compatibility List $2.00 / Each

2
Z 704175 020425-00 Z04 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $2.00 / Each

2
N 705018 029437-00 N38 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $2.00 / Each

2
B 705259 039400-BA B51 Transport Wheel;Nylon Yes Model Compatibility List $9.57 / Each

8
N 705286 040614-A N79 Ground Wire;250 Yes Model Compatibility List $3.82 / Each

4,5,6
P 705308 040695-A P02 Power Switch Yes Model Compatibility List $28.73 / Each

4,5,6
N 705329 048036-A N35 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $2.00 / Each

2
K 705382 049024-BA K09 Flat;;;50C;TM196-K12B Yes Model Compatibility List $6.42 / Each

1
Q 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $2.00 / Each

2
H 705488 049292-A H17 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $2.00 / Each

2
N 705707 055269-AX N67 Decal;Faceplate No Model Compatibility List $3.82 / Each

7,3,4,5,6
M 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $9.57 / Each

10,12,13,14
N 705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.90 / Each

3
H 706178 059929-B H06 Screw;Special;M8X1.25PX9L-D10X11.2L;;HE;45#;BOX No Model Compatibility List $2.00 / Each

2
Q 707443 1000092678 Q04 Rear Roller Cover;Left;ABS;TM616 Yes Model Compatibility List $18.41 / Each

8,9
Q 707444 1000092679 Q05 Rear Roller Cover;Right;ABS;TM616 Yes Model Compatibility List $18.41 / Each

8,9
A 707495 1000093022 AR1 Roller Set;Front Yes Model Compatibility List $191.62 / Each

8
H 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $3.82 / Each

8,10
H 707759 1000094875 H20 Spring No Model Compatibility List $4.00 / Each

2
K 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $6.42 / Each

3,4,5,6,9
P 707762 1000094883 P11 Power Cord;16AWG;2M;TM616-P05A Yes Model Compatibility List $57.49 / Each

4,5,6
H 707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.90 / Each

2,8
N 707863 1000096517 N83 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $25.04 / Each

1
H 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.90 / Each

4,5,6
H 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.90 / Each

7,3

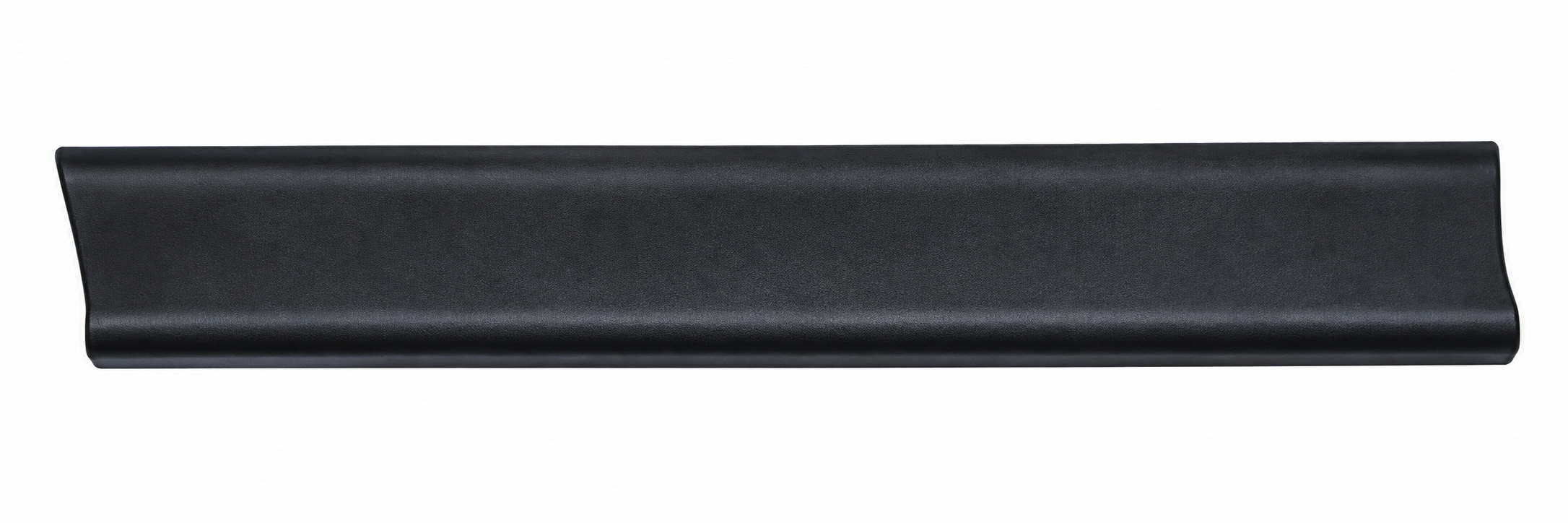

C 708214 1000101246 C13 Foam;Handlebar;40.0x80.0;Black;TM626 No Model Compatibility List $10.32 / Each

4,5,6,11
C 708215 1000101247 C14 End Cap;Handlebar;Black Yes Model Compatibility List $11.62 / Each

4,5,6,9,11
N 708219 1000101264 N03 Cover;Down;Console:ABS;Black Yes Model Compatibility List $8.87 / Each

7,9,4,5,6
N 708220 1000101265 N04 Speaker;Metal Net;MM314;TM626 No Model Compatibility List $24.99 / Each

3
Q 708221 1000101277 Q01 Motor Cover;Upper Yes Model Compatibility List $51.45 / Each

9,10
Q 708224 1000101281 Q08 Cover;Side Rail;Left Yes Model Compatibility List $11.62 / Each

9
Q 708225 1000101282 Q09 Cover;Side Rail;Right Yes Model Compatibility List $12.92 / Each

9
R 708226 1000101285 R02 Running Belt;Black;495X2910X1.4T Yes Model Compatibility List $260.99 / Each

15,4,5,6
708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $249.13 / Each

4,5,6,10
N 708294 1000101856 N06 Wind Shield;Left;ABS;Black Yes Model Compatibility List $1.90 / Each

9
N 708295 1000101857 N07 Wind Shield;Right;ABS;Black Yes Model Compatibility List $7.10 / Each

3,9
N 708333 1000102121 N02 Faceplate No Model Compatibility List $38.32 / Each

3,4,5,6
C 708563 1000103438 C15 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.57 / Each

2
P 708608 1000104138 P31 Console Cable;Upper;650L;CKM 25430101 9P Yes Model Compatibility List $57.49 / Each

7,4,5,6
V 708610 1000104159 V02 Sticker;Poly;Side Rail Cover No Model Compatibility List $1.90 / Each

9
B 708615 1000104173 B27 Running Deck;675x1220x18T Yes Model Compatibility List $260.99 / Each

3
A 708634 1000104595 AN4 Reed Switch Yes Model Compatibility List $24.69 / Each

4,5,6
N 708635 1000104596 N74 Line;Earphone-AAMP connection;500mm No Model Compatibility List $9.57 / Each

4,5,6
708726 1000105094 N43 Safety Key Set Yes Model Compatibility List $40.14 / Each

9
V 708774 1000105774 V04 Logo Sticker;HZ;ABS No Model Compatibility List $3.82 / Each

1
N 708784 1000106028 N08 Special Washer;TM626 No Model Compatibility List $1.90 / Each

2
V 708991 1000108054 V20 Sticker;Warning;One No Model Compatibility List $1.77 / Each

1
R 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $60.22 / Each

15,10
M 709205 1000111068 M03 Motor Control Board;1.5-2HP/110V Yes Model Compatibility List $401.52 / Each

7,10
709278 1000111822 4 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $648.70 / Each

4,5,6,10
P 709386 1000113982 P30 Console Cable;Lower;1800L;CKM2.5-9P+SM-9A Yes Model Compatibility List $38.32 / Each

7,4,5,6
B 709404 1000114104 B41 Air Shock;55KG(journey245L)Damping ;TM63 Yes Model Compatibility List $61.93 / Each

4,5,6,12,13,14
M 709405 1000114107 M15 Screw;Hex;M10x55L-14L;BED No Model Compatibility List $2.00 / Each

2
K 709409 1000114138 K13 Cap;Oblique;TM639-1US No Model Compatibility List $1.77 / Each

9
Q 709411 1000114149 Q02 Cover;Motor;Down;;PP;TM639-1US No Model Compatibility List $37.39 / Each

9,10
P 709474 1000200540 P14 Speed Sensor Wire;1000mm(CKM 25430101-03) Yes Model Compatibility List $28.73 / Each

4,5,6
N 709520 1000201000 N05 Water Bottle Holder Set;Left;Black Yes Model Compatibility List $13.47 / Each

4,5,6
N 709521 1000201001 N10 Water Bottle Holder Set;Right;Black Yes Model Compatibility List $12.17 / Each

4,5,6
N 709706 1000202162 N01 Console Shell No Model Compatibility List $137.31 / Each

7

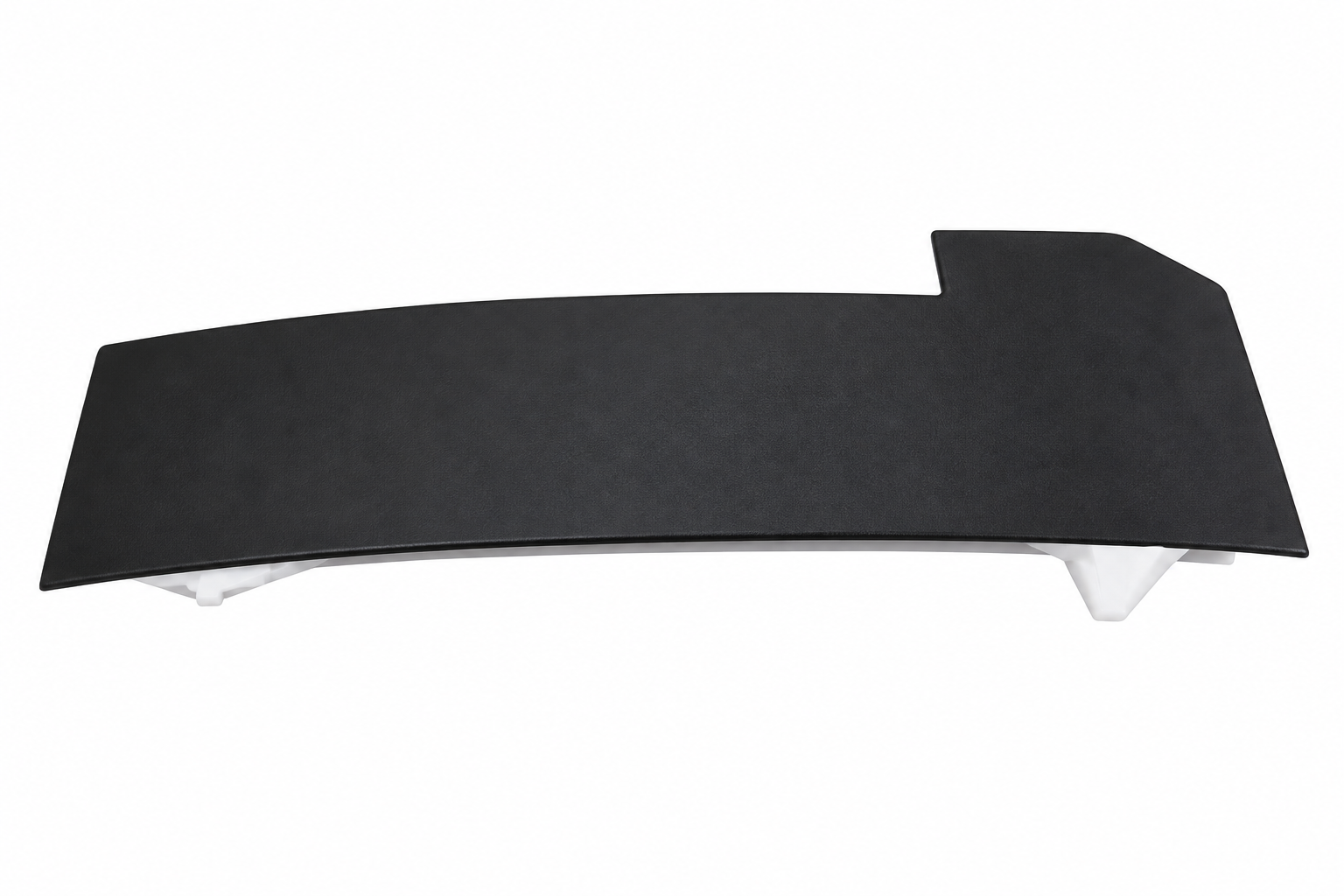

N 709763 1000202749 N68 Pin;Side Rail No Model Compatibility List $1.77 / Each

9,12,13,14
Z 709764 1000202758 Z01 Screw;FH;M6X1.0PX10L;MT;HS;G8.8;BAN; No Model Compatibility List $2.00 / Each

2
K 709803 1000203370 Kit Hardware Pack No Model Compatibility List $56.39 / Each

4,5,6

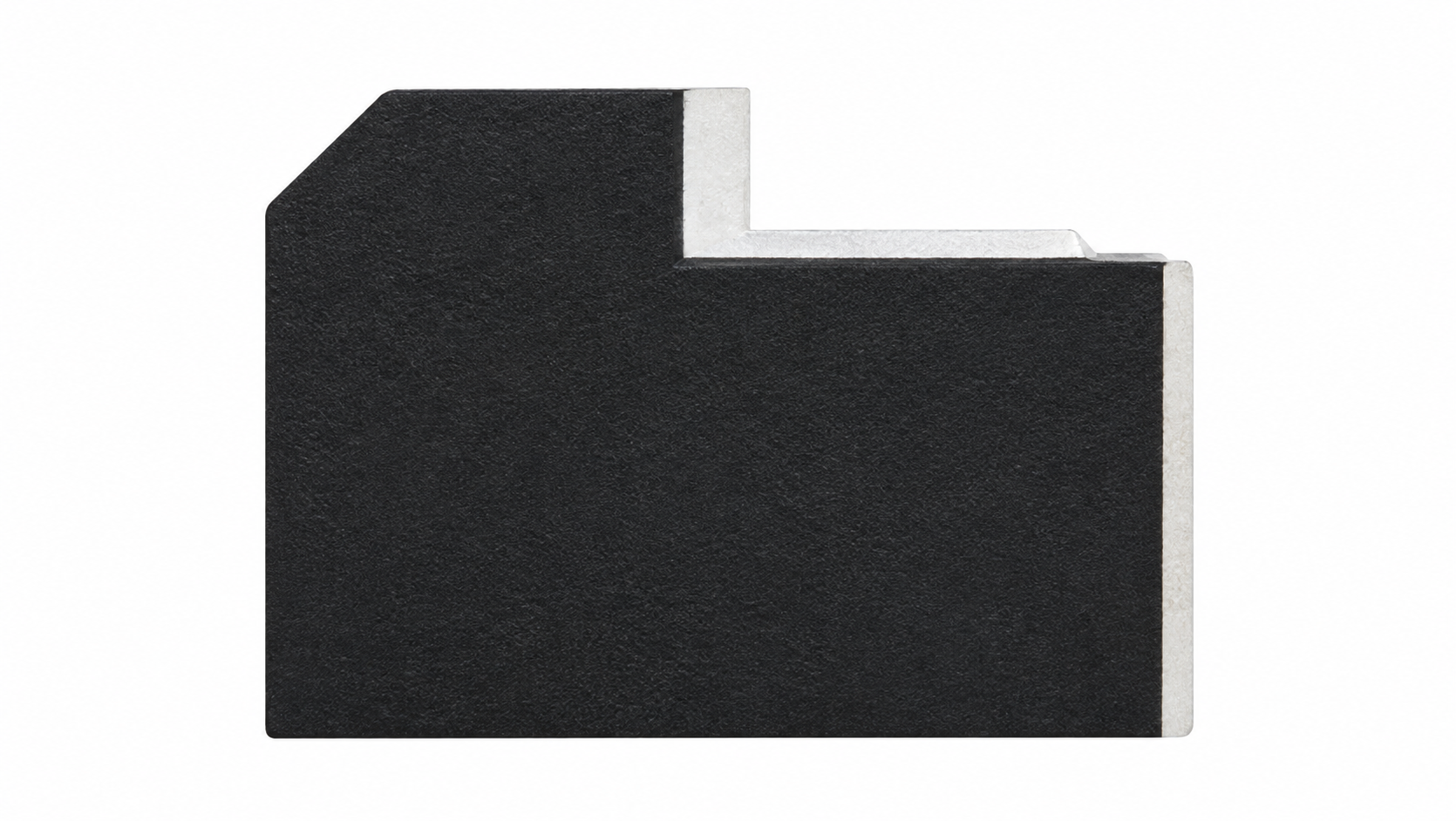

709869 1000204119 N69 Pin;Protective Cover No Model Compatibility List $1.77 / Each

9,12,13,14
A 709873 1000204169 AH1 Rack set;Semi-Assy;TM639 No Model Compatibility List $70.95 / Each

4,5,6
B 709874 1000204184 B50 Screw;HH;M10X1.5PX45L-15L; No Model Compatibility List $4.00 / Each

2
R 709878 1000204234 R04 Screw;Round;M8X1.25PX80L-75L;MT;HS; Yes Model Compatibility List $11.41 / Each

2
M 710188 1000207238 M05 Motor Bracket Set No Model Compatibility List $67.03 / Each

2,3,4,5,6,10
C 710322 1000209336 C18 Fixing Plate;Console Mast;Left No Model Compatibility List $40.72 / Each

7,3
C 710323 1000209337 C19 Fixing Plate;Console Mast;Right No Model Compatibility List $40.72 / Each

7,3
V 710697 1000212444 V01 Decal;Motor Upper Cover;ACCENT PIECE;TM6 No Model Compatibility List $8.87 / Each

7,9,3,4,5,6,10
N 710715 1000212613 N61 Overlay;U;ENGLISH;TM660;; No Model Compatibility List $38.32 / Each

1
N 710716 1000212614 N62 Overlay;LD;ENGLISH;TM660;; No Model Compatibility List $38.32 / Each

1
N 710717 1000212615 N63 Overlay;M;ENGLISH;TM660;; No Model Compatibility List $57.49 / Each

1
N 710718 1000212616 N64 Overlay;RD;ENGLISH;TM660;; No Model Compatibility List $38.32 / Each
Out Of Stock 		1
N 710719 1000212617 N60 UCB;TM660;DC;HAPA;S603-07; No Model Compatibility List $326.35 / Each

4,5,6
Q 710765 1000213435 Q06 Side Rail;L;BL/359C;TM660; No Model Compatibility List $39.94 / Each

9
Q 710766 1000213436 Q07 Side Rail;R;BL/359C;TM660 No Model Compatibility List $39.94 / Each

9
K 710767 1000213437 Kit Assembly Manual;TM660-1US No Model Compatibility List $11.05 / Each

3
B 710768 1000213438 B21 Elastomer;Decorative;TPR;359C;TM660 No Model Compatibility List $13.21 / Each

1
6 710965 1000215606 6 Console Set;Complete No Model Compatibility List $1126.92 / Each

7
1 710966 1000215608 1 Console Mast Set;Left;SEMI-ASSY;TM660-1US No Model Compatibility List $278.36 / Each

7
8 710967 1000215609 8 Console Frame Set;SEMI-ASSY;TM659-1US No Model Compatibility List $143.13 / Each

7,3
2 710970 1000215614 2 Console Mast Set;Right;SEMI-ASSY;TM660-1US Yes Model Compatibility List $279.03 / Each

7
3 710971 1000215615 3 Lock Latch Set;SEMI-ASSY;TM660-1US Yes Model Compatibility List $75.24 / Each

1
P 711070 1000216278 P10 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $3.82 / Each

3,4,5,6
K 711142 1000217086 KIT Console overlay-French No Model Compatibility List $19.14 / Each

7
K 711143 1000217087 KIT Console overlay-French No Model Compatibility List $19.14 / Each

7
K 711144 1000217088 KIT Console overlay-French No Model Compatibility List $1.90 / Each

7
K 711145 1000217089 KIT Console overlay-French No Model Compatibility List $1.90 / Each

7
K 721965 1000386873 Kit Manual;TM safety direction;;EN/FR/ES;MAT No Model Compatibility List $7.64 / Each

9
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

2
Console Fan 725571 073303 N68 Console Fan Yes Model Compatibility List $38.12 / Each

8
Transport Wheel 725586 073633 K15 Transport Wheel Yes Model Compatibility List $3.82 / Each

8
Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L Yes Model Compatibility List $2.00 / Each

2
Screw;Phillip;Big Umbrella;Tapped;;4x10 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $2.00 / Each

2
Cap;Support Base;Rear;TM367 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $2.47 / Each

9,3
Amp Control Board;VFD 3W H101 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $55.20 / Each

4,5,6,7
Pulse Sensor Set;800mm;31.8+2.5-2P JIND 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $31.33 / Each

12,13,14
Wire;Headphone Jack;500mm 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $3.82 / Each

4,5,6
Audio In Set 728946 099121 N67 Audio In Set Yes Model Compatibility List $6.42 / Each

1
Audio Out Set 728947 099122 N68 Audio Out Set No Model Compatibility List $3.82 / Each

1
Roller Set;Rear;TM603-1US 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $191.62 / Each

8
729000 Order Console Set 6, or Parts Separately 7 Console set;Semi-Assy;TM660-1US No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729052 Order Parts Separately 5 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729118 Part of Kit 1 AC1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC2 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AH4 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 M04 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729197 Part of Kit 8 AN2 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
Livestrong Tempo Horizon Fitness Treadmill Folding Safety Latch Shock 1000114104 (Used) 1019856 CT5.3-SLS B11 2 Livestrong Tempo Horizon Fitness Treadmill Folding Safety Latch Shock 1000114104 (Used) No Model Compatibility List $57.19 / Each

1
K 000089 1000094876 K50 1 Leveling Foot Leveler Yes Model Compatibility List $19.99 / Each

1
P 040695-A 040695-A P02 1 Power Switch on Off Yes Model Compatibility List $41.59 / Each

1
DC Drive Motor Johnson 1000111822 JM05-015 0 1 DC Drive Motor Johnson Yes Model Compatibility List $674.57 / Each

1
B 1026014 018951-A B48 1 Spring Deck (Used) Yes Model Compatibility List $7.40 / Each

2,41
P 1000730 040695-A P02 1 Power Switch Yes Model Compatibility List $31.99 / Each

1
R 1002356 1000109551 R03 1 Belt Drive Yes Model Compatibility List $31.99 / Each

23
Roller Rear 1002632 099695 0 1 Roller Rear Yes Model Compatibility List $167.99 / Each

26
M 1003455 1000111068 M03 1 Controller Motor Yes Model Compatibility List $299.99 / Each

48
P 1006085 1000094883 P11 1 Power Supply Cord Yes Model Compatibility List $47.99 / Each

6
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
