Horizon Fitness - CT7.2 - 2013

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000773-AA 700248 000773-AA B47 Elastomer;Running Deck;B;30x44L;;TM140 No Model Compatibility List $14.72 / Each

3
000877-B 700291 000877-B M06 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $1.68 / Each

10,12,13,14
000977-00 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $2.94 / Each

3
002671-A 700893 002671-A N51 Audio Wire;Three-D Earphone Yes Model Compatibility List $7.36 / Each

7,4,5,6,12,13,14
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004415-00 701363 004415-00 P13 Screw;FH;M3X0.5PX10L;;PH;;ZN;; No Model Compatibility List $1.54 / Each

2
004502-00 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004525-00 701478 004525-00 R06 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $5.54 / Each

2
004571-00 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $1.54 / Each

2
004592-00 701561 004592-00 M14 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $1.54 / Each

2
004615-00 701583 004615-00 Z02 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $1.54 / Each

2
004616-00 701585 004616-00 N32 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $1.54 / Each

2
004618-00 701588 004618-00 C16 Screw;Oval Tapping;4x20L No Model Compatibility List $1.54 / Each

2,12,13,14
004623-00 701599 004623-00 B20 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $1.54 / Each

2
004627-00 701605 004627-00 N40 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $1.54 / Each

2
004632-00 701613 004632-00 N41 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $1.54 / Each

2
004635-A 701615 004635-A N38 Screw;Oval Tapping;3x7L No Model Compatibility List $1.54 / Each

2,12,13,14
004714-AD 701683 004714-AD Z04 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $1.54 / Each

2
004759-00 701735 004759-00 K11 Screw;Hex Socket;BH;M10x1.5Px45L(Tooth15 No Model Compatibility List $1.54 / Each

2
004769-00 701746 004769-00 H27 SCREW;BH;M8X1.25PX35L-10L;;HS;;;;P-T No Model Compatibility List $1.54 / Each

2
004864-00 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $1.54 / Each

2
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 H32 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M17 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 M18 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
004972-00 701934 004972-00 K15 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.46 / Each

2
004975-00 701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
004983-A 701947 004983-A C07 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.38 / Each

2
005005-00 701964 005005-00 M09 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005125-00 702092 005125-00 H09 Washer;Flat;10.2x20x1.0T No Model Compatibility List $1.54 / Each

2
005165-00 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $1.54 / Each

2
005177-00 702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $1.54 / Each

2
005188-00 702152 005188-00 H30 Washer;Teflon;8.0X15.0X1.0T No Model Compatibility List $1.54 / Each

2
005196-00 702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
006069-AX 702322 006069-AX V16 Sticker;Warning;; new code disc No Model Compatibility List $0.16 / Each

1
018951-A 703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $10.70 / Each

4,5,6
019370-A 703920 019370-A P33 Power Cord;14 Guage/15 Amp Yes Model Compatibility List $44.22 / Each

4,5,6
020297-00 704129 020297-00 H22 Screw;BH;M8X1.25PX45L;;HS;;BZN;;BP No Model Compatibility List $1.54 / Each

2
020478-00 704203 020478-00 M33 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
029437-00 705018 029437-00 N36 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $1.54 / Each

2
039400-BA 705259 039400-BA B25 Transport Wheel;Nylon Yes Model Compatibility List $7.36 / Each

8
040613-B 705285 040613-B N69 Ground Wire;250 No Model Compatibility List $1.46 / Each

4,5,6
048036-A 705329 048036-A N37 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $1.54 / Each

2
049024-BA 705382 049024-BA K14 Flat;;;50C;TM196-K12B Yes Model Compatibility List $4.94 / Each

1
064626-00 706696 064626-00 Z03 Screw;Hex Socket;Round;M8x1.25Px15L;Adhe No Model Compatibility List $1.54 / Each

2
066244-A 706850 066244-A P03 Power Socket;No CE(80,200,100+200) Yes Model Compatibility List $8.58 / Each

4,5,6

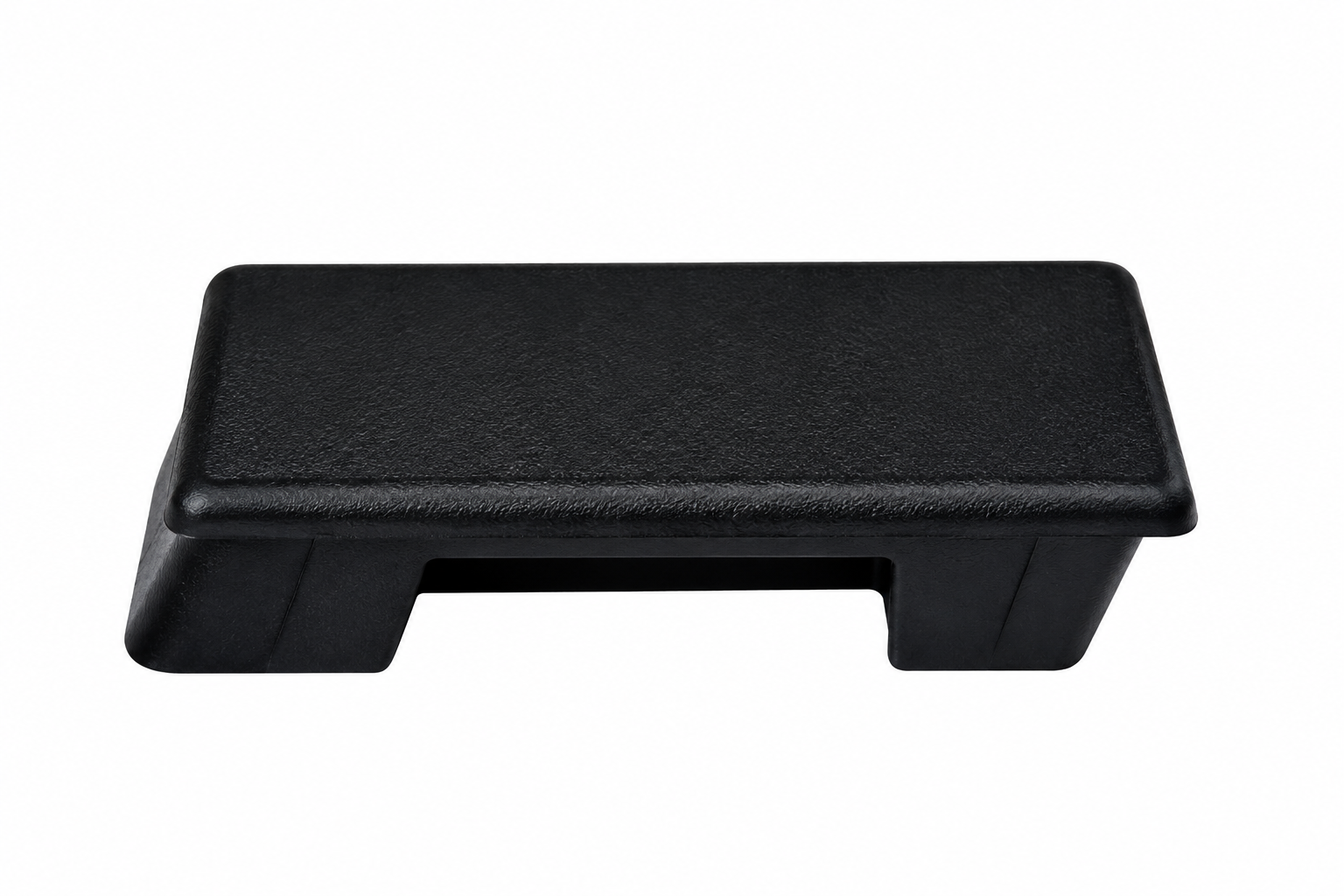

1000092332 707367 1000092332 K13 End Cap;Elevation Frame No Model Compatibility List $2.94 / Each

9,3,10
1000094874 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $2.94 / Each

8,10
1000094875 707759 1000094875 H20 Spring No Model Compatibility List $3.08 / Each

2
1000094876 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $4.94 / Each

3,4,5,6,9
1000094932 707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.46 / Each

2,8
1000096517 707863 1000096517 N54 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $19.26 / Each

1
1000097464 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.46 / Each

4,5,6
1000099273 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.46 / Each

7,3

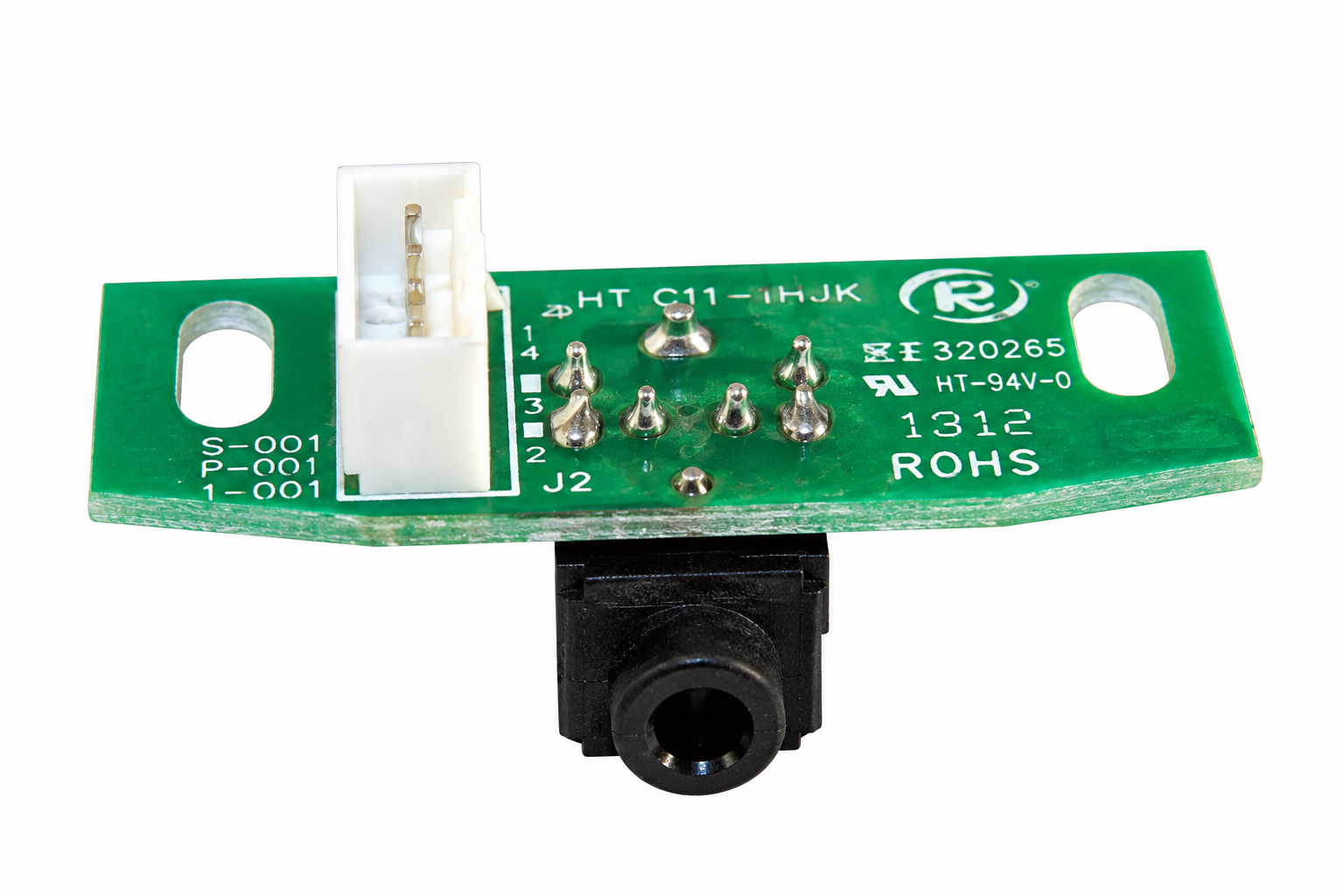

1000101409 708240 1000101409 N75 CTL Board;Earphone;SOO0806A No Model Compatibility List $7.36 / Each

1
1000101465 708243 1000101465 M02 Incline Motor;AC Elevation;110V;80mm;225;JM14 Yes Model Compatibility List $191.64 / Each

4,5,6,10

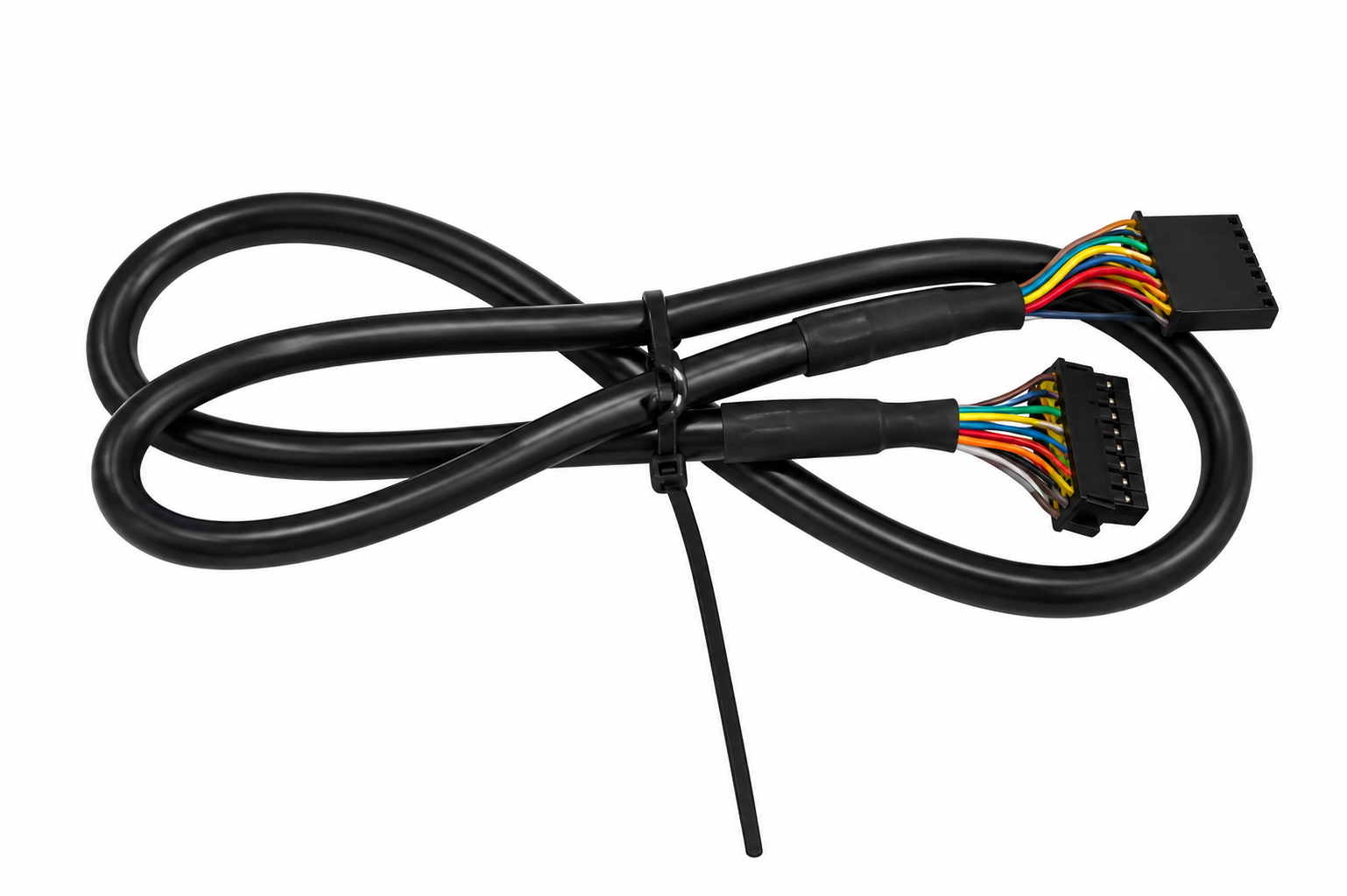

1000101982 708311 1000101982 P32 Console Cable;650L(CKM254301-8P+SM Yes Model Compatibility List $29.48 / Each

7,4,5,6
1000102862 708446 1000102862 B24 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000103653 708581 1000103653 N53 Speaker;3W8;XHS-2Y;650MM;TM381 No Model Compatibility List $14.76 / Each

1
1000104595 708634 1000104595 AN4 Reed Switch Yes Model Compatibility List $18.99 / Each

4,5,6
1000105188 708733 1000105188 N90 Absorption Plate;;15X15;TM616 No Model Compatibility List $1.46 / Each

3

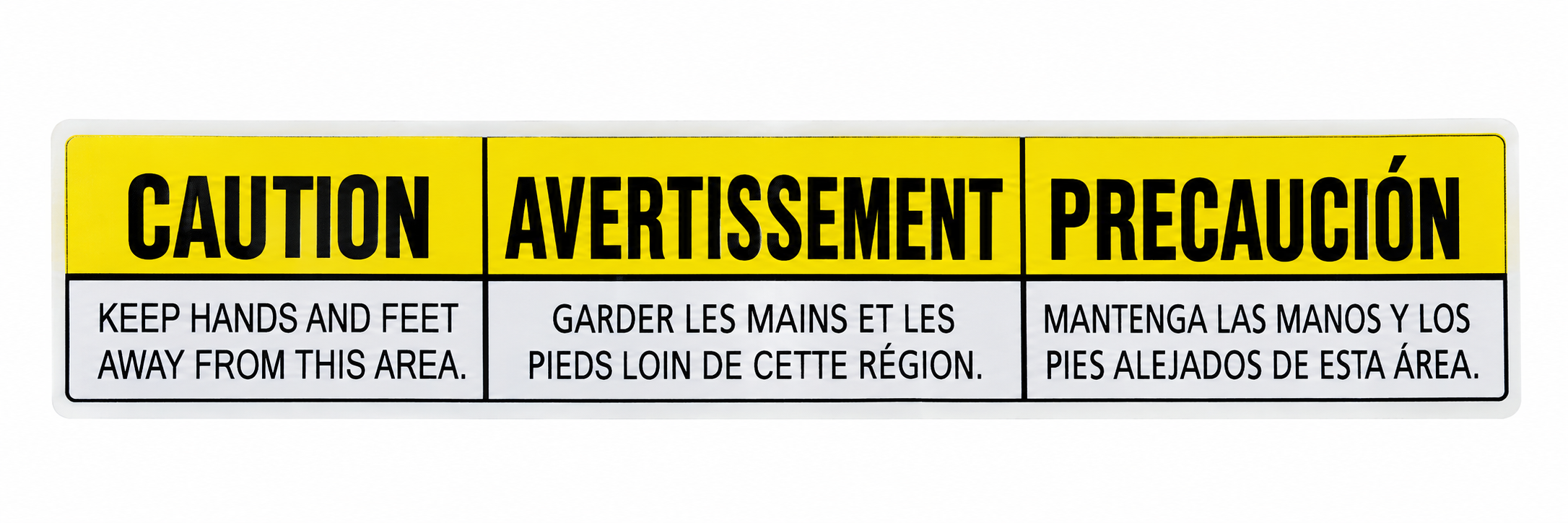

709001 1000108149 V24 Warning Sticker;Cover;behind;TM381 No Model Compatibility List $1.42 / Each

9
1000108777 709055 1000108777 B26 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $1.54 / Each

2
1000110344 709140 1000110344 12 Drive Motor Set;Digital Yes Model Compatibility List $442.24 / Each

10
1000111476 709254 1000111476 M01 Motor Control Board;110V Yes Model Compatibility List $499.00 / Each

7,10
1000114107 709405 1000114107 M15 Screw;Hex;M10x55L-14L;BED No Model Compatibility List $1.54 / Each

2
1000203234 709793 1000203234 Q02 Cover;Motor;DOWN;BLACK;TM640 No Model Compatibility List $21.88 / Each

9,4,5,6,10
1000204234 709878 1000204234 R04 Screw;Round;M8X1.25PX80L-75L;MT;HS; Yes Model Compatibility List $8.78 / Each

2
1000205896 710007 1000205896 P05 WIRE;CTRL BOARD PWR;;BLACK;;250LOCK150L; No Model Compatibility List $2.94 / Each

4,5,6
1000207014 710158 1000207014 N43 SAFETY KEY SET;-;TM641;-; Yes Model Compatibility List $30.88 / Each

9
1000219455 711282 1000219455 B41 AIR STICK;DAMPING;45KG;STROKE 235; No Model Compatibility List $22.10 / Each

4,5,6,12,13,14

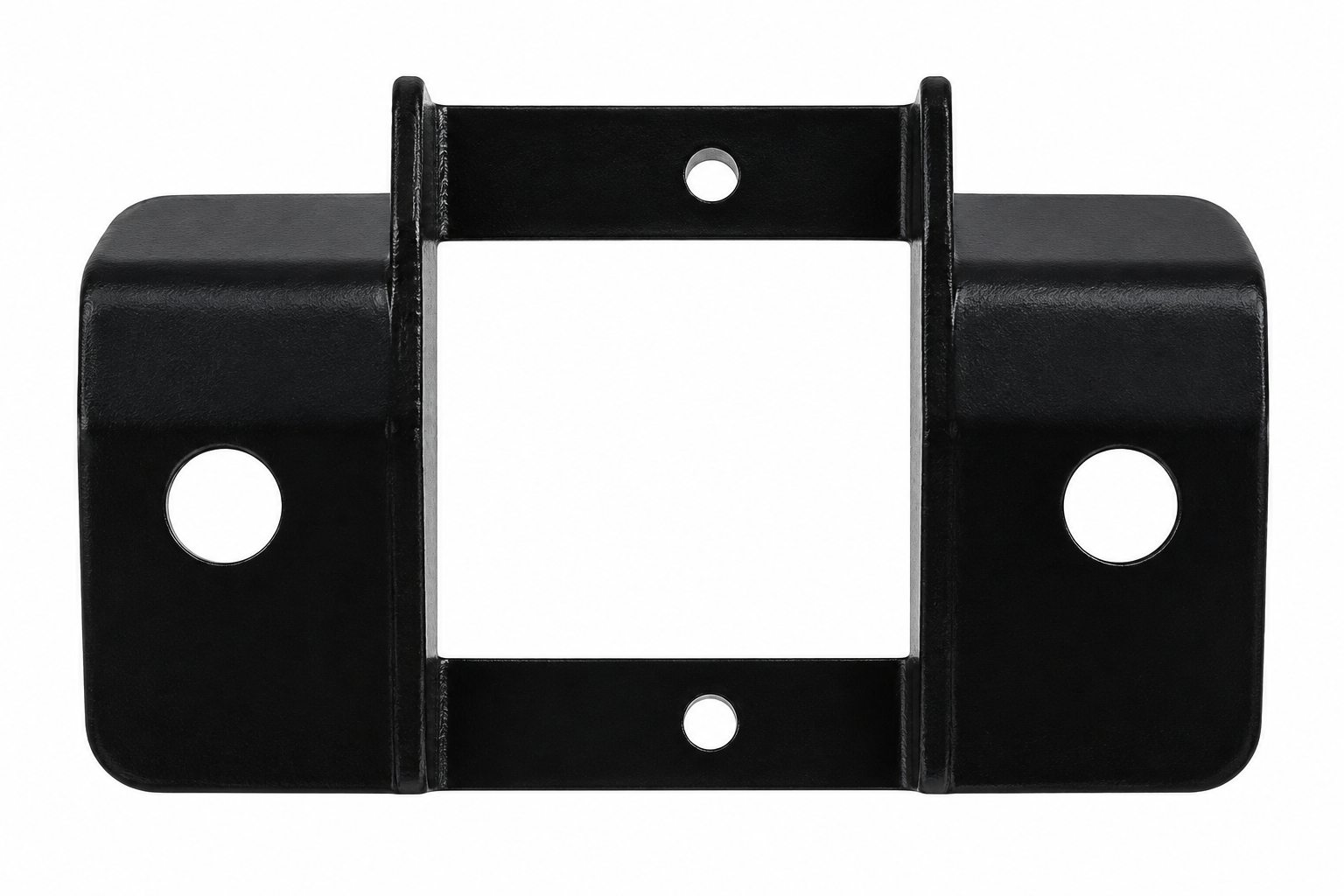

1000225256 712026 1000225256 N76 SAFETY KEY;FIXING BASE;TM444 No Model Compatibility List $1.54 / Each

9,3
1000227404 712195 1000227404 N63 CONTROL BOARD;;3W;HEPD No Model Compatibility List $7.36 / Each

7

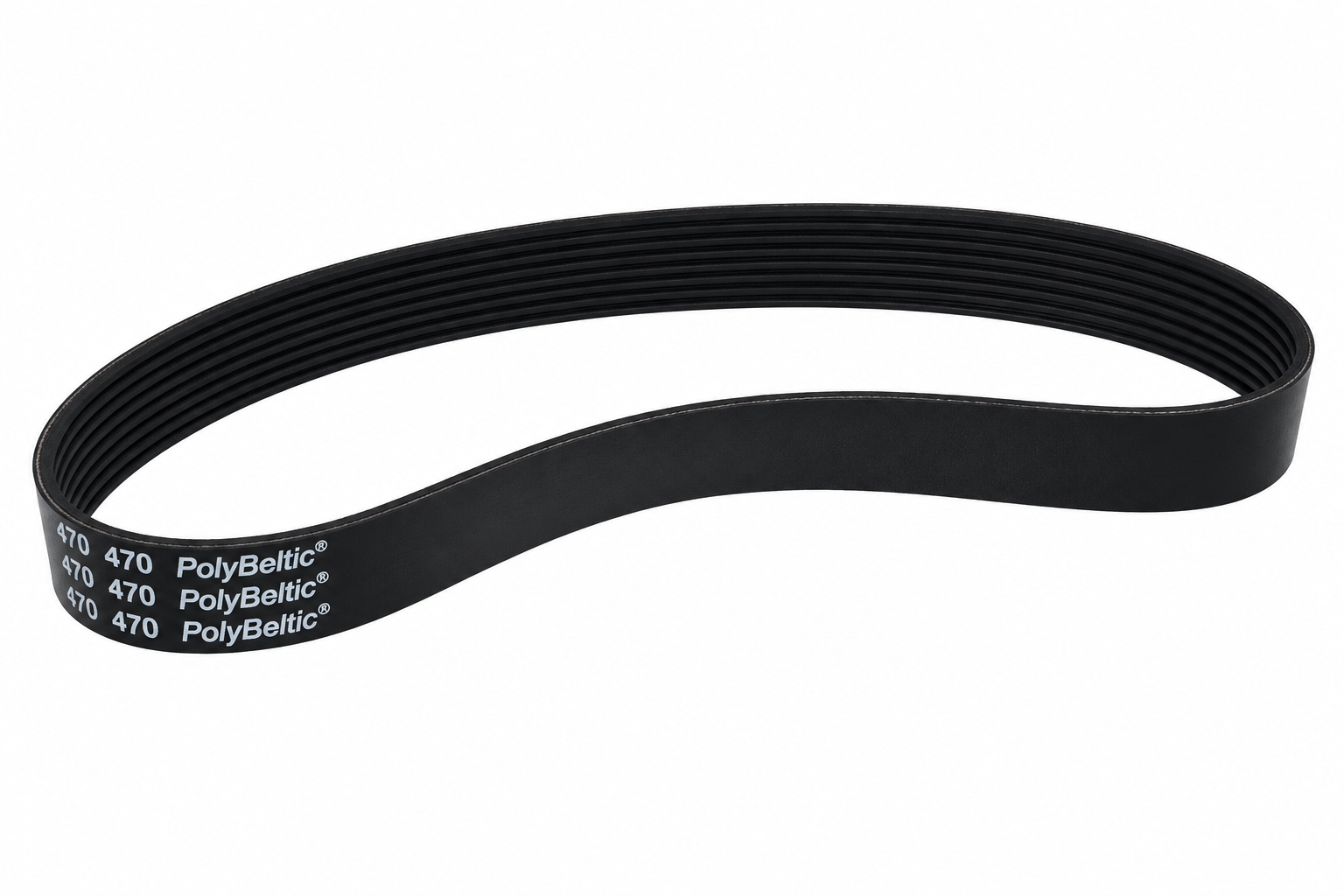

1000228054 712278 1000228054 R03 BELT;POLY-V;;8P 470; Yes Model Compatibility List $44.22 / Each

15

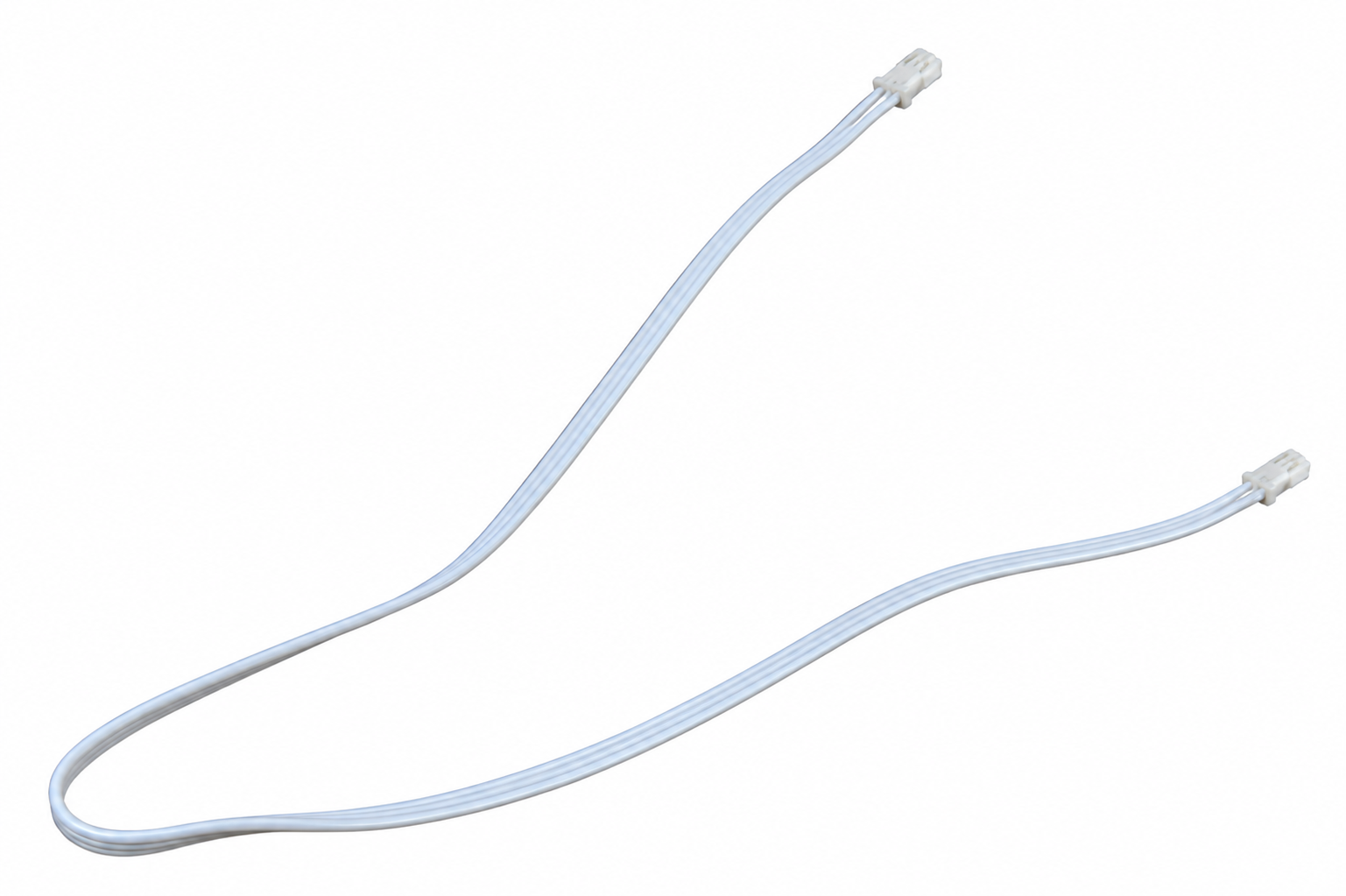

1000228137 712290 1000228137 N59 WIRE;VF;;;;300L(2.0_3P??2); No Model Compatibility List $2.94 / Each

4,5,6
1000228690 712392 1000228690 B42 SCREW;BH;M8X1.25PX30L;;;HS;G12.9;BZN; No Model Compatibility List $1.54 / Each

2
1000228691 712393 1000228691 M80 NUT;NLK;M8X1.25P;G12;BZN;; No Model Compatibility List $1.54 / Each

2
1000231347 712898 1000231347 Not Shown MANUAL;TM SAFETY DIRECTION;EN/FR/SP;TM63 No Model Compatibility List $7.36 / Each

9
1000232619 713032 1000232619 H04 SUPPORT LOCK,INSERT TUBE,BLACK,PP,TM439 No Model Compatibility List $1.46 / Each

3,4,5,6

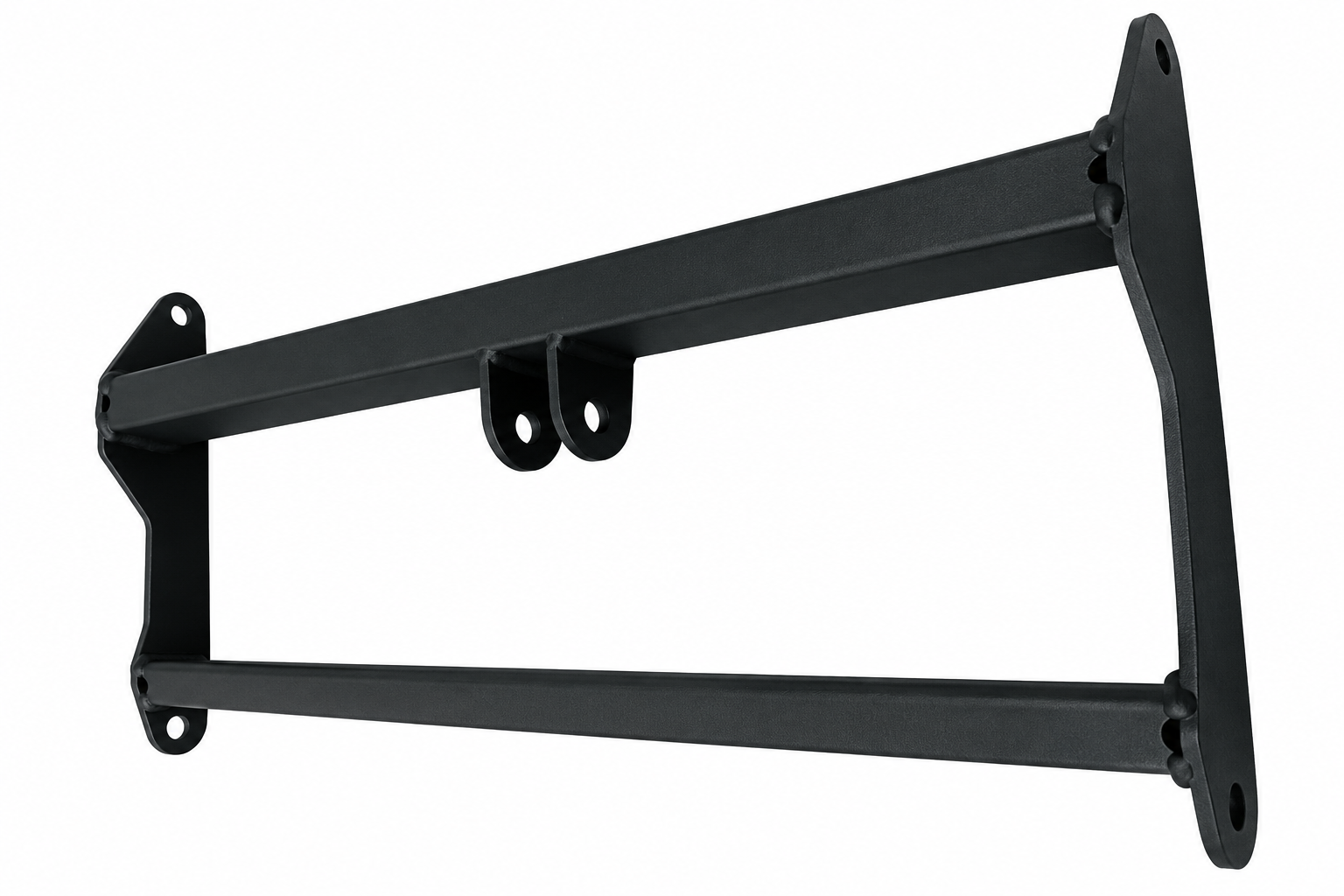

713095 1000233055 AH1 ELEVATION RACK SET;;;;;PAINTING;DM362 MA No Model Compatibility List $50.10 / Each

4,5,6,10
1000233057 713096 1000233057 N08 Fixing Plate;Fan;-;painting;DM362;TM683 No Model Compatibility List $7.36 / Each

8,3
713105 1000233126 B27 Finished treadmill deck;;675x1220x18T;NA No Model Compatibility List $191.64 / Each

3

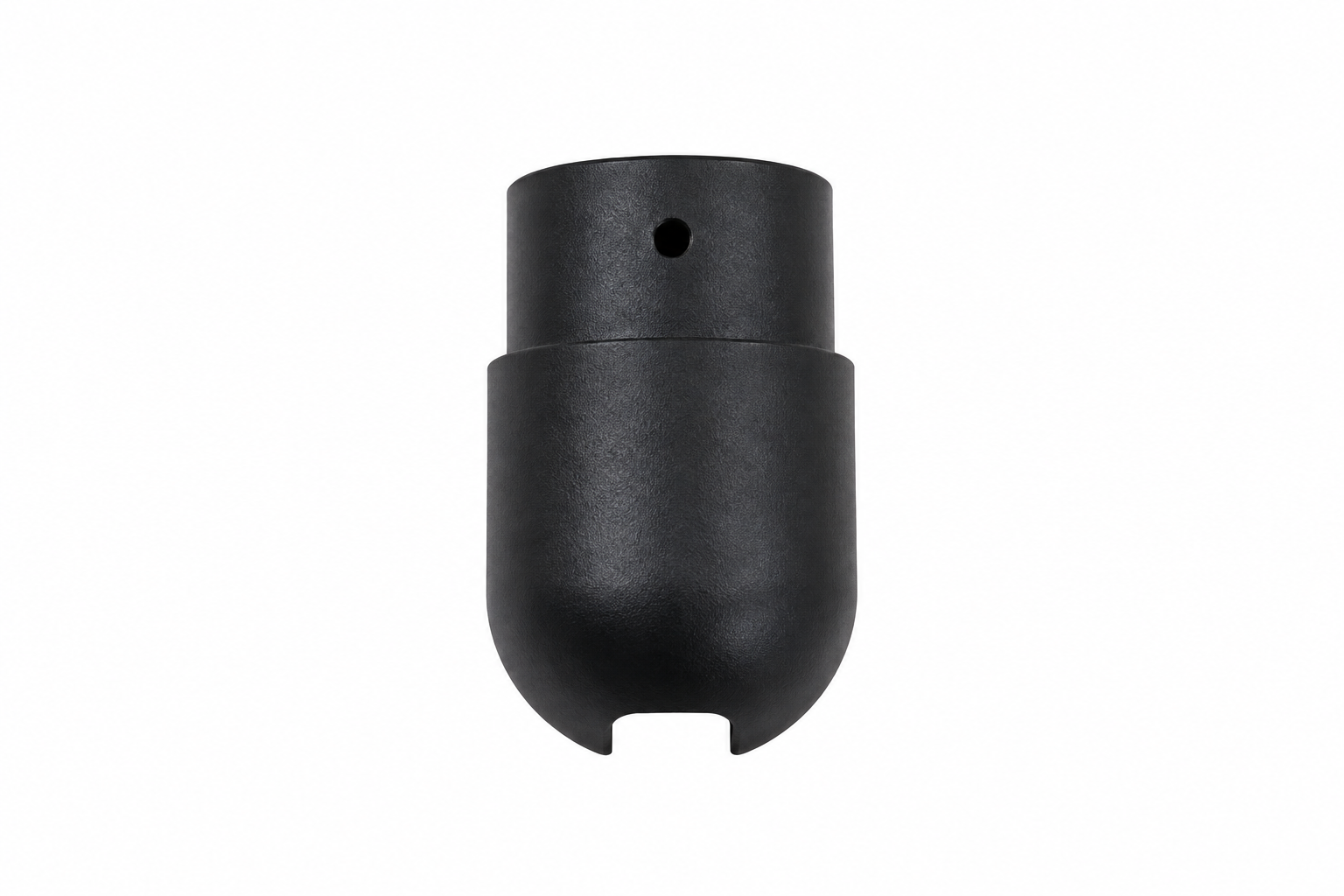

1000233127 713106 1000233127 C15 Cap;Console Mast;-;-;Black No Model Compatibility List $1.46 / Each

9

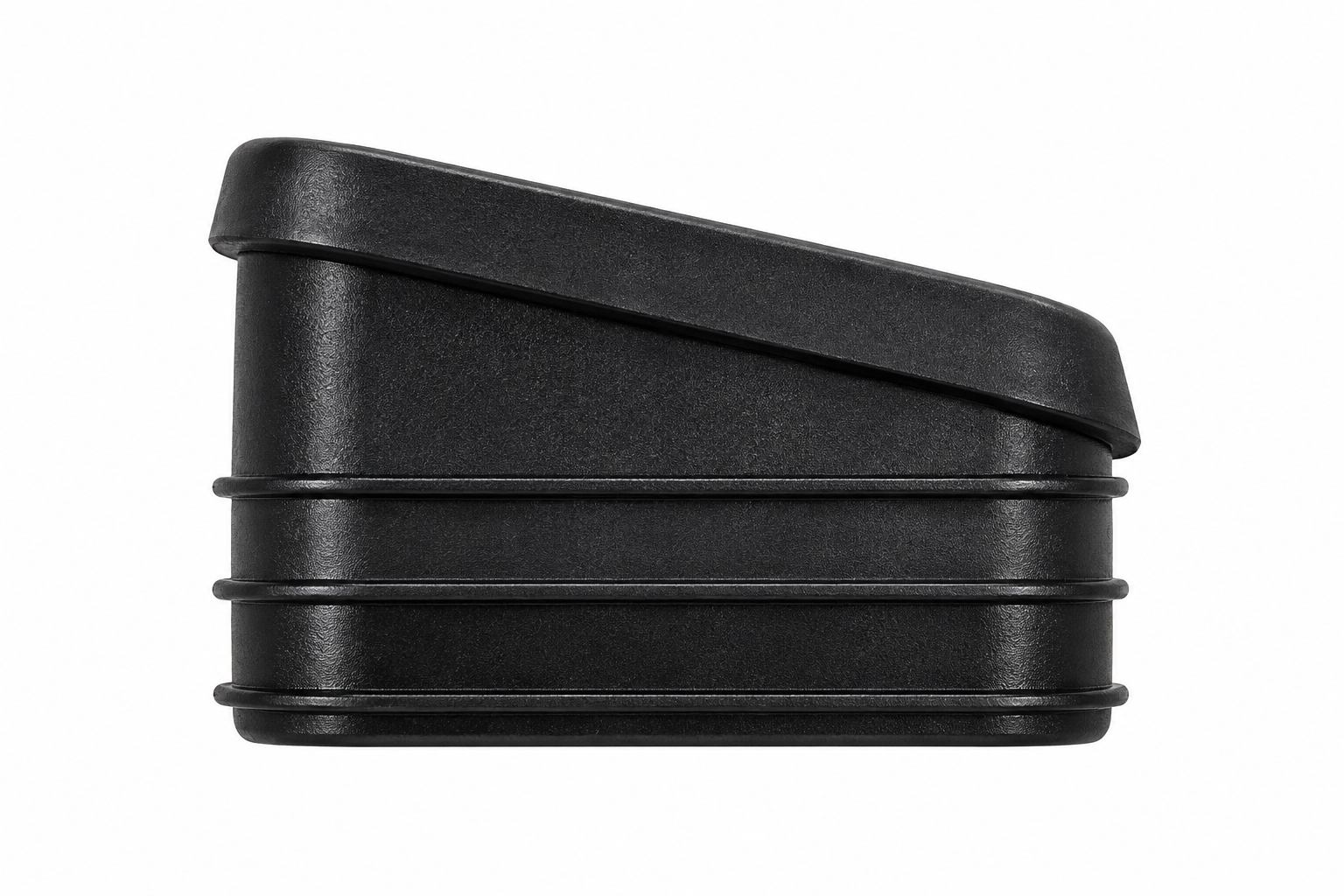

1000233128 713107 1000233128 C14 END CAP;;;;;BL;HANDLEBAR;;TM683-1US; No Model Compatibility List $1.46 / Each

9,11
1000233224 713133 1000233224 9 Sleeve Set;Semi-Assy;;;;TM683;; No Model Compatibility List $22.10 / Each

3

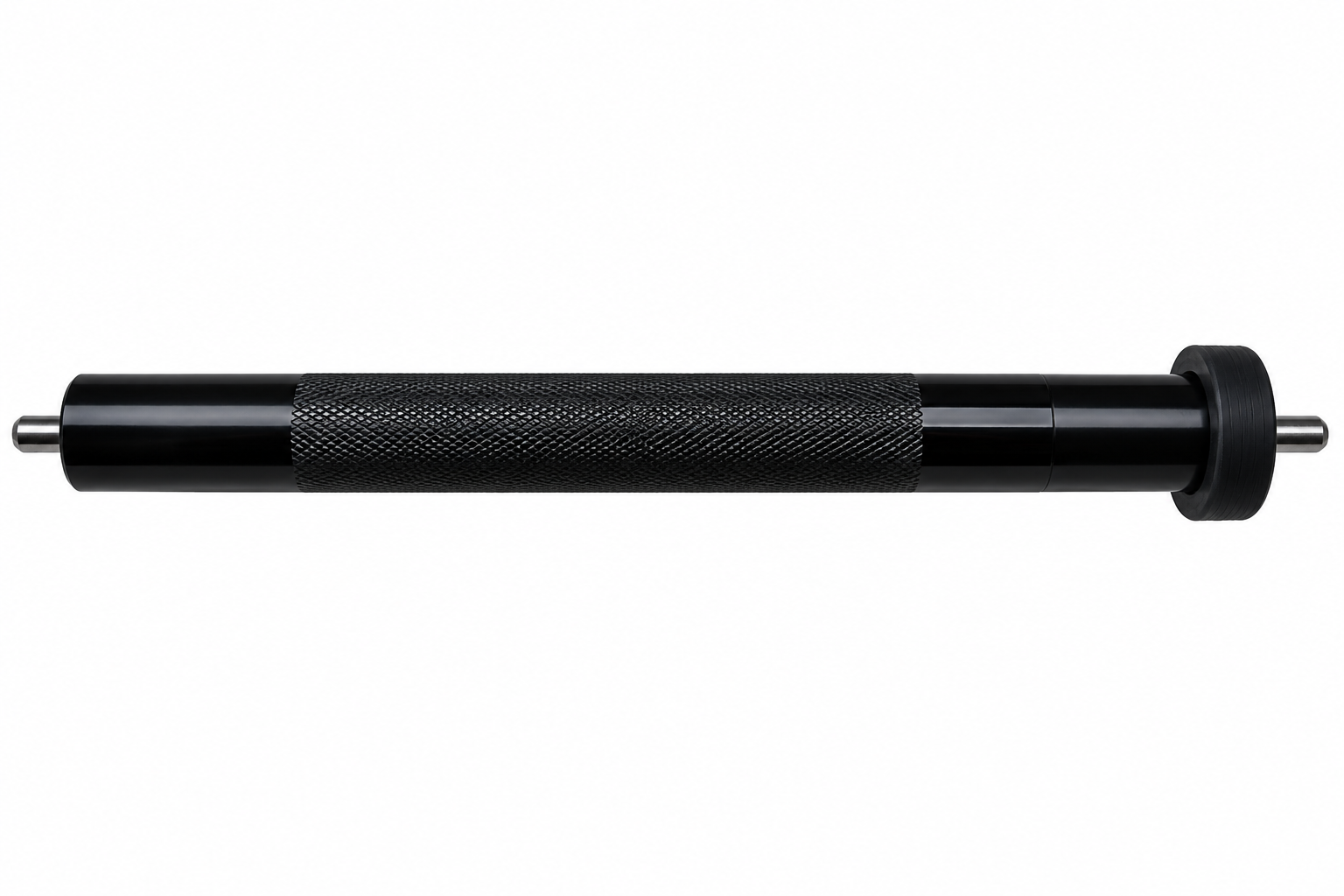

1000300285 713222 1000300285 AR1 Roller Set;Semi-Assy;front;TM683;;With T Yes Model Compatibility List $147.40 / Each

8
1000300286 713223 1000300286 N60 (Up)Control panel;;DC;HBPB;S101_08;;T202 No Model Compatibility List $221.12 / Each

7,4,5,6
1000300302 713228 1000300302 N62 Documentation;Overlay;Assembly;Down;Engl No Model Compatibility List $46.32 / Each

3

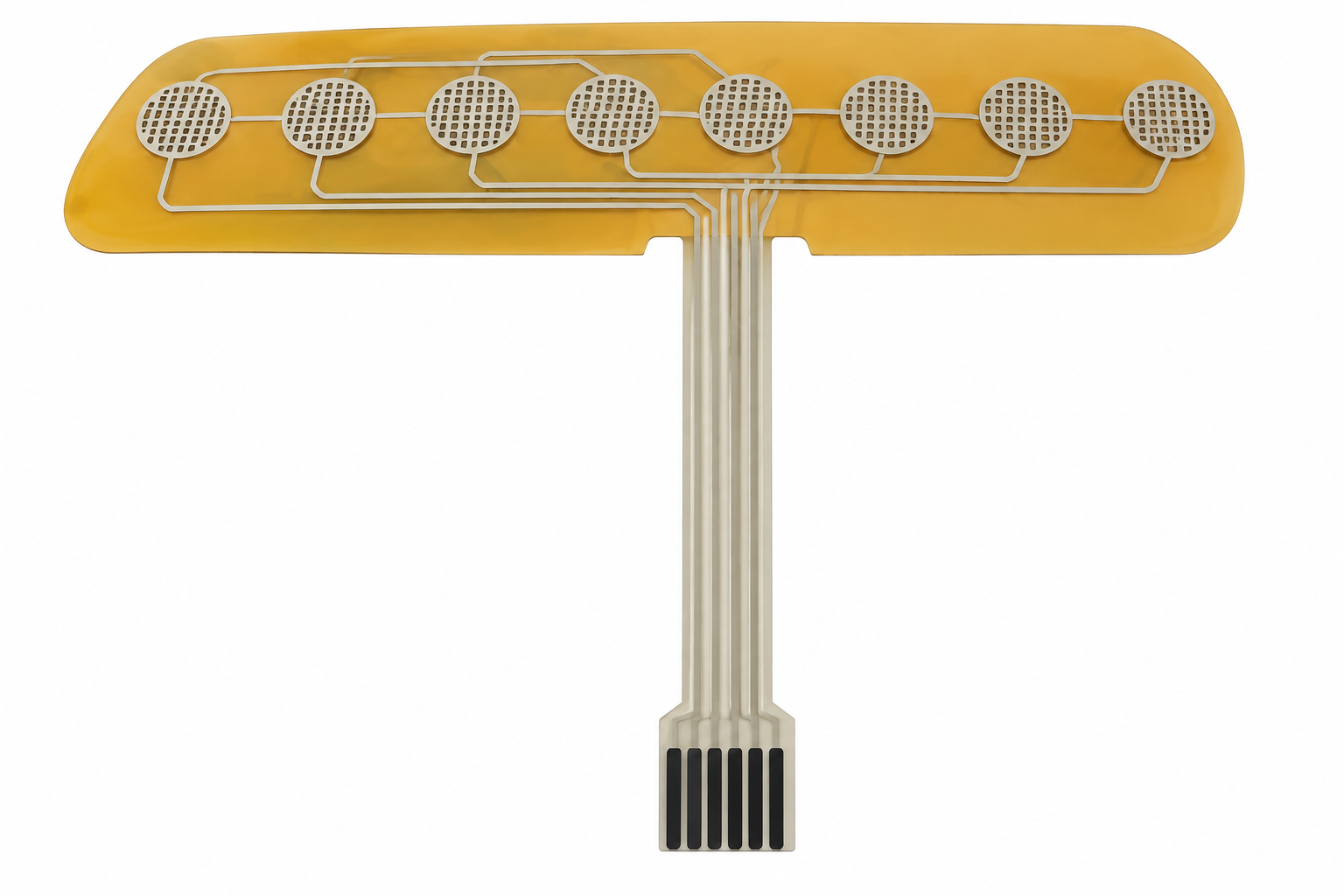

1000300308 713230 1000300308 N65 Documentation;Overlay;Assembly;Right-U;- No Model Compatibility List $14.72 / Each

3

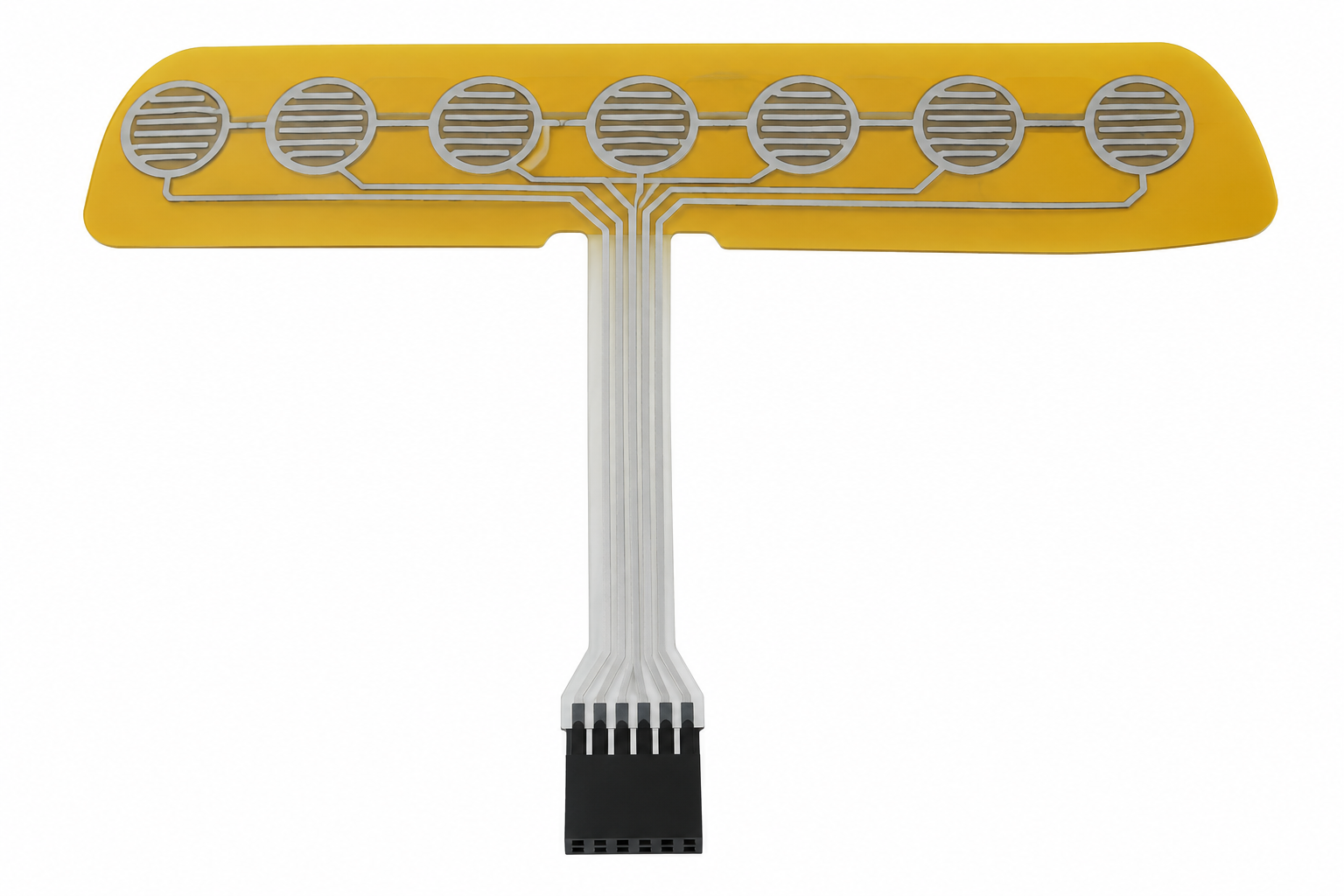

1000300310 713232 1000300310 N66 Documentation;Overlay;Assembly;Left-U;-; No Model Compatibility List $14.72 / Each

3

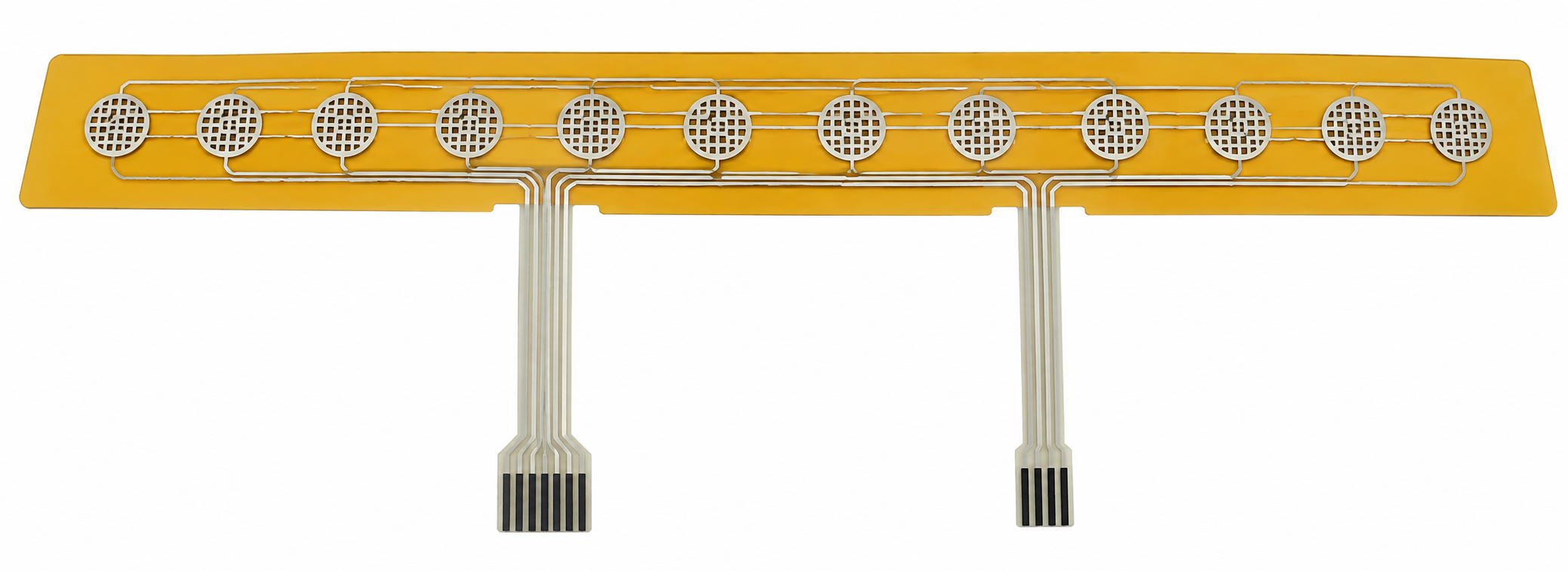

1000300311 713233 1000300311 N67 Documentation;Overlay;Assembly;M/R;-;T20 No Model Compatibility List $29.48 / Each

3
1000300495 713261 1000300495 N55 Exchanged Board;Keypad;DC;-;-;T101-04 No Model Compatibility List $2.94 / Each

9,4,5,6,12,13,14
1000300497 713262 1000300497 N58 Key wire;-;-;500L;XHS2.5-6P No Model Compatibility List $2.94 / Each

4
1000300575 713269 1000300575 Not Shown Documentation;Manual;Assembly/Manipulate No Model Compatibility List $29.48 / Each

3
1000300591 713270 1000300591 7 Console mast set;Semi-Assy;left;TM685-1U No Model Compatibility List $66.32 / Each

7
1000300594 713271 1000300594 8 Console mast set;Semi-Assy;right;TM685-1 No Model Compatibility List $70.74 / Each

7
1000300598 713272 1000300598 N01 Console Base Casing;Console;1;HIPS,PH-88 No Model Compatibility List $47.16 / Each

7,3
1000300599 713273 1000300599 N15 Kettle Rack;-;left;HIPS;BL/Black C;TM685 No Model Compatibility List $7.36 / Each

4,5,6
1000300600 713274 1000300600 N16 Kettle Rack;-;right;HIPS;BL/Black C;TM68 No Model Compatibility List $7.36 / Each

4,5,6

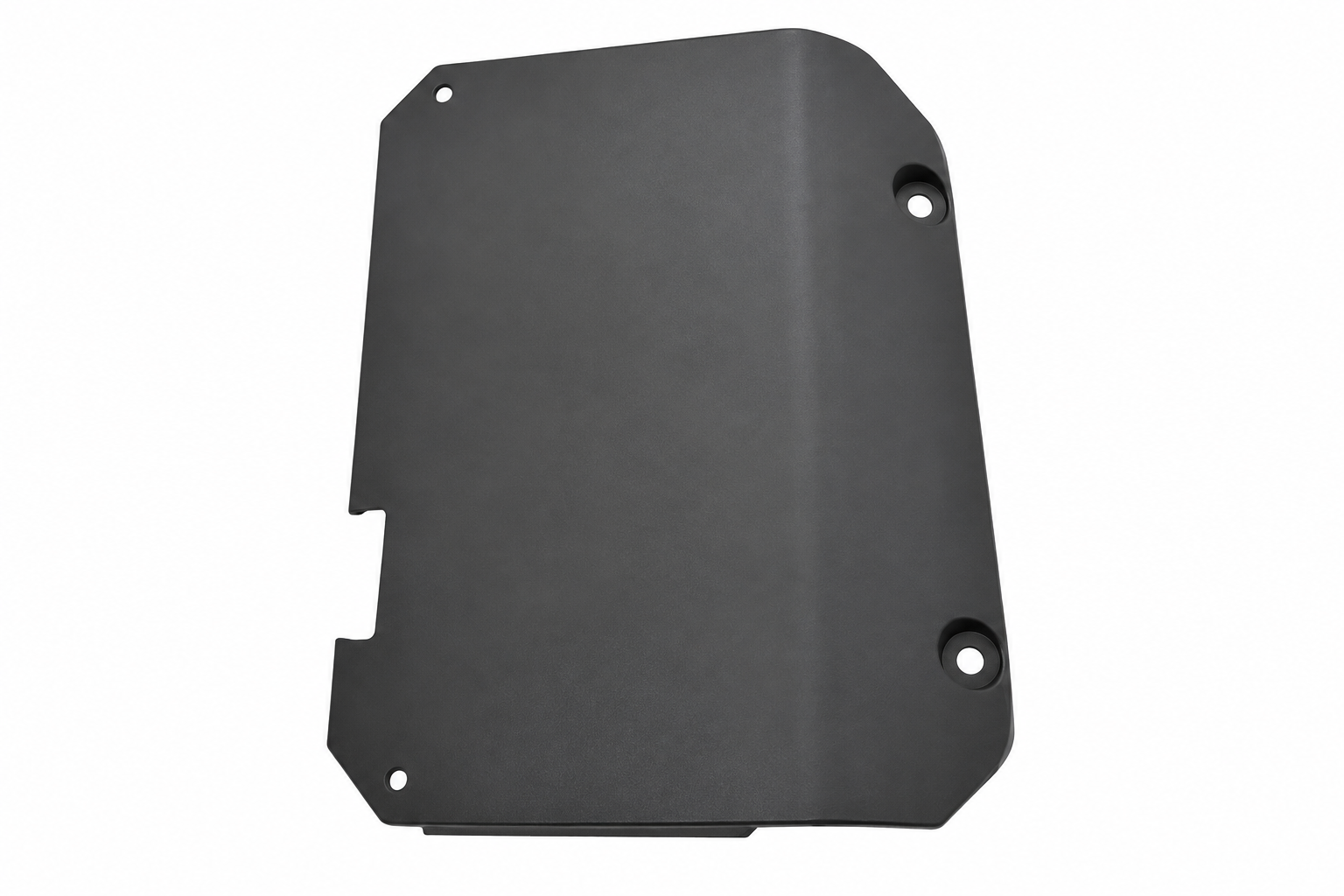

1000300601 713275 1000300601 N07 Plastic Cover;Console;back;PP-MT1600;Q75 No Model Compatibility List $2.94 / Each

7,9,4,5,6

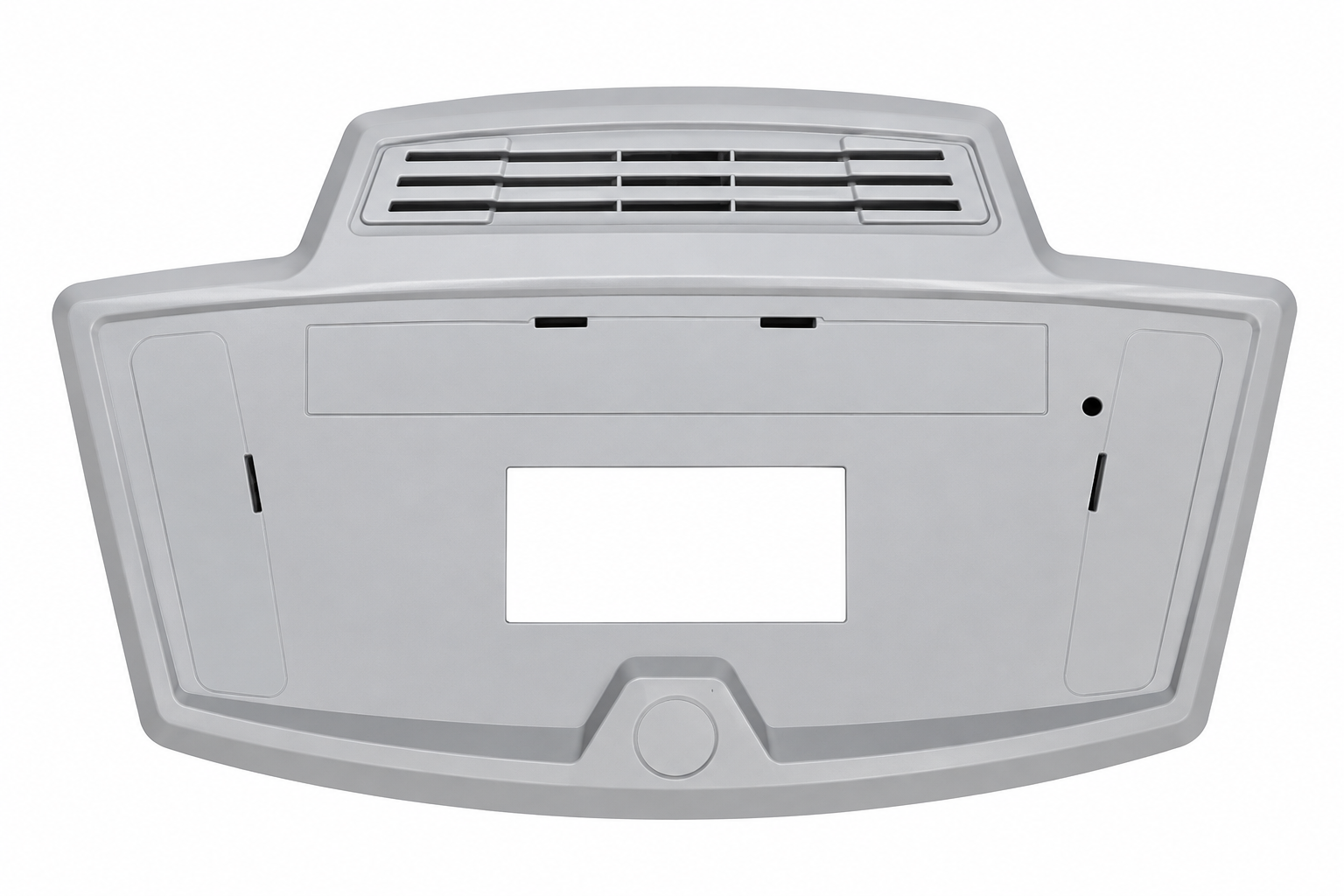

1000300602 713276 1000300602 N02 Console BOARD;Console;-;painting;MM314;T No Model Compatibility List $20.62 / Each

7

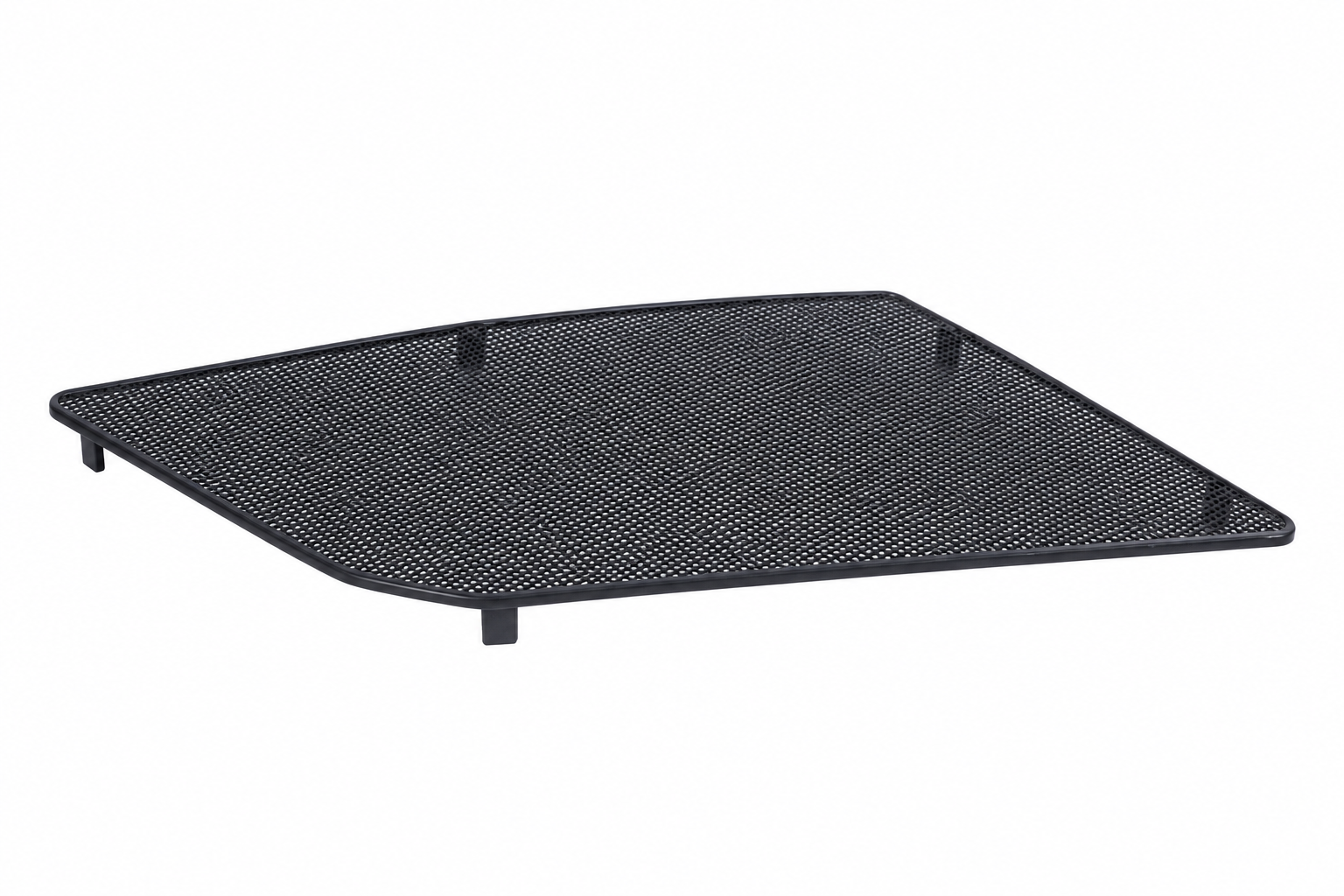

1000300604 713277 1000300604 N04 Speaker Cover;-;L;painting;MM314;TM685-1 No Model Compatibility List $14.72 / Each

9
1000300605 713278 1000300605 N05 Speaker Cover;-;R;painting;MM314;TM685-1 No Model Compatibility List $14.72 / Each

9
1000300606 713279 1000300606 16 Console Base Set;Semi-Assy;down;TM685-1U No Model Compatibility List $79.60 / Each

7,3
1000300607 713280 1000300607 V09 Decorated Label;Side Rail;-;-;Right;-;TM No Model Compatibility List $1.46 / Each

9
1000300609 713281 1000300609 V04 Decorated Label;Side Rail;-;-;Left;-;TM6 No Model Compatibility List $1.46 / Each

9
1000300622 713282 1000300622 Q01 cover-Extrawork;MOTOR;-;Screen print;TM6 No Model Compatibility List $29.48 / Each

9,10

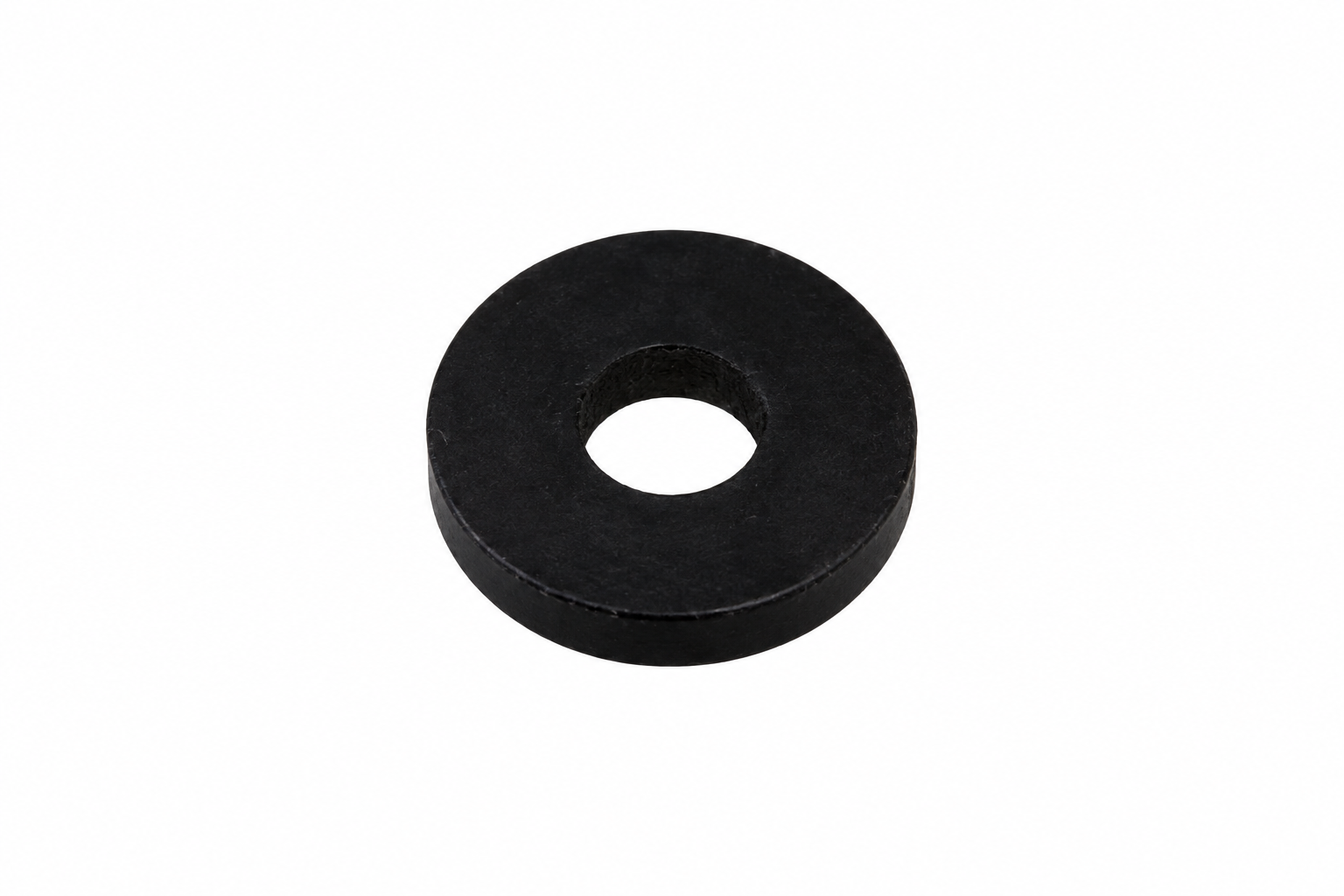

1000301864 713351 1000301864 B58 Cushion;-;-;Conduct Rubber;BL/Black C;TM No Model Compatibility List $1.46 / Each

3,4,5,6
1000302349 713420 1000302349 Q06 Side Rail-Extrawork;-;left;Screen print; No Model Compatibility List $23.58 / Each

9
1000302350 713421 1000302350 Q07 Side Rail-Extrawork;-;right;Screen print No Model Compatibility List $23.58 / Each

9
1000303110 713430 1000303110 N61 Documentation;CTL Overlay;;UP;EN/FR;TM68 No Model Compatibility List $44.22 / Each

1
1000303111 713431 1000303111 N62 Documentation;CTL Overlay;;Down;EN/FR;wi No Model Compatibility List $49.00 / Each

1

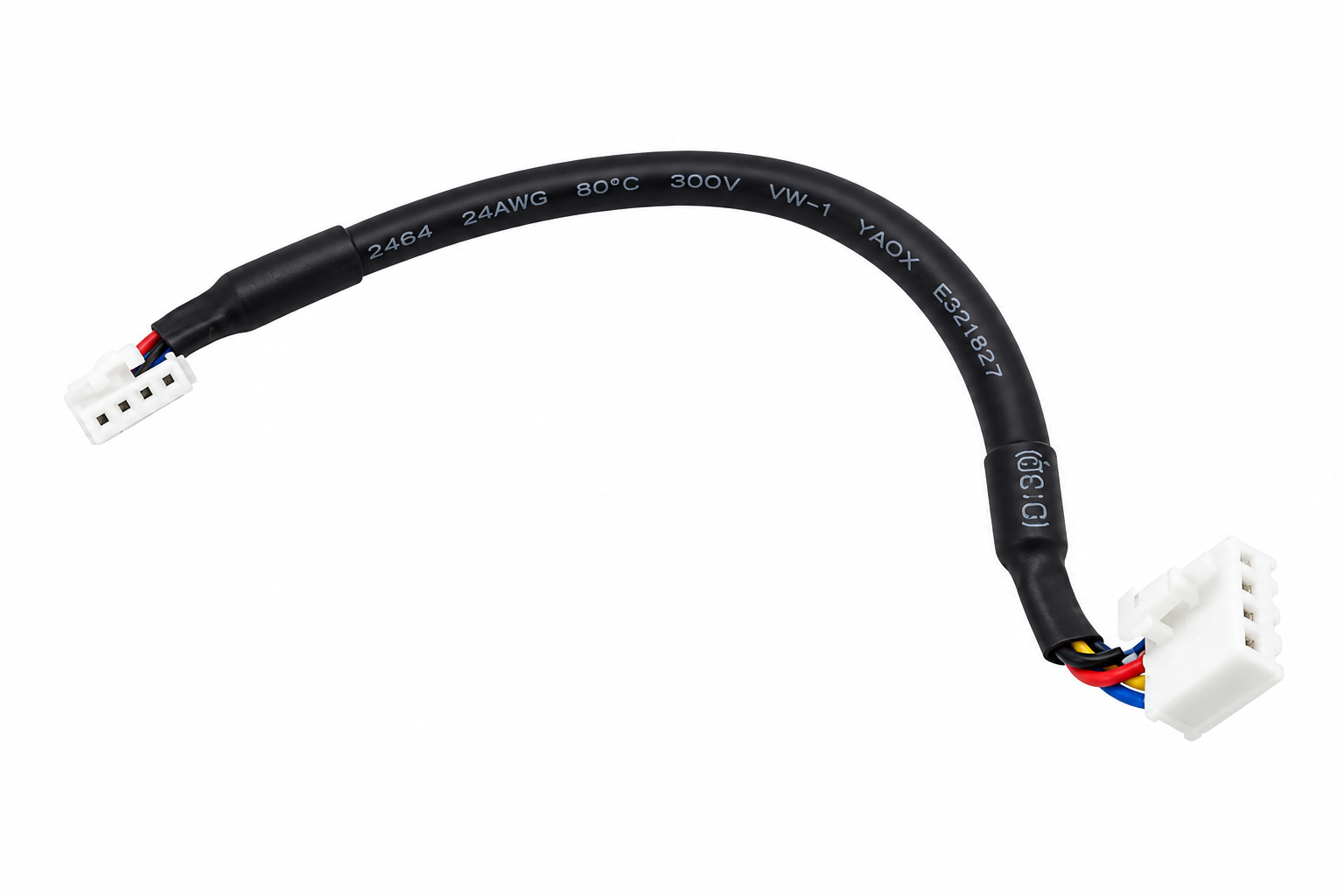

1000303176 713437 1000303176 N56 POWER AMPLIFIER-AUDIO WIRE;-;-;150L;(XHS No Model Compatibility List $2.94 / Each

4,5,6
1000303545 713459 1000303545 R02 Treadmill Belt;Running Belt;Black;495x29 No Model Compatibility List $191.64 / Each

15,4,5,6

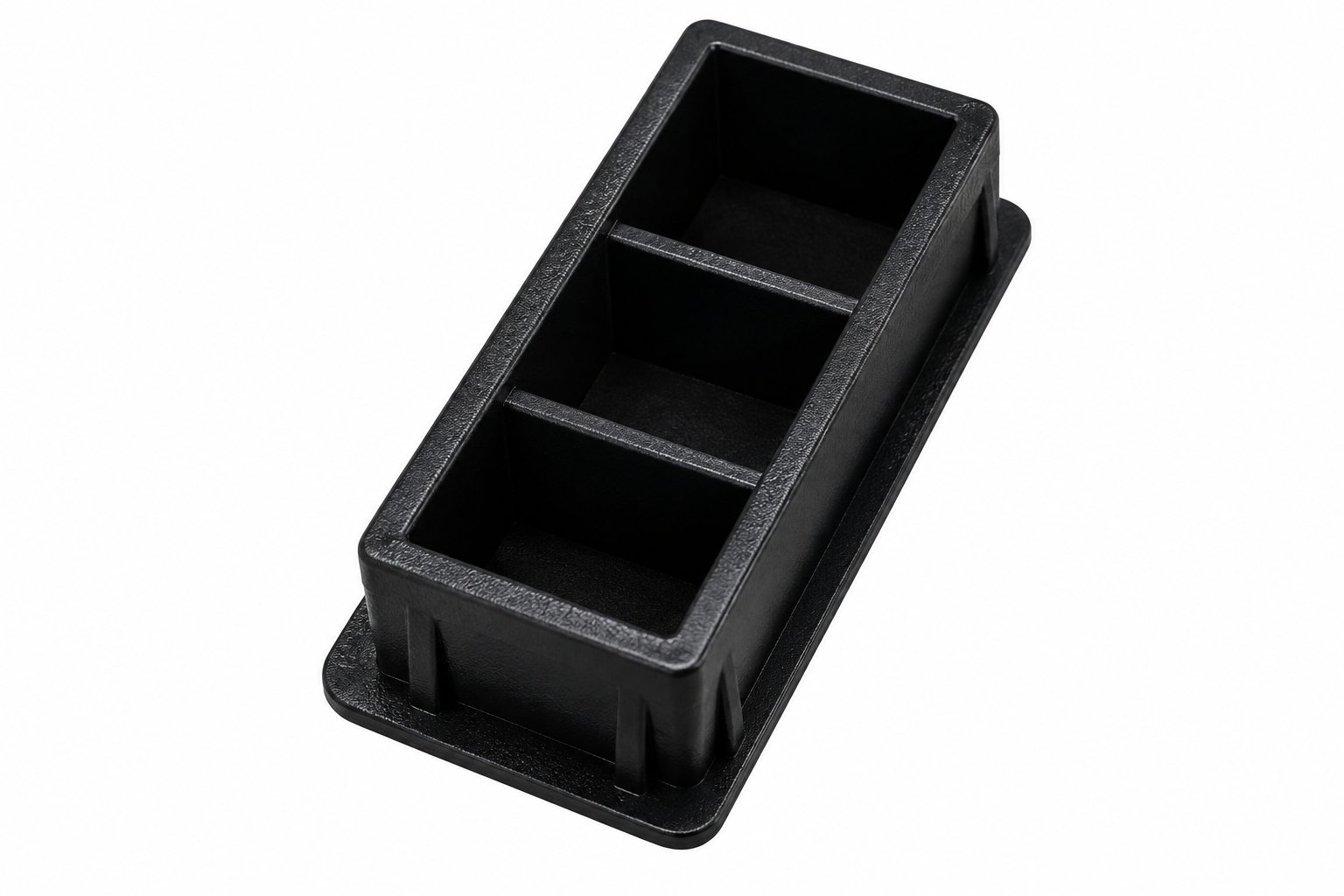

1000303759 713468 1000303759 B59 Cap;Square Tube;-;PP;BL/Black C;25.0x50. No Model Compatibility List $1.46 / Each

9,3,4,5,6

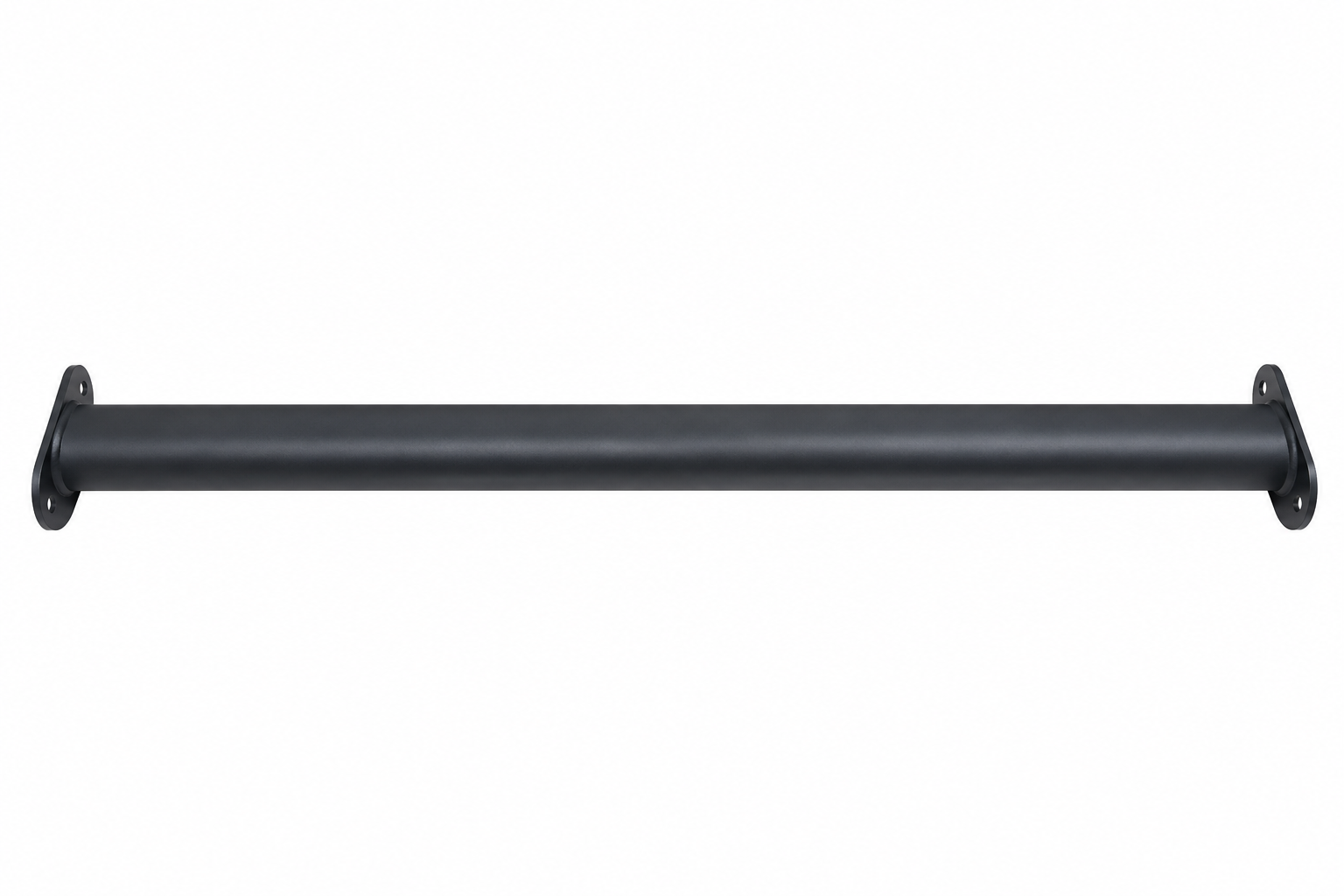

1000303988 713477 1000303988 AC3 Supt Rod Set;Console;M;painting;DS023;Sa No Model Compatibility List $67.80 / Each

7,3
1000304063 713480 1000304063 P30 Console connected wire;-;Middle;-;1200L; No Model Compatibility List $7.36 / Each

7,4,5,6

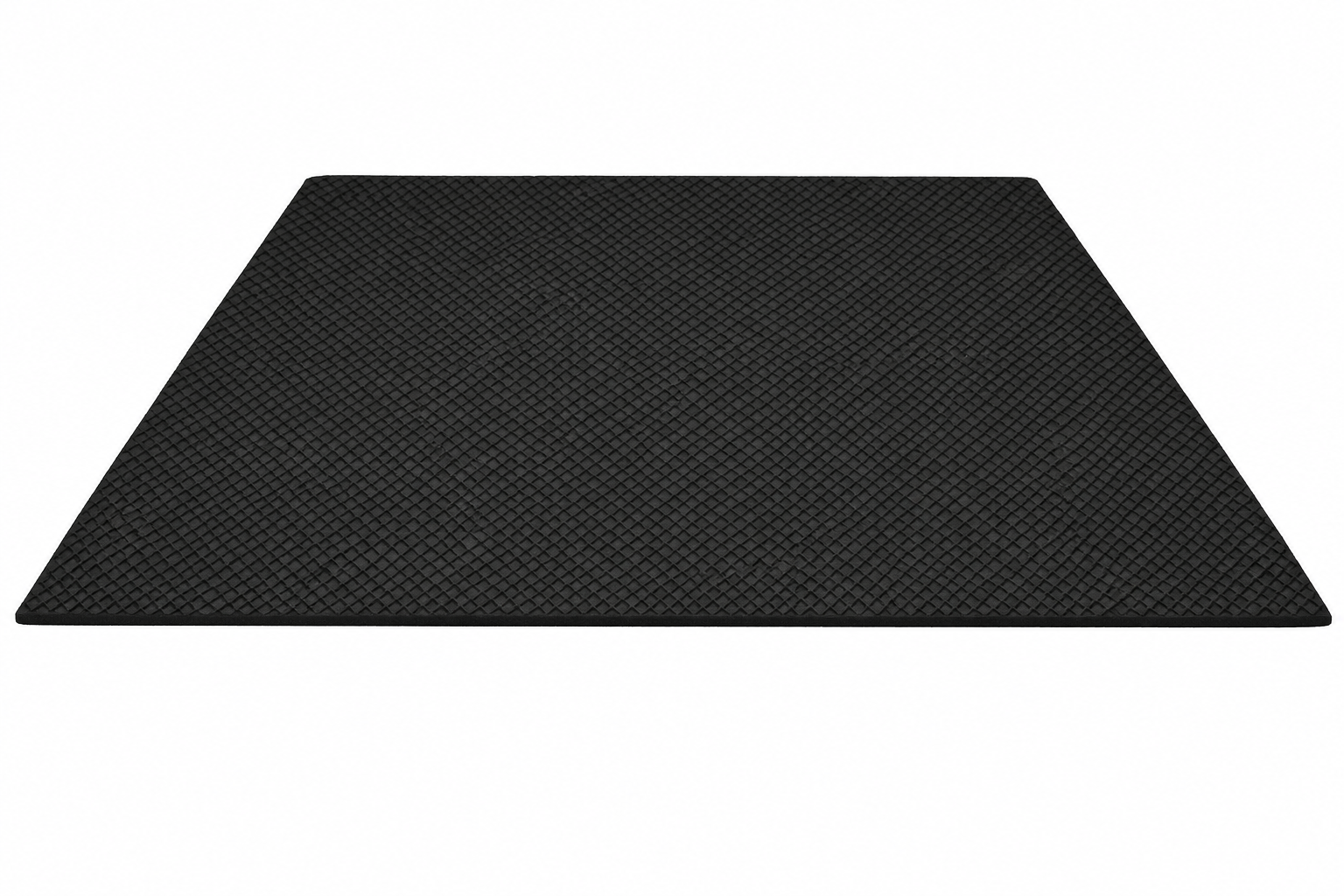

1000304291 713481 1000304291 V17 Foam;-;BLACK;217.5x109.8x1.5T;Overlay;TM No Model Compatibility List $2.94 / Each

4,5,6

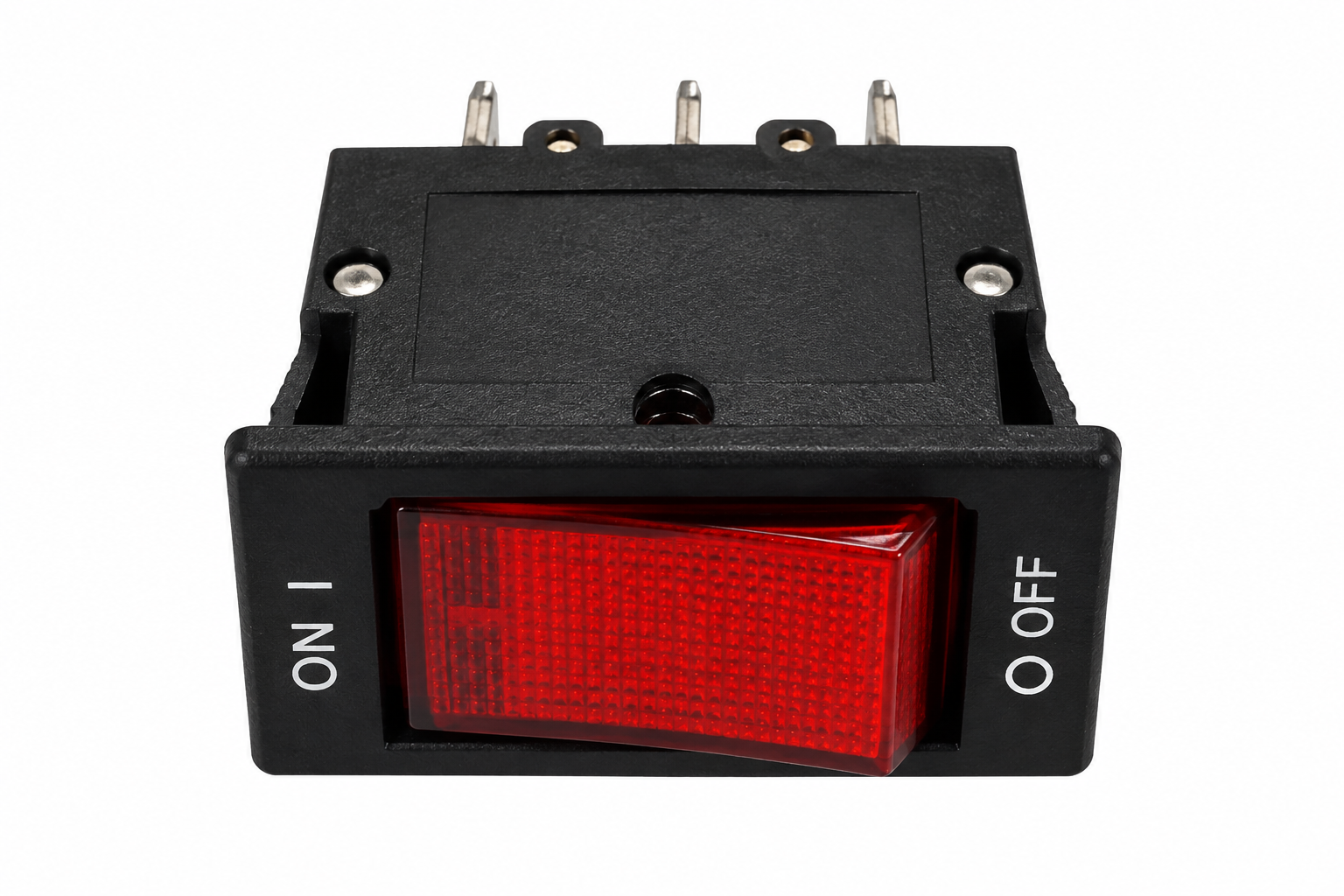

1000304484 713522 1000304484 P02 Power Switch;Single Pole;W/ Light;125V;- No Model Compatibility List $7.36 / Each

4,5,6
1000304795 713537 1000304795 N77 LOGO Label;;Diam.30;AL; No Model Compatibility List $2.94 / Each

1
1000306257 713665 1000306257 Z01 Screw;Round Head;M8X1.25PX60L-30L;;Hex S No Model Compatibility List $1.54 / Each

2

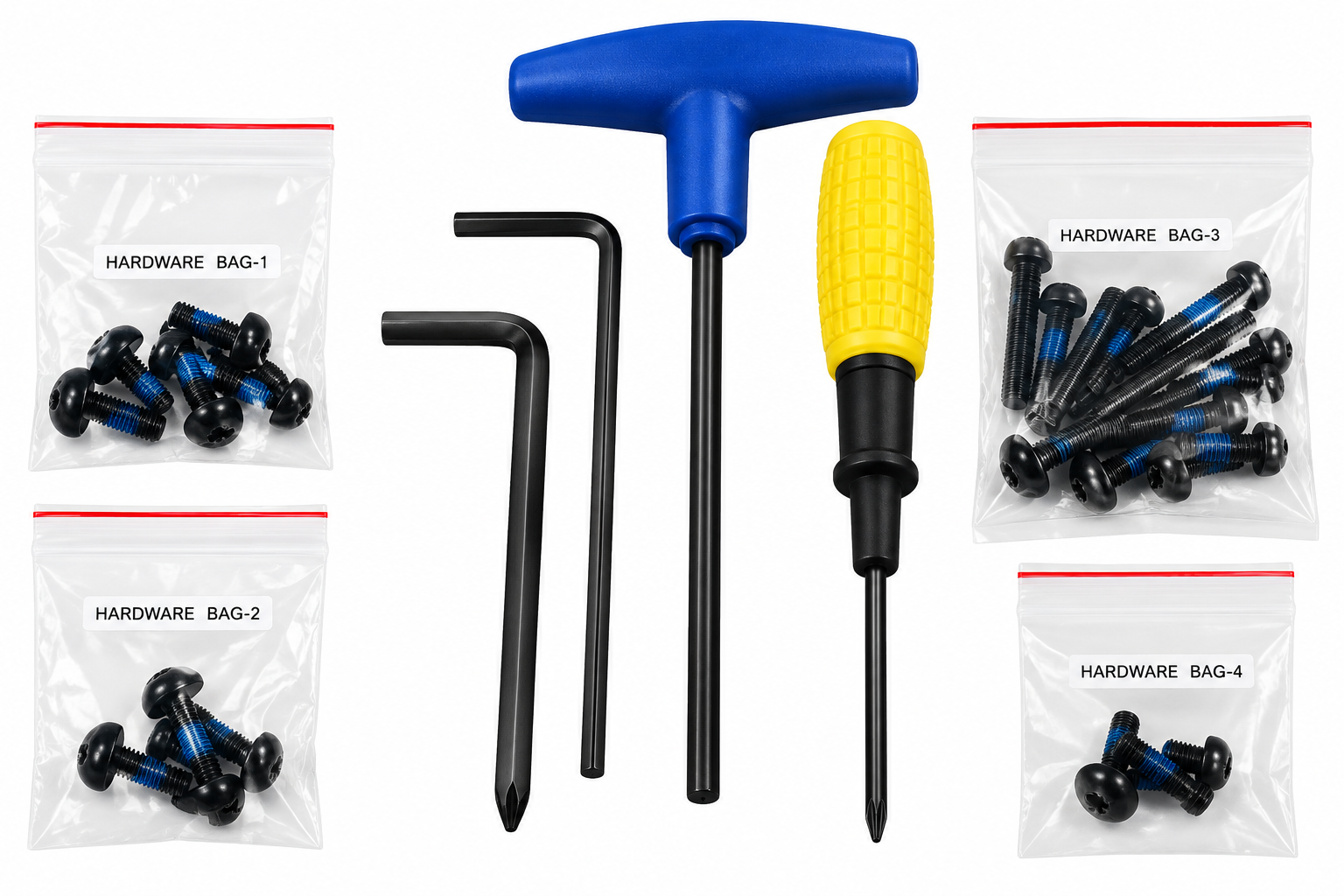

1000306588 713689 1000306588 Not Shown Hardware Set;Semi-Assy;;TM685 No Model Compatibility List $23.16 / Each

1
1000308295 713789 1000308295 V11 POP Sticker;Kettle;T202;;;Left;; No Model Compatibility List $1.46 / Each

12,13,14
1000308297 713790 1000308297 V13 POP Sticker;Kettle;T202;;;Right;; No Model Compatibility List $1.46 / Each

12,13,14
1000308299 713791 1000308299 V26 POP Sticker;Motor Cover;CT7.2;;;;; No Model Compatibility List $7.36 / Each

9,10,12,13,14
1000308911 713853 1000308911 V14 POP Sticker;Console Overlay;French;;;;; No Model Compatibility List $1.46 / Each

7,12,13,14
1000309194 713876 1000309194 14 Console set;Semi-Assy;;;;TM685B;;Sale Se No Model Compatibility List $589.66 / Each

7
1000309195 713877 1000309195 17 Motor Cover Set;Semi-Assy;;;;TM685B;;Sal No Model Compatibility List $39.78 / Each

9,10

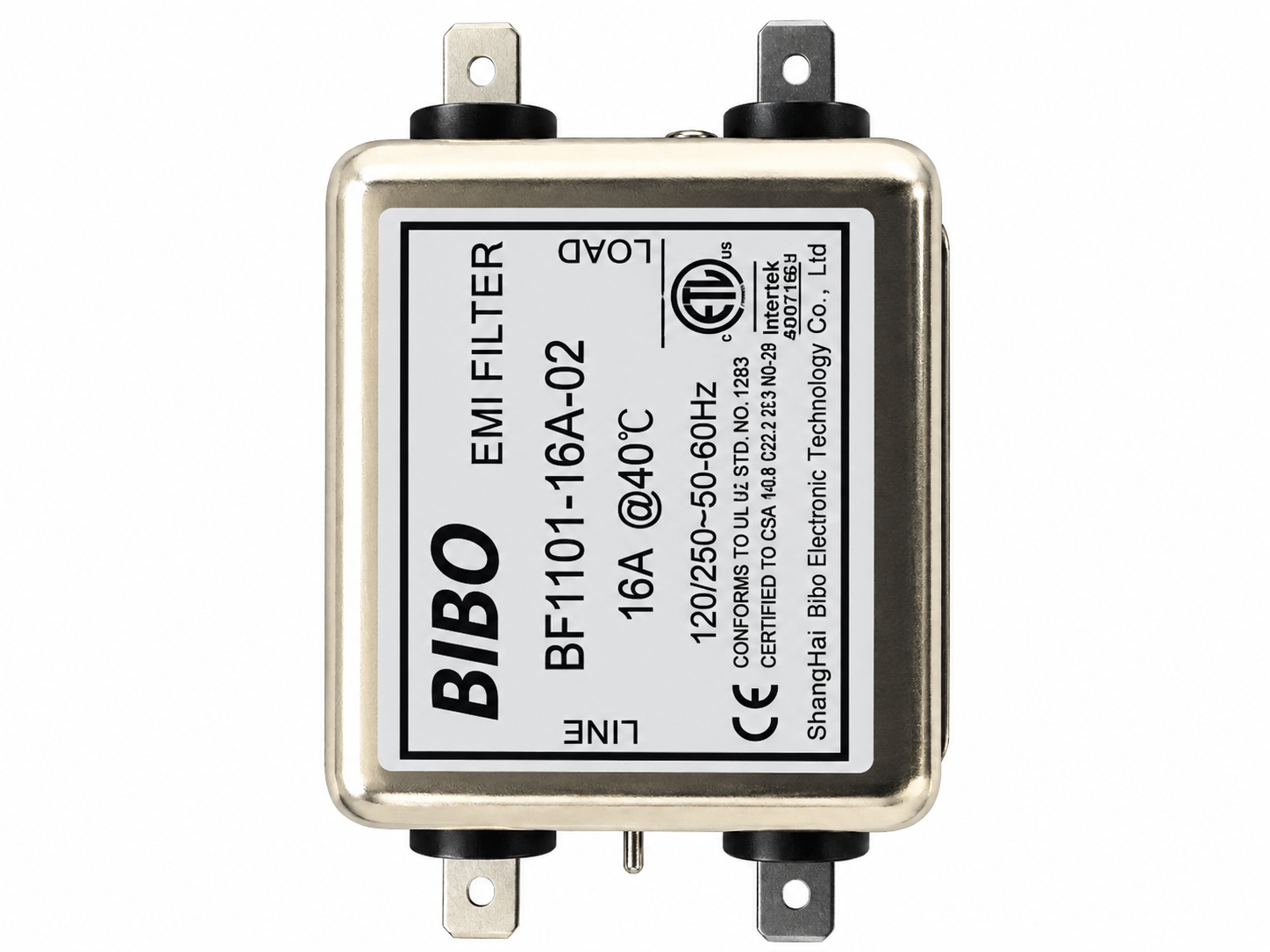

1000318763 714862 1000318763 Not Shown BIBO Filter;Power;16A;;BF1101-16A-02;120V/250 Yes Model Compatibility List $42.74 / Each

4,5,6
1000351528 718570 1000351528 H06 Screw;Special;M8x1.25Px11L-D10x13.2L;;;4 No Model Compatibility List $1.42 / Each

2
073303 725571 073303 N68 Console Fan Yes Model Compatibility List $29.32 / Each

8
080869 726233 080869 Not Shown Speed feedback system;Motor controller2. No Model Compatibility List $22.30 / Each

7,8,4,5,6,10
082406 726503 082406 M38 Speed Sensor Yes Model Compatibility List $23.92 / Each

1
094040 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $1.90 / Each

9,3
097076 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.46 / Each

4,5,6
098282 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $24.10 / Each

12,13,14

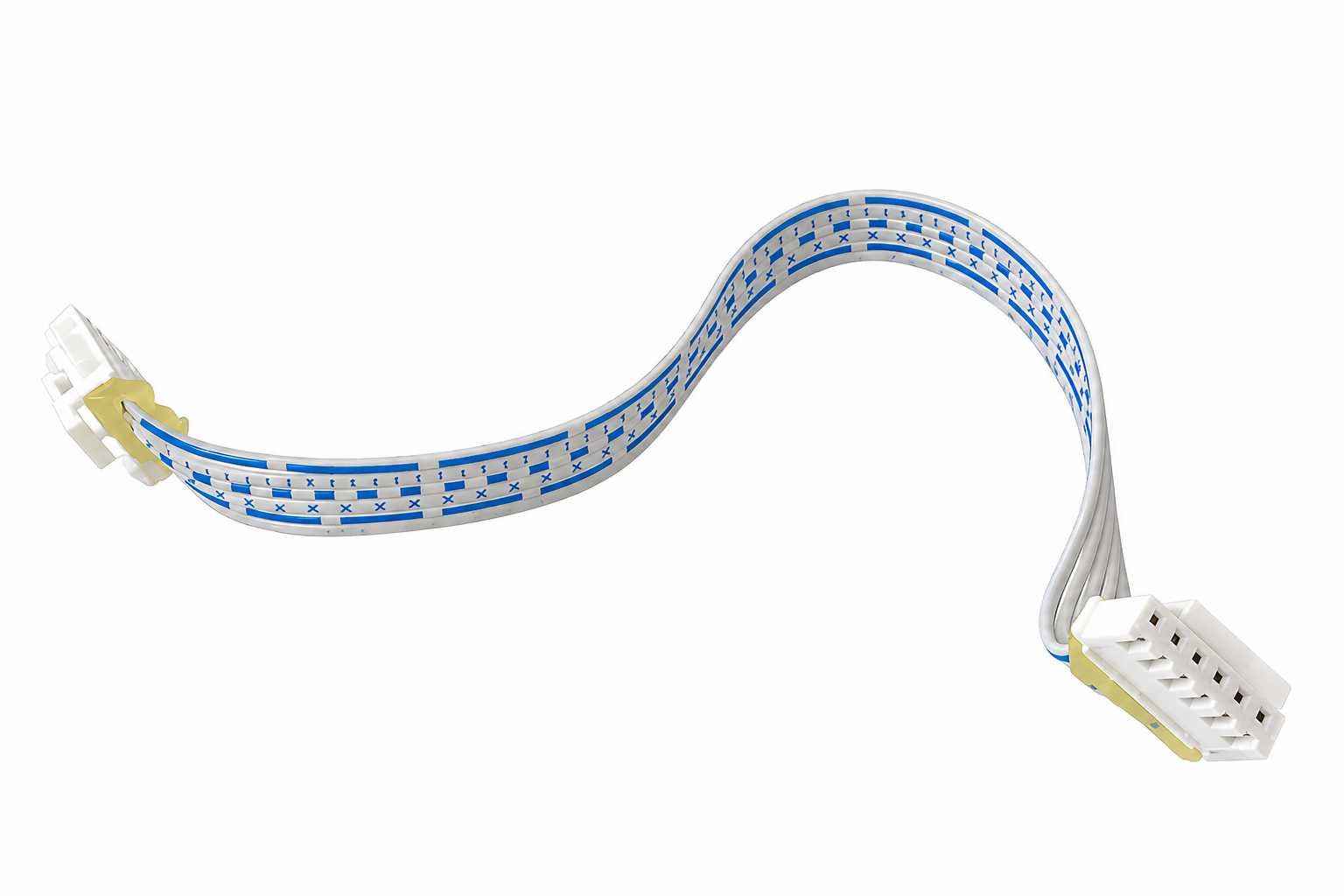

098803 728909 098803 N57 Connected Wire;IPOD-PCB;180mm(XHS-6Y)x2 No Model Compatibility List $7.36 / Each

4,5,6
099695 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $147.40 / Each

8
728977 N/A AB1 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock
7
729124 Part of Kit 12 M04 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729133 Part of Kit 16 AN1 Stabilizer;Front;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729194 Part of Kit 7 AC1 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729197 Part of Kit 8 AC2 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729201 Part of Kit 9 H08 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
View Drawing
