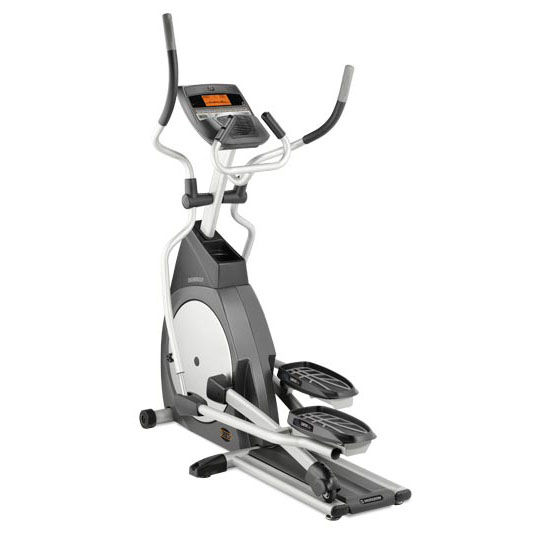

Horizon Fitness - CX66 - 2008

Repair Parts for Horizon Fitness CX66 EP180B

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: CX66

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
G 700065 000241-EA G19 Cover;Handlebar;Front Left or Rear Right Yes Model Compatibility List $8.40 / Each

9,11
G 700066 000242-DA G20 Cover;Handlebar;Front Right or Rear Left Yes Model Compatibility List $8.40 / Each

9,11
E 700127 000476-BA E18 Cover;Roller Wheel Yes Model Compatibility List $9.57 / Each

8,9
B 700132 000485-00 B24 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B23 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
700152 000522-D L11 Leveler Yes Model Compatibility List $11.60 / Each

3
C 700318 000940-A C08 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
J 700462 001424-BA J07 End Cap;Crank Cover No Model Compatibility List $3.82 / Each

8,9
P 700770 002231-B P04 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
P 700893 002671-A P08 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
R 701042 003413-00 R16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
E 701089 003709-00 E13 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
R 701207 004162-00 R11 Drive Belt;Poly-V;400-J8 Yes Model Compatibility List $57.49 / Each

15,10
Z 701288 004356-00 Z30 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
Z 701291 004357-00 Z16 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

2
Z 701300 004364-00 Z17 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
N 701316 004372-00 N10 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
J 701358 004409-00 J06 Screw;Phillip;BH;M5x0.8Px20L No Model Compatibility List $2.00 / Each

2
P 701574 004608-00 P06 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

2
S 701613 004632-00 S03 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z04 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
E 701716 004735-00 E25 Screw;Oval Hex Socket;M8x1.25Px45L-15L No Model Compatibility List $2.00 / Each

2
Z 701728 004751-00 Z05 Screw;Hex Socket;BH;M8x1.25Px13L;Adhere No Model Compatibility List $2.00 / Each

2
Z 701748 004771-00 Z14 Screw;Oval;Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
Z 701781 004796-00 Z02 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
G 701796 004811-A G11 Screw;Umbrella Hex Socket;M8x1.25Px15L No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G27 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
P 701848 004865-00 P07 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
R 701874 004901-00 R17 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
E 701893 004925-00 E10 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
Z 701897 004926-00 Z13 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R12 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
R 701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 701964 005005-00 Z03 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
G 701991 005029-00 G24 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
H 702015 005049-00 H20 Washer;Flat;8.2x18.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702018 005053-00 Z07 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
Z 702020 005055-00 Z08 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
R 702024 005057-Z R20 Washer;Flat;12.7x23x2.2T No Model Compatibility List $1.66 / Each

2
E 702046 005075-00 E21 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702068 005097-00 L07 Washer, Flat;5/16x30x1.5T No Model Compatibility List $2.00 / Each

2
G 702078 005110-00 G22 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
Z 702107 005136-A Z25 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702135 005163-00 Z24 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
H 702159 005195-00 H27 Washer;Teflon;25.5X38.0X1.0T No Model Compatibility List $4.00 / Each

2
Z 702161 005198-00 Z09 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G10 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2
G 702178 005220-00 G23 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702180 005222-00 Z06 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
H 702184 005227-Z H28 Washer;Wavy;26x34x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
R 702193 005239-00 R18 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q04 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
C 702240 005365-00 C09 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
R 702241 005366-00 R06 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
Z 702259 005395-00 Z20 Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

2
Z 702262 005408-A Z19 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

2,10
Z 702264 005412-00 Z27 Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
G 702298 005505-00 G25 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
Q 702483 007964-00 Q05 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
Z 702625 009053-D Z12 Inner Bushing;Pedal Arm No Model Compatibility List $3.82 / Each

8,9,3
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

10
E 702898 013124-Z E09 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

8
E 703864 018828-CA E12 Cover;Pedal Arm;Front Yes Model Compatibility List $9.02 / Each
Out Of Stock 		3,8,9
H 703865 018831-AA H23 Cap,Lower Link Arm Yes Model Compatibility List $1.90 / Each

9,3
H 703868 018867-C H14 Cover;Lower Handlebar;Right No Model Compatibility List $9.57 / Each

9,11
703873 018880-C L09 Stabalizer Leveler;Main Frame Yes Model Compatibility List $10.82 / Each

3
L 703876 018884-B L10 Axle;Base Frame;15.88xL616 No Model Compatibility List $30.84 / Each

8,3
L 703890 019047-D L02 Sleeve;Base Frame Yes Model Compatibility List $3.82 / Each

3
P 703922 019439-A P03 Console Cable;1500 Yes Model Compatibility List $29.67 / Each

7,4,5,6
P 703942 019769-A P02 Pulse Grip Set No Model Compatibility List $18.28 / Each

12,13,14,11
R 704101 020244-B R08 Screw;Eye Hook;1/4"-20UNCx120L-35L;Black Zinc Yes Model Compatibility List $3.69 / Each

2,4,5,6
Z 704226 020656-X Z18 Wrench;Open-Type;13#17# No Model Compatibility List $3.69 / Each

2
R 704378 023535-Z R01 Pedal Axle Set Yes Model Compatibility List $169.03 / Each

8,9
R 705019 029510-EX R09 Drive Axle Set;6.5Kg Eddy Brake Mechanism Yes Model Compatibility List $172.46 / Each

8,10
Q 705385 049034-AA Q09 Console Mast Boot; No Model Compatibility List $17.47 / Each

7
S 706169 059755-A S02 Tension Cable No Model Compatibility List $12.48 / Each

4,5,6
Q 706231 060352-AAX Q03 Top Cap No Model Compatibility List $52.49 / Each

9
B 706705 064736-AA B26 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
R 706784 065506-A R19 Ring; No Model Compatibility List $3.54 / Each

1
A 707188 1000091136 AJ1 Crank;;Painting;;KDA578A;EP125-AJ1 No Model Compatibility List $177.42 / Each

8
A 707288 1000091724 AG5 link ARM PULLEY FRAME WELDING TURE(Pa No Model Compatibility List $52.78 / Each

8,3
Z 709055 1000108777 Z01 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

2
J 725200 102654 J05 Disk;Painting;LM401;EP506 No Model Compatibility List $62.06 / Each

1
G 725255 103295 G13 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
E 725258 103298 E22 Bushing;Pivot Block;Pedal Arm No Model Compatibility List $11.96 / Each

8,9,3
H 725259 103299 H18 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Sticker; Left Pedal 725578 073513 H23 Sticker; Left Pedal No Model Compatibility List $1.90 / Each

8,9
Sticker; Right Pedal 725579 073514 H24 Sticker; Right Pedal No Model Compatibility List $1.90 / Each

8,9
Pull Pin;;BLA06 725613 074193 G32 Pull Pin;;BLA06 No Model Compatibility List $15.89 / Each
Out Of Stock 		12,13,14
Bushing; Lower Handlebar Set 725614 074194 G33 Bushing; Lower Handlebar Set No Model Compatibility List $3.54 / Each

8,11
725634 074315 Q01 Side Cover; Right No Model Compatibility List $62.82 / Each

9
Side Cover; Left 725635 074316 Q02 Side Cover; Left No Model Compatibility List $62.82 / Each

9
Cover;Stabilizer;,PVC,75140;EP180 725699 074877 B27 Cover;Stabilizer;,PVC,75140;EP180 No Model Compatibility List $20.44 / Each

9
Cover;Stabilizer;B;ABS,75140;EP180 725700 074878 B28 Cover;Stabilizer;B;ABS,75140;EP180 No Model Compatibility List $10.32 / Each

9
Sticker;Stabilizer;Rear;EP189 725783 076525 B41 Sticker;Stabilizer;Rear;EP189 No Model Compatibility List $1.77 / Each

1
CON Plate;Pedal;EP180 725860 077300 H19 CON Plate;Pedal;EP180 No Model Compatibility List $3.54 / Each

8,9,3
Pedal;Rubber;65-70;EP180 725861 077311 H15 Pedal;Rubber;65-70;EP180 No Model Compatibility List $27.59 / Each
Out Of Stock 		8,9
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
Down Arm Rest Tube;Down;EP180 725934 078436 G30 Down Arm Rest Tube;Down;EP180 No Model Compatibility List $66.35 / Each

3
Screw;Hex Socket;Round;M4x0.7Px5L;Cr; 726104 079955 G18 Screw;Hex Socket;Round;M4x0.7Px5L;Cr; No Model Compatibility List $1.85 / Each

2
Decal,Side Cover 726119 080113 V02 Decal,Side Cover No Model Compatibility List $3.54 / Each

7,9,3
Owner's Manual 726120 080121 KIT Owner's Manual No Model Compatibility List $8.94 / Each

1
726214 080746 AN1 Console Set No Model Compatibility List $709.77 / Each

7
726378 081504 AC1 Console Mast Set No Model Compatibility List $278.85 / Each

7
RIGHT PEDAL ARM SET 726379 081505 AE1 RIGHT PEDAL ARM SET No Model Compatibility List $124.67 / Each

8,9,3
LEFT PEDAL ARM SET 726380 081506 AE2 LEFT PEDAL ARM SET No Model Compatibility List $124.67 / Each

8,9,3
Right Lower Handlebar Set 726381 081507 AG3 Right Lower Handlebar Set No Model Compatibility List $222.64 / Each

11
Left Lower Handlebar Set 726382 081508 AG4 Left Lower Handlebar Set No Model Compatibility List $222.64 / Each

11
Left Lower Link Arm Set 726383 081509 AH2 Left Lower Link Arm Set No Model Compatibility List $264.47 / Each

3
Right Lower Link Arm Set 726384 081510 AH1 Right Lower Link Arm Set No Model Compatibility List $264.47 / Each

3
Hardware Kit 726391 081578 KIT Hardware Kit No Model Compatibility List $58.06 / Each

1
Left Upper Handlebar Set 726497 082367 AG2 Left Upper Handlebar Set No Model Compatibility List $94.07 / Each

11
Right Upper Handlebar Set 726498 082368 AG1 Right Upper Handlebar Set No Model Compatibility List $87.10 / Each

11
Pivot Tube Set 726499 082369 E20 Pivot Tube Set No Model Compatibility List $57.49 / Each

8,3
Adapter;100-240V/50HZ 12V/2A 727278 088261 P05 Adapter;100-240V/50HZ 12V/2A Yes Model Compatibility List $80.29 / Each

1
Bushing;Pivot Block Set 727576 090075 E20 Bushing;Pivot Block Set Yes Model Compatibility List $8.50 / Each

8
E 729400 ZMS2000082 E25 Bolt; M8x1.25Px45L No Model Compatibility List $3.69 / Each

2
S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
