Repair Parts for Horizon Fitness E1201 EP226
| Brand | Horizon Fitness |
|---|---|
| Type | Elliptical |
| Category | Traditional |
| Model Number | EP226 |
| Model Name | E1201 |
| Version | 2009 |
Model Numbers: EP226
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1001381 | 003326-00 | 0 | 1 | Power Switch | No |
Compatibility List |
$20.00 / Each
|
|
1001764 | 002169-A | 0 | 1 | Power Cord | No |
Compatibility List |
$39.99 / Each
|
|
1002002 | 002169-A | 0 | 1 | Cord Power | No |
Compatibility List |
$34.99 / Each
|
|
707351 | 1000092230 | AC1 | Console Mast Set | No |
Compatibility List |
$373.07 / Each
|
|
|
707346 | 1000092223 | AG1 | Handlebar Set, Right | No |
Compatibility List |
$344.53 / Each
|
|
|
707345 | 1000092222 | AG2 | Handlebar Set, Left | No |
Compatibility List |
$344.53 / Each
|
|
|
707401 | 1000092537 | AG3 | SMALL HANDLEBAR SET | No |
Compatibility List |
$339.22 / Each
|
|
|
707347 | 1000092224 | AH2 | Lower Link Arm Right | No |
Compatibility List |
$499.85 / Each
|
|
|

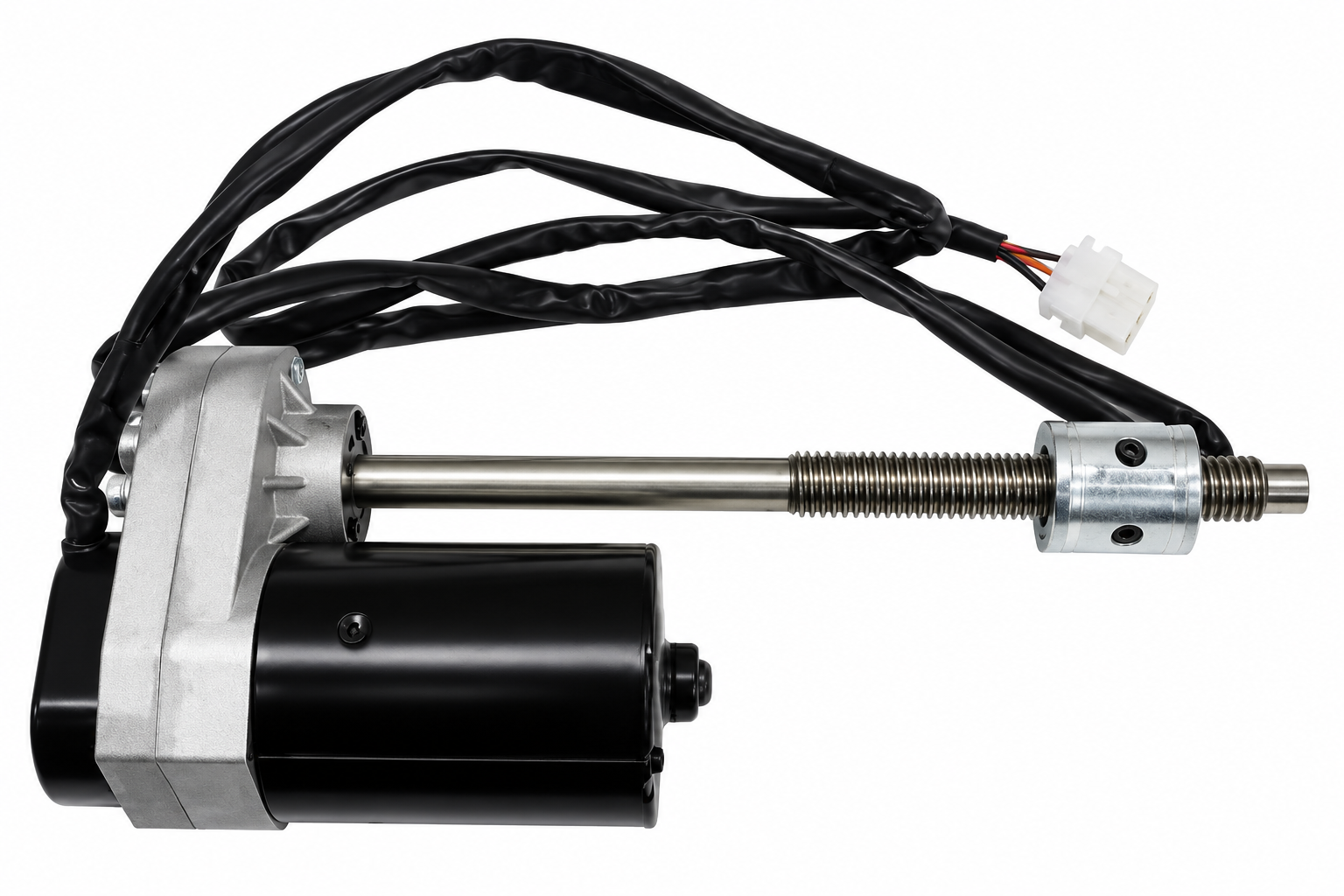

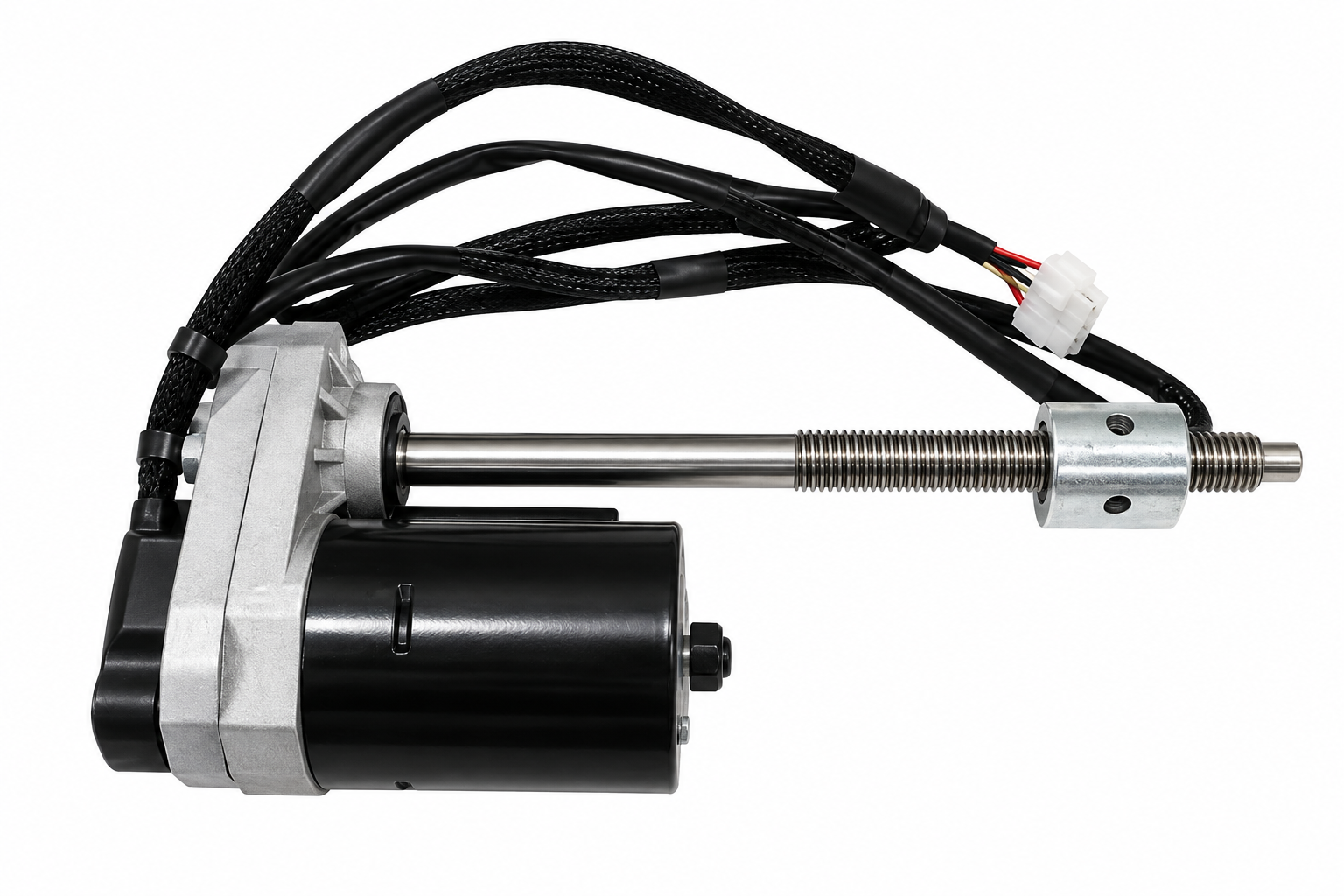

725336 | 070066 | AM1 | AC elevation motor, 110V/117mm | Yes |
Compatibility List |
$383.27 / Each
|
|
|
707227 | 1000091313 | AN1 | Console Set | No |
Compatibility List |
$958.20 / Each
|
|
|
707418 | 1000092594 | AN1 | Console Set | No |
Compatibility List |
$887.22 / Each
|
|
|
702160 | 005196-00 | B12 | Washer, Teflon, 10.5x20.0x1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702030 | 005062-00 | B21 | Washer, Flat, 10.2x19x2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701864 | 004887-00 | B25 | Nut, Hex, 3/8 16UNC | No |
Compatibility List |
$2.00 / Each
|
|
|
702029 | 005061-00 | B32 | Washer, Flat, 10.5x18x2.0T, Black Zinc | No |
Compatibility List |
$1.79 / Each
|
|
|

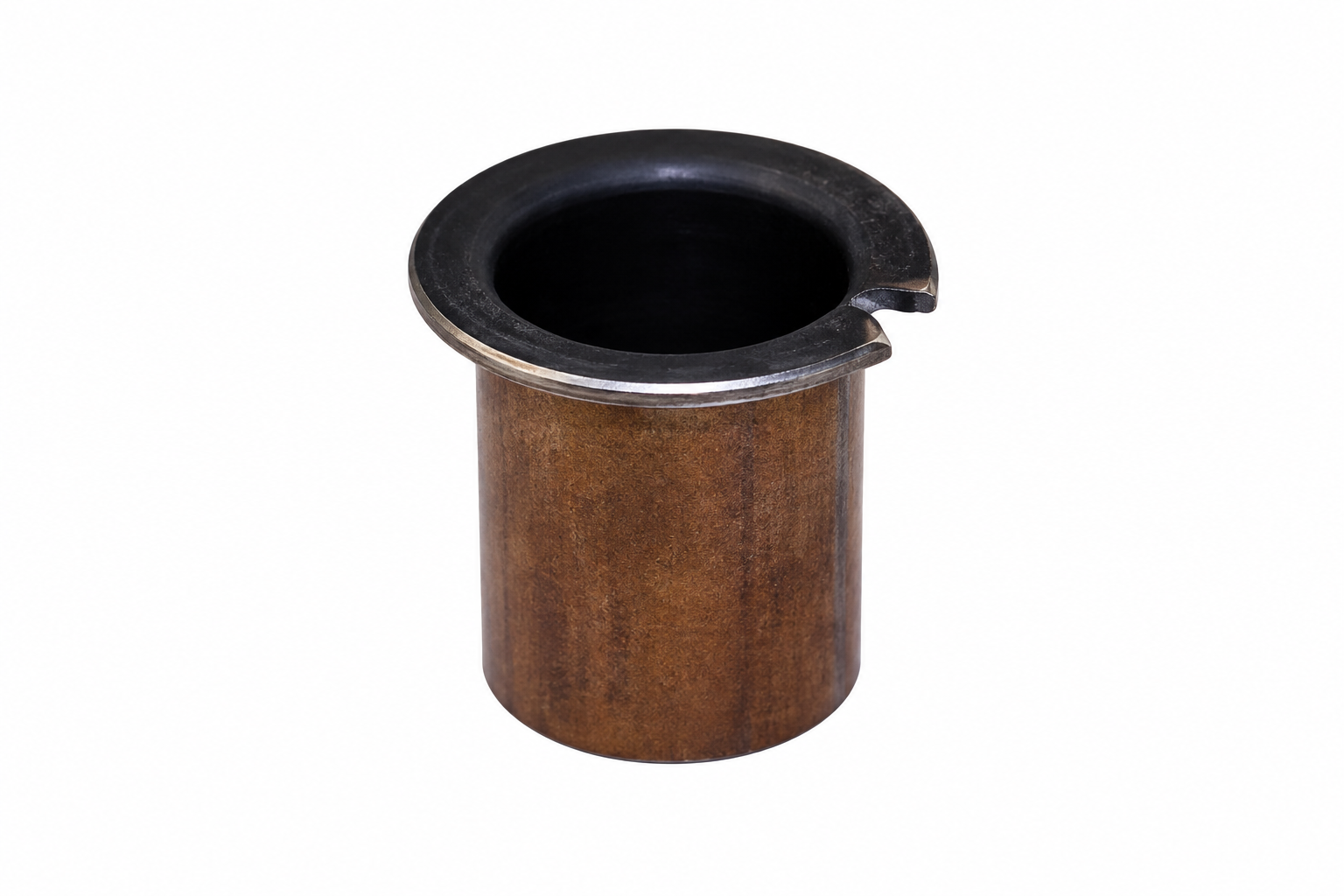

725973 | 078717 | B35 | Bearing, Dry, PAP2029, Center Rail Stablizer | Yes |
Compatibility List |
$9.57 / Each
|
|
|

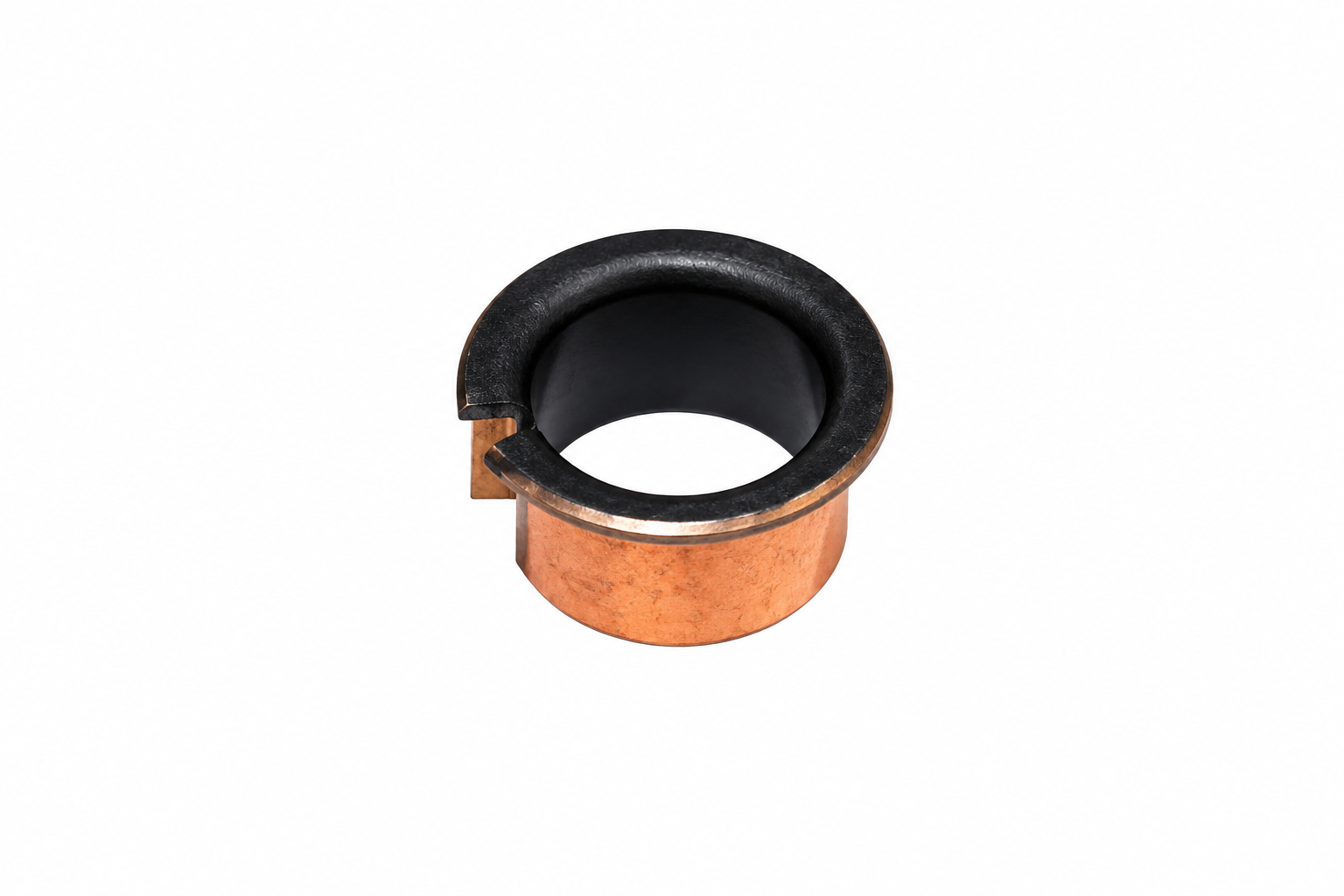

701180 | 004110-00 | B36 | Bearing, Dry, PAP 2015, Shun De | No |
Compatibility List |
$9.57 / Each
|
|
|
734267 | 1000444959 | B39 | RVN, A2 M8 BF | No |
Compatibility List |
$1.09 / Each
|
|
|
704087 | 020210-00 | C05x | Screw, Phillip, Round, 3x20L | No |
Compatibility List |
$2.00 / Each
|
|
|
700318 | 000940-A | C06 | End Cap, Pulse Grip Handlebar | Yes |
Compatibility List |
$12.99 / Each
|
|
|
702078 | 005110-00 | C06 | Washer, Flat, 8.2x35x2.0T, Black Zinc | No |
Compatibility List |
$9.99 / Each
|
|
|
701937 | 004973-00 | C09 | Insert Nut, Brass, ALS7 580 3.3(0.5 3.3) | No |
Compatibility List |
$1.90 / Each
|
|
|
700257 | 000798-A | C11 | Water Bottle Holder | Yes |
Compatibility List |
$13.34 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
702185 | 005228-00 | D11 | Washer, Wavy, 25.5x34.0x2.0T, Nylon | No |
Compatibility List |
$2.00 / Each
|
|
|

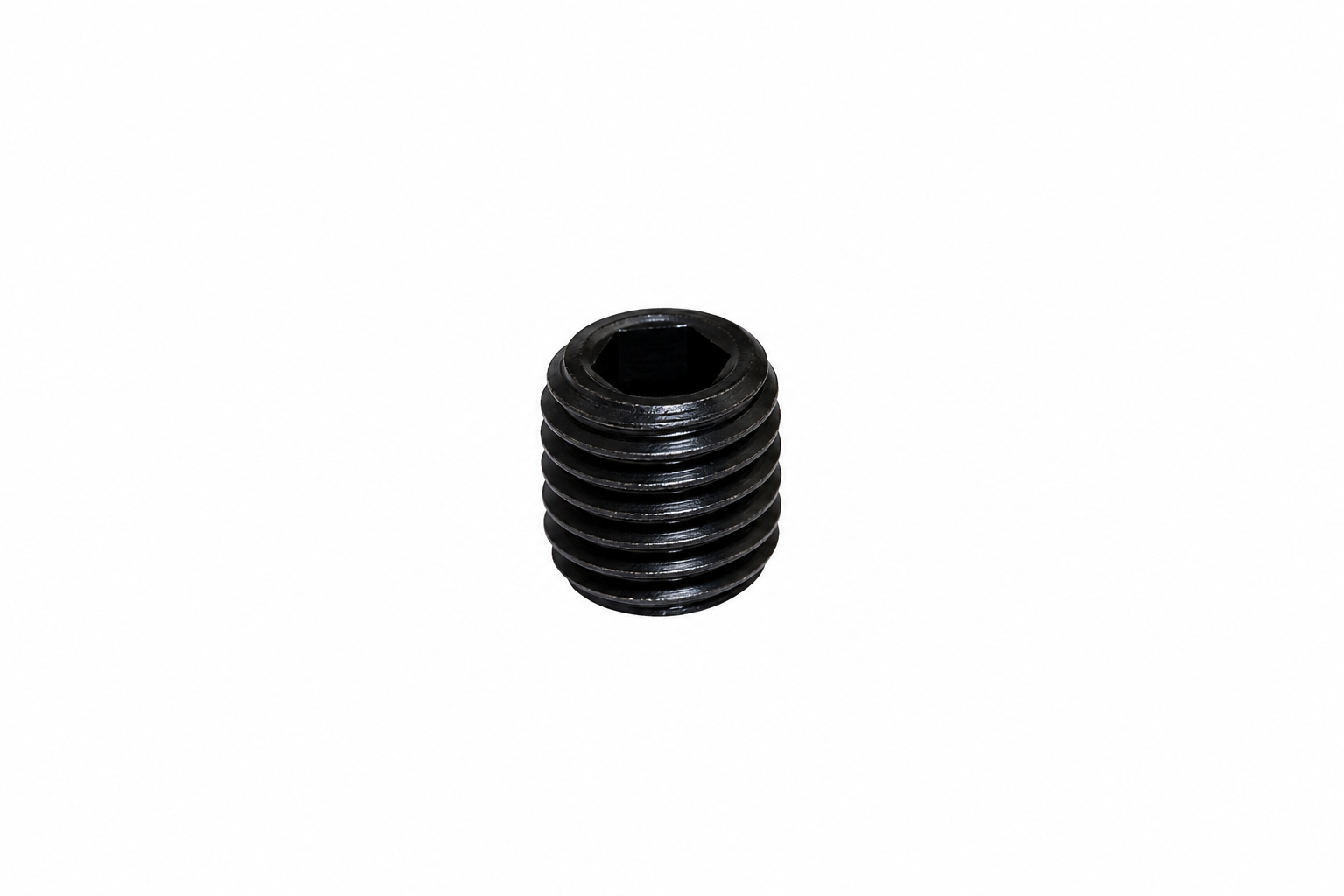

706895 | 066767-C | D14 | Set Screw, M8x1.25Px8L | No |
Compatibility List |
$2.00 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701305 | 004366-AB | D37 | Screw, Phillip, BH, M5x0.8Px8L | No |
Compatibility List |
$2.00 / Each
|
|
|
705700 | 055204-A | D51 | Screw, SelfTapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|

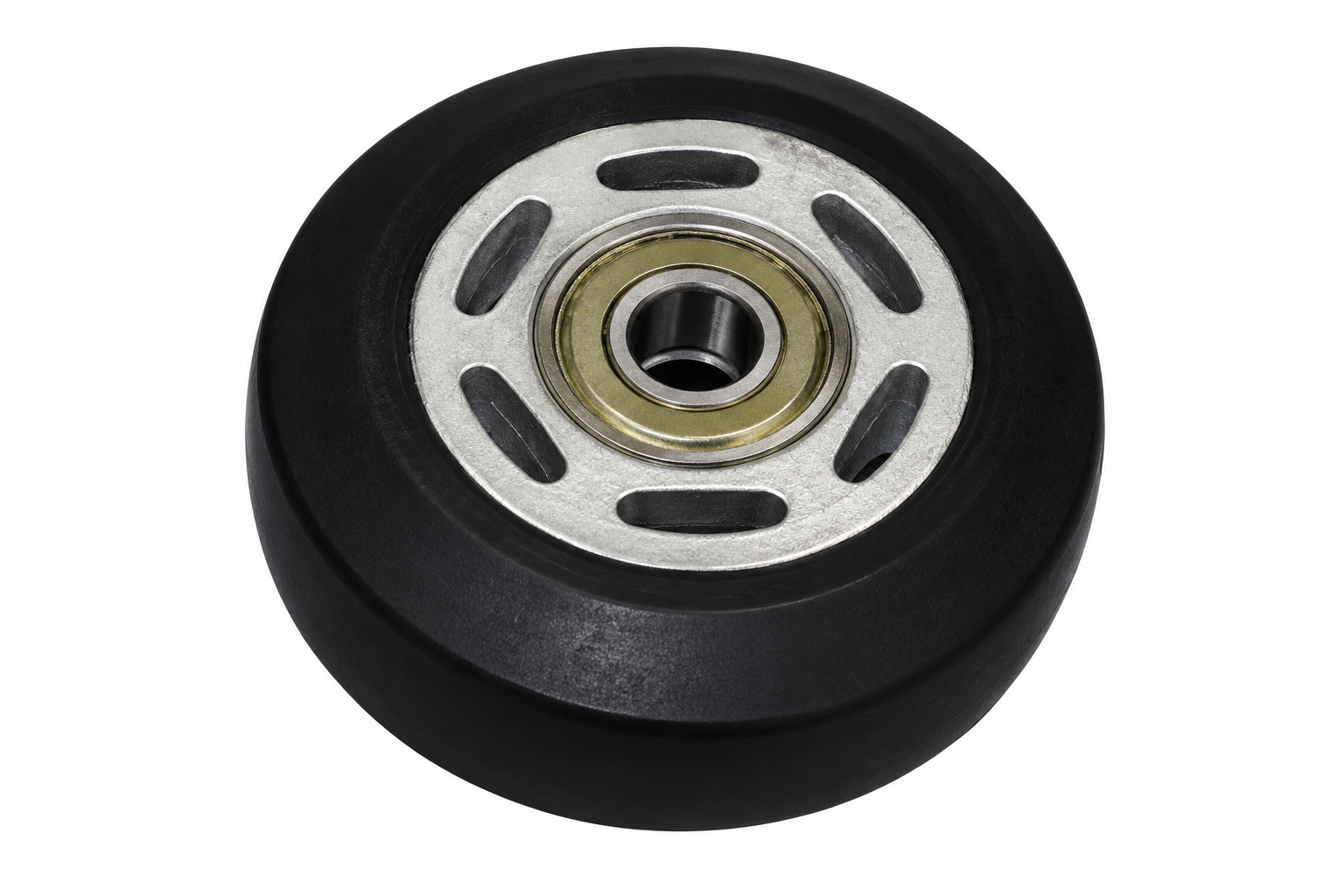

726244 | 080903 | E08 | Roller Wheel Set | Yes |
Compatibility List |
$59.00 / Each
|
|
|
701153 | 004071-00 | E09 | Bearing, Ball, 608ZZ, TPI | No |
Compatibility List |
$9.10 / Each
|
|
|
701155 | 004073-A3 | E09 | Ball Bearing, 6001ZZ, 12x28x8T | No |
Compatibility List |
$9.57 / Each
|
|
|
702107 | 005136-A | E09 | Washer, Flat, 8.5x20.0x1.0T | Yes |
Compatibility List |
$1.59 / Each
|
|
|
708142 | 1000100448 | E11 | Roller Wheel Set, Old | Yes |
Compatibility List |
$57.49 / Each
|
|
|
701089 | 003709-00 | E13 | C Clip, S 8 | No |
Compatibility List |
$2.00 / Each
|
|
|

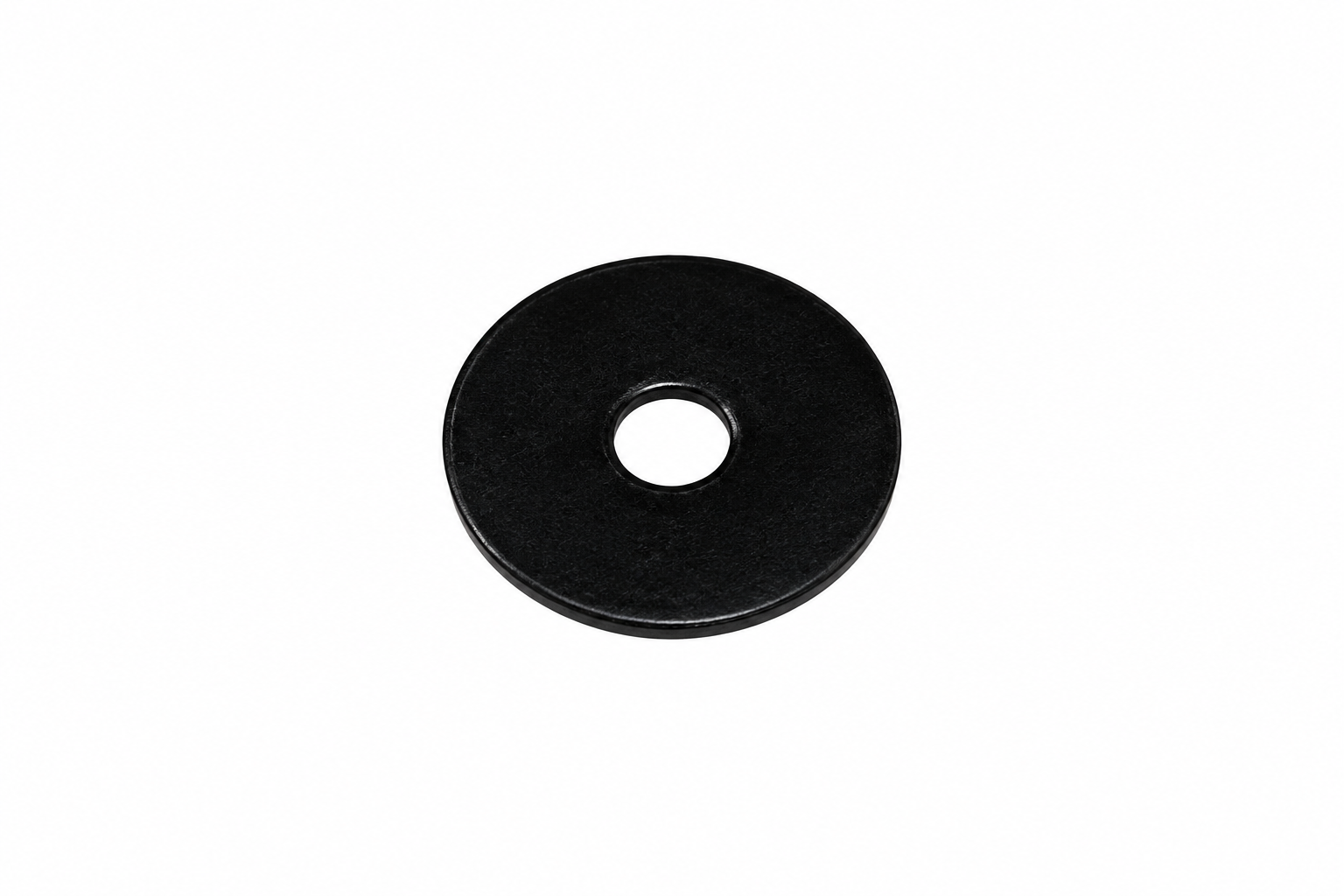

704201 | 020475-A | E13 | Washer, Flat, 8.2x38x2.0T | No |
Compatibility List |
$2.00 / Each
|
|
|

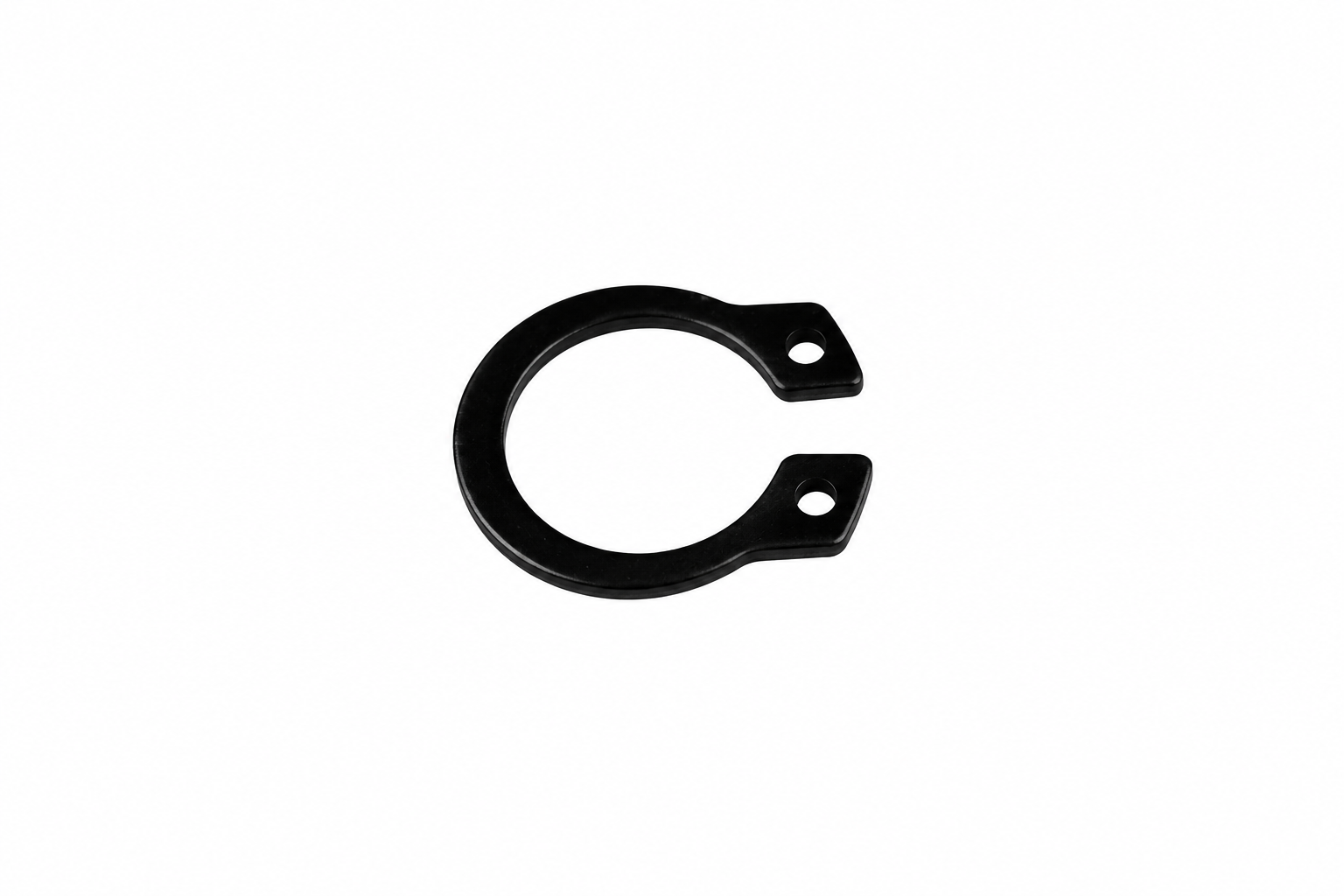

705270 | 039654-00 | E13 | C Clip, S 12 | No |
Compatibility List |
$2.00 / Each
|
|
|
725258 | 103298 | E15 | Bushing, Pivot Block, Pedal Arm | No |
Compatibility List |
$11.96 / Each
|
|
|

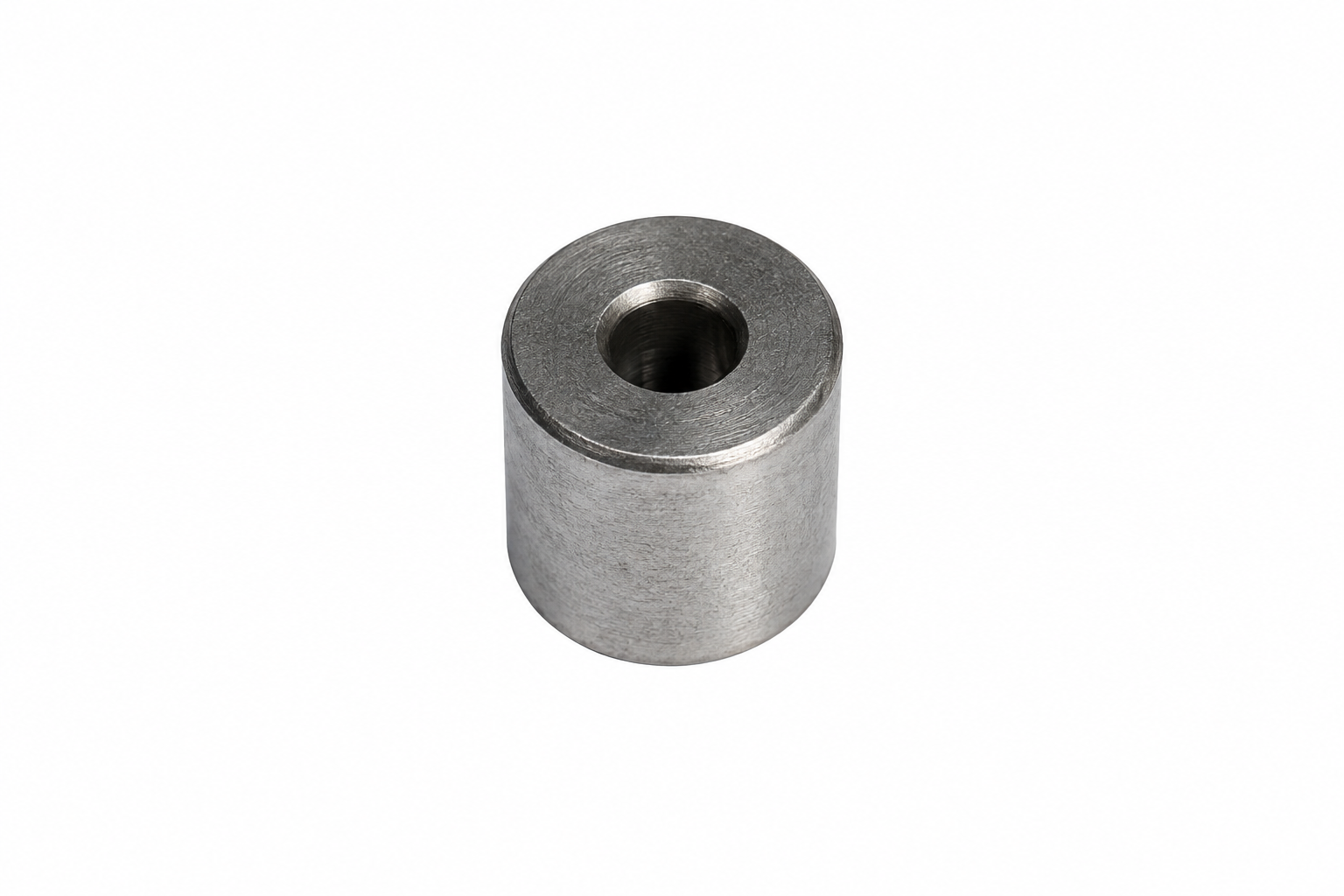

727576 | 090075 | E20 | Bushing, Pivot Block Set | Yes |
Compatibility List |
$8.50 / Each
|
|
|

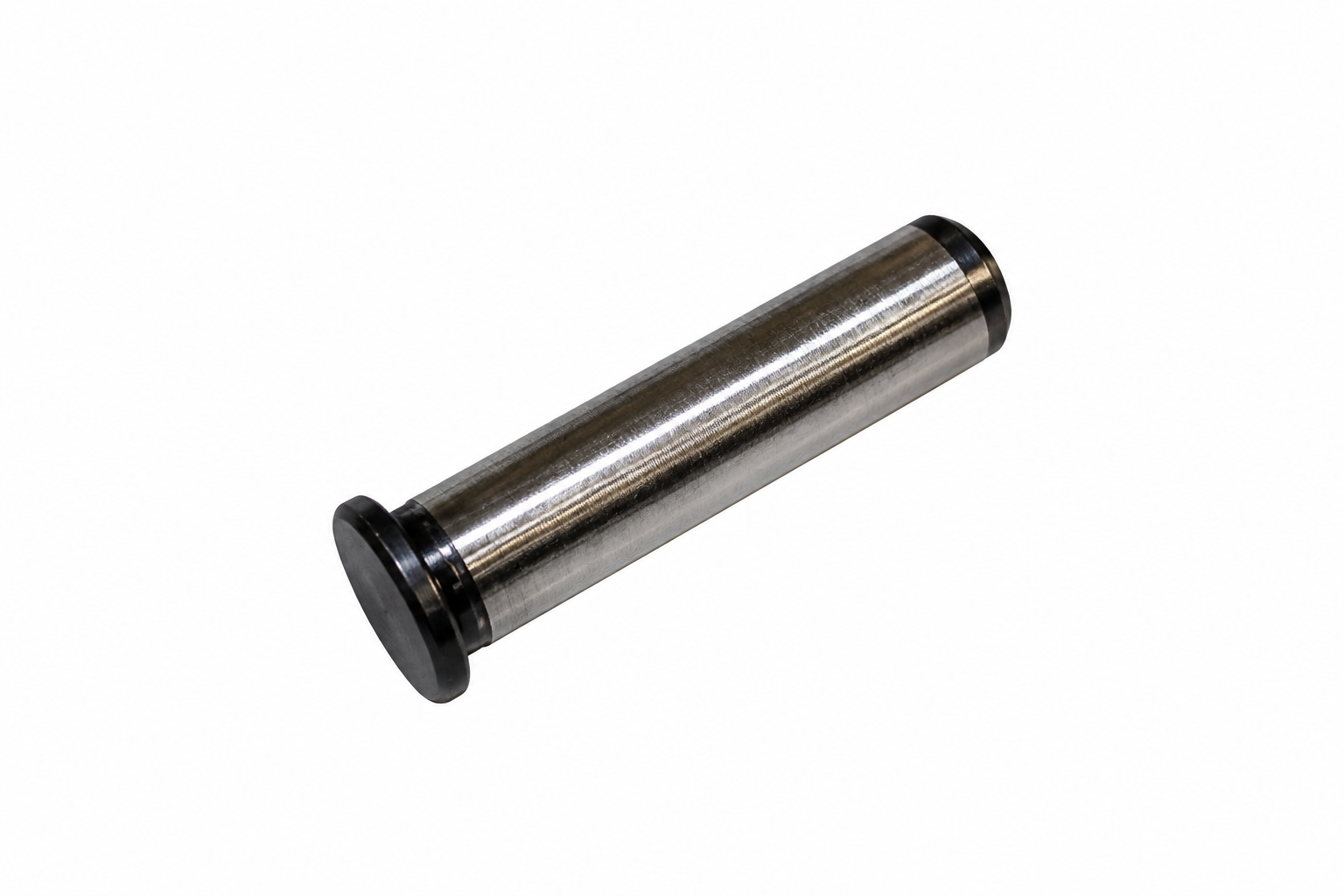

725747 | 075731 | E21 | LINK ARM SWIVEL AXLE | Yes |
Compatibility List |
$37.83 / Each
|
|
|
703974 | 020039-A | E24 | Screw, Phillip, BH, M4x0.7Px10L | No |
Compatibility List |
$1.79 / Each
|
|
|
702173 | 005215-AB | E25 | Washer, Split Teflon, 15.9x28.4x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
707151 | 1000090498 | E27 | Screw, Phillip, BH, M8x1.25Px40L, 8.8 | No |
Compatibility List |
$2.00 / Each
|
|
|
725417 | 071044 | E27 | Cover, Roller Wheel, Left | No |
Compatibility List |
$9.57 / Each
|
|
|
701588 | 004618-00 | E38 | Screw, Oval Tapping, 4x20L | No |
Compatibility List |
$2.00 / Each
|
|
|
701934 | 004972-00 | F05 | Insert Nut, Brass, ALS7 616 150(0.02 0.15) | No |
Compatibility List |
$1.90 / Each
|
|
|
700135 | 000491-B | F06 | Wing Nut, Leveler, W3/8 16UNC, BED BL SPC | No |
Compatibility List |
$2.47 / Each
|
|
|
700132 | 000485-00 | F07 | Leveler, Rubber, W3/8 16UNC | Yes |
Compatibility List |
$9.09 / Each
|
|
|

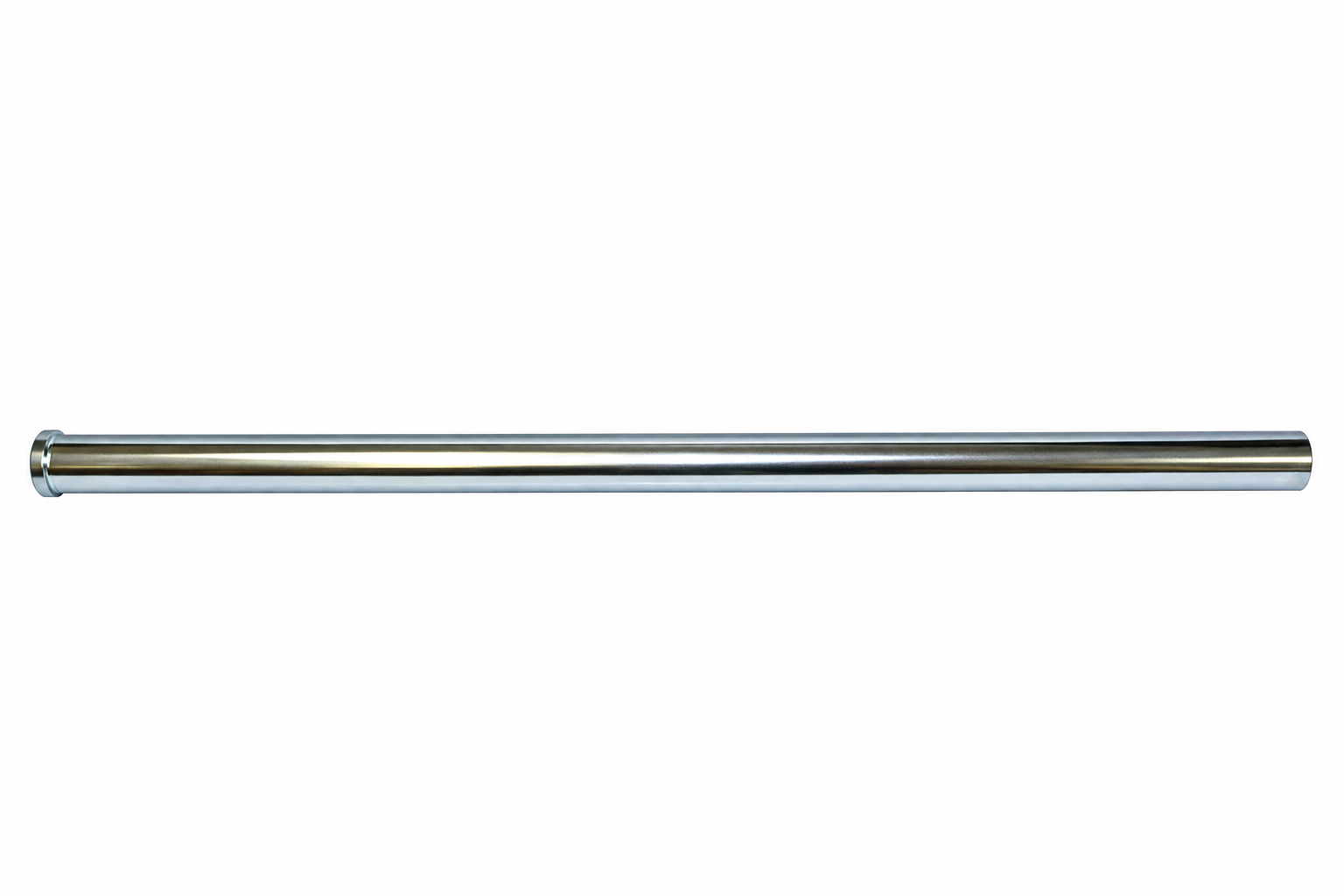

725429 | 071175 | F10 | Guide Rail Swivel Axle | No |
Compatibility List |
$59.10 / Each
|
|
|
|
707335 | 1000092139 | F11 | Elevation COVER | No |
Compatibility List |
$157.79 / Each
|
|
|
|
707412 | 1000092571 | F11 | Elevation COVER | No |
Compatibility List |
$157.79 / Each
|
|
|
707415 | 1000092586 | F11 | Elevation COVER | No |
Compatibility List |
$157.79 / Each
|
|
|
728890 | 098311 | F12 | Elevation Rack Se, Painting, LM445 | No |
Compatibility List |
$47.48 / Each
|
|
|

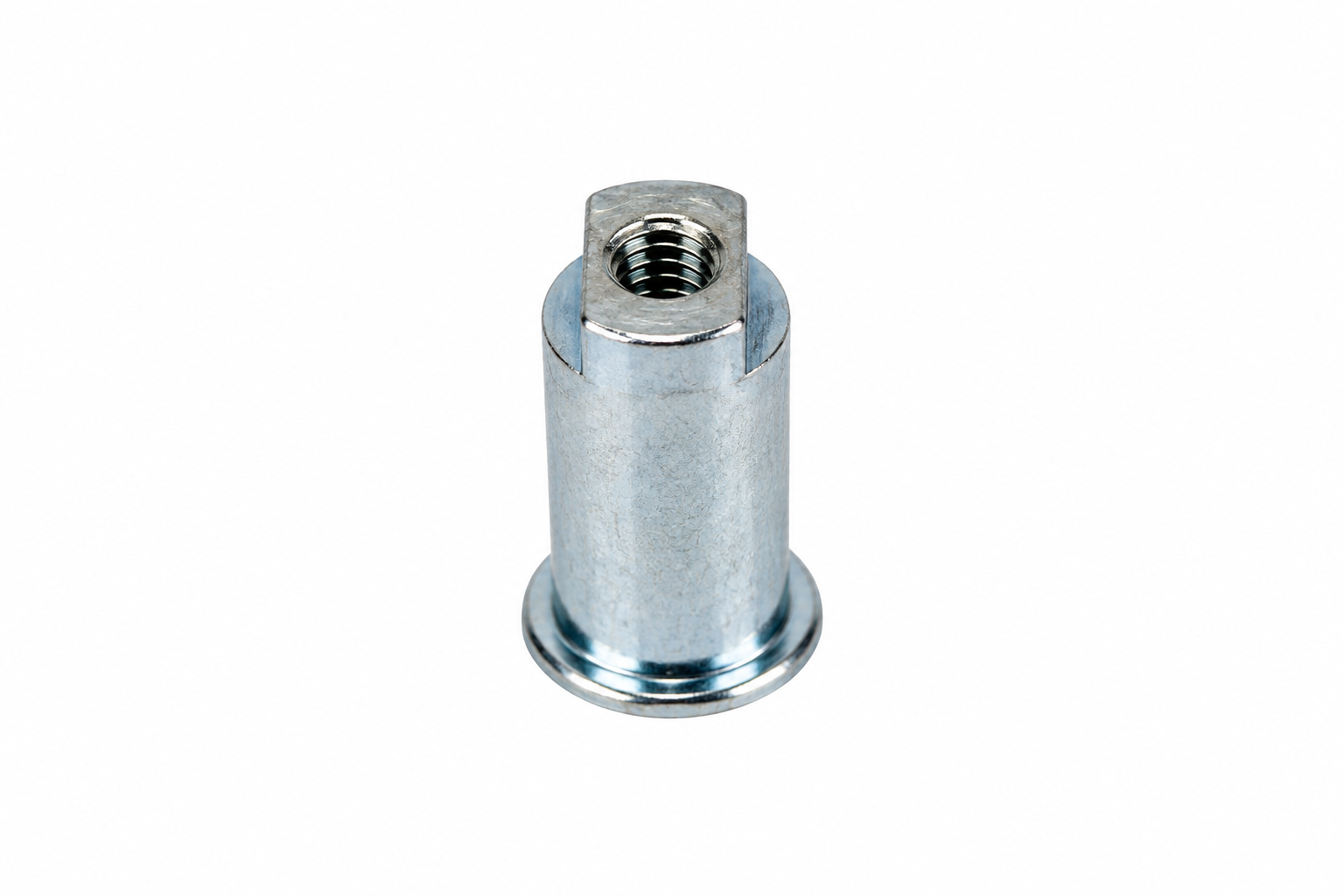

725431 | 071179 | F13 | Elevation, Support Axle | Yes |
Compatibility List |
$17.47 / Each
|
|
|
702169 | 005210-A | F20 | Washer, Teflon, 20.3x25x1.0T | No |
Compatibility List |
$2.00 / Each
|
|
|

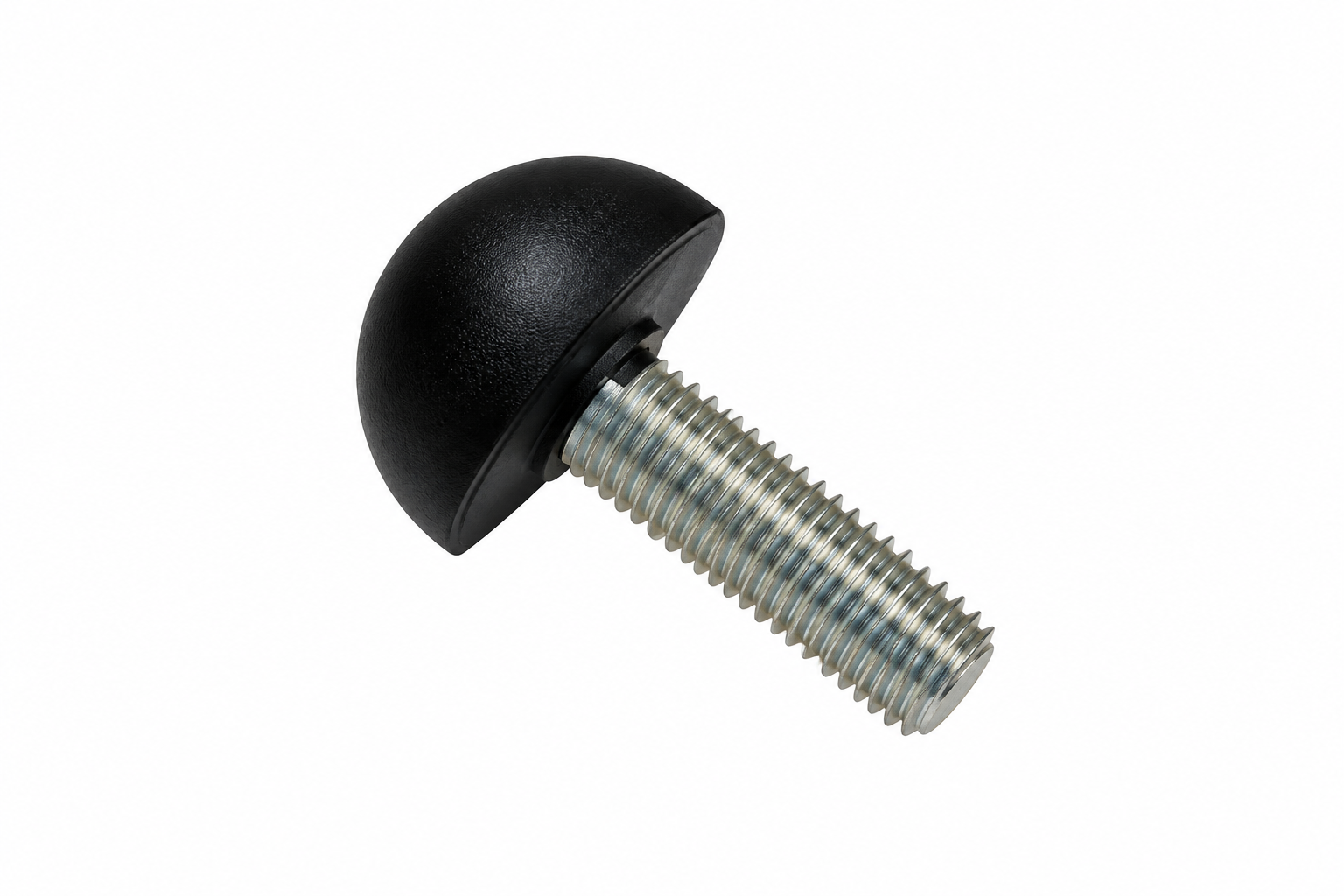

726103 | 079954 | F30 | Bolt, Stopper | Yes |
Compatibility List |
$4.00 / Each
|
|
|
705010 | 029110-AA | F35 | Washer, Flat, Teflon, 25.3x35.0x1.0t | No |
Compatibility List |
$9.28 / Each
|
|
|
725545 | 072918 | G07 | Cover, Handlebar | No |
Compatibility List |
$9.57 / Each
|
|
|
725546 | 072919 | G08 | Cover, Handlebar | No |
Compatibility List |
$9.57 / Each
|
|
|
701731 | 004757-00 | G10 | Screw, Oval, Hex Socket, M8x1.25Px12L | No |
Compatibility List |
$3.88 / Each
|
|
|
725256 | 103296 | G11 | Bushing | No |
Compatibility List |
$9.57 / Each
|
|
|
703886 | 018992-BA | G13 | Cap, PVC, BL, EP108B, EP108B G09B | Yes |
Compatibility List |
$8.00 / Each
|
|
|
702018 | 005053-00 | G18 | Washer, Flat, 8.2x27.0x2.0T | Yes |
Compatibility List |
$6.00 / Each
|
|
|
701988 | 005026-00 | G20 | Washer, Flat, 25.5x35.0x1.0T | No |
Compatibility List |
$2.00 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
707380 | 1000092373 | H12 | Foot Pad Insert D/C, NO REPL: Part will show as orderable until stock is depleted. | No |
Compatibility List |
$22.07 / Each
|
|
|

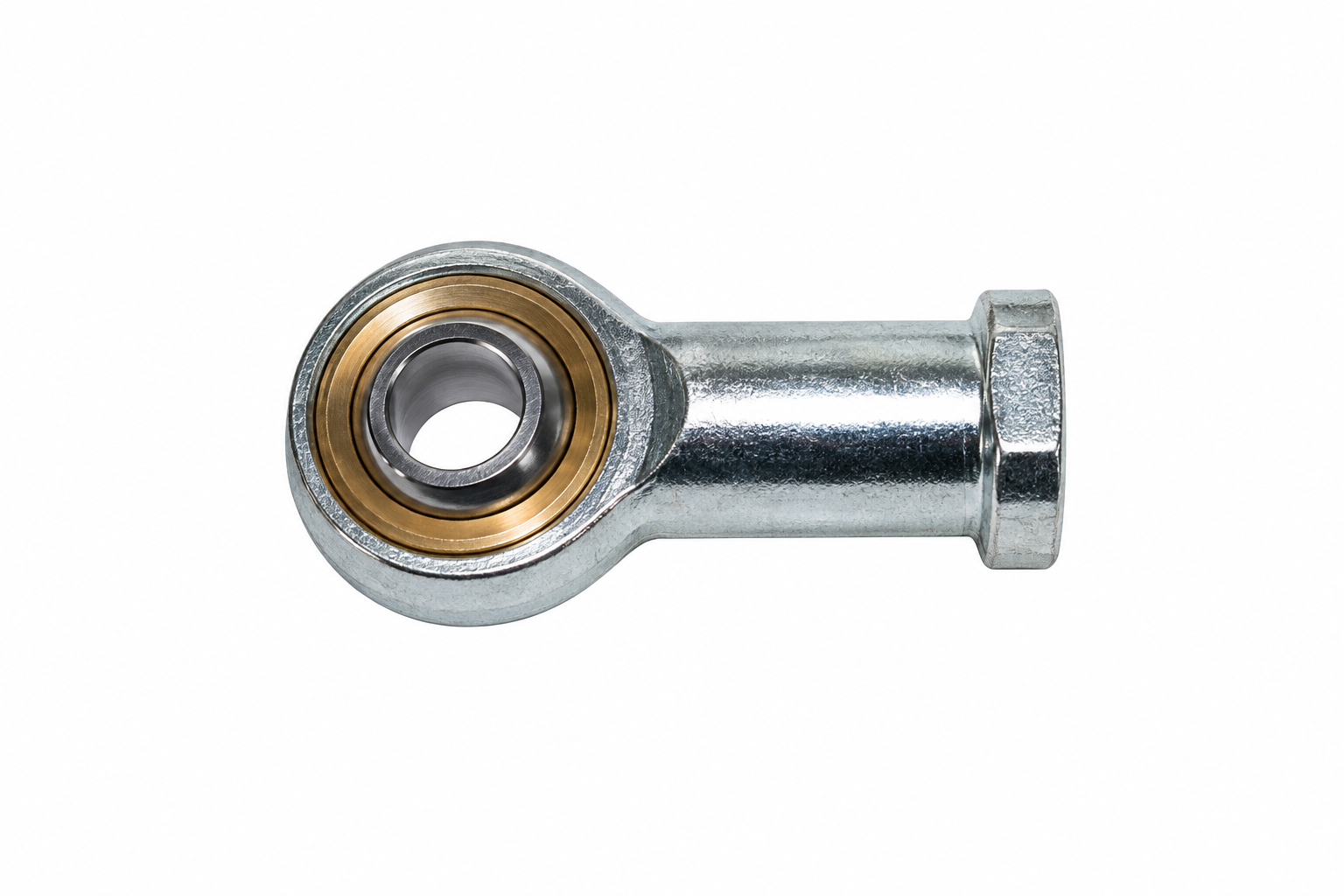

701190 | 004133-00 | H21 | Bearing, Lower Link Arm End, PHS 12(M12x1.75P), Huei | Yes |
Compatibility List |
$18.51 / Each
|
|
|

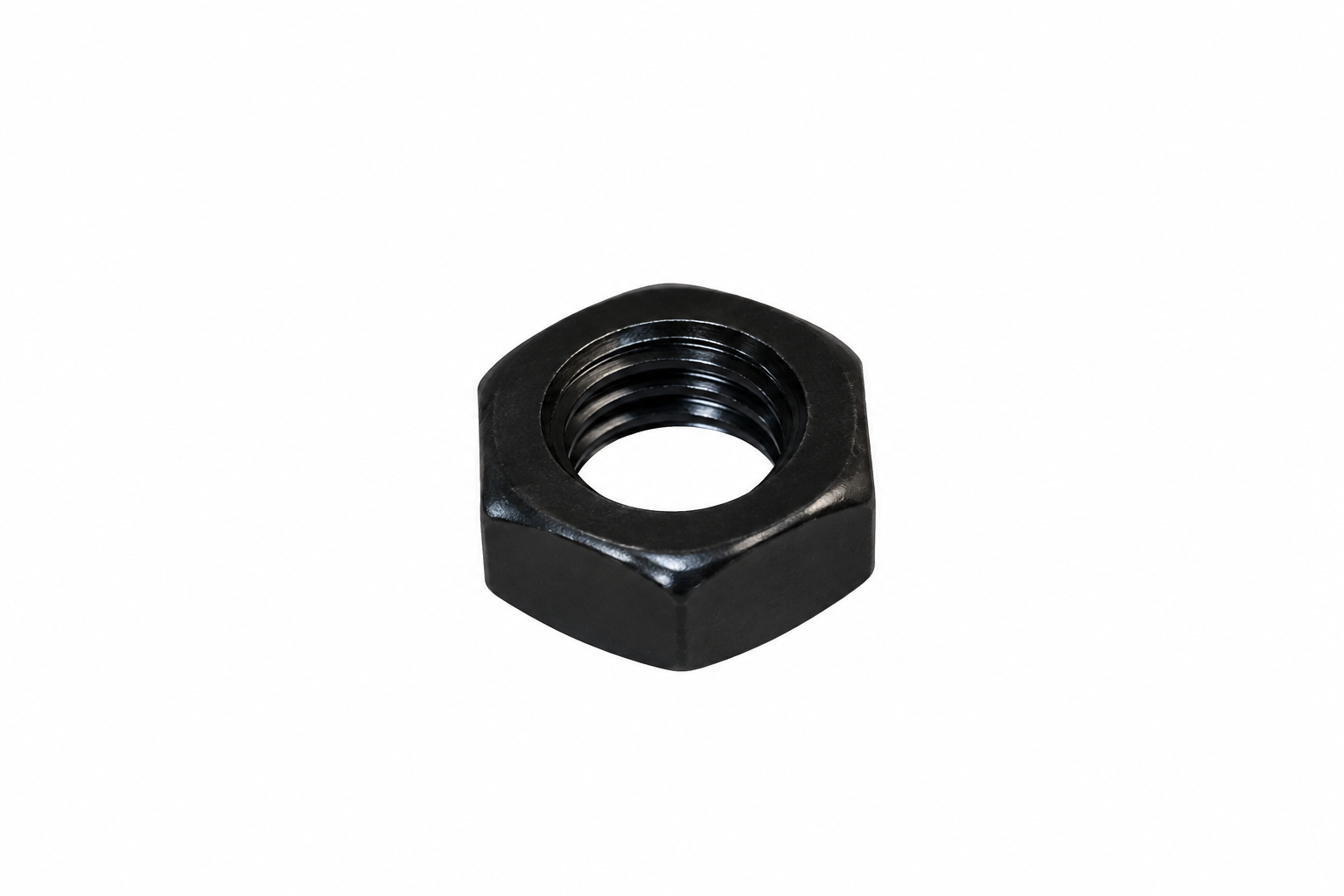

725843 | 076952 | H22 | Nut, Rod End Bearing, M12X1.75PX7H, SS41, BZ | No |
Compatibility List |
$2.00 / Each
|
|
|
701307 | 004368-00 | J06 | Screw, Phillip, BH, M5x0.8Px20L | No |
Compatibility List |
$1.79 / Each
|
|
|
700755 | 002169-A | KIT | Power Cord, 16AWG | Yes |
Compatibility List |
$60.22 / Each
|
|
|
700893 | 002671-A | KIT | Audio Wire, Three D Earphone | Yes |
Compatibility List |
$9.99 / Each
|
|
|
728892 | 098479 | KIT | Hardware Pack E1201 | No |
Compatibility List |
$62.53 / Each
|
|
|
729396 | ZMS2000030 | KIT | Crank puller, 22mm | No |
Compatibility List |
$39.99 / Each
|
|
|
707344 | 1000092221 | L01 | Front Stabilizer Set | No |
Compatibility List |
$219.86 / Each
|
|
|
700355 | 001115-F | L02 | Wheel, Nylon | No |
Compatibility List |
$9.57 / Each
|
|
|
701941 | 004976-00 | L04 | Insert Nut, Brass, ALS7 1015 1.5(0.5 3.8) | No |
Compatibility List |
$1.90 / Each
|
|
|
701841 | 004859-00 | L05 | Screw, Umbrella Hex Scoket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
701561 | 004592-00 | M05 | Screw, Hex, 3/8 16UNCx45L/Tooth15L | Yes |
Compatibility List |
$3.88 / Each
|
|
|
726621 | 083556 | M06 | Steel Rope, 400L 66L | Yes |
Compatibility List |
$17.99 / Each
|
|
|

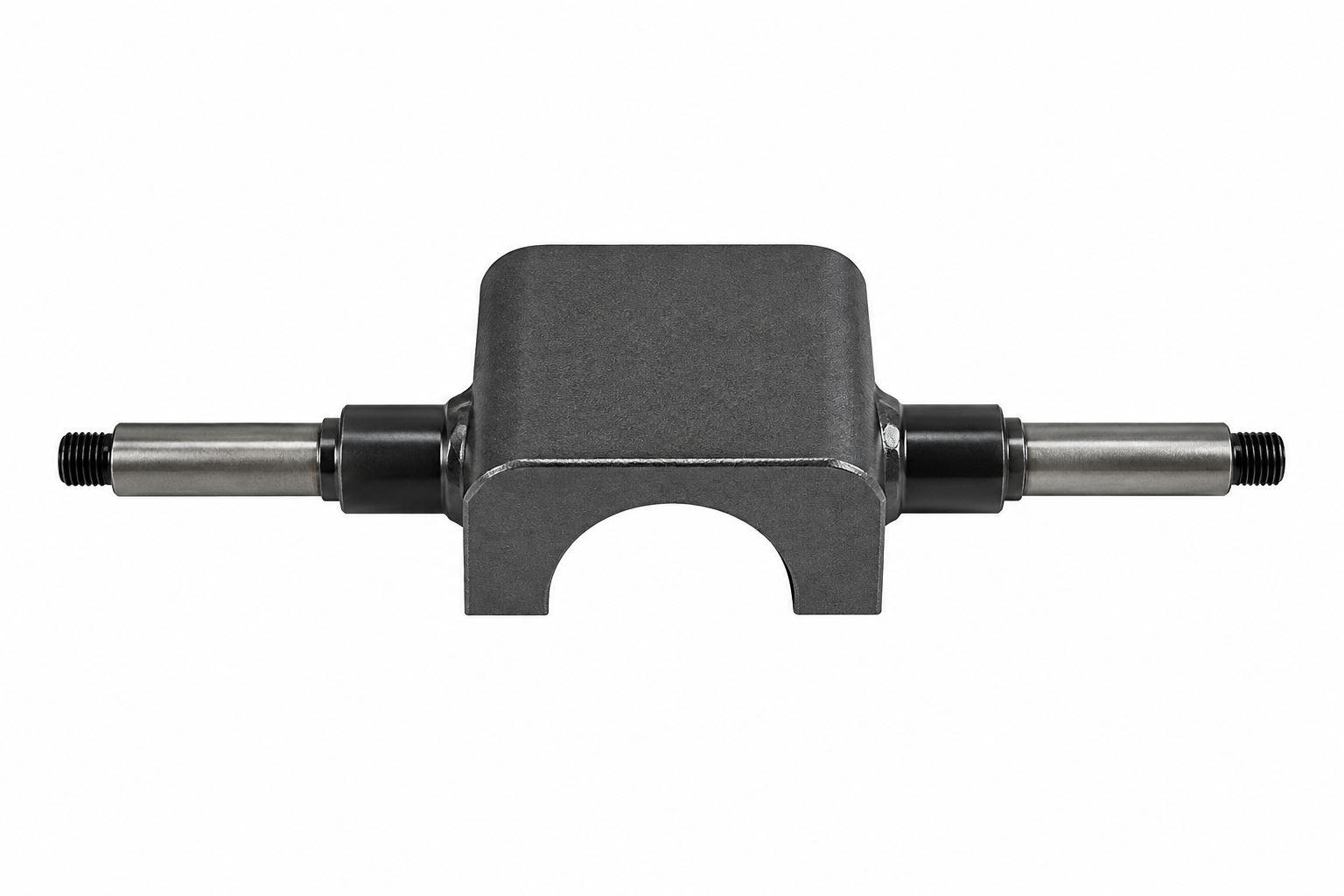

726092 | 079912 | M07 | Bracket, Incline Motor | No |
Compatibility List |
$73.14 / Each
|
|
|
701294 | 004359-00 | M33 | Screw, Phillip, BH, M4x0.7Px10L, Gap | No |
Compatibility List |
$1.02 / Each
|
|
|
701343 | 004389-00 | N08 | Screw, Phillip, BH, M5x0.8Px16L, BED | No |
Compatibility List |
$2.00 / Each
|
|
|
728829 | 097875 | N12 | Decal, Console, Horizon Logo | No |
Compatibility List |
$12.56 / Each
|
|
|
701316 | 004372-00 | N15 | Screw, Phillip, BH, M5x0.8Px12L, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
701576 | 004610-00 | N22 | Screw, Phillip, BH, Tapped, 3x25L | No |
Compatibility List |
$1.79 / Each
|
|
|
725624 | 074262 | N40 | Insert Boot, IPOD | Yes |
Compatibility List |
$3.82 / Each
|
|
|
725675 | 074681 | N40 | Foam Holder, Ipod Nano | Yes |
Compatibility List |
$7.00 / Each
|
|
|
725978 | 078843 | N40 | Foam Holder, Ipod Mini | Yes |
Compatibility List |
$7.00 / Each
|
|
|
725979 | 078844 | N40 | Foam Holder, IPOD, 20/30/60/80gb | Yes |
Compatibility List |
$7.00 / Each
|
|
|
726374 | 081448 | N40 | Foam Holder MP3 Player Universal | Yes |
Compatibility List |
$16.69 / Each
|
|
|
1000573 | 003326-00 | P01 | Power Entry Switch On/Off | No |
Compatibility List |
$8.99 / Each
|
|
|
1034434 | 003326-00 | P01 | Power Entry On Off Switch EP212 | No |
Compatibility List |
$10.19 / Each
|
|
|
4K-UYTS-4IA5 | 003326-00 | P01 | Power Switch on Off (New) | Yes |
Compatibility List |
$29.99 / Each
|
|
|
706549 | 063270-A | P02 | Circuit Breaker, 3A/125V | Yes |
Compatibility List |
$27.30 / Each
|
|
|
725222 | 103072 | P02 | Connect Wire, Console, 1500(300,300) | No |
Compatibility List |
$57.49 / Each
|
|
|
701013 | 003326-00 | P03 | Power Switch, Large, RF 1004 | Yes |
Compatibility List |
$13.99 / Each
|
|
|
706707 | 064795-A | P03 | Power Socket, 16AWG | No |
Compatibility List |
$15.00 / Each
|
|
|
700770 | 002231-B | P04 | Speed Sensor Wire, 2 Prong, 280mm | Yes |
Compatibility List |
$9.57 / Each
|
|
|

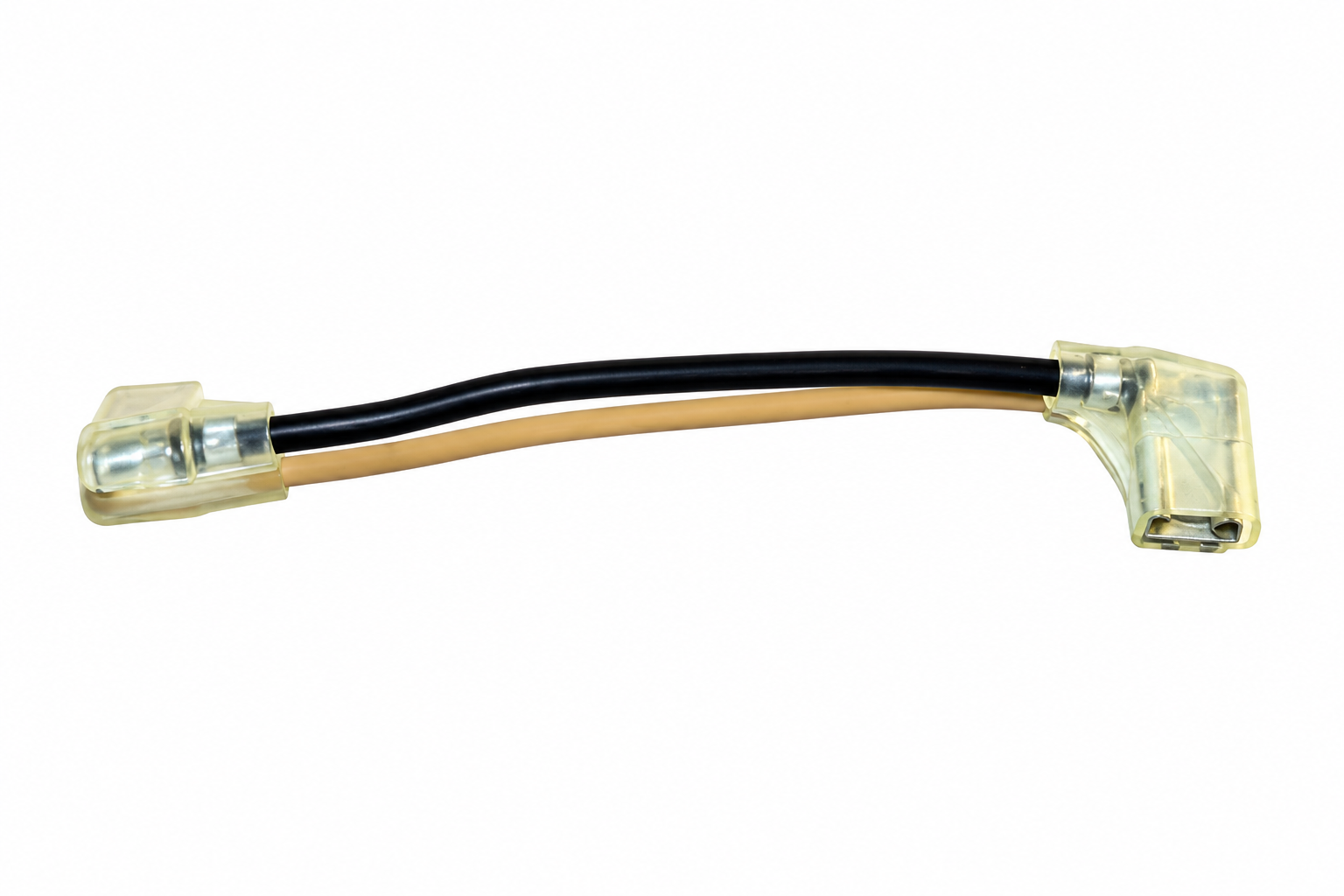

703918 | 019353-A | P04 | Connecting Cable, Socket/Breaker | No |
Compatibility List |
$1.51 / Each
|
|
|
701574 | 004608-00 | P06 | Screw, Phillip, BH, Tapped, 3x10L | No |
Compatibility List |
$3.88 / Each
|
|
|
703926 | 019456-A | P11 | CONTROL BOARD PWR WIRE(BLACK), TB80 P13A | No |
Compatibility List |
$1.77 / Each
|
|
|
700849 | 002510-A | P12 | PWR Wire, CTL Board, 250 16AWG, WH, TM80B | No |
Compatibility List |
$1.77 / Each
|
|
|

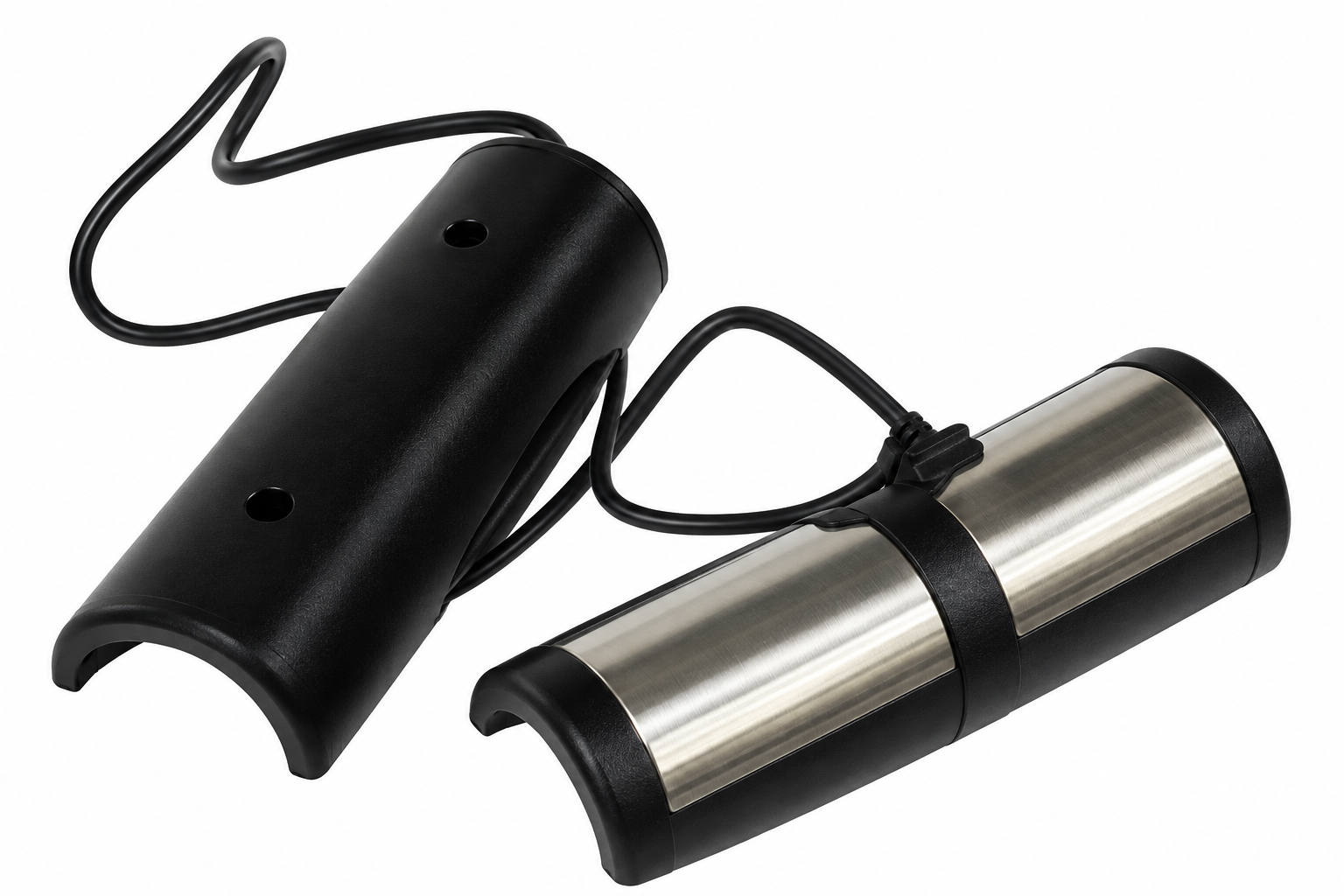

701049 | 003443-C | P16 | Pulse Sensor Set, 600MM | Yes |
Compatibility List |
$49.99 / Each
|
|
|
725680 | 074727 | P16 | Fix Plate, Speed Sensor | No |
Compatibility List |
$3.54 / Each
|
|
|
701589 | 004619-00 | P18 | Screw, Phillip, BH, Oval Tapped, 4x8L | No |
Compatibility List |
$2.00 / Each
|
|
|
|
728824 | 097834 | Q01 | Cover, Disk, Right | No |
Compatibility List |
$283.95 / Each
|
|
|
707337 | 1000092144 | Q03 | Left Cover | No |
Compatibility List |
$135.64 / Each
|
|
|
707417 | 1000092591 | Q03 | Left Cover | No |
Compatibility List |
$135.64 / Each
|
|
|
728828 | 097868 | Q03 | Cover, L, ABS, Painting, DM363, EP216 | No |
Compatibility List |
$123.08 / Each
|
|
|
707336 | 1000092142 | Q04 | Right Cover | No |
Compatibility List |
$135.64 / Each
|
|
|
707413 | 1000092574 | Q04 | Right Cover | No |
Compatibility List |
$135.64 / Each
|
|
|
707416 | 1000092589 | Q04 | Right Cover | No |
Compatibility List |
$135.64 / Each
|
|
|
728827 | 097867 | Q04 | Cover, R, ABS, Painting, DM363, EP216 | No |
Compatibility List |
$129.48 / Each
|
|
|
702483 | 007964-00 | Q07 | Connecting Plate, Side Cover | Yes |
Compatibility List |
$1.90 / Each
|
|
|
707718 | 1000094566 | Q07 | Fixing Base, Power Switch | No |
Compatibility List |
$8.87 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701597 | 004621-00 | Q09 | Screw, Phillip, BH, Tapped, 4x15L, Gap | No |
Compatibility List |
$1.59 / Each
|
|
|
701613 | 004632-00 | Q09 | Screw, Phillip, BH, Tapped, 4x16L | No |
Compatibility List |
$2.00 / Each
|
|
|
707226 | 1000091309 | Q10 | Sticker, Cover, EP226 | No |
Compatibility List |
$13.62 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
|
707350 | 1000092228 | R01 | Pedal Axle Set | No |
Compatibility List |
$195.94 / Each
|
|
|
701869 | 004891-00 | R06 | Nut, Hex, 3/8 26UNCX9H | No |
Compatibility List |
$3.88 / Each
|
|
|
701927 | 004964-00 | R13 | Nut, Hex, Flange, M10x1.25P, Black Zinc | No |
Compatibility List |
$1.02 / Each
|
|
|
702193 | 005239-00 | R18 | Washer, Lock, 10.0x20.0x1.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
705278 | 040420-BX | S01 | Drive Axle Set | No |
Compatibility List |
$172.46 / Each
|
|
|
701642 | 004676-00 | S04 | Bolt, Eye Hook, 1/4" 20UNCx45L | No |
Compatibility List |
$2.00 / Each
|
|
|
702512 | 008394-00 | S05 | Fix Plate, Eye Bolt, SPC, 1.3t, AB01 | No |
Compatibility List |
$6.00 / Each
|
|
|
701904 | 004931-00 | S06 | Nut, Locking, Nylon, 1/4" 20UNC | Yes |
Compatibility List |
$1.59 / Each
|
|
|
701160 | 004078-A2 | T09 | Ball Bearing, 6005ZZ, Z25XZ47X12T, TPI | No |
Compatibility List |
$19.14 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
701042 | 003413-00 | T16 | Magnet, Crank Wheel, 15x7t | No |
Compatibility List |
$4.00 / Each
|
|
|
707498 | 1000093041 | V01 | Decal, Pedal, Left | No |
Compatibility List |
$3.54 / Each
|
|
|
707499 | 1000093042 | V02 | Decal, Pedal, Right | No |
Compatibility List |
$3.54 / Each
|
|
|
707500 | 1000093043 | V03 | POP Sticker, Disk, HORIZON, EP226 | No |
Compatibility List |
$1.77 / Each
|
|
|
707501 | 1000093044 | V04 | POP Sticker, Disk, PREMIER, EP226 | No |
Compatibility List |
$1.77 / Each
|
|
|
725832 | 076877 | V11 | Elevation Label, NO ROHS, EP177 | No |
Compatibility List |
$9.91 / Each
|
|
|
707228 | 1000091323 | V21 | Manual, EP226 | No |
Compatibility List |
$10.53 / Each
|
|
|
701693 | 004720-AC | Z01 | Screw, Hex Socket, Umbrella, M8x1.25Px20L | No |
Compatibility List |
$4.00 / Each
|
|
|
701308 | 004369-00 | Z02 | Screw, Phillip, BH, M5x0.8Px15L, BED | No |
Compatibility List |
$2.00 / Each
|
|
|
703976 | 020042-00 | Z03 | Screw, Phillip, BH, M4x0.7Px8L | No |
Compatibility List |
$2.00 / Each
|
|
|
702135 | 005163-00 | Z07 | Washer, Arc, 8.4x17x1.0T | No |
Compatibility List |
$2.57 / Each
|
|
|
702053 | 005081-00 | Z11 | Washer, Flat, 5.2x18.0x2.0T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|

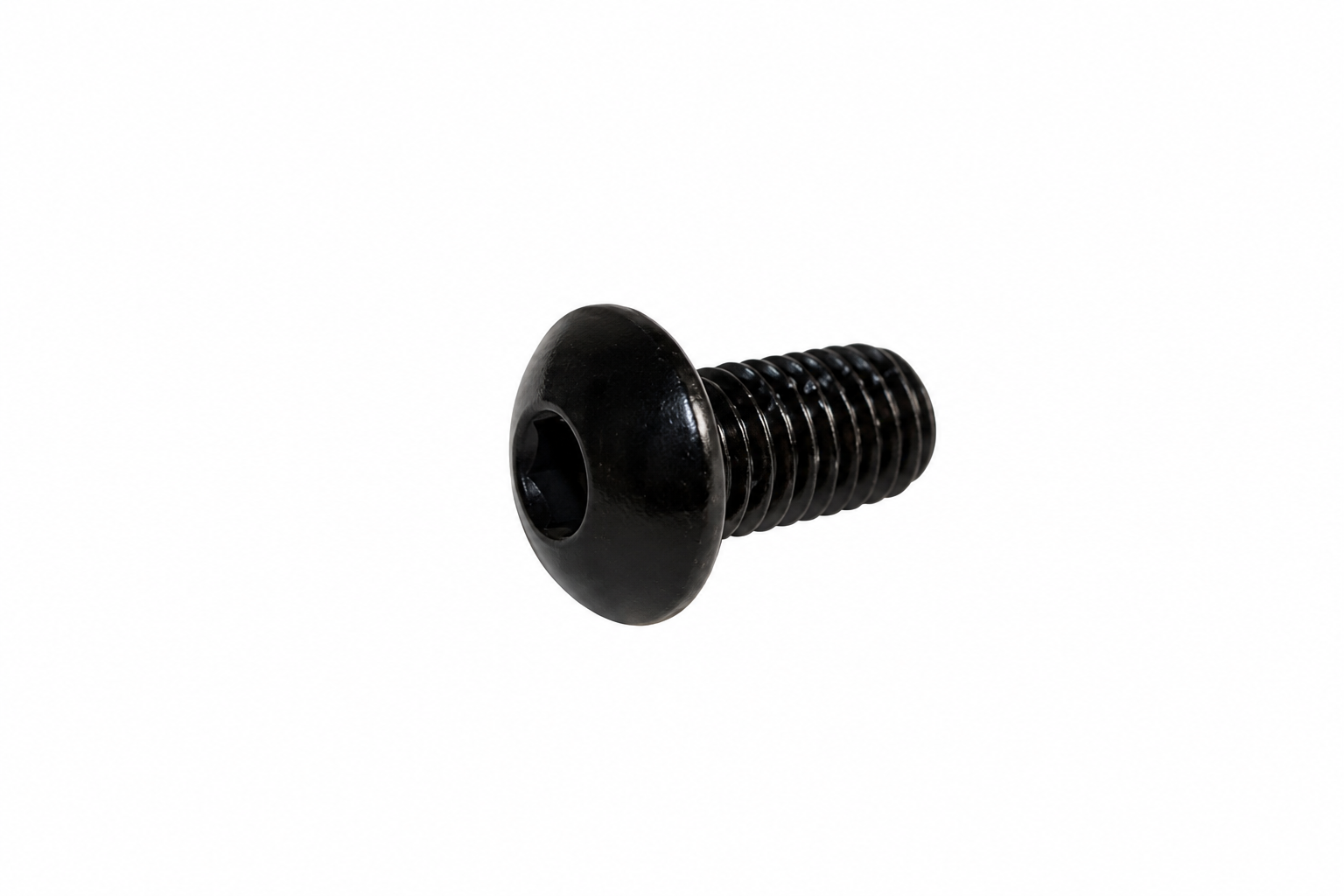

701557 | 004586-AB | Z22 | Screw, Hex Socket, M8X1.25PX15L, Chromed | Yes |
Compatibility List |
$3.88 / Each
|
|
|

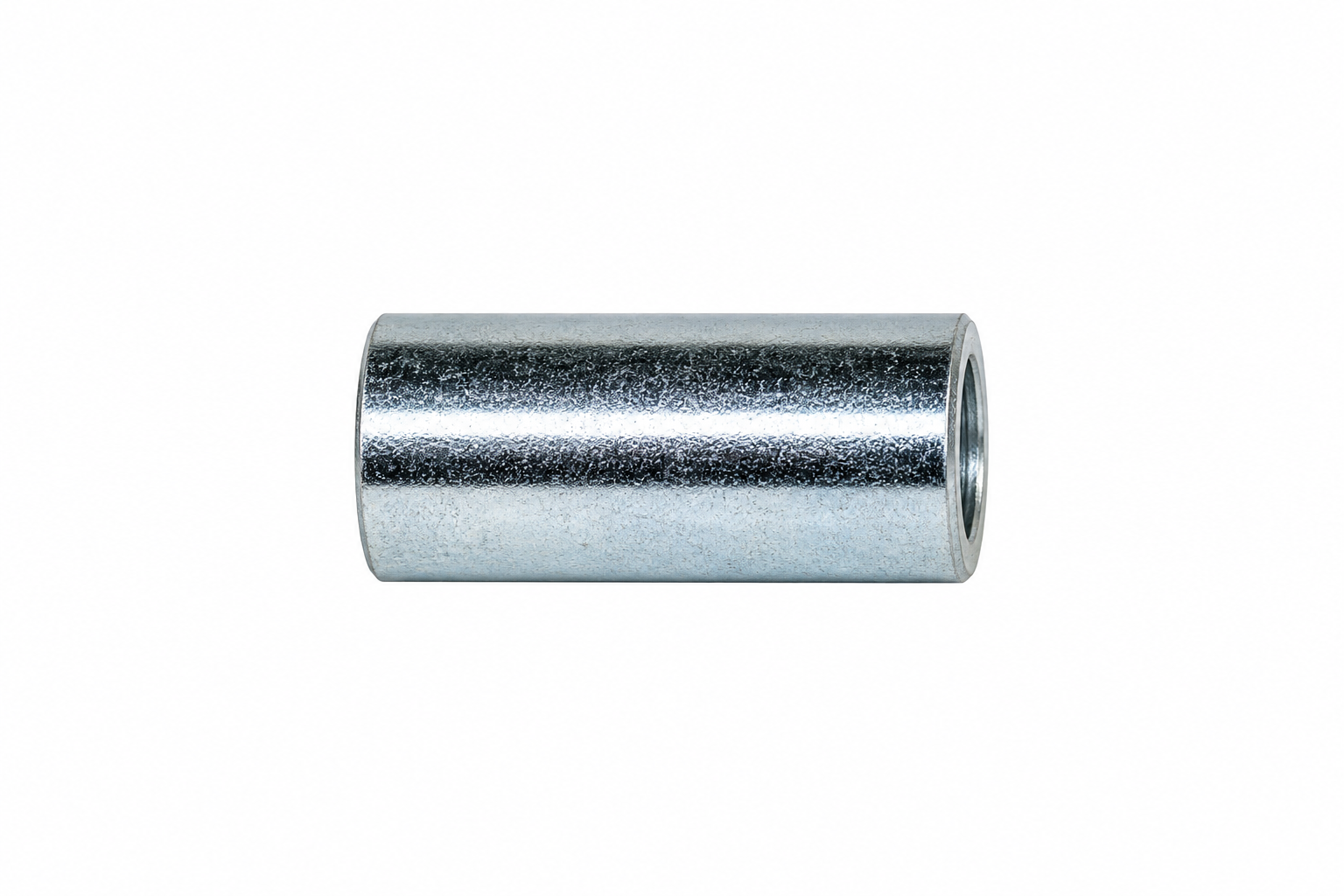

702634 | 009092-B | Z27 | Sleeve, Pin, Ball Joint | No |
Compatibility List |
$7.10 / Each
|
|
|
701997 | 005035-00 | Z29 | Washer, Flat, 8.2x18x1.4T | No |
Compatibility List |
$2.00 / Each
|
|
|

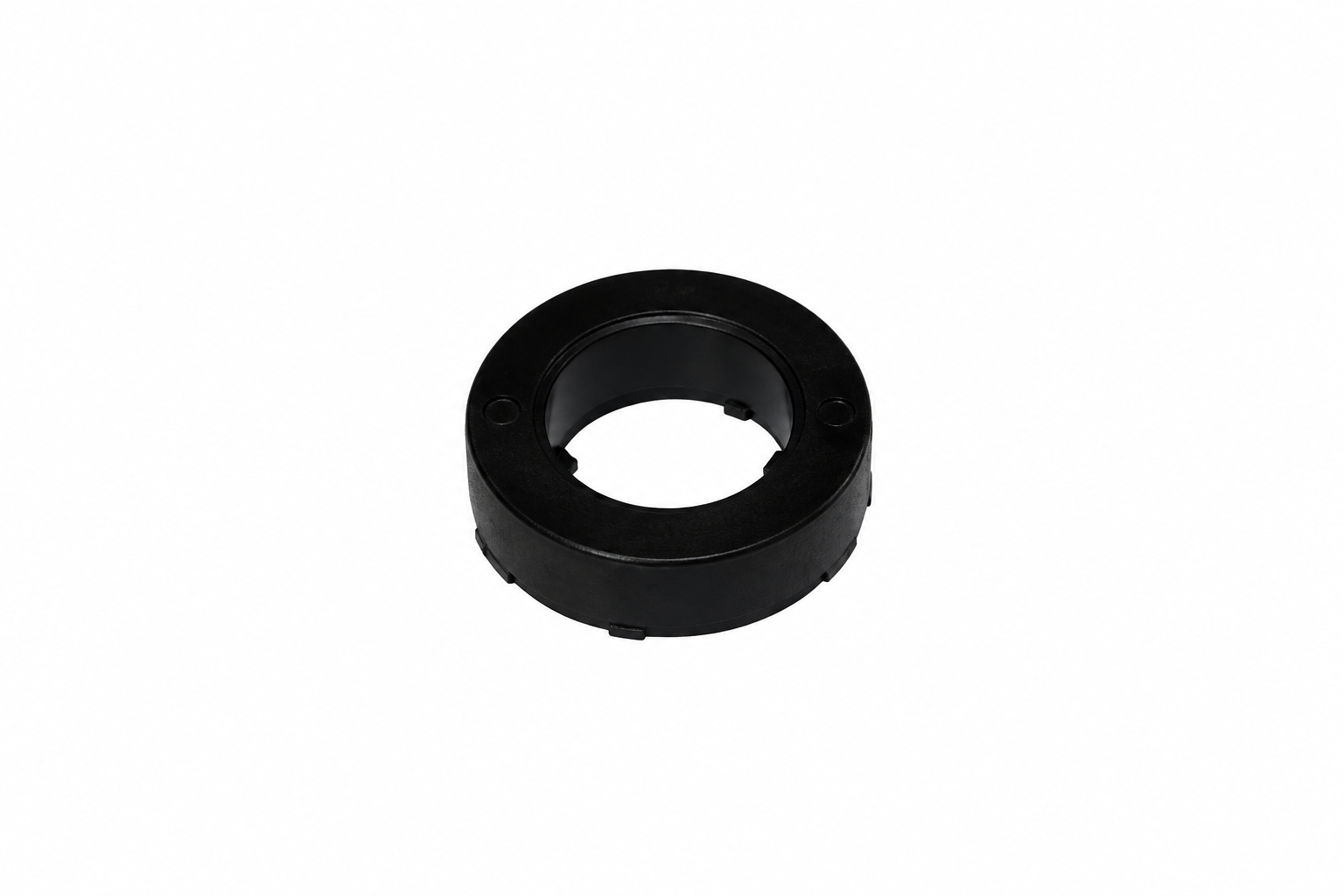

700410 | 001278-B | Z30 | Spacer Ring | Yes |
Compatibility List |
$2.00 / Each
|
|
|
1003675 | 080903 | Wheel Roller | No |
Compatibility List |
$59.00 / Each
|
||
|
1003633 | 070066 | Incline Lift Elevation Motor Actuator | No |
Compatibility List |
$195.99 / Each
|
||
|
1001765 | 002169-A | Replacement AC Power Cord | No |
Compatibility List |
$27.99 / Each
|
||
|
911958 | 004608-00 | Rower Button Head Phillip Screw 3x10L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
1017370 | 000491-B | Stabilizer Leveling Foot Leveler (Used) | No |
Compatibility List |
$13.19 / Each
|
Catalog #: 707380
MPN: 1000092373
Foot Pad Insert D/C, NO REPL: Part will show as orderable until stock is depleted.
$22.07 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
