Horizon Fitness - E700 - 2008

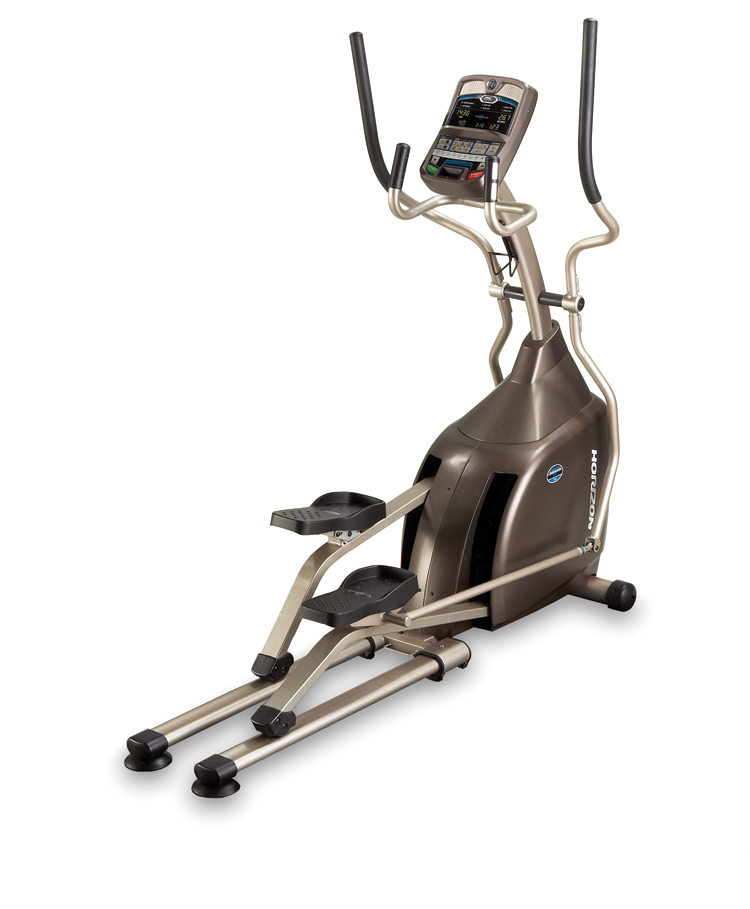

Repair Parts for Horizon Fitness E700 EP194

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: E700

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Arm/pedal
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700009 000014-00 L04 Transport Wheel Yes Model Compatibility List $9.57 / Each

8

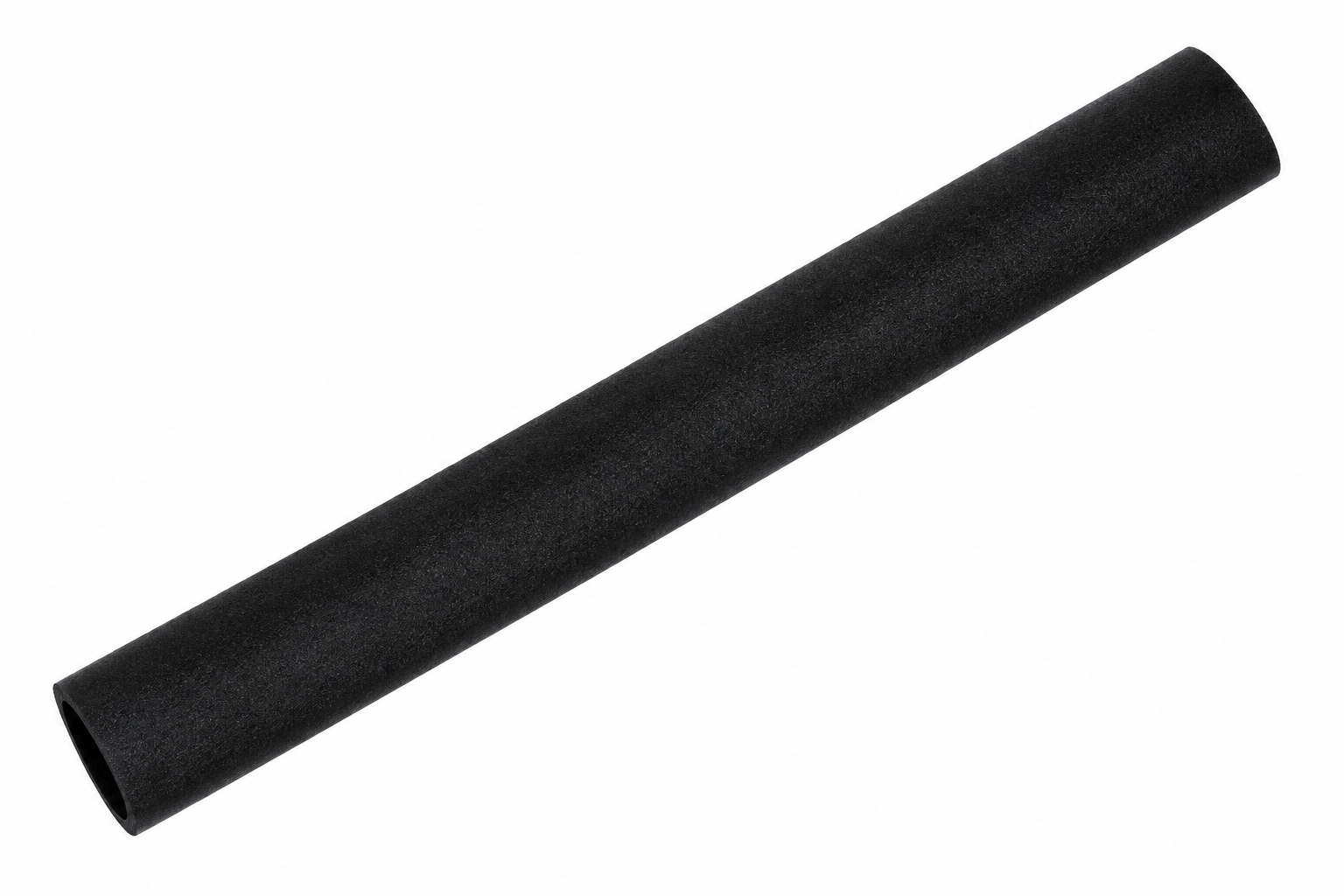

G 700184 000595-A G08 Foam Grip;Handlebar No Model Compatibility List $3.82 / Each

11
C 700257 000798-A C06 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
F 700272 000829-AB F04 Foot Pad;Guide Rail Yes Model Compatibility List $12.48 / Each

3,9,12,13,14
C 700318 000940-A C27 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
F 700330 000982-AB F02 End Cap;Guide Rail;Front No Model Compatibility List $1.90 / Each

9
Z 700410 001278-B Z24 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
L 700432 001360-00 L02 Sleeve;Mobile Wheel Yes Model Compatibility List $3.82 / Each

8,3
P 700770 002231-B P01 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
K 700893 002671-A KIT Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
R 701042 003413-00 R04 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701128 003949-EX R05 Drive Axle Set;6.5Kg No Model Compatibility List $172.46 / Each

8,10
H 701143 004029-B H23 Foot Pad Yes Model Compatibility List $40.25 / Each

9,3,12,13,14
R 701154 004072-A2 R32 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
C 701156 004074-A4 C33 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
R 701165 004081-A2 R11 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
H 701190 004133-00 H18 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
R 701221 004189-A R12 Drive Belt;Poly-V;410-J8 Yes Model Compatibility List $57.49 / Each

15,10
C 701266 004327-00 C29 Screw;Round Phillips;M5x0.8Px12L No Model Compatibility List $1.66 / Each

2
L 701270 004331-AB L07 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
N 701300 004364-00 N72 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
Z 701308 004369-00 Z13 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
F 701393 004448-Z F05 Screw;Round;Hex Socket;M5x0.8Px10L No Model Compatibility List $1.79 / Each

2
F 701408 004462-00 F06 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 701586 004617-00 Q07 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
P 701591 004620-00 P05 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
S 701613 004632-00 S03 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
R 701650 004691-A R07 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 Z11 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
Z 701703 004725-AB Z19 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
Z 701707 004727-AB Z08 Screw;Hex Socket;BH;M8x1.25Px30L;Adhere No Model Compatibility List $2.00 / Each

2
C 701723 004743-00 C20 Screw;Hex Socket;BH;M8x1.25Px60L(Tooth20) No Model Compatibility List $1.66 / Each

2
J 701731 004757-00 J05 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G11 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
R 701874 004901-00 R10 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
Z 701897 004926-00 Z16 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
E 701912 004941-00 E21 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
R 701927 004964-00 R15 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
C 701937 004973-00 C07 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
L 701939 004975-00 L03 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701978 005015-00 Z06 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
L 702040 005070-00 L06 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702076 005109-00 Z20 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
E 702166 005206-BB E15 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
R 702178 005220-00 R29 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
J 702180 005222-00 J22 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702186 005229-00 Z12 Washer;Wavy;20.5x29.0x1.5T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
R 702193 005239-00 R17 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q14 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
R 702236 005361-00 R33 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
C 702238 005363-00 C31 C-Clip;External;S-17 No Model Compatibility List $1.79 / Each

2
R 702240 005365-00 R19 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
Z 702264 005412-00 Z02 Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
G 702298 005505-00 G12 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
P 702450 007490-C P04 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
Q 702483 007964-00 Q13 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
C 702495 008061-A C32 Washer;Flat;17.2x36x1.0t No Model Compatibility List $2.00 / Each

2
R 702512 008394-00 R08 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
Z 702634 009092-B Z18 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

10
R 702874 013036-Z R31 Roller Wheel Set No Model Compatibility List $57.49 / Each

8
P 704087 020210-00 P08 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
R 704188 020456-00 R28 Washer;Flat;13.2x26x1.0T No Model Compatibility List $1.85 / Each

2
A 709953 1000205058 AE5 Pivot Tube-E500,700,800 Yes Model Compatibility List $115.99 / Each

3,8
A 709954 1000205068 AJ1 Crank Arm Yes Model Compatibility List $95.81 / Each

8,3
E 725255 103295 E22 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
Side Cover; Left 725573 073491 Q01 Side Cover; Left No Model Compatibility List $155.25 / Each

9
Side Cover; Right 725574 073493 Q02 Side Cover; Right No Model Compatibility List $155.25 / Each

9
Top Cap 725575 073495 Q03 Top Cap Yes Model Compatibility List $48.78 / Each

9
Boot; Console Mast 725576 073497 Q04 Boot; Console Mast No Model Compatibility List $3.82 / Each

7
Decal; Side Cover 725577 073509 V04 Decal; Side Cover No Model Compatibility List $3.54 / Each

7,9,3
Sticker; Left Pedal 725578 073513 H23 Sticker; Left Pedal No Model Compatibility List $1.90 / Each

8,9
Sticker; Right Pedal 725579 073514 H24 Sticker; Right Pedal No Model Compatibility List $1.90 / Each

8,9
Hardware Pack 725580 073523 KIT Hardware Pack No Model Compatibility List $43.47 / Each

4,5,6
Pulse Grip Set 725588 073707 P06 Pulse Grip Set Yes Model Compatibility List $16.30 / Each

12,13,14,11
Console Cable 725679 074701 P02 Console Cable Yes Model Compatibility List $57.49 / Each

7,4,5,6
Front Stabilizer-E700 726057 079634 L01 Front Stabilizer-E700 No Model Compatibility List $64.19 / Each

1
Link Arm,Left-E700 726058 079635 AH1 Link Arm,Left-E700 No Model Compatibility List $219.86 / Each

3
Link Arm,Right-E700 726059 079636 AH2 Link Arm,Right-E700 No Model Compatibility List $219.86 / Each

3
Handlebar,Upper Left-E700 726060 079638 AG2 Handlebar,Upper Left-E700 No Model Compatibility List $79.22 / Each

11
Con plate 726106 079979 H10 Con plate No Model Compatibility List $15.29 / Each

3
Cover;Roller Wheel;Left 726107 079980 E11 Cover;Roller Wheel;Left Yes Model Compatibility List $3.82 / Each

8,9
Cover;Roller Wheel;Right 726108 079981 E10 Cover;Roller Wheel;Right Yes Model Compatibility List $3.82 / Each

8,9
Cover;ARM COVER;black;EP194 726109 079982 C10 Cover;ARM COVER;black;EP194 No Model Compatibility List $3.54 / Each

9,3,4,5,6
Guide Rail 726605 083392 F01 Guide Rail No Model Compatibility List $144.79 / Each

9
Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

1

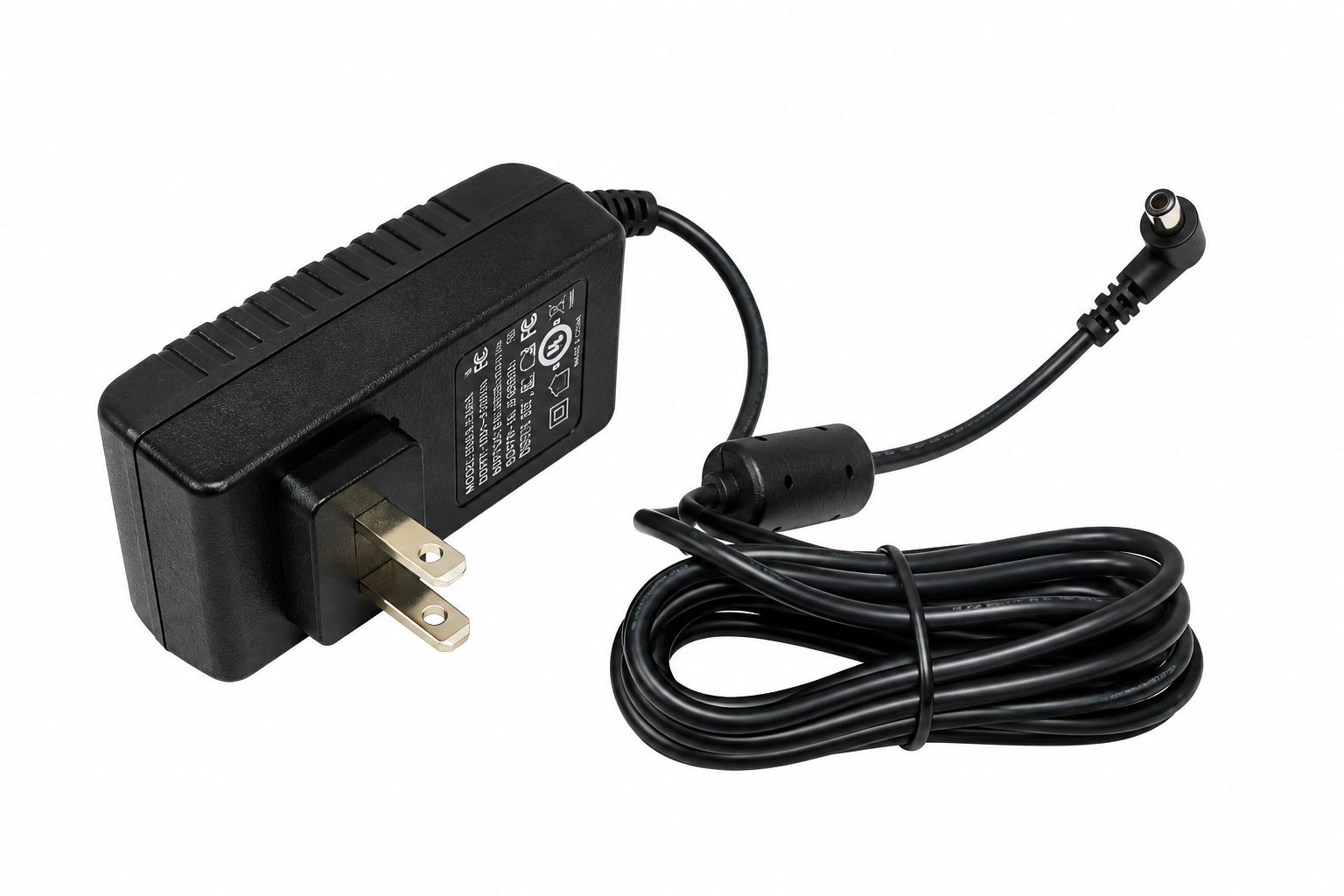

Adapter;100-240V/50HZ 12V/2A 727278 088261 P05 Adapter;100-240V/50HZ 12V/2A Yes Model Compatibility List $80.29 / Each

1
729080 Part of AE5 J21 Copper Bushing;;CU90%,SN10%;28x22x19;E No Model Compatibility List $0.00 / Each
Out Of Stock 		8
Screw;Round Tapping;Phillip;4x90MM 1019622 004659-Z H11 4 Screw;Round Tapping;Phillip;4x90MM No Model Compatibility List $6.49 / Each

2

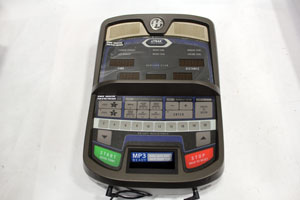

Console Set 1020624 074154 0 1 Console Set Yes Model Compatibility List $648.70 / Each

7
Pedal Pulley Axle Set 1020597 083060 0 1 Pedal Pulley Axle Set No Model Compatibility List $102.70 / Each

8
S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
Pedal Axle Set (Used) 1027606 083060 R01 Pedal Axle Set (Used) No Model Compatibility List $45.00 / Each

31
Handlebar Support-E700 (Used) 1027590 079659 AG5 Handlebar Support-E700 (Used) No Model Compatibility List $30.00 / Each

1
Plastic Bushing 3.5 inch (Used) 1027582 E700-PB 0 1 Plastic Bushing 3.5 inch (Used) No Model Compatibility List $5.00 / Each

1
