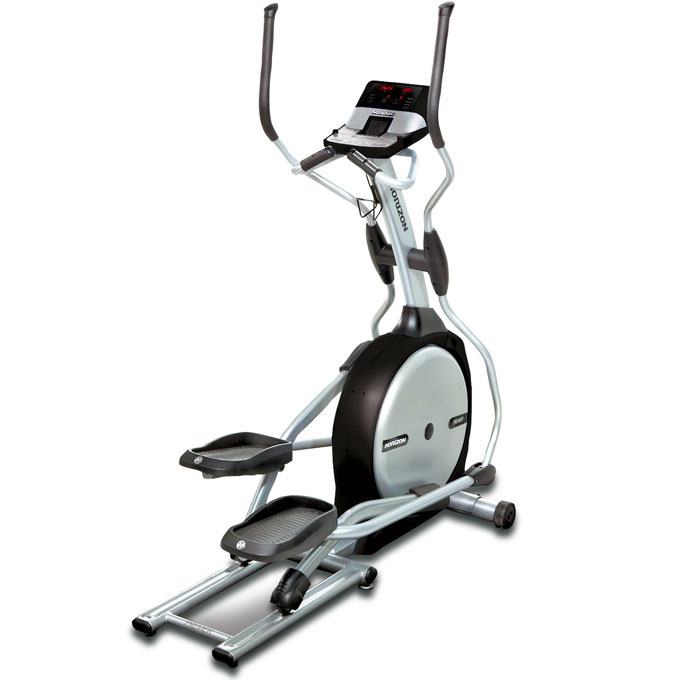

Horizon Fitness - E901 - 2009

Repair Parts for Horizon Fitness E901 EP230B

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: E901

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700011 000015-B L03 Transport Wheel Yes Model Compatibility List $11.44 / Each
Out Of Stock 		8
E 700127 000476-BA E21 Cover;Roller Wheel Yes Model Compatibility List $9.57 / Each

8,9
B 700132 000485-00 B36 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
B 700135 000491-B B35 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
C 700257 000798-A C10 Water Bottle Holder Yes Model Compatibility List $13.34 / Each

1
C 700318 000940-A C11 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
L 700355 001115-F L02 Wheel;Nylon No Model Compatibility List $9.57 / Each

8
H 700410 001278-B H28 Spacer Ring Yes Model Compatibility List $2.00 / Each

2,3,4,5,6
P 700770 002231-B P14 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
K 700893 002671-A KIT Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
R 701042 003413-00 R18 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
C 701049 003443-C C30 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
E 701089 003709-00 E25 C-Clip;S-8 No Model Compatibility List $2.00 / Each

2
E 701153 004071-00 E24 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

8
R 701160 004078-A2 R20 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
H 701190 004133-00 H13 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
701215 004177-A R13 Drive Belt;Poly-V;390-J8 Yes Model Compatibility List $57.49 / Each

15,10
E 701291 004357-00 E32 Screw;Phillip;BH;M4x0.7Px15L; No Model Compatibility List $2.00 / Each

2
G 701294 004359-00 G06 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
J 701307 004368-00 J06 Screw;Phillip;BH;M5x0.8Px20L; No Model Compatibility List $1.79 / Each

2
C 701308 004369-00 C09 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
N 701316 004372-00 N09 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
701343 004389-00 Z06 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
Z 701557 004586-AB Z09 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

7,2,12,13,14
P 701574 004608-00 P19 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

2
Q 701588 004618-00 Q06 Screw;Oval Tapping;4x20L No Model Compatibility List $2.00 / Each

2,12,13,14
P 701589 004619-00 P18 Screw;Phillip;BH;Oval Tapped;4x8L No Model Compatibility List $2.00 / Each

2
701597 004621-00 S03 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
Q 701613 004632-00 Q07 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
R 701642 004676-00 R09 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 C15 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
H 701703 004725-AB H26 Screw;Hex Socket;M8x1.25x45L No Model Compatibility List $2.00 / Each

2
L 701731 004757-00 L05 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G22 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
Z 701841 004859-00 Z02 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
R 701869 004891-00 R19 Nut;Hex;3/8-26UNCX9H No Model Compatibility List $2.00 / Each

2
E 701893 004925-00 E36 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
H 701897 004926-00 H24 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R14 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
R 701927 004964-00 R15 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 701934 004972-00 B31 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
C 701937 004973-00 C08 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
L 701939 004975-00 L09 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701964 005005-00 Z05 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
C 701988 005026-00 C16 Washer;Flat;25.5x35.0x1.0T No Model Compatibility List $2.00 / Each

2
H 701997 005035-00 H27 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
E 702015 005049-00 E31 Washer;Flat;8.2x18.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 702029 005061-00 R23 Washer;Flat;10.5x18x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
E 702046 005075-00 E35 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702053 005081-00 Z07 Washer;Flat;5.2x18.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 702072 005103-Z L04 Washer;Flat;5/16x30.0x1.5T No Model Compatibility List $1.90 / Each

2
Z 702078 005110-00 Z08 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
Z 702107 005136-A Z04 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
Z 702173 005215-AB Z10 Washer;Split Teflon;15.9x28.4x1.5T Yes Model Compatibility List $2.00 / Each

2
J 702185 005228-00 J12 Washer;Wavy;25.5x34.0x2.0T;Nylon No Model Compatibility List $2.00 / Each

2,4,5,6
R 702193 005239-00 R21 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q09 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
R 702241 005366-00 R07 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
Z 702253 005382-00 Z25 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

2
Z 702262 005408-A Z24 Screwdriver;Phillips;5x75 No Model Compatibility List $9.57 / Each

2,10
G 702298 005505-00 G21 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
Q 702483 007964-00 Q08 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R22 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
H 702634 009092-B H25 Sleeve;Pin;Ball Joint Yes Model Compatibility List $7.10 / Each

3,12,13,14
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

10
E 702898 013124-Z E23 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

8
G 703886 018992-BA G13 Cap;;;PVC;;BL;;;EP108B;EP108B-G09B; No Model Compatibility List $3.82 / Each

9
H 703974 020039-A H22 Screw;Phillip;BH;M4x0.7Px10L; No Model Compatibility List $1.79 / Each

2
Z 704077 020192-A Z12 Screw;Umbrella Cross Tapped;4X10L;Flat No Model Compatibility List $2.00 / Each

2
C 704087 020210-00 C31 Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
J 704201 020475-A J11 Washer;Flat;8.2x38x2.0T No Model Compatibility List $2.00 / Each

2
L 704210 020482-00 L08 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
V 705707 055269-AX V04 Decal;Faceplate No Model Compatibility List $3.82 / Each

7,3,4,5,6
Z 705930 056554-00 Z23 Wrench;Hex;T Type;#5x210L No Model Compatibility List $3.69 / Each

2
J 706624 063869-AA J07 CAP DISK D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $3.82 / Each

9
B 706705 064736-AA B34 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
E 707151 1000090498 E30 Screw;Phillip;BH;;M8x1.25Px40L;8.8 No Model Compatibility List $2.00 / Each

2
A 707294 1000091788 AJ1 Crank Pin Set;Panting;LM445;EP230 No Model Compatibility List $414.70 / Each

8,12,13,14
Q 707295 1000091795 Q05 Fixing Base;PWR Switch No Model Compatibility List $9.57 / Each

3,4,5,6
V 707296 1000091810 V02 Sticker;NO-RoHS;EP230 No Model Compatibility List $9.46 / Each

1
V 707297 1000091813 V20 Manual;Manipulate;NO-RoHS;EP230 No Model Compatibility List $9.57 / Each

1
K 707298 1000091820 KIT Hardware Set;Semi-Assy;EP230 No Model Compatibility List $71.32 / Each

1
Q 707336 1000092142 Q04 Right Cover No Model Compatibility List $135.64 / Each

9
Q 707337 1000092144 Q03 Left Cover No Model Compatibility List $135.64 / Each

9
P 707340 1000092161 P02 CON Wire;Console ;1500(300,300,300) No Model Compatibility List $43.00 / Each

7,4,5,6
Q 707382 1000092398 Q05 Fixing Base;Power Switch;ABS;Panting; No Model Compatibility List $8.87 / Each

3,4,5,6
Q 707383 1000092399 Q05 Fixing Base;PWR Switch No Model Compatibility List $8.87 / Each

3,4,5,6
Q 707384 1000092400 Q05 Fixing Base;PWR Switch No Model Compatibility List $8.87 / Each

3,4,5,6
A 707385 1000092403 AN1 Console Set;Semi-Assy;EP230B-1US No Model Compatibility List $1064.67 / Each

7
Q 707413 1000092574 Q04 Right Cover No Model Compatibility List $135.64 / Each

9
Q 707416 1000092589 Q04 Right Cover No Model Compatibility List $135.64 / Each

9
Q 707417 1000092591 Q03 Left Cover No Model Compatibility List $135.64 / Each

9
V 707560 1000093373 V14 Sticker;Disk;1;EP230--HORIZON No Model Compatibility List $15.76 / Each

1
V 707561 1000093374 V15 Sticker;Disk;2;EP230--PREMIER No Model Compatibility List $15.76 / Each

1
A 707637 1000093830 AE3 Pedal Arm Pin Sleeve Set No Model Compatibility List $112.01 / Each

8,9,3,12,13,14
L 707642 1000093999 L01 FRONT STABILIZER SET No Model Compatibility List $160.45 / Each

1
A 707643 1000094000 AC1 CONSOLE MAST SET No Model Compatibility List $586.01 / Each

7
A 707644 1000094001 AG3 RIGHT UPPER HANDLEBAR SET No Model Compatibility List $177.16 / Each

11
707645 1000094002 AG4 LEFT UPPER HANDLEBAR SET No Model Compatibility List $177.16 / Each

11
R 707646 1000094003 R01 PEDAL AXLE SET No Model Compatibility List $196.51 / Each

8,9
A 707647 1000094007 AH2 Lower Link Arm Right No Model Compatibility List $268.29 / Each
Out Of Stock 		3
A 707648 1000094008 AH1 Lower Link Arm Left No Model Compatibility List $268.29 / Each

3
A 707649 1000094009 AG1 RIGHT LOWER HANDLEBAR SET No Model Compatibility List $231.24 / Each

11
A 707650 1000094010 AG2 LEFT LOWER HANDLEBAR SET No Model Compatibility List $231.24 / Each

11
G 725256 103296 G11 Bushing No Model Compatibility List $9.57 / Each

8
E 725258 103298 E27 Bushing;Pivot Block;Pedal Arm No Model Compatibility List $11.96 / Each

8,9,3
E 725259 103299 E26 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Foot Pad 725441 071318 H09 Foot Pad Yes Model Compatibility List $59.10 / Each
Out Of Stock 		9,3,12,13,14
Cover; Link Arm; Left 725442 071319 H10 Cover; Link Arm; Left No Model Compatibility List $17.94 / Each
Out Of Stock 		9,3
Cover; Link Arm; Right 725443 071320 H11 Cover; Link Arm; Right No Model Compatibility List $17.94 / Each
Out Of Stock 		9,3
Cover; Handlebar 725545 072918 G07 Cover; Handlebar No Model Compatibility List $9.57 / Each

9,11
Cover; Handlebar 725546 072919 G08 Cover; Handlebar No Model Compatibility List $9.57 / Each

9,11
725547 072920 R10 Flywheel Set No Model Compatibility List $172.46 / Each

8
Boot; Console Mast 725548 072927 Q02 Boot; Console Mast No Model Compatibility List $14.90 / Each

7
Insert Boot; IPOD 725624 074262 N40 Insert Boot; IPOD No Model Compatibility List $3.82 / Each

1
Foam Holder; Ipod Nano 725675 074681 N40 Foam Holder; Ipod Nano Yes Model Compatibility List $7.00 / Each

1
Fix Plate; Speed Sensor 725680 074727 P16 Fix Plate; Speed Sensor No Model Compatibility List $3.54 / Each

3
LINK ARM SWIVEL AXLE 725747 075731 E21 LINK ARM SWIVEL AXLE Yes Model Compatibility List $37.83 / Each

8,3
Nut;Rod End Bearing;M12X1.75PX7H;SS41;BZ 725843 076952 H22 Nut;Rod End Bearing;M12X1.75PX7H;SS41;BZ No Model Compatibility List $2.00 / Each

2,8,9,3
Foam Holder;Ipod Mini 725978 078843 N40 Foam Holder;Ipod Mini Yes Model Compatibility List $7.00 / Each

1
Foam Holder;IPOD;20/30/60/80gb 725979 078844 N40 Foam Holder;IPOD;20/30/60/80gb Yes Model Compatibility List $7.00 / Each

1
Foam Holder MP3 Player Universal 726374 081448 N40 Foam Holder MP3 Player Universal Yes Model Compatibility List $16.69 / Each

1
Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

1
Adapter;100-240V/50HZ 12V/2A 727278 088261 P05 Adapter;100-240V/50HZ 12V/2A Yes Model Compatibility List $80.29 / Each

1
Bushing;Pivot Block Set 727576 090075 E20 Bushing;Pivot Block Set Yes Model Compatibility List $8.50 / Each

8
728824 097834 Q01 Cover;Disk;Right No Model Compatibility List $283.95 / Each

9
Cover;R;ABS;;Painting;DM363 ;EP216 728827 097867 Q04 Cover;R;ABS;;Painting;DM363 ;EP216 No Model Compatibility List $129.48 / Each

9
Cover;L;ABS;;Painting;DM363 ;EP216 728828 097868 Q03 Cover;L;ABS;;Painting;DM363 ;EP216 No Model Compatibility List $123.08 / Each

9
K 729396 ZMS2000030 KIT Crank puller;22mm No Model Compatibility List $38.32 / Each

8
S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
Black Hex Nut M25x1.5 1006814 011173-00 0 1 Black Hex Nut M25x1.5 No Model Compatibility List $12.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
