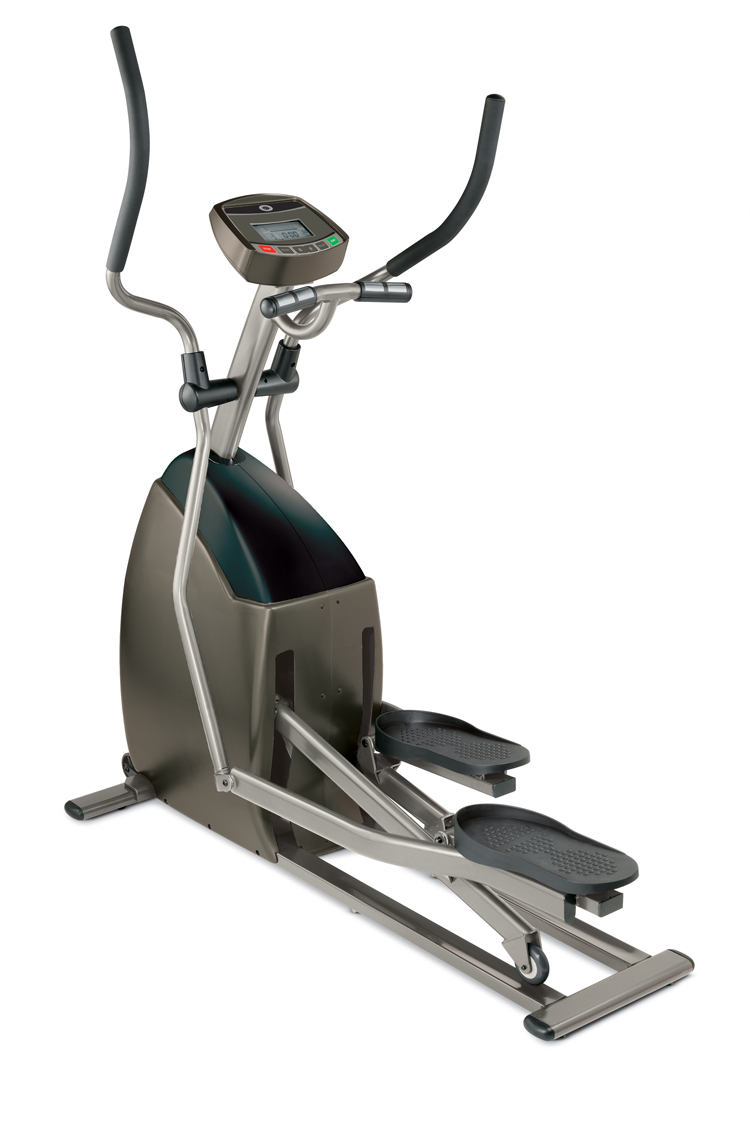

Horizon Fitness - EG5 - 2006

Repair Parts for Horizon Fitness EG5 EP109C

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: EG5

Version: 2006

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700014 000021-B L04 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

3,8
L 700132 000485-00 L07 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
L 700135 000491-B L06 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700202 000631-AA G14 Foam Grip;Handlebar;31.8X3.0TX329.5L No Model Compatibility List $3.82 / Each

11
C 700318 000940-A C15 End Cap;Pulse Grip Handlebar Yes Model Compatibility List $7.10 / Each

9,11,12,13,14
L 700359 001129-B L03 End Cap;Front Stabilizer No Model Compatibility List $1.90 / Each

9
P 700734 002074-B P04 Console Cable;1330(180,150,120);EP109 Yes Model Compatibility List $57.49 / Each

7,4,5,6
P 700770 002231-B P06 Speed Sensor Wire;2 Prong;280mm Yes Model Compatibility List $9.57 / Each

4,5,6
R 701042 003413-00 R16 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
P 701049 003443-C P02 Pulse Sensor Set;600MM No Model Compatibility List $38.32 / Each

12,13,14
R 701128 003949-EX R05 Drive Axle Set;6.5Kg No Model Compatibility List $172.46 / Each

8,10
R 701165 004081-A2 R12 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
701215 004177-A R15 Drive Belt;Poly-V;390-J8 Yes Model Compatibility List $57.49 / Each

15,10
Q 701300 004364-00 Q30 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
C 701308 004369-00 C13 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
N 701390 004447-AB N13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
Z 701557 004586-AB Z08 Screw;Hex Socket;M8X1.25PX15L;Chromed Yes Model Compatibility List $2.00 / Each

7,2,12,13,14
P 701577 004612-00 P07 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
S 701613 004632-00 S03 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
R 701650 004691-A R09 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
701699 004724-00 G17 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
E 701728 004751-00 E21 Screw;Hex Socket;BH;M8x1.25Px13L;Adhere No Model Compatibility List $2.00 / Each

2
L 701732 004758-00 L10 Screw;Hex Socket;BH;M10x1.5Px50L(Tooth20) No Model Compatibility List $2.00 / Each

2
Z 701748 004771-00 Z06 Screw;Oval;Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
Z 701779 004795-00 Z01 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $2.00 / Each

2
G 701827 004847-AB G15 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
B 701864 004887-00 B21 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

2
R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
E 701893 004925-00 E11 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
Z 701897 004926-00 Z11 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R11 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
L 701908 004934-00 L08 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
E 701912 004941-00 E15 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
R 701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
E 701964 005005-00 E26 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701982 005017-AC Z02 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
C 701991 005029-00 C09 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
G 702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
J 702020 005055-00 J04 Washer;Flat;16.2x28.7x1.5T No Model Compatibility List $2.00 / Each

2
R 702021 005056-00 R17 Washer;Flat;13.2X26.0X2.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
E 702046 005075-00 E25 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702074 005106-00 Z03 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702078 005110-00 Z30 Washer;Flat;8.2x35x2.0T;Black Zinc Yes Model Compatibility List $9.99 / Each

2,4,5,6
L 702092 005125-00 L05 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

2
E 702107 005136-A E24 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702161 005198-00 Z05 Washer;Teflon;15.9x28.4x1.0T No Model Compatibility List $2.00 / Each

2
G 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2
E 702166 005206-BB E13 Washer;Teflon;10.4x24.75x1.5T No Model Compatibility List $4.00 / Each

2
C 702178 005220-00 C10 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
J 702180 005222-00 J03 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
E 702191 005237-00 E20 Washer;Lock;10.5x25.0x1.0tT No Model Compatibility List $2.00 / Each

2
R 702193 005239-00 R14 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
R 702240 005365-00 R07 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
G 702298 005505-00 G13 Screw;M4x7Px20L No Model Compatibility List $1.90 / Each

2
B 702483 007964-00 B24 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
R 702512 008394-00 R10 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
Z 702597 008886-E Z09 Swivel Axle;Pedal Arm Yes Model Compatibility List $3.82 / Each

8,9,3
Z 702625 009053-D Z07 Inner Bushing;Pedal Arm No Model Compatibility List $3.82 / Each

8,9,3
P 702778 009659-B P01 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
S 702857 012847-00 S01 Resistance Motor Yes Model Compatibility List $206.67 / Each

10
R 702890 013111-Z R01 Pedal Axle Set Yes Model Compatibility List $96.82 / Each

8,9
E 702898 013124-Z E09 Roller Wheel Set Yes Model Compatibility List $60.22 / Each

8
Q 703862 018800-AA Q05 Console Mast Boot No Model Compatibility List $3.82 / Each

7
E 703946 019849-00 E14 Washer;Flat;Teflon;35.0x45.0x1.0T No Model Compatibility List $2.00 / Each

2
A 704966 026806-B AJ1 crank set;-;-;welding;EP109 No Model Compatibility List $57.49 / Each

8
A 706193 060158-Z AE2 Pivot Tube Set Yes Model Compatibility List $57.49 / Each

8,3
G 725255 103295 G12 Bushing;Pedal Arm Axle;31.8x3.0tx329mm No Model Compatibility List $20.12 / Each

8,9,3
E 725259 103299 E12 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Steel Rope;400L+66L 726621 083556 M06 Steel Rope;400L+66L Yes Model Compatibility List $14.74 / Each

1
Bushing;Pivot Block Set 727576 090075 E20 Bushing;Pivot Block Set Yes Model Compatibility List $8.50 / Each

8
Left or Right Foot Pedal - Used 1020732 008203-B 0 2 Left or Right Foot Pedal - Used Yes Model Compatibility List $38.99 / Each
Out Of Stock 		9
S 012847-00 012847-00 S01 1 Resistance Gear Servo Motor Brake Tensioner Yes Model Compatibility List $168.99 / Each

1
