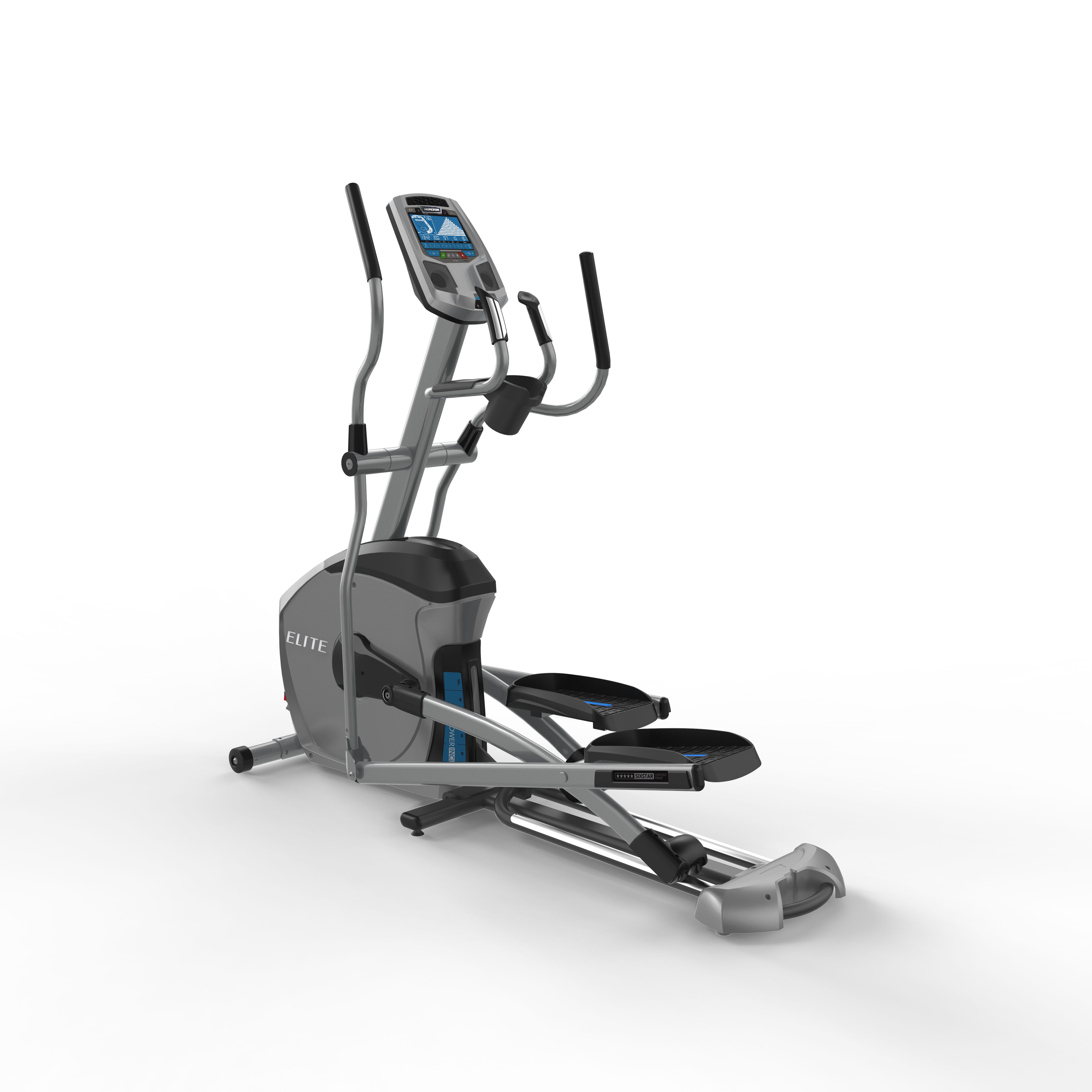

Horizon Fitness - Elite E7 - 2014

Repair Parts for Horizon Fitness Elite E7 EP585

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: Elite E7

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
F 700132 000485-00 F10 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
F 700135 000491-B F18 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
G 700323 000960-AA G09 End Cap;Upper Vertical Handlebar Yes Model Compatibility List $3.89 / Each

9,11
H 700390 001193-00 H13 End-Cap;Seat Pad;20x40x1.6t;RB06 No Model Compatibility List $1.51 / Each

9,12,13,14
700570 001679-00 P13 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
N 700893 002671-A Not Shown Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
N 701008 003307-00 N25 Chest Strap;Polar;T34/T41 No Model Compatibility List $76.65 / Each

1
E 701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
R 701160 004078-A2 R05 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
N 701300 004364-00 Not Shown Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
J 701373 004421-AB J03 Screw;Sink Cross;M5x0.8Px12L;Adhere; No Model Compatibility List $1.59 / Each

2
B 701562 004595-00 B20 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $2.00 / Each

2
701597 004621-00 Q21 Screw;Phillip;BH;Tapped;4x15L;Gap No Model Compatibility List $1.59 / Each

2
S 701599 004623-00 S03 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
701607 004628-00 C23 Screw;Oval Tapping;Phillip;5x15L No Model Compatibility List $1.59 / Each

2,12,13,14
L 701613 004632-00 L06 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
701636 004661-A C22 SCREW;RND;?X3X15L;TC;PH;;;;POT No Model Compatibility List $1.85 / Each

2
D 701681 004714-AB D08 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
701699 004724-00 G20 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
Z 701706 004727-00 Z01 Screw;Hex Socket;BH;M8x1.25Px30L No Model Compatibility List $1.59 / Each

2
Z 701744 004767-AB Z16 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.57 / Each

2
L 701745 004768-00 L05 Screw;Oval;Hex Socket;BH;M8X1.25PX15L No Model Compatibility List $1.79 / Each

2
Z 701749 004773-00 Z09 Screw;Hex Socket;BH;M8x1.25Px35L No Model Compatibility List $1.59 / Each

2
G 701827 004847-AB G10 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
Z 701851 004870-00 Z22 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
Z 701897 004926-00 Z11 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
B 701908 004934-00 B22 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
F 701934 004972-00 F16 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
L 701939 004975-00 L07 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
R 701952 004988-00 R11 Key;Round;Dual-End;6x6x14L No Model Compatibility List $1.90 / Each

9
Z 701964 005005-00 Z02 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701984 005020-AB Z08 Washer;;SPL;10.2X18.4X2.5T;;BAN; No Model Compatibility List $1.59 / Each

2
Z 701995 005033-Z Z24 Washer;Flat;?8.6x?26.0x2.0t; No Model Compatibility List $2.57 / Each

2
Z 702005 005043-00 Z13 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
G 702018 005053-00 G18 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
B 702028 005060-00 B24 Washer;Flat;12.0X23.0X2.5T No Model Compatibility List $1.79 / Each

2
B 702030 005062-00 B21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
J 702037 005067-00 J06 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702074 005106-00 Z06 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
702076 005109-00 L04 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
E 702092 005125-00 E15 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

2
E 702107 005136-A E09 Washer;Flat;8.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
Z 702135 005163-00 Z03 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
B 702160 005196-00 B12 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
G 702163 005200-A G19 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2
G 702181 005225-00 G26 WASHER;WW;?X18.6X?X24.6X0.3T;;; No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q17 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
F 702237 005362-00 F17 C-Clip;External;S-16 No Model Compatibility List $1.59 / Each

2
R 702241 005366-00 R13 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
P 702299 005811-00 P15 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
R 702829 011173-00 R15 Nut;Hex;M25x1.5P;Black No Model Compatibility List $4.00 / Each

2,4,5,6
Z 703997 020082-00 Z07 Screw;Hex Socket;M10X1.5X20;Zn-BL No Model Compatibility List $1.79 / Each

2
B 704016 020105-AC B23 Screw;Hex Socket;Round;M10x1.5Px15L;Adhe No Model Compatibility List $2.57 / Each

2
P 704072 020184-00 P04 Screw;Phillip;BH;Tapped;3x12L;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
P 704073 020185-00 P17 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

2
H 704153 020347-A H15 Screw;TRH;4X8L;SM;PH;;;;POT No Model Compatibility List $0.83 / Each

2
F 704210 020482-00 F12 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
Q 704273 022177-A Q15 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

2,9,3,4,5,6
Z 705323 040839-00 Z10 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.59 / Each

2
R 705324 040840-A R19 Washer;Flat;6.2X30.0X1.5T No Model Compatibility List $1.59 / Each

2
G 705375 049000-AA G08 Foam Grip;Upper Handlebar;31.8x3.0tx300L No Model Compatibility List $3.82 / Each

11
P 706350 061301-A P06 Power Switch;KCD3 Yes Model Compatibility List $28.73 / Each

4,5,6
K 706426 062257-A K03 Screw;;M10X1.5PX14L;;HS;CRMO;;;SP No Model Compatibility List $3.64 / Each

2
P 706549 063270-A P07 Circuit Breaker;3A/125V Yes Model Compatibility List $27.30 / Each

4,5,6
F 706705 064736-AA F14 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
707911 1000096854 P01 Power Cord;USA;16AWG;Long2M Yes Model Compatibility List $57.49 / Each

4,5,6
D 708076 1000098969 D07 Pivot Tube Insert;POM;Pantone425CTR??EP2 No Model Compatibility List $9.57 / Each

8,3
Q 708159 1000100845 Q07 Roller Wheel Cover;Left Yes Model Compatibility List $12.99 / Each

8,9
Q 708160 1000100846 Q09 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
Q 708161 1000100847 Q05 Cover;Pedal Arm Yes Model Compatibility List $9.09 / Each

3,8,9
Q 708163 1000100851 Q08 Roller Wheel Cover;Right Yes Model Compatibility List $12.93 / Each

8,9
M 708244 1000101466 M30 Elevation Motor;AC;110V; JM14-028 175mm;99;JM14 Yes Model Compatibility List $256.78 / Each

4,5,6,10
P 708253 1000101534 P03 Speed Sensor Wire Yes Model Compatibility List $12.99 / Each

4
P 708259 1000101658 P02 Console Cable;Down;1200mm(CKM254301-8P+SM- Yes Model Compatibility List $29.99 / Each

4,5,6,7
P 708260 1000101659 P11 ECB Motor Wire;CKM254301-8P+CKM254301-9 Yes Model Compatibility List $15.59 / Each

4,5,6,10
P 708410 1000102705 P19 Inside Receiver Set No Model Compatibility List $110.16 / Each

1
H 708433 1000102806 H10 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
H 708508 1000103023 H12 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
E 708729 1000105109 E18 Bearing;Ball;6302ZZ;15X42X13T;;SL;;; No Model Compatibility List $13.39 / Each

8
Q 708752 1000105367 Q18 Link Arm accent piece;BLACK;EP513B-2KM No Model Compatibility List $3.82 / Each

3,4,5,6
D 708773 1000105769 D14 Ribbon;White;760L No Model Compatibility List $2.47 / Each

1
S 709092 1000109370 S02 Steel Resistance Cable Rope;ECB; 160L;L1+L2=65 Yes Model Compatibility List $16.89 / Each

1
Z 709135 1000110274 Z04 Washer;Flat;20.2x27.2x1.5T;SPHC;BAN No Model Compatibility List $1.59 / Each

2
Q 709199 1000110919 Q20 SCREW;BH;(10.4);4X15L;SM;PH;BAN;POT No Model Compatibility List $1.59 / Each

2
Z 709211 1000111159 Z12 Washer;Wavy;17.2x22.5x0.5T;65Mn No Model Compatibility List $1.59 / Each

2,4,5,6
Crank Pin Set;EP525-1US 709270 1000233192 14 Crank Pin Set;EP525-1US No Model Compatibility List $36.40 / Each

8,12,13,14
Q 709365 1000113436 Q23 Screw;FH;4x15L;TC;PH;CST;BAN No Model Compatibility List $1.85 / Each

2
E 709413 1000114156 E20 Washer;Wave;17.2x22.5x0.5t;65Mn;BAN No Model Compatibility List $1.59 / Each

2,4,5,6
A 709582 1000201410 AJ1 CRANK SET;-;-;WELDING;EP543-1US; Yes Model Compatibility List $59.38 / Each

8
Z 709791 1000203217 Z21 Washer;;Wavy;20.7X29.1X0.5T;;-;BAN;; No Model Compatibility List $1.59 / Each

2,4,5,6
R 709904 1000204290 R07 SCREW;EB;1/4"-20UNCX55L;12;-;-;-;BZN; Yes Model Compatibility List $7.79 / Each

2
P 710001 1000205890 P10 Wire;BS CON;;BLACK;;250LOCK2 60L; No Model Compatibility List $3.82 / Each

4,5,6
P 710004 1000205893 P08 Wire;Control Board Power;;BLACK;;250LOCK700L No Model Compatibility List $3.82 / Each

7,4,5,6
R 710064 1000206552 R06 Drive Belt;Poly-V;490-J10 Yes Model Compatibility List $57.49 / Each

15,10
J 710067 1000206624 J04 Screw;SH;M10X1.5PX55L No Model Compatibility List $4.00 / Each

2
J 710068 1000206625 J05 NUT;-;M10X1.5P;G10;BAN;; Yes Model Compatibility List $1.59 / Each

2
R 710070 1000206628 R04 Resistance Brake Flywheel;10.5KG Yes Model Compatibility List $360.20 / Each

8
R 710072 1000206655 R16 Key;Round;Signal-End;6X6X20L;-;-;; No Model Compatibility List $1.51 / Each

9
G 710737 1000212982 G11 Swivel Axle Cover;Arm Rest;EP554-2KM; No Model Compatibility List $3.82 / Each

8,9,3
Z 710739 1000213024 Z20 Washer;Spacer;;Rubber;;EP553-2KM No Model Compatibility List $3.59 / Each

2,3,4,5,6
P 710760 1000213319 P18 Screw;TRHW;4X10L;SM;PS;G8.8;WZN;GREEN T No Model Compatibility List $1.59 / Each

2
S 710763 1000213379 S01 Resistance Motor Yes Model Compatibility List $180.67 / Each

10
1 711203 1000217586 17 Drive Axle Set No Model Compatibility List $292.89 / Each

8,10
711231 1000217975 R18 SCREW;BH;M6X1.0PX15L;MT;HS;G8.8;BAN;BP; No Model Compatibility List $1.59 / Each

2
711546 1000221182 Not Shown WIRE;CONSOLE;UP;;;;;250MM(CKM254301-8P S No Model Compatibility List $7.64 / Each

7,4,5,6
A 711703 1000222885 AK1 Singkang Iinkage Set;PAINTING;EP558 No Model Compatibility List $24.91 / Each

1
A 711706 1000222907 AD3 FIXED SET;LEVELER;PAINTING;DM362 MATTE No Model Compatibility List $3.54 / Each

3
G 712057 1000226169 G22 PLASTIC COVER;HANDLE BAR;HIPS;EP558 No Model Compatibility List $3.82 / Each

9,11
E 712062 1000226201 E13 SCREW;SH;M10x1.5Px45L-16L;MT;G10.9;CRMO; No Model Compatibility List $2.00 / Each

2
E 712111 1000226784 E22 SHIM;CRANK SLEEVE;-;SPHC;-;EP558; No Model Compatibility List $3.82 / Each

8,3
712158 1000227058 P25 WIRE;PULSE CON;UP;BLACK;;110## SM-2Y; No Model Compatibility List $3.82 / Each

4,5,6,12,13,14
R 712293 1000228194 R02 Eensor Magent;Diam.15x7T;1900GAUSS No Model Compatibility List $12.04 / Each

1
712365 1000228558 E08 Crank Sleeve;Pedal Arm;-;-;ADC12; No Model Compatibility List $15.31 / Each

8,9,3,4,5,6
E 712370 1000228586 E16 NUT;NLK;M10x1.5P;G10.0;BAN;; No Model Compatibility List $2.00 / Each

2
H 713148 1000233270 H05 Screw;Phillip;Flat Head;M5X0.8PX12L;Cutt No Model Compatibility List $2.00 / Each

2
N 713194 1000300148 Not Shown Manual;EP safety direction;;EN/FR/ES;;EP No Model Compatibility List $5.72 / Each

9
H 713201 1000300189 H06 Bearing;Dry;-;-;Sheng Ge Ban No Model Compatibility List $6.68 / Each

8
713211 1000300260 C15 Plastic Cover,Left-Rear,ABS/PA757K,Q520- No Model Compatibility List $3.54 / Each

9
713213 1000300263 C19 Plastic Cover,Right-Rear,ABS/PA757K,Q520 No Model Compatibility List $3.54 / Each

9
C 713313 1000300980 C08 Cover;Kettle;;HIPS,PH-88;BL/Black C;EP57 No Model Compatibility List $14.17 / Each

9,4,5,6
Q 713314 1000300992 Q26 Swivel Bushing;-;-;POM;EP573 No Model Compatibility List $2.47 / Each

8
Q 713315 1000301009 Q13 Cover;Crank;;HIPS,PH-88;BL/Black C;EP576 No Model Compatibility List $9.57 / Each

8,9,4,5,6
Q 713316 1000301015 Q11 Cover;Consoel Mast;;HIPS,PH-88;BL/Black No Model Compatibility List $5.72 / Each

9,4,5,6
Q 713317 1000301016 Q04 Cover;;back;HIPS,PH-88;BL/Black C;EP576; No Model Compatibility List $13.39 / Each

9,4,5,6
Q 713318 1000301017 Q03 Cover;;up;HIPS,PH-88;BL/Black C;EP576; No Model Compatibility List $11.49 / Each

9,4,5,6
713461 1000303580 E23 Bearing;-;#17x#35x10T;6003ZZ;ChangC No Model Compatibility List $6.68 / Each

8
3 713576 1000305218 3 Guide rail set;Semi-Assy;left;;;S-EP573; No Model Compatibility List $95.81 / Each

9
4 713577 1000305219 4 Guide rail set;Semi-Assy;right;;;S-EP573 No Model Compatibility List $95.81 / Each

9
Q 713676 1000306395 Q16 Pedal;;right;PP;BL/Black C;EP576; No Model Compatibility List $28.73 / Each

8,9,4,5,6
Q 713700 1000306657 Q14 Pedal;;left;PP;BL/Black C;EP576; No Model Compatibility List $28.73 / Each

8,9,4,5,6
P 713879 1000309204 P05 PowerSocket,,(100,300,100+700),250 180#, No Model Compatibility List $7.64 / Each

4,5,6
G 715534 1000325798 G13 Bearing;Ball;6004ZZ;#20X#42X12T;CSC; No Model Compatibility List $7.64 / Each

8
A 715874 1000328852 AG5 Connecting Set;;;painting;MM323 Matter;; No Model Compatibility List $67.05 / Each

1
715875 1000328869 Q01 Side Cover;;left;HIPS,PH-88;COOL GRAY 11 No Model Compatibility List $0.00 / Each
Out Of Stock 		9
715876 1000328872 Q02 Side Cover;;right;HIPS,PH-88;COOL GRAY 1 No Model Compatibility List $0.00 / Each
Out Of Stock 		9
Q 715877 1000328873 Q19 Cover;STABILIZER TUBE;back;PP;COOL GRAY No Model Compatibility List $11.49 / Each

9,3,4,5,6
A 715878 1000328875 AN1 Console set;;;;;EP585;; No Model Compatibility List $862.39 / Each

7
715879 1000328886 V25 Bar Code Label;Frame;3M468;;Matte Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
V 715880 1000328888 V19 LABEL;Round;;;;;;EP585 No Model Compatibility List $1.90 / Each

1
V 715881 1000328891 V12 Model Label;ETL;;;;;;EP585; No Model Compatibility List $1.77 / Each

1
V 715882 1000328894 V01 Adjustable Indication Decal;;;;;Left;;EP No Model Compatibility List $3.43 / Each

7,3
V 715883 1000328895 V02 Adjustable Indication Decal;;;;;Right;;E No Model Compatibility List $3.43 / Each

7,3
V 715884 1000328897 V08 LOGO Label;Stabilizer;;;;Rear;;EP585; No Model Compatibility List $2.47 / Each

1
V 715885 1000328898 V04 LOGO Label;Cover;;;;Up;;EP585; No Model Compatibility List $2.47 / Each

9
V 715886 1000328900 V14 Decorated Label;Link Arm accent piece;;; No Model Compatibility List $3.43 / Each

3,4,5,6
N 715887 1000328904 Not Shown Manual;Assembly;;EN/FR/ES;;EP585 No Model Compatibility List $15.31 / Each

3
Q 715888 1000328917 Q12 Rubber Piece;Pedal;;ABS/PA757K;BS302;;EP No Model Compatibility List $2.47 / Each

8,9
N 715958 1000329469 Not Shown Pulse EXT;;UP1;Black;;24AWG;250;AWM 2464 No Model Compatibility List $3.43 / Each

4,5,6,12,13,14
D 716196 1000334536 D09 Foam;singleside;;35x665Lx1.5t;;55+-5Deg. No Model Compatibility List $2.47 / Each

1
H 716256 1000334947 H07 Cap;;;PP;BL/Black C;;EP164; No Model Compatibility List $2.47 / Each

9,4,5,6
N 716545 1000337327 Not Shown Pulse CON;;UP2;;;2468 24AWG;250;XHS-2Y(y No Model Compatibility List $3.43 / Each

12,13,14
A 716581 1000337595 AC4 Hand Pulse Grip Set;;left;;;EP585;; No Model Compatibility List $38.32 / Each

12,13,14,11
A 716582 1000337601 AC6 Hand Pulse Grip Set;;right;;;EP585;; No Model Compatibility List $28.73 / Each

12,13,14,11
V 716618 1000337859 V31 LOGO Label;Side Cover;Chrome decal;;;;;E No Model Compatibility List $3.43 / Each

7,9,3,12,13,14
2 717461 1000345309 20 Roller Set;Semi-Assy;;;;S-EP580;; No Model Compatibility List $76.65 / Each

8
N 717730 1000347198 Not Shown Hardware Set;Semi-Assy;;;;EP573D-1US;; No Model Compatibility List $56.19 / Each

1
1 717837 1000347987 1 Frame Set;Semi-Assy;back;;;S-EP585-1US;; No Model Compatibility List $344.94 / Each

3,4,5,6
2 717838 1000347988 2 Console mast set;Semi-Assy;;;;S-EP585-1U No Model Compatibility List $383.27 / Each

7
5 717839 1000347991 5 Arm Rest Set;Semi-Assy;left up;;;S-EP585 No Model Compatibility List $95.81 / Each

3
6 717840 1000347993 6 Arm Rest Set;Semi-Assy;right up;;;S-EP58 No Model Compatibility List $95.81 / Each

3
7 717841 1000347995 7 Arm Rest Set;Semi-Assy;left down;;;S-EP5 No Model Compatibility List $249.13 / Each

3
8 717842 1000347999 8 Arm Rest Set;Semi-Assy;right down;;;S-EP No Model Compatibility List $249.13 / Each

3
9 717843 1000348002 9 Link Arm Set;Semi-Assy;left;;;S-EP585-1U No Model Compatibility List $287.46 / Each

3
1 717844 1000348004 10 Link Arm Set;Semi-Assy;right;;;S-EP585-1 No Model Compatibility List $287.46 / Each

3

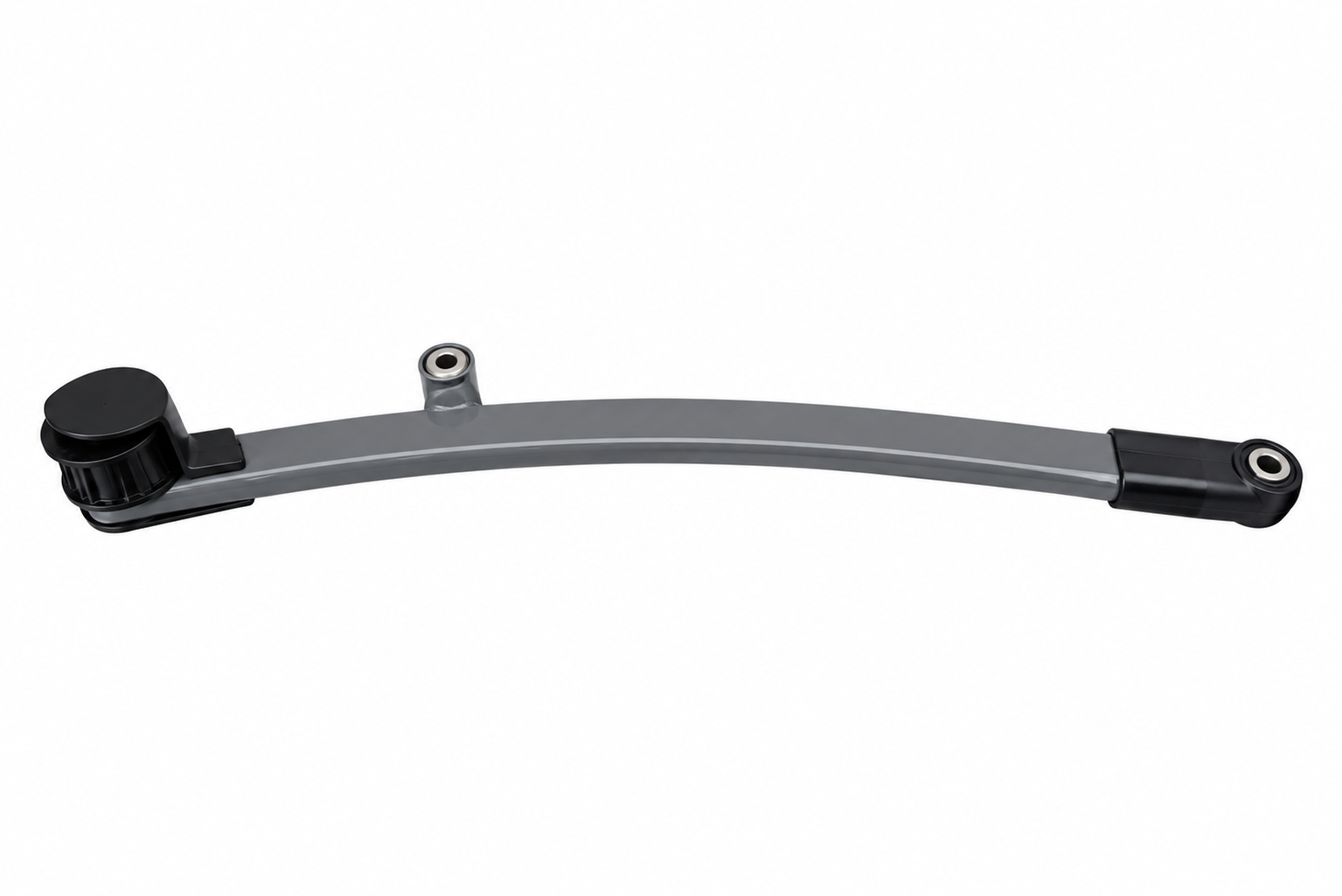

1 717845 1000348005 11 Pedal Arm set;Semi-Assy;left;;;S-EP585-1 No Model Compatibility List $344.94 / Each

8,9,3
1 717846 1000348007 12 Pedal Arm set;Semi-Assy;right;;;S-EP585- No Model Compatibility List $344.94 / Each

8,9,3
717847 1000348011 13 Stabilizer set;Semi-Assy;;;;S-EP585-1US; No Model Compatibility List $95.81 / Each

1
1 717848 1000348014 14 Side Cover Set;Semi-Assy;left;;;S-EP585- No Model Compatibility List $95.81 / Each

9
1 717849 1000348015 15 Side Cover Set;Semi-Assy;right;;;S-EP585 No Model Compatibility List $95.81 / Each

9
1 717850 1000348016 16 Cover set;Semi-Assy;back;;;S-EP585-1US;; No Model Compatibility List $35.46 / Each

9,4,5,6
N 717913 1000348616 Not Shown Manual;Use Manipulate;;English;E7 &E9;EP No Model Compatibility List $7.64 / Each

1
D 720052 1000368347 D06 Accent Plate Set;Semi-Assy;;;;EP595-1US; No Model Compatibility List $70.25 / Each

3,4,5,6
722279 1000390464 M31 LCB;Incline EP;;HAPA;V1.001;;MLH1602;1W No Model Compatibility List $191.62 / Each

10
Screw; Hex Socket; BH; M8x1.25Px15L 725507 072210 E10 Screw; Hex Socket; BH; M8x1.25Px15L No Model Compatibility List $1.59 / Each

2
Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

2
Bushing;Move Wheel;BLACK;EP188 725754 075972 L02 Bushing;Move Wheel;BLACK;EP188 No Model Compatibility List $6.68 / Each

8,4,5,6
Transport Wheel Set; 725922 078380 L03 Transport Wheel Set; Yes Model Compatibility List $6.60 / Each

8
USB Cover;USB-03 726594 0000083278 Z22 USB Cover;USB-03 No Model Compatibility List $1.90 / Each

9
726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

2,4,5,6
Cover;Lower Vertical Handlebar Rotating Axle 728346 094112 B35 Cover;Lower Vertical Handlebar Rotating Axle Yes Model Compatibility List $7.99 / Each

8,9
729118 Part of Kit 1 AF1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729120 Part of Kit 10 AH2 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729123 Part of Kit 11 AE1 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729124 Part of Kit 12 AE2 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729125 Part of Kit 13 L01 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729135 Part of Kit 17 R03 Transmission Axle;42CrMo;EP217 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AD2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AD1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AG3 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AG4 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729195 Part of Kit 7 & 8 AG1 Arm Rest set;;D;painting;MM323 Matter;;E No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729201 Part of Kit 9 AH1 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
Crank Set 1020497 1000205354 0 1 Crank Set No Model Compatibility List $180.70 / Each

8
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
