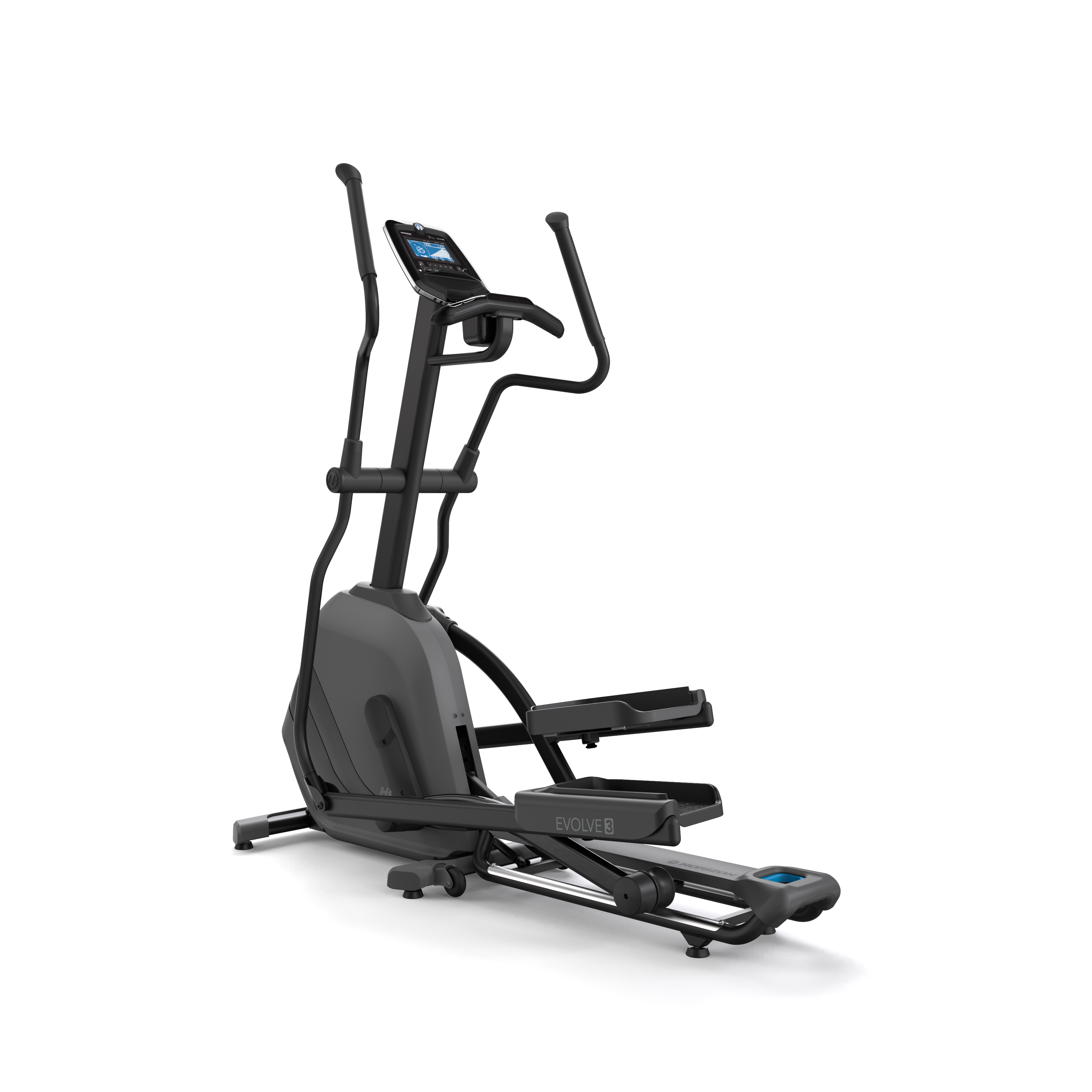

Horizon Fitness - Evolve 3-02 - 2016

Repair Parts for Horizon Fitness Evolve 3-02 EP583B

Brand: Horizon Fitness

Category: Folding

Type: Elliptical

Model Name: Evolve 3-02

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
P 700376 001161-C P10 Plate;Power Socket Yes Model Compatibility List $5.00 / Each

3,4,5,6
P 700570 001679-00 P06 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
Q 700571 001681-A Q08 Fix Pillar;PP;TM81 No Model Compatibility List $1.90 / Each

1
N 700893 002671-A N15 Audio Wire;Three-D Earphone Yes Model Compatibility List $9.99 / Each

7,4,5,6,12,13,14
E 701159 004077-A2 E16 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
N 701300 004364-00 N09 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
J 701344 004390-00 J04 SCREW;BH;M5X0.8PX8L;CT;PH;;BZN;; No Model Compatibility List $2.00 / Each

2
N 701574 004608-00 N06 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

2
P 701583 004615-00 P05 Screw;Umbrella Cross Tapped;4x10L No Model Compatibility List $2.00 / Each

2
Q 701586 004617-00 Q04 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
S 701599 004623-00 S03 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
F 701681 004714-AB F29 Screw;Hex Socket;BH;M6x1.0Px15L;Zinc No Model Compatibility List $1.59 / Each

2
701699 004724-00 G23 Bolt;M8x1.25Px15L Yes Model Compatibility List $2.00 / Each

2
B 701702 004725-00 B35 SCREW;BH;M8X1.25PX45L;;HS;;BZN;; No Model Compatibility List $2.57 / Each

2
B 701708 004727-AC B42 Screw;Umbrella Hex Scoket;M8x1.25Px30L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701744 004767-AB Z09 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.57 / Each

2
F 701774 004793-AE F32 Screw;Hex Socket;BH;M10x1.5Px15L;Adhere No Model Compatibility List $2.91 / Each

2
G 701827 004847-AB G17 Set Screw;M10X1.5PX12L Yes Model Compatibility List $6.99 / Each

2
F 701852 004872-A F31 Screw;Self Tapping;4x15L No Model Compatibility List $0.34 / Each

2,12,13,14
R 701874 004901-00 R08 Nut;Hex;M12x1.75P;Zn-BL No Model Compatibility List $4.00 / Each

2
Z 701897 004926-00 Z02 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
R 701904 004931-00 R09 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
Z 701964 005005-00 Z06 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
B 701982 005017-AC B44 Washer;Spring;10.2x18.4x2.5T;Black No Model Compatibility List $2.00 / Each

2,4,5,6
Z 701995 005033-Z Z07 Washer;Flat;?8.6x?26.0x2.0t; No Model Compatibility List $2.57 / Each

2
Z 702005 005043-00 Z10 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
G 702018 005053-00 G19 Washer;Flat;8.2x27.0x2.0T No Model Compatibility List $2.00 / Each

2
B 702028 005060-00 B46 Washer;Flat;12.0X23.0X2.5T No Model Compatibility List $1.79 / Each

2
J 702037 005067-00 J07 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
C 702087 005119-00 C18 Washer;Flat;8.2x16.0x1.5T No Model Compatibility List $2.00 / Each

2
E 702092 005125-00 E12 Washer;Flat;10.2x20x1.0T No Model Compatibility List $2.00 / Each

2
F 702143 005174-A F44 Washer;Arc;Diam.6.0xDiam.13.0x1.0T;;Blac No Model Compatibility List $1.38 / Each

2,4,5,6
B 702157 005193-00 B51 WASHER;FLT;Diam.12.0XDiam.25.0X1.5T;TFN; No Model Compatibility List $4.00 / Each

2
G 702163 005200-A G20 Washer;Teflon;18.2X30.0X1.0T No Model Compatibility List $2.00 / Each

2
G 702181 005225-00 G21 WASHER;WW;?X18.6X?X24.6X0.3T;;; No Model Compatibility List $2.00 / Each

2
Q 702217 005330-00 Q05 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
B 702234 005359-00 B30 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

2
R 702242 005367-00 R11 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
P 702299 005811-00 P08 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
H 702300 005812-00 H10 Cable Tie;Nylon;200L;BL;KSS;CV-200MB No Model Compatibility List $2.29 / Each

2,4,5,6
R 702512 008394-00 R12 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
B 703997 020082-00 B38 Screw;Hex Socket;M10X1.5X20;Zn-BL No Model Compatibility List $1.79 / Each

2
P 704073 020185-00 P03 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

2
Z 704210 020482-00 Z04 Washer;Flat;16.0X25.0X1.5T No Model Compatibility List $1.59 / Each

2
Q 704273 022177-A Q06 Bracket;Side Cover;2 Hole Plate No Model Compatibility List $2.47 / Each

2,9,3,4,5,6
B 704979 028275-AA B26 Adjustable Leveler Yes Model Compatibility List $1.90 / Each

3
R 705324 040840-A R16 Washer;Flat;6.2X30.0X1.5T No Model Compatibility List $1.59 / Each

2
R 705485 049287-00 R18 Washer;Flat;12.5x20.0x2.0t; No Model Compatibility List $2.00 / Each

2
B 706705 064736-AA B37 End-Cap;Guide Rail;PP;BL;EP136-B26B Yes Model Compatibility List $8.97 / Each

9
G 708152 1000100593 G16 Cap;PVC;BL;PAHs;EP140 No Model Compatibility List $3.17 / Each

9
Q 708160 1000100846 Q12 End Cap;Pedal Arm No Model Compatibility List $2.47 / Each

8,9,3
P 708252 1000101533 P04 Power Wire;DC;600mm Yes Model Compatibility List $10.01 / Each

4,5,6
H 708433 1000102806 H09 Swivel Axle;Link Arm No Model Compatibility List $8.01 / Each

8,3
H 708508 1000103023 H12 End Cap;Pedal Arm Yes Model Compatibility List $6.49 / Each

3,8,9
708694 1000104779 Q11 Screw;BH;?p4x20L;TC;PH;-;BZN;F-T/FLT;G4. No Model Compatibility List $1.85 / Each

2
E 708729 1000105109 E17 Bearing;Ball;6302ZZ;15X42X13T;;SL;;; No Model Compatibility List $13.39 / Each

8
R 708863 1000106783 R06 BELT;POLY-V;;420-J8;GATES; Yes Model Compatibility List $57.49 / Each

15
S 709092 1000109370 S02 Steel Resistance Cable Rope;ECB; 160L;L1+L2=65 Yes Model Compatibility List $16.89 / Each

1
H 709135 1000110274 H16 Washer;Flat;20.2x27.2x1.5T;SPHC;BAN No Model Compatibility List $1.59 / Each

2
Q 709199 1000110919 Q07 SCREW;BH;(10.4);4X15L;SM;PH;BAN;POT No Model Compatibility List $1.59 / Each

2
J 709211 1000111159 J10 Washer;Wavy;17.2x22.5x0.5T;65Mn No Model Compatibility List $1.59 / Each

2,4,5,6
F 709224 1000111253 F13 Swivel Axle;Pulley;45#;EP247 No Model Compatibility List $15.31 / Each

8
B 709225 1000111258 B29 Pull Pin;-;-;-;EP247 No Model Compatibility List $9.10 / Each

12,13,14
E 709413 1000114156 E06 Washer;Wave;17.2x22.5x0.5t;65Mn;BAN No Model Compatibility List $1.59 / Each

2,4,5,6
Z 709552 1000201251 Z08 Ring;Rubber;26.2x16.20x11.50 No Model Compatibility List $4.00 / Each

1
A 709582 1000201410 AJ1 CRANK SET;-;-;WELDING;EP543-1US; Yes Model Compatibility List $59.38 / Each

8
B 709592 1000201521 B31 Spring;CMP;1.2X14.5X17.0LX8.5N;SWP;WZN No Model Compatibility List $2.00 / Each

2
H 709791 1000203217 H17 Washer;;Wavy;20.7X29.1X0.5T;;-;BAN;; No Model Compatibility List $1.59 / Each

2,4,5,6
R 709904 1000204290 R07 SCREW;EB;1/4"-20UNCX55L;12;-;-;-;BZN; Yes Model Compatibility List $7.79 / Each

2
J 710067 1000206624 J05 Screw;SH;M10X1.5PX55L No Model Compatibility List $4.00 / Each

2
J 710068 1000206625 J06 NUT;-;M10X1.5P;G10;BAN;; Yes Model Compatibility List $1.59 / Each

2
R 710069 1000206627 R17 ECB Controller;Internal;8.0KG;EP537-1US No Model Compatibility List $287.46 / Each

7,8
R 710072 1000206655 R10 Key;Round;Signal-End;6X6X20L;-;-;; No Model Compatibility List $1.51 / Each

9
N 710283 1000208275 N08 Screw;BH;M5x5L;-;PH;-;WZN;-;-; No Model Compatibility List $2.00 / Each

2
E 710722 1000212646 E07 MOVING WHEEL SET;-;S-EP534;-; Yes Model Compatibility List $189.00 / Each

8
G 710737 1000212982 G14 Swivel Axle Cover;Arm Rest;EP554-2KM; No Model Compatibility List $3.82 / Each

8,9,3
711231 1000217975 R15 SCREW;BH;M6X1.0PX15L;MT;HS;G8.8;BAN;BP; No Model Compatibility List $1.59 / Each

2
N 711971 1000224562 N64 CONTROL BOARD;EARPHONE;;SOO1124;HAPA;-; No Model Compatibility List $9.57 / Each

7
E 712062 1000226201 E11 SCREW;SH;M10x1.5Px45L-16L;MT;G10.9;CRMO; No Model Compatibility List $2.00 / Each

2
E 712111 1000226784 E14 SHIM;CRANK SLEEVE;-;SPHC;-;EP558; No Model Compatibility List $3.82 / Each

8,3
712158 1000227058 C16 WIRE;PULSE CON;UP;BLACK;;110## SM-2Y; No Model Compatibility List $3.82 / Each

4,5,6,12,13,14
712365 1000228558 E04 Crank Sleeve;Pedal Arm;-;-;ADC12; No Model Compatibility List $15.31 / Each

8,9,3,4,5,6
E 712370 1000228586 E13 NUT;NLK;M10x1.5P;G10.0;BAN;; No Model Compatibility List $2.00 / Each

2
P 712874 1000231159 P21 ADAPTER;US;100-240V/50-60HZ;12V/2A;2.0M; Yes Model Compatibility List $80.29 / Each

1
713005 1000232161 P11 Console Wire Set;;UP1;;;;350MM;CKM254301 No Model Compatibility List $7.64 / Each

7,4,5,6
H 713148 1000233270 H07 Screw;Phillip;Flat Head;M5X0.8PX12L;Cutt No Model Compatibility List $2.00 / Each

2
N 713194 1000300148 Not Shown Manual;EP safety direction;;EN/FR/ES;;EP No Model Compatibility List $5.72 / Each

9

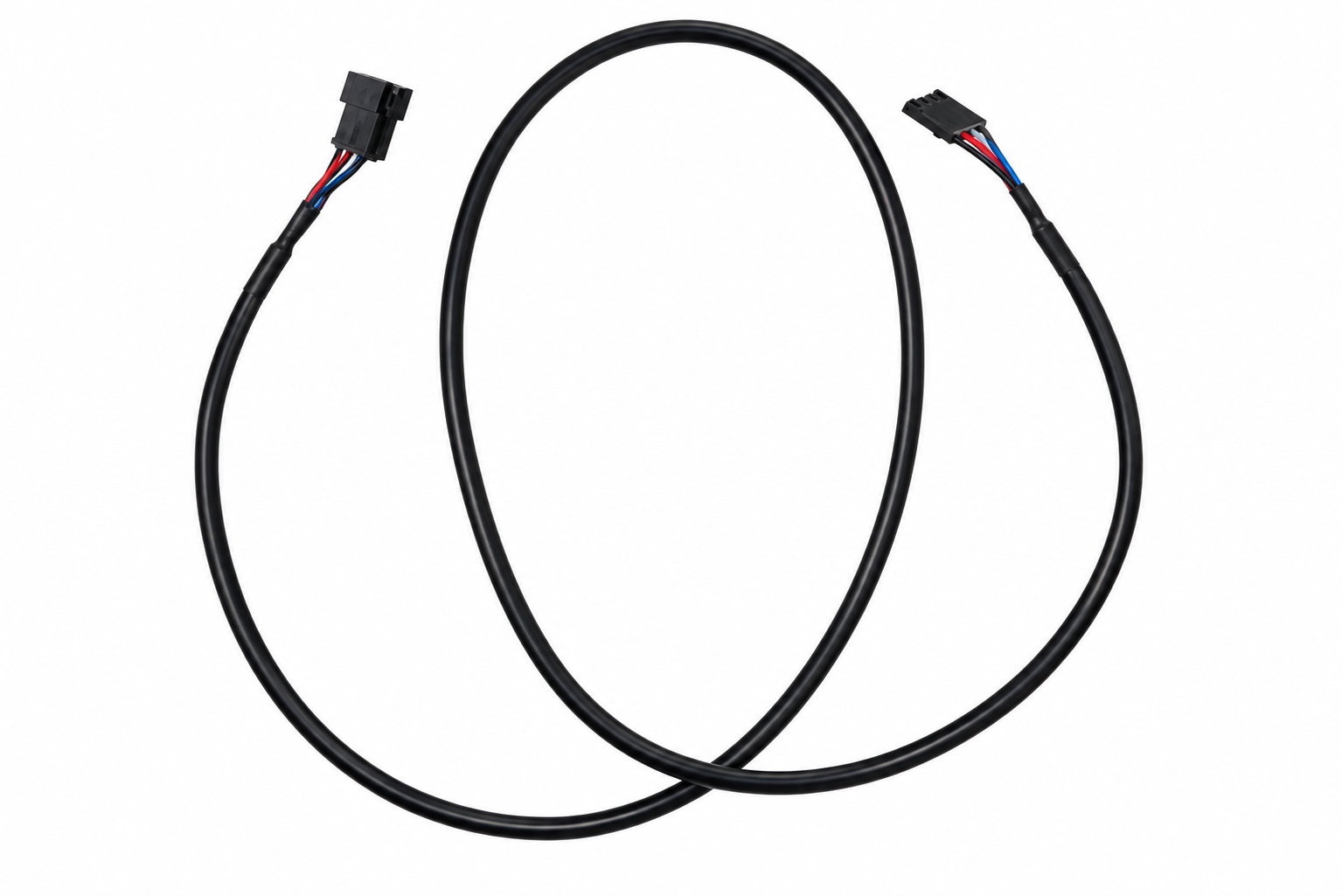

P 713203 1000300209 P01 Console Wire Set;;Down;Black;;24AWG;1000 Yes Model Compatibility List $9.57 / Each

7,4,5,6
713461 1000303580 E10 Bearing;-;#17x#35x10T;6003ZZ;ChangC No Model Compatibility List $6.68 / Each

8
A 713466 1000303741 AF01 Accent Plate Set;Semi-Assy;;;;EP593B-1US No Model Compatibility List $28.37 / Each

3,4,5,6
H 713526 1000304530 H11 Cap;-;down;-;40X20X2.0T;MR124;??? No Model Compatibility List $2.65 / Each

9
N 713537 1000304795 N10 LOGO Label;;Diam.30;AL; No Model Compatibility List $3.82 / Each

1
N 713760 1000307577 N14 POWER AMPLIFIER-AUDIO WIRE;;;;;;;; No Model Compatibility List $3.82 / Each

4,5,6
Q 716005 1000330650 Q21 Cover;Pedal Arm;up;HIPS;Q520-7-3;;EP580- Yes Model Compatibility List $5.72 / Each

8,9,3
Q 716006 1000330651 Q22 Cover;Pedal Arm;down;HIPS;Q520-7-3;;EP58 Yes Model Compatibility List $5.72 / Each

8,9,3
J 716010 1000330691 J03 Cover;Crank;;HIPS;Q520-7-3;;EP580-2KM; Yes Model Compatibility List $7.64 / Each

8,9
B 716011 1000330696 B32 Air Stick;Slow-Drop;75KG;MAX(331)MIN(213 Yes Model Compatibility List $22.98 / Each

1
A 716015 1000330779 AC2 Arm Rest set;;Small;painting;;;EP580-2KM No Model Compatibility List $21.06 / Each

3
716042 1000331326 E23 Pulley;;;PA66;BL/Black C;;EP580-2KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
F 716045 1000331363 F24 Clamp;Steel Rope;;;BL/Black C;KSS-UC-1;E No Model Compatibility List $1.90 / Each

4,5,6
F 716047 1000331377 F26 Spring;Compression;Diam.10x1.2tx45L;;Bla No Model Compatibility List $3.59 / Each

2
F 716048 1000331569 F27 Steel Rope;;;WZN;1045 L1+L2=55;EP580; No Model Compatibility List $12.77 / Each

1
F 716049 1000331570 F28 Screw;Special;Diam.8x6/,M5x9L;Machine Th No Model Compatibility List $2.57 / Each

2,4,5,6
G 716050 1000331595 G06 Cover;Hand Arm;;ABS/PA757K;Q520-7-3;;EP5 Yes Model Compatibility List $5.72 / Each

9,3
A 716051 1000331616 AG5 swing arm set;Semi-Assy;;;;EP580-2KM;; No Model Compatibility List $24.83 / Each

3
716053 1000331623 N03 Console Cover;;Middle;HIPS,PH-88;CHM;;EP No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
Q 716066 1000331869 Q01 Side Cover-Exreawork;;left;Screen print; Yes Model Compatibility List $70.90 / Each

9
C 716067 1000331870 C11 Plastic Cover;Hand Pulse;up;ABS/PA757K;Q Yes Model Compatibility List $24.91 / Each

9,12,13,14
Q 716068 1000331871 Q02 Side Cover-Exreawork;;right;Screen print Yes Model Compatibility List $70.90 / Each

9
C 716069 1000331874 C12 Plastic Cover;Hand Pulse;down;ABS/PA757K No Model Compatibility List $7.64 / Each

9,12,13,14
N 716070 1000331879 Not Shown Manual;Assembly;;English/French/Spanish; No Model Compatibility List $7.64 / Each

3
F 716082 1000332039 F18 cover-Extrawork;frame;back;Screen print; Yes Model Compatibility List $28.73 / Each

9,3,4,5,6
716083 1000332042 N02 Console Down Cover;;;HIPS,PH-88;Q520-7-3 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
F 716084 1000332044 F19 Cover;Frame;Rear-Down;HIPS,PH-88;Q758-3- Yes Model Compatibility List $5.72 / Each

9,3
716085 1000332103 N13 Speaker;Boxed;2W/4O;250mm;;XHS2.54-2P; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
716090 1000332424 N63 Overlay;up;English;Evolve 3;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
A 716091 1000332425 AN1 Console set;;;;;Evolve 3;; Yes Model Compatibility List $574.91 / Each

7
H 716256 1000334947 H06 Cap;;;PP;BL/Black C;;EP164; No Model Compatibility List $2.47 / Each

9,4,5,6
N 716545 1000337327 N88 Pulse CON;;UP2;;;2468 24AWG;250;XHS-2Y(y No Model Compatibility List $3.43 / Each

12,13,14

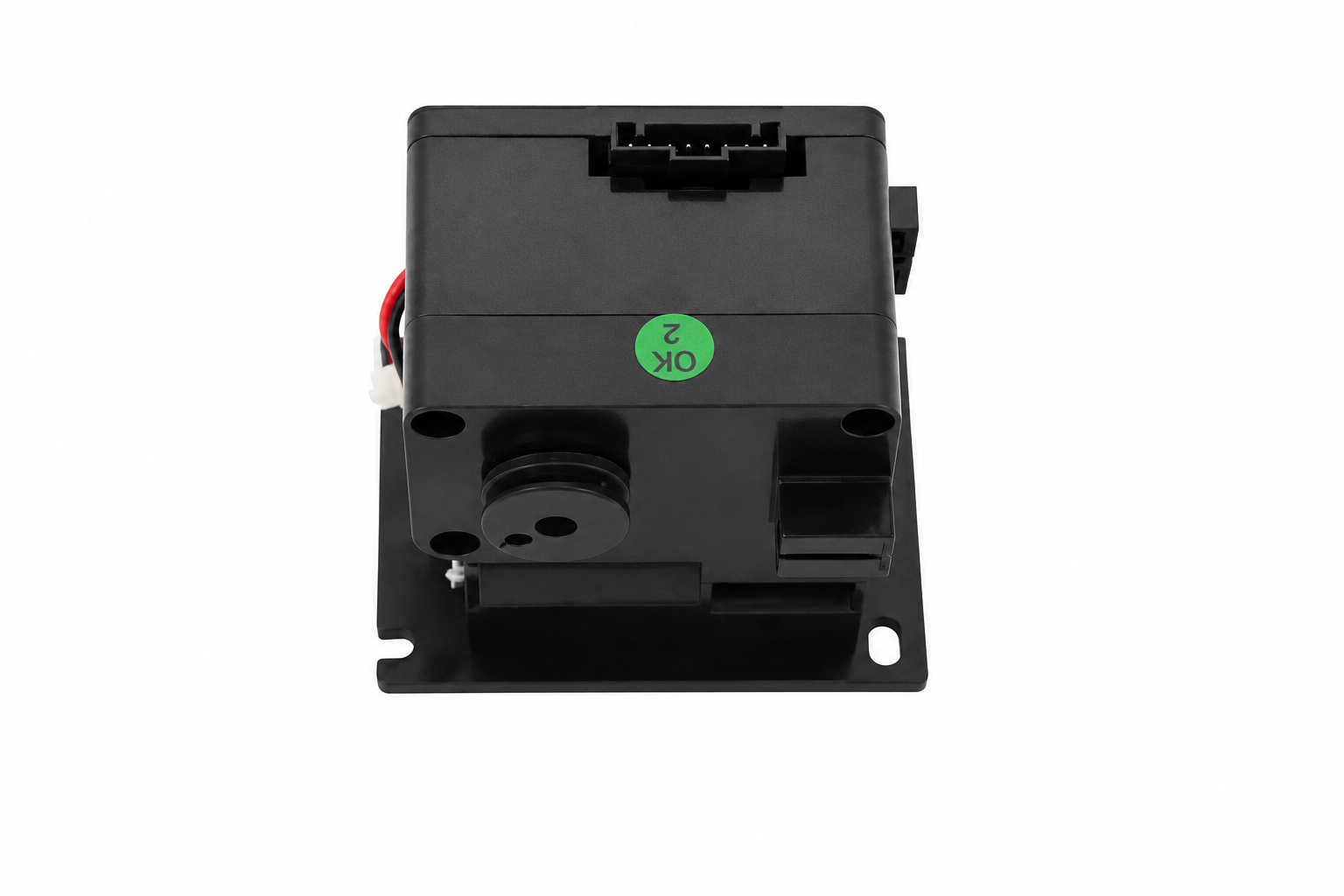

S 716560 1000337526 S01 ECB Set;Internal;ERP 0.5W; Yes Model Compatibility List $95.81 / Each

1
N 716651 1000338448 N12 Fixing Bracket;;;NYLON 66;WHITE;1202 KSS No Model Compatibility List $2.47 / Each

2,3,4,5,6
J 716671 1000338745 J09 Cover;Crank;Inner;HIPS;Q520-7-3;;EP580-2 Yes Model Compatibility List $5.72 / Each

8,9
Q 716672 1000338746 Q10 Cover;Consoel Mast;back;HIPS;Q520-7-3;;E Yes Model Compatibility List $7.64 / Each

9,4,5,6
Q 716673 1000338747 Q09 Cover;Consoel Mast;front;HIPS;Q520-7-3;; Yes Model Compatibility List $3.43 / Each

9
B 716674 1000338766 B39 Cover;STABILIZER TUBE;front;HIPS,PH-88;Q Yes Model Compatibility List $19.14 / Each

9,3
Q 716688 1000338867 Q23 Pedal-Extrawork;;left;Screen print;;EP58 Yes Model Compatibility List $39.99 / Each

8,9
Q 716689 1000338870 Q24 Pedal-Extrawork;;right;Screen print;;EP5 No Model Compatibility List $34.48 / Each

8,9
F 716690 1000338878 F34 Cap;;;HIPS;;#20.0x60.0x3.0T;EP580-2KM; No Model Compatibility List $2.29 / Each

9
716695 1000338902 F22 Cover;Handlebar;up;ABS/PA757S;Q920-6-3 M Yes Model Compatibility List $0.00 / Each
9,11
716696 1000338903 F23 Cover;Handlebar;down;ABS PA757S;Q920-6-3 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
716698 1000338923 N60 Control Board;Console;;HGPA;V1.010;;Evol No Model Compatibility List $0.00 / Each
Out Of Stock 		7
716700 1000338947 N01 Console Cover;;up;HIPS,PH-88;Q520-7-3 MA No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9
B 716978 1000340867 B52 Screw;Special;M8x10L/Diam.10X41L;Machine No Model Compatibility List $3.59 / Each

2,4,5,6
V 717161 1000342420 V04 Decal;Handlebar;Evolve 3;;;;;EP583; No Model Compatibility List $5.72 / Each

7,3,11
V 717178 1000342789 V09 POP Sticker;;EP583; No Model Compatibility List $5.72 / Each

12,13,14
F 717239 1000343312 F39 Limit Axle;Roller;;20#;;EP580-2KM; No Model Compatibility List $2.47 / Each

8
V 717346 1000344195 V08 Warning Label;;KEEP HANDS AND FEET AWAY; No Model Compatibility List $1.33 / Each

9,3
5 717460 1000345303 5 Crank sleeve set;Semi-Assy;;;;S-EP580;; No Model Compatibility List $57.49 / Each

8,3
6 717461 1000345309 6 Roller Set;Semi-Assy;;;;S-EP580;; No Model Compatibility List $76.65 / Each

8
717709 1000346968 2 Frame Set;Semi-Assy;back;;;S-EP583;; No Model Compatibility List $333.45 / Each
Out Of Stock 		3,4,5,6
B 717797 1000347711 B36 Nut;Hex;3/8-16UNC-4T;SS41;Black Annodize No Model Compatibility List $2.00 / Each

2,4,5,6
C 717798 1000347712 C26 Screw;Button Head;M8x20L,-12L;Machine Th No Model Compatibility List $1.85 / Each

2,4,5,6
P 717836 1000347982 P02 Sensor;;;;;24AWG;450L;UL 2468;OKI+CKM254 Yes Model Compatibility List $9.57 / Each

1
718419 1000350791 AE03 Crank sleeve set;Semi-Assy;;;;EP593B-1US Yes Model Compatibility List $0.00 / Each
8,3
718573 1000351766 AE04 Roller Set;Semi-Assy;;;;EP593B-1US;;Sale No Model Compatibility List $0.00 / Each
Out Of Stock 		8
H 718910 1000354168 H22 Pad;;;NBR;BL/Black C;;GT01;ROM?? No Model Compatibility List $12.40 / Each

4,5,6,12,13,14
A 719249 1000358901 AE01 Pedal Arm set;Semi-Assy;left;;;EP593-2KM No Model Compatibility List $161.02 / Each

8,9,3
A 719250 1000358902 AE02 Pedal Arm set;Semi-Assy;right;;;EP593-2K No Model Compatibility List $161.02 / Each

8,9,3
R 719589 1000362750 R05 Bearing;Ball;6906ZZ;Diam.30xDiam.47x9T;T No Model Compatibility List $33.25 / Each

8
719592 1000362795 AE1 Pedal Arm Set;;L;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719593 1000362802 AE2 Pedal Arm Set;;R;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719655 1000363444 AH01 Link Arm Set;Semi-Assy;left;;;EP593B-1US No Model Compatibility List $177.42 / Each

3
719678 1000363713 AH02 Link Arm Set;Semi-Assy;right;;;EP593B-1U No Model Compatibility List $177.42 / Each

3
A 719744 1000365046 AG01 Arm Rest Set;Semi-Assy;left;;;EP583B-1US No Model Compatibility List $88.71 / Each

3
A 719745 1000365056 AG02 Arm Rest Set;Semi-Assy;right down;;;EP58 Yes Model Compatibility List $88.71 / Each

3
A 719746 1000365057 AG03 Arm Rest Set;Semi-Assy;left up;;;EP583B- No Model Compatibility List $22.98 / Each

3
719782 1000365575 V02 Series no. Label;;3M468;;Matte Silver;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
A 719783 1000365604 AG04 Arm Rest Set;Semi-Assy;right up;;;EP583B Yes Model Compatibility List $21.27 / Each

3
1 719828 1000366297 1 Drive set;Semi-Assy;;;;EP583B-1US;;Sales No Model Compatibility List $319.38 / Each

10
719829 1000366302 AR01 Drive set;Semi-Assy;;;;EP583B-1US;;Sales No Model Compatibility List $0.00 / Each
Out Of Stock 		10
E 720072 1000368463 E24 Stopper Ring;Pulley;;PA66;;;EP580-2KM; No Model Compatibility List $1.72 / Each

8
720084 1000368480 E25 Bearing;Ball;689ZZ;F9xF17x5.0T;SL; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
E 720085 1000368481 E18 Fixing Axle;Roller;;45#;Black Zinc;EP580 No Model Compatibility List $10.63 / Each

8,4,5,6
F 720086 1000368482 F40 Rubber Piece;Frame;Rear-Down;SBR;;BLACK/ No Model Compatibility List $7.64 / Each

3,4,5,6
A 720087 1000368483 AE4 Pulley Set;;;;EP580-2KM;; Yes Model Compatibility List $10.63 / Each

8
F 720299 1000371232 F45 Rubber Piece;Frame;Rear-Up;SBR;BL/Black No Model Compatibility List $2.65 / Each

3,4,5,6
H 720314 1000371504 H19 Screw;Button Head;3/8" 16UNC-15L;Machine No Model Compatibility List $1.85 / Each

2,4,5,6
N 721050 1000380090 Not Shown Roller Axle Set;Semi-Assy;;;;EP583;; No Model Compatibility List $95.81 / Each

8
Screw;Hex Socket;BH;M8x1.25Px20L 725508 072211 E14 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.59 / Each

2
Screw;Phillip;Round;M3x8L;Zn+3(White); 725690 074787 N11 Screw;Phillip;Round;M3x8L;Zn+3(White); No Model Compatibility List $1.85 / Each

2
Transport Wheel;Nylon 726413 0000081709 L01 Transport Wheel;Nylon Yes Model Compatibility List $17.24 / Each

8
727057 086948 F33 WASHER;FLT;Diam.10.5XDiam.28.0X2.0T;SPHC No Model Compatibility List $2.00 / Each

2
Earphone Jack;ABS;PA757S 728770 097076 N10 Earphone Jack;ABS;PA757S No Model Compatibility List $1.90 / Each

4,5,6
Crank Set 1020497 1000205354 0 1 Crank Set No Model Compatibility List $180.70 / Each

8
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
