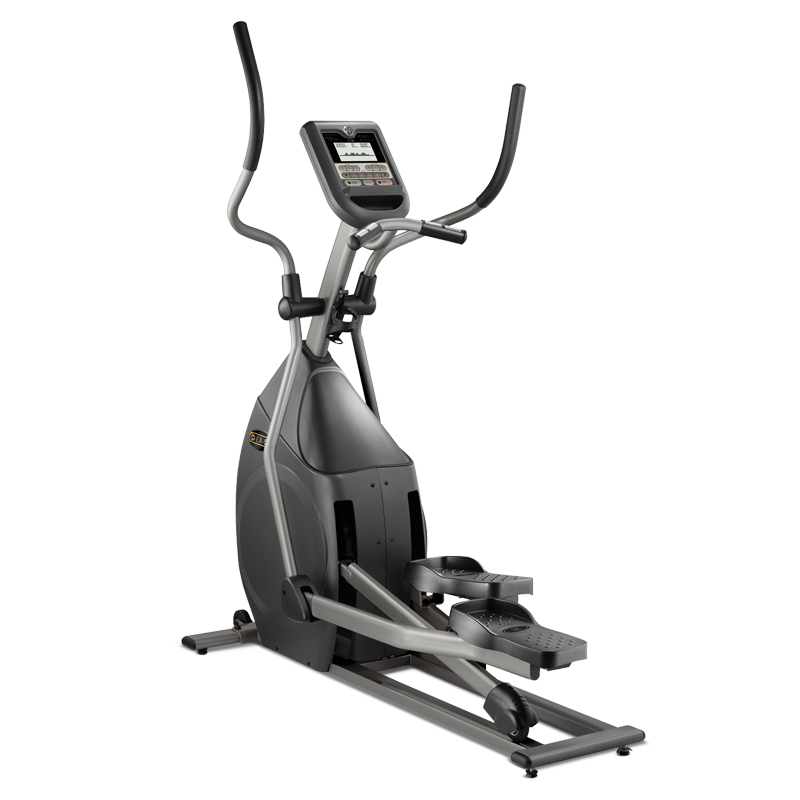

Horizon Fitness - EX57 - 2009
Repair Parts for Horizon Fitness EX57 EP505
Brand: Horizon Fitness
Category: Traditional
Type: Elliptical
Model Name: EX57
Version: 2009
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700014 | 000021-B | L04 | Mobile Wheel;Rear Deck | Yes | Model Compatibility List | $11.62 / Each |
||
 |
700065 | 000241-EA | G20 | Cover;Handlebar;Front Left or Rear Right | Yes | Model Compatibility List | $8.40 / Each |
||
 |
700066 | 000242-DA | G21 | Cover;Handlebar;Front Right or Rear Left | Yes | Model Compatibility List | $8.40 / Each |
||
 |
700067 | 000247-BA | G10 | Cover;Lower Handlebar;Left | No | Model Compatibility List | $3.82 / Each |
||
 |
700068 | 000248-BA | G11 | Cover;Lower Handlebar;Right | No | Model Compatibility List | $3.82 / Each |
||
 |
700127 | 000476-BA | Q13 | Cover;Roller Wheel | Yes | Model Compatibility List | $9.57 / Each |
||
 |
700132 | 000485-00 | L07 | Leveler;Rubber;W3/8-16UNC | Yes | Model Compatibility List | $9.09 / Each |
||
 |
700135 | 000491-B | L06 | Wing Nut;Leveler;W3/8-16UNC;BED BL SPC | No | Model Compatibility List | $2.47 / Each |
||
 |
700202 | 000631-AA | G14 | Foam Grip;Handlebar;31.8X3.0TX329.5L | No | Model Compatibility List | $3.82 / Each |
||
 |
700255 | 000787-00 | C17 | Water Bottle Holder | Yes | Model Compatibility List | $15.59 / Each |
||
 |
700318 | 000940-A | C15 | End Cap;Pulse Grip Handlebar | Yes | Model Compatibility List | $7.10 / Each |
||
 |
700359 | 001129-B | L03 | End Cap;Front Stabilizer | No | Model Compatibility List | $1.90 / Each |
||
 |
700734 | 002074-B | P03 | Console Cable;1330(180,150,120);EP109 | Yes | Model Compatibility List | $57.49 / Each |
||
 |
700770 | 002231-B | P06 | Speed Sensor Wire;2 Prong;280mm | Yes | Model Compatibility List | $9.57 / Each |
||
 |
701042 | 003413-00 | T16 | Magnet;Crank Wheel;15x7t | No | Model Compatibility List | $4.00 / Each |
||
 |
701089 | 003709-00 | E21 | C-Clip;S-8 | No | Model Compatibility List | $2.00 / Each |
||
 |
701128 | 003949-EX | R05 | Drive Axle Set;6.5Kg | No | Model Compatibility List | $172.46 / Each |
||
 |
701143 | 004029-B | Q08 | Foot Pad | Yes | Model Compatibility List | $40.25 / Each |
||
 |
701153 | 004071-00 | E09 | Bearing;Ball;608ZZ;TPI | No | Model Compatibility List | $9.10 / Each |
||
 |
701165 | 004081-A2 | R12 | Ball Bearing;6204ZZ;20x47x14t;TPI | Yes | Model Compatibility List | $15.89 / Each |
||
| 701215 | 004177-A | R15 | Drive Belt;Poly-V;390-J8 | Yes | Model Compatibility List | $57.49 / Each |
|||
| 701265 | 004326-00 | N05 | Screw;Phillip;Round;M5x0.8Px8L; | No | Model Compatibility List | $2.00 / Each |
|||
 |
701288 | 004356-00 | Q14 | Screw;Phillip;BH;M4x0.7Px12L;Gap; | No | Model Compatibility List | $2.00 / Each |
||
 |
701294 | 004359-00 | Z10 | Screw;Phillip;BH;M4x0.7Px10L;Gap; | No | Model Compatibility List | $1.79 / Each |
||
 |
701296 | 004361-AB | Z04 | Screw;Phillip;BH;M4x0.7Px10L;BED;Gap; | No | Model Compatibility List | $2.00 / Each |
||
 |
701300 | 004364-00 | Q09 | Screw;Oval Head;M5x0.8Px12L | No | Model Compatibility List | $2.00 / Each |
||
 |
701308 | 004369-00 | C13 | Screw;Phillip;BH;M5x0.8Px15L;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701557 | 004586-AB | Z08 | Screw;Hex Socket;M8X1.25PX15L;Chromed | Yes | Model Compatibility List | $2.00 / Each |
||
 |
701574 | 004608-00 | P07 | Screw;Phillip;BH;Tapped;3x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
701586 | 004617-00 | Q07 | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701613 | 004632-00 | S03 | Screw;Phillip;BH;Tapped;4x16L | No | Model Compatibility List | $2.00 / Each |
||
 |
701650 | 004691-A | R09 | Bolt;Eye Hook;1/4"-20UNCx45L | No | Model Compatibility List | $2.00 / Each |
||
| 701699 | 004724-00 | C12 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
 |
701716 | 004735-00 | E25 | Screw;Oval Hex Socket;M8x1.25Px45L-15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701732 | 004758-00 | L10 | Screw;Hex Socket;BH;M10x1.5Px50L(Tooth20) | No | Model Compatibility List | $2.00 / Each |
||
 |
701748 | 004771-00 | Z06 | Screw;Oval;Hex Socket;M8x1.25Px60L | No | Model Compatibility List | $2.00 / Each |
||
 |
701779 | 004795-00 | Z01 | Screw;Hex Socket;BH;M10x1.5Px20L;Adhere | No | Model Compatibility List | $2.00 / Each |
||
 |
701796 | 004811-A | G17 | Screw;Umbrella Hex Socket;M8x1.25Px15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701827 | 004847-AB | G15 | Set Screw;M10X1.5PX12L | Yes | Model Compatibility List | $6.99 / Each |
||
 |
701849 | 004867-A | Q31 | Screw;Phillip;Big BH;Tapped;4x15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701864 | 004887-00 | B21 | Nut;Hex;3/8-16UNC | No | Model Compatibility List | $2.00 / Each |
||
 |
701874 | 004901-00 | R08 | Nut;Hex;M12x1.75P;Zn-BL | No | Model Compatibility List | $4.00 / Each |
||
 |
701893 | 004925-00 | E10 | Nut;Nylon;M6x1.0P;Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
701897 | 004926-00 | Z11 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
||
 |
701904 | 004931-00 | R11 | Nut;Locking;Nylon;1/4"'-20UNC | No | Model Compatibility List | $1.59 / Each |
||
 |
701913 | 004942-00 | L08 | Nut;Nylon;M10x1.5P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
701927 | 004964-00 | R13 | Nut;Hex;Flange;M10x1.25P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
701934 | 004972-00 | L11 | Insert Nut;Brass;ALS7-616-150(0.02-0.15) | No | Model Compatibility List | $1.90 / Each |
||
 |
701941 | 004976-00 | L04 | Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) | No | Model Compatibility List | $1.90 / Each |
||
 |
701982 | 005017-AC | Z02 | Washer;Spring;10.2x18.4x2.5T;Black | No | Model Compatibility List | $2.00 / Each |
||
 |
701991 | 005029-00 | C09 | Washer;Flat;20.2X35X1.5T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
702018 | 005053-00 | G18 | Washer;Flat;8.2x27.0x2.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702020 | 005055-00 | J04 | Washer;Flat;16.2x28.7x1.5T | No | Model Compatibility List | $2.00 / Each |
||
 |
702021 | 005056-00 | R17 | Washer;Flat;13.2X26.0X2.0T;Black Zinc | No | Model Compatibility List | $1.85 / Each |
||
 |
702046 | 005075-00 | E13 | Washer;Flat;6.2X16X2.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
702074 | 005106-00 | Z03 | Washer;Flat;10.2x20.0x1.5T;Black Zinc | No | Model Compatibility List | $1.59 / Each |
||
 |
702078 | 005110-00 | Z30 | Washer;Flat;8.2x35x2.0T;Black Zinc | Yes | Model Compatibility List | $9.99 / Each |
||
 |
702092 | 005125-00 | L05 | Washer;Flat;10.2x20x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702107 | 005136-A | E26 | Washer;Flat;8.5x20.0x1.0T | No | Model Compatibility List | $1.59 / Each |
||
 |
702161 | 005198-00 | Z05 | Washer;Teflon;15.9x28.4x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702163 | 005200-A | G19 | Washer;Teflon;18.2X30.0X1.0T | No | Model Compatibility List | $2.00 / Each |
||
| 702178 | 005220-00 | C10 | Washer;Wavy;20.7x29.1x.3T | No | Model Compatibility List | $2.00 / Each |
|||
 |
702180 | 005222-00 | J03 | Washer;Wavy;16.7x22.5x0.3T | No | Model Compatibility List | $2.00 / Each |
||
 |
702193 | 005239-00 | R14 | Washer;Lock;10.0x20.0x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702217 | 005330-00 | B23 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
||
 |
702240 | 005365-00 | R07 | C-Clip;External;S-20 | No | Model Compatibility List | $1.79 / Each |
||
 |
702253 | 005382-00 | Z23 | Wrench;Open;13x15 | No | Model Compatibility List | $5.90 / Each |
||
 |
702262 | 005408-A | Z27 | Screwdriver;Phillips;5x75 | No | Model Compatibility List | $9.57 / Each |
||
 |
702264 | 005412-00 | Z26 | Wrench;L-Type;5mm;With Screwdriver | No | Model Compatibility List | $2.00 / Each |
||
 |
702272 | 005427-A | Z24 | Wrench;Hex;L-Type;M6x80L | No | Model Compatibility List | $4.00 / Each |
||
 |
702298 | 005505-00 | G13 | Screw;M4x7Px20L | No | Model Compatibility List | $1.90 / Each |
||
 |
702483 | 007964-00 | B24 | Connecting Plate;Side Cover | Yes | Model Compatibility List | $1.90 / Each |
||
 |
702512 | 008394-00 | R10 | Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 | No | Model Compatibility List | $1.51 / Each |
||
 |
702625 | 009053-D | Z07 | Inner Bushing;Pedal Arm | No | Model Compatibility List | $3.82 / Each |
||
 |
702778 | 009659-B | P01 | Fix Plate;Speed Sensor | No | Model Compatibility List | $1.90 / Each |
||
 |
702812 | 010948-B2 | P06 | Wire;PluseSensor;;SMR-2P;300;;;;EP49;EP4 | No | Model Compatibility List | $3.82 / Each |
||
 |
702857 | 012847-00 | S01 | Resistance Motor | Yes | Model Compatibility List | $206.67 / Each |
||
 |
702885 | 013108-ZL | AG4 | Lower Handlebar Set;Left | No | Model Compatibility List | $191.62 / Each |
||
 |
702886 | 013108-ZR | AG3 | Lower Handlebar Set;Right | No | Model Compatibility List | $191.62 / Each |
||
 |
702890 | 013111-Z | R01 | Pedal Axle Set | Yes | Model Compatibility List | $96.82 / Each |
||
 |
702898 | 013124-Z | E08 | Roller Wheel Set | Yes | Model Compatibility List | $60.22 / Each |
||
 |
704298 | 022352-B | Q06 | Grommet;Console Mast Boot | No | Model Compatibility List | $1.90 / Each |
||
 |
704966 | 026806-B | AJ1 | crank set;-;-;welding;EP109 | No | Model Compatibility List | $57.49 / Each |
||
 |
705200 | 039086-AD | Q25 | Cover;Front Stabilizer;Left | No | Model Compatibility List | $9.10 / Each |
||
 |
705201 | 039087-AD | Q26 | Cover;Front Stabilizer;Right | No | Model Compatibility List | $9.10 / Each |
||
 |
705202 | 039088-AAX | Q27 | Cover;Rear Stabilizer | No | Model Compatibility List | $12.77 / Each |
||
 |
705707 | 055269-AX | N08 | Decal;Faceplate | No | Model Compatibility List | $3.82 / Each |
||
 |
705737 | 055960-ZL | AG2 | Upper Handlebar Set;Left | No | Model Compatibility List | $85.77 / Each |
||
 |
705738 | 055960-ZR | AG1 | Upper Handlebar Set;Right | No | Model Compatibility List | $85.77 / Each |
||
 |
705745 | 055976-Z | AL1 | Front Stabilizer Set | No | Model Compatibility List | $99.92 / Each |
||
 |
705770 | 056124-A | S02 | Tension Cable | No | Model Compatibility List | $11.73 / Each |
||
 |
705961 | 057060-A | E14 | Bushing | No | Model Compatibility List | $10.24 / Each |
||
 |
706691 | 064534-A | B25 | Foam;One-Sided;30x20x10t | No | Model Compatibility List | $1.77 / Each |
||
 |
707252 | 1000091612 | E15 | CRANK PIN SLEEVE SET EP505C | No | Model Compatibility List | $53.22 / Each |
||
 |
707253 | 1000091613 | AC1 | CONSOLE MAST SET EP505C | No | Model Compatibility List | $383.40 / Each |
||
 |
707254 | 1000091614 | AL1 | FRONT STABILIZER SET EP505C | No | Model Compatibility List | $167.26 / Each |
||
 |
707255 | 1000091615 | AG4 | LEFT LOWER HANDLEBAR SET EP505C | No | Model Compatibility List | $295.36 / Each |
||
| 707256 | 1000091616 | AG3 | RIGHT LOWER HANDLEBAR SET EP505C | No | Model Compatibility List | $295.36 / Each |
|||
 |
707257 | 1000091617 | AH2 | LEFT LOWER LINK ARM SET EP505C | No | Model Compatibility List | $290.11 / Each |
||
 |
707258 | 1000091618 | AH1 | RIGHT LOWER LINK ARM SET EP505C | No | Model Compatibility List | $290.11 / Each |
||
 |
707259 | 1000091619 | AE1 | PEDAL ARM SET EP505C | No | Model Compatibility List | $239.98 / Each |
||
 |
707260 | 1000091620 | AG2 | LEFT UPPER HANDLEBAR SET EP505C | No | Model Compatibility List | $190.48 / Each |
||
| 707261 | 1000091621 | AG1 | RIGHTL UPPER HANDLEBAR SET EP505C | No | Model Compatibility List | $190.48 / Each |
|||
 |
707290 | 1000091730 | AG5 | Swivel Bracket;Lower Handlebar | No | Model Compatibility List | $56.86 / Each |
||
 |
707363 | 1000092323 | E15 | Crank Pin Sleeve Set | No | Model Compatibility List | $57.49 / Each |
||
 |
707365 | 1000092327 | AH2 | Lower Link Arm Set;Left | No | Model Compatibility List | $287.48 / Each |
||
 |
707366 | 1000092328 | AH1 | Lower Link Arm Set;Right | No | Model Compatibility List | $287.48 / Each |
||
 |
712293 | 1000228194 | R16 | Eensor Magent;Diam.15x7T;1900GAUSS | No | Model Compatibility List | $12.04 / Each |
||
 |
712874 | 1000231159 | P05 | ADAPTER;US;100-240V/50-60HZ;12V/2A;2.0M; | Yes | Model Compatibility List | $80.29 / Each |
||
 |
713112 | 1000233136 | AE1 | PEDAL ARM SET;SA;;EP571-1US;;; | No | Model Compatibility List | $249.13 / Each |
||
 |
724982 | 100596 | Z15 | Washer;Teflon;Open-Type;20.2x30.0x1.0t | No | Model Compatibility List | $2.00 / Each |
||
 |
725066 | 101510 | Q01 | Cover;Left;ABS;75140;EP505 | No | Model Compatibility List | $114.06 / Each |
||
 |
725067 | 101511 | Q02 | Cover;Right;ABS;75140;EP505 | No | Model Compatibility List | $114.06 / Each |
||
 |
725068 | 101512 | Q03 | Up Cover;Front;ABS;Black;EP505 | No | Model Compatibility List | $37.60 / Each |
||
 |
725069 | 101514 | Q05 | Console Mast;Cover;PVC;Black;EP505 | No | Model Compatibility List | $3.82 / Each |
||
 |
725070 | 101516 | V03 | Model Decal;NO ROHS;EP505 | No | Model Compatibility List | $3.82 / Each |
||
 |
725071 | 101518 | V21 | Manual;Manipulate;NO ROHS;EP505 | No | Model Compatibility List | $10.92 / Each |
||
 |
725075 | 101531 | AZ1 | Hardware Pack | No | Model Compatibility List | $101.19 / Each |
||
 |
725119 | 101819 | N61 | Pulse Wire;Hand Grip;EP505c | No | Model Compatibility List | $35.46 / Each |
||
 |
725120 | 101820 | N62 | Connect Wire;1330(180,150,120);EP505c | No | Model Compatibility List | $57.49 / Each |
||
 |
725123 | 101895 | H21 | Pedal;PP;EP505C-1US | No | Model Compatibility List | $37.60 / Each |
||
 |
725124 | 101899 | AN1 | Console Set;NO ROHS;EP505C | No | Model Compatibility List | $574.91 / Each |
||
 |
725125 | 101905 | Q01 | Cover;L;Semi-Assy;EP505C-1US | No | Model Compatibility List | $110.94 / Each |
||
 |
725126 | 101907 | Q02 | Cover;R;Semi-Assy;EP505C-1US | No | Model Compatibility List | $110.94 / Each |
||
 |
725127 | 101909 | V12 | POP Decal;One;EP505C | No | Model Compatibility List | $3.54 / Each |
||
 |
725128 | 101911 | V18 | Sticker;Stabilizer Cover;EP505C | No | Model Compatibility List | $8.87 / Each |
||
 |
725129 | 101914 | KIT | Owner's Manual | No | Model Compatibility List | $9.46 / Each |
||
 |
725130 | 101922 | V03 | Model Decal;EP505C-1US | No | Model Compatibility List | $3.54 / Each |
||
 |
725181 | 102437 | AN1 | Console Set;Semi-Assy;EP505-1US | No | Model Compatibility List | $574.91 / Each |
||
 |
725202 | 102657 | AZ1 | Hardware Pack | No | Model Compatibility List | $101.19 / Each |
||
 |
725255 | 103295 | G12 | Bushing;Pedal Arm Axle;31.8x3.0tx329mm | No | Model Compatibility List | $20.12 / Each |
||
 |
725259 | 103299 | H12 | Bushing;Pedal Arm | No | Model Compatibility List | $10.01 / Each |
||
 |
725474 | 071801 | V11 | Sticker; Pedal | No | Model Compatibility List | $1.90 / Each |
||
 |
725940 | 078494 | AC1 | Console Mast Set | No | Model Compatibility List | $334.15 / Each |
||
 |
726252 | 081021 | P02 | Pulse Wire;Hand Grip;;;E500;EP193 | No | Model Compatibility List | $38.32 / Each |
||
 |
728891 | 098335 | Z09 | SwivelAxle;Zn Plate; EP503 | No | Model Compatibility List | $17.81 / Each |
||
 |
728904 | 098773 | P05 | PWR Adapter;;120V 12V/1A | Yes | Model Compatibility List | $76.65 / Each |
||
 |
012847-00 | 012847-00 | S01 | 1 | Resistance Gear Servo Motor Brake Tensioner | Yes | Model Compatibility List | $168.99 / Each |
|
|
|
|||||||||
