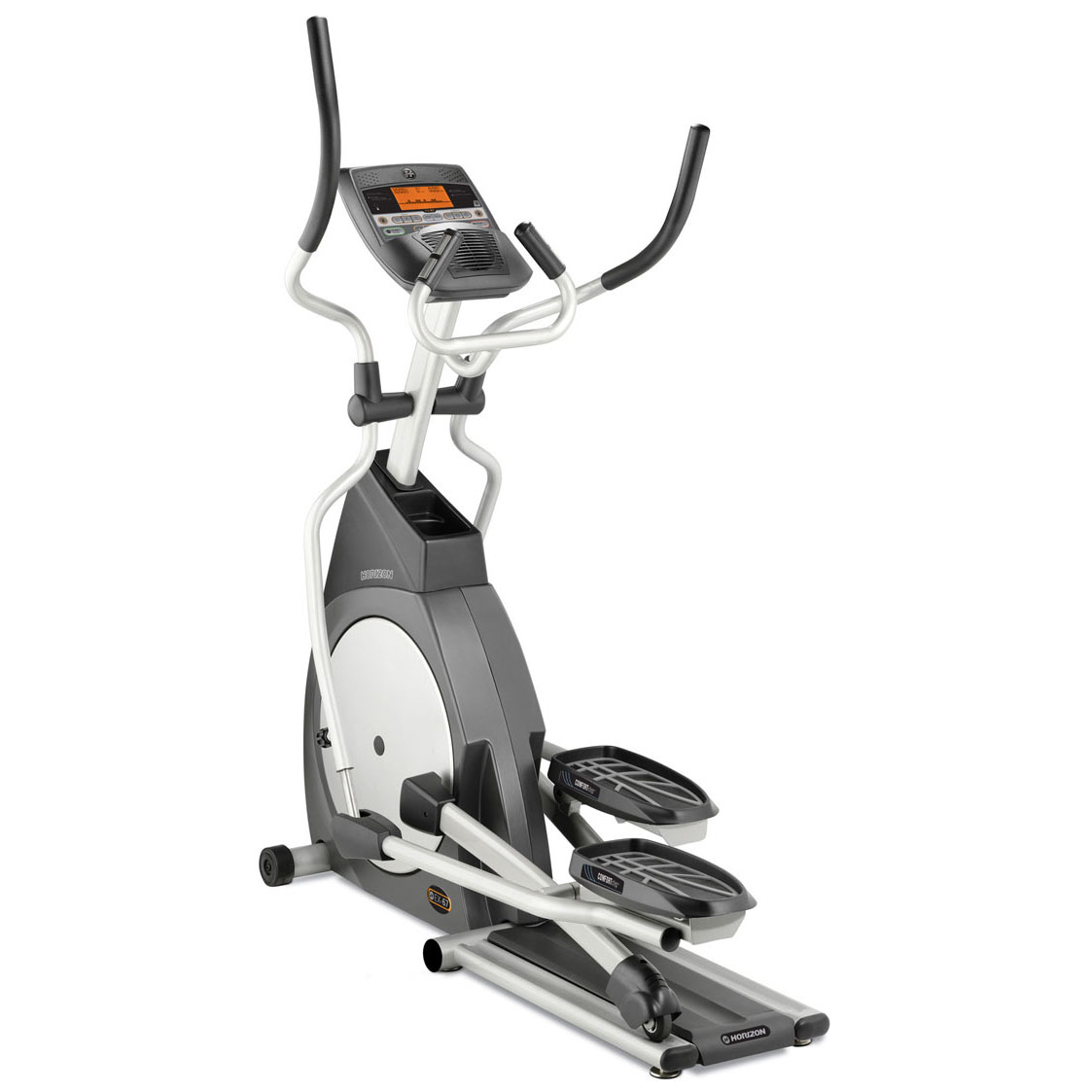

Repair Parts for Horizon Fitness EX67 EP506
| Brand | Horizon Fitness |
|---|---|
| Type | Elliptical |
| Category | Traditional |
| Model Number | EP506 |
| Model Name | EX67 |
| Version | 2009 |
Model Numbers: EP506
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
1010997 | 078380 | 0 | 1 | Transport Wheel | No |
Compatibility List |
$13.99 / Each
|
|
707291 | 1000091734 | AC1 | Console Mast Set | No |
Compatibility List |
$413.95 / Each
|
|
|
707191 | 1000091153 | AE1 | Pedal Arm Set | No |
Compatibility List |
$360.02 / Each
|
|
|
725931 | 078424 | AG1 | Right Upper Handlebar Set | No |
Compatibility List |
$78.57 / Each
|
|
|
725930 | 078423 | AG2 | Left Upper Handlebar Set | No |
Compatibility List |
$78.57 / Each
|
|
|
|
707353 | 1000092288 | AG3 | Lower Handlebar Set, Right | No |
Compatibility List |
$444.52 / Each
|
|
|
707352 | 1000092287 | AG4 | Lower Handlebar Set, Left | No |
Compatibility List |
$444.52 / Each
|
|
|
707288 | 1000091724 | AG5 | link ARM PULLEY FRAME WELDING TURE(Pa | No |
Compatibility List |
$52.78 / Each
|
|
|
|
707355 | 1000092290 | AH1 | Lower Link Arm Set, Right D/C, NO REPL Part will show as orderable until stock is depleted | No |
Compatibility List |
$405.11 / Each
|
|
|
707354 | 1000092289 | AH2 | Lower Link Arm Set, Left | No |
Compatibility List |
$437.53 / Each
|
|
|
707293 | 1000091737 | AJ1 | Crank Set, Welding, Painting, KDA578A, EP506 | No |
Compatibility List |
$177.42 / Each
|
|
|
700311 | 000929-00 | B22 | End Cap, 60x1.6T | No |
Compatibility List |
$1.90 / Each
|
|
|
725699 | 074877 | B27 | Cover, Stabilizer, ,PVC,75140, EP180 | No |
Compatibility List |
$20.44 / Each
|
|
|
725700 | 074878 | B28 | Cover, Stabilizer, B, ABS,75140, EP180 | No |
Compatibility List |
$10.32 / Each
|
|
|
725783 | 076525 | B41 | Sticker, Stabilizer, Rear, EP189 | No |
Compatibility List |
$1.77 / Each
|
|
|
701893 | 004925-00 | B57 | Nut, Nylon, M6x1.0P, Zinc | Yes |
Compatibility List |
$1.54 / Each
|
|
|
700318 | 000940-A | C06 | End Cap, Pulse Grip Handlebar | Yes |
Compatibility List |
$12.99 / Each
|
|
|
702078 | 005110-00 | C06 | Washer, Flat, 8.2x35x2.0T, Black Zinc | No |
Compatibility List |
$9.99 / Each
|
|
|
701991 | 005029-00 | C09 | Washer, Flat, 20.2X35X1.5T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
703942 | 019769-A | C11 | Pulse Grip Set | No |
Compatibility List |
$18.28 / Each
|
|
|
976932 | 004926-00 | C53 | Nylon Lock Nut M8x1.25P (New) | No |
Compatibility List |
$12.99 / Each
|
|
|
702180 | 005222-00 | D30 | Washer, Wavy, 16.7x22.5x0.3T | No |
Compatibility List |
$2.00 / Each
|
|
|
702161 | 005198-00 | D32 | Washer, Teflon, 15.9x28.4x1.0T | No |
Compatibility List |
$4.00 / Each
|
|
|
701897 | 004926-00 | D34 | Nut, Nylon, M8x1.25P | No |
Compatibility List |
$3.88 / Each
|
|
|
701796 | 004811-A | D46 | Screw, Umbrella Hex Socket, M8x1.25Px15L | No |
Compatibility List |
$2.00 / Each
|
|
|
705700 | 055204-A | D51 | Screw, SelfTapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
701699 | 004724-00 | D53 | Bolt, M8x1.25Px15L | Yes |
Compatibility List |
$5.00 / Each
|
|
|
701153 | 004071-00 | E09 | Bearing, Ball, 608ZZ, TPI | No |
Compatibility List |
$9.10 / Each
|
|
|
702107 | 005136-A | E09 | Washer, Flat, 8.5x20.0x1.0T | Yes |
Compatibility List |
$1.59 / Each
|
|
|
702898 | 013124-Z | E09 | Roller Wheel Set | Yes |
Compatibility List |
$60.22 / Each
|
|
|
700127 | 000476-BA | E12 | Cover, Roller Wheel | Yes |
Compatibility List |
$9.57 / Each
|
|
|
703864 | 018828-CA | E12 | Cover, Pedal Arm, Front | Yes |
Compatibility List |
$9.02 / Each
|
|
|
701089 | 003709-00 | E13 | C Clip, S 8 | No |
Compatibility List |
$2.00 / Each
|
|
|
701728 | 004751-00 | E16 | Screw, Hex Socket, BH, M8x1.25Px13L, Adhere | No |
Compatibility List |
$2.00 / Each
|
|
|
702046 | 005075-00 | E18 | Washer, Flat, 6.2X16X2.0T, Black Zinc | No |
Compatibility List |
$3.88 / Each
|
|
|
707334 | 1000092129 | E20 | Crank Pin Sleeve Set | No |
Compatibility List |
$57.49 / Each
|
|
|
701716 | 004735-00 | E22 | Screw, Oval Hex Socket, M8x1.25Px45L 15L | No |
Compatibility List |
$2.00 / Each
|
|
|
705961 | 057060-A | E22 | Bushing | No |
Compatibility List |
$10.24 / Each
|
|
|
701288 | 004356-00 | E33 | Screw, Phillip, BH, M4x0.7Px12L, Gap | No |
Compatibility List |
$3.88 / Each
|
|
|
701934 | 004972-00 | F05 | Insert Nut, Brass, ALS7 616 150(0.02 0.15) | No |
Compatibility List |
$1.90 / Each
|
|
|
700135 | 000491-B | F06 | Wing Nut, Leveler, W3/8 16UNC, BED BL SPC | No |
Compatibility List |
$2.47 / Each
|
|
|
700132 | 000485-00 | F07 | Leveler, Rubber, W3/8 16UNC | Yes |
Compatibility List |
$9.09 / Each
|
|
|
706705 | 064736-AA | F14 | End Cap, Guide Rail, PP, BL, EP136 B26B | Yes |
Compatibility List |
$8.97 / Each
|
|
|
701731 | 004757-00 | G10 | Screw, Oval, Hex Socket, M8x1.25Px12L | No |
Compatibility List |
$3.88 / Each
|
|
|
701827 | 004847-AB | G10 | Set Screw, M10X1.5PX12L | Yes |
Compatibility List |
$6.99 / Each
|
|
|
725255 | 103295 | G13 | Bushing, Pedal Arm Axle, 31.8x3.0tx329mm | No |
Compatibility List |
$20.12 / Each
|
|
|
700065 | 000241-EA | G16 | Cover, Handlebar, Front Left or Rear Right | Yes |
Compatibility List |
$8.40 / Each
|
|
|
700066 | 000242-DA | G17 | Cover, Handlebar, Front Right or Rear Left | Yes |
Compatibility List |
$8.40 / Each
|
|
|
702018 | 005053-00 | G18 | Washer, Flat, 8.2x27.0x2.0T | Yes |
Compatibility List |
$6.00 / Each
|
|
|
726104 | 079955 | G18 | Screw, Hex Socket, Round, M4x0.7Px5L, Cr | No |
Compatibility List |
$1.85 / Each
|
|
|
702163 | 005200-A | G19 | Washer, Teflon, 18.2X30.0X1.0T | Yes |
Compatibility List |
$3.88 / Each
|
|
|
702298 | 005505-00 | G25 | Screw, M4x7Px20L | No |
Compatibility List |
$1.90 / Each
|
|
|
725121 | 101861 | G30 | Arm Rest Set, Painting, Down, KDA578A, EP506 | No |
Compatibility List |
$52.68 / Each
|
|
|
725613 | 074193 | G32 | Pull Pin, BLA06 | No |
Compatibility List |
$15.89 / Each
|
|
|
725614 | 074194 | G33 | Bushing, Lower Handlebar Set | No |
Compatibility List |
$3.54 / Each
|
|
|
725214 | 102826 | G36 | Sticker, ArmRestSet, R, EP506 | No |
Compatibility List |
$3.54 / Each
|
|
|
725215 | 102827 | G37 | Sticker, ArmRestSet, L, EP506 | No |
Compatibility List |
$3.54 / Each
|
|
|
701964 | 005005-00 | H04 | Washer, Spring, Lock, 8.2x15.4x2.0t | Yes |
Compatibility List |
$3.88 / Each
|
|
|
703868 | 018867-C | H14 | Cover, Lower Handlebar, Right | No |
Compatibility List |
$9.57 / Each
|
|
|
725861 | 077311 | H15 | Pedal, Rubber, 65 70, EP180 | No |
Compatibility List |
$27.59 / Each
|
|
|
725259 | 103299 | H18 | Bushing, Pedal Arm | No |
Compatibility List |
$10.38 / Each
|
|
|
725578 | 073513 | H23 | Sticker, Left Pedal | No |
Compatibility List |
$1.90 / Each
|
|
|
725579 | 073514 | H24 | Sticker, Right Pedal | No |
Compatibility List |
$1.90 / Each
|
|
|
724982 | 100596 | H27 | Washer, Teflon, Open Type, 20.2x30.0x1.0t | No |
Compatibility List |
$2.00 / Each
|
|
|
725200 | 102654 | J05 | Disk, Painting, LM401, EP506 | No |
Compatibility List |
$62.06 / Each
|
|
|
701358 | 004409-00 | J06 | Screw, Phillip, BH, M5x0.8Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
700462 | 001424-BA | J07 | End Cap, Crank Cover | No |
Compatibility List |
$3.82 / Each
|
|
|
704226 | 020656-X | KIT | Wrench, Open Type, 13#17# | No |
Compatibility List |
$3.69 / Each
|
|
|
725754 | 075972 | L02 | Bushing, Move Wheel, BLACK, EP188 | Yes |
Compatibility List |
$6.68 / Each
|
|
|
725922 | 078380 | L03 | Transport Wheel Set | No |
Compatibility List |
$13.99 / Each
|
|
|
701698 | 004723-00 | L06 | Screw, Oval, Hex Socket, M8x1.25Px3/4L | No |
Compatibility List |
$2.00 / Each
|
|
|
702020 | 005055-00 | L07 | Washer, Flat, 16.2x28.7x1.5T | No |
Compatibility List |
$2.00 / Each
|
|
|
701294 | 004359-00 | M33 | Screw, Phillip, BH, M4x0.7Px10L, Gap | No |
Compatibility List |
$1.02 / Each
|
|
|
705707 | 055269-AX | N08 | Decal, Faceplate | No |
Compatibility List |
$3.82 / Each
|
|
|
701300 | 004364-00 | N11 | Screw, Oval Head, M5x0.8Px12L | No |
Compatibility List |
$0.96 / Each
|
|
|
701316 | 004372-00 | N15 | Screw, Phillip, BH, M5x0.8Px12L, Gap | No |
Compatibility List |
$2.00 / Each
|
|
|
702264 | 005412-00 | Not Shown | Wrench, L Type, 5mm, With Screwdriver | No |
Compatibility List |
$2.00 / Each
|
|
|
704264 | 022066-B | P01 | Bracket, Speed Sensor | No |
Compatibility List |
$1.90 / Each
|
|
|
707733 | 1000094715 | P01 | Power Adapter, 100 240V, 12V/2A | No |
Compatibility List |
$76.65 / Each
|
|
|
725034 | 101338 | P03 | Connected Wire, Console, 1000(150,700,150) | No |
Compatibility List |
$30.47 / Each
|
|
|
700770 | 002231-B | P04 | Speed Sensor Wire, 2 Prong, 280mm | Yes |
Compatibility List |
$9.57 / Each
|
|
|
727278 | 088261 | P05 | Adapter, 100 240V/50HZ 12V/2A | Yes |
Compatibility List |
$80.29 / Each
|
|
|
701574 | 004608-00 | P06 | Screw, Phillip, BH, Tapped, 3x10L | No |
Compatibility List |
$3.88 / Each
|
|
|
701848 | 004865-00 | P07 | Screw, Self Tapping, 4x10L | No |
Compatibility List |
$2.00 / Each
|
|
|
|
725634 | 074315 | Q01 | Side Cover, Right | No |
Compatibility List |
$62.82 / Each
|
|
|
725635 | 074316 | Q02 | Side Cover, Left | No |
Compatibility List |
$62.82 / Each
|
|
|
706231 | 060352-AAX | Q03 | Top Cap | No |
Compatibility List |
$52.49 / Each
|
|
|
705385 | 049034-AA | Q04 | Console Mast Boot | No |
Compatibility List |
$17.47 / Each
|
|
|
702483 | 007964-00 | Q07 | Connecting Plate, Side Cover | Yes |
Compatibility List |
$1.90 / Each
|
|
|
702217 | 005330-00 | Q08 | Tinnamen Nut | Yes |
Compatibility List |
$1.54 / Each
|
|
|
701613 | 004632-00 | Q09 | Screw, Phillip, BH, Tapped, 4x16L | No |
Compatibility List |
$2.00 / Each
|
|
|
725187 | 102508 | Q11 | Label, Cover, NO RoHS, EP506 | No |
Compatibility List |
$3.54 / Each
|
|
|
957398 | 005330-00 | Q52 | Gear Rower Retainer Clip (New) | Yes |
Compatibility List |
$11.99 / Each
|
|
|
706616 | 063837-Z | R01 | Pedal Axle Set | No |
Compatibility List |
$131.90 / Each
|
|
|
701207 | 004162-00 | R05 | Drive Belt, Poly V, 400 J8 | Yes |
Compatibility List |
$44.99 / Each
|
|
|
701874 | 004901-00 | R08 | Nut, Hex, M12x1.75P, Zn BL | Yes |
Compatibility List |
$9.99 / Each
|
|
|
725122 | 101869 | R08 | Screw, Eye Hook, 1/4" 20UNCx117.5Lx35L, EP50 | No |
Compatibility List |
$1.85 / Each
|
|
|
705019 | 029510-EX | R09 | Drive Axle Set, 6.5Kg Eddy Brake Mechanism | Yes |
Compatibility List |
$172.46 / Each
|
|
|
701927 | 004964-00 | R13 | Nut, Hex, Flange, M10x1.25P, Black Zinc | No |
Compatibility List |
$1.02 / Each
|
|
|
702193 | 005239-00 | R18 | Washer, Lock, 10.0x20.0x1.0T | No |
Compatibility List |
$3.88 / Each
|
|
|
706784 | 065506-A | R19 | Ring | Yes |
Compatibility List |
$12.99 / Each
|
|
|
702024 | 005057-Z | R20 | Washer, Flat, 12.7x23x2.2T | No |
Compatibility List |
$1.66 / Each
|
|
|
702857 | 012847-00 | S01 | Resistance Motor | No |
Compatibility List |
$58.00 / Each
|
|
|
706169 | 059755-A | S02 | Tension Cable | No |
Compatibility List |
$12.48 / Each
|
|
|
702512 | 008394-00 | S05 | Fix Plate, Eye Bolt, SPC, 1.3t, AB01 | No |
Compatibility List |
$6.00 / Each
|
|
|
701904 | 004931-00 | S06 | Nut, Locking, Nylon, 1/4" 20UNC | Yes |
Compatibility List |
$1.59 / Each
|
|
|
702241 | 005366-00 | T11 | C Clip, External, S 25 | No |
Compatibility List |
$5.18 / Each
|
|
|
701042 | 003413-00 | T16 | Magnet, Crank Wheel, 15x7t | No |
Compatibility List |
$4.00 / Each
|
|
|
702240 | 005365-00 | U04 | C Clip, External, S 20 | No |
Compatibility List |
$1.02 / Each
|
|
|
725201 | 102656 | V21 | Manual, Manipulate, EP506 | No |
Compatibility List |
$9.46 / Each
|
|
|
701291 | 004357-00 | Z06 | Screw, Phillip, BH, M4x0.7Px15L | No |
Compatibility List |
$3.88 / Each
|
|
|
702076 | 005109-00 | Z06 | Washer, Flat, 8.5x25x1.5T, Black Zinc | No |
Compatibility List |
$0.96 / Each
|
|
|
702135 | 005163-00 | Z07 | Washer, Arc, 8.4x17x1.0T | No |
Compatibility List |
$2.57 / Each
|
|
|
728891 | 098335 | Z09 | SwivelAxle, Zn Plate, EP503 | No |
Compatibility List |
$17.81 / Each
|
|
|
702262 | 005408-A | Z11 | Screwdriver, Phillips, 5x75 | Yes |
Compatibility List |
$9.57 / Each
|
|
|
702259 | 005395-00 | Z12 | Wrench, T Type, 5mm | No |
Compatibility List |
$20.00 / Each
|
|
|
702625 | 009053-D | Z12 | Inner Bushing, Pedal Arm | No |
Compatibility List |
$3.82 / Each
|
|
|
701748 | 004771-00 | Z14 | Screw, Oval, Hex Socket, M8x1.25Px60L | No |
Compatibility List |
$2.00 / Each
|
|
|
702178 | 005220-00 | Z20 | Washer, Wavy, 20.7x29.1x.3T | No |
Compatibility List |
$3.88 / Each
|
|
|
701557 | 004586-AB | Z22 | Screw, Hex Socket, M8X1.25PX15L, Chromed | Yes |
Compatibility List |
$3.88 / Each
|
|
|
1000465 | 013124-Z | 1 | Roller Wheel | No |
Compatibility List |
$60.22 / Each
|
|
|
1000633 | 004162-00 | Pulley Drive Belt 8 Rib High Strength | No |
Compatibility List |
$44.99 / Each
|
||
|
1003402 | 012847-00 | Resistance Servo Motor | No |
Compatibility List |
$56.99 / Each
Out Of Stock |
||
|
1012357 | MB0304044D | Side Leveling Foot Leveler | No |
Compatibility List |
$9.59 / Each
|
||
|
911958 | 004608-00 | Rower Button Head Phillip Screw 3x10L (New) | No |
Compatibility List |
$12.99 / Each
|
||
|
1017370 | 000491-B | Stabilizer Leveling Foot Leveler (Used) | No |
Compatibility List |
$13.19 / Each
|
Catalog #: 707355
MPN: 1000092290
Lower Link Arm Set, Right D/C, NO REPL Part will show as orderable until stock is depleted
$405.11 / each
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
