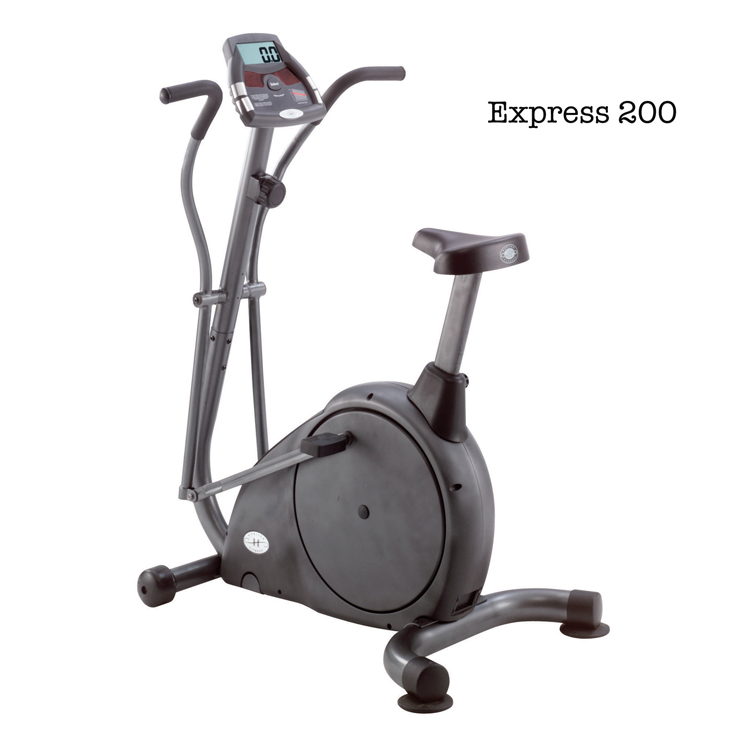

Horizon Fitness - Express 200 - 2003
Repair Parts for Horizon Fitness Express 200 CB41
Brand: Horizon Fitness
Category: Upright
Type: Stationary Bikes
Model Name: Express 200
Version: 2003
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700009 | 000014-00 | L02 | Transport Wheel | Yes | Model Compatibility List | $9.57 / Each |
||
 |
700132 | 000485-00 | B28 | Leveler;Rubber;W3/8-16UNC | Yes | Model Compatibility List | $9.09 / Each |
||
 |
700135 | 000491-B | B29 | Wing Nut;Leveler;W3/8-16UNC;BED BL SPC | No | Model Compatibility List | $2.47 / Each |
||
 |
700191 | 000609-A | G16 | Foam Grip;Handlebar;31.8x28x3.0tx500L | No | Model Compatibility List | $9.57 / Each |
||
 |
700263 | 000815-A | N/A | Water Bottle | No | Model Compatibility List | $3.82 / Each |
||
 |
700333 | 000993-E | D06 | Sleeve;Seat Post | No | Model Compatibility List | $3.82 / Each |
||
 |
700455 | 001412-A | Q07 | End Cap;Crank Cover | No | Model Compatibility List | $1.77 / Each Out Of Stock |
||
 |
700597 | 001722-AA | D03 | Seat Bottom; LOGO LS-B36 | No | Model Compatibility List | $29.56 / Each |
||
 |
701042 | 003413-00 | T06 | Magnet;Crank Wheel;15x7t | No | Model Compatibility List | $4.00 / Each |
||
 |
701154 | 004072-A2 | R08 | Ball Bearing;Flywheel;6002ZZ | No | Model Compatibility List | $11.60 / Each |
||
 |
701159 | 004077-A2 | T12 | Ball Bearing;6004ZZ;20X42X12T;;SKF;;; | No | Model Compatibility List | $20.05 / Each |
||
 |
701170 | 004090-00 | R07 | Bearing;One-way; HFL2026 | No | Model Compatibility List | $27.82 / Each |
||
 |
701229 | 004203-A | R03 | Drive Belt;Poly-V;410-J5 | Yes | Model Compatibility List | $57.49 / Each |
||
 |
701300 | 004364-00 | U07 | Screw;Oval Head;M5x0.8Px12L | No | Model Compatibility List | $2.00 / Each |
||
 |
701308 | 004369-00 | N02 | Screw;Phillip;BH;M5x0.8Px15L;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701586 | 004617-00 | Q08 | Screw;Console Case;Oval Tapping;4x15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701591 | 004620-00 | L05 | Screw;Self Tapping;4x12L | No | Model Compatibility List | $2.00 / Each |
||
| 701699 | 004724-00 | C04 | Bolt;M8x1.25Px15L | Yes | Model Compatibility List | $2.00 / Each |
|||
 |
701781 | 004796-00 | G13 | Bol;M8x1.25Px20L | Yes | Model Compatibility List | $2.00 / Each |
||
 |
701794 | 004810-A | J03 | Screw;Hex Socket;Umbrella;M8x1.25Px90L | No | Model Compatibility List | $2.00 / Each |
||
 |
701848 | 004865-00 | T20 | Screw;Self Tapping;4x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
701897 | 004926-00 | G14 | Nut;Nylon;M8x1.25P | No | Model Compatibility List | $2.00 / Each |
||
 |
701927 | 004964-00 | T09 | Nut;Hex;Flange;M10x1.25P;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
701934 | 004972-00 | B27 | Insert Nut;Brass;ALS7-616-150(0.02-0.15) | No | Model Compatibility List | $1.90 / Each |
||
 |
701964 | 005005-00 | D04 | Washer;Spring;Lock;8.2x15.4x2.0t | No | Model Compatibility List | $1.59 / Each |
||
 |
702040 | 005070-00 | L04 | Washer;Flat;6.5x14x1.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
702078 | 005110-00 | G12 | Washer;Flat;8.2x35x2.0T;Black Zinc | Yes | Model Compatibility List | $9.99 / Each |
||
 |
702138 | 005169-00 | J05 | Washer;Arc;8.4x20.0x1.5T | No | Model Compatibility List | $2.00 / Each |
||
 |
702193 | 005239-00 | T19 | Washer;Lock;10.0x20.0x1.0T | No | Model Compatibility List | $2.00 / Each |
||
 |
702236 | 005361-00 | R13 | C-Clip;External;S-15 | No | Model Compatibility List | $2.00 / Each |
||
 |
702240 | 005365-00 | T13 | C-Clip;External;S-20 | No | Model Compatibility List | $1.79 / Each |
||
| 702260 | 005400-Z | N/A | Wrench;Multi-Hole;13,14,15mm - D/C, NO REPL Part will show as orderable until stock is depleted | No | Model Compatibility List | $4.00 / Each |
|||
 |
702264 | 005412-00 | N/A | Wrench;L-Type;5mm;With Screwdriver | No | Model Compatibility List | $2.00 / Each |
||
 |
702483 | 007964-00 | B24 | Connecting Plate;Side Cover | Yes | Model Compatibility List | $1.90 / Each |
||
 |
702931 | 013387-Z | AU1 | Tension Wheel Set | No | Model Compatibility List | $44.72 / Each |
||
 |
703447 | 014708-A | T02 T03 T04 T08 | Pedal Set;With Strap | No | Model Compatibility List | $31.85 / Each |
||
 |
703559 | 015383-AA | AT1 | Crank;Right | No | Model Compatibility List | $52.05 / Each |
||
 |
705700 | 055204-A | Q09 | Screw;SelfTapping;4x10L | No | Model Compatibility List | $2.00 / Each |
||
 |
1026539 | 001367-AB | Q16 | 1 | Accent Piece woodgrain (Used) | No | Model Compatibility List | $19.99 / Each |
|
 |
1026539 | 001367-AB | Q16 | 1 | Accent Piece woodgrain (Used) | No | Model Compatibility List | $19.99 / Each |
|
 |
1026539 | 001367-AB | Q16 | 1 | Accent Piece woodgrain (Used) | No | Model Compatibility List | $19.99 / Each |
|
 |
1027605 | 002227-B | P02 | Sensor Speed (Used) | No | Model Compatibility List | $15.00 / Each Out Of Stock |
||
|
|
|||||||||
