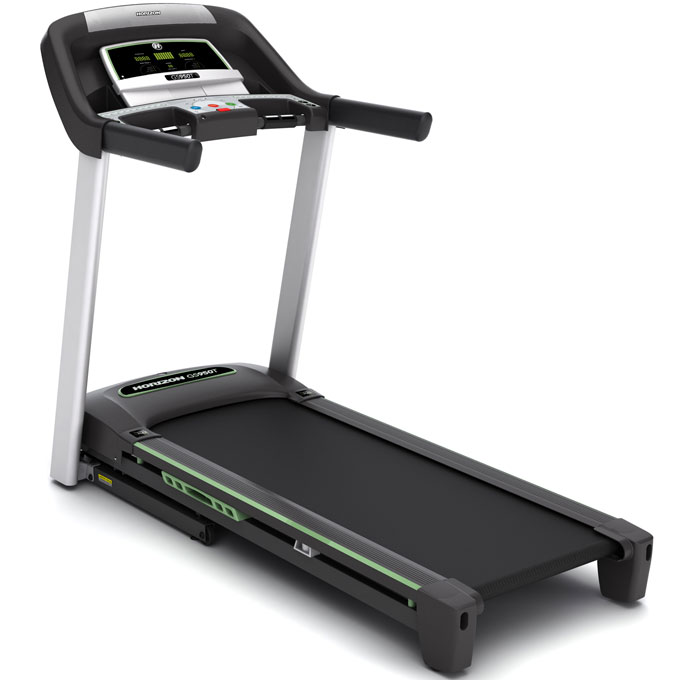

Horizon Fitness - GS950T - 2010

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000767-D 700245 000767-D B46 Elastomer;Orange;20x44L Yes Model Compatibility List $14.78 / Each

1
000768-D 700246 000768-D B47 Elastomer;Blue;20x44L Yes Model Compatibility List $14.34 / Each

1
000977-00 700327 000977-00 H14 Sleeve;Outer No Model Compatibility List $2.94 / Each

3
001251-F 700402 001251-F B35 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $6.08 / Each

2,9
001679-00 700570 001679-00 N29 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
002124-B 700746 002124-B P09 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $2.94 / Each

4,5,6
002671-A 700893 002671-A N73 Audio Wire;Three-D Earphone Yes Model Compatibility List $7.36 / Each

7,4,5,6,12,13,14
003346-00 701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $23.16 / Each

4,5,6
004378-00 701325 004378-00 P17 Screw;Phillip;BH;M5x0.8Px25L;Ni;Gap; No Model Compatibility List $1.54 / Each

2
004425-B 701375 004425-B B31 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $1.54 / Each

2
004481-00 701433 004481-00 M11 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $1.54 / Each

2
004502-00 701454 004502-00 M07 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $1.54 / Each

2
004523-00 701476 004523-00 R05 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $1.54 / Each

2
004571-00 701544 004571-00 B28 Screw;Hex Socket;Sink;M8x1.25Px28L;Adher No Model Compatibility List $1.54 / Each

2
004595-00 701562 004595-00 M14 Screw;Hex;3/8-16UNC-42L/Tooth14L; No Model Compatibility List $1.54 / Each

2
004613-00 701579 004613-00 N36 Screw;Phillip;BH;Tapped;3x12L;Gap;;Zn-B No Model Compatibility List $1.54 / Each

2
004622-00 701598 004622-00 Q35 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $1.54 / Each

2
004623-00 701599 004623-00 N34 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $1.54 / Each

2
004631-00 701612 004631-00 Q32 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $1.54 / Each

2
004754-00 701729 004754-00 Z03 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.38 / Each

2
004864-00 701847 004864-00 Q30 Screw;4x12L No Model Compatibility List $1.54 / Each

2
004867-A 701849 004867-A Q33 Screw;Phillip;Big BH;Tapped;4x15L No Model Compatibility List $1.54 / Each

2
004889-00 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004922-00 701889 004922-00 N09 Nut;Nylon;M3x0.5P No Model Compatibility List $1.38 / Each

2
004926-00 701897 004926-00 M40 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004934-00 701908 004934-00 M17 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.22 / Each

2
004941-00 701912 004941-00 K12 Nut;Nylon;M10x1.5P No Model Compatibility List $1.54 / Each

2
004975-00 701939 004975-00 B39 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005005-00 701964 005005-00 Z04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005062-00 702030 005062-00 M33 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005104-00 702073 005104-00 M08 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $1.54 / Each

2
005145-A 702118 005145-A M38 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005165-00 702136 005165-00 M16 Washer;Arc;8.2x18x1.5T No Model Compatibility List $1.54 / Each

2
005177-00 702145 005177-00 P18 Washer;Tooth;5.3X10.0X0.6T;BAN No Model Compatibility List $1.54 / Each

2
005196-00 702160 005196-00 H07 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.22 / Each

2
005393-00 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $7.88 / Each

2
005811-00 702299 005811-00 N28 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
010866-00 702806 010866-00 P26 Bushing;Strain Relief;Nylon66;SR-7R3;BL; Yes Model Compatibility List $3.36 / Each

8
018951-A 703881 018951-A B48 Elastomer;Front/Rear;Black Yes Model Compatibility List $10.70 / Each

4,5,6
020210-00 704087 020210-00 N16 Screw;Phillip;Round;3x20L No Model Compatibility List $1.54 / Each

2
020266-00 704114 020266-00 Z06 Screw;Hex Socket;BH;M8x1.25Px45L No Model Compatibility List $1.54 / Each

2
020352-A 704155 020352-A Q34 Screw;Phillip;Sink;Tapped;4x34L; No Model Compatibility List $1.54 / Each

2
020425-00 704175 020425-00 Z05 Washer;Flat;8.4x15.5x1.6T No Model Compatibility List $1.54 / Each

2
029437-00 705018 029437-00 N38 Screw;Phillip;BH;Tapped;3x10L;Zn+3(Whit No Model Compatibility List $1.54 / Each

2
032671-HF 705041 032671-HF M03 Motor Control Board;Digital Drive;1.75/2.0HP Yes Model Compatibility List $308.86 / Each

7,10
039043-00 705182 039043-00 M02 Elevation Motor Set;110V/80mm(225/3.96-4Pin) Yes Model Compatibility List $254.84 / Each

10,12,13,14
039400-BA 705259 039400-BA K10 Transport Wheel;Nylon Yes Model Compatibility List $7.36 / Each

8
040614-A 705286 040614-A N79 Ground Wire;250 No Model Compatibility List $2.94 / Each

4,5,6
040695-A 705308 040695-A P02 Power Switch Yes Model Compatibility List $22.10 / Each

4,5,6
040839-00 705323 040839-00 H25 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.22 / Each

2
048036-A 705329 048036-A N35 Screw;Phillip;BH;Tapped;4x12L;Color Zin No Model Compatibility List $1.54 / Each

2
049024-BA 705382 049024-BA K09 Flat;;;50C;TM196-K12B Yes Model Compatibility List $4.94 / Each

1
049262-00 705469 049262-00 M15 Screw;Hex;3/8-16UNCX55L-14L;;HE;;;;P-T No Model Compatibility List $3.08 / Each

2
049263-A 705470 049263-A Q31 Screw;Phillip;BH;Tapped;4x20L; No Model Compatibility List $1.54 / Each

2
049279-C 705480 049279-C H06 Screw;Special;M8X1.25PX9L-D10X9.5L;;HE;45#;BOX; No Model Compatibility List $3.08 / Each

2
049292-A 705488 049292-A H17 Washer;Flat;Teflon;8.1x20x1.0t; No Model Compatibility List $1.54 / Each

2
055202-A 705698 055202-A K11 Screw;Umbrella Hex Socket;M10x1.5Px40L-20L No Model Compatibility List $3.08 / Each

2
055204-A 705700 055204-A B32 Screw;SelfTapping;4x10L No Model Compatibility List $1.54 / Each

2,12,13,14
055269-AX 705707 055269-AX N63 Decal;Faceplate No Model Compatibility List $2.94 / Each

7,3,4,5,6
056374-AA 705857 056374-AA M06 Rubber Pad;Drive Motor;Shockproof No Model Compatibility List $7.36 / Each

10,12,13,14
056437-00 705893 056437-00 N90 Absorptive Plate;Zinc;15x25 No Model Compatibility List $1.46 / Each

3
060295-CA 706218 060295-CA KIT Digital Speed Sensor Yes Model Compatibility List $32.32 / Each

1
062769-00 706492 062769-00 M12 Screw;Hex Socket;Round;M8x1.25Px15L;BED; No Model Compatibility List $1.38 / Each

2
1000092332 707367 1000092332 K13 End Cap;Elevation Frame No Model Compatibility List $2.94 / Each

9,3,10
1000092676 707442 1000092676 Q02 Motor Cover;Down No Model Compatibility List $49.36 / Each

9,10
1000092678 707443 1000092678 Q04 Rear Roller Cover;Left;ABS;TM616 Yes Model Compatibility List $14.16 / Each

8,9
1000092679 707444 1000092679 Q05 Rear Roller Cover;Right;ABS;TM616 Yes Model Compatibility List $14.16 / Each

8,9
1000092805 707457 1000092805 Not shown Silicon Oil;40ml No Model Compatibility List $24.99 / Each

1
1000093022 707495 1000093022 AR1 Roller Set;Front Yes Model Compatibility List $147.40 / Each

8
1000094015 707652 1000094015 P14 Speed Sensor Wire;1000mm;Analog Yes Model Compatibility List $8.32 / Each

4,5,6
1000094117 707666 1000094117 B41 Air Shock;50KG(680L)Damping ;TM616 Yes Model Compatibility List $42.62 / Each

4,5,6,12,13,14
1000094740 707737 1000094740 P31 Console Cable;Upper;600L(XHS2.5-12P+HX3002-12P) Yes Model Compatibility List $25.10 / Each

4,5,6
1000094741 707738 1000094741 P30 Console Cable;Lower;1700L;HX3002+2.5-12P;TM616 Yes Model Compatibility List $44.22 / Each

7,4,5,6
1000094861 707756 1000094861 B25 Rear Leveler;Foot Frame Yes Model Compatibility List $1.46 / Each

9,3
1000094874 707758 1000094874 H19 Connecting Axle;Elevation Shock No Model Compatibility List $2.94 / Each

8,10
1000094875 707759 1000094875 H20 Spring No Model Compatibility List $3.08 / Each

2
1000094876 707760 1000094876 K50 Leveler Foot;Base;PVC;3/8-16UNC;BLACK;TM616 Yes Model Compatibility List $4.94 / Each

3,4,5,6,9
1000094883 707762 1000094883 P11 Power Cord;16AWG;2M;TM616-P05A Yes Model Compatibility List $44.22 / Each

4,5,6
1000094931 707768 1000094931 AH4 Lock Latch Set;Galvanization;TM616 No Model Compatibility List $7.70 / Each

1
1000094932 707769 1000094932 H21 C Clip;Combined With 6mm Axle No Model Compatibility List $1.46 / Each

2,8
1000096517 707863 1000096517 N83 Speaker;3W8;XHS-2Y;400MM Yes Model Compatibility List $19.26 / Each

1
1000097464 707990 1000097464 H24 Single Foam;One-Sided;27x20x1.5t;Black No Model Compatibility List $1.46 / Each

4,5,6
1000097465 707991 1000097465 R04 Screw;SH;M8X1.25PX80L;;HS;;BZN;;F-T Yes Model Compatibility List $6.08 / Each

2
1000097476 707993 1000097476 B38 Screw;Phillip;BH;Tapped;4x25L;Gap; No Model Compatibility List $1.42 / Each

2
1000099273 708088 1000099273 H23 Decal;Insert Tube;protected piece No Model Compatibility List $1.46 / Each

7,3
1000101235 708210 1000101235 B20 Elastomer;Decorative;Small;PVC;422C;TM626 Yes Model Compatibility List $13.78 / Each

1
1000101236 708211 1000101236 B21 Elastomer;Decorative;Large Front;TPR;8322C;TM6 Yes Model Compatibility List $13.78 / Each

1
1000101240 708213 1000101240 AC1 Console Mast Set;Left;Semi-Assy;TM626-1U No Model Compatibility List $135.72 / Each

7
1000101247 708215 1000101247 C14 End Cap;Handlebar;Black Yes Model Compatibility List $8.94 / Each

4,5,6,9,11
1000101248 708216 1000101248 AC2 Console Mast Set;Right;Painting;TM626-1U No Model Compatibility List $135.72 / Each

7
1000101262 708217 1000101262 N01 Console Plastic;;ABS;Black;TM626 No Model Compatibility List $72.72 / Each

7,9,4,5,6
1000101263 708218 1000101263 N02 Console Faceplate;ABS;DS199;TM626 No Model Compatibility List $29.48 / Each

7,3,4,5,6
1000101264 708219 1000101264 N03 Cover;Down;Console:ABS;Black Yes Model Compatibility List $6.82 / Each

7,9,4,5,6
1000101265 708220 1000101265 N04 Speaker;Metal Net;MM314;TM626 No Model Compatibility List $19.22 / Each

3
1000101277 708221 1000101277 Q01 Motor Cover;Upper Yes Model Compatibility List $39.58 / Each

9,10
1000101278 708222 1000101278 Q03 Decal;Motor Cover No Model Compatibility List $6.82 / Each

7,9,3,10
1000101280 708223 1000101280 Q07 Siderail;Right;Black;TM626; No Model Compatibility List $28.38 / Each

9,4,5,6
1000101281 708224 1000101281 Q08 Cover;Side Rail;Left Yes Model Compatibility List $8.94 / Each

9
1000101282 708225 1000101282 Q09 Cover;Side Rail;Right Yes Model Compatibility List $9.94 / Each

9
1000101285 708226 1000101285 R02 Running Belt;Black;495X2910X1.4T Yes Model Compatibility List $200.76 / Each

15,4,5,6
1000101297 708227 1000101297 AZ1 Hardware Pack No Model Compatibility List $21.76 / Each

4,5,6
1000101537 708254 1000101537 N61 Overlay No Model Compatibility List $29.48 / Each

1
1000101538 708255 1000101538 N62 Keypad No Model Compatibility List $103.18 / Each

9,12,13,14
1000101735 708275 1000101735 N60 UCB;GS950T;HES102-03PE;noRoHs Yes Model Compatibility List $349.50 / Each

1
1000102172 708343 1000102172 AH1 Elevation Rack Set;Semi-Assy;TM622-1US No Model Compatibility List $108.34 / Each

4,5,6,10
1000103438 708563 1000103438 C15 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
1000104162 708611 1000104162 V01 Sticker;Motor Up Cover patch;TM626 No Model Compatibility List $6.82 / Each

9,10
1000104163 708612 1000104163 V02 Sticker;Poly;Side Rail Cover;TM626 No Model Compatibility List $2.94 / Each

9
1000104164 708613 1000104164 V03 Sticker;Poly;Model;TM626 No Model Compatibility List $2.72 / Each

1
1000104173 708615 1000104173 B27 Running Deck;675x1220x18T Yes Model Compatibility List $200.76 / Each

3
1000104595 708634 1000104595 AN4 Reed Switch Yes Model Compatibility List $18.99 / Each

4,5,6
1000104596 708635 1000104596 N74 Line;Earphone-AAMP connection;500mm No Model Compatibility List $7.36 / Each

4,5,6
1000105094 708726 1000105094 N43 Safety Key Set Yes Model Compatibility List $30.88 / Each

9
1000105774 708774 1000105774 V04 Logo Sticker;HZ;ABS No Model Compatibility List $2.94 / Each

1
1000106028 708784 1000106028 N08 Special Washer;TM626 No Model Compatibility List $1.46 / Each

2
1000106043 708787 1000106043 M05 Mounting Bracket;Drive Motor Yes Model Compatibility List $28.64 / Each

3,10
1000107020 708894 1000107020 V15 Sticker;POP;L;Console;TM626 No Model Compatibility List $2.72 / Each

7,12,13,14
1000107021 708895 1000107021 V16 Sticker;POP;R;Console;TM626 No Model Compatibility List $2.72 / Each

7,12,13,14
1000108035 708988 1000108035 AH3 Sleeve;Insert Tube Yes Model Compatibility List $24.38 / Each

3
1000109292 709083 1000109292 AH2 Insert Tube Set;zincification;TM622 Yes Model Compatibility List $13.12 / Each

3
1000109551 709101 1000109551 R03 Drive Belt;Poly-V;180-J8 Yes Model Compatibility List $46.32 / Each

15,10
1000111822 709278 1000111822 M01 Motor set;Semi-Assy;;BLACK C;2.25HP/90V; Yes Model Compatibility List $499.00 / Each

4,5,6,10
1000114499 709448 1000114499 KIT Owners Manual No Model Compatibility List $5.50 / Each

1
1000216278 711070 1000216278 P10 Static/Ground Wire;Deck;;;TM639-1US; No Model Compatibility List $2.94 / Each

3,4,5,6
1000231818 712964 1000231818 Q06 SIDE RAIL ;LEFT;BLACK;TM626;TOOLING SHAR Yes Model Compatibility List $19.16 / Each

9,4,5,6
1000386873 721965 1000386873 KIT Manual;TM safety direction;;EN/FR/ES;MAT No Model Compatibility List $5.88 / Each

9
079425 726042 079425 D45 Screw;Hex Socket;BH;M8x1.25x45L;Tooth15L No Model Compatibility List $1.54 / Each

2
080875 726236 080875 P21 Screw;Phillip;Big Umbrella;Tapped;;4x10 No Model Compatibility List $1.54 / Each

2
094040 728326 094040 H13 Cap;Support Base;Rear;TM367 No Model Compatibility List $1.90 / Each

9,3
096744 728753 096744 N67 Amp Control Board;VFD 3W H101 Yes Model Compatibility List $42.46 / Each

4,5,6,7
098282 728889 098282 N39 Pulse Sensor Set;800mm;31.8+2.5-2P JIND Yes Model Compatibility List $24.10 / Each

12,13,14
098561 728898 098561 N69 Wire;Headphone Jack;500mm No Model Compatibility List $2.94 / Each

4,5,6
099121 728946 099121 N67 Audio In Set Yes Model Compatibility List $4.94 / Each

1
099122 728947 099122 N68 Audio Out Set No Model Compatibility List $2.94 / Each

1
099695 728961 099695 AR2 Roller Set;Rear;TM603-1US Yes Model Compatibility List $147.40 / Each

8
729074 Part of AC1 or AC2 C13 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729104 Part of Frame K08 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729236 Part of M01 M04 No Model Compatibility List $0.00 / Each
Out Of Stock
1
View Drawing
