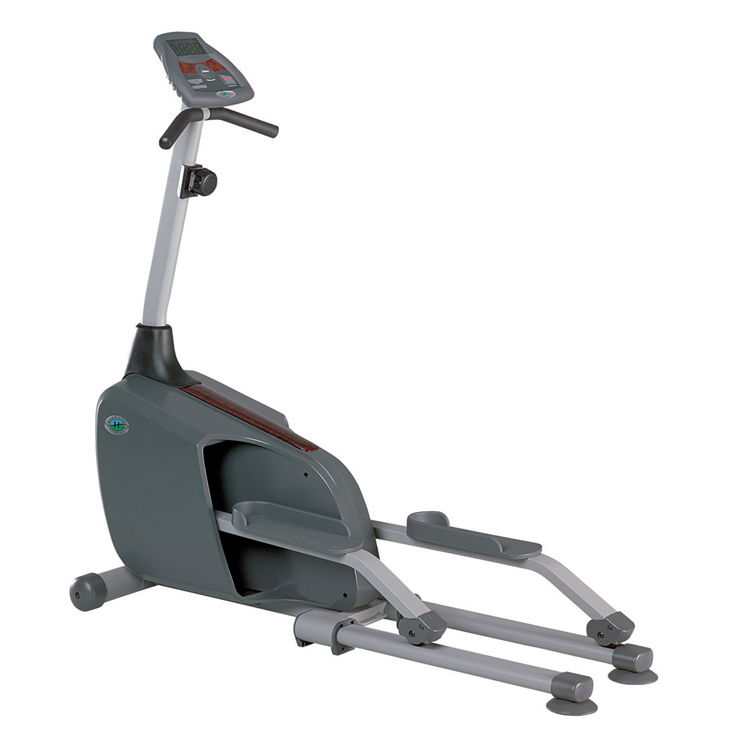

Horizon Fitness - Kinetic - 2001

Repair Parts for Horizon Fitness Kinetic EP043

Brand: Horizon Fitness

Category: Traditional

Type: Elliptical

Model Name: Kinetic

Version: 2001

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - R31 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
H 700272 000829-AB H04 Foot Pad;Guide Rail Yes Model Compatibility List $12.48 / Each

3,9,12,13,14
P 700769 002230-00 P01 Speed Sensor Wire;480(OKI+SM-2Y);RB18 No Model Compatibility List $3.72 / Each

4,5,6
R 701042 003413-00 R37 Magnet;Crank Wheel;15x7t No Model Compatibility List $4.00 / Each

8
R 701154 004072-A2 R32 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $11.60 / Each

8
R 701165 004081-A2 R08 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
R 701202 004157-00 R10 Drive Belt;Poly-V;430-J8 Yes Model Compatibility List $57.49 / Each

15,10
L 701270 004331-AB L08 Screw,oval head; M6x1.0Px25L No Model Compatibility List $2.00 / Each

2
Q 701300 004364-00 Q11 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
S 701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
H 701408 004462-00 H07 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
N 701586 004617-00 N05 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 701591 004620-00 L06 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701613 004632-00 Q07 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
701690 004719-00 R24 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
C 701737 004762-00 C20 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
L 701781 004796-00 L04 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
E 701897 004926-00 E14 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701904 004931-00 S11 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.59 / Each

2
E 701912 004941-00 E20 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

2
R 701927 004964-00 R11 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 701991 005029-00 R28 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
R 701996 005034-00 R23 Washer;Flat;8.2x26.5x1.6T No Model Compatibility List $2.00 / Each

2
L 702040 005070-00 L07 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
702076 005109-00 C19 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
C 702135 005163-00 C51 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
702153 005189-00 E18 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

2
R 702180 005222-00 R22 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
E 702191 005237-00 E19 Washer;Lock;10.5x25.0x1.0tT No Model Compatibility List $2.00 / Each

2
R 702236 005361-00 R33 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
R 702240 005365-00 R34 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
n 702254 005386-00 n/a Wrench;Open;17mm No Model Compatibility List $4.00 / Each

2
n 702259 005395-00 n/a Wrench;T-Type;5mm No Model Compatibility List $10.01 / Each

2
n 702264 005412-00 n/a Wrench;L-Type;5mm;With Screwdriver No Model Compatibility List $2.00 / Each

2,10
Q 702483 007964-00 Q13 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
P 702511 008393-00 P04 Bracket;Speed Sensor No Model Compatibility List $1.90 / Each

2,3,4,5,6
R 702512 008394-00 R14 Fix Plate;Eye Bolt;;SPC;1.3t;;;AB01 No Model Compatibility List $1.51 / Each

2,3
R 702601 008914-B R12 Nut;Fixing;S46C;AN04 M20x1.0Px6t;BED; No Model Compatibility List $4.00 / Each

2
R 702874 013036-Z R31 Roller Wheel Set No Model Compatibility List $57.49 / Each

8
R 702901 013178-Z R01 Pedal Axle Set No Model Compatibility List $136.03 / Each
Out Of Stock 		8,9
A 702906 013188-Z AE5 Pivot Tube Set, w/ bushings - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $56.24 / Each

8,3
R 725259 103299 R21 Bushing;Pedal Arm No Model Compatibility List $10.01 / Each

8,9,3
Foot Pedal Pad Right - Used 1019648 003996-EB Q09 1 Foot Pedal Pad Right - Used Yes Model Compatibility List $25.99 / Each
Out Of Stock 		9
Foot Pedal Pad Left 1019635 003995-EB Q10 1 Foot Pedal Pad Left Yes Model Compatibility List $25.99 / Each

9
R 1002352 004157-00 R10 1 Motor Drive Belt 8 Ribs 43" Yes Model Compatibility List $31.99 / Each

23
View Drawing
