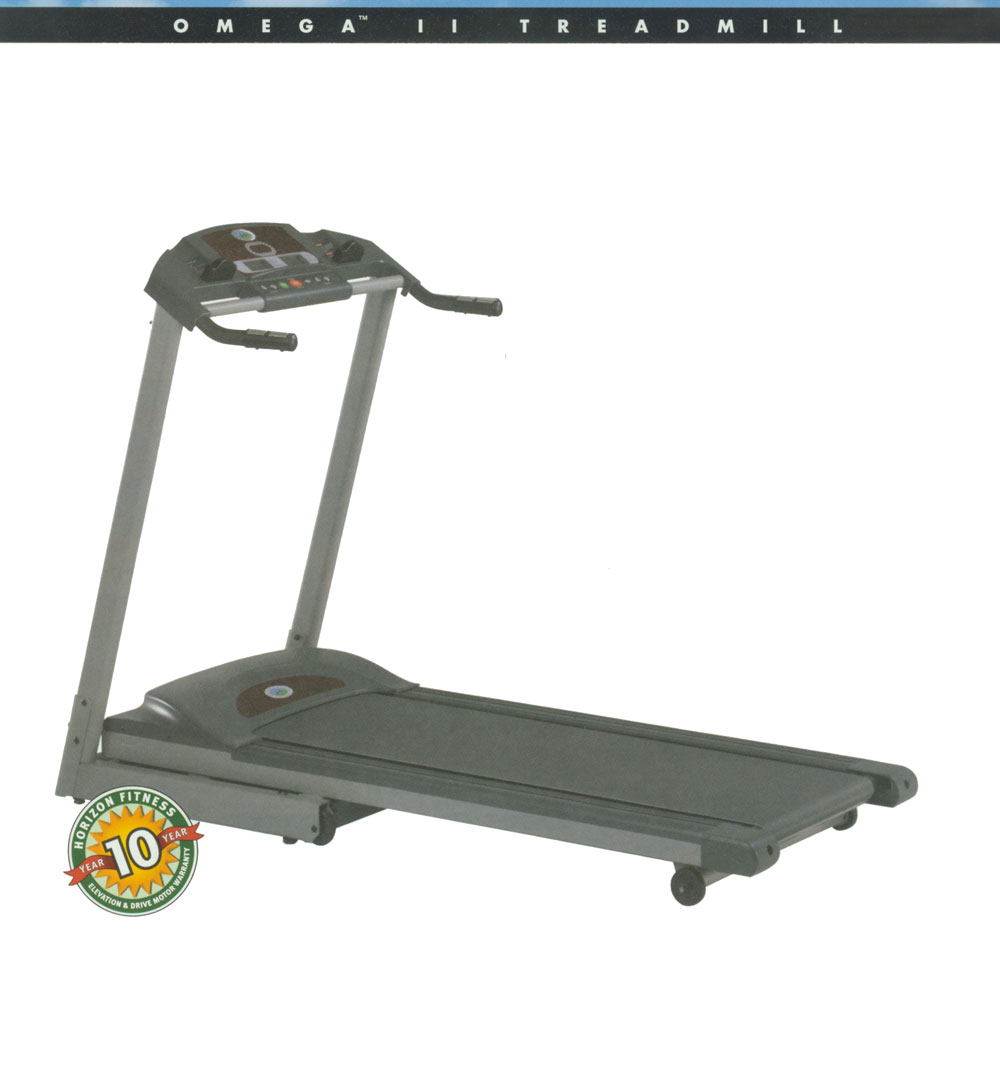

Horizon Fitness - Omega II - 2002

Repair Parts for Horizon Fitness Omega II MTM61

Brand: Horizon Fitness

Category: Folding

Type: Folding Treadmill

Model Name: Omega II

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Cover/trim
  • Switch
  • Sensors
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700014 000021-B L05 Mobile Wheel;Rear Deck Yes Model Compatibility List $11.62 / Each

3,8
L 700017 000031-C L01 Mobile Wheel No Model Compatibility List $3.82 / Each

8
K 700132 000485-00 K09 Leveler;Rubber;W3/8-16UNC Yes Model Compatibility List $9.09 / Each

3
K 700135 000491-B K11 Wing Nut;Leveler;W3/8-16UNC;BED BL SPC No Model Compatibility List $2.47 / Each

2,3
M 700211 000682-A M21 Foam Tape;Double Sided;150x30x3t No Model Compatibility List $1.90 / Each

1
N 700304 000920-00 N29 End Cap;Handlebar Yes Model Compatibility List $4.50 / Each

9,11
Q 700402 001251-F Q10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

2,9
N 700433 001363-B N17 Stopper;Water Bottle Holder - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $3.64 / Each
Out Of Stock 		1
P 700568 001675-00 P12 Bushing,;Strain Relief (SR-7R1 (110V)) No Model Compatibility List $1.90 / Each

8
N 700700 001952-00 N22 Fixing Plate;Reed Switch No Model Compatibility List $1.90 / Each

3,4,5,6
N 700702 001956-C N23 Reed Switch Yes Model Compatibility List $21.27 / Each

4,5,6
P 700721 002027-A P06 Console Cable;3200 (2.5-12P) Yes Model Compatibility List $38.32 / Each

7,4,5,6
P 700746 002124-B P08 Connecting Cable;Socket/Breaker;60;16AWG Black No Model Compatibility List $3.82 / Each

4,5,6
P 700759 002193-00 P09 AC Wire;Motor Control Board;550 16AWG Yes Model Compatibility List $3.82 / Each

7,4,5,6,10
700773 002248-D P14 Speed Sensor Wire;1000mm(Reed Switch+2.5-2P) Yes Model Compatibility List $18.15 / Each

4,5,6
701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

4,5,6
701020 003346-00 P04 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

4,5,6
M 701033 003386-A M17 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
R 701044 003415-00 R10 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
N 701047 003432-B N32 Pulse Sensor Set;Single;750 Yes Model Compatibility List $21.27 / Each

12,13,14
R 701235 004232-EB R02 Running Belt; 460x2785x1.6t No Model Compatibility List $249.13 / Each

15
B 701250 004294-FA B31 Running Deck;608x1220Lx18t No Model Compatibility List $249.13 / Each

3
P 701294 004359-00 P29 Screw;Phillip;BH;M4x0.7Px10L;Gap; No Model Compatibility List $1.79 / Each

2
B 701308 004369-00 B35 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
P 701328 004381-00 P17 Screw;Oval Head;M5x0.8Px25L No Model Compatibility List $2.00 / Each

2
G 701345 004391-00 G04 Screw;M5x0.8Px10L No Model Compatibility List $2.00 / Each

2
P 701364 004415-Z P13 Screw;M3x0.5Px10L;Power Socket No Model Compatibility List $1.79 / Each

2,4,5,6
C 701418 004468-00 C21 Screw;Hex Socket;Round;M6x1.0Px25L;;Zn-B No Model Compatibility List $1.79 / Each

2
C 701422 004471-Z C18 Screw,Round-hex-socket [M6 x 1.0P x 3/4L] No Model Compatibility List $2.00 / Each

2
M 701434 004481-Z M46 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
R 701440 004483-00 R08 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
R 701444 004486-00 R04 Screw;Round;Hex Socket;M8X1.25PX85L Yes Model Compatibility List $9.80 / Each

2
R 701445 004488-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;BED; Yes Model Compatibility List $2.00 / Each

2
M 701454 004502-00 M06 Screw;Hex Socket;Round;5/16-18UNCx16L;Ad No Model Compatibility List $2.00 / Each

2
B 701540 004568-Z B36 Screw;Hex Socket;Sink;M8x1.25Px45L No Model Compatibility List $2.00 / Each

2
M 701558 004589-00 M10 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

2
M 701570 004603-ZA M14 Screw;Hex;W3/8x60L;Tooth18L Yes Model Compatibility List $4.00 / Each

2
P 701577 004612-00 P15 Screw;Phillip;BH;Tapped;3x8L No Model Compatibility List $2.00 / Each

2
M 701586 004617-00 M24 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
N 701591 004620-00 N06 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
L 701713 004730-00 L03 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

2
C 701721 004741-00 C08 Screw;Oval Hex Socket;M8x1.25Px60L No Model Compatibility List $2.00 / Each

2
C 701781 004796-00 C10 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
Q 701847 004864-00 Q23 Screw;4x12L No Model Compatibility List $2.00 / Each

2
Q 701851 004870-00 Q11 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
P 701866 004889-00 P19 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

2
C 701893 004925-00 C19 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
R 701897 004926-00 R05 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
M 701908 004934-00 M12 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
L 701918 004949-00 L09 Nut;Mobile Wheel;Nylon;3/8'-16UNC;BED; No Model Compatibility List $2.00 / Each

2,8
K 701934 004972-00 K10 Insert Nut;Brass;ALS7-616-150(0.02-0.15) No Model Compatibility List $1.90 / Each

2
M 701964 005005-00 M25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
R 702007 005044-00 R07 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
M 702030 005062-00 M13 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
R 702074 005106-00 R06 Washer;Flat;10.2x20.0x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
C 702135 005163-00 C23 Washer;Arc;8.4x17x1.0T No Model Compatibility List $2.57 / Each

2
B 702160 005196-00 B65 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

2
B 702192 005238-00 B29 Washer;Lock;8.2x16x1.25T No Model Compatibility List $1.66 / Each

2
Q 702240 005365-00 Q13 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
K 702257 005393-00 KIT Wrench;T-Type;6mm No Model Compatibility List $10.24 / Each

2
702275 005438-00 L15 Spring;Foot Lock Latch;16x2.0x50Lx12N Yes Model Compatibility List $2.00 / Each

2,9,3
B 702450 007490-C B52 Fix Plate;Speed Sensor No Model Compatibility List $1.90 / Each

3
B 702455 007526-D B34 Belt Guide No Model Compatibility List $9.57 / Each

15
N 702483 007964-00 N42 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
B 702552 008609-00 B41 Bolt;Air Shock;M8X1.25P S45C No Model Compatibility List $10.01 / Each

2
C 702554 008622-B C16 Slide Axle Sleeve Yes Model Compatibility List $9.02 / Each

3,8
B 702556 008625-C B44 Bolt;Incline Support;M8x1.25Px32L No Model Compatibility List $2.00 / Each

2,3,10
L 702561 008641-C L14 Bolt;M5x1.25Px12L-6L No Model Compatibility List $2.00 / Each

2
B 702760 009557-A B28 Air Shock;110Kg Yes Model Compatibility List $37.83 / Each

1
M 702851 012798-00 M02 Elevation Motor;110V Yes Model Compatibility List $249.13 / Each

10
M 703352 013674-DG M03 Motor Control Board;Everything Yes Model Compatibility List $584.82 / Each

7,10
M 703353 013676-DG M03 MCB;Motor;;;;;1.75HP/110V;H109;MASS No Model Compatibility List $402.19 / Each

10
P 703502 015046-AC P21 Fix Plate;Power Socket Yes Model Compatibility List $12.48 / Each

3,4,5,6
A 703785 016488-Z AN2 Safety Key Set Yes Model Compatibility List $40.14 / Each

9
A 703786 016504-Z AR1 Front Roller Set Yes Model Compatibility List $191.62 / Each

8
M 703787 016507-Z M01 Drive Motor Set;1.75HP Yes Model Compatibility List $383.27 / Each

10
K 704087 020210-00 KIT Screw;Phillip;Round;3x20L No Model Compatibility List $2.00 / Each

2
N 705141 038132-BBX N37 Heart Rate Receiver Yes Model Compatibility List $54.39 / Each

12,13,14
K 707457 1000092805 KIT Silicon Oil;40ml No Model Compatibility List $32.49 / Each

1
709034 1000108449 AR2 Roller Set;Rear;TM59 Yes Model Compatibility List $191.62 / Each

8
R 709102 1000109577 R03 Drive Belt;Poly-V;170-J8 Yes Model Compatibility List $60.22 / Each

15,10
C 709111 1000109776 C22 Screw;RND;M6x1.0Px8L;HS;CHM;BP;G8.8 No Model Compatibility List $2.47 / Each

2
K 729334 ZMS1000217 KIT TREADMILL WAX WITH INSTRUCTIONS No Model Compatibility List $15.18 / Each

1
Power Cord OEM (Used Only) 1017635 083864 # 1 Power Cord OEM (Used Only) Yes Model Compatibility List $45.49 / Each

4,6
Display Console - Used Only 1017636 9008004 # 1 Display Console - Used Only Yes Model Compatibility List $206.70 / Each

7
Motor Hood Cover - Used 1017633 MTM61-Cover # 1 Motor Hood Cover - Used Yes Model Compatibility List $89.70 / Each

9
N 700287 000920-00 N29 1 End Cap Yes Model Compatibility List $2.98 / Each

1
Rear Idler Roller 1001049 1000108449 0 1 Rear Idler Roller No Model Compatibility List $144.99 / Each

1
Safety Key Set 1001221 016488-Z 0 1 Safety Key Set No Model Compatibility List $29.99 / Each

1
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

6,24
P 1002861 002248-D P14 1 Sensor RPM Yes Model Compatibility List $25.99 / Each

47
Elastomer (Used) 1031150 005248-ZB B30 Elastomer (Used) No Model Compatibility List $5.00 / Each

1
Left End Cap (Used) 1031147 MB0238003D Q06 Left End Cap (Used) No Model Compatibility List $10.00 / Each
Out Of Stock 		1
Motor Cover Set (Used) 1031155 SZTM59FCV Q01 Motor Cover Set (Used) No Model Compatibility List $49.00 / Each
Out Of Stock 		18
R 1020604 004483-00 R08 Front Roller Screw M8-1.25"x25mm (New) No Model Compatibility List $11.99 / Each

1
